The Empirical Rule

The Empirical Rule. Note that the empirical APPLIES ONLY TO NORMAL DISTRIBUTIONS . The empirical Rule states that Approximately 68% of the data values fall within one standard deviation of the mean Approximately 95% of the data values fall within 2 standard deviations of the mean

reece
Download Presentation

The Empirical Rule

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. The Empirical Rule Note that the empirical APPLIES ONLY TO NORMAL DISTRIBUTIONS. The empirical Rule states that • Approximately 68% of the data values fall within one standard deviation of the mean • Approximately 95% of the data values fall within 2 standard deviations of the mean • Approximately 99.8% of the data values fall within 3 standard deviations of the mean

  2. The Empirical Rule ~ 68% of the Observations Fall Within (±) 1 Standard Deviation Around the Mean 68% _ -1s X +1s

  3. The Empirical Rule ~ 95% of the Observations Fall Within (±) 2 SD Around the Mean 95% _ -2s -1s X +1s +2s

  4. The Empirical Rule ~ 99.8% of the Observations Fall Within (±) 3 SD Around the Mean 99.8% _ -3s-2s -1s X +1s +2s +3s

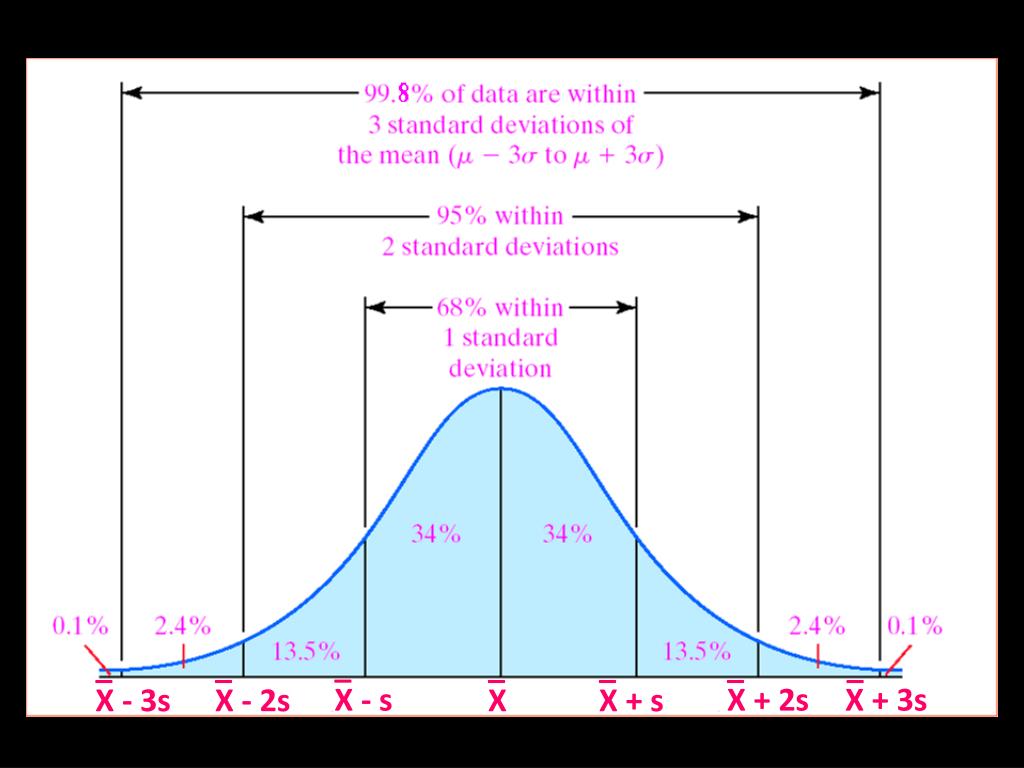

  5. _ _ _ _ _ _ _ X - s X + 2s X + 3s X - 3s X - 2s X X + s

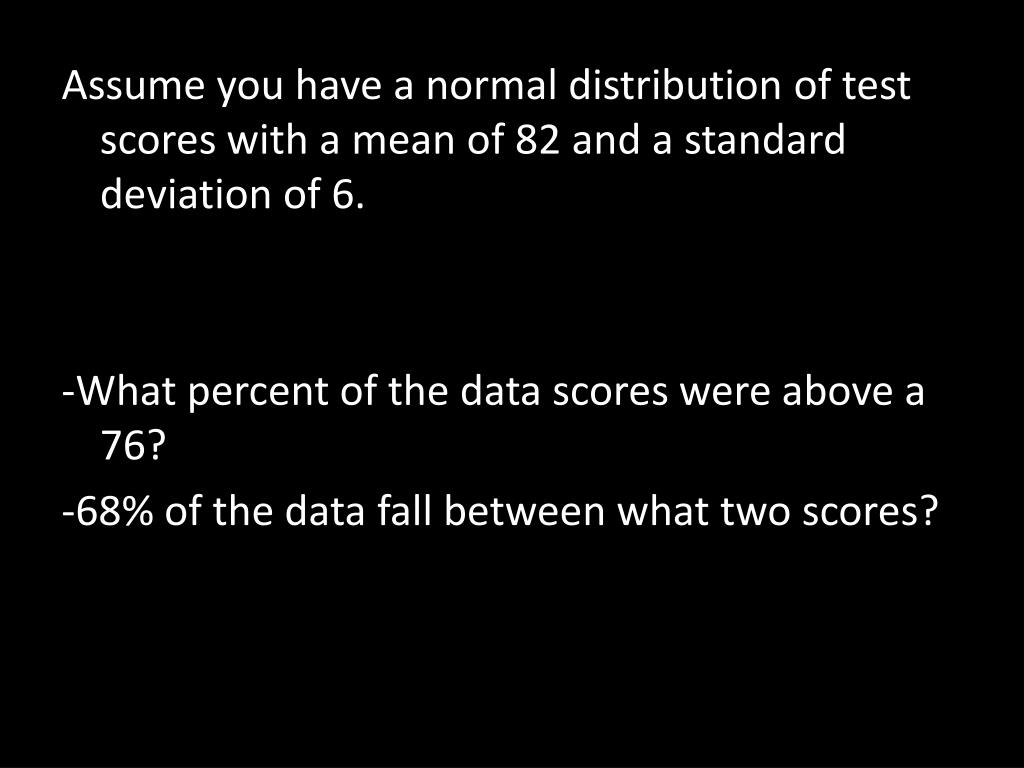

  6. Assume you have a normal distribution of test scores with a mean of 82 and a standard deviation of 6. -What percent of the data scores were above a 76? -68% of the data fall between what two scores?

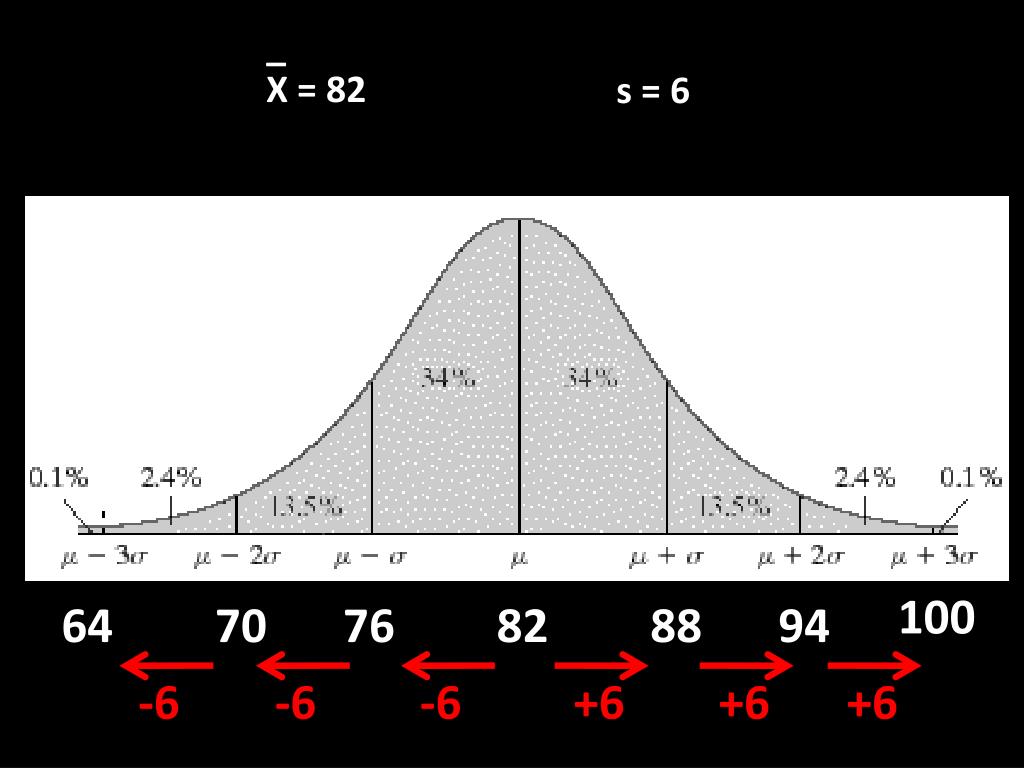

  7. _ X = 82 s = 6 100 64 70 76 82 88 94 -6 -6 -6 +6 +6 +6

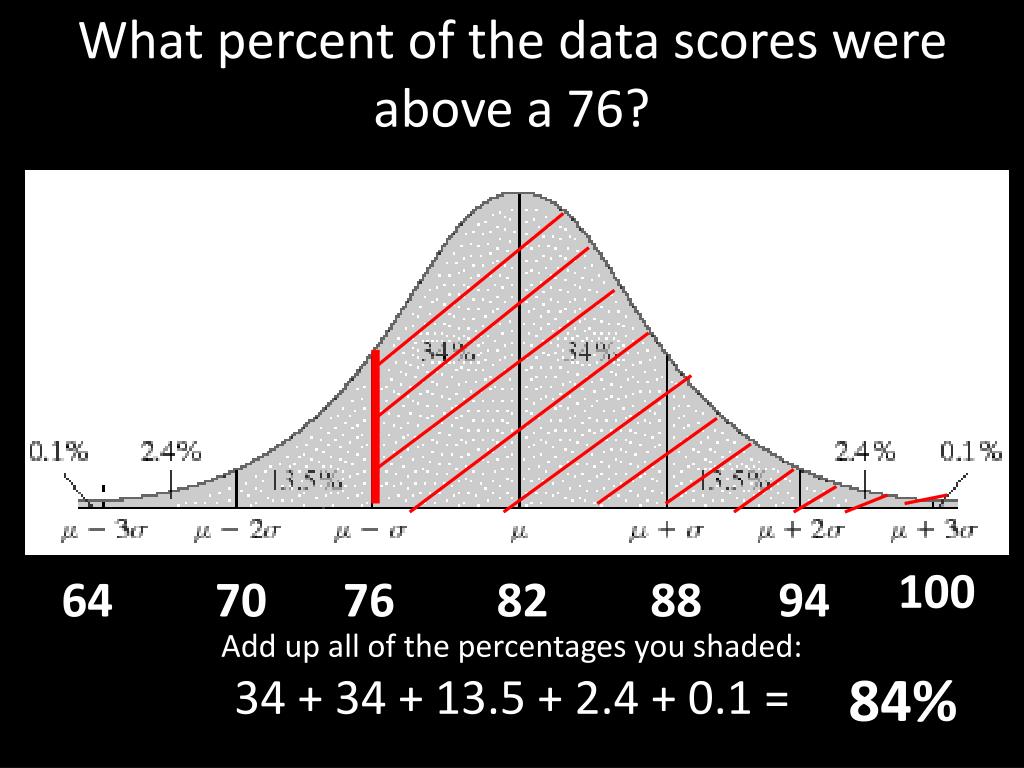

  8. What percent of the data scores were above a 76? 100 64 70 76 82 88 94 Add up all of the percentages you shaded: 34 + 34 + 13.5 + 2.4 + 0.1 = 84%

  9. 68% of the data fall between what two scores? 100 64 70 76 82 88 94 The “boundaries” around 68% of the data are: 76, 88

  10. A charity puts on a relay race to raise money. The times of the finishes are normally distributed with a mean of 53 minutes and a standard deviation of 9.5 minutes. -What percent of the data times were between 34 and 81.5 minutes? -95% of the data fall between what two times? -What percent of the data times were below 72 minutes?

  11. _ X = 53 s = 9.5 24.5 34 43.5 53 62.5 72 81.5 -9.5 -9.5 -9.5 +9.5 +9.5 +9.5

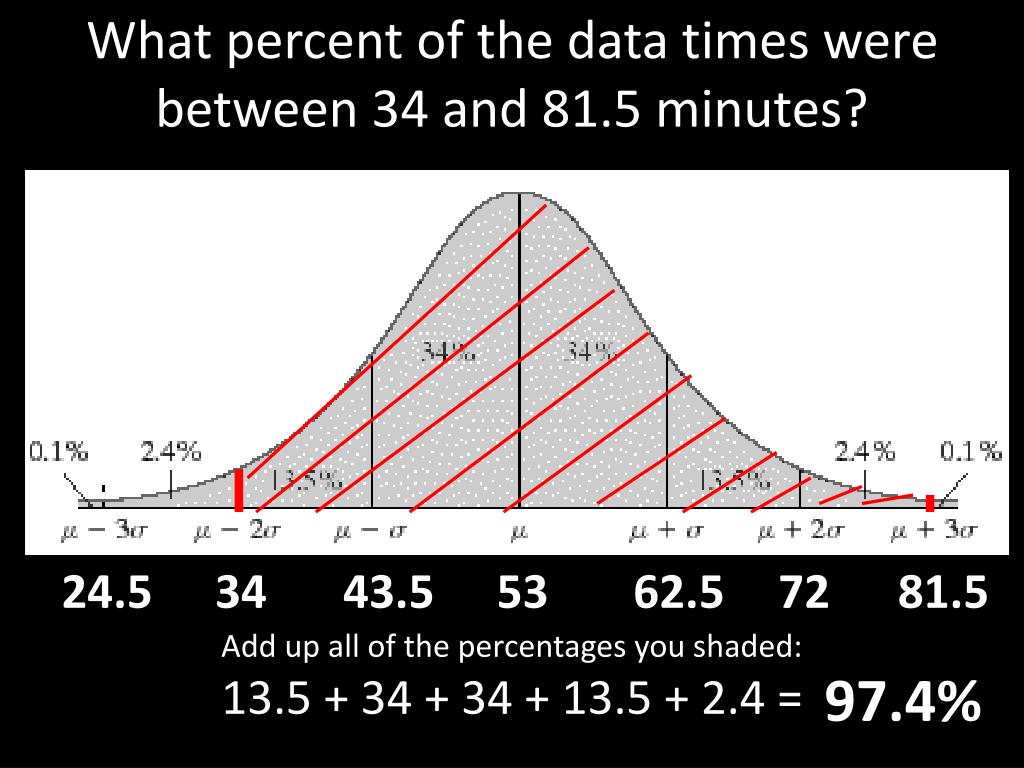

  12. What percent of the data times were between 34 and 81.5 minutes? 24.5 34 43.5 53 62.5 72 81.5 Add up all of the percentages you shaded: 13.5 + 34 + 34 + 13.5 + 2.4 = 97.4%

  13. 95% of the data fall between what two times? 24.5 34 43.5 53 62.5 72 81.5 The “boundaries” around 95% of the data are: 34, 72

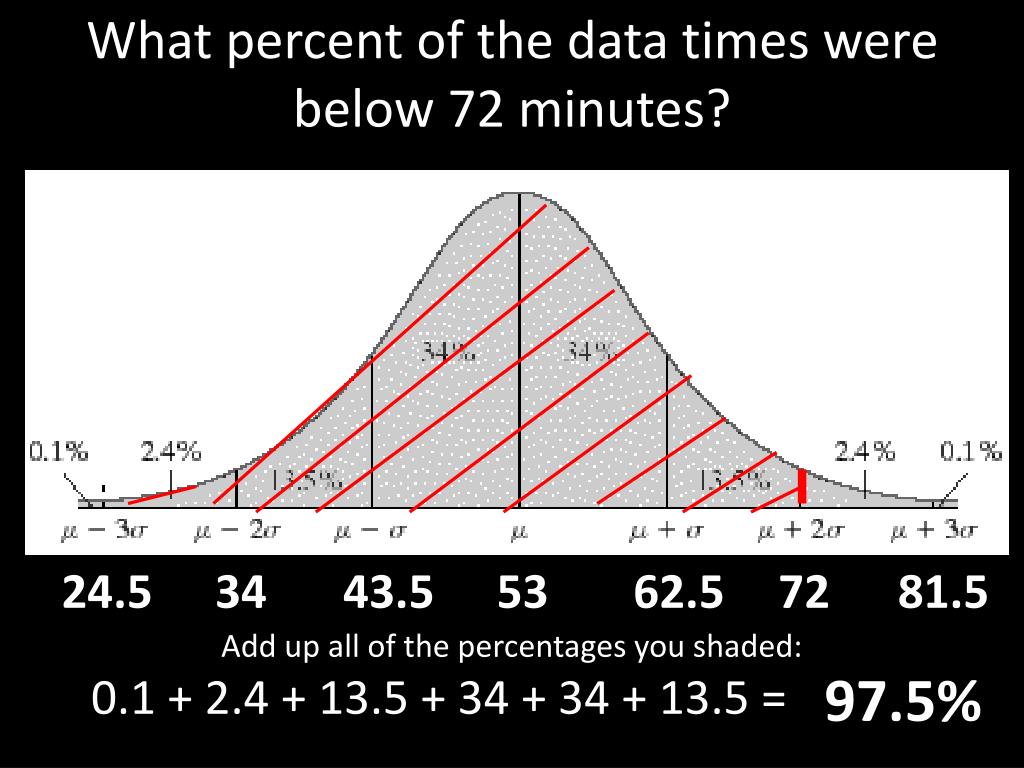

  14. What percent of the data times were below 72 minutes? 24.5 34 43.5 53 62.5 72 81.5 Add up all of the percentages you shaded: 0.1 + 2.4 + 13.5 + 34 + 34 + 13.5 = 97.5%
