Beats

Beats. Beats are often observed between two sounds with similar frequencies . A beat is distortion of the sound you hear when two different frequencies are aligned momentarily If the two frequencies are close enough, the sound will vary between loud and non-existent.

reece
Download Presentation

Beats

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

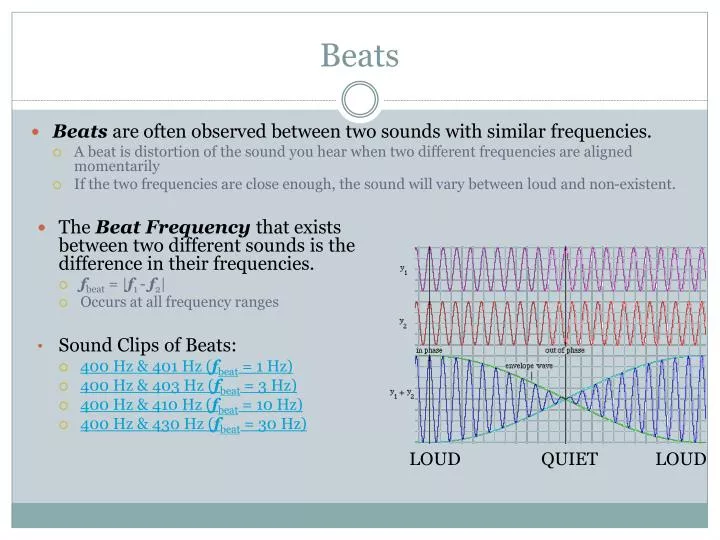

  1. Beats • Beats are often observed between two sounds with similar frequencies. • A beat is distortion of the sound you hear when two different frequencies are aligned momentarily • If the two frequencies are close enough, the sound will vary between loud and non-existent. • The Beat Frequency that exists between two different sounds is the difference in their frequencies. • fbeat = |f1 - f2| • Occurs at all frequency ranges • Sound Clips of Beats: • 400 Hz & 401 Hz (fbeat = 1 Hz) • 400 Hz & 403 Hz (fbeat = 3 Hz) • 400 Hz & 410 Hz (fbeat = 10 Hz) • 400 Hz & 430 Hz (fbeat = 30 Hz) LOUD QUIET LOUD
