Analyzing Polynomial & Rational Functions & Their Graphs

Analyzing Polynomial & Rational Functions & Their Graphs. Steps in Analysis of Graphs of Poly-Rat Functions Examine graph for the domain with attention to holes. (If f = p / q, “holes” are where q ( x ) = 0.) Here there will be vertical asymptotes.

redford
Download Presentation

Analyzing Polynomial & Rational Functions & Their Graphs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

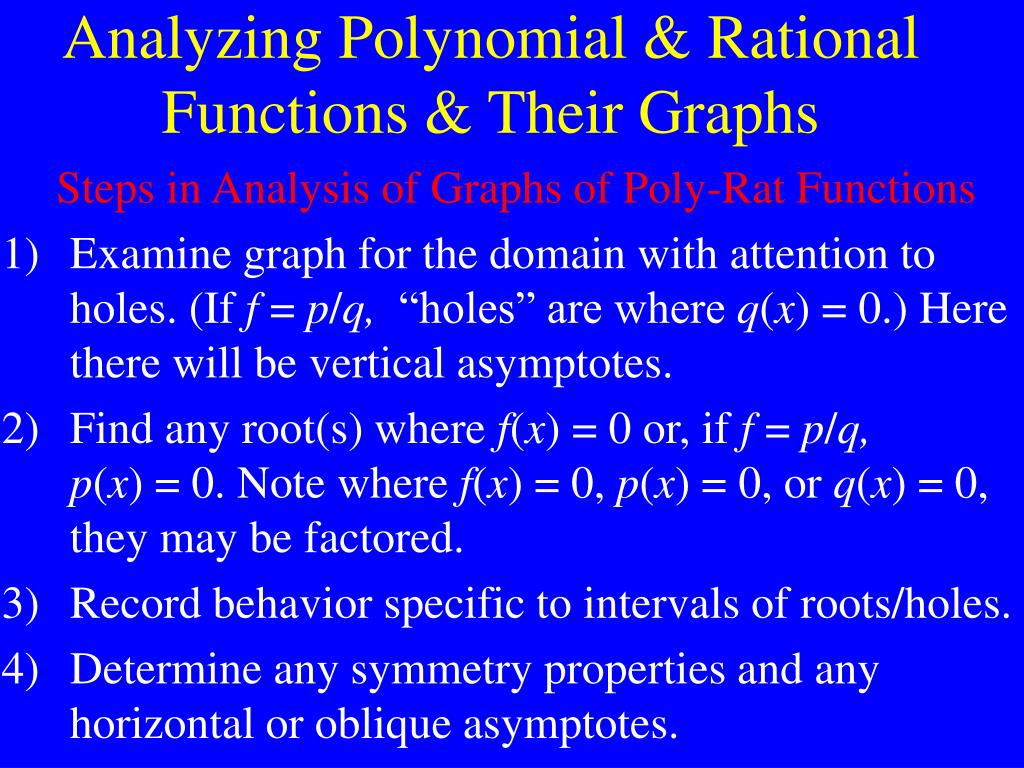

  1. Analyzing Polynomial & Rational Functions & Their Graphs Steps in Analysis of Graphs of Poly-Rat Functions Examine graph for the domain with attention to holes. (If f = p/q, “holes” are where q(x) = 0.) Here there will be vertical asymptotes. Find any root(s) where f(x) = 0 or, if f = p/q, p(x) = 0. Note where f(x) = 0, p(x) = 0, or q(x) = 0, they may be factored. Record behavior specific to intervals of roots/holes. Determine any symmetry properties and any horizontal or oblique asymptotes.

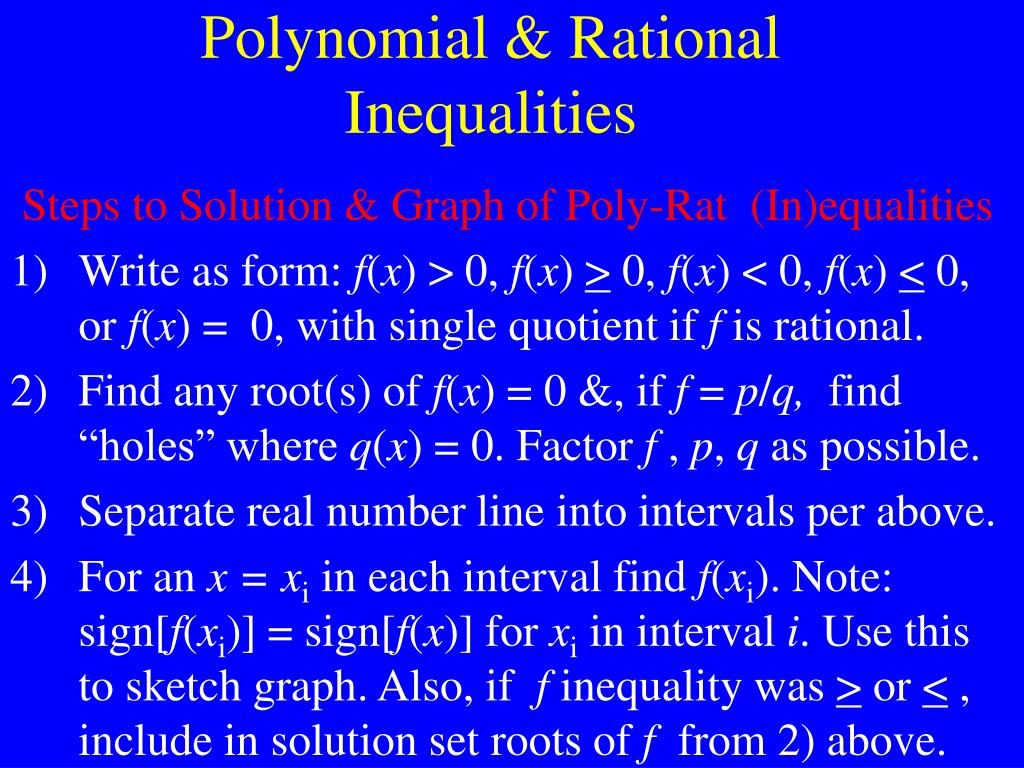

  2. Polynomial & Rational Inequalities Steps to Solution & Graph of Poly-Rat (In)equalities Write as form: f(x) > 0, f(x) > 0, f(x) < 0, f(x) < 0, or f(x) = 0, with single quotient if f is rational. Find any root(s) of f(x) = 0 &, if f = p/q, find “holes” where q(x) = 0. Factor f , p, q as possible. Separate real number line into intervals per above. For an x = xi in each interval find f(xi). Note: sign[f(xi)] = sign[f(x)] for xi in interval i. Use this to sketch graph. Also, if f inequality was > or < , include in solution set roots of f from 2) above.

  3. Poly-Rat Inequalities Example Step 1: (x + 3) – (x + 3)(x – 1)> 0. (x– 1)2 (x – 1)(x – 1) Solve & graph: (x + 3) > (x + 3) . (x2 - 2x + 1) (x – 1) (x + 3)(2 – x) > 0 ___ (x – 1)2 or f(x) = p(x)/q(x) > 0 with p(x) = (x + 3)(2 – x) and q(x) = (x – 1)2.

  4. Poly-Rat Inequalities Example cont’d Step 2: Note roots of f(x) = roots of p(x). They are at x = –3 and at x = 2. The point x = 1 is a zero of q(x) so there f(x) is undefined and x = 1 is a “hole” or not in the domain. Solve & graph: (x + 3)(2 – x) > 0 ___ (x – 1)2 Step 3: The intervals: (-, -3]; [-3, 1); (1, 2]; [2, ). f(x) values: f(-4)= -6/25, f(0)= 6, f(3/2)= 9, f(3)= -3/2 ,

  5. Poly-Rat Inequalities Example cont’d Step 2 & 3 Data Summery: x-intercepts: atx = –3 and atx = 2. y-intercept: aty = f(0) = 6. f(-x) = (-x + 3)(2 + x)   f(-x) _ _ (-x – 1)2 No symmetry. Solve & graph: (x + 3)(2 – x) > 0 ___ (x – 1)2

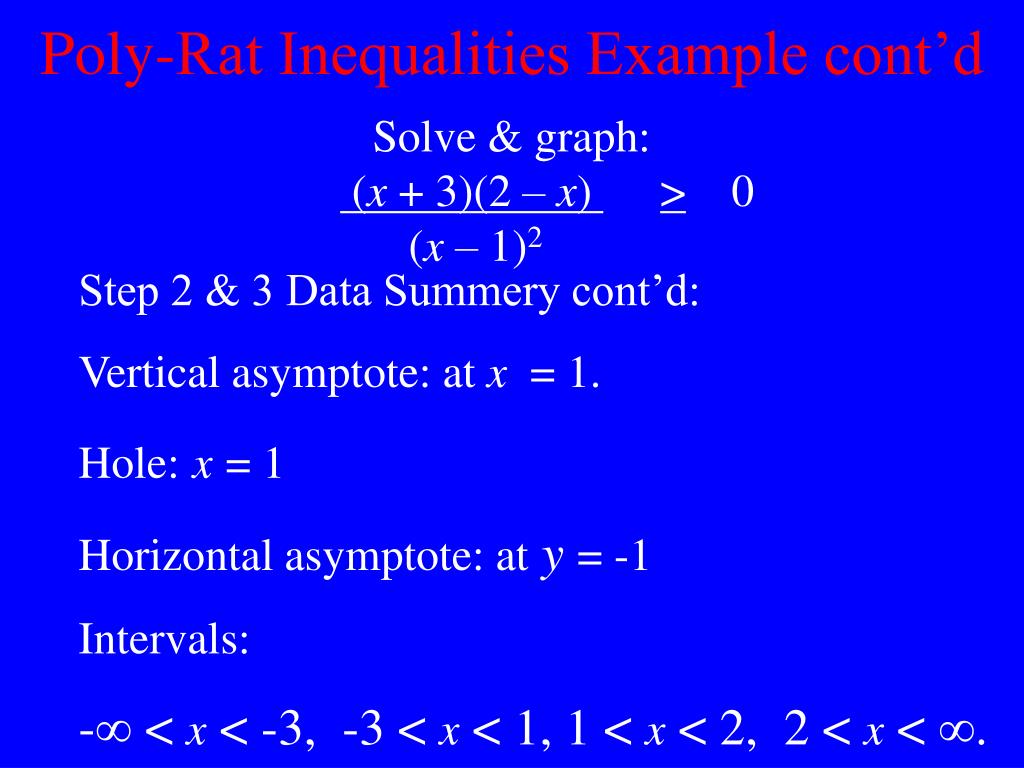

  6. Poly-Rat Inequalities Example cont’d Step 2 & 3 Data Summery cont’d: Vertical asymptote: at x = 1. Hole:x= 1 Horizontal asymptote: aty= -1 Intervals: - < x < -3, -3 < x < 1, 1 < x < 2, 2 < x < . Solve & graph: (x + 3)(2 – x) > 0 ___ (x – 1)2

  7. Poly-Rat Inequalities Example cont’d f(x) = (x + 3)(2 – x)/(x – 1)2. Test evaluations of f(x) to get sign in intervals 3 -4 0 3/2 f(3)= -3/2 f(-4)= -6/25 f(0) = 6 f(3/2) = 9 Above x -axis Above x -axis Below x-axis Below x-axis (-4, -6/25) (0, 6) (3/2, 9) (3, -3/2)

  8. [ )( ] [ )( ] -3 -2 -1 0 1 2 -3 -2 -1 0 1 2 Poly-Rat Inequalities Example cont’d Step 4 Graphs: A) Solution set as intervals on the number line – (-, -3]; [-3, 1); (1, 2]; [2, ). neg 0 pos  pos 0 neg Solve & graph: (x + 3)(2 – x) > 0 ___ (x – 1)2

  9. Poly-Rat Inequalities Example cont’d Step 4 Graphs: B) Solution set in graph sketch of f(x) versus x. First plot known points. Then sketch. Do not forget in sketching to include information about asymptotes. In this case, since x = 1 is a zero of multiplicity 2 in q(x), there is a vertical asymptote at x = 1. Also, since both p(x) and q(x) are of 2nd degree, there is a horizontal asymptote at y = – 1/1 as |x| increases. Solve & graph: (x + 3)(2 – x) > 0 ___ (x – 1)2

  10. 9- 6- 3-         -5 -4 -3 -2 -1 0 1 2 3 4 5 Test values: (-4, -6/25), (3/2, 9), (3, -3/2) Sketch of f(x) graph Hole & Asymptotes: (1, 0), x = 1, y = -2 Intercepts: (-3, 0), (0, 6), (2, 0) Sketch of f(x) > 0 graph in red Poly-Rat Inequalities Example cont’d Solve & graph: (x + 3)(2 – x) > 0 ___ (x – 1)2
