a speech about boosting

A speech about Boosting

Presenter: Roberto Valenti

the paper
The Paper*

*R.Schapire. The boosting approach to Machine Learning An Overview, 2001

i want you
I want YOU…

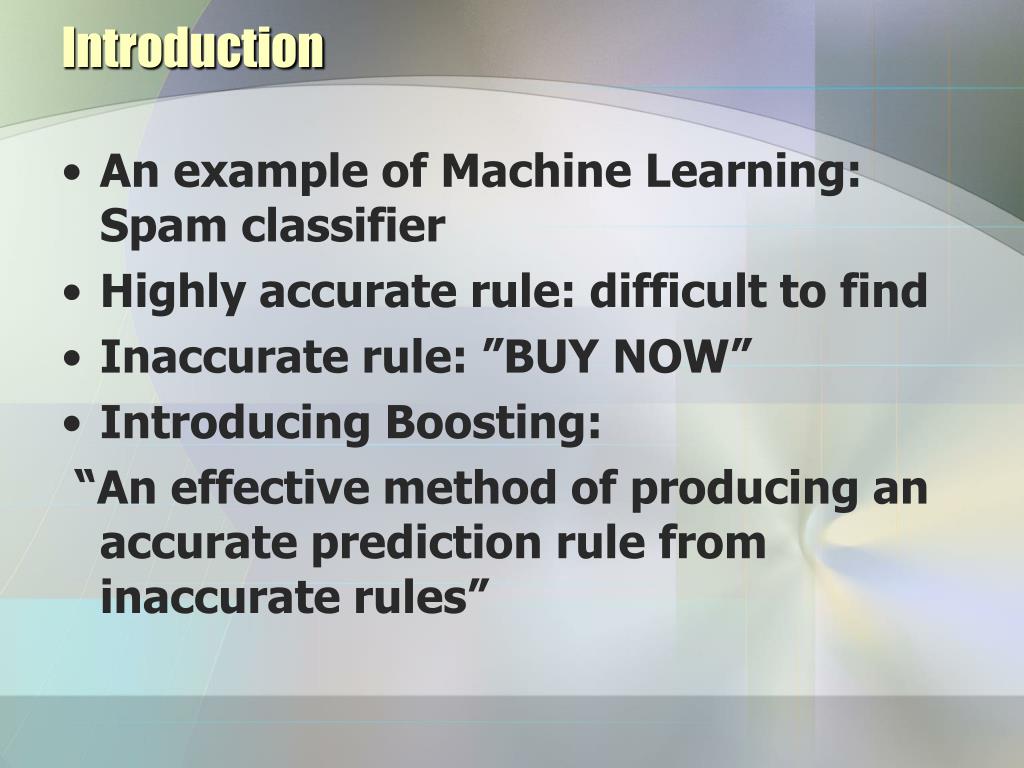

  • Introduction
  • Adaboost
    • How Does it work?
    • Why does it work?
    • Demo
    • Extensions
    • Performance & Applications
  • Summary & Conclusions
  • Questions
  • An example of Machine Learning: Spam classifier
  • Highly accurate rule: difficult to find
  • Inaccurate rule: ”BUY NOW”
  • Introducing Boosting:

“An effective method of producing an accurate prediction rule from inaccurate rules”

  • History of boosting:
    • 1989: Schapire
      • First provable polynomial time boosting
    • 1990: Freund
      • Much more efficient, but practical drawbacks
    • 1995: Freund & Schapire
      • Adaboost: Focus of this Presentation
  • The Boosting Approach
    • Lots of Weak Classifiers
    • One Strong Classifier
  • Boosting key points:
    • Give importance to misclassified data
    • Find a way to combine weak classifiers in general rule.


How does it work?

adaboost how does it work11
Adaboost – How does it work?

Base Learner Job:

    • Find a base Hypothesis:
    • Minimize the error:
  • Choose at


Why does it work?

adaboost why does it work
Adaboost – Why does it work?
  • Basic property: reduce the training error
  • On binary Distributions:

e =1/2 - gt

  • Training error bounded by:
  • Is at most e-2Tg2 ->drops exponentially!
adaboost why does it work15
Adaboost – Why does it work?
  • Generalization Error bounded by:
    • T= number of iterations
    • m=sample size
    • d= Vapnik-Chervonenkis dimension2
    • Pr [.]= empirical probability
    • Õ = Logarithmic and constant factors
  • Overfitting in T!
adaboost why does it work16
Adaboost – Why does it work?
  • Margins of the training examples


  • Positive only if correctly classified by H
  • Confidence in prediction:
  • Qualitative Explanation of Effectiveness
    • Not Quantitative.
adaboost other view
Adaboost – Other View
  • Adaboost as a zero-sum Game
    • Game matrix M
    • Row Player: Adaboost
    • Column Player: Base Learner
    • Row player plays rows with distribution P
    • Column player plays with distribution Q
    • Expected Loss: PTMQ
  • Play a Repeated game Matrix
adaboost other view18
Adaboost – Other View
  • Von Neumann’s minmax theorem:
  • If exist a classifier with e <1/2 - g
  • Then exist a combination of base classifiers with margin > 2g
  • Adaboost has potential of success
  • Relations with Linear Programming and Online Learning



adaboost extensions
Adaboost - Extensions
  • History of Boosting:
    • 1997: Freund & Schapire
      • Adaboost.M1
        • First Multiclass Generalization
        • Fails if weak learner achieves less than 50%
      • Adaboost.M2
        • Creates a set of binary problems
        • For x, better l1 or l2?
    • 1999: Schapire & Singer
      • Adaboost.MH
        • For x, better l1 or one of the others?
adaboost extensions23
Adaboost - Extensions
    • 2001: Rochery, Schapire et al.
      • Incorporating Human Knowledge
  • Adaboost is data-driven
  • Human Knowledge can compensate lack of data
  • Human expert:
    • Chose rule p mapping x to p(x) Є [0,1]
    • Difficult!
    • Simple rules should work..
adaboost extensions24
Adaboost - Extensions
  • To incorporate human knowledge
  • Where

RE(p||q)=p ln(p/q)+(1-p) ln((1-p)/(1-q))



Performance and Applications

adaboost performance applications
Adaboost - Performance & Applications

Error Rates on Text categorization

Reuters newswire articles

AP newswire headlines

adaboost performance applications27
Adaboost - Performance & Applications

Six Class Text Classification (TREC)

Test Error

Training Error

adaboost performance applications28
Adaboost - Performance & Applications

Spoken Language Classification

“How may I help you”

“Help desk”

adaboost performance applications29
Adaboost - Performance & Applications

OCR: Outliers





class, label1/weight1,label2/weight2

adaboost applications
Adaboost - Applications
  • Text filtering
    • Schapire, Singer, Singhal. Boosting and Rocchio applied to text filtering.1998
  • Routing
    • Iyer, Lewis, Schapire, Singer, Singhal. Boosting for document routing.2000
  • “Ranking” problems
    • Freund, Iyer, Schapire, Singer. An efficient boostingalgorithm for combining preferences.1998
  • Image retrieval
    • Tieu, Viola. Boosting image retrieval.2000
  • Medical diagnosis
    • Merler, Furlanello, Larcher, Sboner. Tuning costsensitive boosting and its application to melanoma diagnosis.2001
adaboost applications31
Adaboost - Applications
  • Learning problems in natural language processing
    • Abney, Schapire, Singer. Boosting applied to tagging and PP attachment.1999
    • Collins. Discriminative reranking for natural language parsing.2000
    • Escudero, Marquez, Rigau. Boosting applied to word sense disambiguation.2000
    • Haruno, Shirai, Ooyama. Using decision trees to construct a practical parser.1999
    • Moreno, Logan, Raj. A boosting approach for confidence scoring.2001
    • Walker, Rambow, Rogati. SPoT: A trainable sentence planner.2001
  • Boosting takes a weak learner and converts it to a strong one
  • Works by asymptotically minimizing the training error
  • Effectively maximizes the margin of the combined hypothesis
  • Adaboost is related to other many topics
  • It Works!
  • Adaboost advantages:
    • Fast, simple and easy to program
    • No parameter required
  • Performance Dependency:
    • (Skurichina, 2001) Boosting is only useful for large sample size.
    • Choice of weak classifier
    • Incorporation of classifier weights
    • Data distribution


(don’t be mean)
