Anesthesia Machines

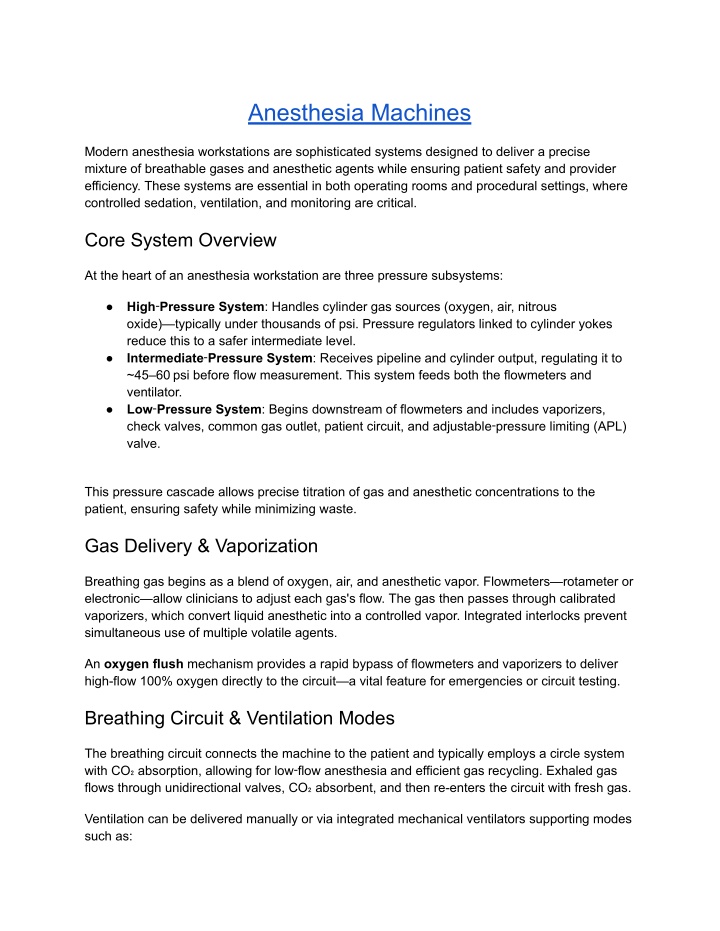

1. Anesthesia Machines Modern anesthesia workstations are sophisticated systems designed to deliver a precise mixture of breathable gases and anesthetic agents while ensuring patient safety and provider efficiency. These systems are essential in both operating rooms and procedural settings, where controlled sedation, ventilation, and monitoring are critical. Core System Overview At the heart of an anesthesia workstation are three pressure subsystems: ● High‑Pressure System: Handles cylinder gas sources (oxygen, air, nitrous oxide)—typically under thousands of psi. Pressure regulators linked to cylinder yokes reduce this to a safer intermediate level. ● Intermediate‑Pressure System: Receives pipeline and cylinder output, regulating it to ~45–60 psi before flow measurement. This system feeds both the flowmeters and ventilator. ● Low‑Pressure System: Begins downstream of flowmeters and includes vaporizers, check valves, common gas outlet, patient circuit, and adjustable‑pressure limiting (APL) valve. This pressure cascade allows precise titration of gas and anesthetic concentrations to the patient, ensuring safety while minimizing waste. Gas Delivery & Vaporization Breathing gas begins as a blend of oxygen, air, and anesthetic vapor. Flowmeters—rotameter or electronic—allow clinicians to adjust each gas's flow. The gas then passes through calibrated vaporizers, which convert liquid anesthetic into a controlled vapor. Integrated interlocks prevent simultaneous use of multiple volatile agents. An oxygen flush mechanism provides a rapid bypass of flowmeters and vaporizers to deliver high-flow 100% oxygen directly to the circuit—a vital feature for emergencies or circuit testing. Breathing Circuit & Ventilation Modes The breathing circuit connects the machine to the patient and typically employs a circle system with CO₂ absorption, allowing for low‑flow anesthesia and efficient gas recycling. Exhaled gas flows through unidirectional valves, CO₂ absorbent, and then re-enters the circuit with fresh gas. Ventilation can be delivered manually or via integrated mechanical ventilators supporting modes such as:

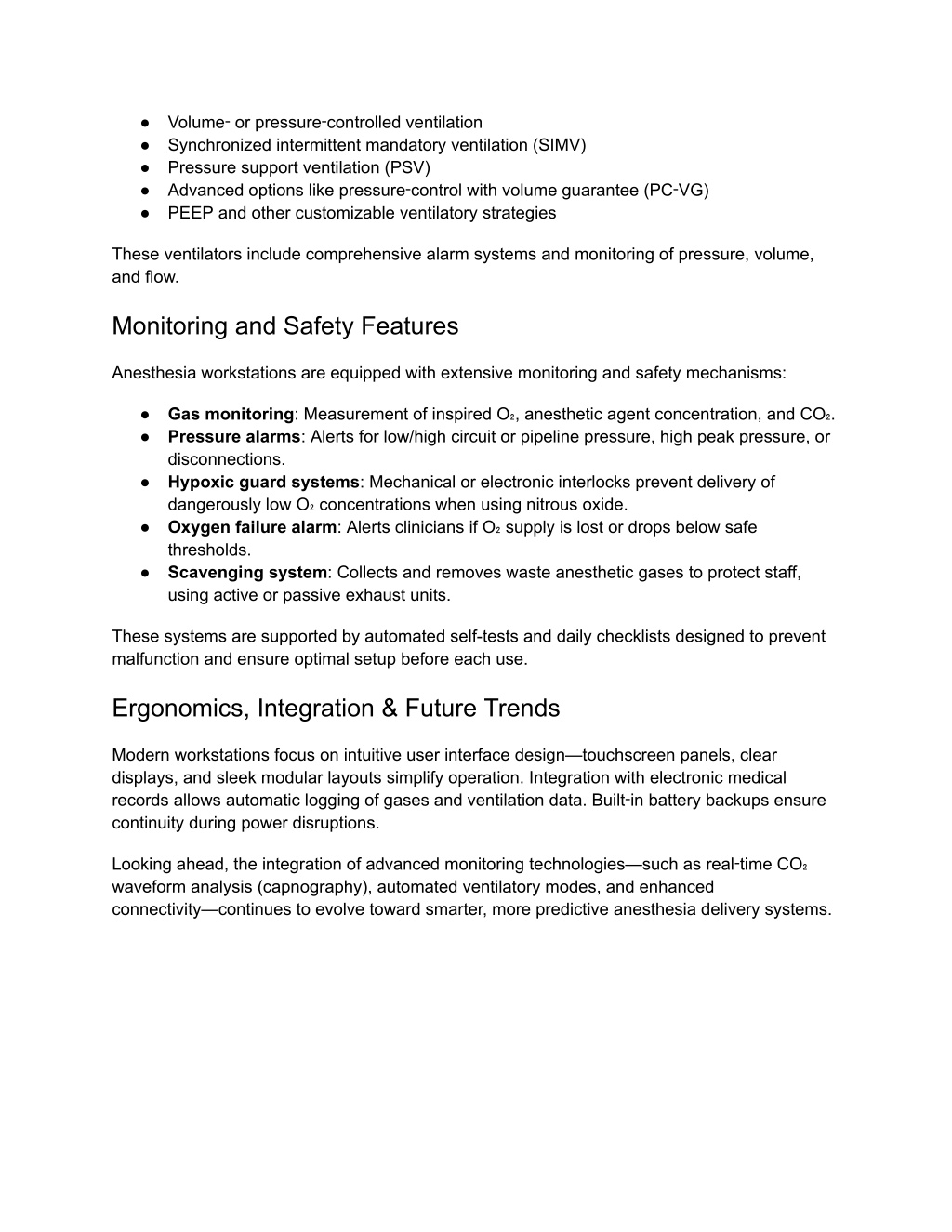

2. ● Volume‑ or pressure‑controlled ventilation ● Synchronized intermittent mandatory ventilation (SIMV) ● Pressure support ventilation (PSV) ● Advanced options like pressure‑control with volume guarantee (PC‑VG) ● PEEP and other customizable ventilatory strategies These ventilators include comprehensive alarm systems and monitoring of pressure, volume, and flow. Monitoring and Safety Features Anesthesia workstations are equipped with extensive monitoring and safety mechanisms: ● Gas monitoring: Measurement of inspired O₂, anesthetic agent concentration, and CO₂. ● Pressure alarms: Alerts for low/high circuit or pipeline pressure, high peak pressure, or disconnections. ● Hypoxic guard systems: Mechanical or electronic interlocks prevent delivery of dangerously low O₂ concentrations when using nitrous oxide. ● Oxygen failure alarm: Alerts clinicians if O₂ supply is lost or drops below safe thresholds. ● Scavenging system: Collects and removes waste anesthetic gases to protect staff, using active or passive exhaust units. These systems are supported by automated self-tests and daily checklists designed to prevent malfunction and ensure optimal setup before each use. Ergonomics, Integration & Future Trends Modern workstations focus on intuitive user interface design—touchscreen panels, clear displays, and sleek modular layouts simplify operation. Integration with electronic medical records allows automatic logging of gases and ventilation data. Built‑in battery backups ensure continuity during power disruptions. Looking ahead, the integration of advanced monitoring technologies—such as real‑time CO₂ waveform analysis (capnography), automated ventilatory modes, and enhanced connectivity—continues to evolve toward smarter, more predictive anesthesia delivery systems.
