AHP. 一、 AHP 介绍 1 、 T.L.Satty70 年代中期提出 2 、是一种整理和综合主观判断的客观方法 3 、适用于多目标、多准则的复杂评价问题。 二、 AHP 的步骤 1 、明确问题 2 、建立层次结构模型 3 、建立判断矩阵及其一致性检验 4 、层次单排序 5 、层次总排序. G. 评选明星学员. C1. C2. C3. 知识. 自信. 教养. P1. P2. P3. 层次结构模型:. 目标层. 准则层. 方案层. 1 - 9 标度法:. 判断矩阵:. 和积法(层次单排序):. 一致性检验:.

Download Presentation

AHP

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

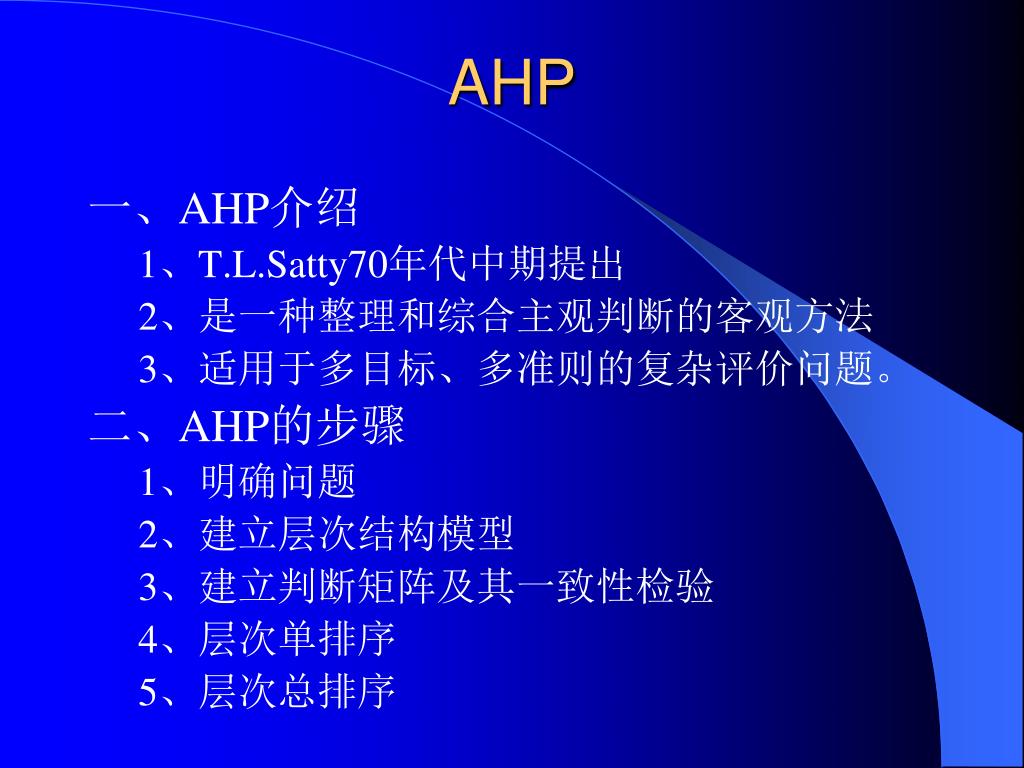

  1. AHP 一、AHP介绍 1、T.L.Satty70年代中期提出 2、是一种整理和综合主观判断的客观方法 3、适用于多目标、多准则的复杂评价问题。 二、AHP的步骤 1、明确问题 2、建立层次结构模型 3、建立判断矩阵及其一致性检验 4、层次单排序 5、层次总排序

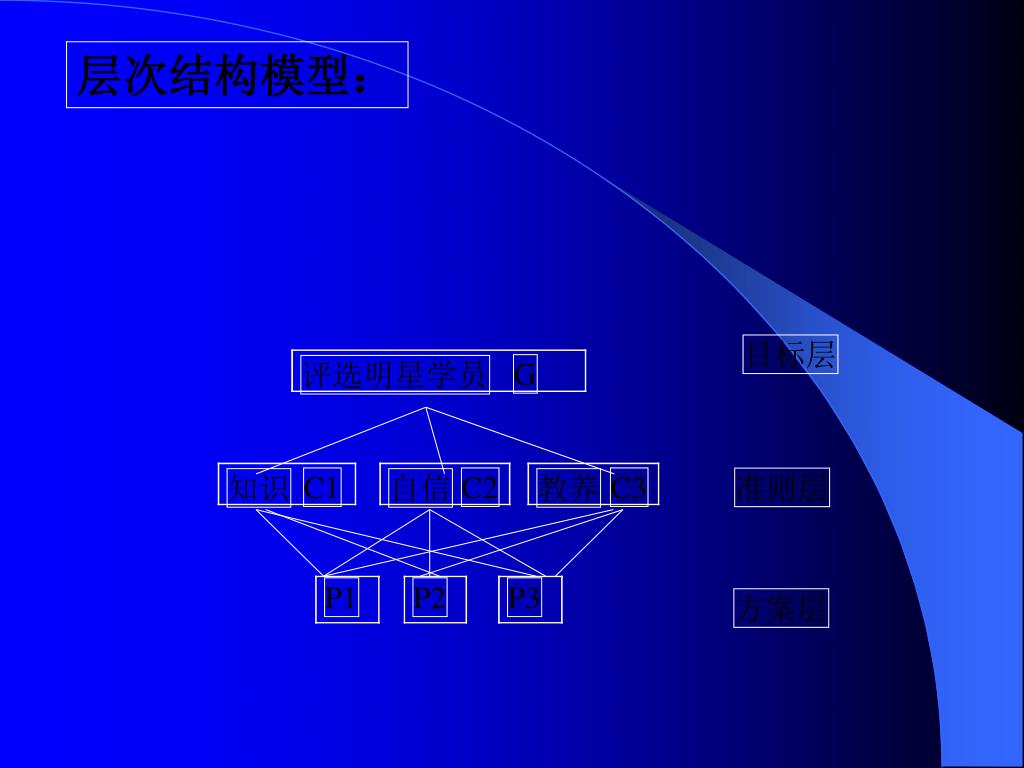

  2. G 评选明星学员 C1 C2 C3 知识 自信 教养 P1 P2 P3 层次结构模型: 目标层 准则层 方案层

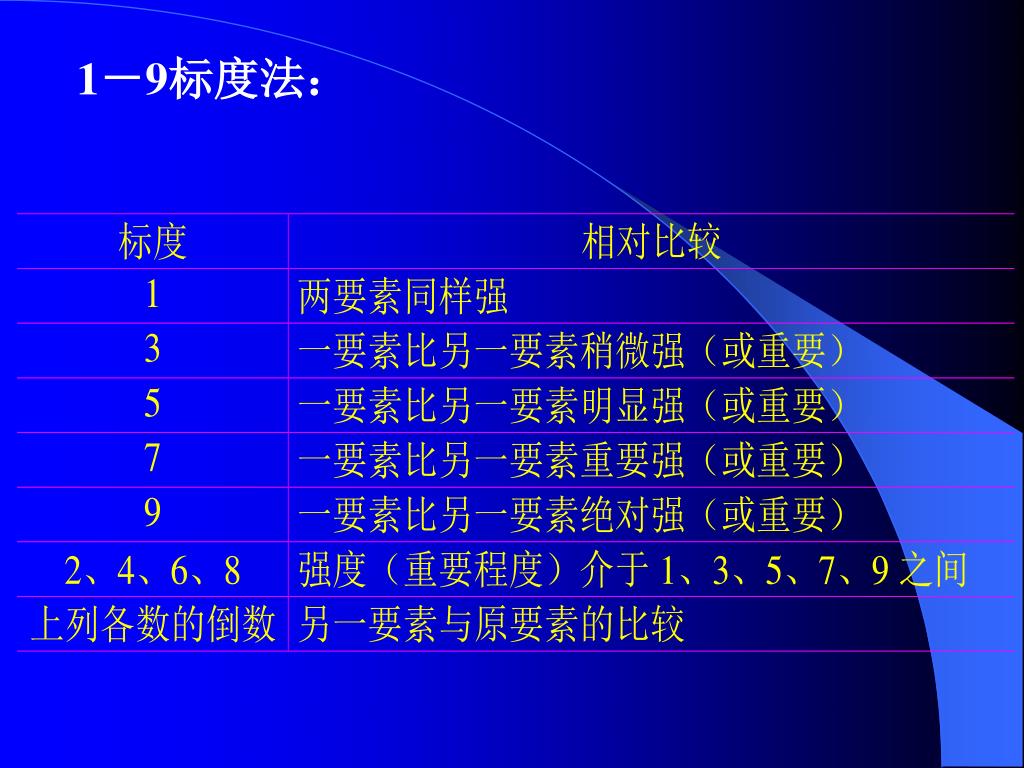

  3. 1-9标度法:

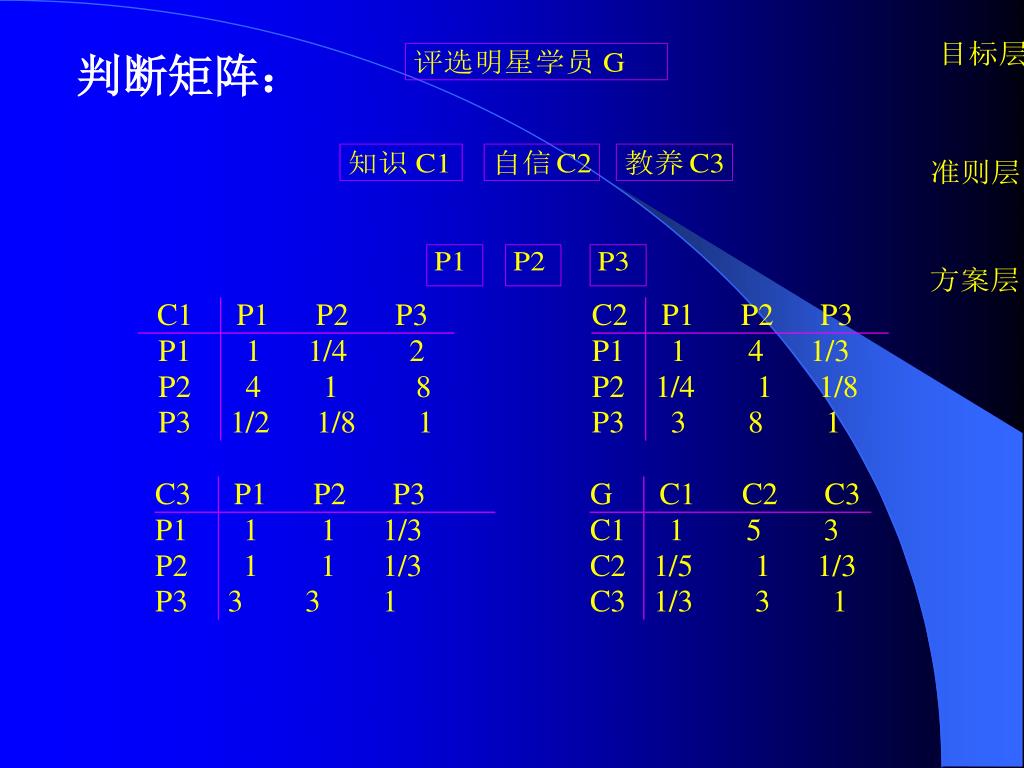

  4. 判断矩阵:

  5. 和积法(层次单排序):

  6. 一致性检验:

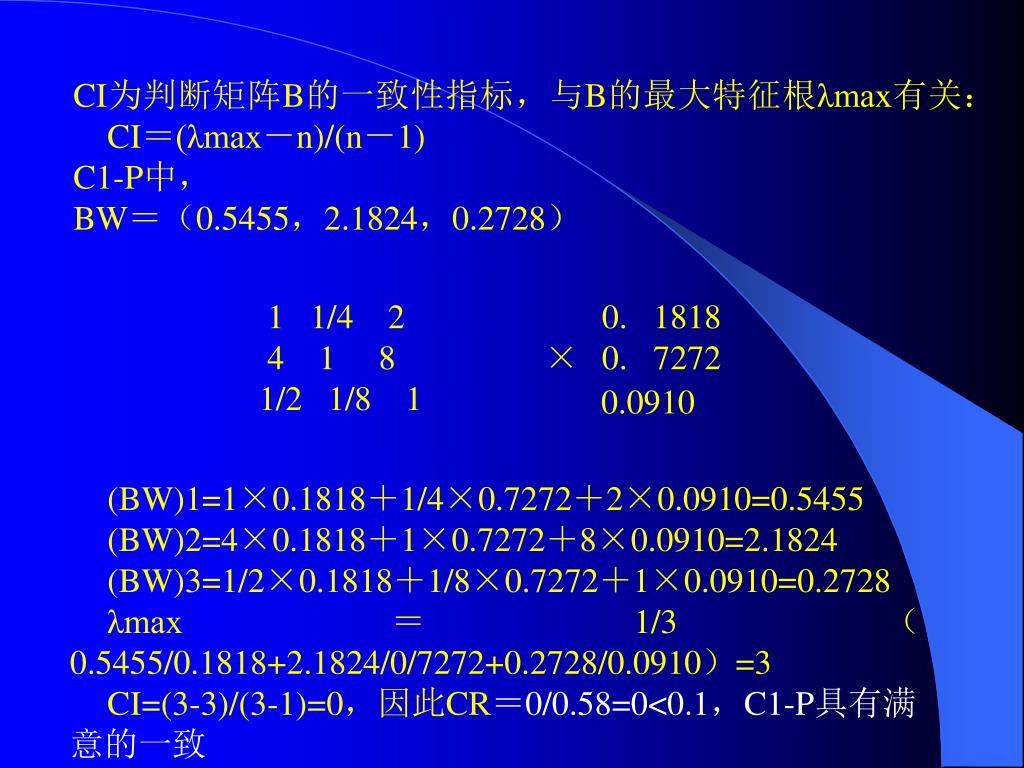

  7. 1 1/4 2 4 1 8 1/2 1/8 1 CI为判断矩阵B的一致性指标,与B的最大特征根λmax有关: CI=(λmax-n)/(n-1) C1-P中, BW=(0.5455,2.1824,0.2728) × 0.1818 0.7272 0.0910 (BW)1=1×0.1818+1/4×0.7272+2×0.0910=0.5455 (BW)2=4×0.1818+1×0.7272+8×0.0910=2.1824 (BW)3=1/2×0.1818+1/8×0.7272+1×0.0910=0.2728 λmax=1/3(0.5455/0.1818+2.1824/0/7272+0.2728/0.0910)=3 CI=(3-3)/(3-1)=0,因此CR=0/0.58=0<0.1,C1-P具有满意的一致

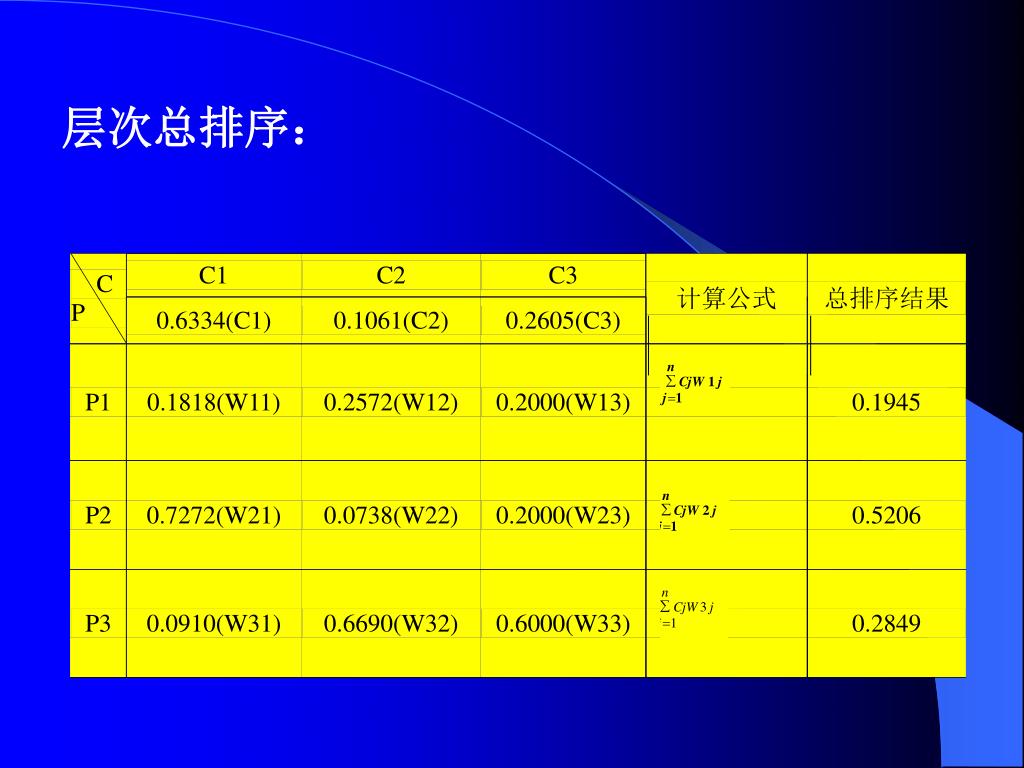

  8. 层次总排序:
