  1. MAINTENANCE RECORDS DUPAGE FLIGHT STANDARDS DISTRICT OFFICE WEST CHICAGO, ILLINOIS

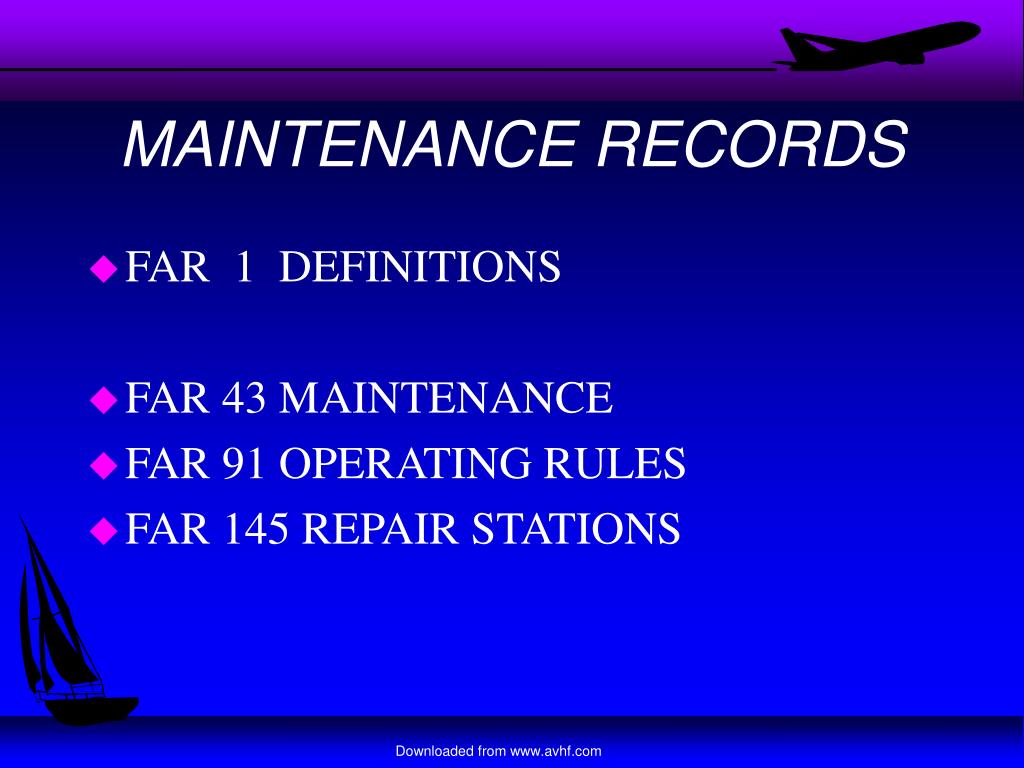

  2. MAINTENANCE RECORDS • FAR 1 DEFINITIONS • FAR 43 MAINTENANCE • FAR 91 OPERATING RULES • FAR 145 REPAIR STATIONS

  3. ADVISORY CIRCULARS • AC 20-5( ) PLANE SENSE • AC 39-7( ) AIRWORTHINESS DIRECTIVES • AC 43-9 ( ) MAINTENANCE RECORDS • AC 43.9-1 ( ) FAA FORM 337 • AC 145-3 GUIDE FOR REPAIR STATIONS

  4. FAA ORDERS • FAA ORDER 8300.10 AVIATION SAFETY INSPECTORS HANDBOOK • FAA ORDER 8130.21 ( ) PROCEDURES FOR COMPLETION OF FAA FORM 8130-3

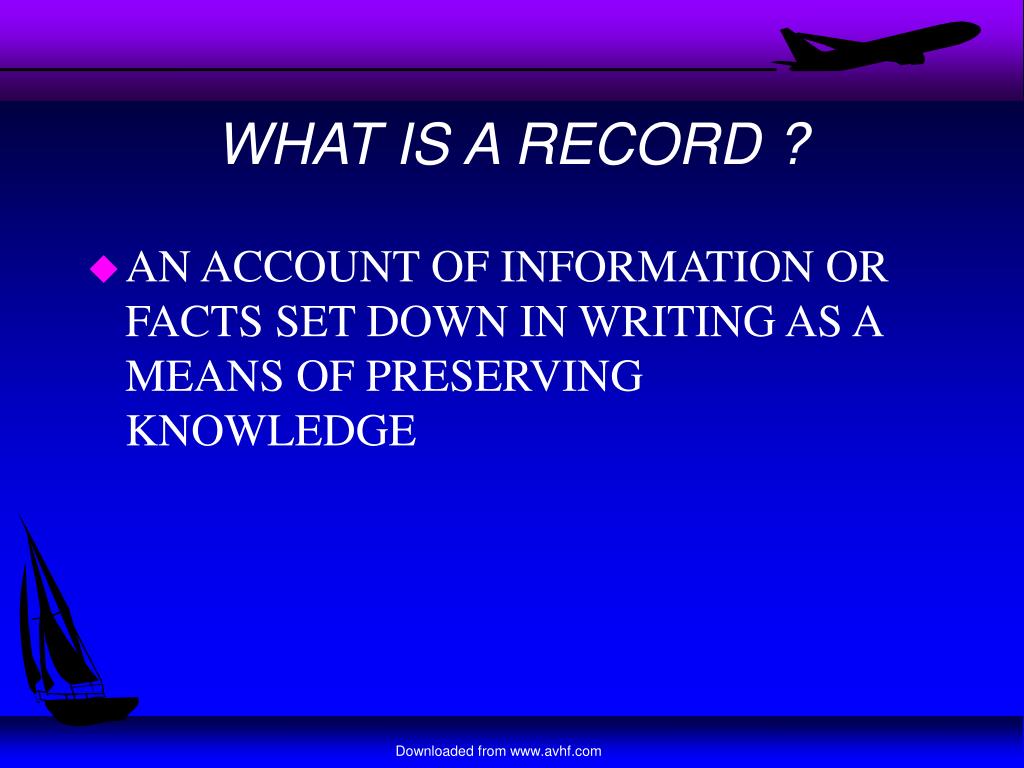

  5. WHAT IS A RECORD ? • AN ACCOUNT OF INFORMATION OR FACTS SET DOWN IN WRITING AS A MEANS OF PRESERVING KNOWLEDGE

  6. TYPES OF RECORDS • INSPECTION • MAINTENANCE • PREVENTATIVE MAINTENANCE • REPAIR / ALTERATION • OVERHAUL • LIFE LIMIT • AIRWORTHINESS DIRECTIVES

  7. AIRFRAME POWERPLANT PROPELLER COMPONENTS ACCESSORY APPLIANCE ROTOR SUGGEST SEPARATE RECORDS FOR ENGINE AND PROPELLERS TYPES OF EQUIPMENT

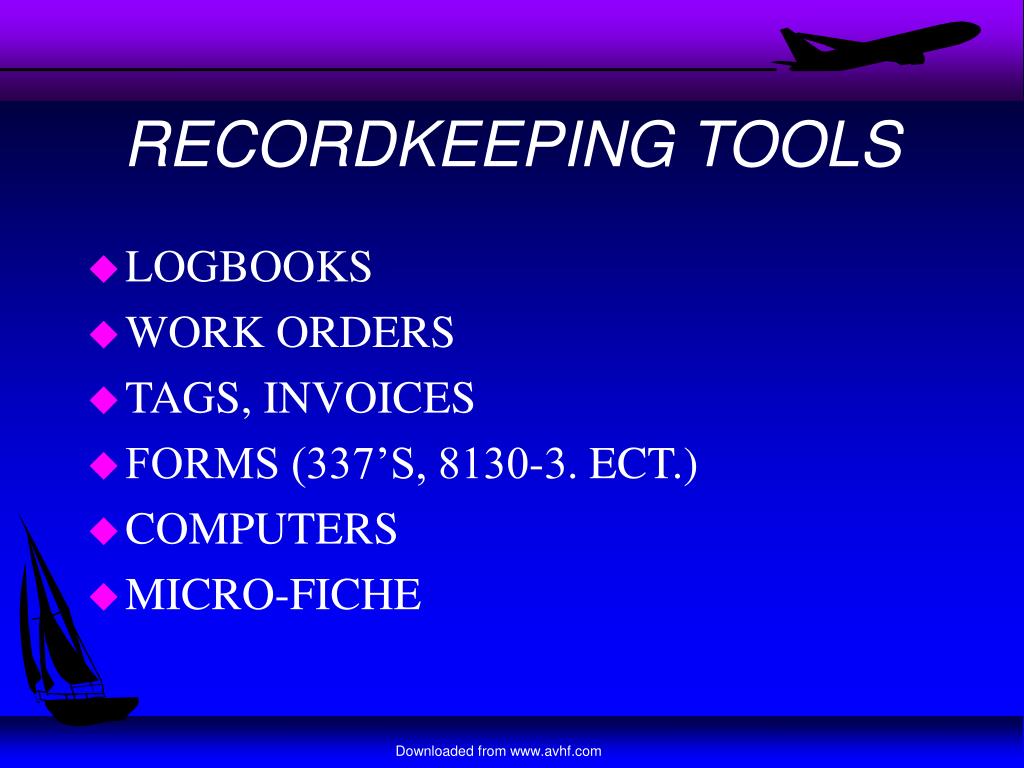

  8. RECORDKEEPING TOOLS • LOGBOOKS • WORK ORDERS • TAGS, INVOICES • FORMS (337’S, 8130-3. ECT.) • COMPUTERS • MICRO-FICHE

  9. OWNER (S) OPERATOR (S) MAINTENANCE PERSONNEL INDIVIDUAL CORPORATION PARTNERSHIP PILOT, LESSEE, FBO PILOT, REPAIRMAN REPAIR STATION SUPERVISED PERSON A&P MECHANIC RESPONSIBILITY

  10. RESPONSIBILITY • “NO PERSON MAY MAKE OR CAUSE TO BE MADE: ANY FRAUDULENT OR INTENTIONALLY FALSE ENTRY IN ANY RECORD OR REPORT THAT IS REQUIRED TO BE MADE, KEPT OR USED TO SHOW COMPLIANCE WITH THE REQUIREMENTS OF PART 43”

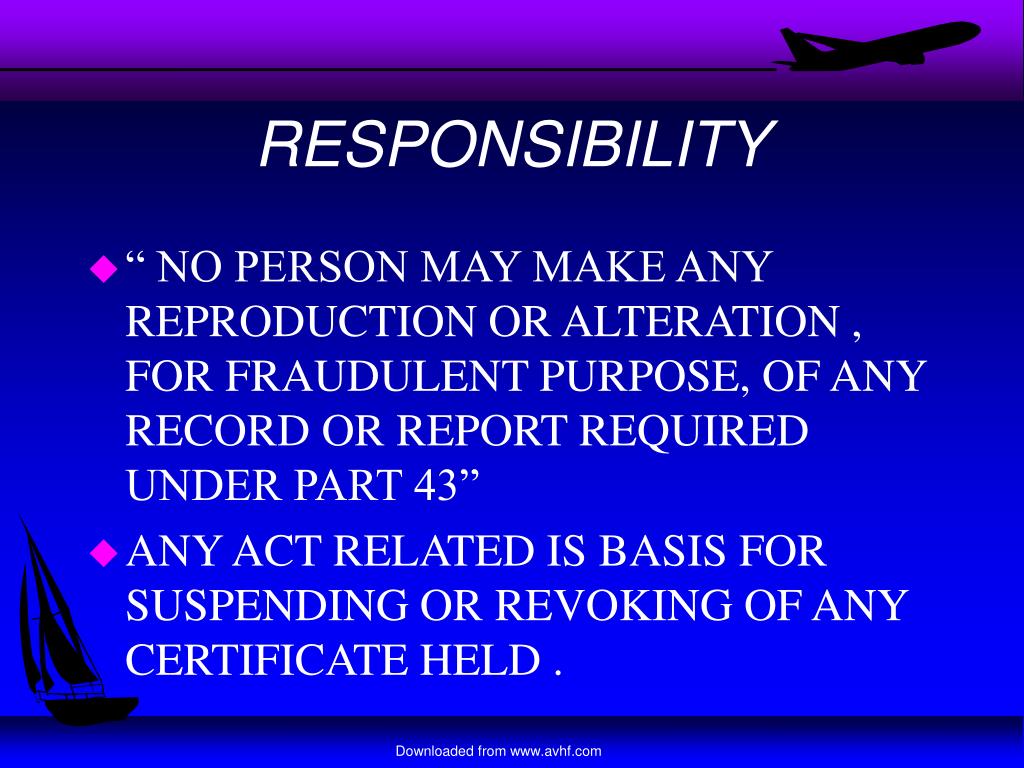

  11. RESPONSIBILITY • “ NO PERSON MAY MAKE ANY REPRODUCTION OR ALTERATION , FOR FRAUDULENT PURPOSE, OF ANY RECORD OR REPORT REQUIRED UNDER PART 43” • ANY ACT RELATED IS BASIS FOR SUSPENDING OR REVOKING OF ANY CERTIFICATE HELD .

  12. RESPONSIBILTITY • OWNER SHALL KEEP RECORDS FOR ONE YEAR AFTER THE WORK IS PERFORMED , REPEATED OR SUPERSEDED. • OWNER SHALL TRANSFER TO THE PURCHASER, AT THE TIME OF SALE ALL RECORDS REQUIRED TO BE KEPT.

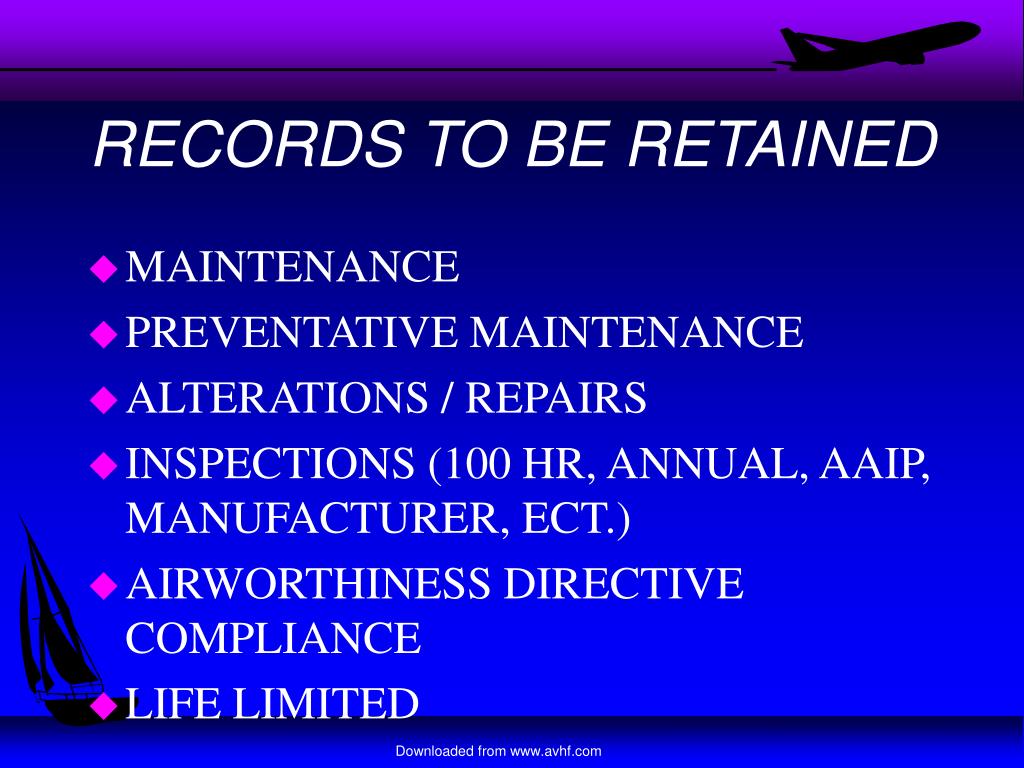

  13. RECORDS TO BE RETAINED • MAINTENANCE • PREVENTATIVE MAINTENANCE • ALTERATIONS / REPAIRS • INSPECTIONS (100 HR, ANNUAL, AAIP, MANUFACTURER, ECT.) • AIRWORTHINESS DIRECTIVE COMPLIANCE • LIFE LIMITED

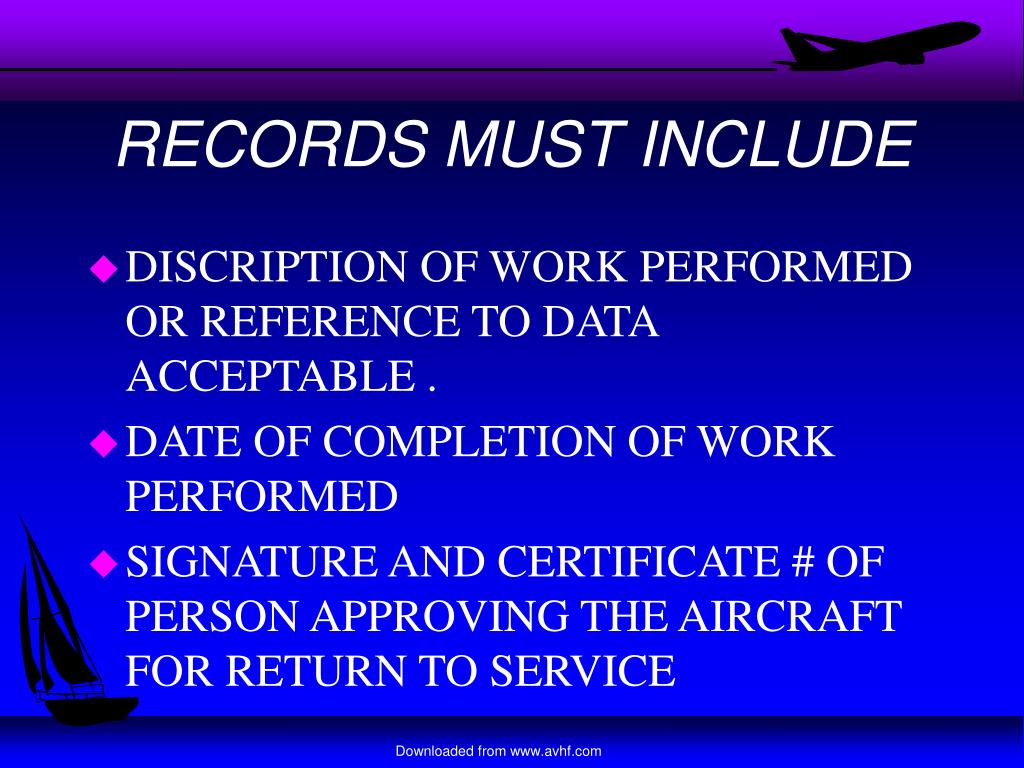

  14. RECORDS MUST INCLUDE • DISCRIPTION OF WORK PERFORMED OR REFERENCE TO DATA ACCEPTABLE . • DATE OF COMPLETION OF WORK PERFORMED • SIGNATURE AND CERTIFICATE # OF PERSON APPROVING THE AIRCRAFT FOR RETURN TO SERVICE

  15. ACCEPTABLE DATA • MAINTENANCE MANUALS • SERVICE LETTERS • SERVICE BULLETINS • AIRWORTHINESS DIRECTIVES • STC’S • TYPE DATA SHEETS • INSTALLATIONS INSTRUCTIONS. ETC.

  16. TOTAL TIME IN SERVICE CURRENT STATUS OF LIFE-LIMITED PARTS AIRFRAME EACH ENGINE EACH PROPELLER EACH ROTOR ALL THE ABOVE INCLUDING APPLIANCE RECORDS TO INCLUDE

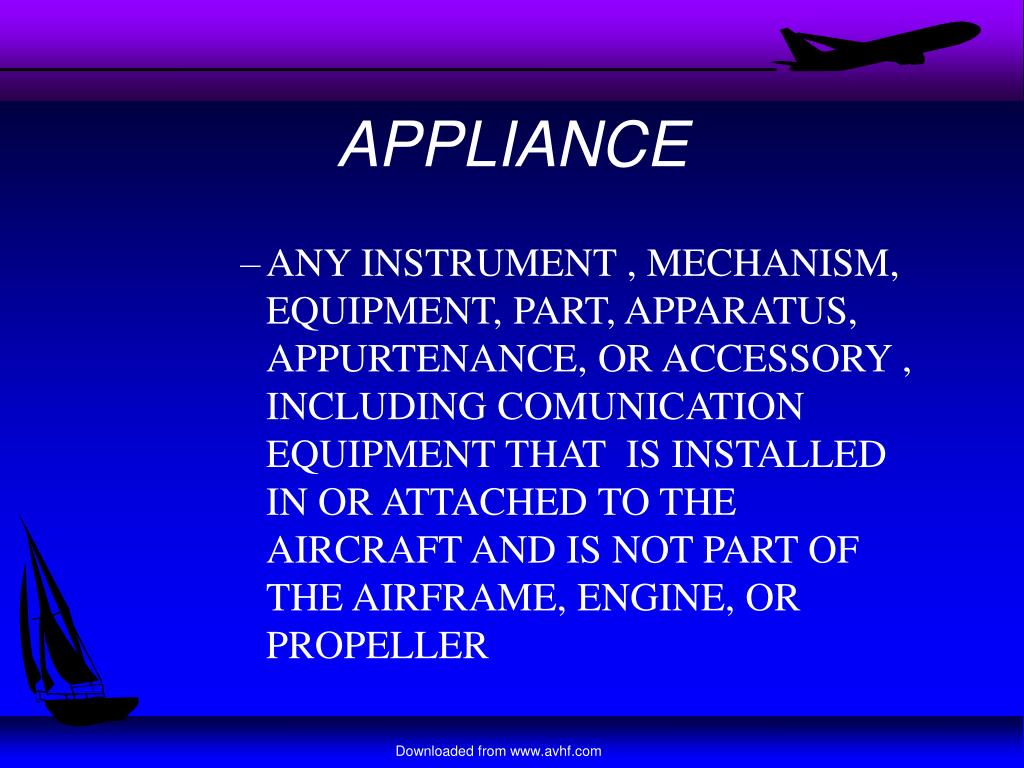

  17. APPLIANCE • ANY INSTRUMENT , MECHANISM, EQUIPMENT, PART, APPARATUS, APPURTENANCE, OR ACCESSORY , INCLUDING COMUNICATION EQUIPMENT THAT IS INSTALLED IN OR ATTACHED TO THE AIRCRAFT AND IS NOT PART OF THE AIRFRAME, ENGINE, OR PROPELLER

  18. RECORDS TO INCLUDE • TIME SINCE LAST OVERHAUL OF ALL ITEMS INSTALLED ON THE AIRCRAFT WHICH ARE REQUIRED TO BE OVERHAULED. • CURRENT INSPECTION STATUS OF THE AIRCRAFT • CURRENT STATUS OF APPLICABLE AIRWORTHINESS DIRECTIVES

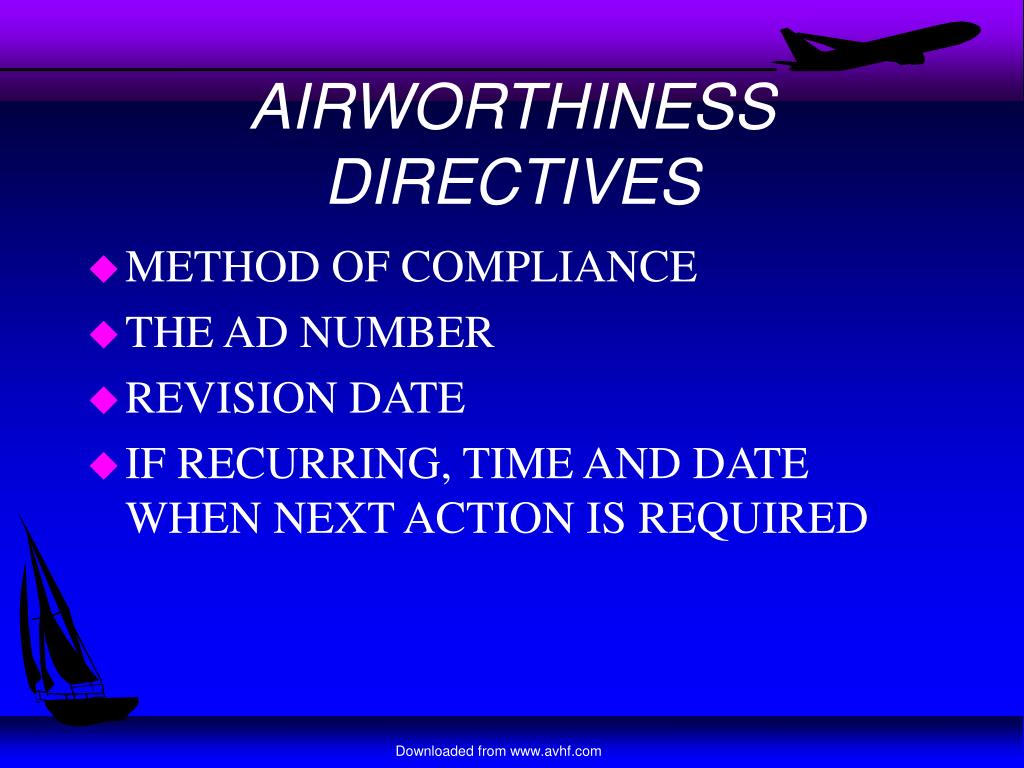

  19. AIRWORTHINESS DIRECTIVES • METHOD OF COMPLIANCE • THE AD NUMBER • REVISION DATE • IF RECURRING, TIME AND DATE WHEN NEXT ACTION IS REQUIRED

  20. RECORDS TO INCLUDE • LIST OF DEFECTS FURNISHED TO THE OWNER OR OPERATOR AND SHALL BE RETAINED UNTIL THE DEFECTS ARE REPAIRED AND APPROVED FOR RETURN TO SERVICE.

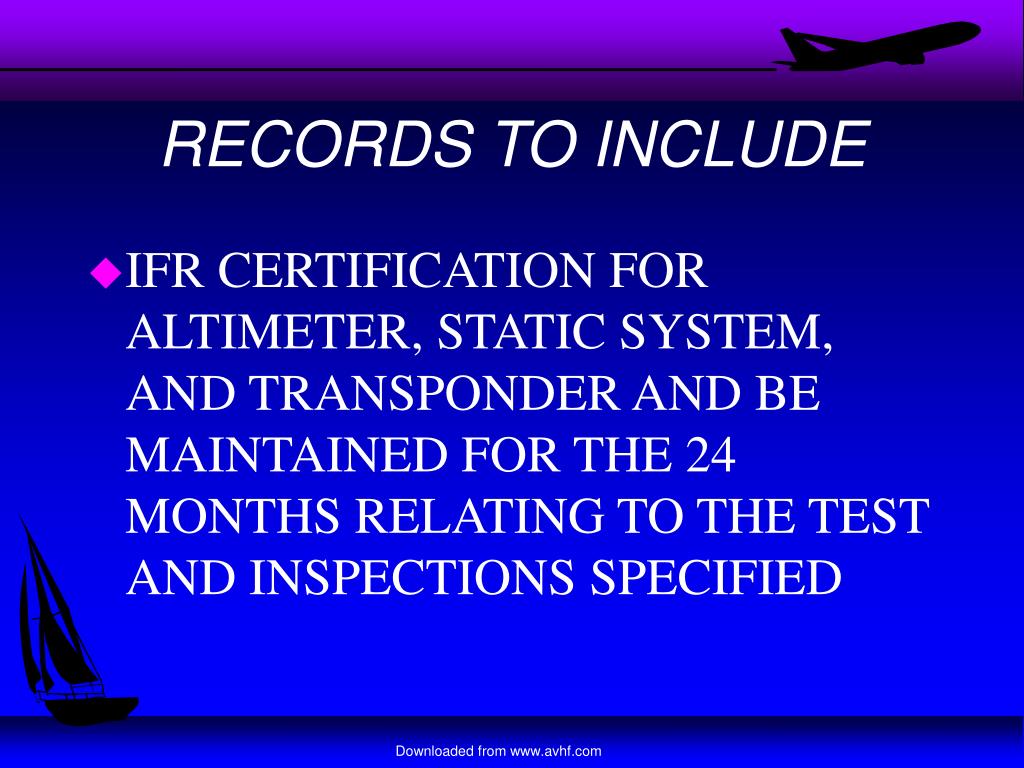

  21. RECORDS TO INCLUDE • IFR CERTIFICATION FOR ALTIMETER, STATIC SYSTEM, AND TRANSPONDER AND BE MAINTAINED FOR THE 24 MONTHS RELATING TO THE TEST AND INSPECTIONS SPECIFIED

  22. REBUILT ENGINE RECORD • A SIGNED STATEMENT OF THE DATE THE ENGINE WAS REBUILT • EACH CHANGE MADE AS REQUIRED BY AIRWORTHINESS DIRECTIVES • EACH CHANGE MADE IN COMPLIANCE WITH MANUFACTURER SERVICE BULLETINS

  23. REPAIR STATION RECORDS • WORK ORDERS • PARTS TAGS • FAA FORM 8130-3 (JAA FORM 1) • PRELIMINARY INSPECTION FORMS • HIDDEN DAMAGE FORMS • PROGRESSIVE INSPECTION FORMS • RETURN TO SERVICE DOCUMENT

  24. WORK ORDERS • CUSTOMER NAME • CUSTOMER REPAIR REQUEST • PARTS REPLACED • DISCRIPTION OF WORK PERFORMED • SIGNATURE OF PERSON AUTHORIZED TO APPROVE FOR RETURN TO SERVICE • CERTIFICATE NUMBER OF REPAIR STATION

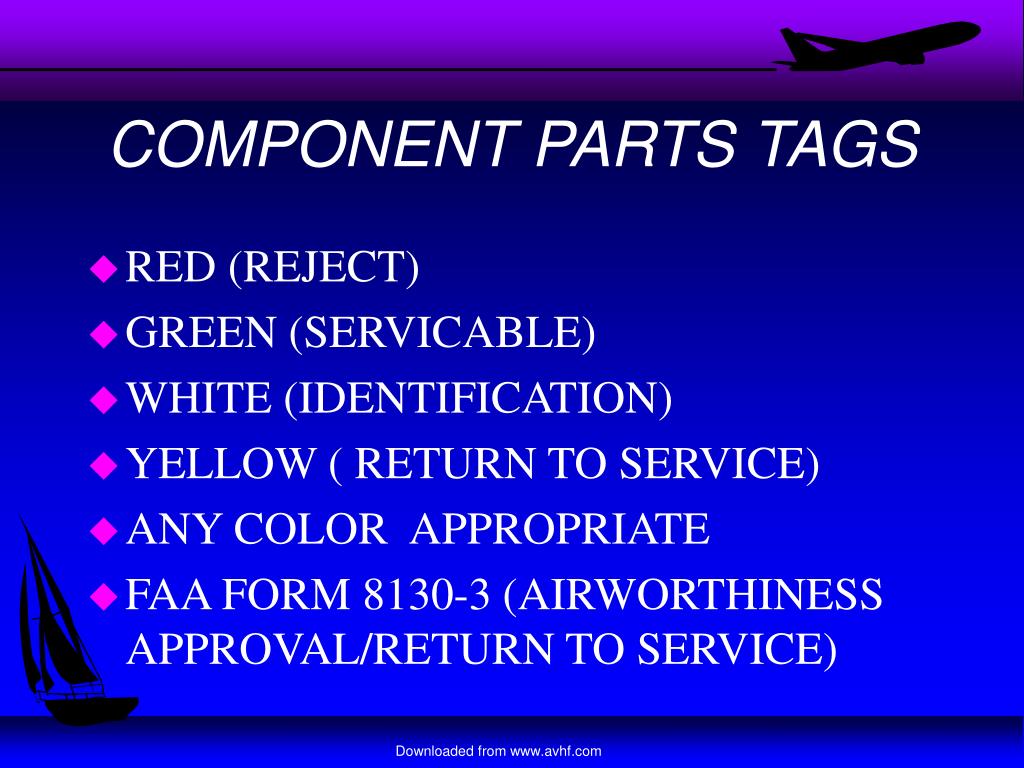

  25. COMPONENT PARTS TAGS • RED (REJECT) • GREEN (SERVICABLE) • WHITE (IDENTIFICATION) • YELLOW ( RETURN TO SERVICE) • ANY COLOR APPROPRIATE • FAA FORM 8130-3 (AIRWORTHINESS APPROVAL/RETURN TO SERVICE)

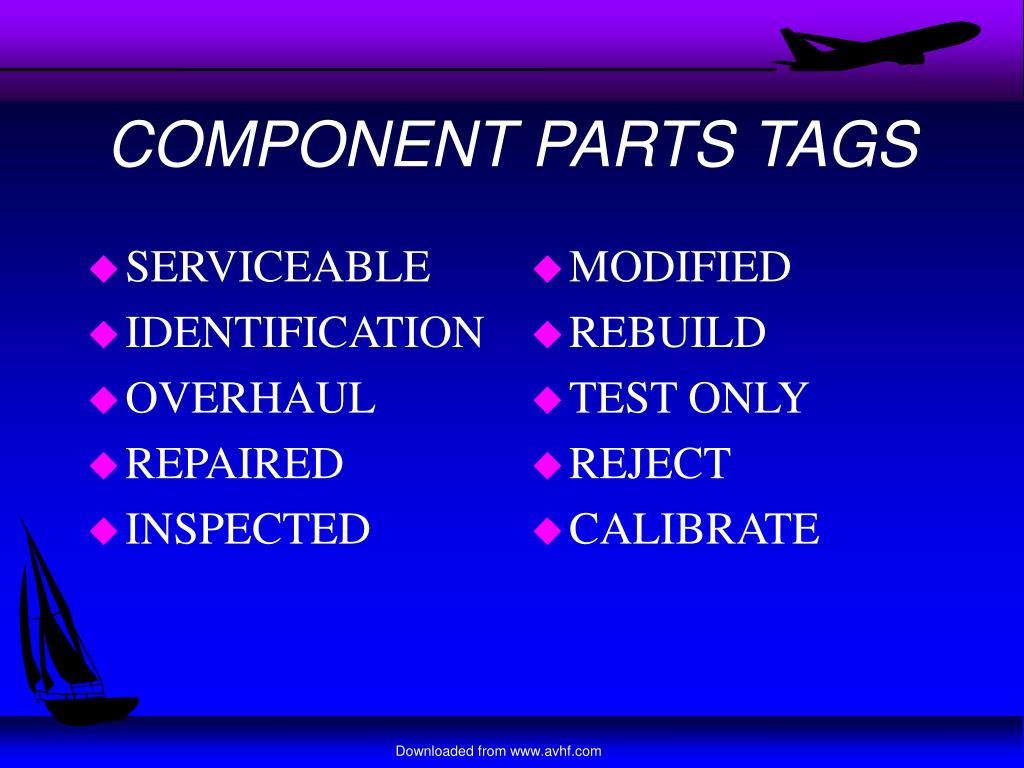

  26. SERVICEABLE IDENTIFICATION OVERHAUL REPAIRED INSPECTED MODIFIED REBUILD TEST ONLY REJECT CALIBRATE COMPONENT PARTS TAGS

  27. REPAIR STATION RECORDS • MUST BE MAINTAINED FOR A PERIOD OF 2 YEARS. • MUST INCLUDE: • DISCRIPTION OF WORK PERFORMED • SIGNATURE OF AUTHORIZED PERSON TO APPROVE FOR RETURN TO SERVICE • CERTIFICATE NUMBER OF CRS

  28. AIRCRAFT REPAIR ENTRY • DATE • DISCRIPTION OF WORK • NAME OF PERSON PERFORMING THE WORK • NAME AND CERTIFICATE NUMBER OF PERSON APPROVING FOR RETURN TO SERVICE

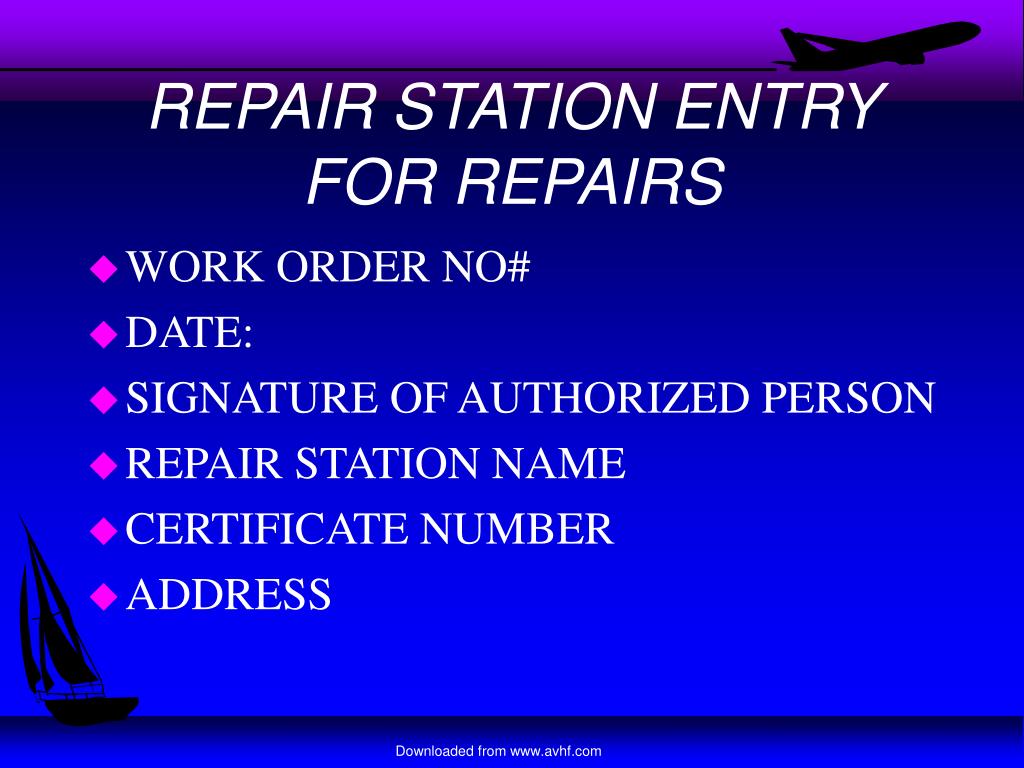

  29. REPAIR STATION ENTRY FOR REPAIRS • WORK ORDER NO# • DATE: • SIGNATURE OF AUTHORIZED PERSON • REPAIR STATION NAME • CERTIFICATE NUMBER • ADDRESS

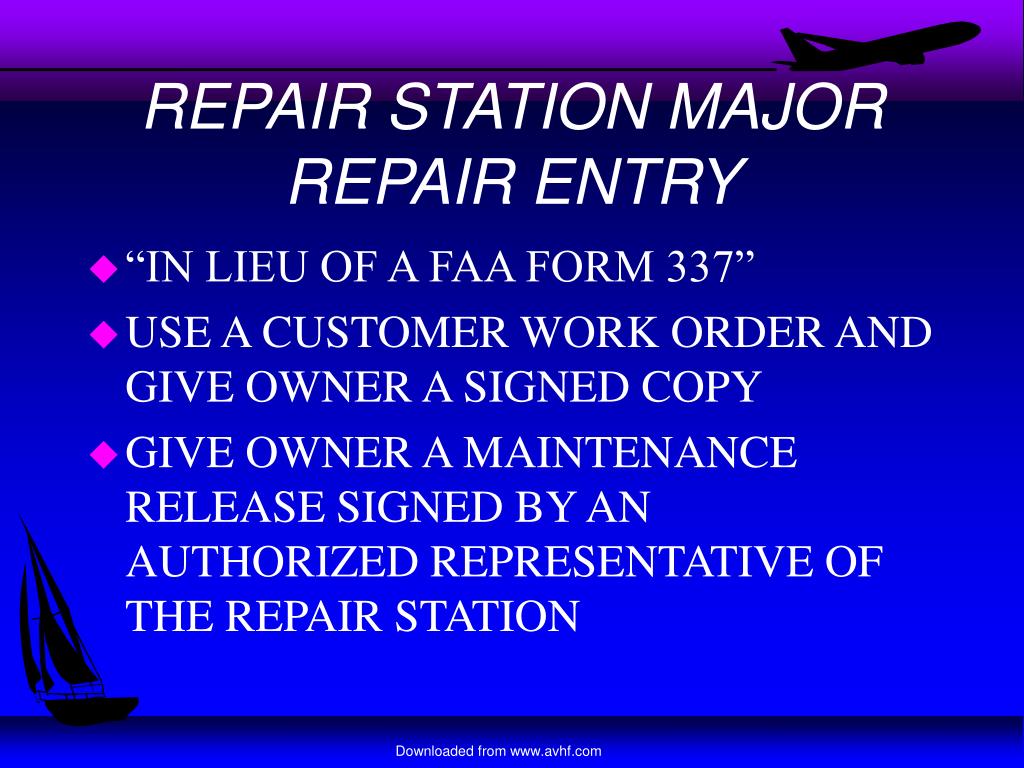

  30. REPAIR STATION MAJOR REPAIR ENTRY • “IN LIEU OF A FAA FORM 337” • USE A CUSTOMER WORK ORDER AND GIVE OWNER A SIGNED COPY • GIVE OWNER A MAINTENANCE RELEASE SIGNED BY AN AUTHORIZED REPRESENTATIVE OF THE REPAIR STATION

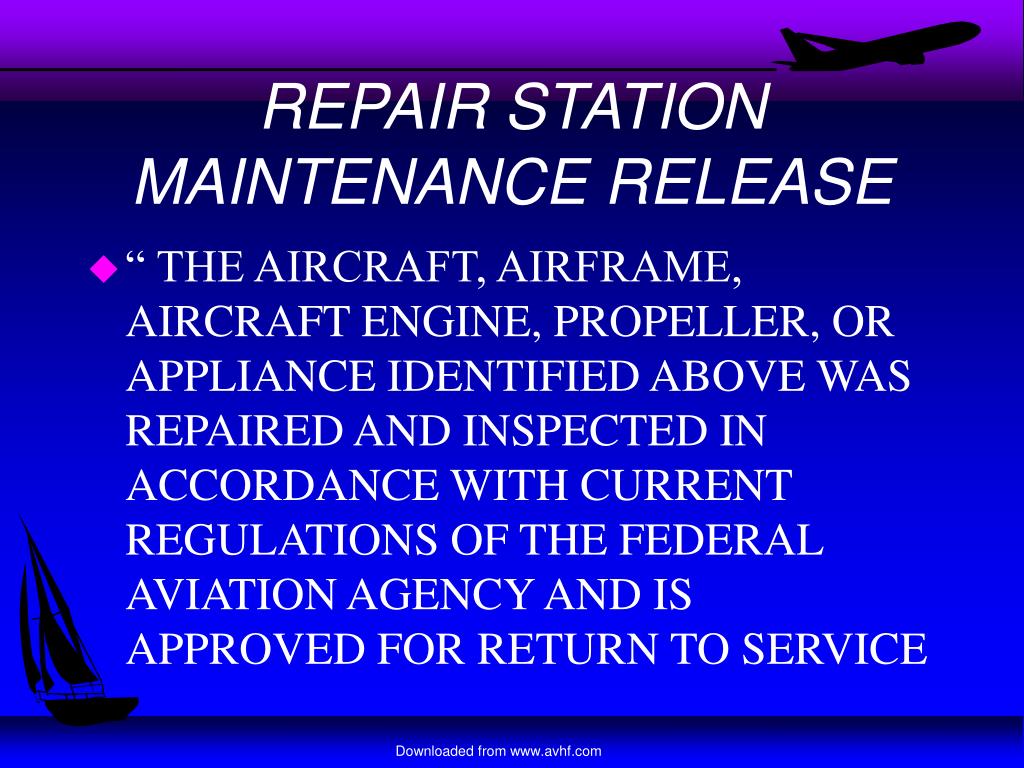

  31. REPAIR STATION MAINTENANCE RELEASE • “ THE AIRCRAFT, AIRFRAME, AIRCRAFT ENGINE, PROPELLER, OR APPLIANCE IDENTIFIED ABOVE WAS REPAIRED AND INSPECTED IN ACCORDANCE WITH CURRENT REGULATIONS OF THE FEDERAL AVIATION AGENCY AND IS APPROVED FOR RETURN TO SERVICE

  32. REPAIR STATION MAINTENANCE RELEASE • PERTINENT DETAILS OF THE REPAIR ARE ON FILE UNDER WORK ORDER NO.XXXX • DATE WORK PERFORMED • SIGNATURE OF AUTHORIZED PERSON • REPAIR STATION NAME • CERTIFICATE NO.

  33. FAA FORM 8130-3 • SYSTEM TRACKING REF. NO# (3) • ORGANIZATION (4) • WORK ORDER/ INVOICE NO# (5) • ITEM (6) • DESCRIPTION (7) • PART NUMBER (8) • ELGIBILITY (9) • QUANTITY (10)

  34. FAA FORM 8130-3 CON’T • SERIAL/BATCH NUMBER (11) • STATUS/ WORK (12) • REMARKS (13) • RETURN TO SERVICE (19) • AUTHORIZED SIGNATURE (20) • CERTIFICATE NUMBER (CRS) (21) • NAME / DATE (22/23)

  35. FAA 8130-3 CERTIFICATION • CERTIFIES THAT THE WORK SPECIFIED IN BLOCK (13) ( OR ATTACHED ) ABOVE WAS CARRIED OUT IN ACCORDANCE WITH FAA AIRWORTHINESS REGULATIONS AND IN REPECT TO THE WORK PERFORMED THE PART(S) IS (ARE) APPROVED FOR RETURN TO SERVICE

  36. FAA FORM 337 • AIRCRAFT MAKE, MODEL, SERIAL NO#, AND N#. • OWNER(S) NAME AND ADDRESS • UNIT IDENTIFICATION • TYPE OF REPAIR • NAME AND ADDRESS OF PERSON PERFORMING THE WORK

  37. FAA FORM 337 CONT. • KIND OF AGENCY (MECHANIC, CRS,ECT) • CERTIFICATE NO# • DATE • SIGNATURE OF AUTHORIZED PERSON (PERFORMED THE WORK) • DESCRIPTION OF WORK ACCOMPLISHED

  38. DATE CERTIFICATE NO# OF THE PERSON APPROVING THE WORK FOR RETURN TO SERVICE FAA INSPECTOR FAA DESIGNEE MANUFACTURER REPAIR STATION INSPECTION AUTHORIZATION CANADIAN DOT INSPECTOR OTHER FAA FORM 337 CONT.

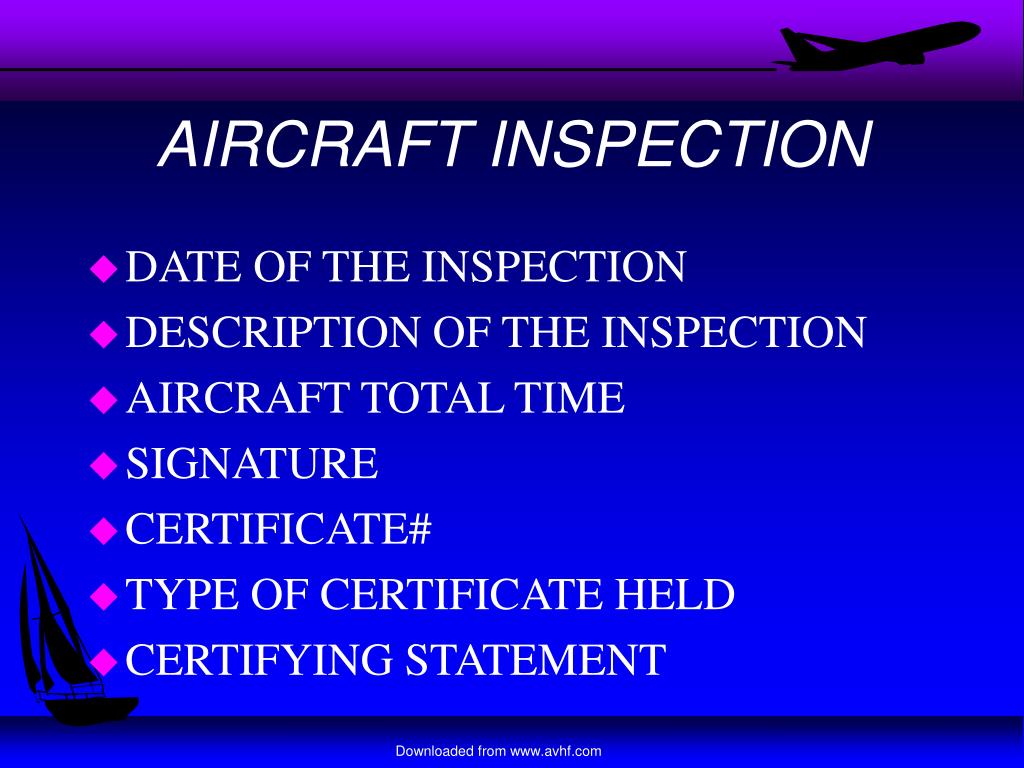

  39. AIRCRAFT INSPECTION • DATE OF THE INSPECTION • DESCRIPTION OF THE INSPECTION • AIRCRAFT TOTAL TIME • SIGNATURE • CERTIFICATE# • TYPE OF CERTIFICATE HELD • CERTIFYING STATEMENT

  40. CERTIFYING STATEMENT FOR COMPLIANCE • “I CERTIFY THAT THIS AIRCRAFT HAS BEEN INSPECTED IN ACCORDANCE WITH(INSERT TYPE) INSPECTION AND WAS DETERMINED TO BE IN AN AIRWORTHY CONDITION.”

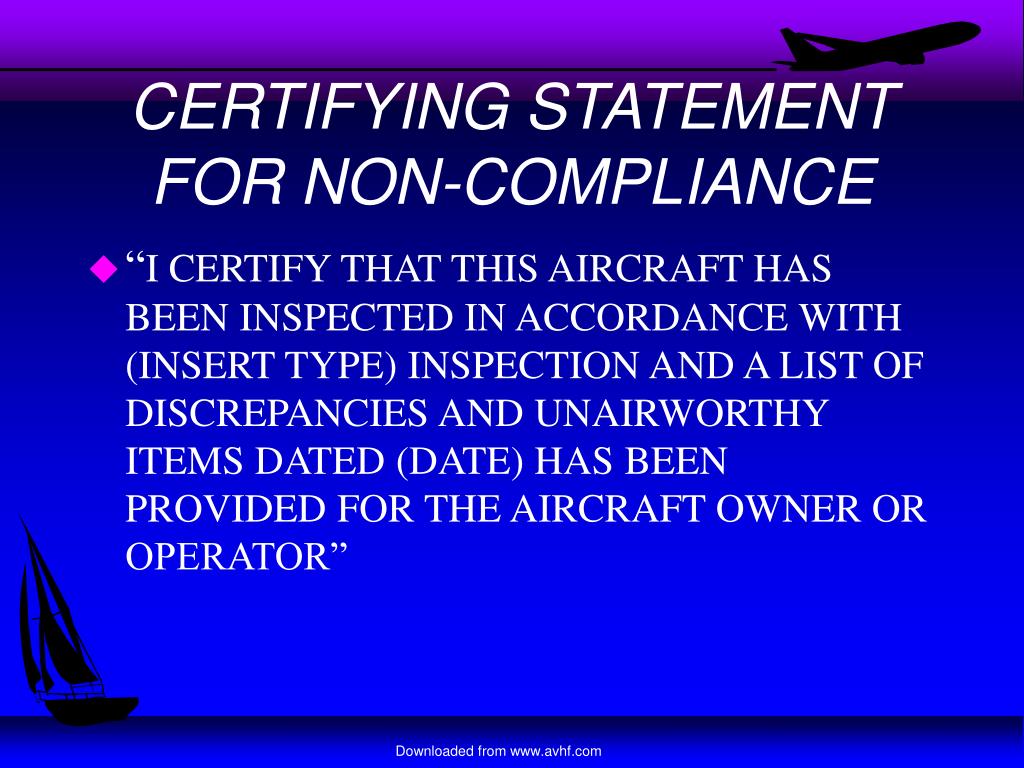

  41. CERTIFYING STATEMENT FOR NON-COMPLIANCE • “I CERTIFY THAT THIS AIRCRAFT HAS BEEN INSPECTED IN ACCORDANCE WITH (INSERT TYPE) INSPECTION AND A LIST OF DISCREPANCIES AND UNAIRWORTHY ITEMS DATED (DATE) HAS BEEN PROVIDED FOR THE AIRCRAFT OWNER OR OPERATOR”

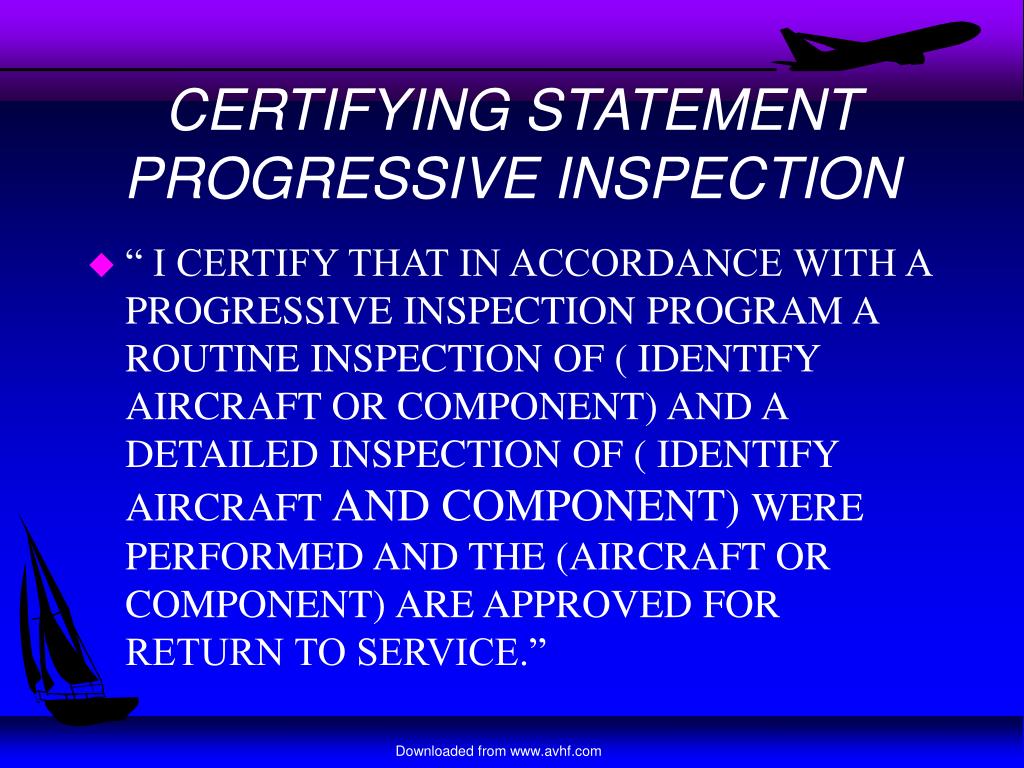

  42. CERTIFYING STATEMENT PROGRESSIVE INSPECTION • “ I CERTIFY THAT IN ACCORDANCE WITH A PROGRESSIVE INSPECTION PROGRAM A ROUTINE INSPECTION OF ( IDENTIFY AIRCRAFT OR COMPONENT) AND A DETAILED INSPECTION OF ( IDENTIFY AIRCRAFT AND COMPONENT) WERE PERFORMED AND THE (AIRCRAFT OR COMPONENT) ARE APPROVED FOR RETURN TO SERVICE.”

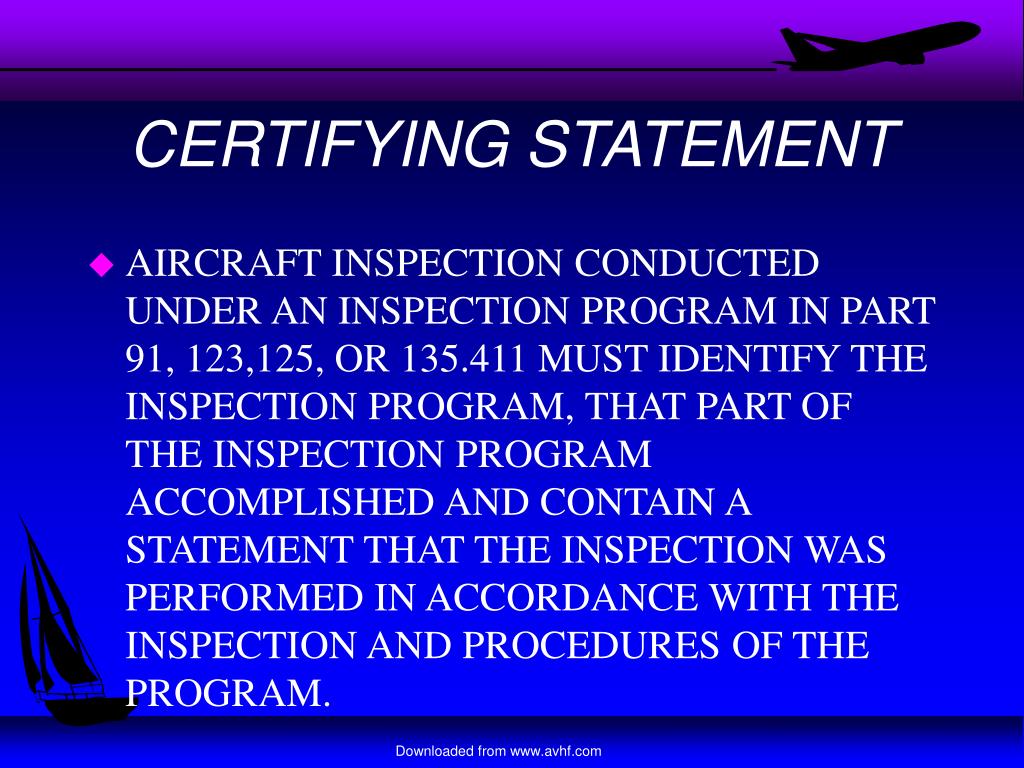

  43. CERTIFYING STATEMENT • AIRCRAFT INSPECTION CONDUCTED UNDER AN INSPECTION PROGRAM IN PART 91, 123,125, OR 135.411 MUST IDENTIFY THE INSPECTION PROGRAM, THAT PART OF THE INSPECTION PROGRAM ACCOMPLISHED AND CONTAIN A STATEMENT THAT THE INSPECTION WAS PERFORMED IN ACCORDANCE WITH THE INSPECTION AND PROCEDURES OF THE PROGRAM.

  44. COMPUTERIZED RECORDS • OWNER OR OPERATOR WHO USES SUCH A SYSTEM IS REQUIRED TO ENSURE THAT IT PROVIDES THE INFORMATION REQUIRED BY THE FEDERAL AVIATION REGULATIONS INCLUDING SIGNATURES.

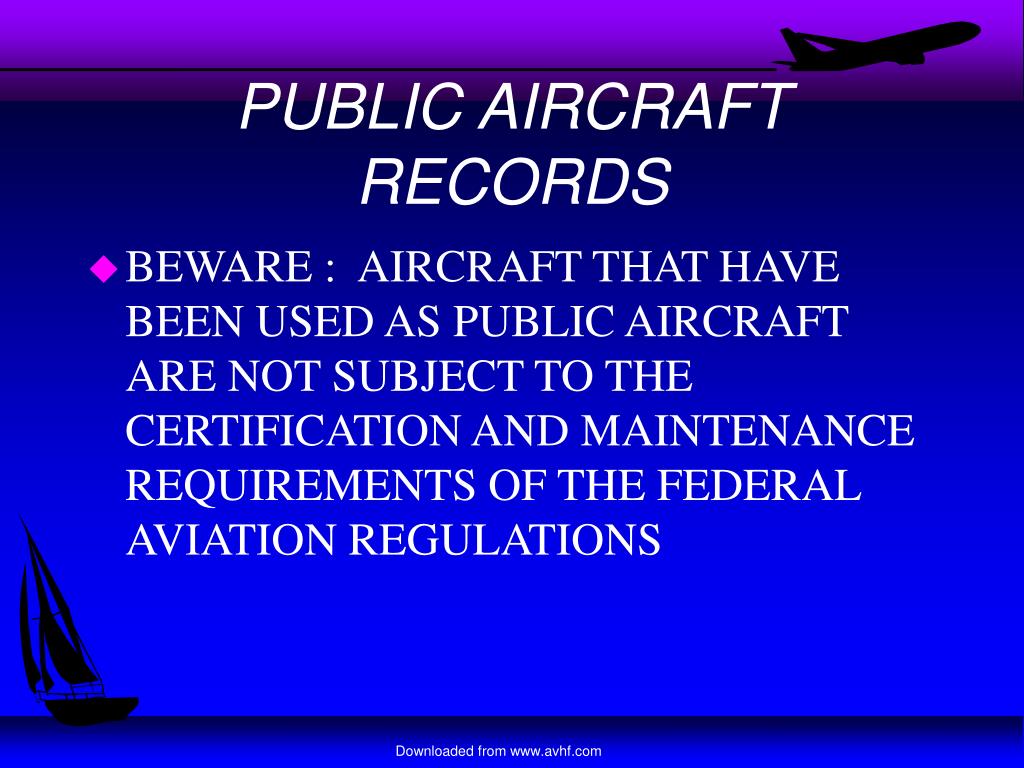

  45. PUBLIC AIRCRAFT RECORDS • BEWARE : AIRCRAFT THAT HAVE BEEN USED AS PUBLIC AIRCRAFT ARE NOT SUBJECT TO THE CERTIFICATION AND MAINTENANCE REQUIREMENTS OF THE FEDERAL AVIATION REGULATIONS

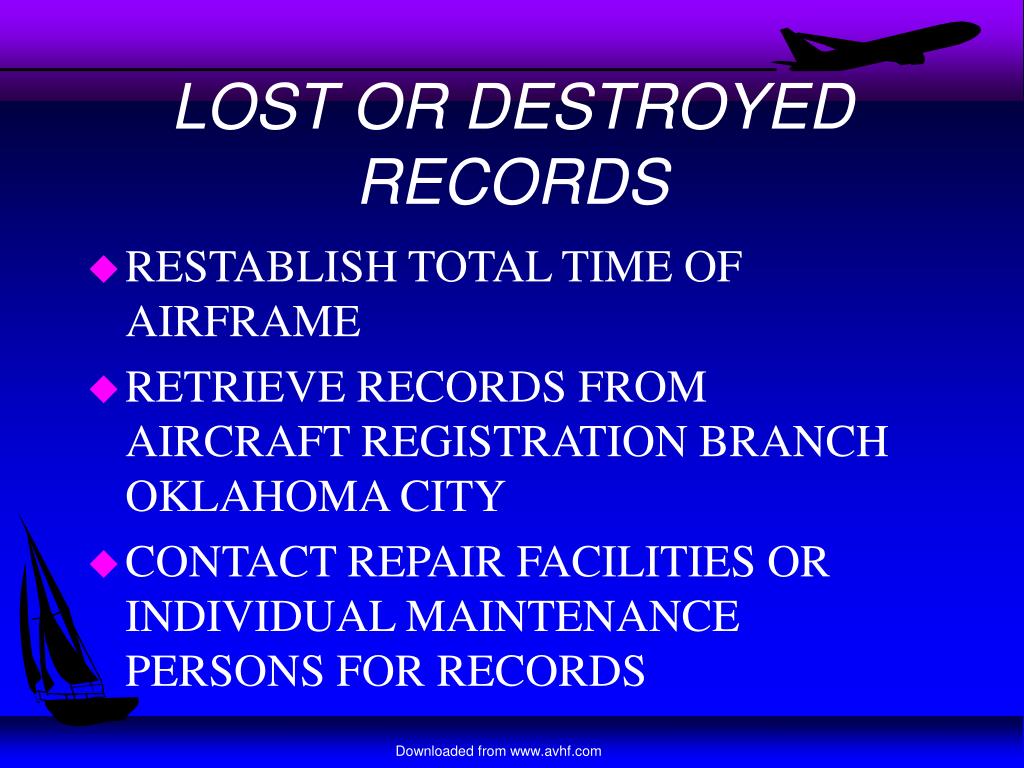

  46. LOST OR DESTROYED RECORDS • RESTABLISH TOTAL TIME OF AIRFRAME • RETRIEVE RECORDS FROM AIRCRAFT REGISTRATION BRANCH OKLAHOMA CITY • CONTACT REPAIR FACILITIES OR INDIVIDUAL MAINTENANCE PERSONS FOR RECORDS

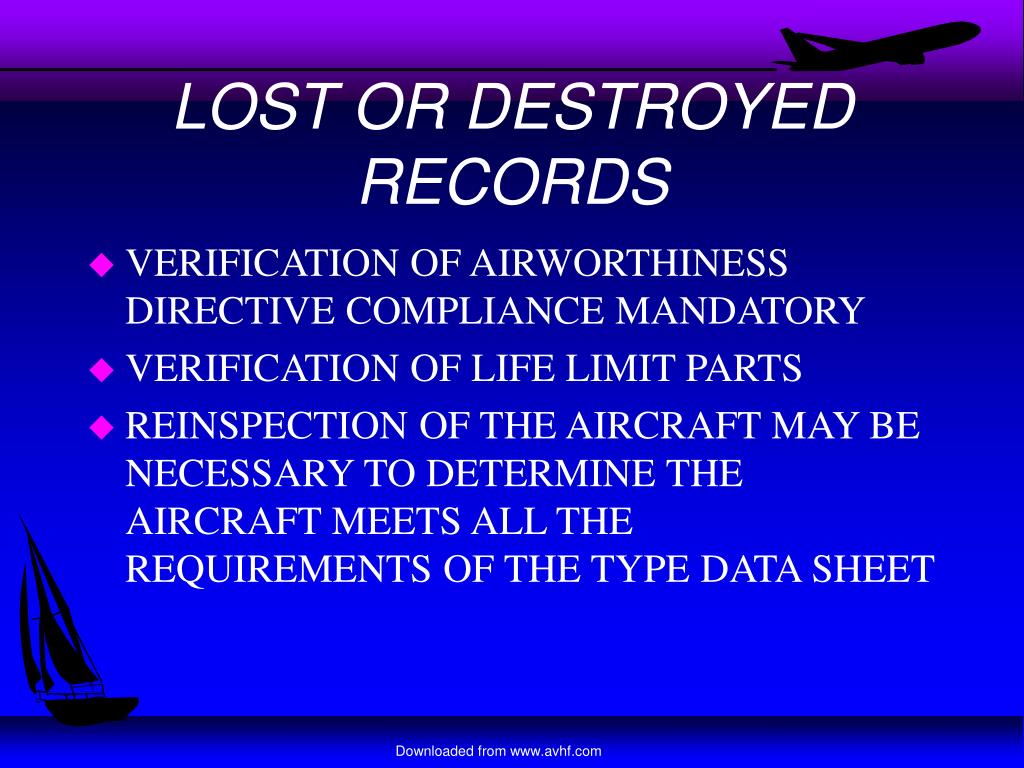

  47. LOST OR DESTROYED RECORDS • VERIFICATION OF AIRWORTHINESS DIRECTIVE COMPLIANCE MANDATORY • VERIFICATION OF LIFE LIMIT PARTS • REINSPECTION OF THE AIRCRAFT MAY BE NECESSARY TO DETERMINE THE AIRCRAFT MEETS ALL THE REQUIREMENTS OF THE TYPE DATA SHEET

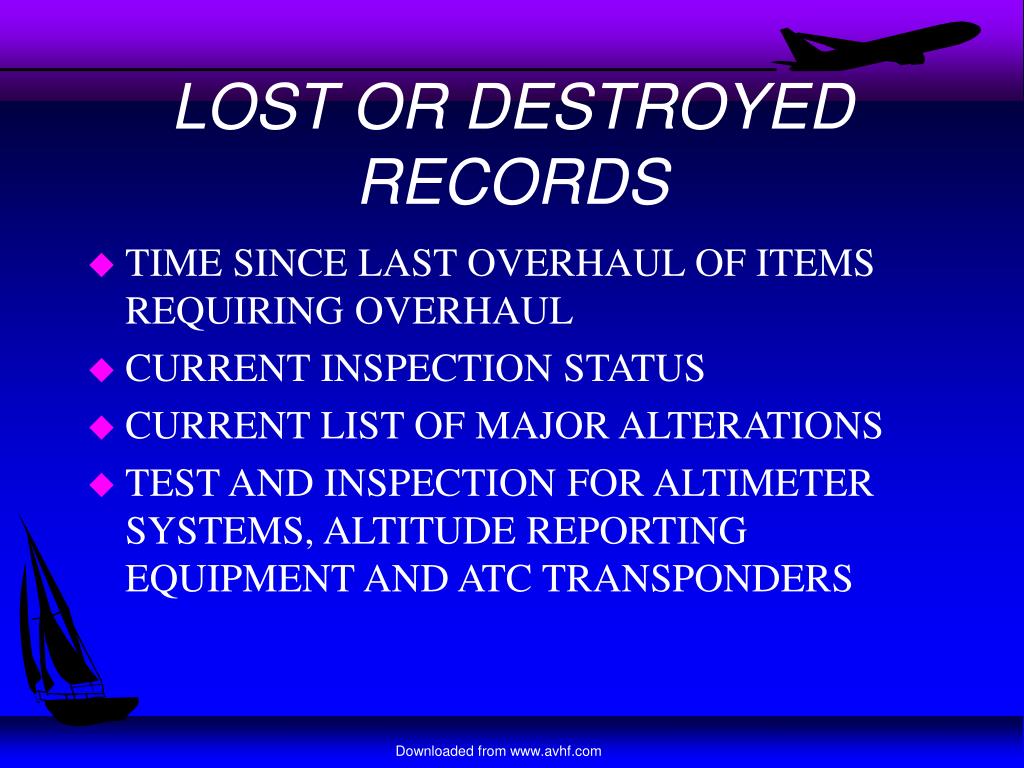

  48. LOST OR DESTROYED RECORDS • TIME SINCE LAST OVERHAUL OF ITEMS REQUIRING OVERHAUL • CURRENT INSPECTION STATUS • CURRENT LIST OF MAJOR ALTERATIONS • TEST AND INSPECTION FOR ALTIMETER SYSTEMS, ALTITUDE REPORTING EQUIPMENT AND ATC TRANSPONDERS

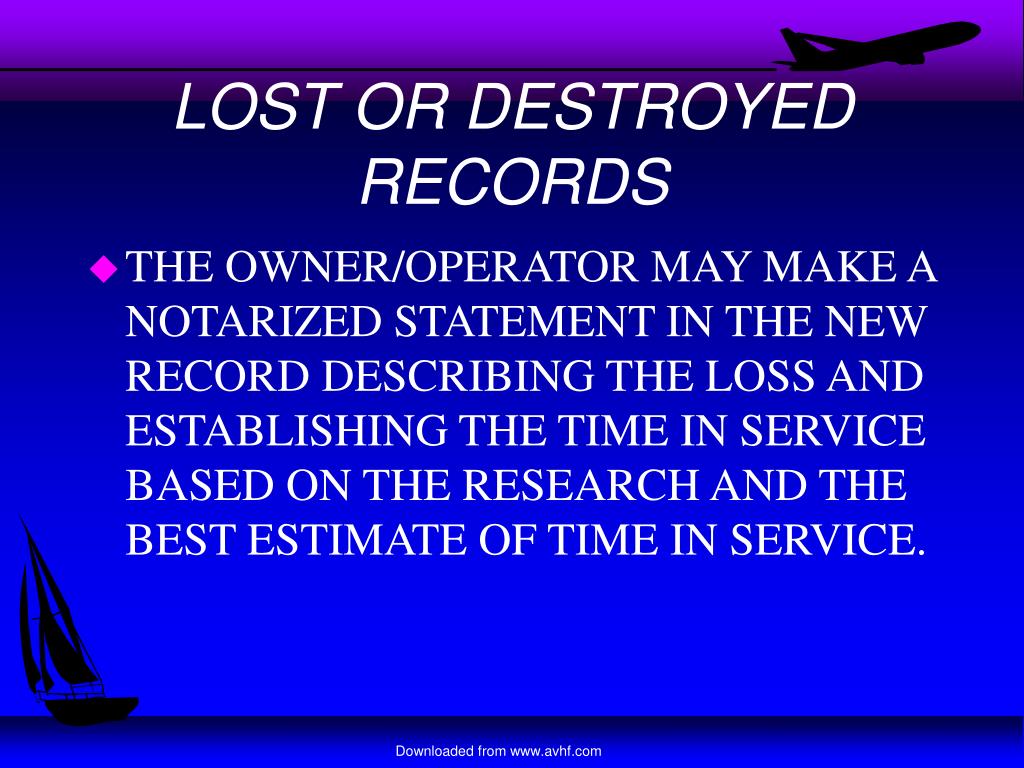

  49. LOST OR DESTROYED RECORDS • THE OWNER/OPERATOR MAY MAKE A NOTARIZED STATEMENT IN THE NEW RECORD DESCRIBING THE LOSS AND ESTABLISHING THE TIME IN SERVICE BASED ON THE RESEARCH AND THE BEST ESTIMATE OF TIME IN SERVICE.

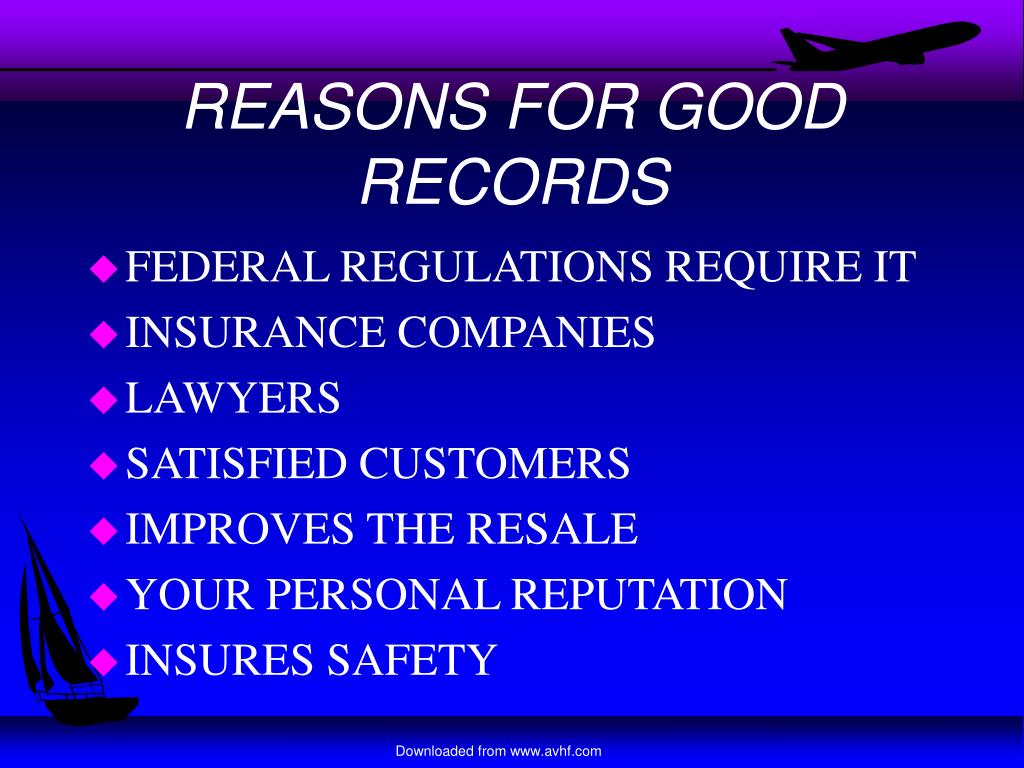

  50. REASONS FOR GOOD RECORDS • FEDERAL REGULATIONS REQUIRE IT • INSURANCE COMPANIES • LAWYERS • SATISFIED CUSTOMERS • IMPROVES THE RESALE • YOUR PERSONAL REPUTATION • INSURES SAFETY
