  1. Lecture 2 How to Build a Digital Physical System - Lab

  2. Today's Topics • Electricity/Water analogy • Electrical/Electronic circuit elements • Basic formulae • Useful conventions • Reading and drawing schematics • Using datasheets • Test Equipment • Practical – Wire stripping and Soldering

  3. The following entities between a water circulation system and an electric circuit correspond fairly well Pressure – Voltage Water flow – Current Gate valve, Constriction – Resistance Valve – Switch One way valve – Diode etc... Water Analogy

  4. Comparisons

  5. Circuit Elements • Power supply • Resistors • Capacitors • Inductors • Semiconductors

  6. Circuit Elements • Power supply • Energy source • Unit - Volts

  7. Circuit Elements • Resistor, Capacitors and Inductors • Passive components

  8. Resistors • Control current, dissipate energy as heat • Unit – Ohms • Symbol

  9. Resistor Color Code Black Bears Raid Our Yellow Grain, Blue Violets Grow Wild

  10. Capacitors and Inductors • Energy storage elements • Used in filters

  11. Filters

  12. Circuit Elements • Semiconductors • Active devices • Transistors, ICs, LEDs, gates, diodes

  13. Diodes • Allow current flow in one direction only • Rectification – change AC to DC

  14. LEDs • Diodes that produce light

  15. Transistors • Amplification, switching

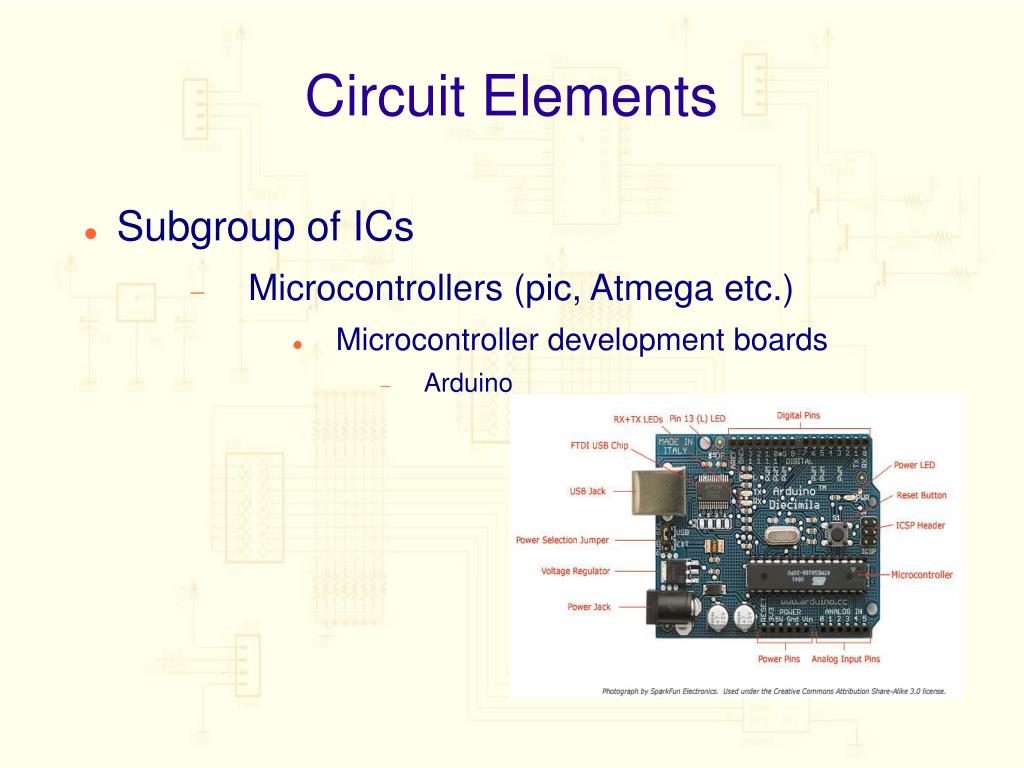

  16. Circuit Elements • Subgroup of ICs • Microcontrollers (pic, Atmega etc.) • Microcontroller development boards • Arduino

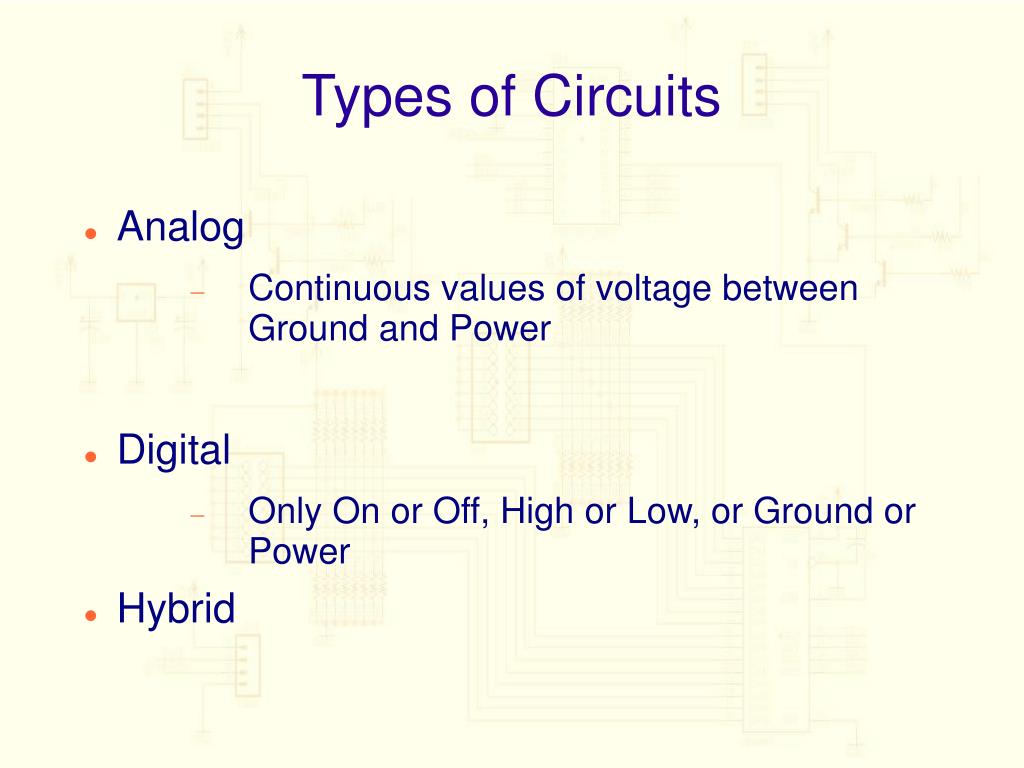

  17. Types of Circuits • Analog • Continuous values of voltage between Ground and Power • Digital • Only On or Off, High or Low, or Ground or Power • Hybrid

  18. Datasheets • Your crucial companion • Consult the manufacturer's datasheet if unsure of a device's specific behaviour • Of special interest • Pinouts • Absolute maximum ratings • Typical application circuit

  19. Important sections

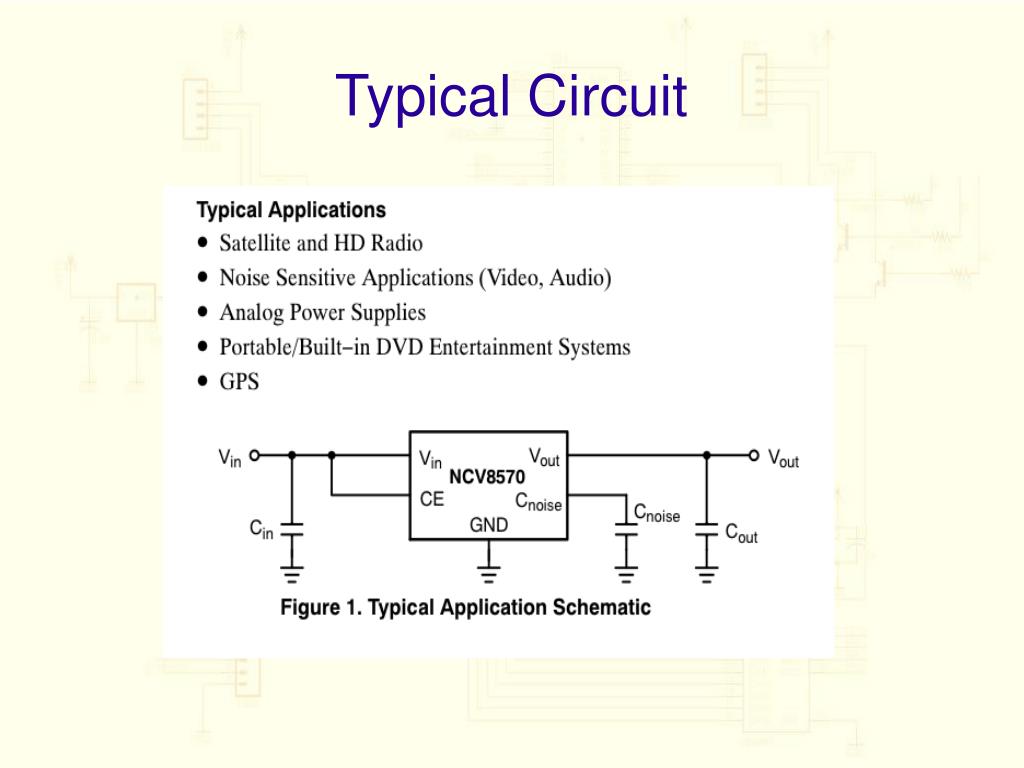

  20. Typical Circuit

  21. Pinouts

  22. Features

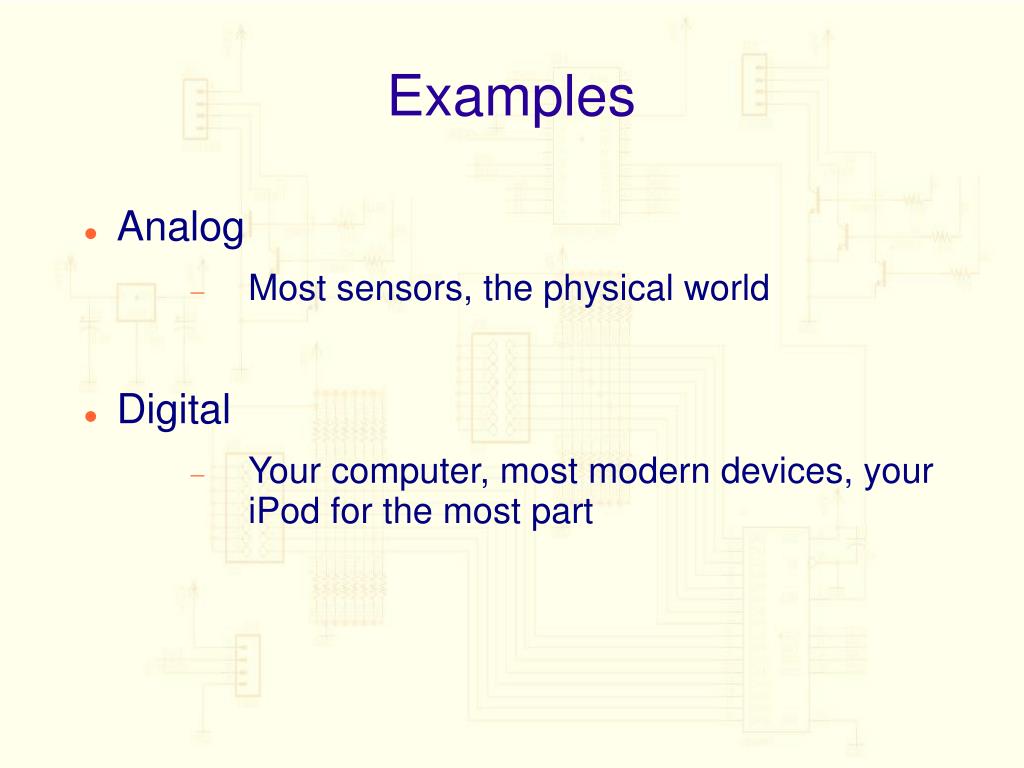

  23. Examples • Analog • Most sensors, the physical world • Digital • Your computer, most modern devices, your iPod for the most part

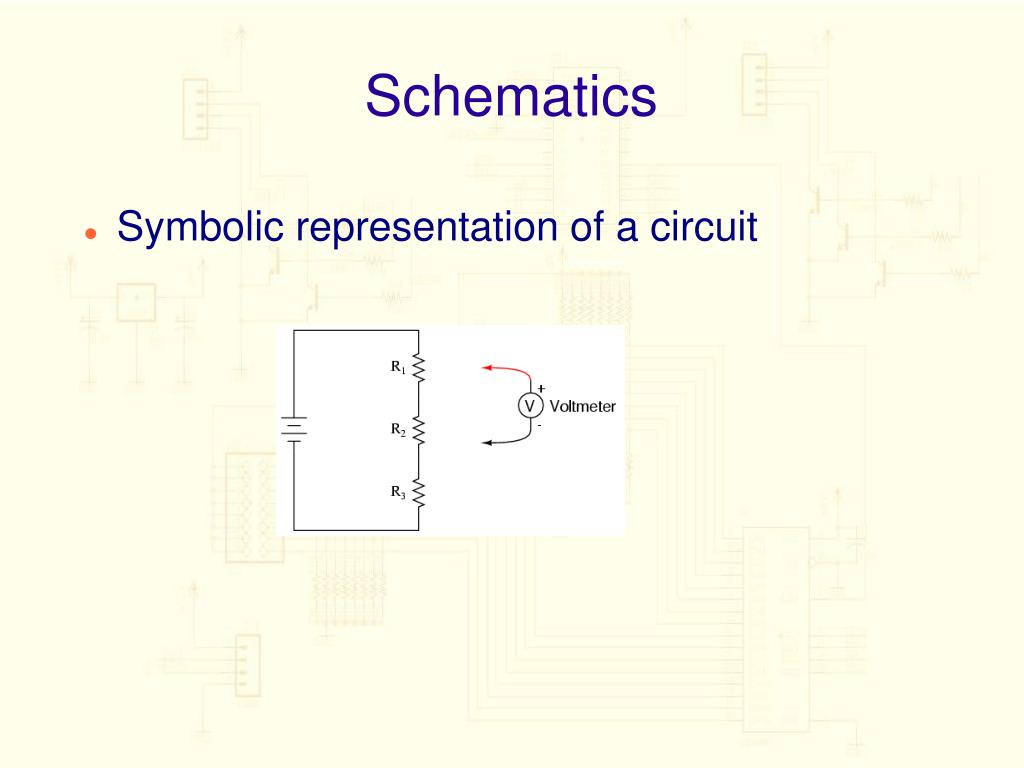

  24. Schematics • Symbolic representation of a circuit

  25. Schematic • More complex circuit

  26. Useful Conventions • Make your schematics and breadboards easier to understand and troubleshoot for yourself and others • Learn to work like the pros

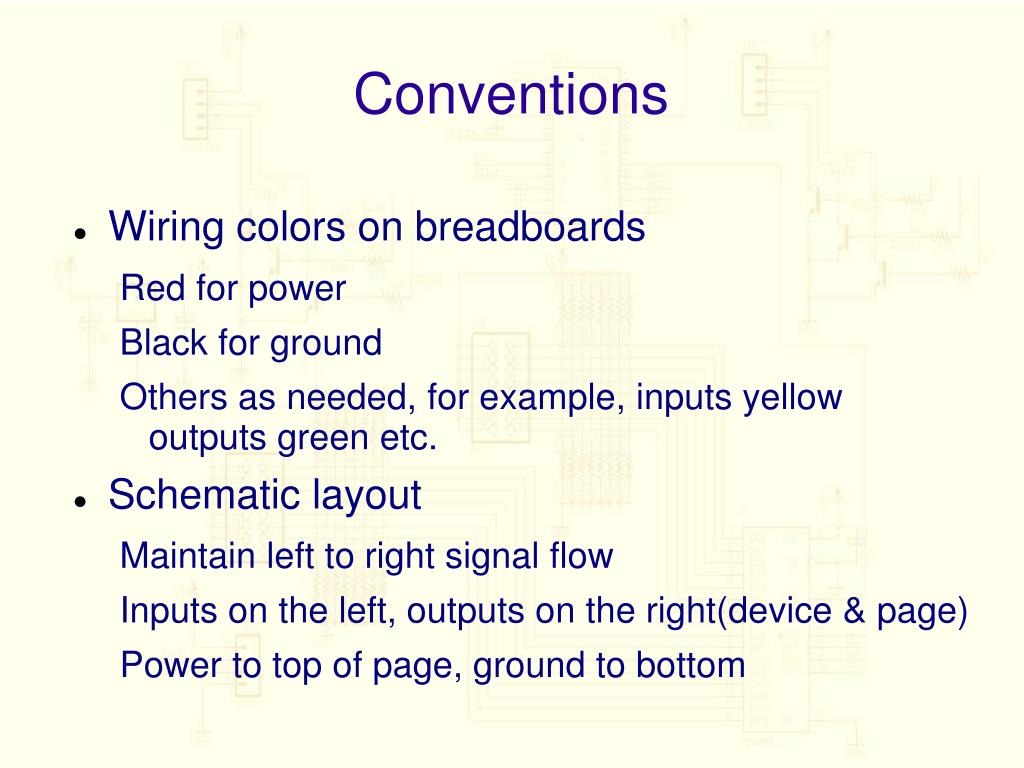

  27. Conventions • Wiring colors on breadboards Red for power Black for ground Others as needed, for example, inputs yellow outputs green etc. • Schematic layout Maintain left to right signal flow Inputs on the left, outputs on the right(device & page) Power to top of page, ground to bottom

  28. Some Common Formulas • Ohm's law • E = V = IR • Formula wheel • E - (emf) same as Voltage • R – resistance • I – current • P - power

  29. Circuits and Ohm's Law • For resistive circuits

  30. Series and Parallel Circuits

  31. Series and Parallel Circuits • Series circuit • Same current, voltage divides • Parallel circuit • Same voltage, current divides

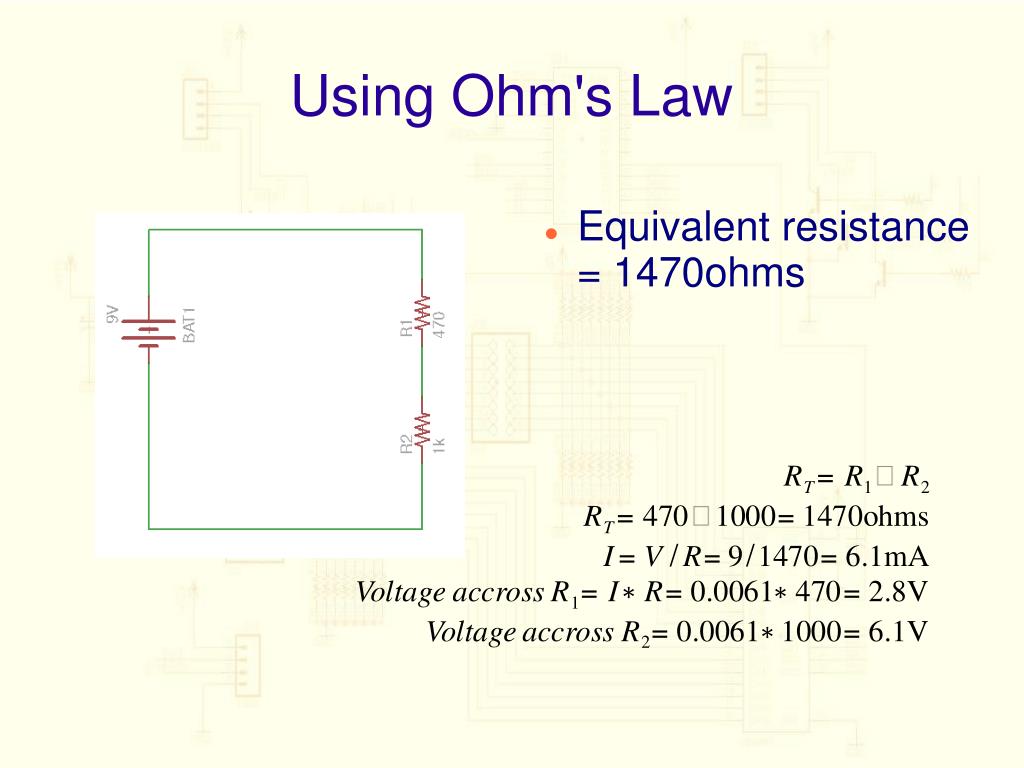

  32. Using Ohm's Law • Equivalent resistance = 1470ohms

  33. Illustration on Board

  34. Series Example

  35. Parallel Example

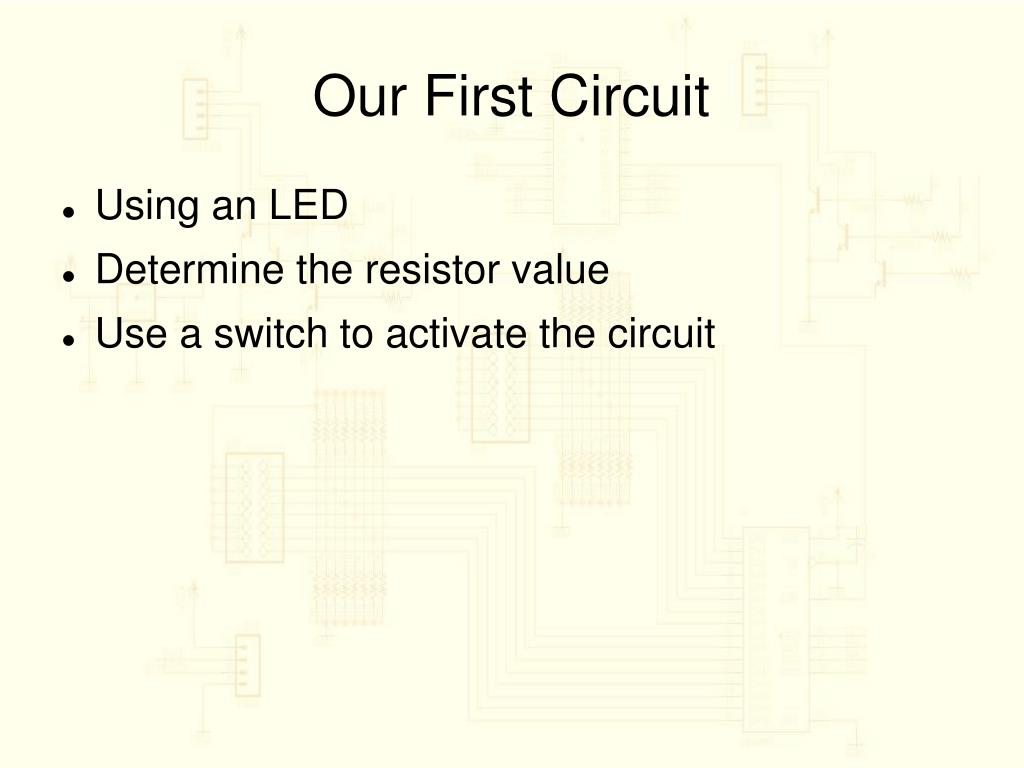

  36. Our First Circuit • Using an LED • Determine the resistor value • Use a switch to activate the circuit

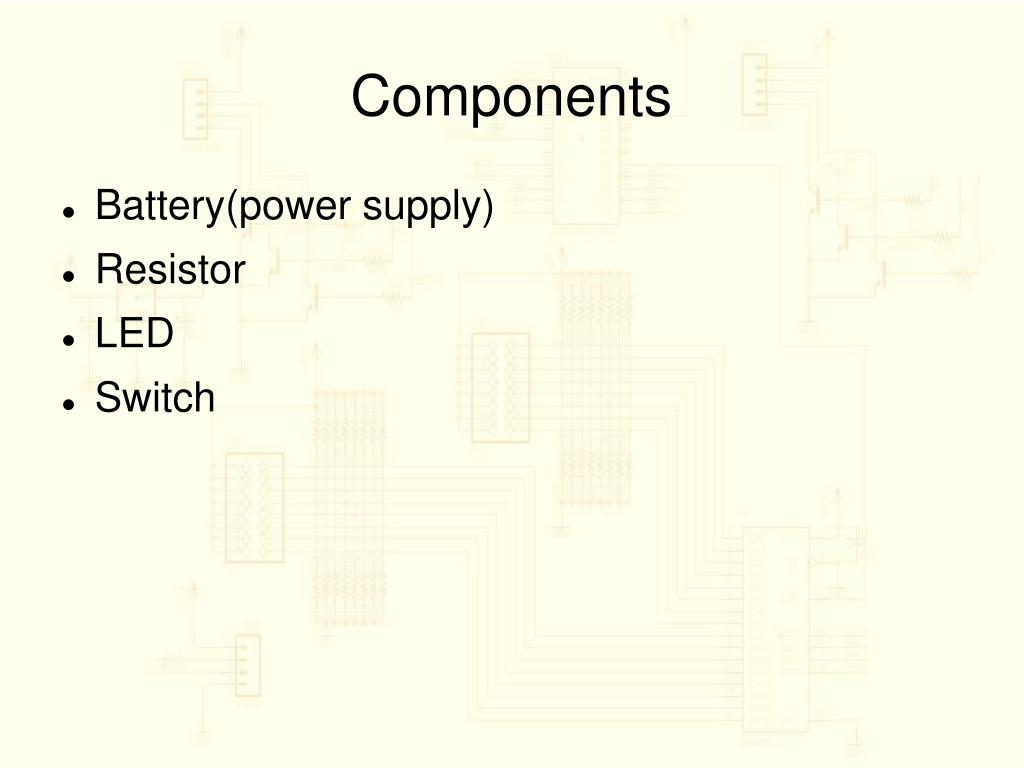

  37. Components • Battery(power supply) • Resistor • LED • Switch

  38. Functions • Battery to power circuit • LED to produce the light • Resistor to control circuit current suitable for the LED • Switch to turn the circuit 'on'

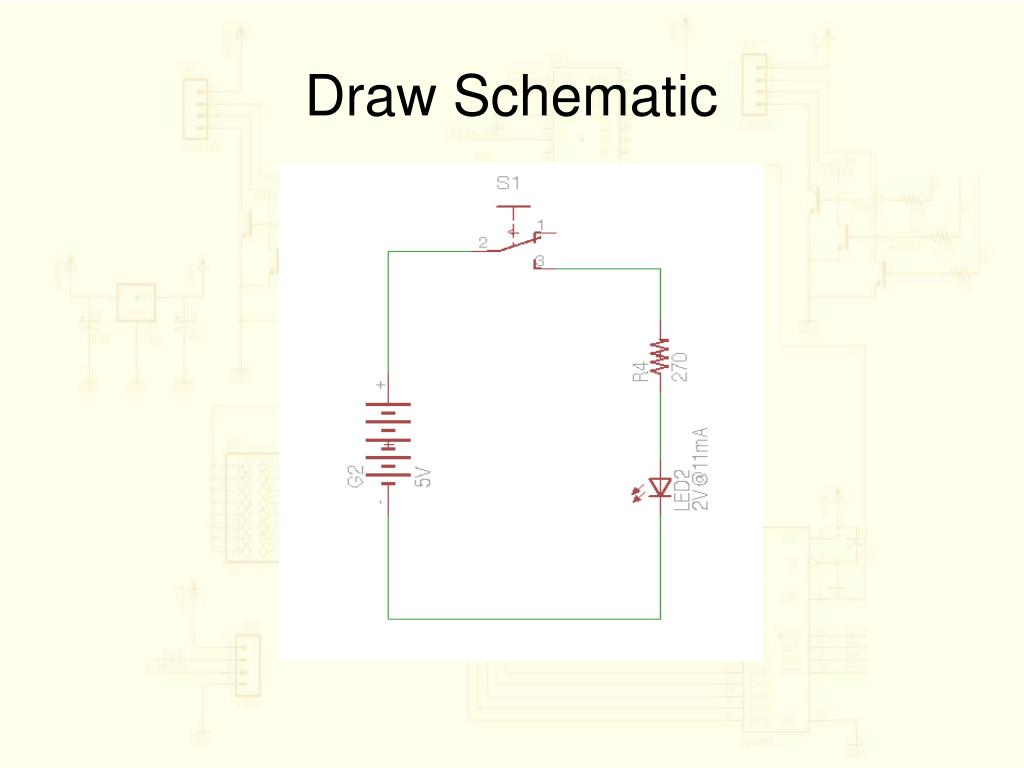

  39. Draw Schematic

  40. Determine Values • LED rated for 11mA(milliampere) forward current at 2V (volts) • For a 5V battery power and 2V across the LED the remaining 3V need to appear across the resistor • Since LED is rated at 11mA(0.011A) and is in series with resistor, same current flows through resistor. • So resistor value should be 3/0.011 = 272.7ohm. We will use 270 ohm.

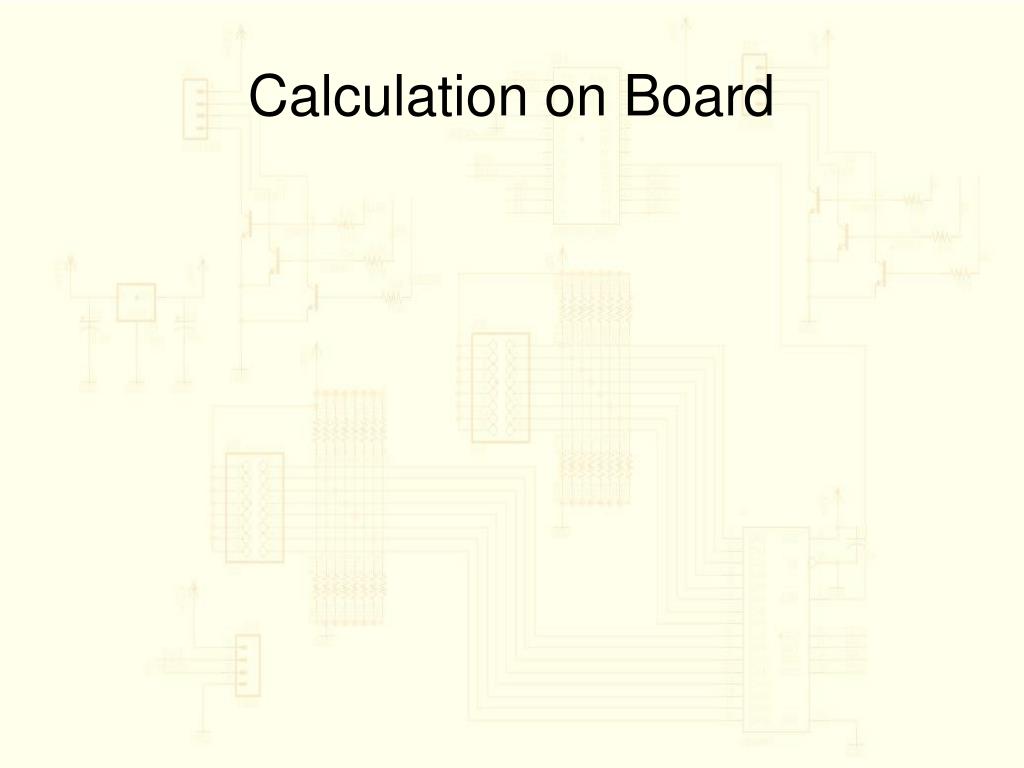

  41. Calculation on Board

  42. Physical Setup and Demo

  43. Power Calculation

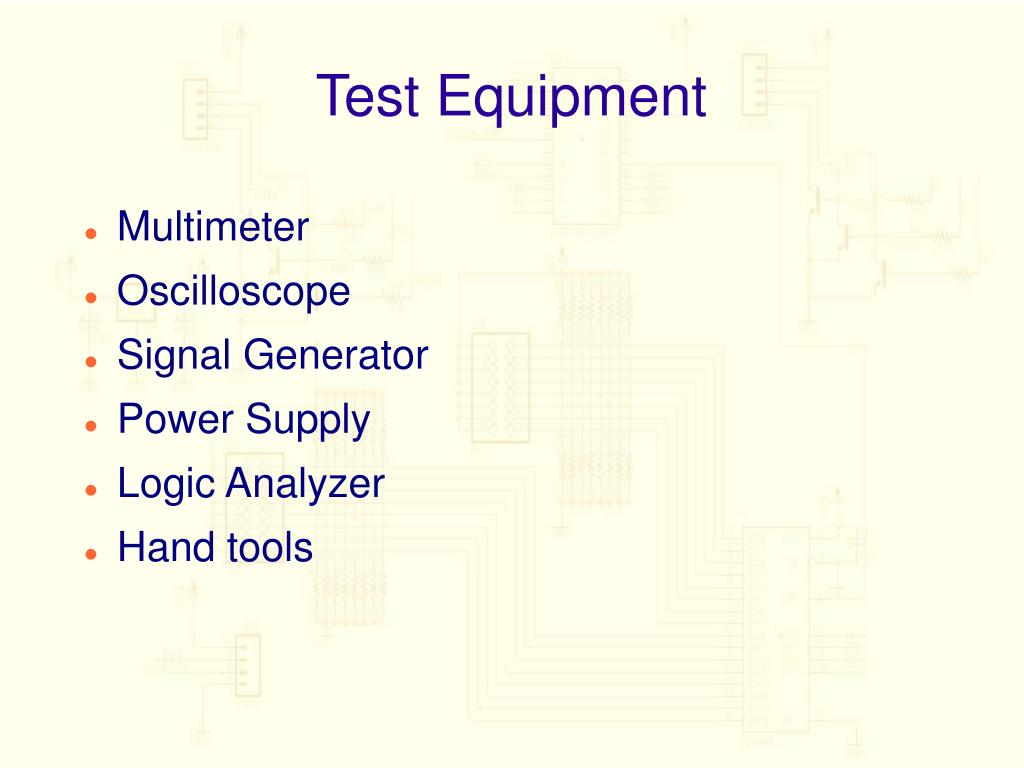

  44. Test Equipment • Multimeter • Oscilloscope • Signal Generator • Power Supply • Logic Analyzer • Hand tools

  45. Multimeter • Use to measure Voltage, Current and Resistance • Some measure frequency, capacitance, temperature and more • *** Caution*** • Take extra care when measuring current • Start with a selection higher than the highest expected value

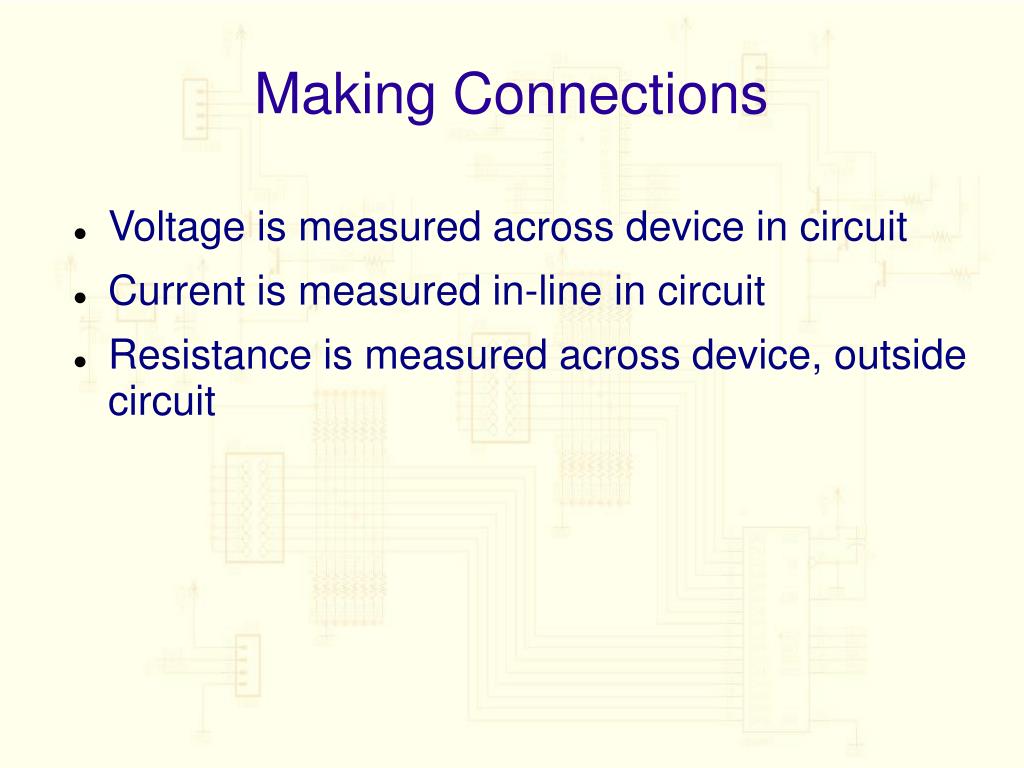

  46. Making Connections • Voltage is measured across device in circuit • Current is measured in-line in circuit • Resistance is measured across device, outside circuit

  47. Oscilloscope • Provides detailed graphic representation of signals • Essential for signals with ac components • Usefull for monitoring noise

  48. Wire Stripping and Soldering • For connectivity on PCBs • For connectivity with connectors • For connectivity with panel components • For connectivity with general parts

  49. Wire Strippers • Automatic • Manual

  50. Manual Strippers • Use the wire size label on tool or.. • Use a position with a hole slightly larger than the wire diameter
