  1. Expanded Clay lightweight aggregates for Civil Engineering applications ArnsteinWatn, SINTEF, Norway Oddvar Hyrve, maxit Group, Norway Inge Brorsson, SGI, Sweden, Liaison TC 227

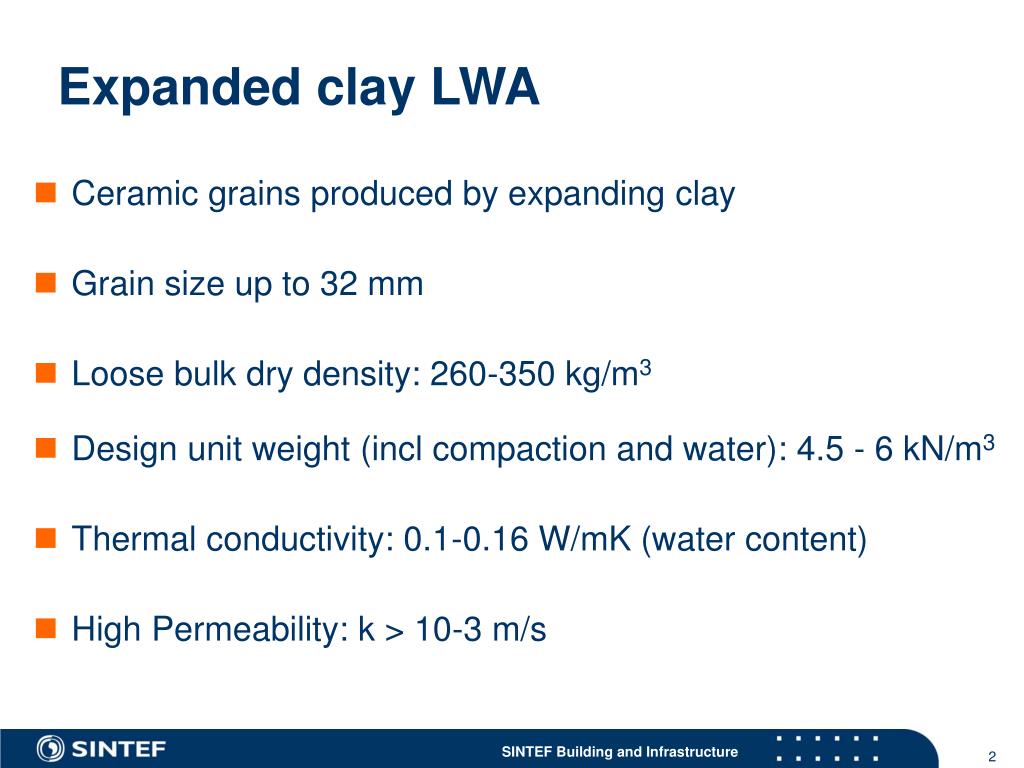

  2. Expanded clay LWA • Ceramic grains produced by expanding clay • Grain size up to 32 mm • Loose bulk dry density: 260-350 kg/m3 • Design unit weight (incl compaction and water): 4.5 - 6 kN/m3 • Thermal conductivity: 0.1-0.16 W/mK (water content) • High Permeability: k > 10-3 m/s

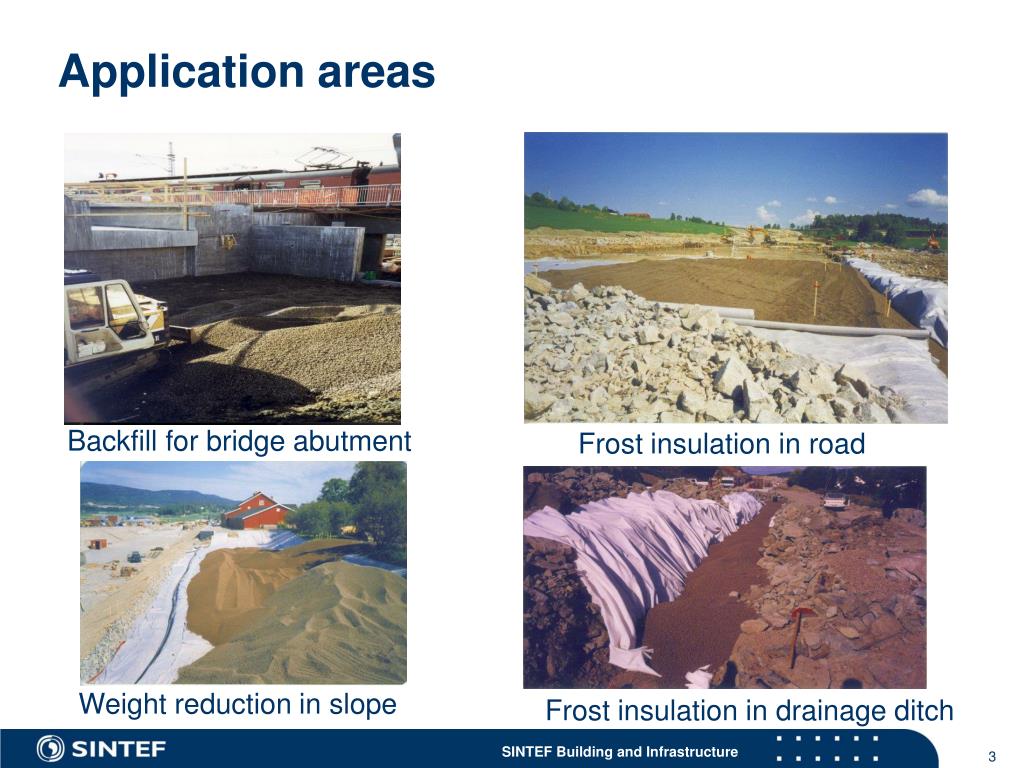

  3. Application areas Backfill for bridge abutment Frost insulation in road Weight reduction in slope Frost insulation in drainage ditch

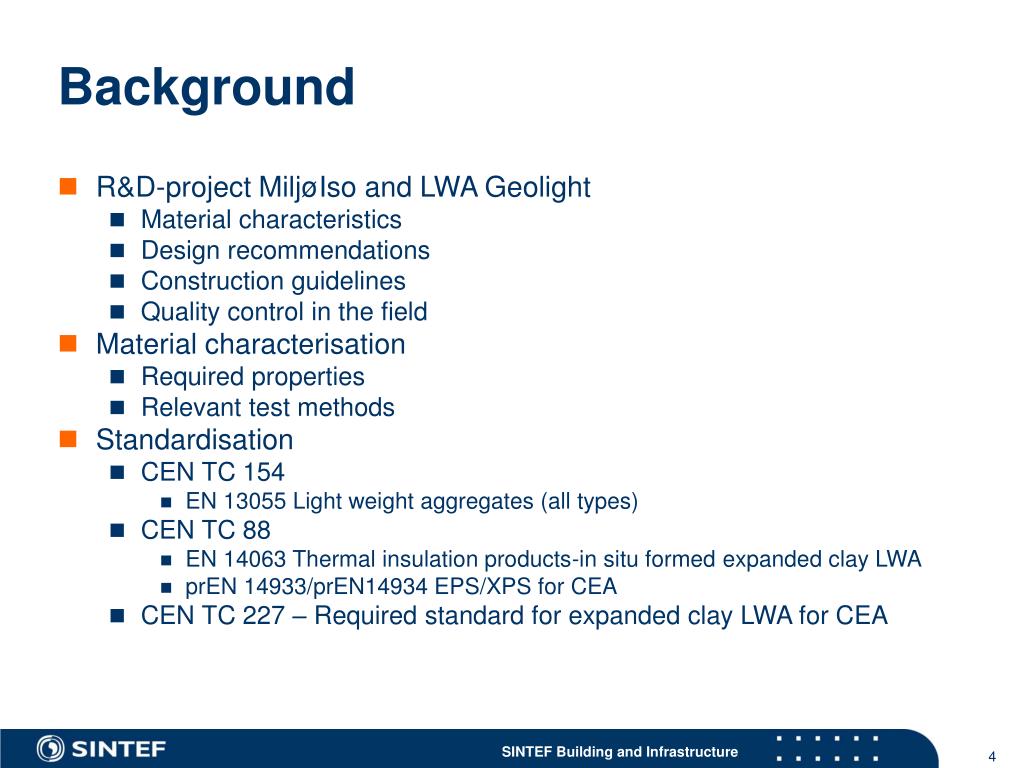

  4. Background • R&D-project MiljøIso and LWA Geolight • Material characteristics • Design recommendations • Construction guidelines • Quality control in the field • Material characterisation • Required properties • Relevant test methods • Standardisation • CEN TC 154 • EN 13055 Light weight aggregates (all types) • CEN TC 88 • EN 14063 Thermal insulation products-in situ formed expanded clay LWA • prEN 14933/prEN14934 EPS/XPS for CEA • CEN TC 227 – Required standard for expanded clay LWA for CEA

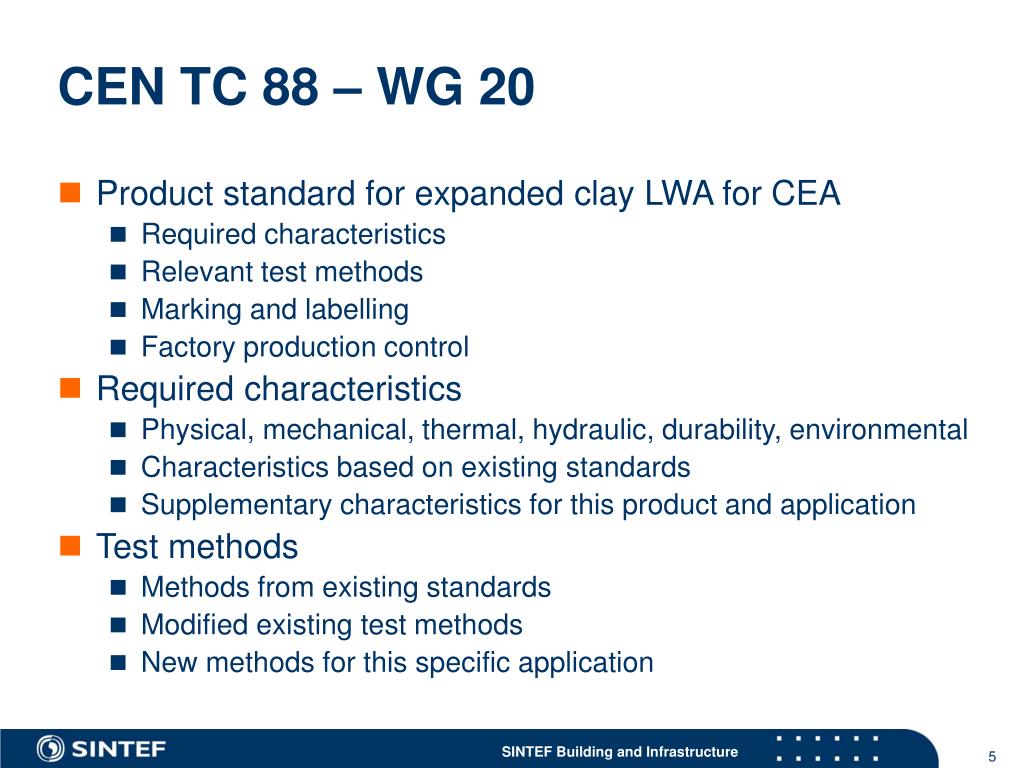

  5. CEN TC 88 – WG 20 • Product standard for expanded clay LWA for CEA • Required characteristics • Relevant test methods • Marking and labelling • Factory production control • Required characteristics • Physical, mechanical, thermal, hydraulic, durability, environmental • Characteristics based on existing standards • Supplementary characteristics for this product and application • Test methods • Methods from existing standards • Modified existing test methods • New methods for this specific application

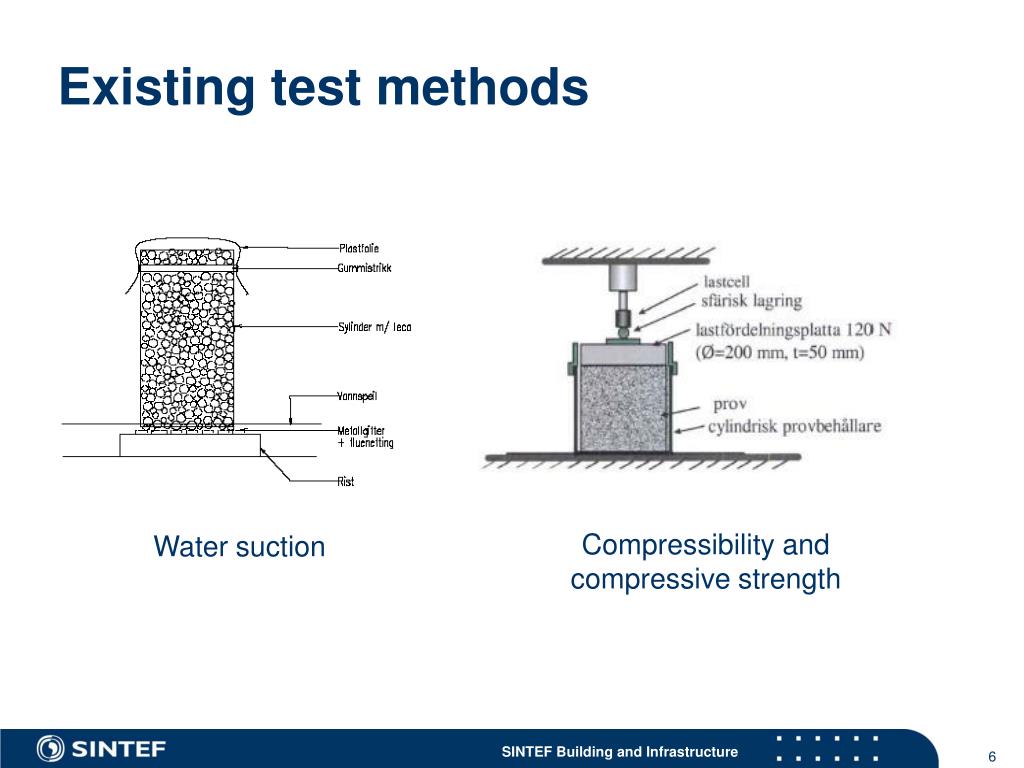

  6. Existing test methods Compressibility and compressive strength Water suction

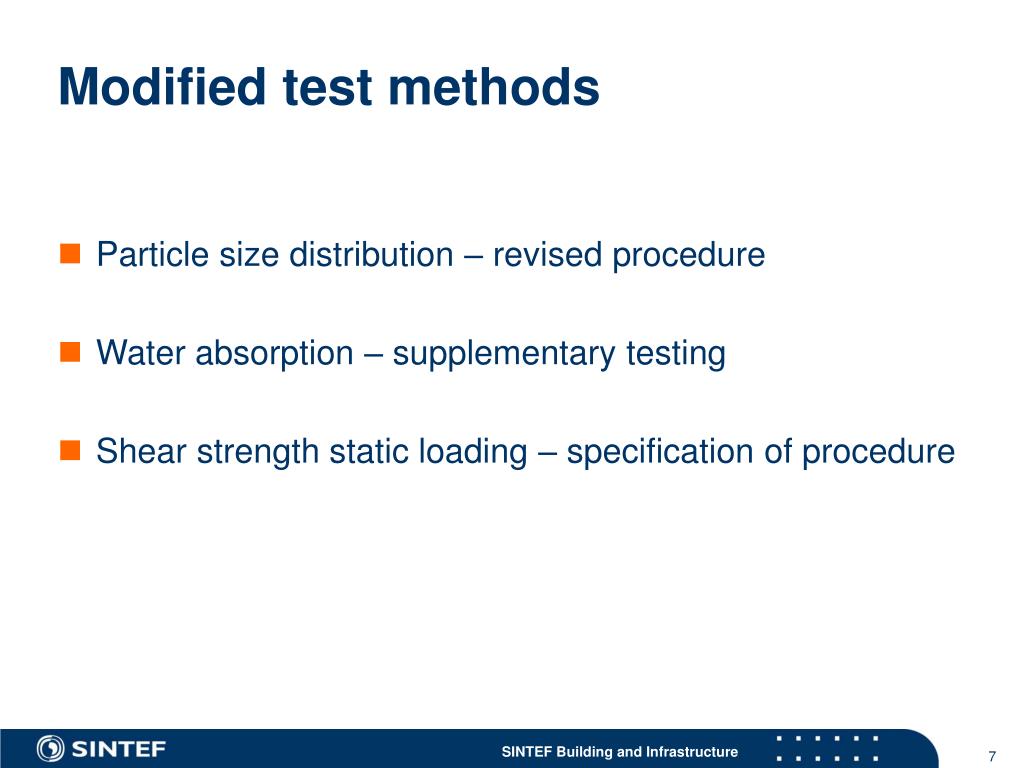

  7. Modified test methods • Particle size distribution – revised procedure • Water absorption – supplementary testing • Shear strength static loading – specification of procedure

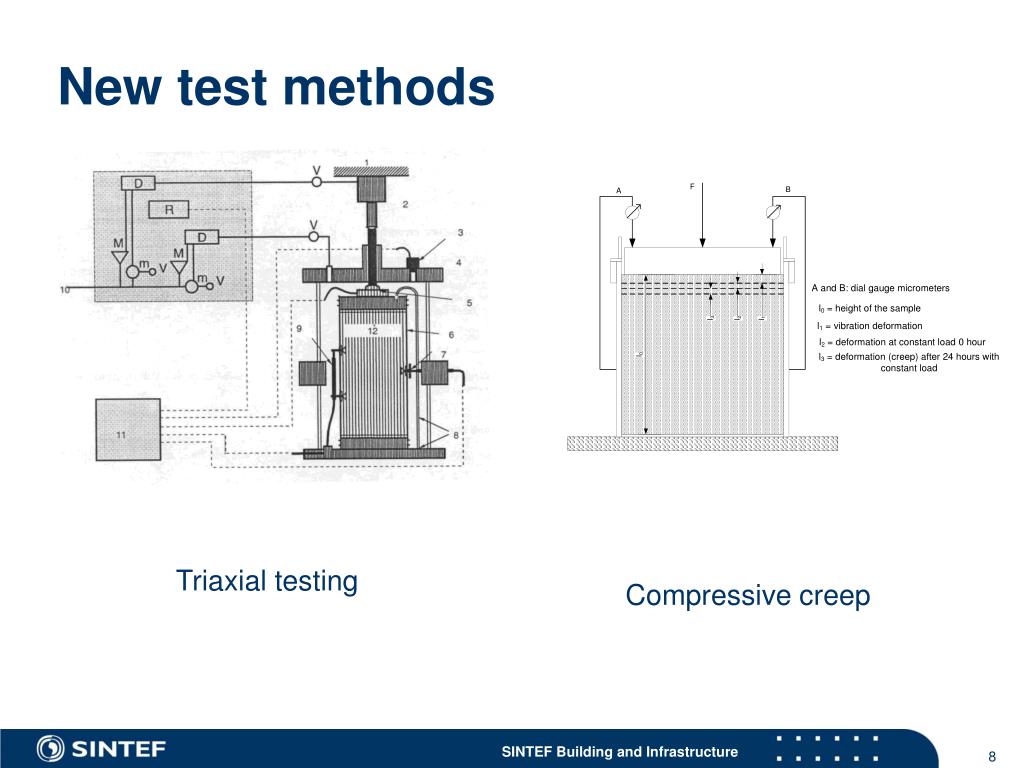

  8. New test methods Triaxial testing Compressive creep

  9. Implications • Basis for requirements and characterisation • Basis for material quality control • Basis for design properties (needs confirmations) • Basis for comparison of different materials • Good basis also for characterisation and testing other materials

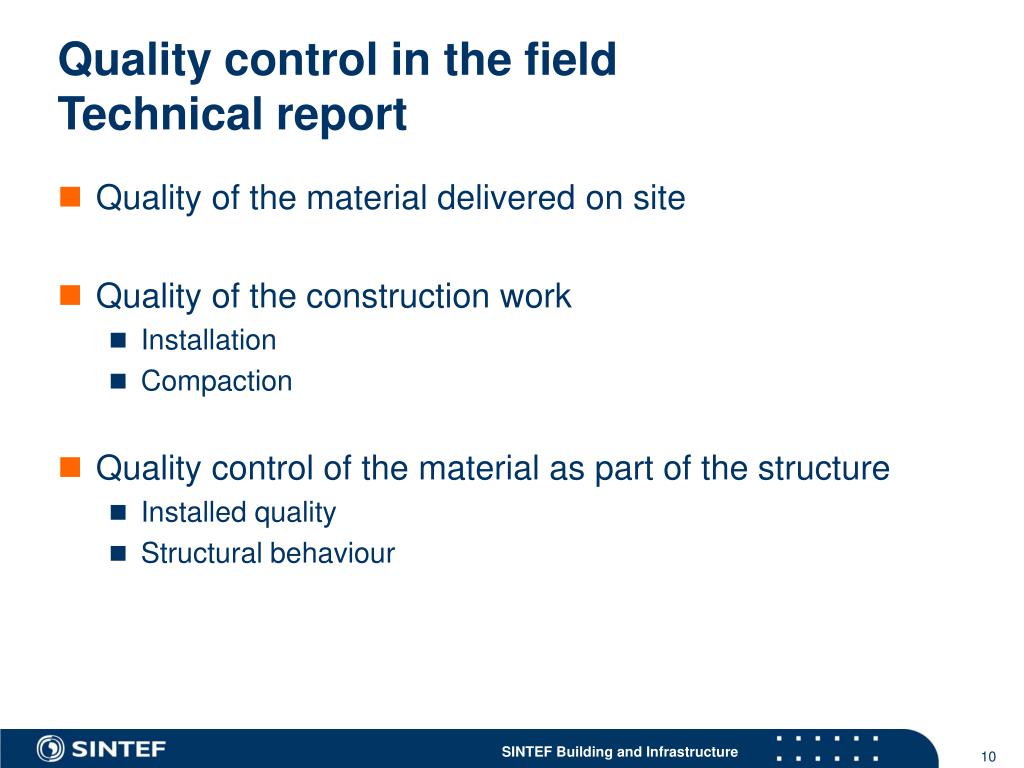

  10. Quality control in the fieldTechnical report • Quality of the material delivered on site • Quality of the construction work • Installation • Compaction • Quality control of the material as part of the structure • Installed quality • Structural behaviour

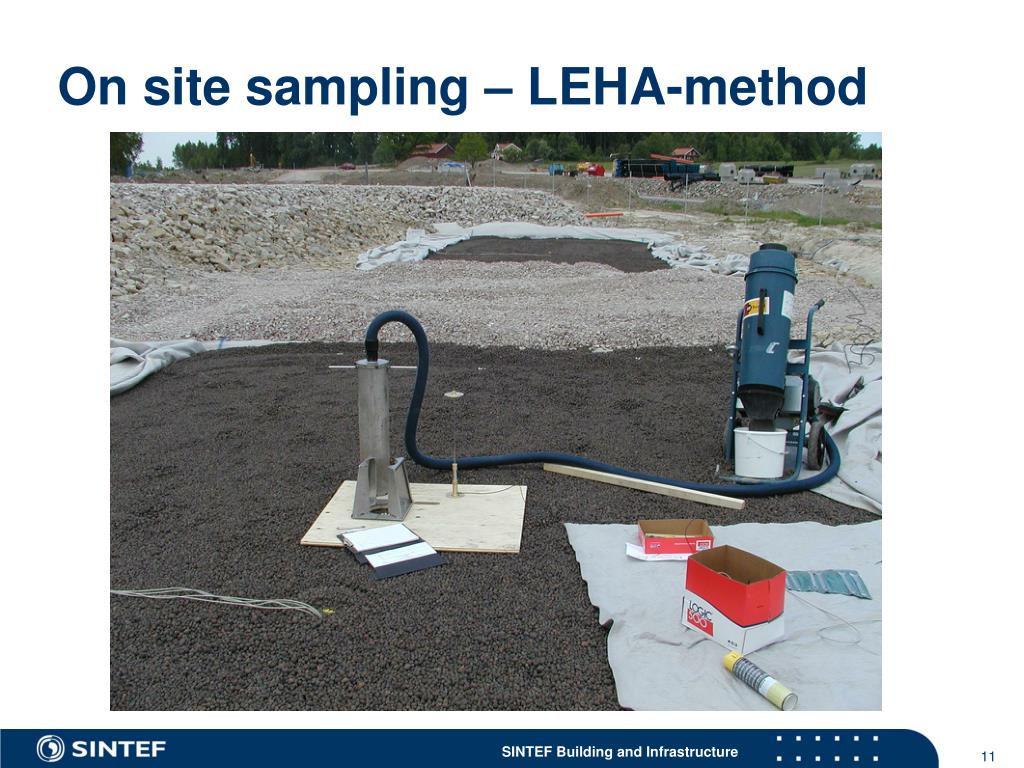

  11. On site sampling – LEHA-method

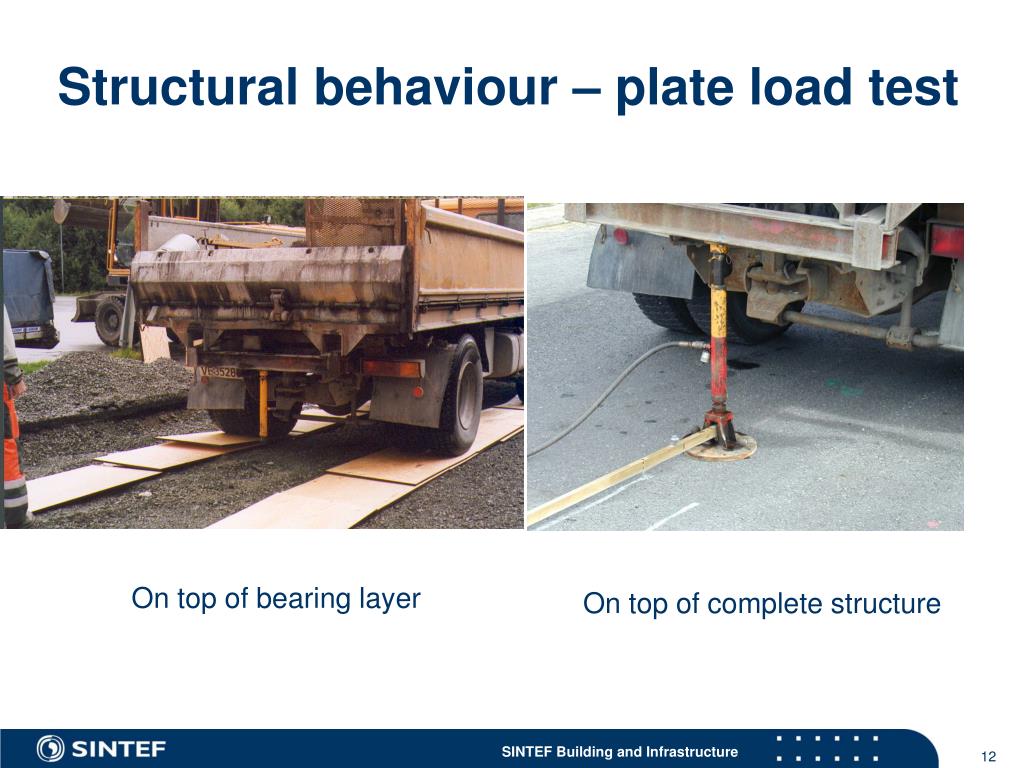

  12. Structural behaviour – plate load test On top of bearing layer On top of complete structure

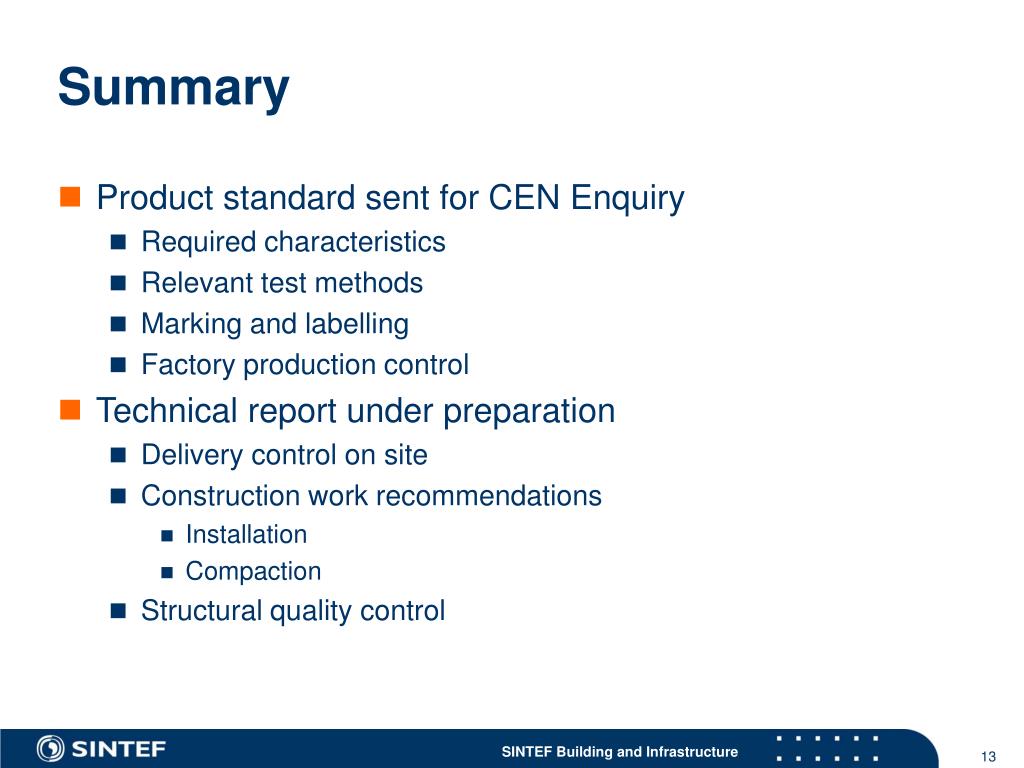

  13. Summary • Product standard sent for CEN Enquiry • Required characteristics • Relevant test methods • Marking and labelling • Factory production control • Technical report under preparation • Delivery control on site • Construction work recommendations • Installation • Compaction • Structural quality control
