  1. Development of Emission Inventories for Air Quality Plans Bart E. Croes, P.E. Chief of the Research Division California Air Resources Board Delhi, India November 6-11, 2000

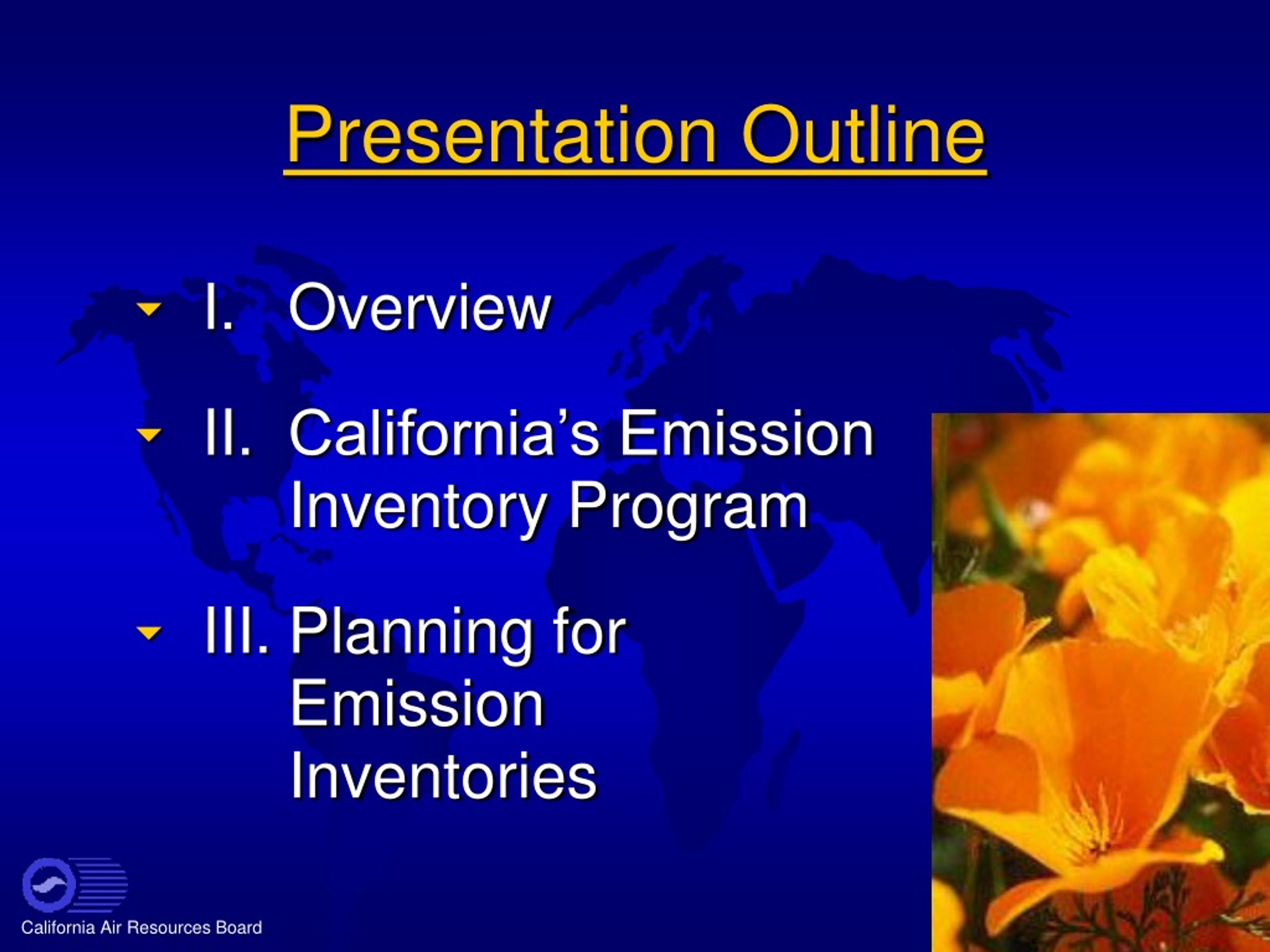

  2. Presentation Outline • I. Overview • II. California’s Emission Inventory Program • III. Planning for Emission Inventories

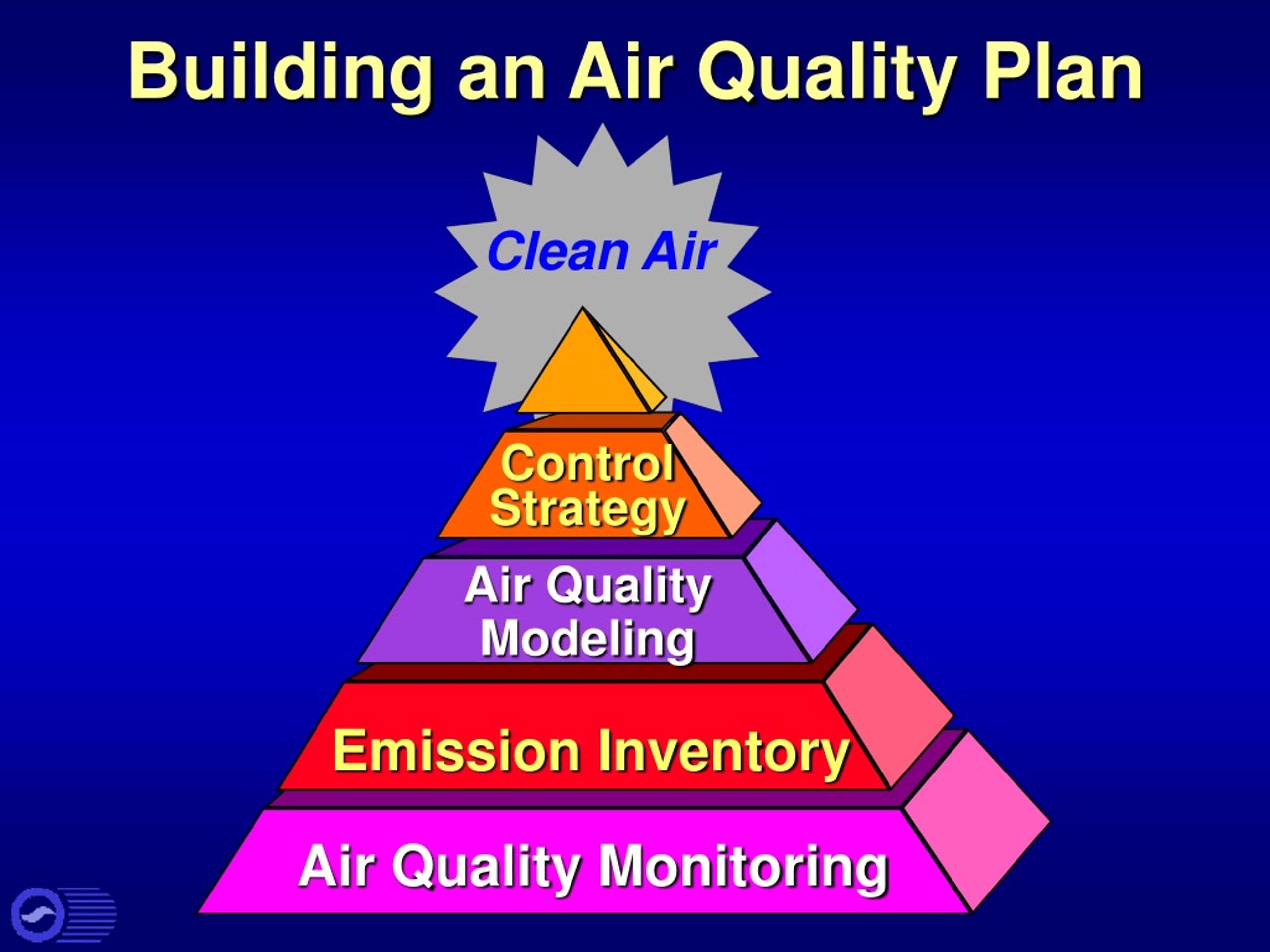

  3. Building an Air Quality Plan Clean Air Control Strategy Air Quality Modeling Emission Inventory Air Quality Monitoring

  4. Emission Inventory “Is a comprehensive listing of the sources of air pollution and an estimate of their emissions within a specific geographic area for a specific time interval.”

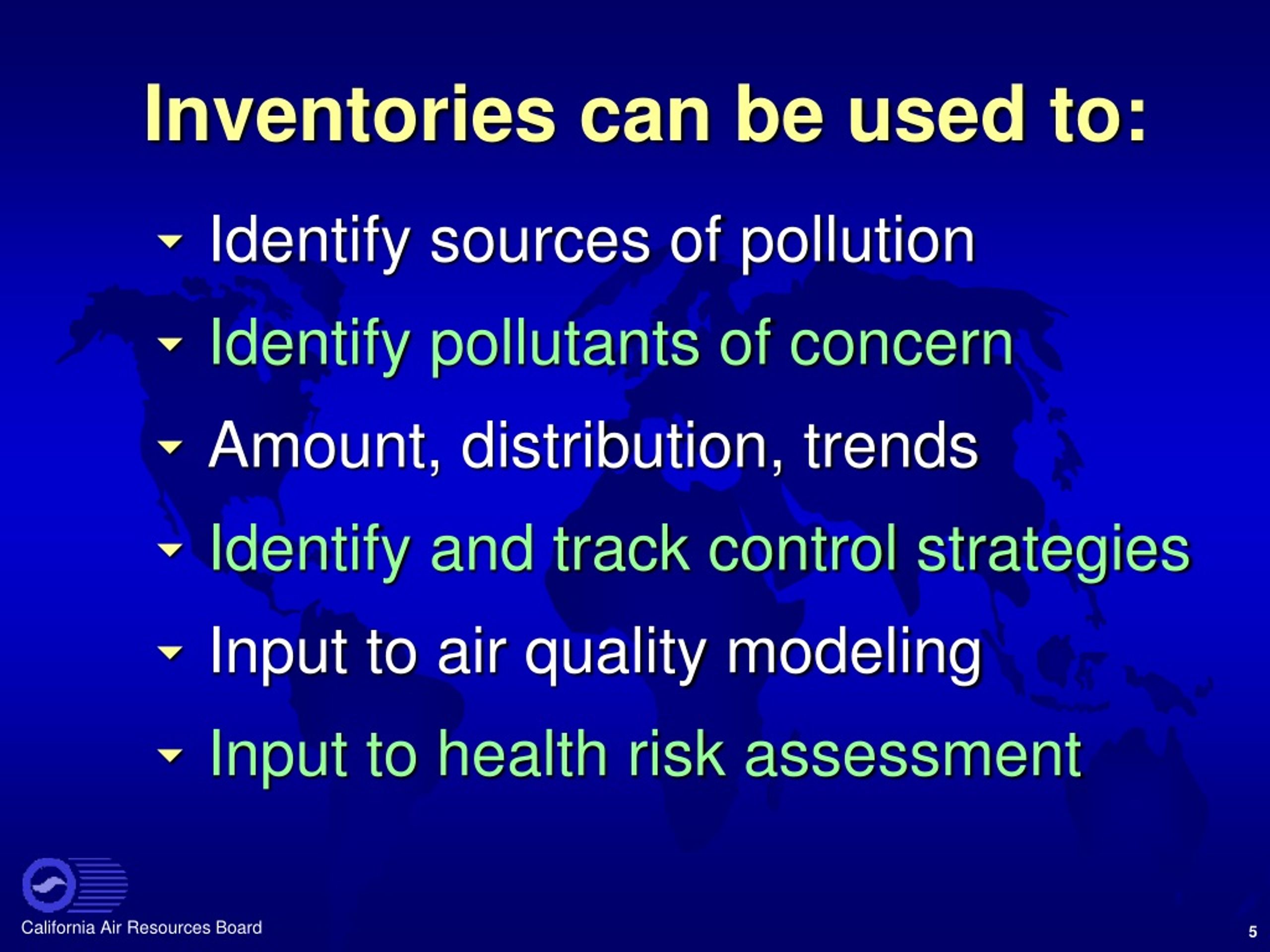

  5. Inventories can be used to: • Identify sources of pollution • Identify pollutants of concern • Amount, distribution, trends • Identify and track control strategies • Input to air quality modeling • Input to health risk assessment

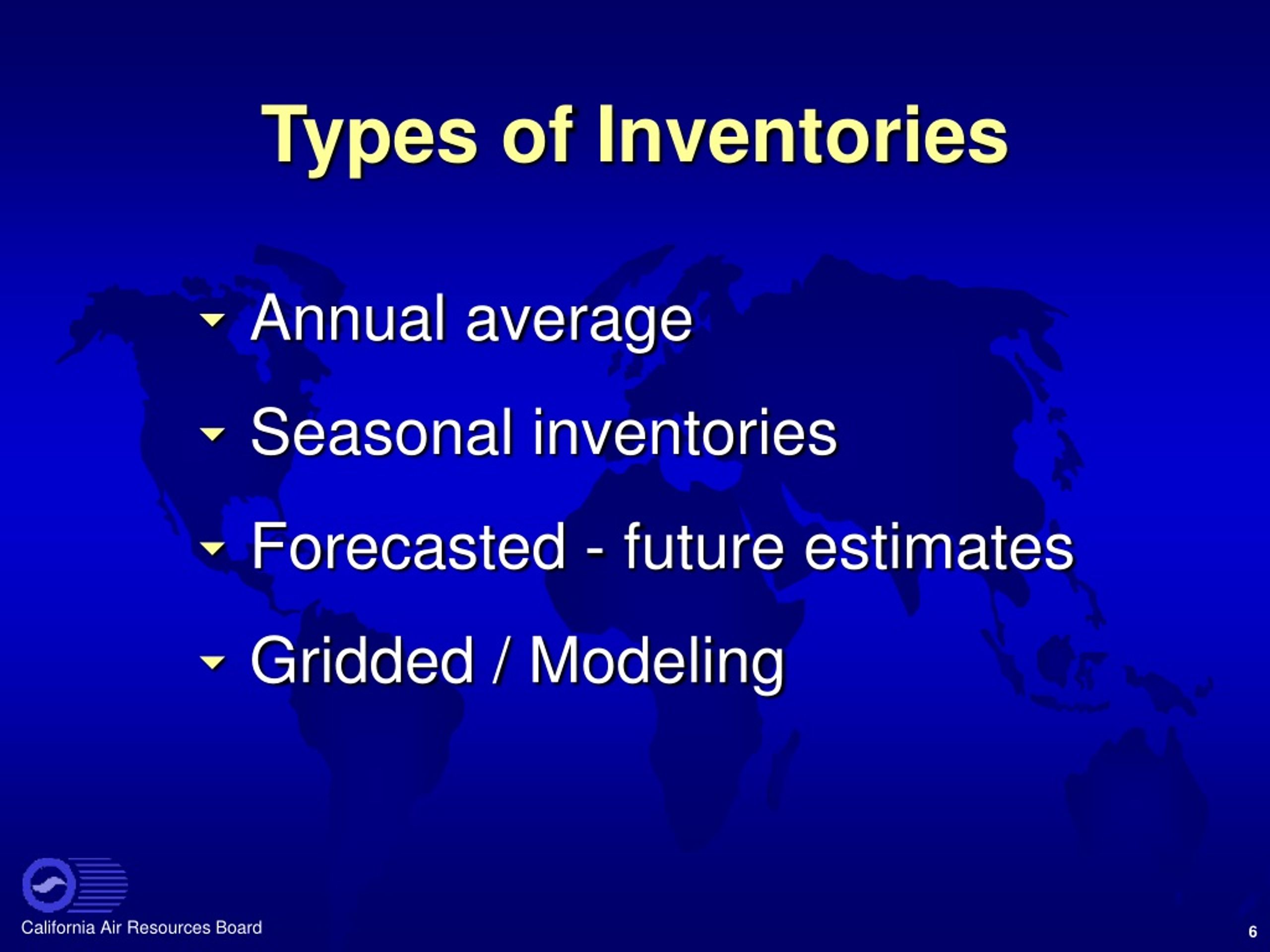

  6. Types of Inventories • Annual average • Seasonal inventories • Forecasted - future estimates • Gridded / Modeling

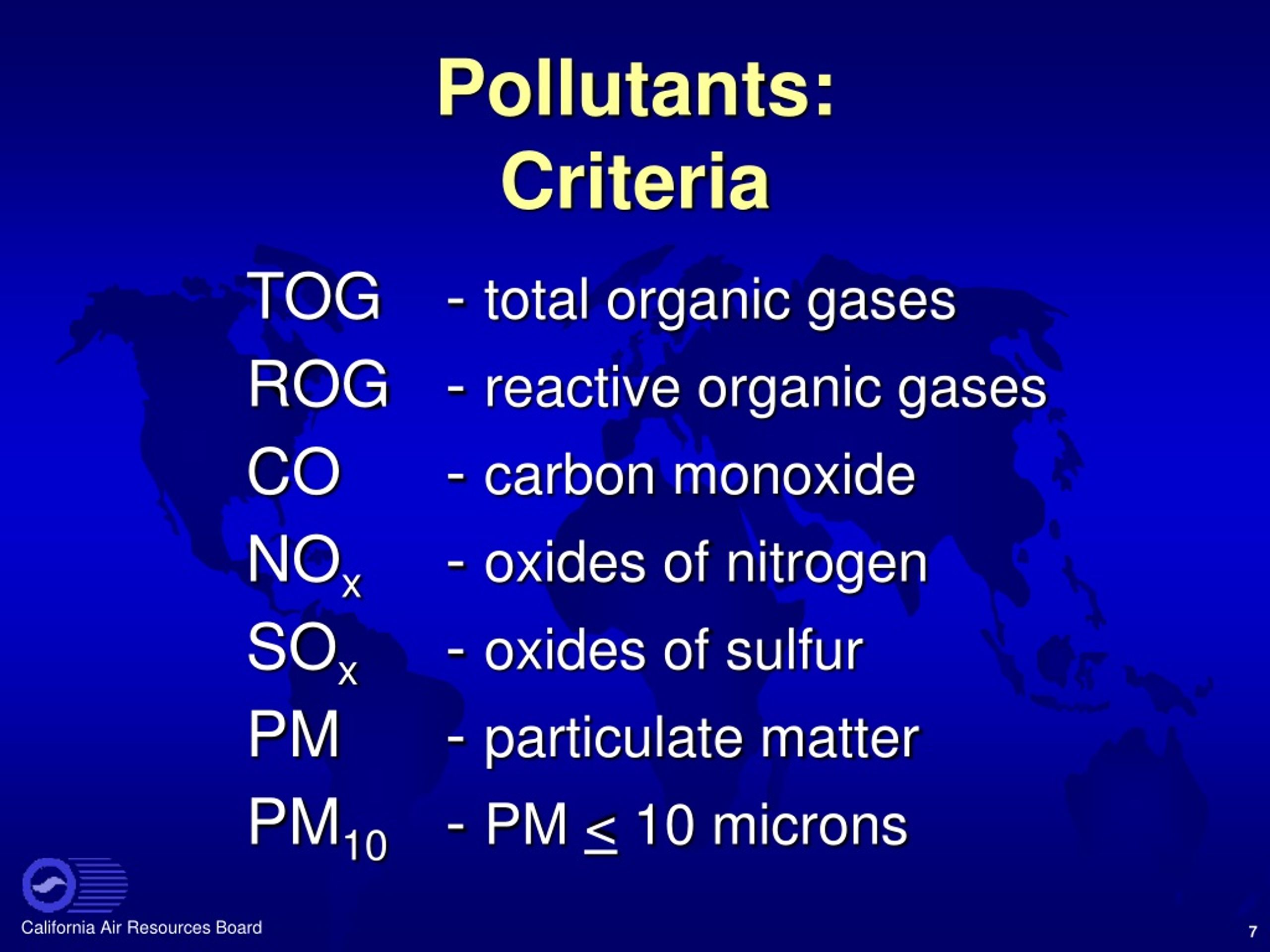

  7. Pollutants:Criteria TOG - total organic gases ROG - reactive organic gases CO - carbon monoxide NOx - oxides of nitrogen SOx - oxides of sulfur PM - particulate matter PM10 - PM < 10 microns

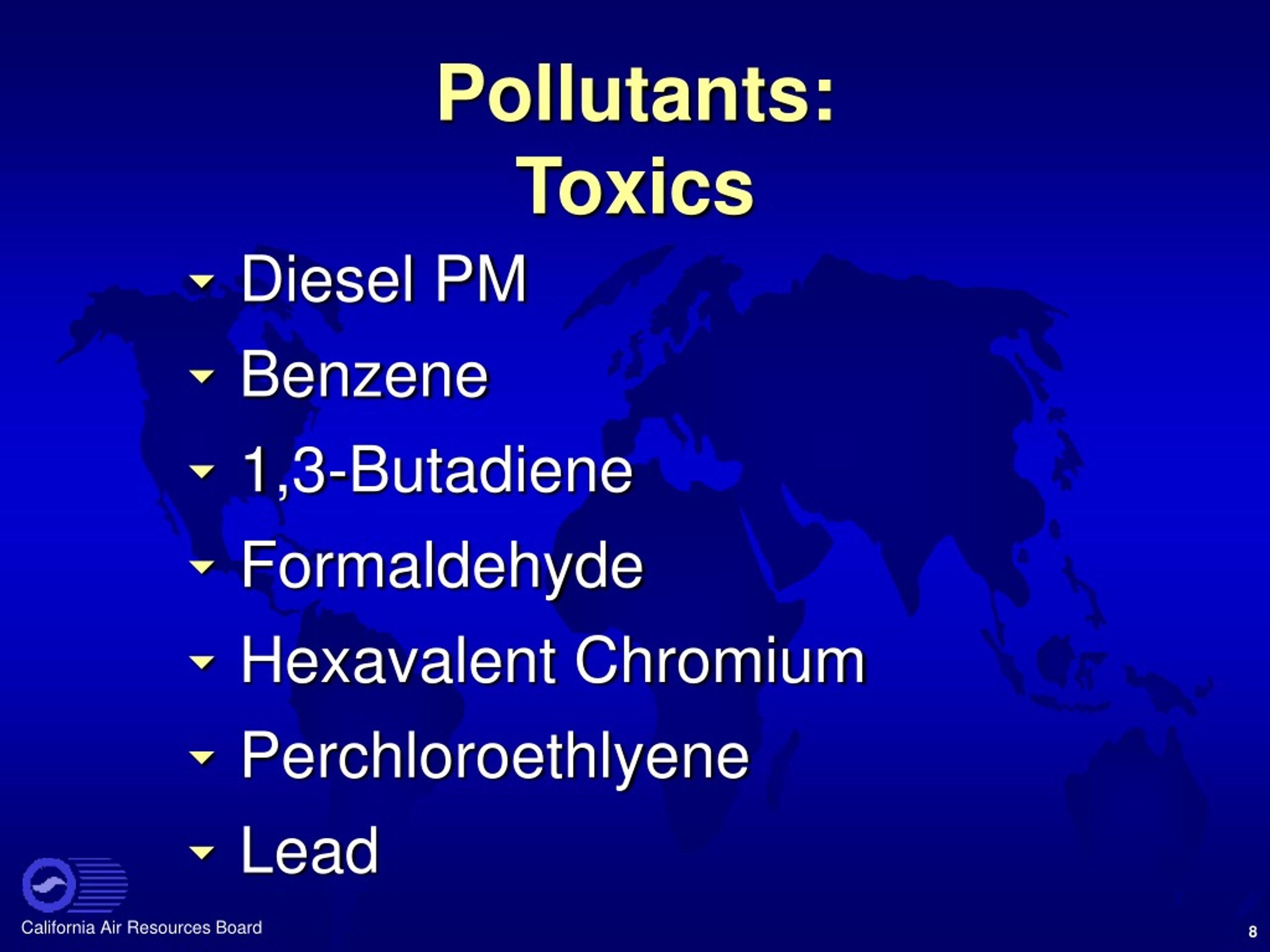

  8. Pollutants:Toxics • Diesel PM • Benzene • 1,3-Butadiene • Formaldehyde • Hexavalent Chromium • Perchloroethlyene • Lead

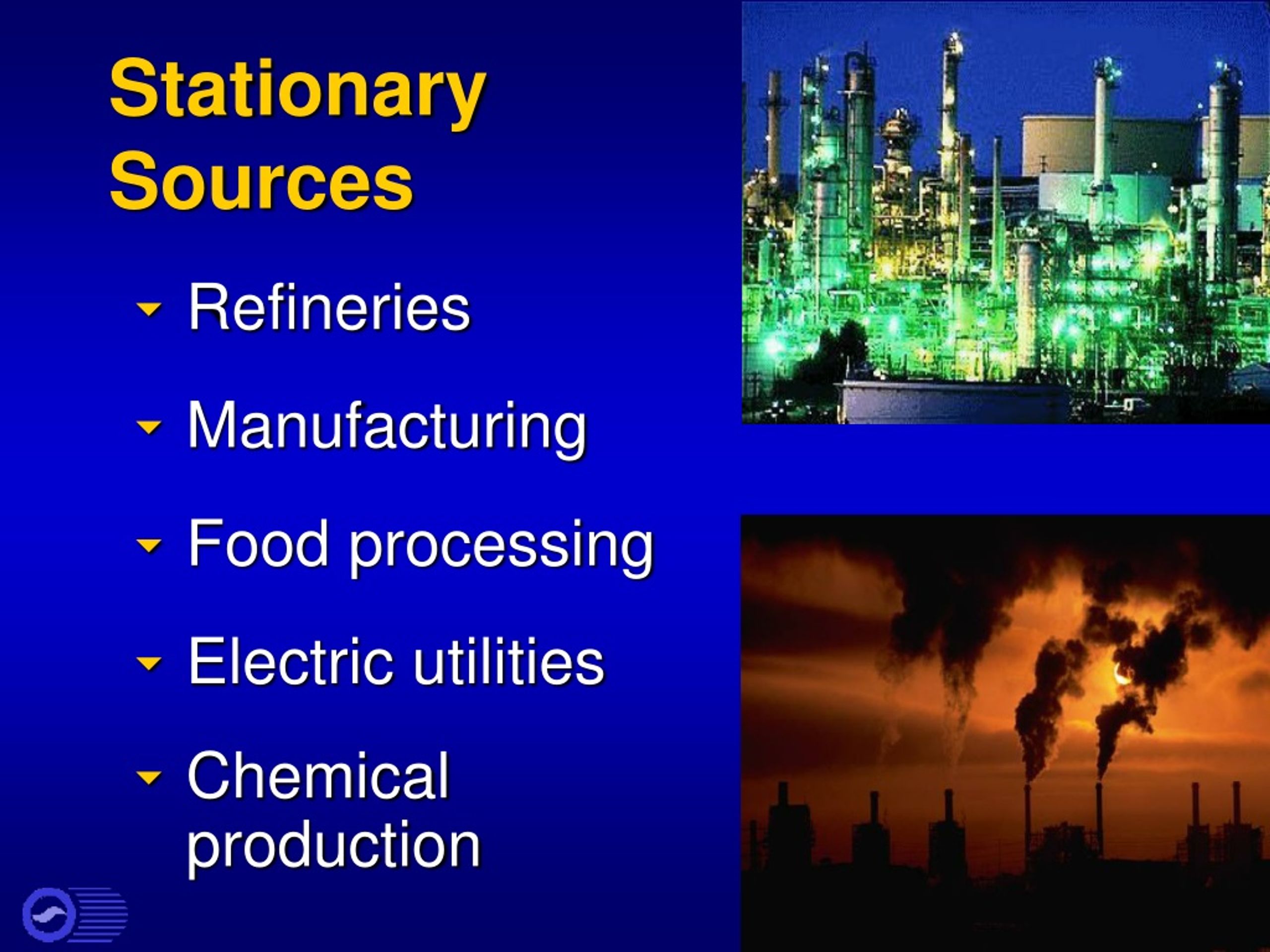

  9. StationarySources • Refineries • Manufacturing • Food processing • Electric utilities • Chemical production

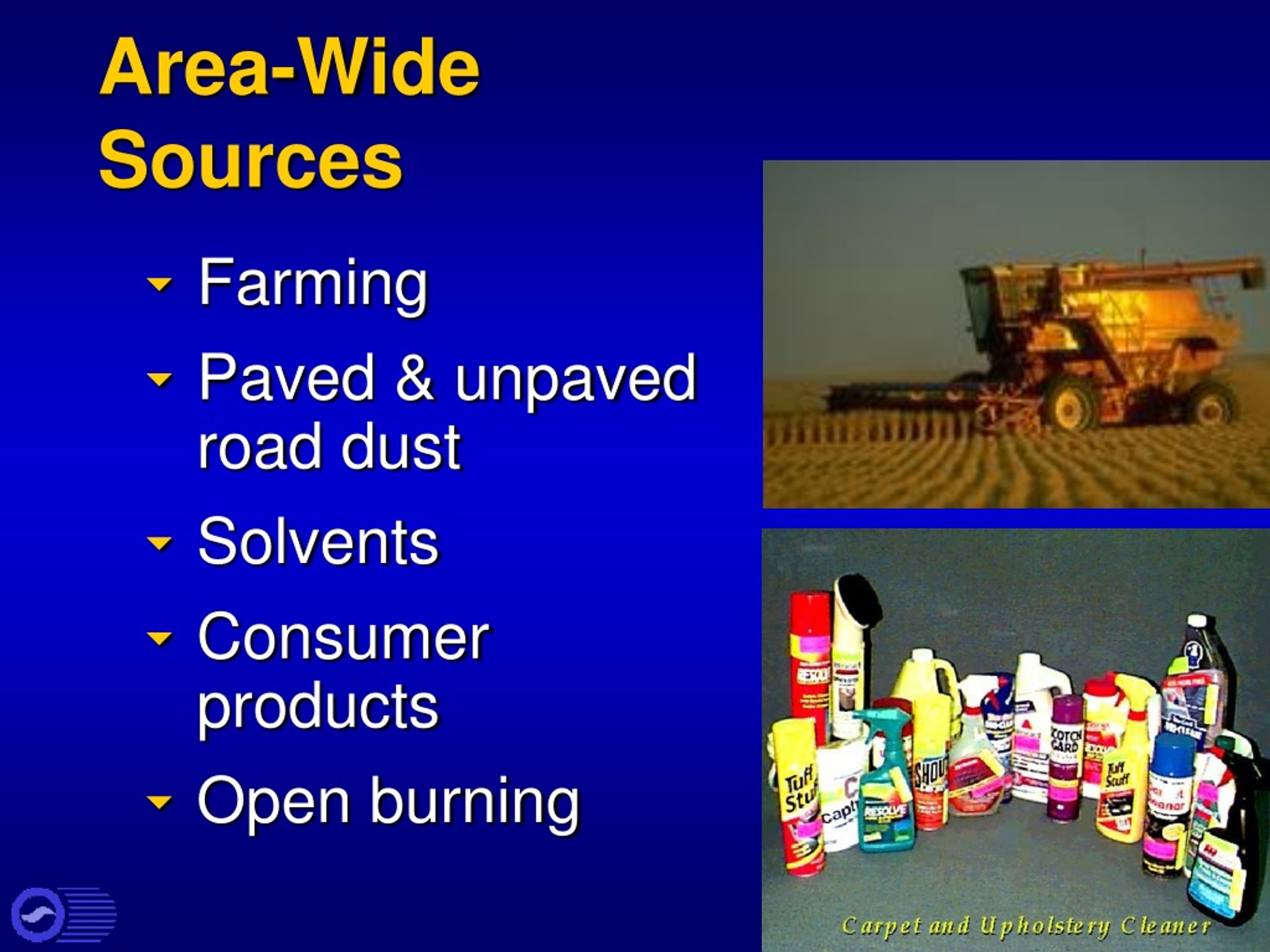

  10. Area-WideSources • Farming • Paved & unpavedroad dust • Solvents • Consumerproducts • Open burning

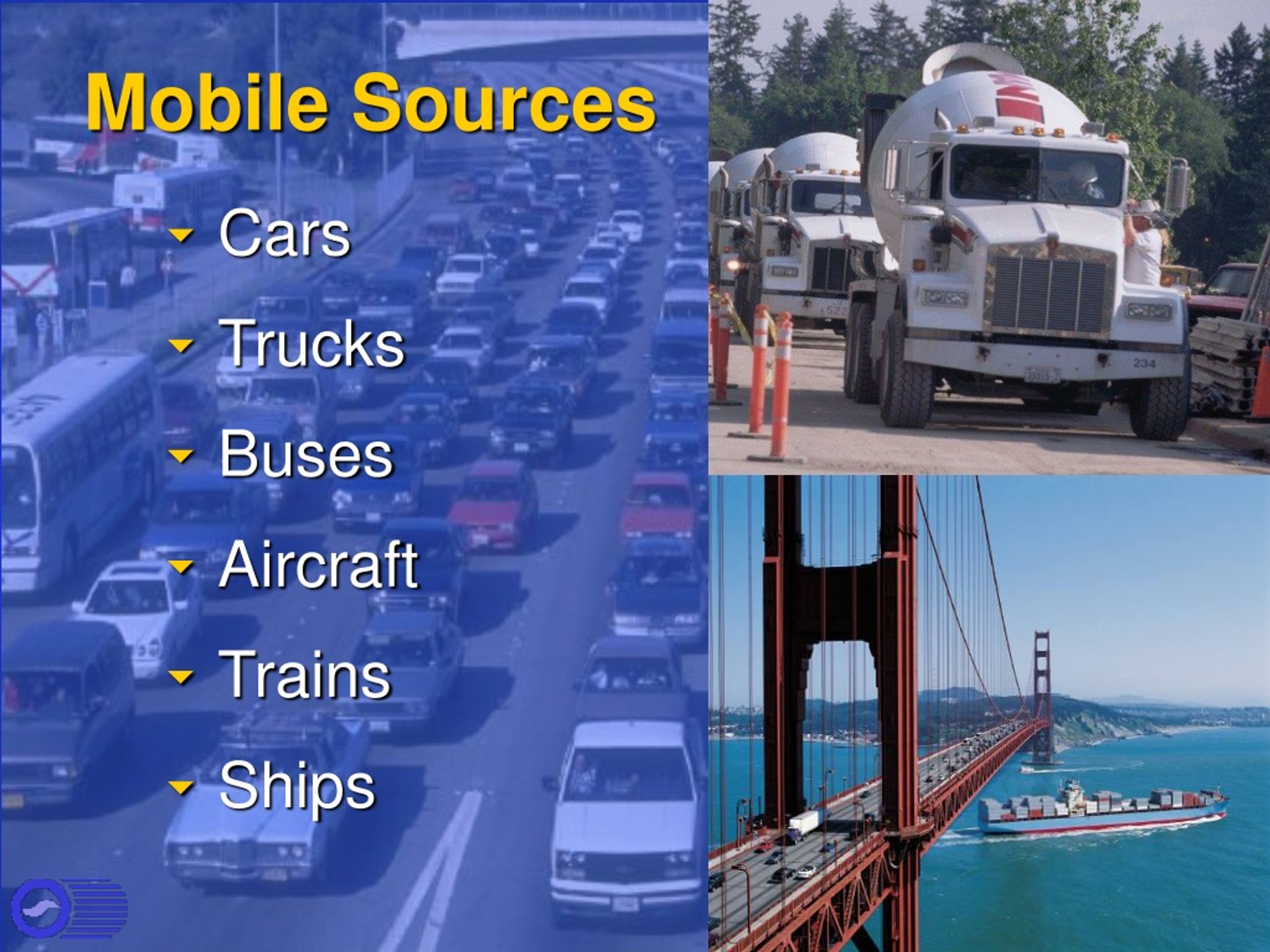

  11. Mobile Sources • Cars • Trucks • Buses • Aircraft • Trains • Ships

  12. Non- anthropogenic • Wildfires • Biogenics • Windblown Dust

  13. California’sEmissionInventoryProgram

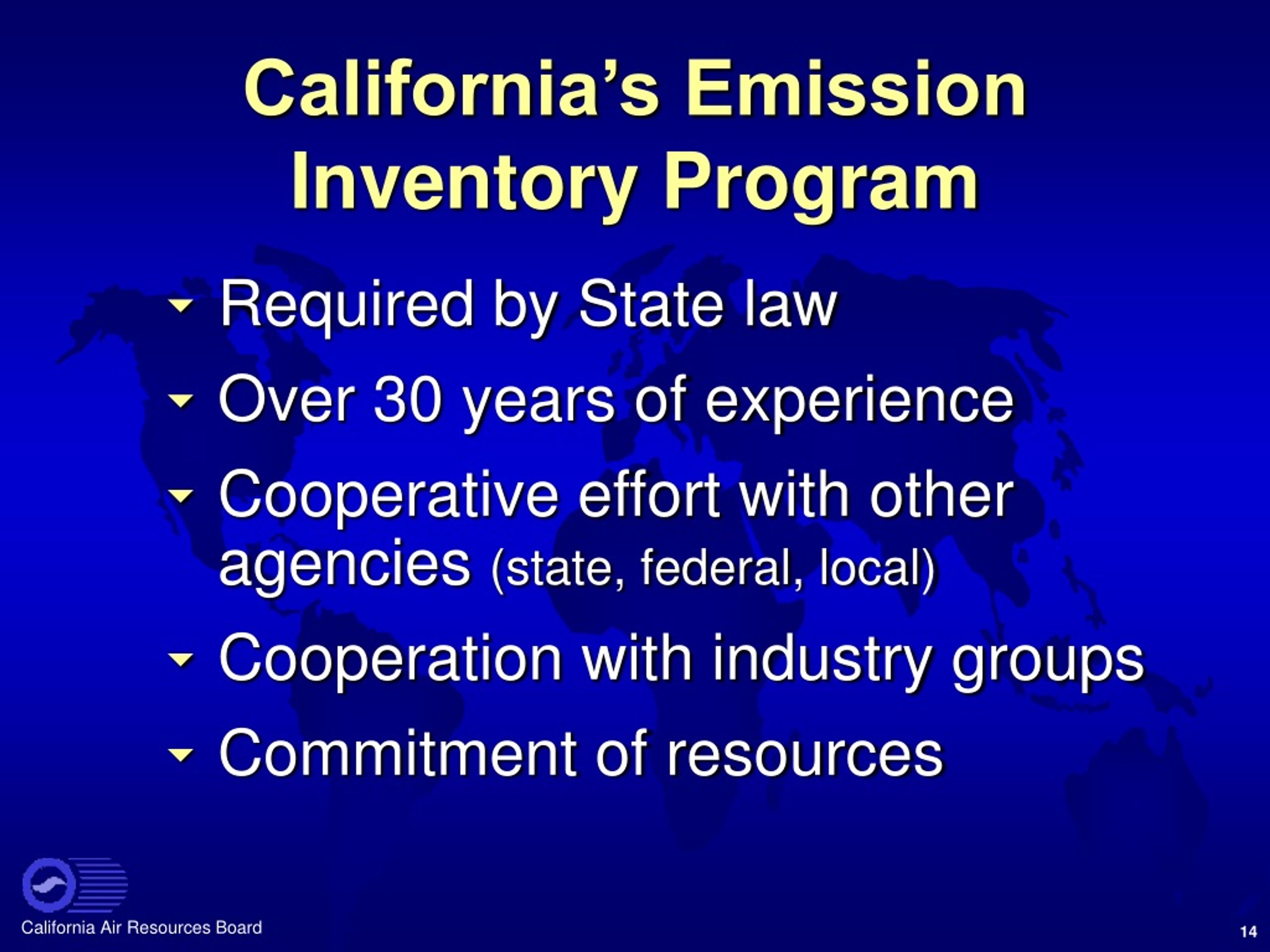

  14. California’s Emission Inventory Program • Required by State law • Over 30 years of experience • Cooperative effort with other agencies (state, federal, local) • Cooperation with industry groups • Commitment of resources

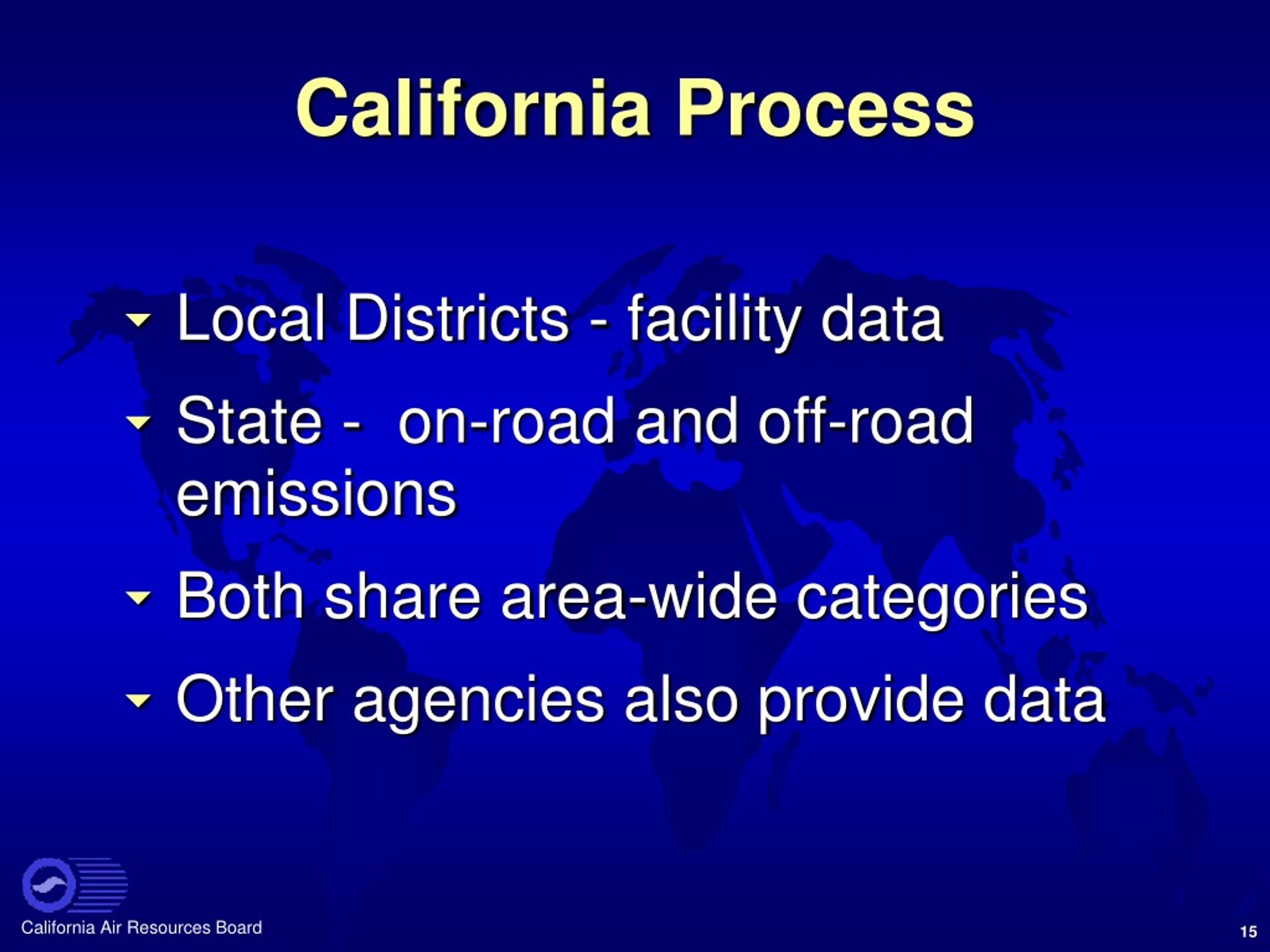

  15. California Process • Local Districts - facility data • State - on-road and off-road emissions • Both share area-wide categories • Other agencies also provide data

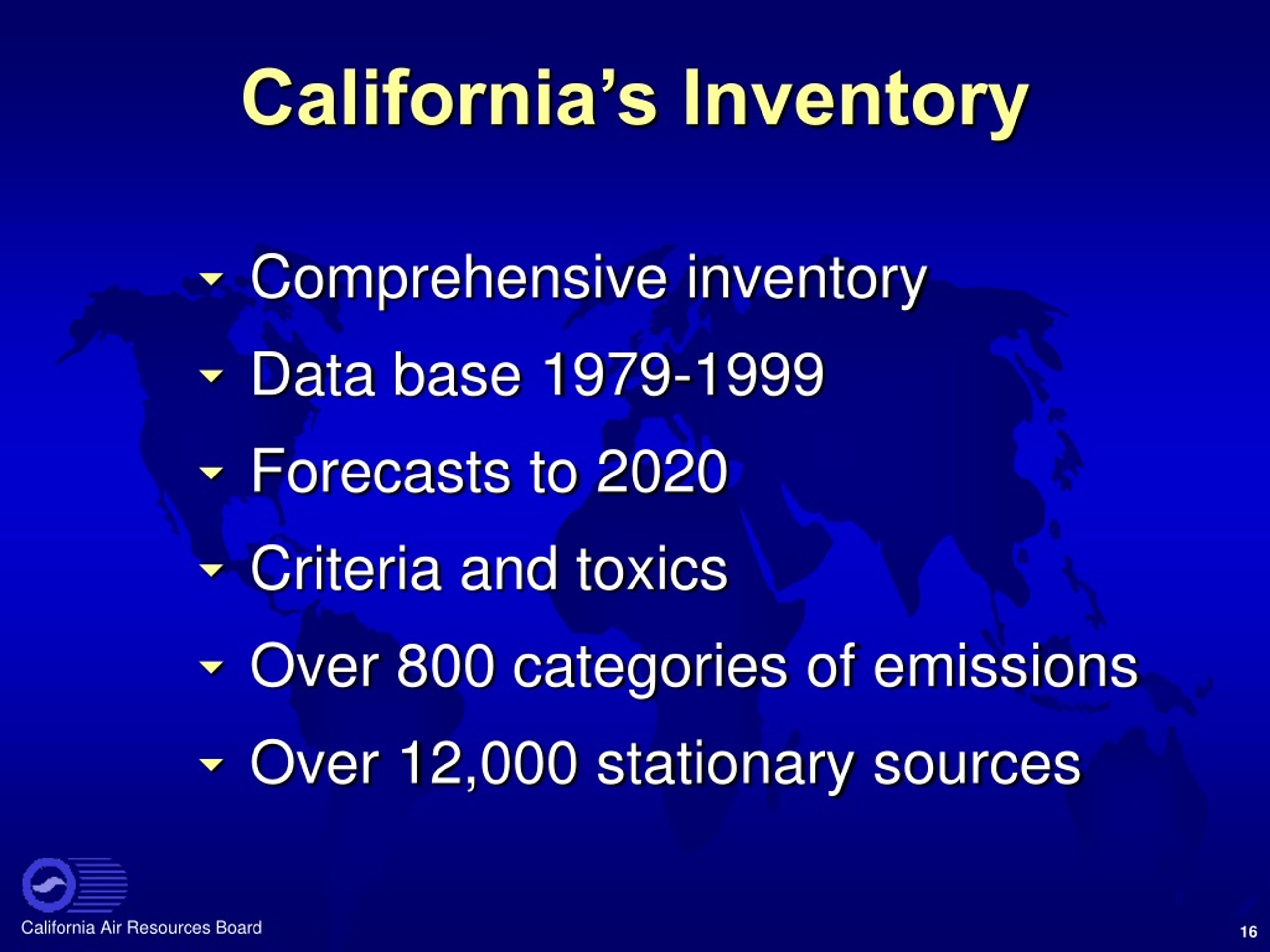

  16. California’s Inventory • Comprehensive inventory • Data base 1979-1999 • Forecasts to 2020 • Criteria and toxics • Over 800 categories of emissions • Over 12,000 stationary sources

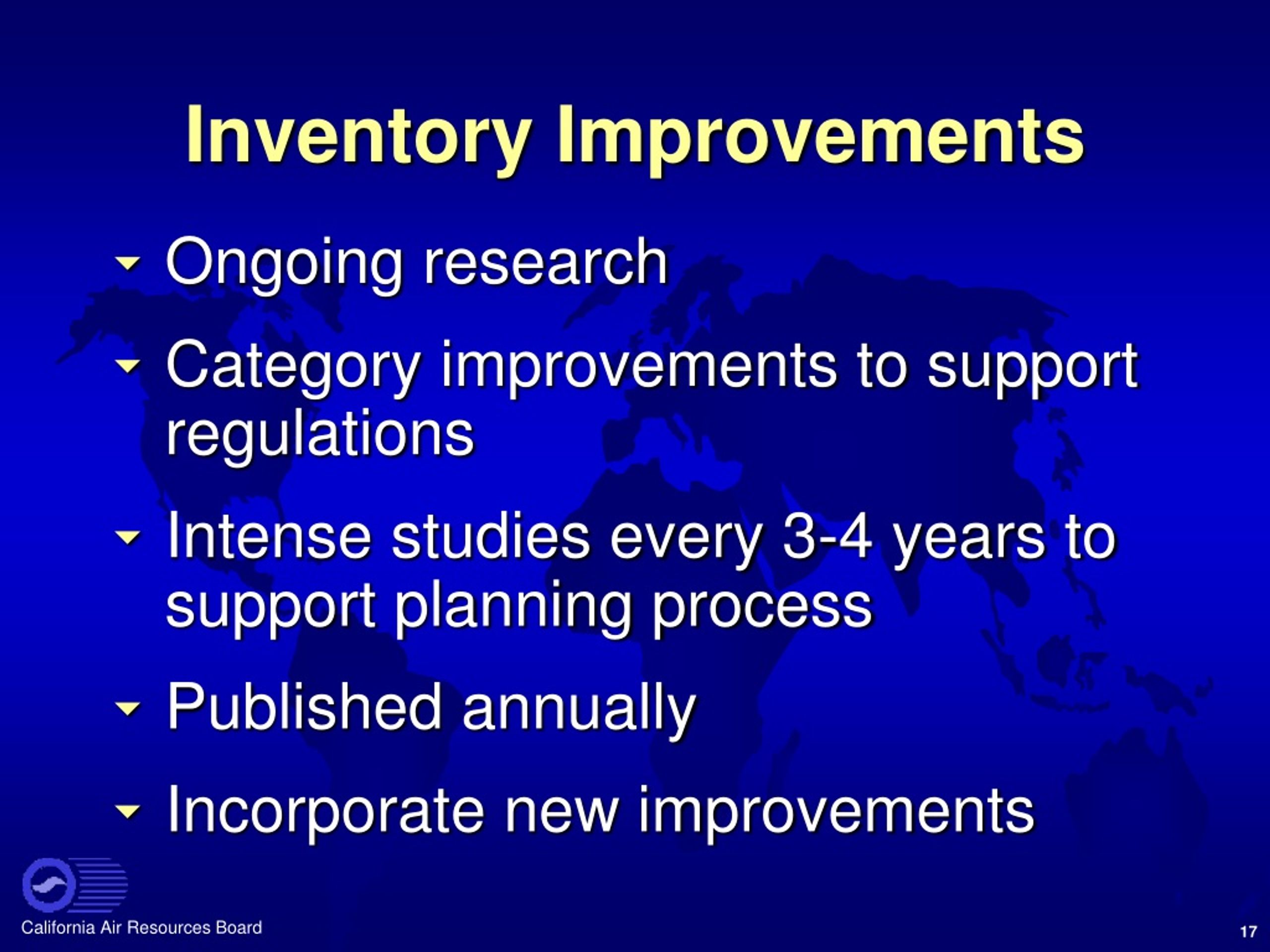

  17. Inventory Improvements • Ongoing research • Category improvements to support regulations • Intense studies every 3-4 years to support planning process • Published annually • Incorporate new improvements

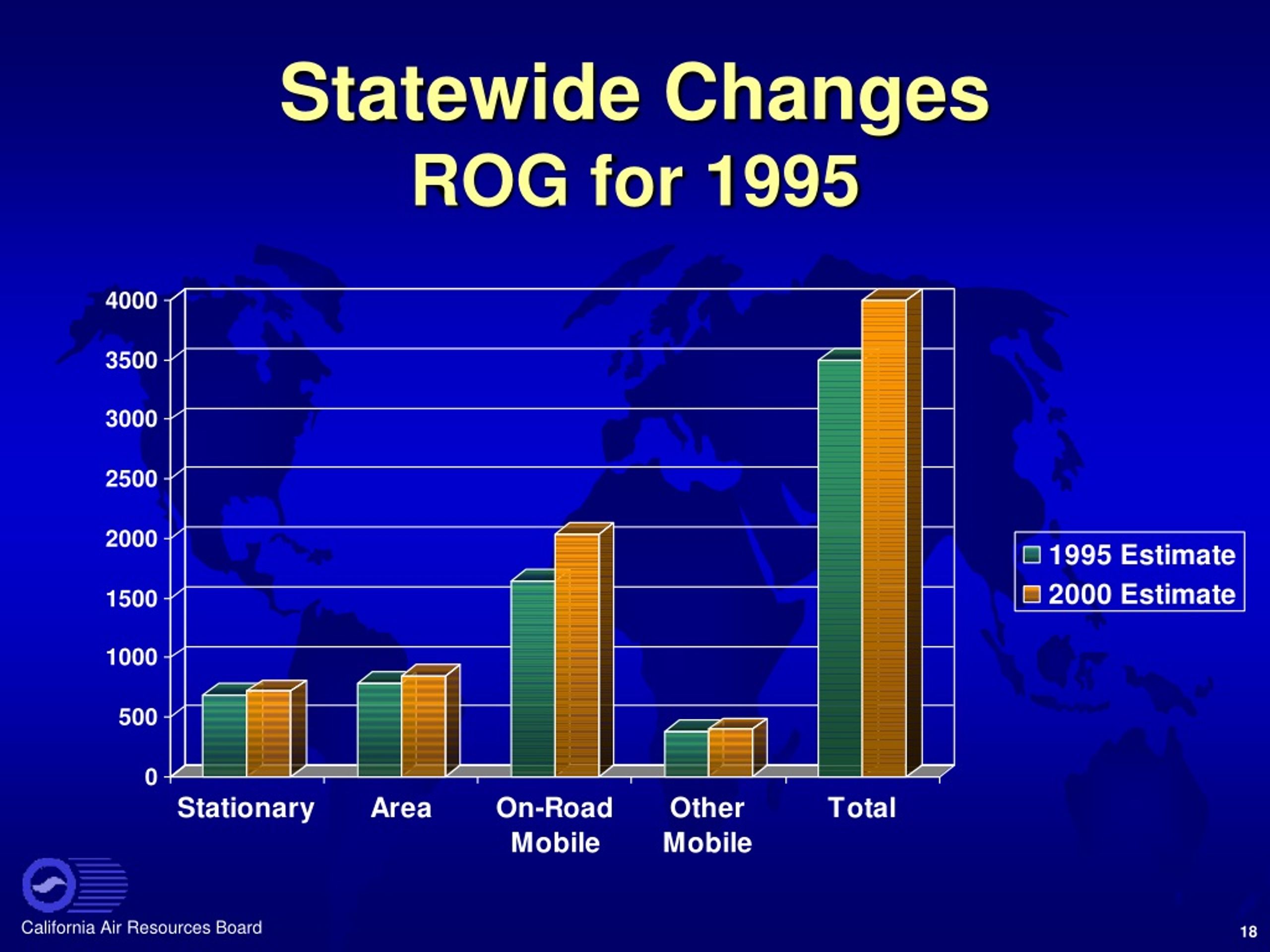

  18. Statewide ChangesROG for 1995

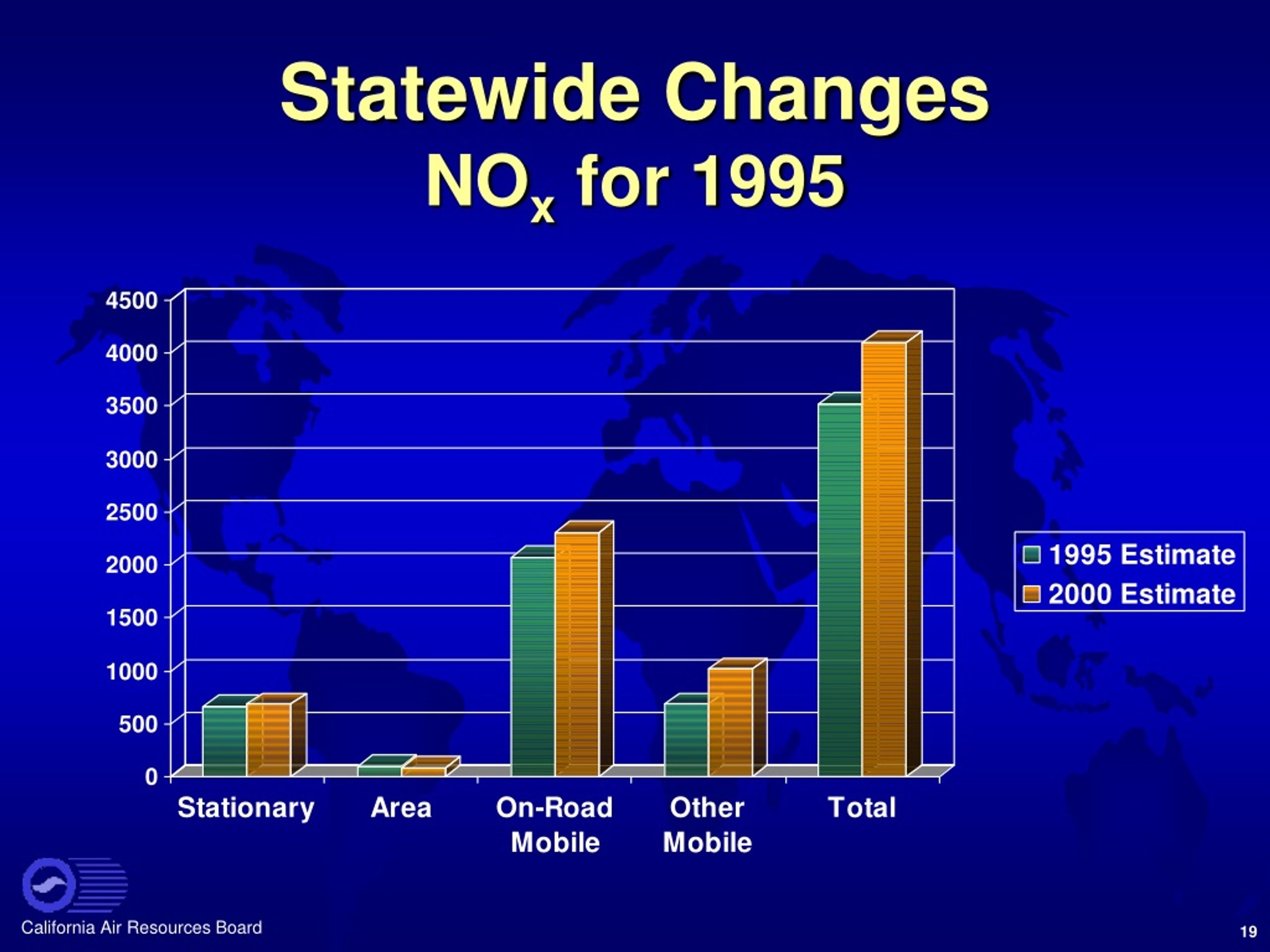

  19. Statewide ChangesNOx for 1995

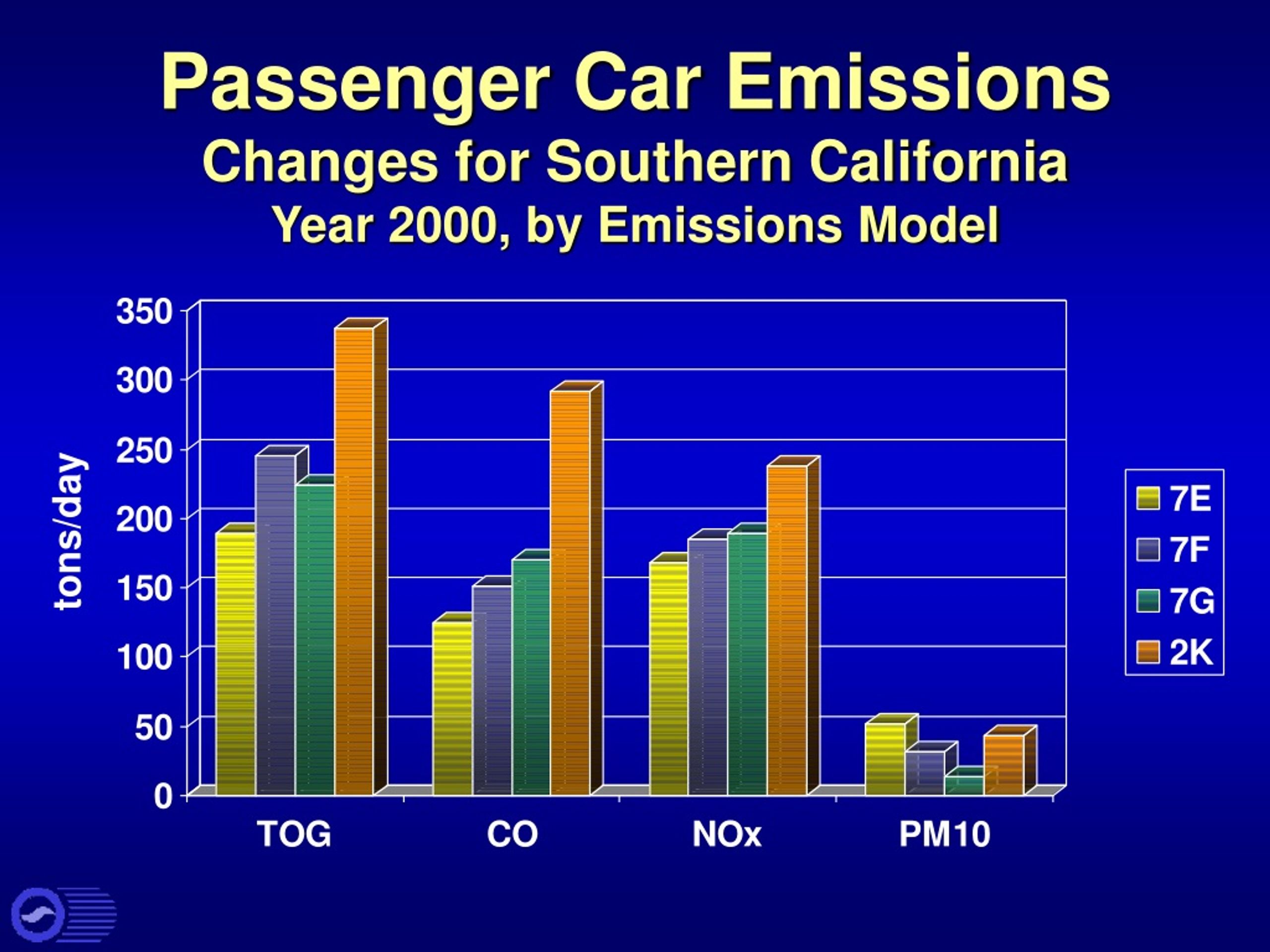

  20. Passenger Car Emissions Changes for Southern CaliforniaYear 2000, by Emissions Model tons/day

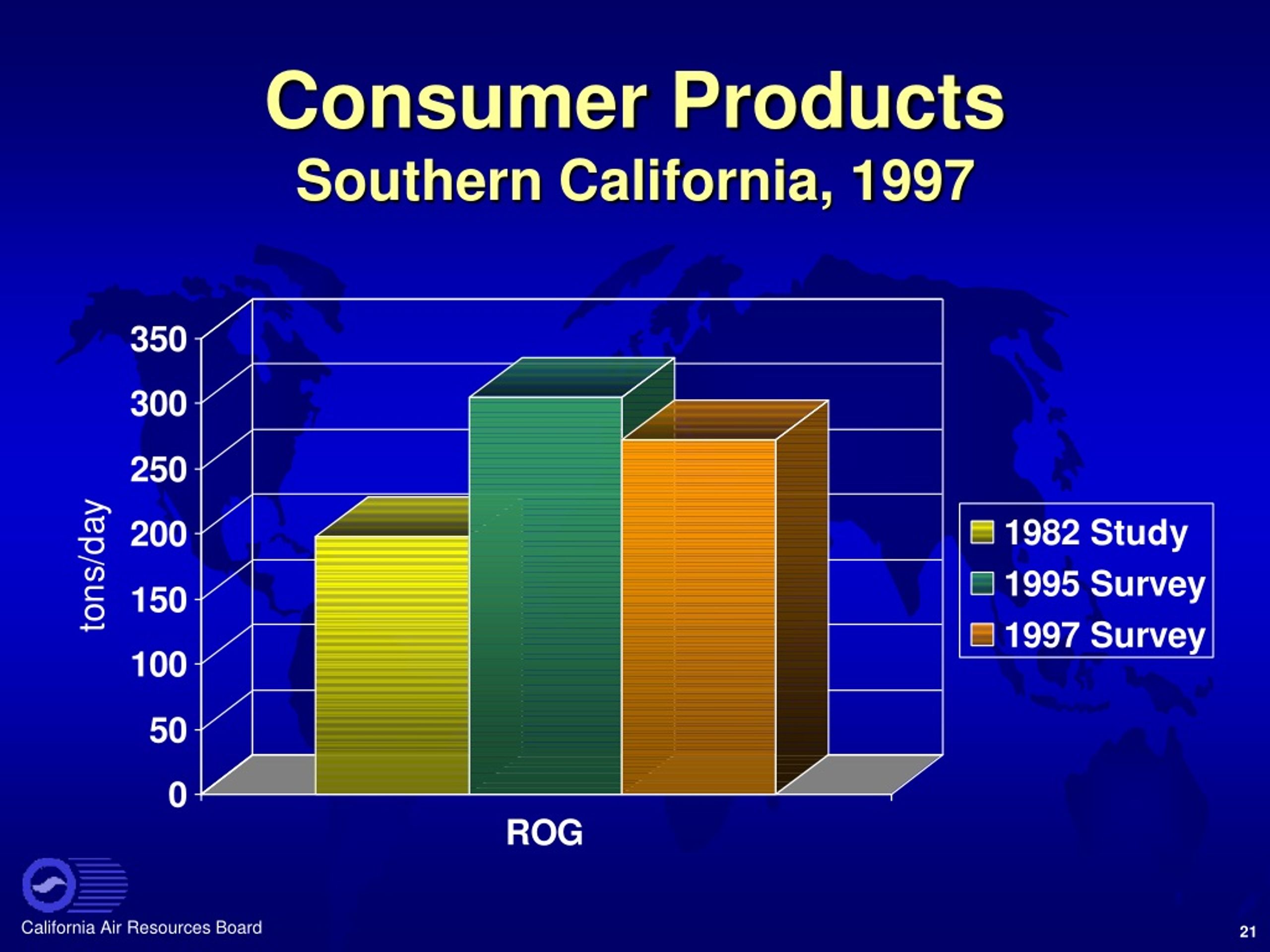

  21. Consumer ProductsSouthern California, 1997

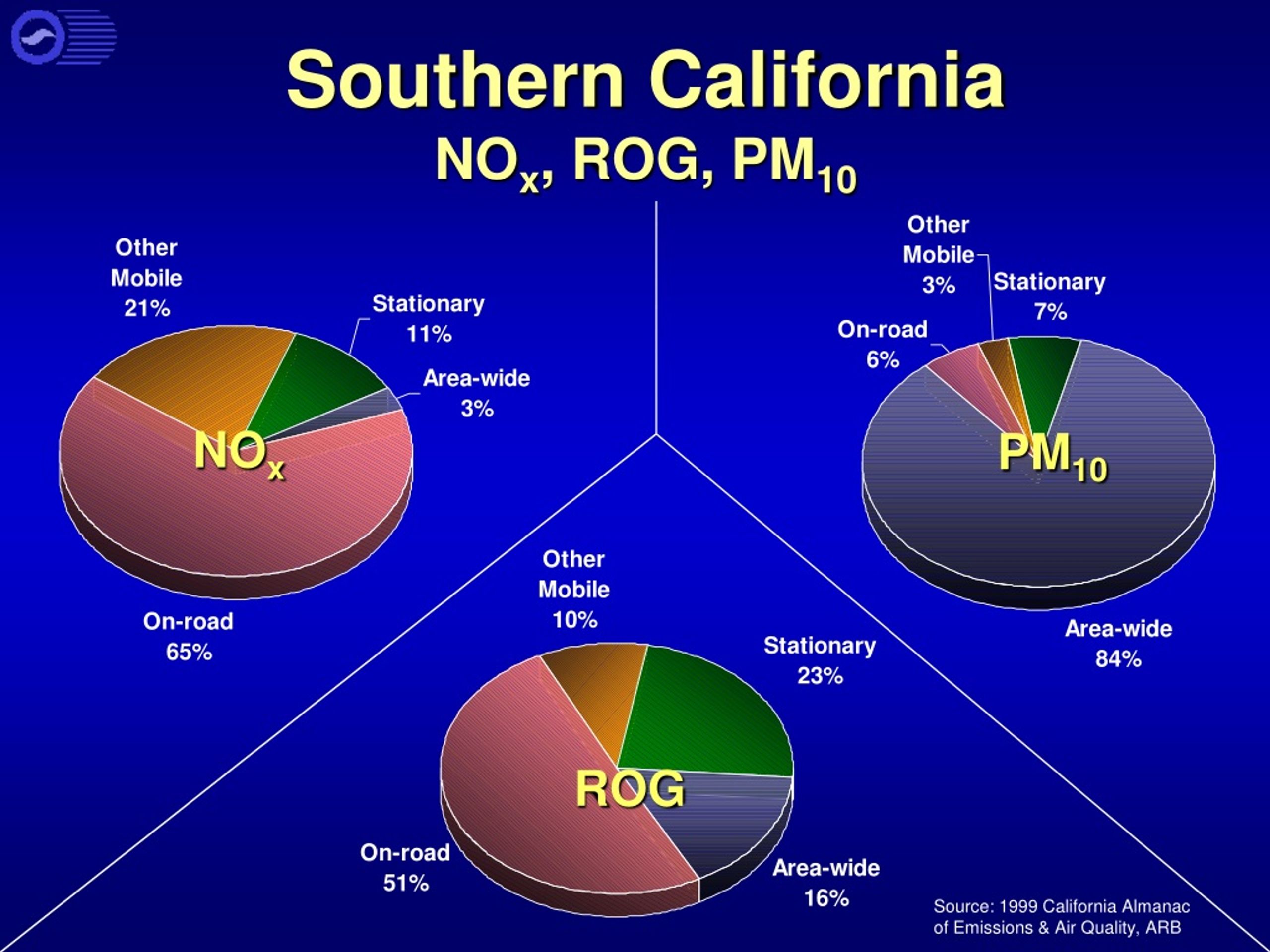

  22. NOx PM10 ROG Southern California NOx, ROG, PM10 Source: 1999 California Almanac of Emissions & Air Quality, ARB

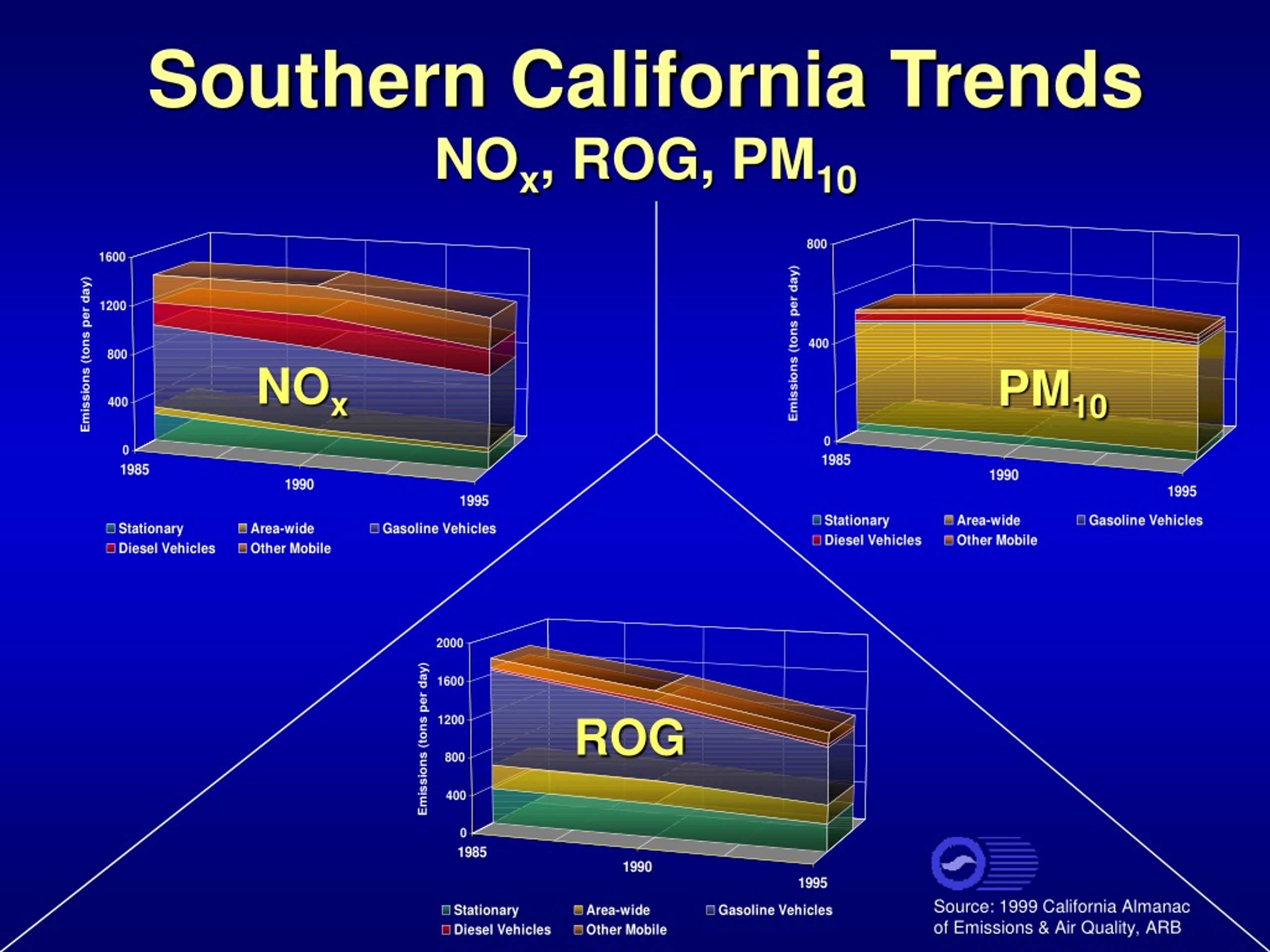

  23. Southern California Trends NOx, ROG, PM10 NOx PM10 ROG Source: 1999 California Almanac of Emissions & Air Quality, ARB

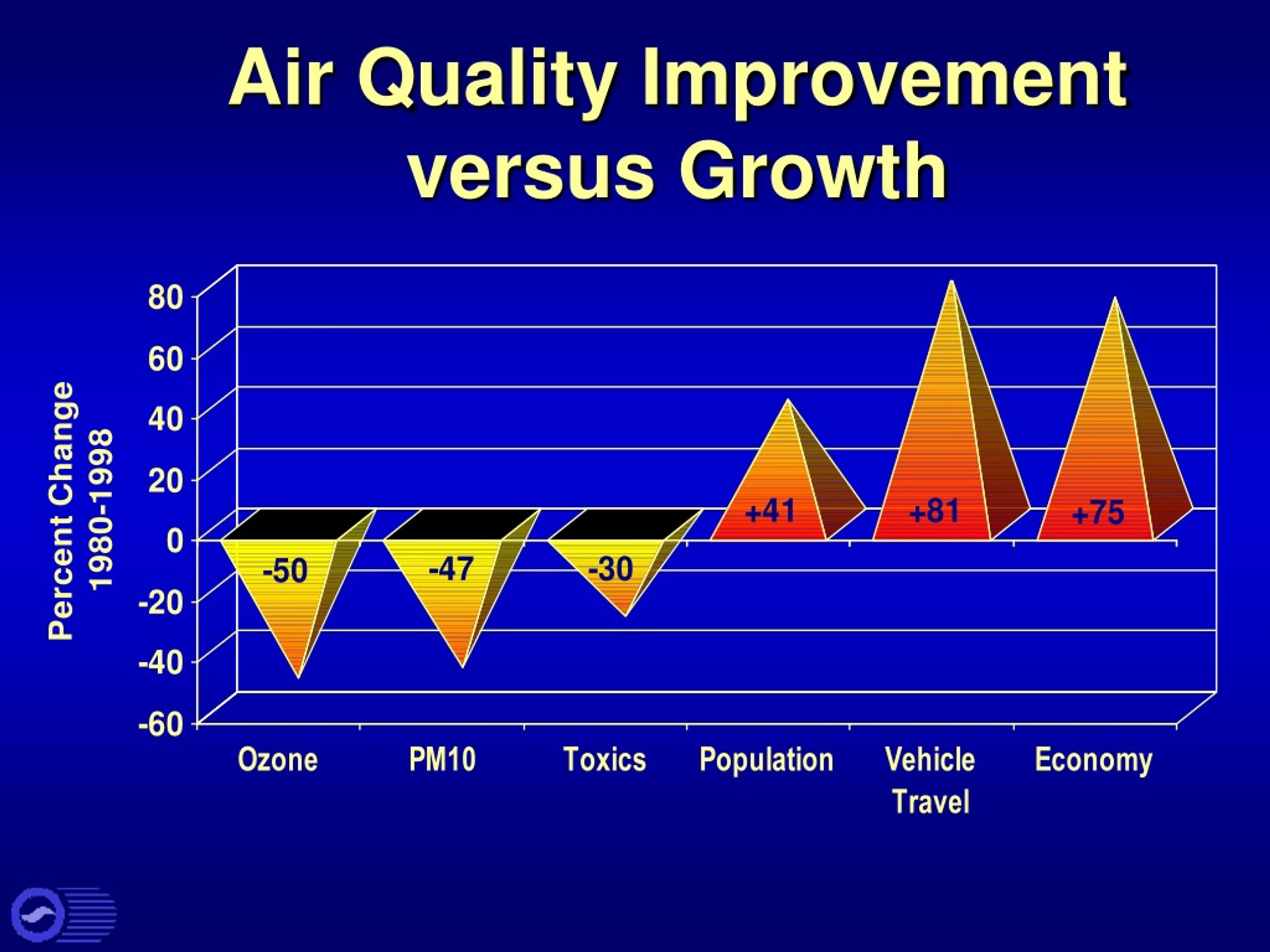

  24. Air Quality Improvement versus Growth

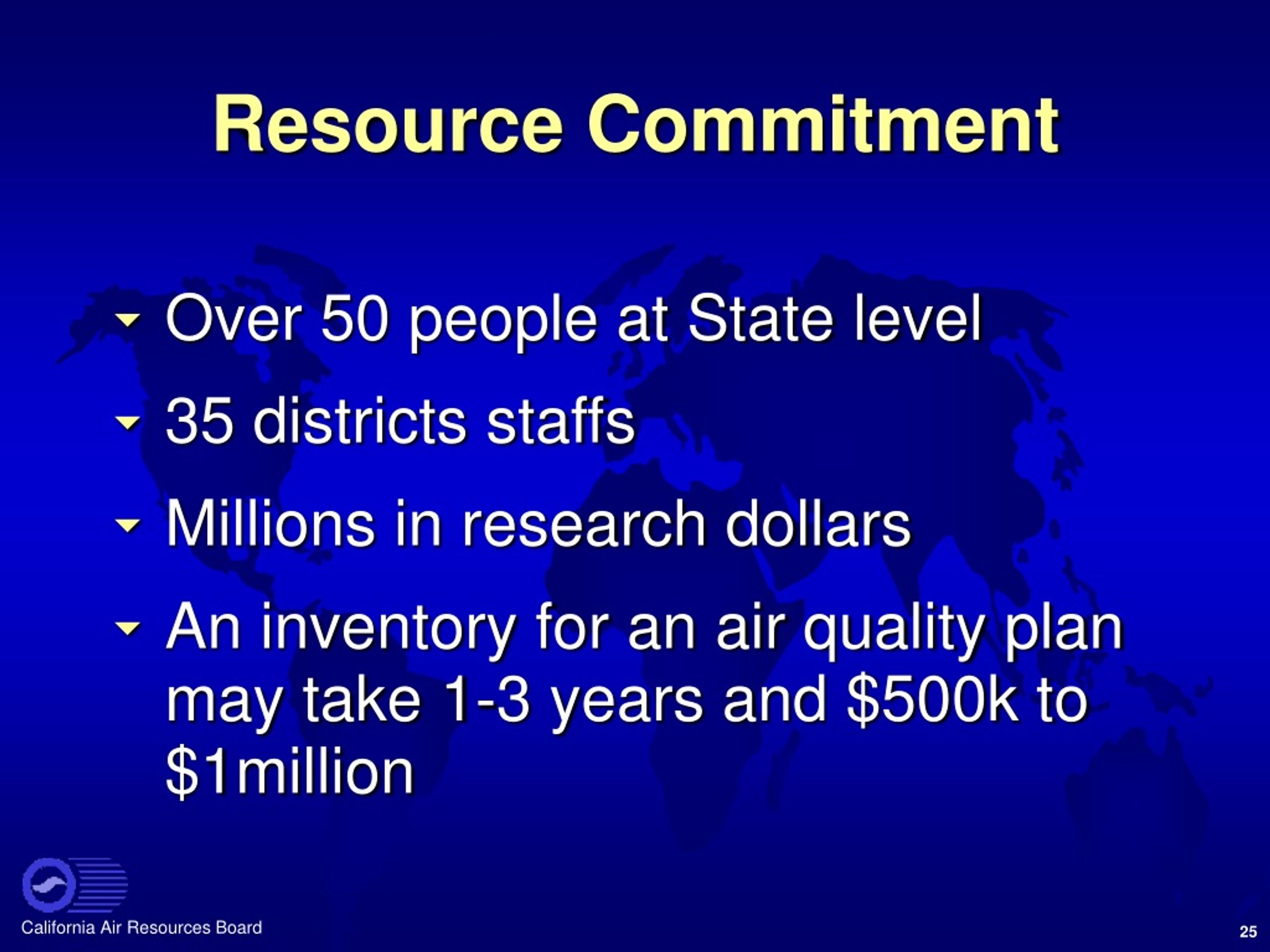

  25. Resource Commitment • Over 50 people at State level • 35 districts staffs • Millions in research dollars • An inventory for an air quality plan may take 1-3 years and $500k to $1million

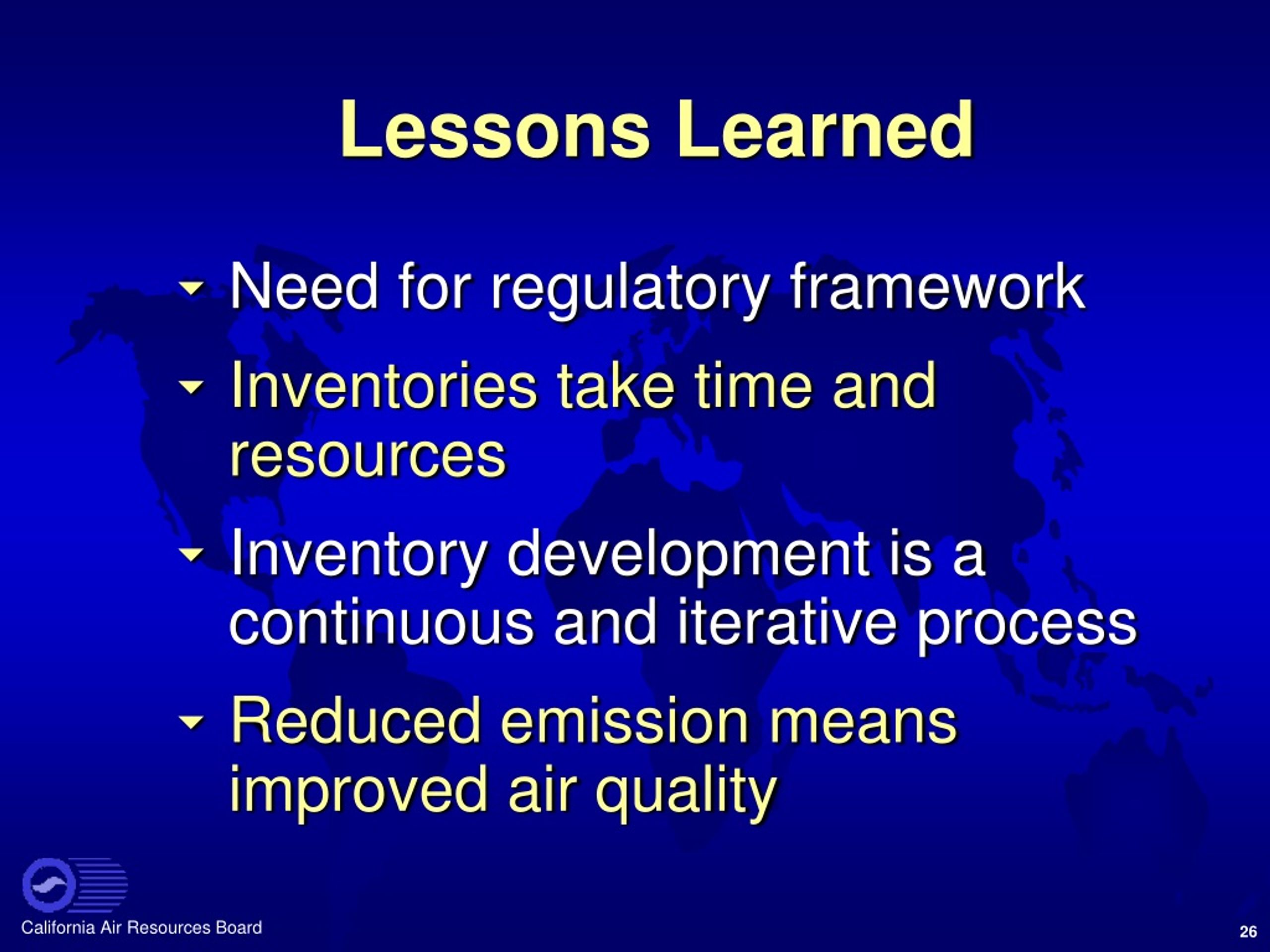

  26. Lessons Learned • Need for regulatory framework • Inventories take time and resources • Inventory development is a continuous and iterative process • Reduced emission means improved air quality

  27. Planning for the Development of Emission Inventories

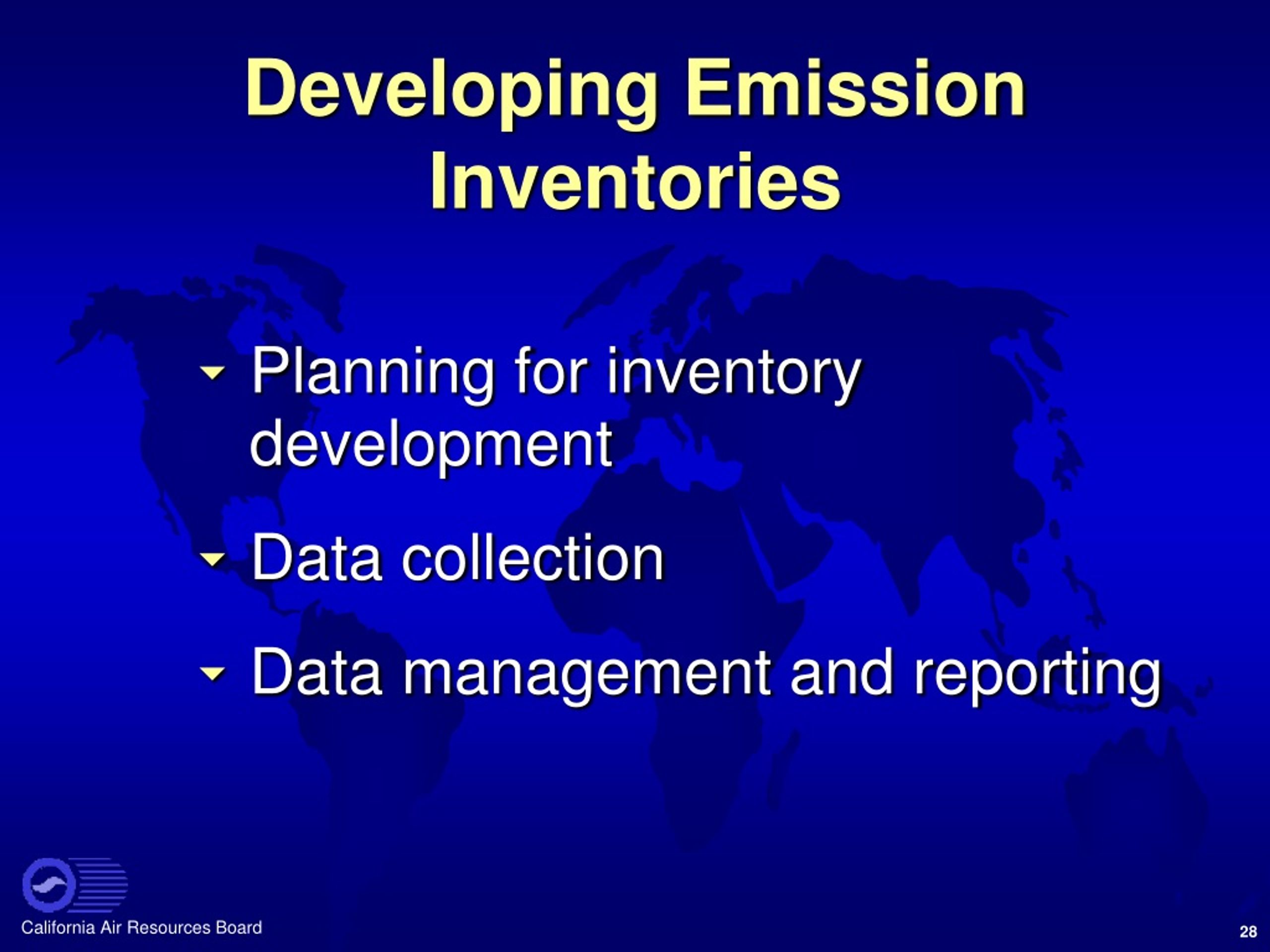

  28. Developing Emission Inventories • Planning for inventory development • Data collection • Data management and reporting

  29. Type and Scope region resolution pollutants sources Methodologies AvailableResources ExistingInformation Responsible Parties Emission Inventories forAir Quality Planning InventoryObjectives

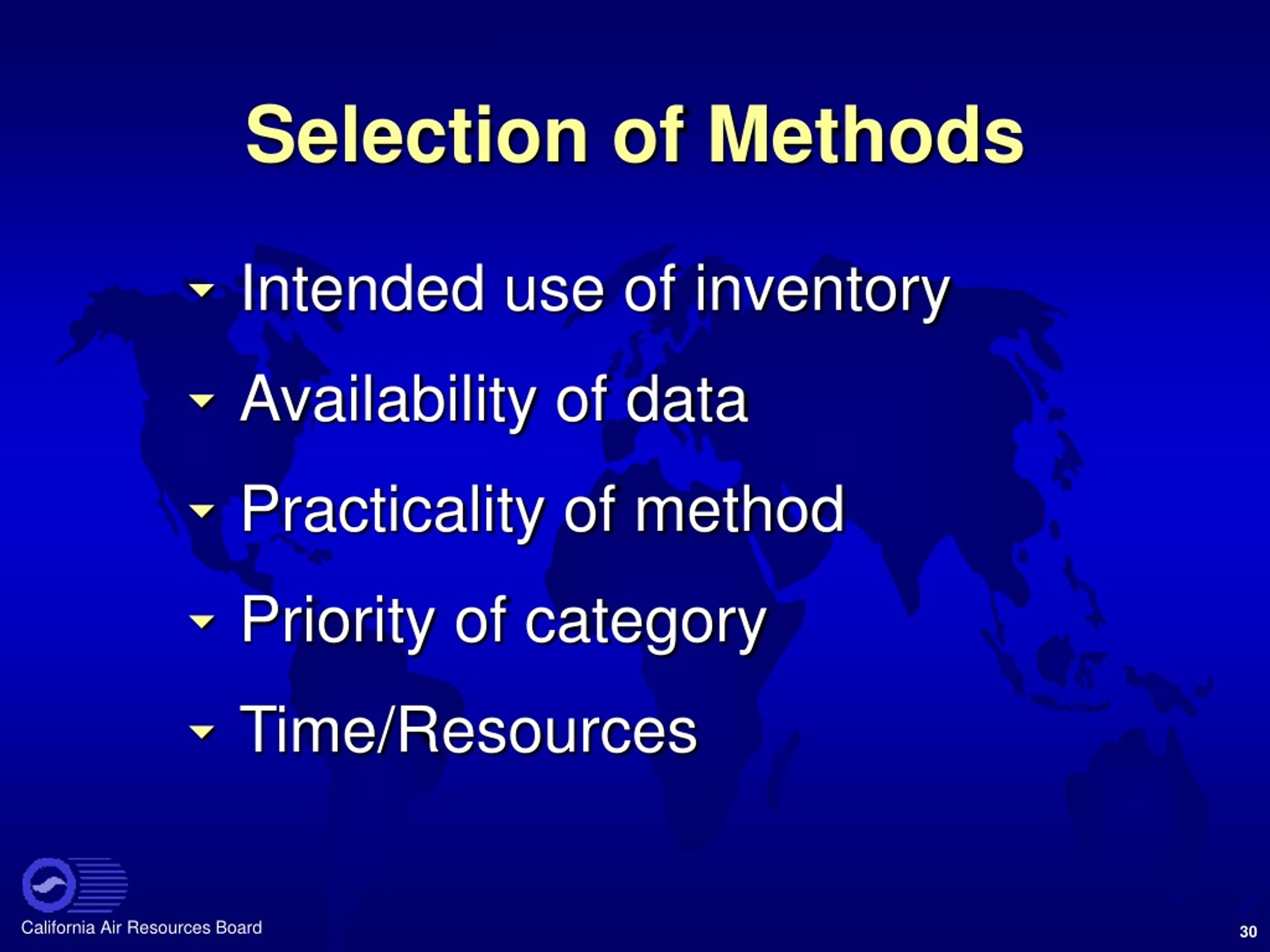

  30. Selection of Methods • Intended use of inventory • Availability of data • Practicality of method • Priority of category • Time/Resources

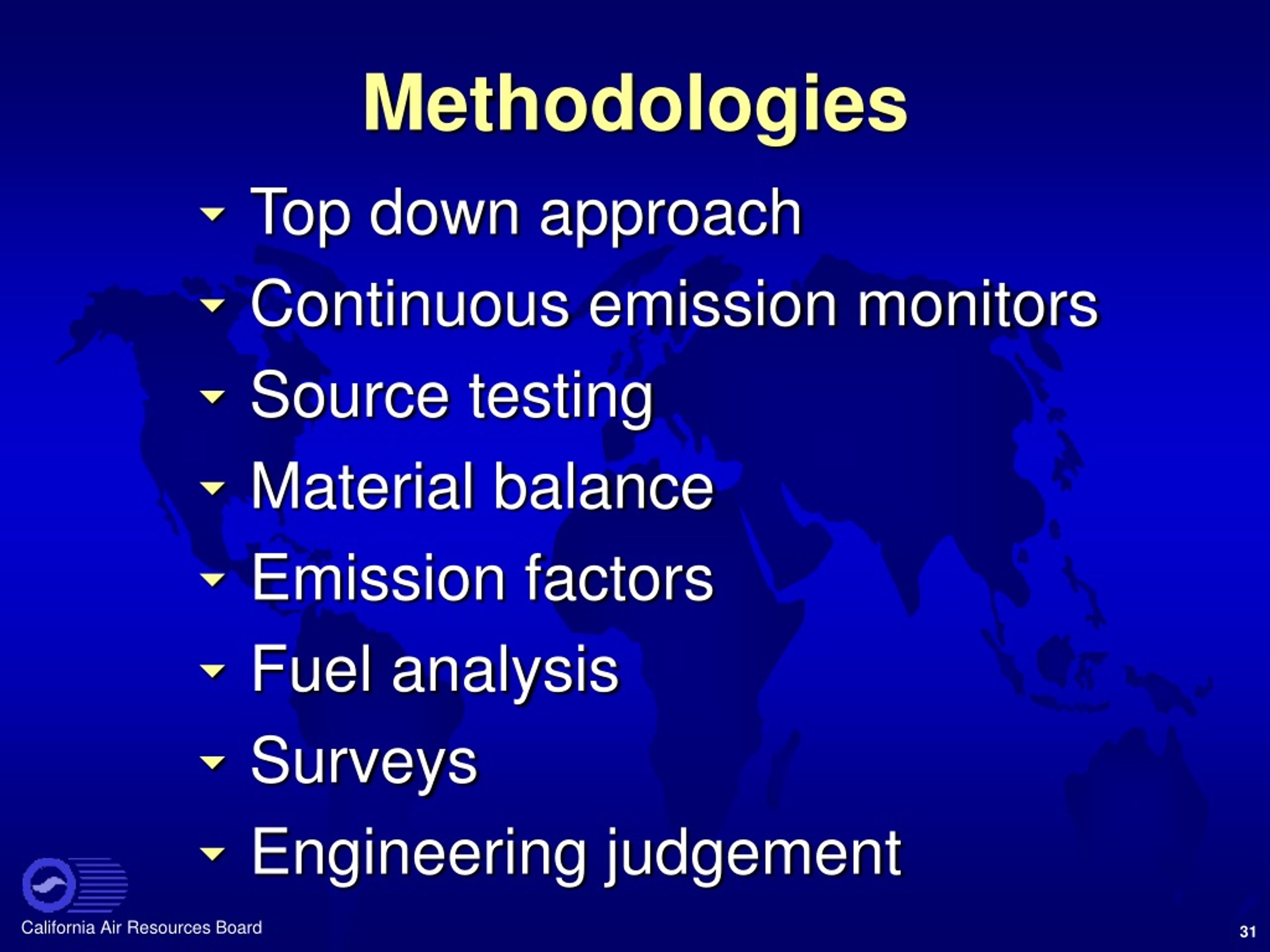

  31. Methodologies • Top down approach • Continuous emission monitors • Source testing • Material balance • Emission factors • Fuel analysis • Surveys • Engineering judgement

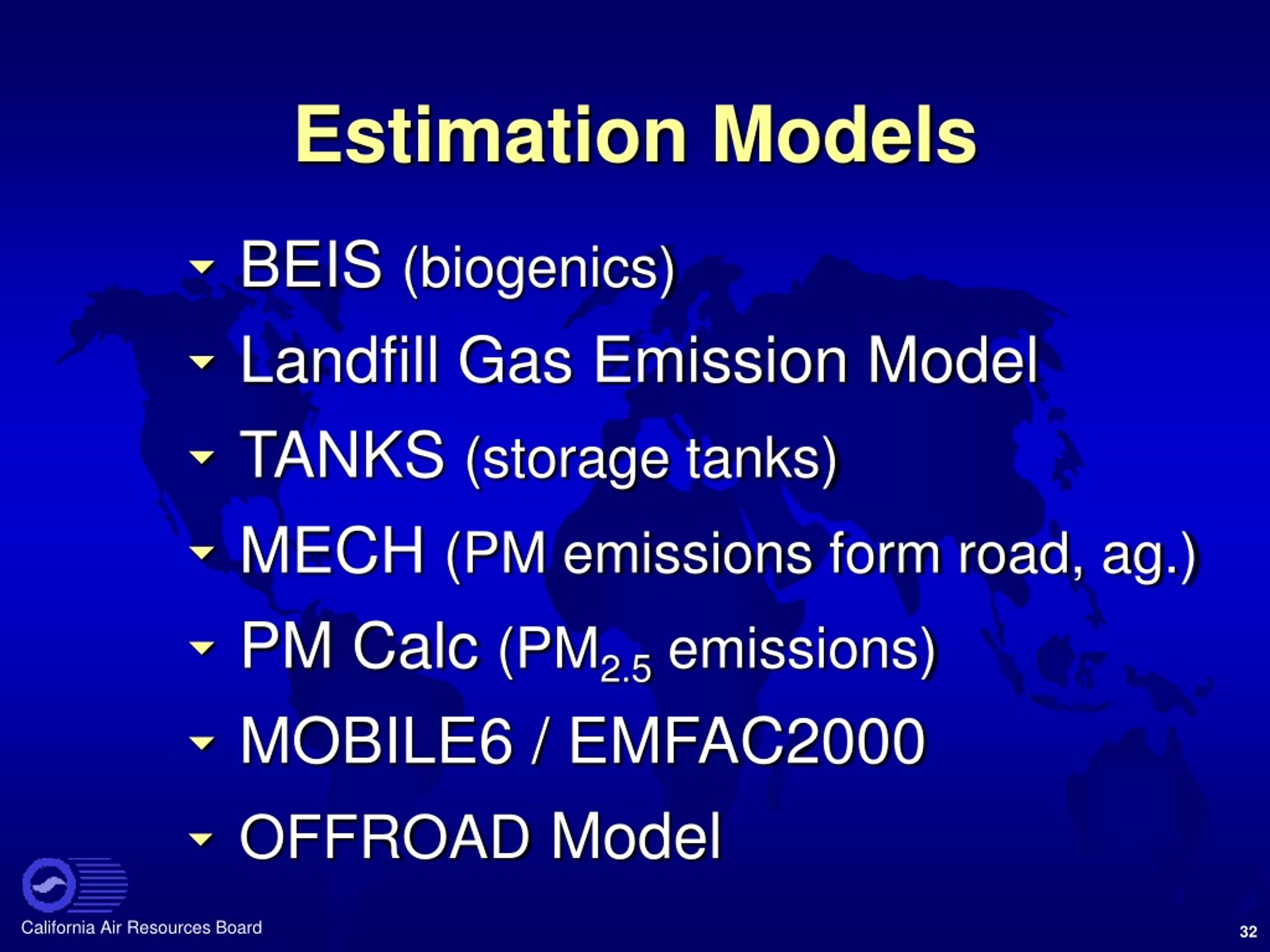

  32. Estimation Models • BEIS (biogenics) • Landfill Gas Emission Model • TANKS (storage tanks) • MECH (PM emissions form road, ag.) • PM Calc (PM2.5 emissions) • MOBILE6 / EMFAC2000 • OFFROAD Model

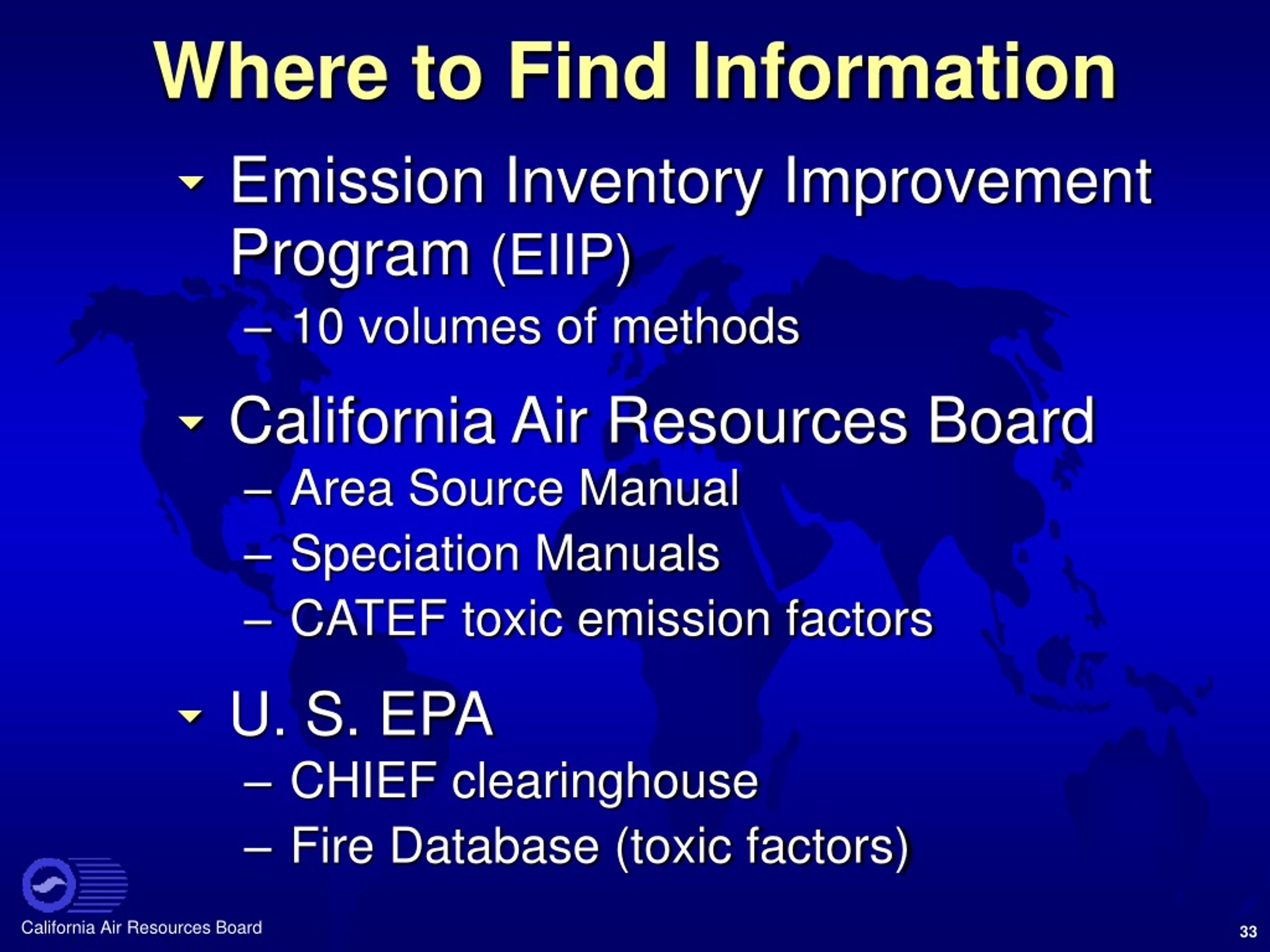

  33. Where to Find Information • Emission Inventory Improvement Program (EIIP) • 10 volumes of methods • California Air Resources Board • Area Source Manual • Speciation Manuals • CATEF toxic emission factors • U. S. EPA • CHIEF clearinghouse • Fire Database (toxic factors)

  34. Collect Data   Reports Calculate Emissions   Data Handling System Quality Assurance  Documentation Data Collection & Management ReportsAnnual Average Seasonal Forecasted Gridded

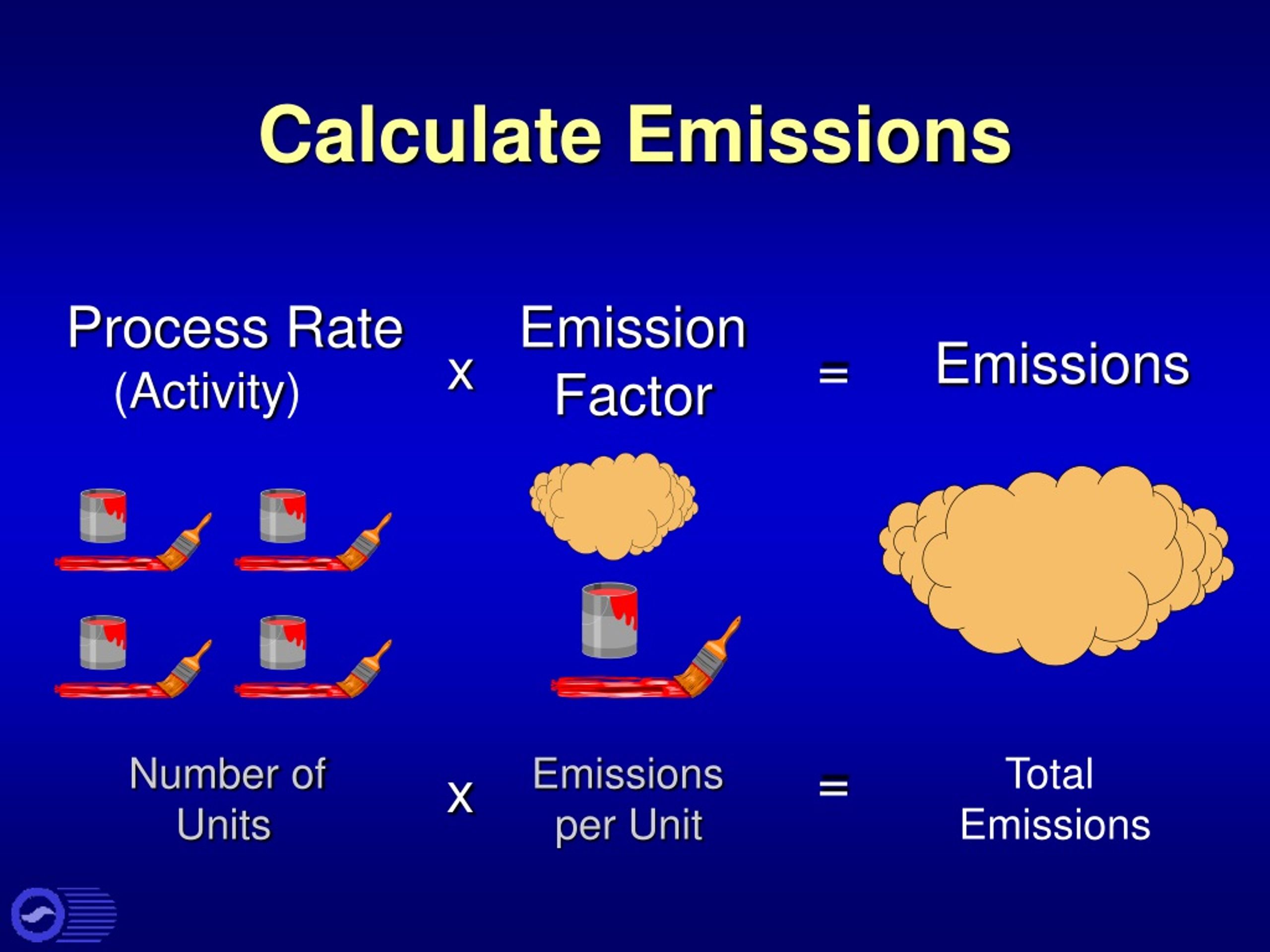

  35. Process Rate (Activity) EmissionFactor Emissions x = Number of Units Emissions per Unit = Total Emissions x Calculate Emissions

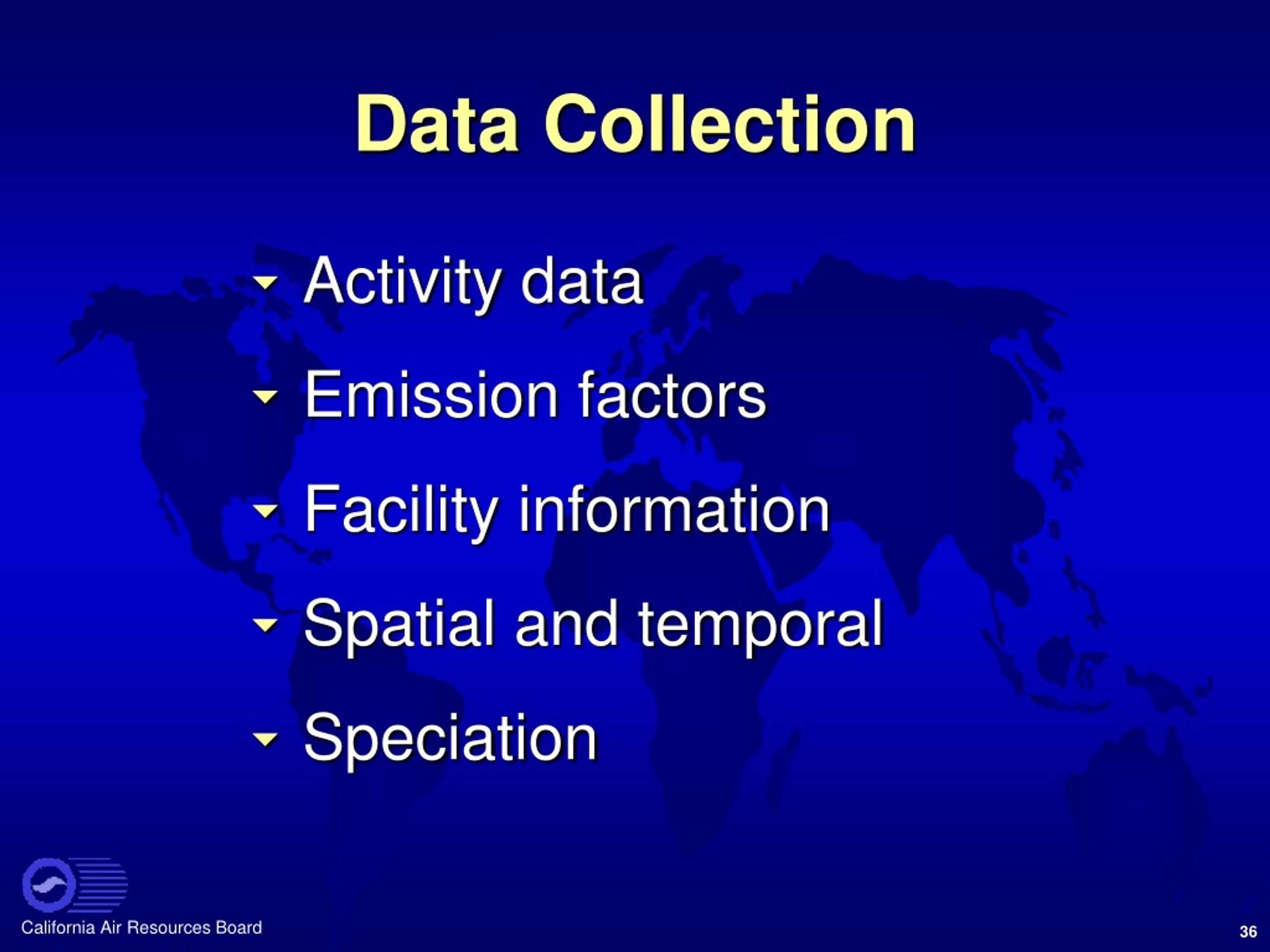

  36. Data Collection • Activity data • Emission factors • Facility information • Spatial and temporal • Speciation

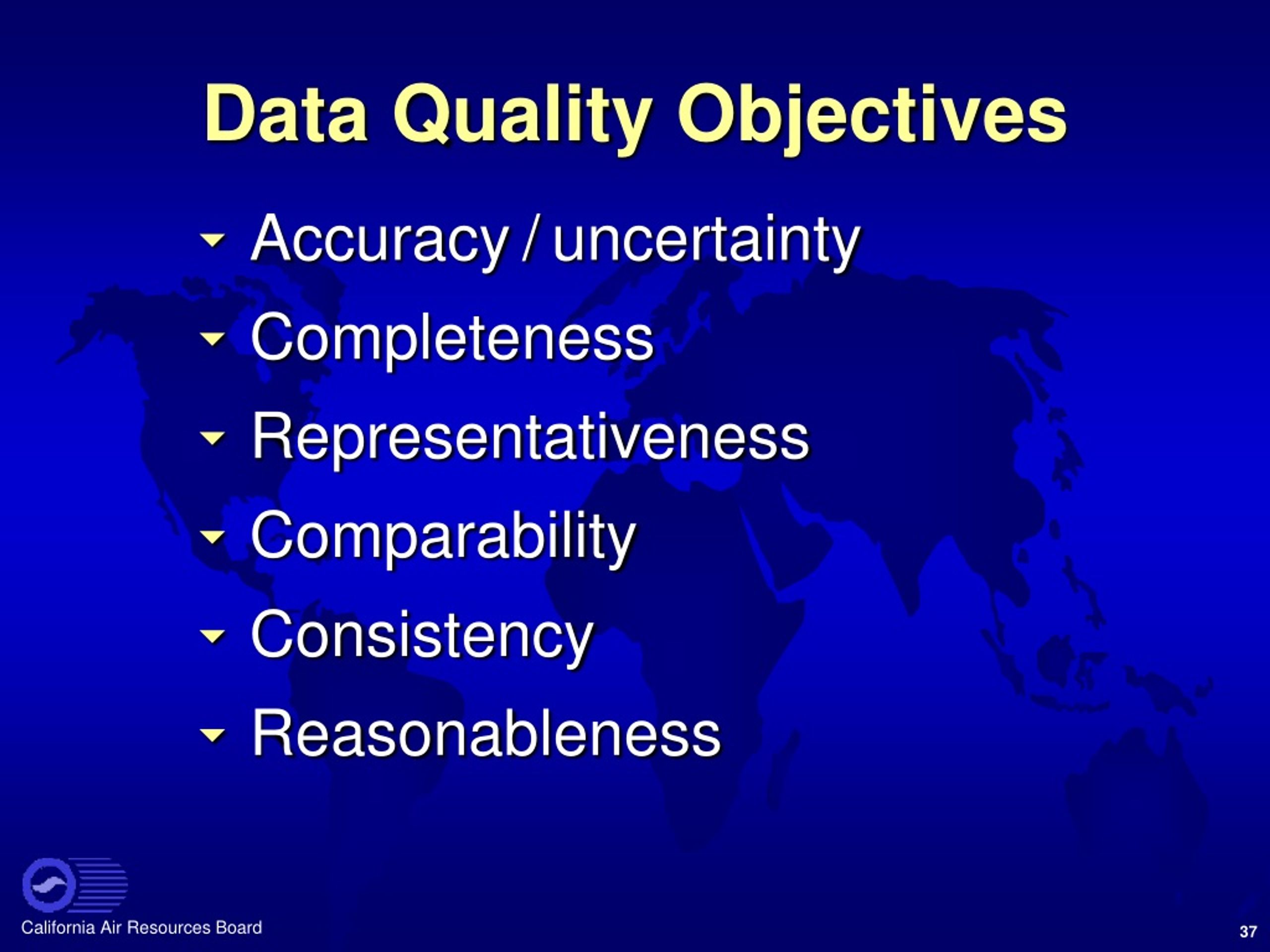

  37. Data Quality Objectives • Accuracy/uncertainty • Completeness • Representativeness • Comparability • Consistency • Reasonableness

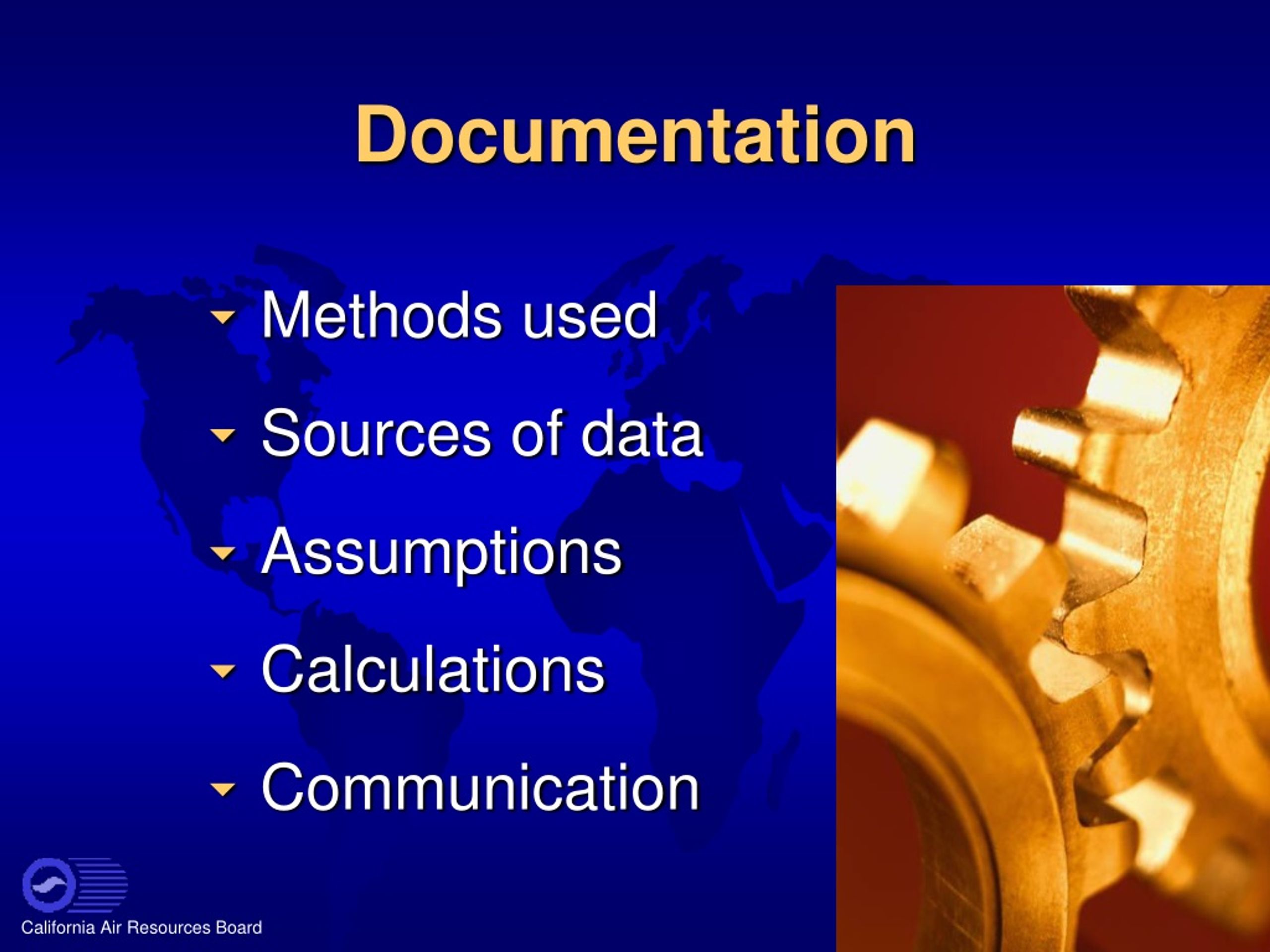

  38. Documentation • Methods used • Sources of data • Assumptions • Calculations • Communication

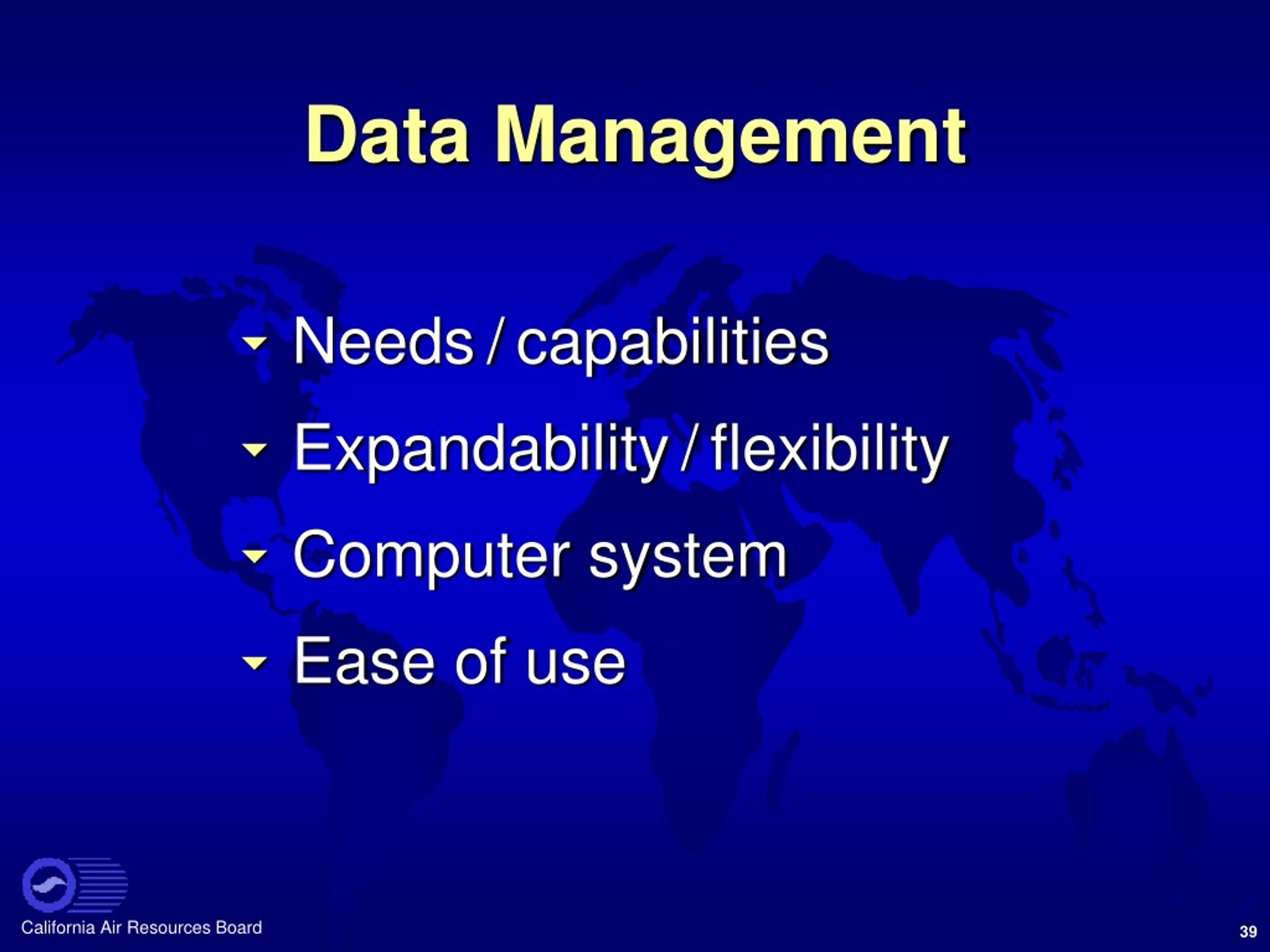

  39. Data Management • Needs/capabilities • Expandability/flexibility • Computer system • Ease of use

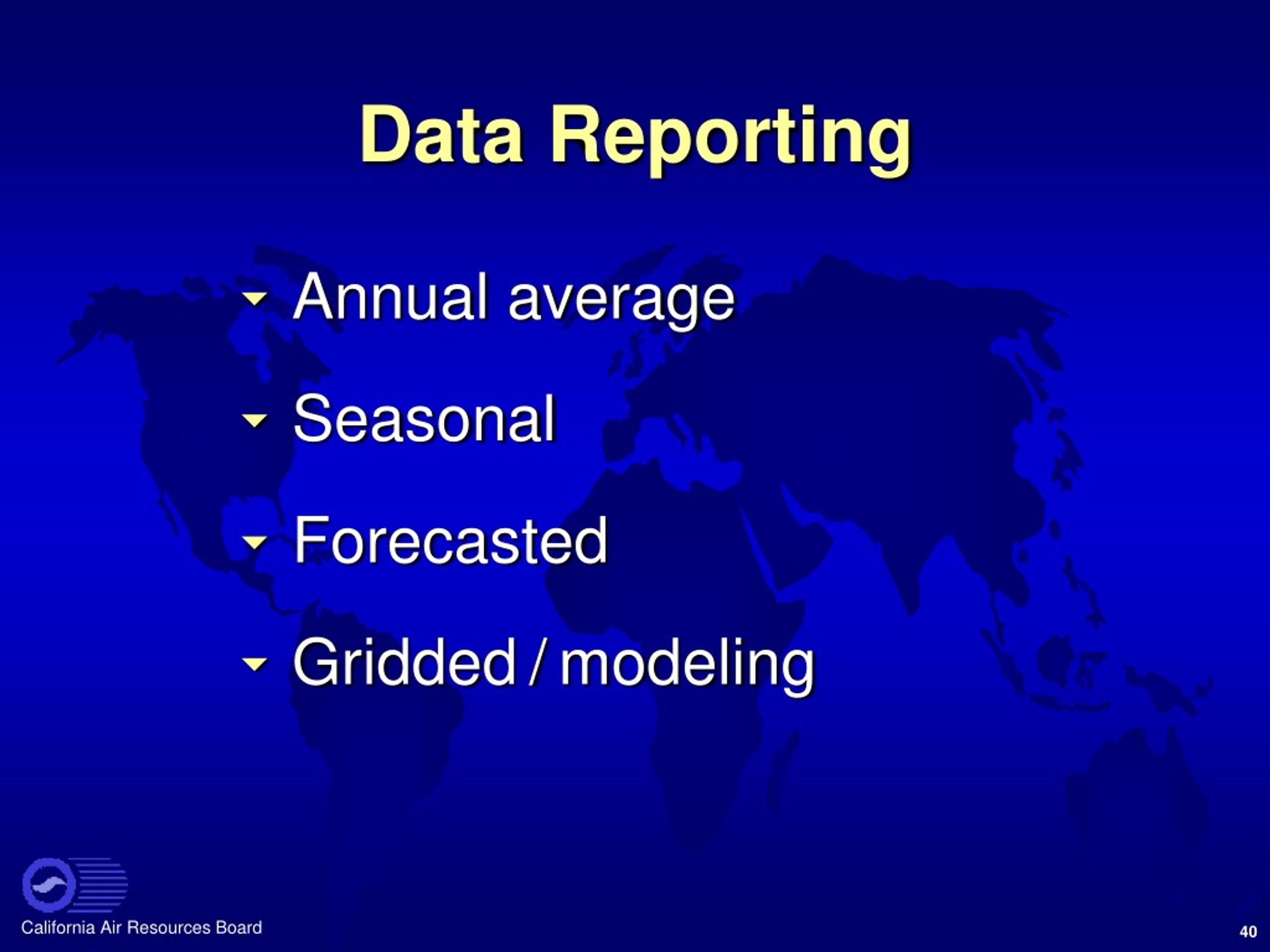

  40. Data Reporting • Annual average • Seasonal • Forecasted • Gridded/modeling

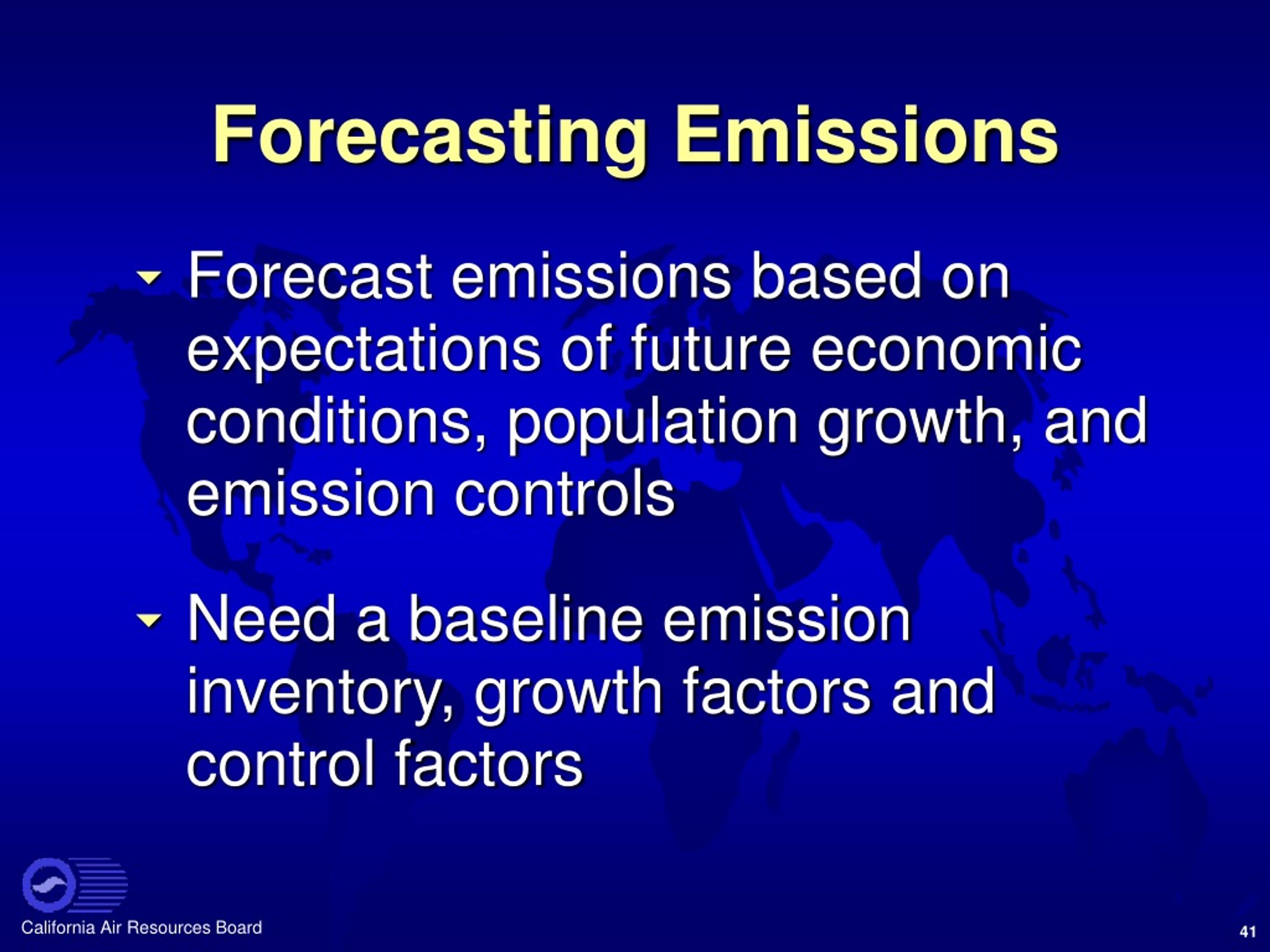

  41. Forecasting Emissions • Forecast emissions based on expectations of future economic conditions, population growth, and emission controls • Need a baseline emission inventory, growth factors and control factors

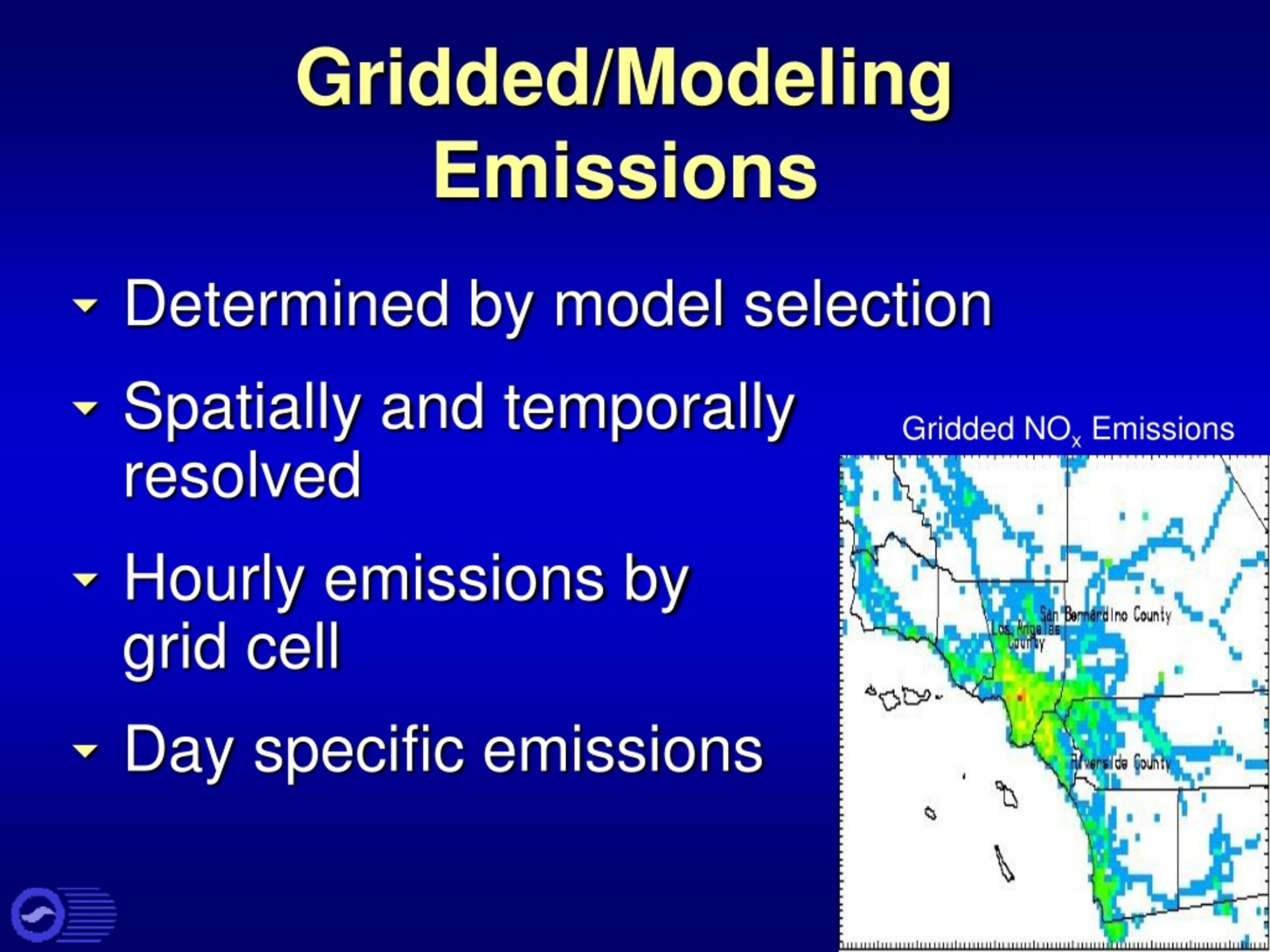

  42. Gridded/Modeling Emissions • Determined by model selection • Spatially and temporallyresolved • Hourly emissions bygrid cell • Day specific emissions Gridded NOx Emissions

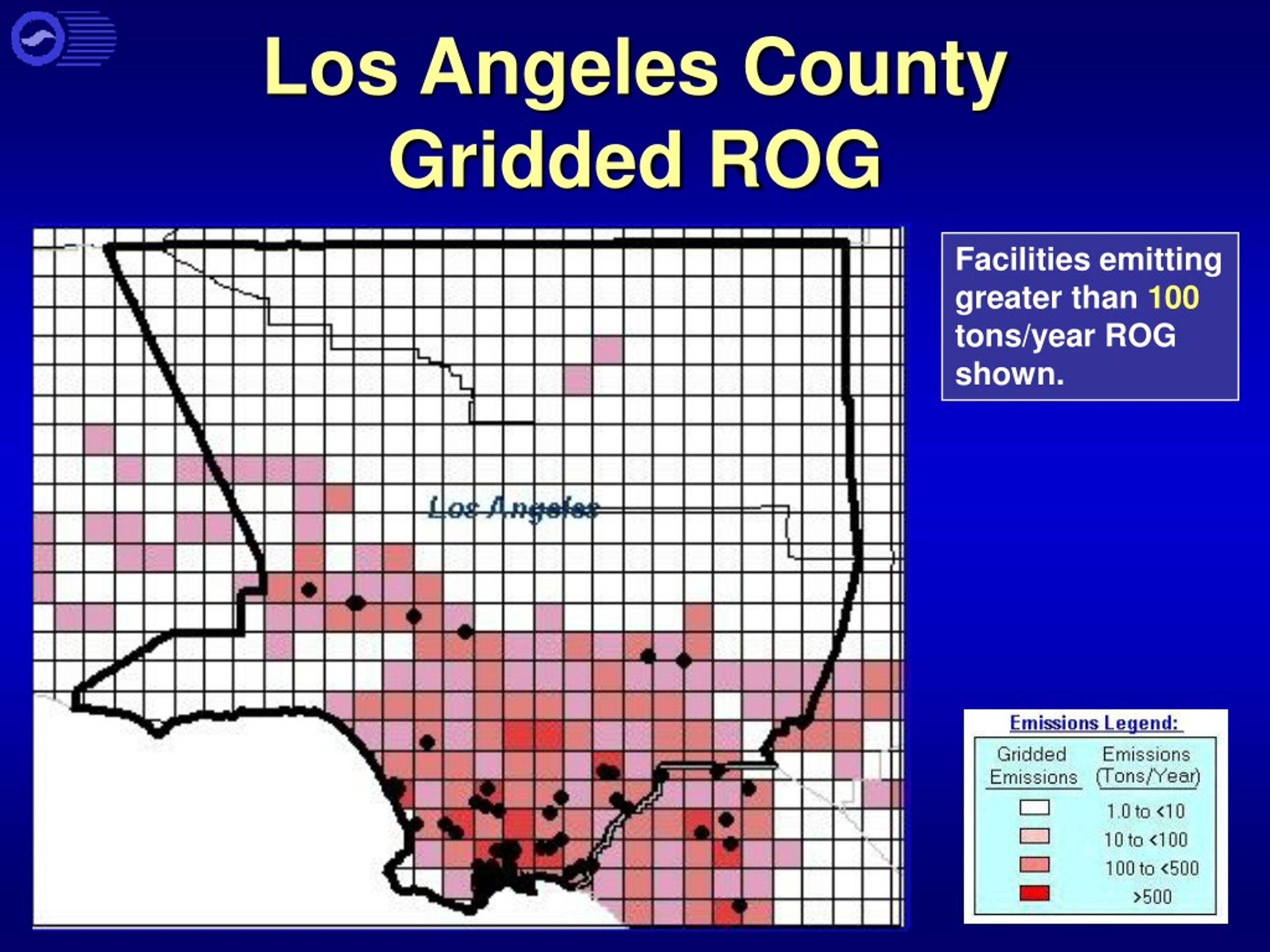

  43. Facilities emitting greater than 100 tons/year ROG shown. Los Angeles CountyGridded ROG

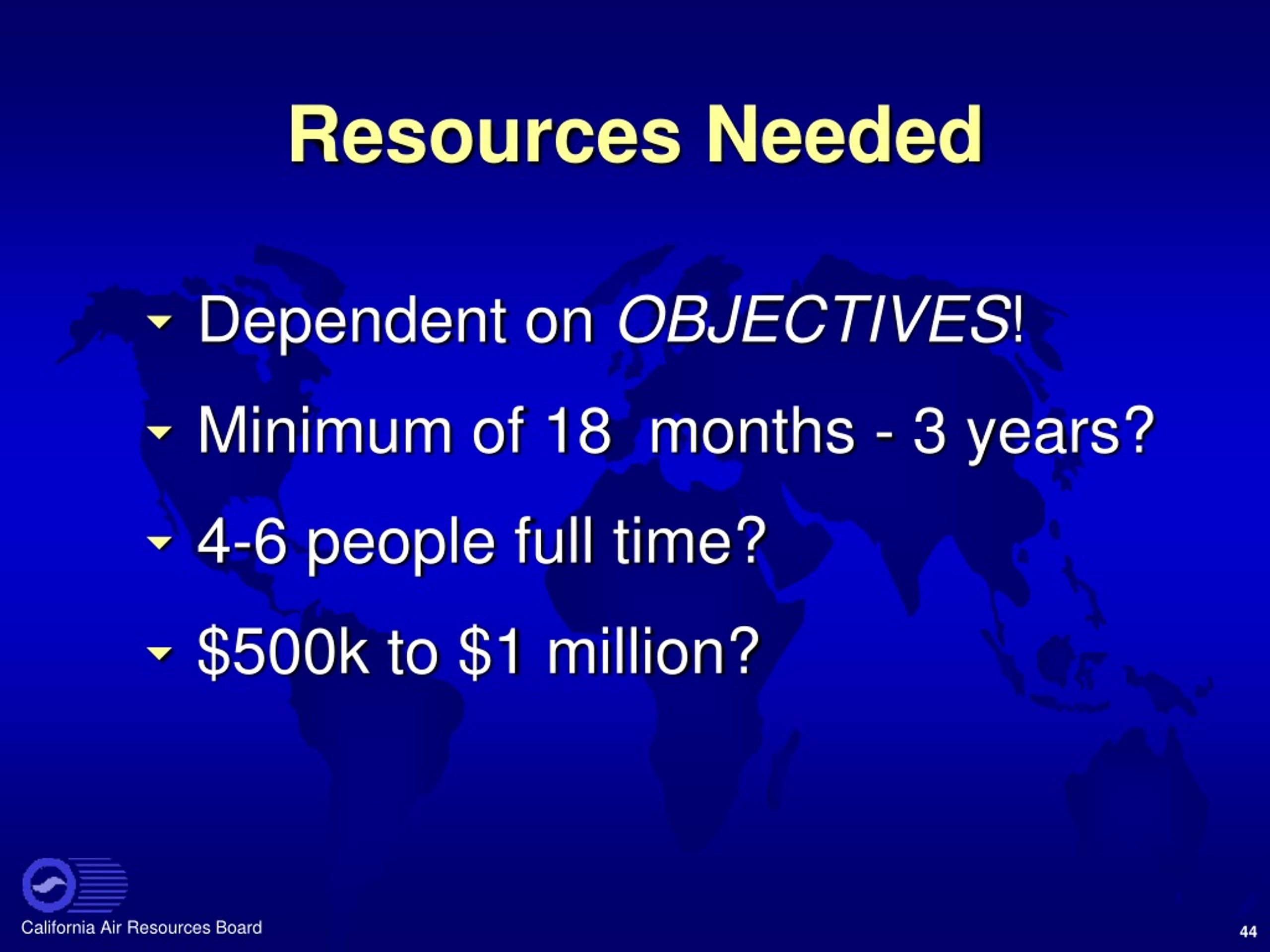

  44. Resources Needed • Dependent on OBJECTIVES! • Minimum of 18 months - 3 years? • 4-6 people full time? • $500k to $1 million?

  45. Building an Air Quality Plan Clean Air Control Strategy Air Quality Modeling Emission Inventory Air Quality Monitoring

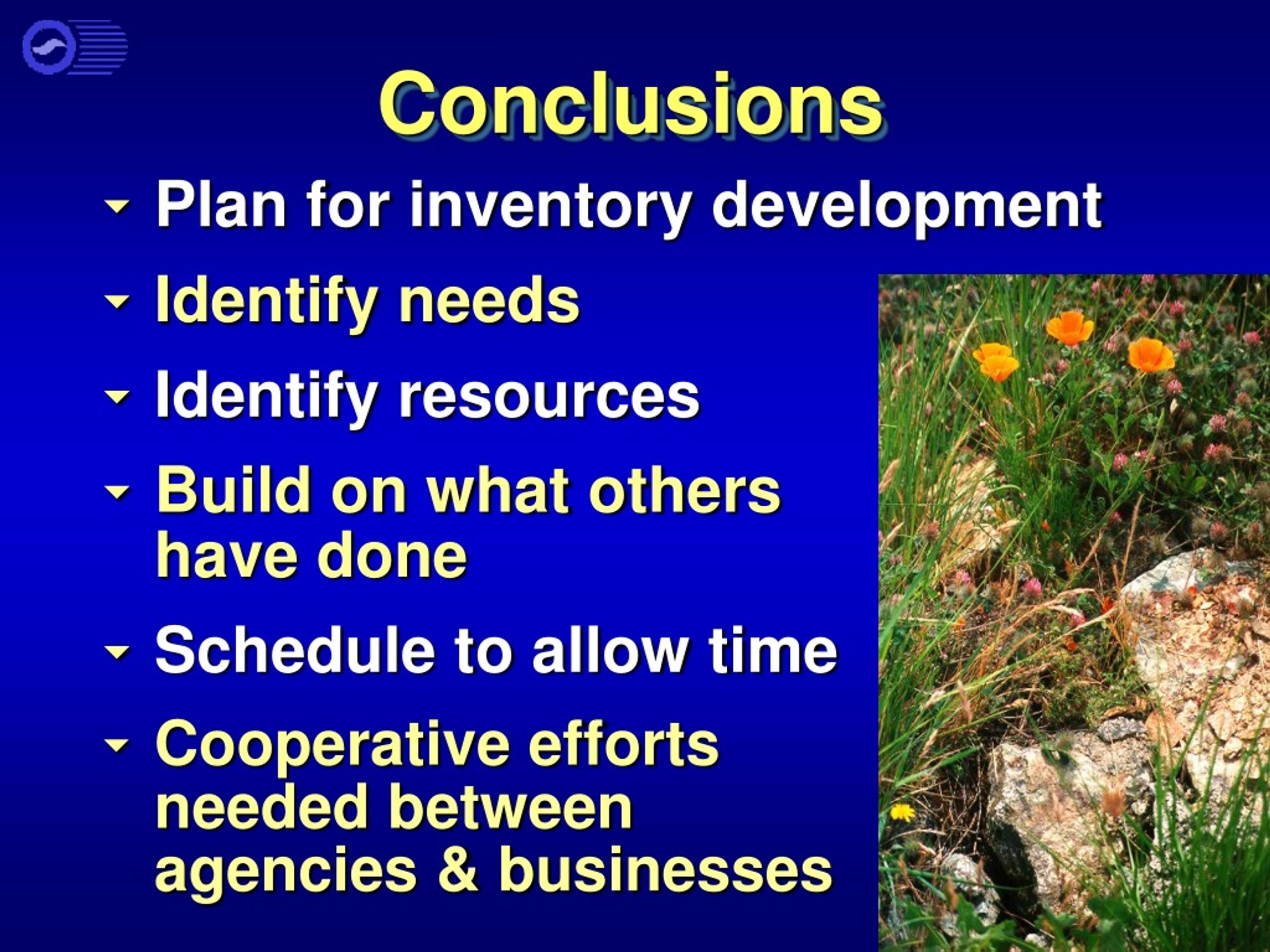

  46. Conclusions • Plan for inventory development • Identify needs • Identify resources • Build on what others have done • Schedule to allow time • Cooperative efforts needed between agencies & businesses

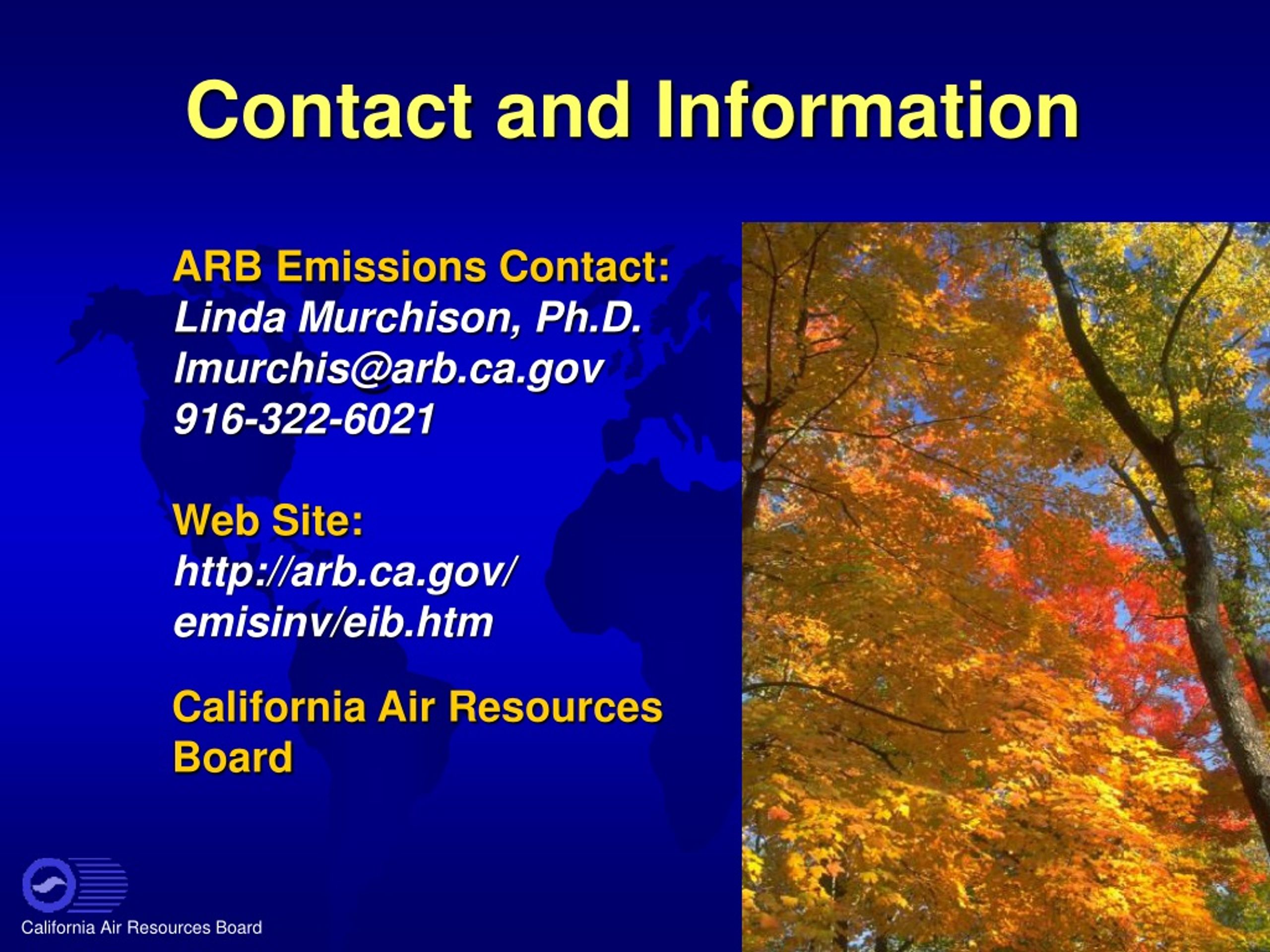

  47. Contact and Information ARB Emissions Contact:Linda Murchison, Ph.D.lmurchis@arb.ca.gov916-322-6021Web Site:http://arb.ca.gov/emisinv/eib.htmCalifornia Air ResourcesBoard

  48. END

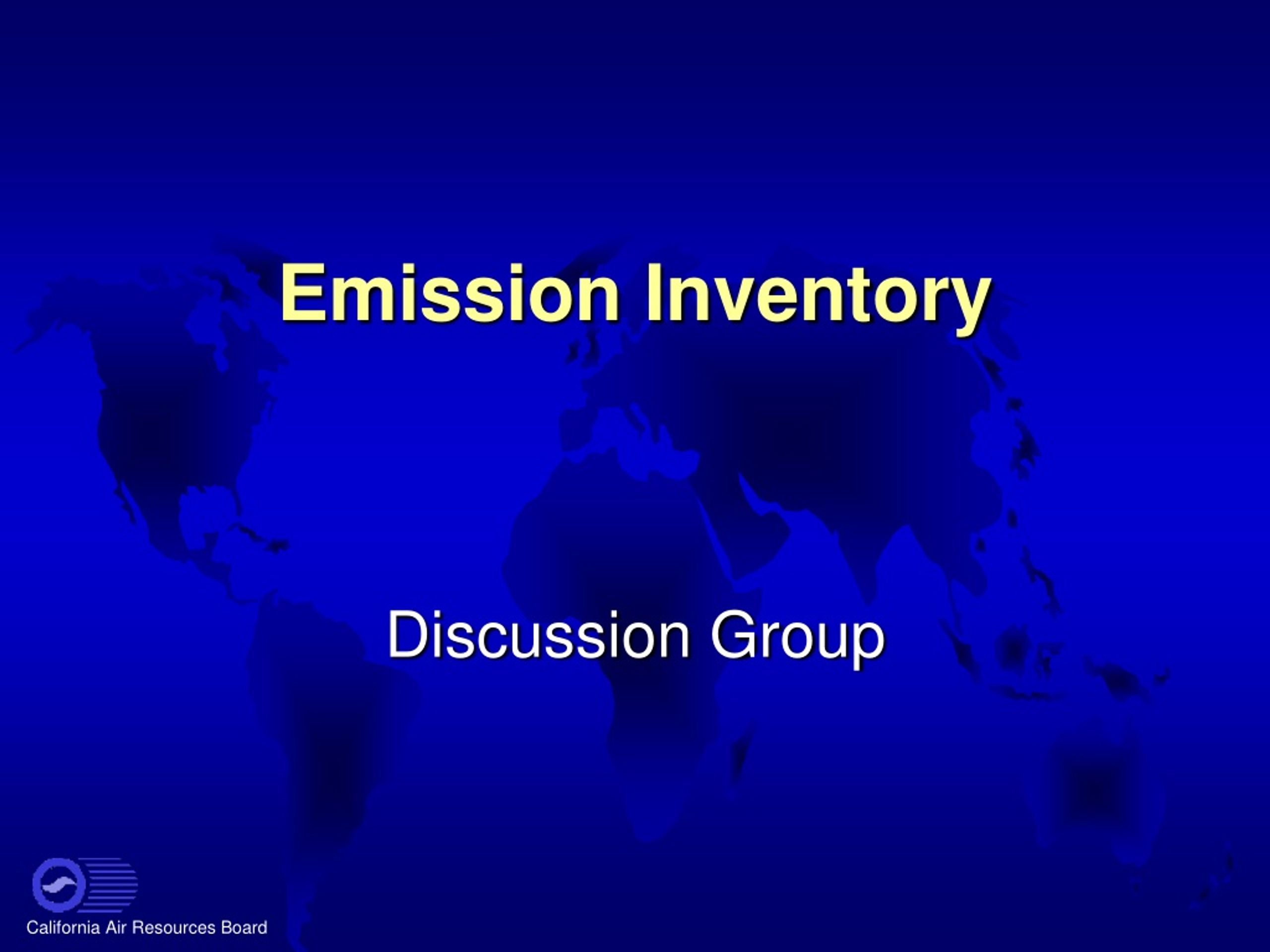

  49. Emission Inventory Discussion Group

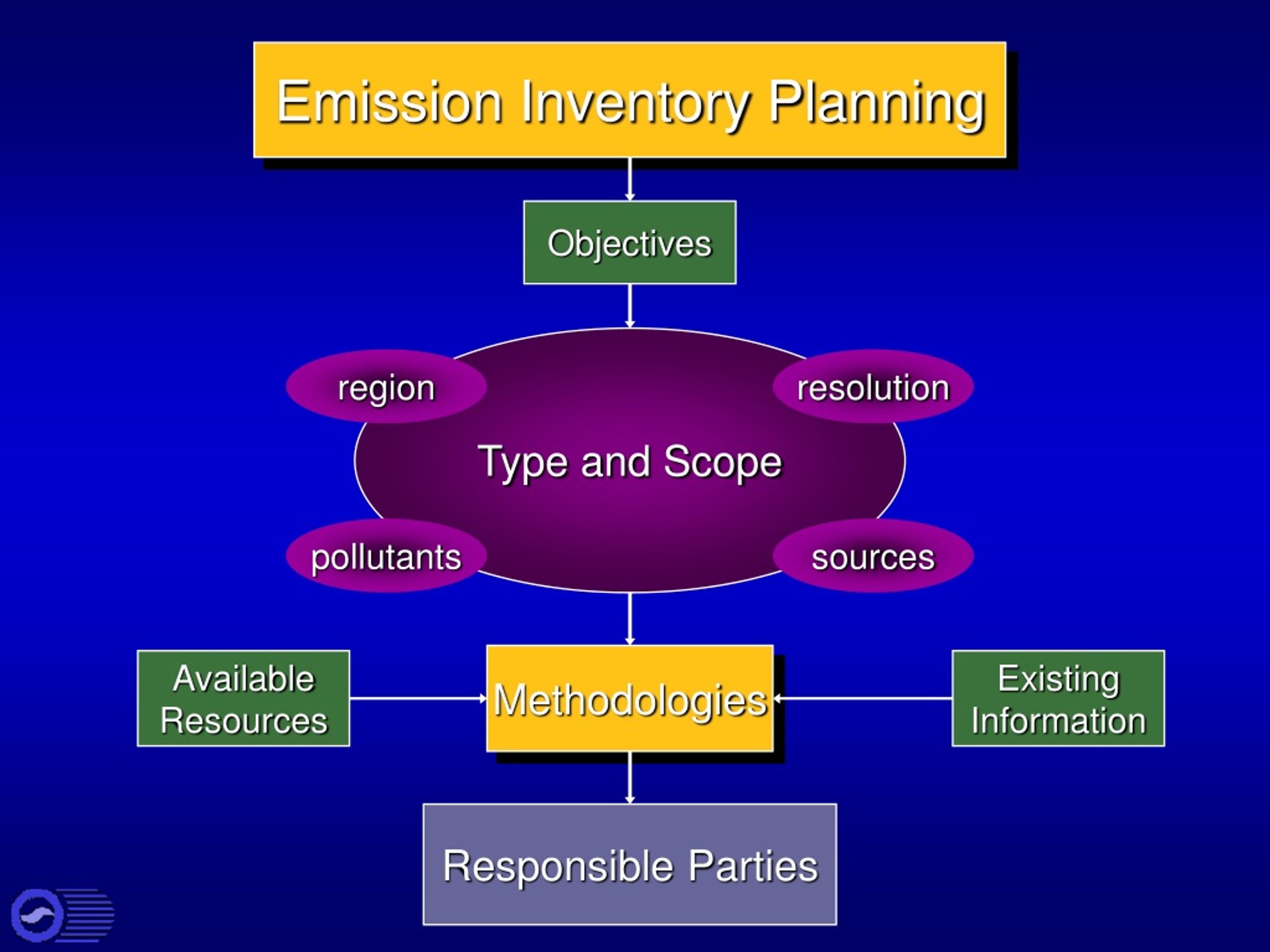

  50. Type and Scope region resolution pollutants sources Methodologies AvailableResources ExistingInformation Responsible Parties Emission Inventory Planning Objectives
