Presentation Transcript
objectives

Objectives

Introduce SVG

Illustrate its capabilities

Demonstrate SVG in action

Speculate, discuss, answer questions

what is svg

What is SVG?

Scalable Vector Graphics

SVG 1.0 is a Web standard

Vector graphic shapes, raster images, text

Dynamic and interactive graphics

working with svg

Working with SVG

  • Creating it:
    • Authoring tools are rudimentary
    • CorelDRAW and others export to SVG
    • Text/code editors
  • Viewing it:
    • Web browser with SVG plug-in
svg the language

SVG, the Language

  • Text based
  • Based on XML
  • Compatible with current web technologies:
    • XML, HTML, DHTML, CSS, JavaScript, Java, VB,
    • PNG, GIF, JPG, ASP, JSP and others
important benefits

Important Benefits

Vector graphics

XML based

Text implementation

important benefits vector graphics

Important Benefits - Vector Graphics

Text based descriptions of geometric objects

Small file size

Scalable

*Integrate raster images

*Quality of display

*Raster like filter effects

important benefits xml based

Important Benefits - XML Based

  • XML is open standard for structured data exchange
    • has wide and reliable implementation
    • makes data available to other open standard technologies
  • XML + SVG = data driven graphics, aka Smart Graphics
  • Animation native and through scripting
  • Interactive and dynamic
important benefits text implementation

Important Benefits - Text Implementation

  • Preserves both graphical appearance and ‘text’
    • Prevent font substitution and workarounds
  • Searchable, selectable text
  • Embed font information
what svg looks like

What SVG Looks Like

<?xml version="1.0" standalone=”yes"?>

<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 20010904//EN"

"http://www.w3.org/TR/2001/REC-SVG-20010904/DTD/svg10.dtd">

<svg width="5cm" height="4cm” xmlns="http://www.w3.org/2000/svg">

<desc>Four separate rectangles

</desc>

<rect x="0.5cm" y="0.5cm" width="2cm" height="1cm"/>

<rect x="0.5cm" y="2cm" width="1cm" height="1.5cm"/>

<rect x="3cm" y="0.5cm" width="1.5cm" height="2cm"/>

<rect x="3.5cm" y="3cm" width="1cm" height="0.5cm"/>

</svg>

svg coordinate systems

SVG Coordinate Systems

SVG documents have their origin at the top left

Supported units of measure: pixels px

percent %

millimeters mm

centimeters cm

inches in

ems em

x height ex

points pt

picas pc

basic structural components

Basic Structural Components

‘svg’ element is the main container

The ‘g’ element (group) is a container for other elements

The ‘defs’ element is a container for referenced elements

‘symbol’ element is a reusable graphic

graphical objects

Graphical Objects

  • Vector objects:
    • rectangle, circle, ellipse, line, polyline,
    • polygon, path
  • Raster images
  • Text
rectangle

Rectangle

  • Basic attributes of <rect>:
    • X and Y positions of top left corner
    • Width and height
    • Corner roundness - x radius, y radius
  • <rect x=“60” y=“60” width=“100” height=“100” rx=“10” ry=“10”
  • fill=“orange” stroke=“navy” stroke-width=“2”/>
circle and ellipse

Circle and Ellipse

  • Basic attributes of <circle> and <ellipse>:
    • X and Y positions of centre
    • Radius (circle)
    • X radius and Y radius (ellipse)
  • <circle cx=“60” cy=“60” r=“20”
  • fill=“orange” stroke=“navy” stroke-width=“2”/>
line and polyline

Line and Polyline

  • Basic attributes of <line>:
    • X and Y positions of start point and end point
  • <line x1=“60” y1=“60” x2=“100” y2=“60”
  • stroke=“red” stroke-width=“2”/>
  • Basic attributes of <polyline>:
    • List of points
  • <polyline points=“60,60 60,100 100,100 100,160”
  • stroke=“red” stroke-width=“2”/>
polygon

Polygon

  • Basic attributes of <polygon>:
    • List of points
  • <polygon points=“350,75 379,161 469,161 397,215 423,301 350,250
  • 277,301 303,215 231,161 321,161”
  • fill=“yellow” stroke=“red” stroke-width=“2”/>
slide18

Path

  • A path can be used to define just about any graphic object
  • It is more than a line or polyline, it can contain curves
  • It can define the outline of a shape
  • Basic attributes of <path>:
    • Path data
  • <path d=“M 60 60 L 60 100 L 100 100 z”
  • stroke=“red” stroke-width=“2”/>
raster images

Raster Images

  • Incorporated in a SVG graphic by linking to the file
  • Basic attributes of <image>:
    • X and Y positions of top left corner
    • Width and height
    • Link to image file
  • <image x=“100” y=“100” width=“60” height=“195”
  • xlink:href=“myimage.png” />
slide20

Text

  • Basic attributes of <text>:
    • X and Y positions of start
    • Font family and font size
    • Fill and stroke
  • <text x=“100” y=“30” font-family=“Verdana” font-size=“40” fill=“red”>
  • Hello</text>
visual properties

Visual Properties

Colour and opacity of fills and strokes

Stroke thickness, end caps, join type and dash size

Font family, size, style, stretch, variant and weight

transformations

Transformations

Translate - transform=“translate(20,100)”

Rotate - transform=“rotate(30)”

Scale - transform=“scale(2.5)”

Skew - transform=“skewX(30)”

transform=“skewy(30)”

animation

Animation

  • Animation is time based not frame based
  • Achieved by:
    • Using SVG animation elements based on SMIL
    • Scripting
  • SVG animation is powerful

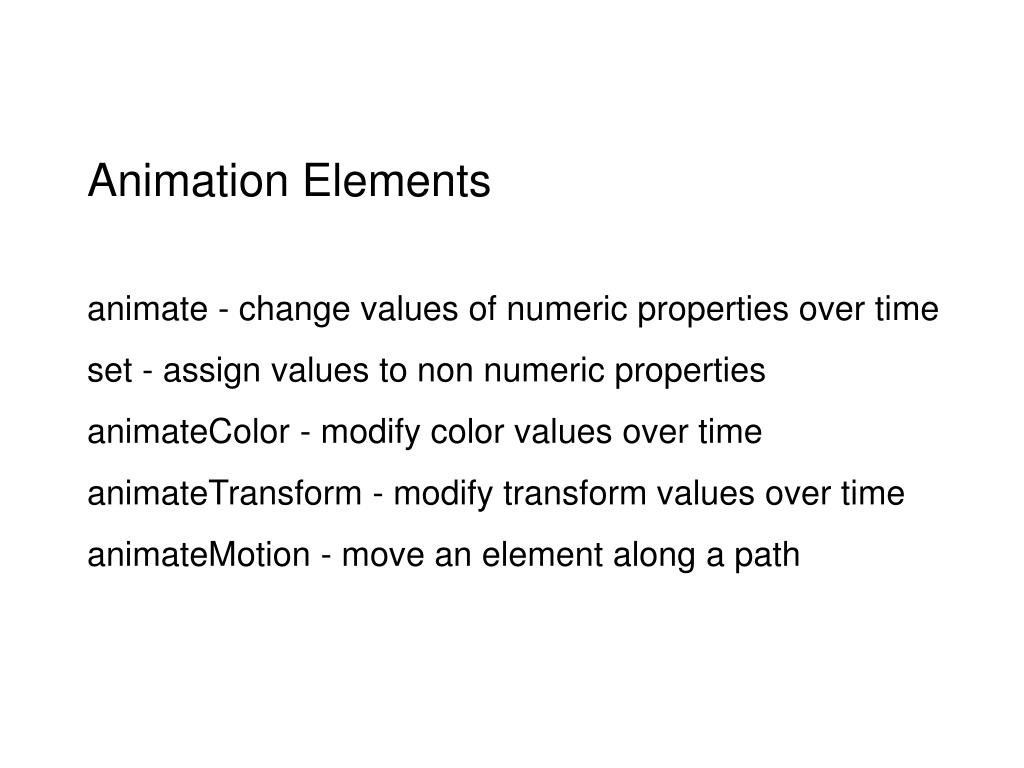

animation elements

Animation Elements

animate - change values of numeric properties over time

set - assign values to non numeric properties

animateColor - modify color values over time

animateTransform - modify transform values over time

animateMotion - move an element along a path

controlling animation

Controlling Animation

Start at a specified time or upon an event

Specify a duration

End at a specified time or upon an event

Specify what happens at the end

Keypoints and keytimes allow precise control

some other stuff

Some Other Stuff

Linear and radial gradients can be applied to fills and strokes

Patterns can be defined and applied to fills and strokes

Clipping and masking elements exist

16 filter effects primitives

thank you

Thank you
