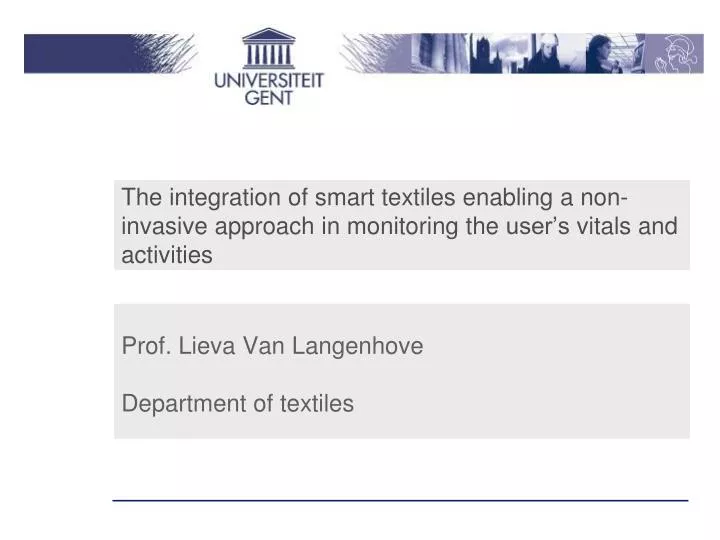

  1. The integration of smart textilesenabling a non-invasive approach in monitoring the user’svitalsandactivities Prof. Lieva Van Langenhove Department of textiles

  2. Components • Sensors andactuators • Communication devices • Energy supply • Data processing • Connections andinterconnections • Miniaturisation, packaging, integration, transformationintotextiles • Concepts andelectro/photoactivematerials

  3. Whytextiles? • All around • Versatile • Lightweight • Large contact areawith body • Comfortable • Easy to use

  4. Electro conductivetextiles Stainless steel Kevlarcoatedwith KnittedWoven non woven polypyrrolcopper gold

  5. Effectsfrom nano to macro

  6. Conductiveknitted textiles as sensor TextrodesRespibelt

  7. EMG monitoring Myographyfor stress measurement Contactless Professional use EMG sensors embroidered laminated (www.context-project.org)

  8. Pressure sensors Double layer fabric: No contact contact Quantum tunneling effect

  9. Anymechanismthatchangesconductivity is exploitablefor sensors • Carbon nanotubesforconductivity • Fibreexpansionchangesconductivity: • Extension • Heating • Humidity • Chemicals (E. Devaux ENSAIT)

  10. Humiditycontrol • Sensors: • www.Biotex-eu.com • Absorption: • Thermoresponsive gels • Supporting design

  11. Optical sensor filter Smart interface Signal A Textile fibre Signal A’ Signal B Sensor/ Processing unit

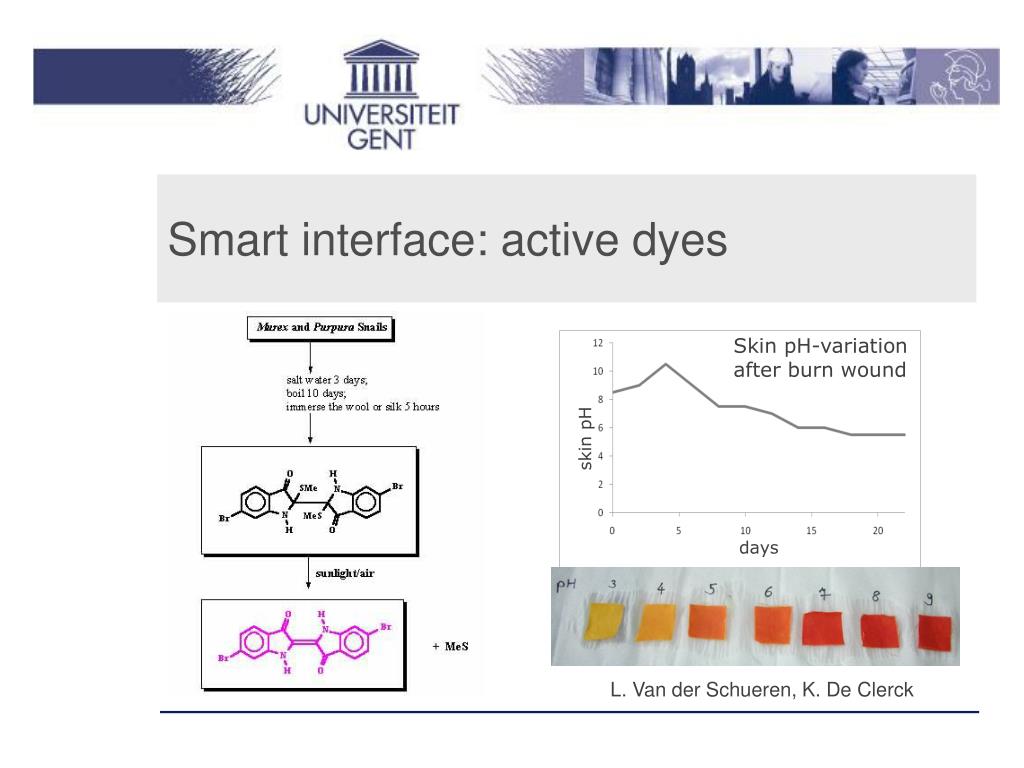

  12. Smart interface: activedyes Skin pH-variation after burn wound skin pH days L. Van der Schueren, K. De Clerck

  13. Communication • Within components • Between components in a suit • Conductive fibres • Optical fibres • With the wearer: • keyboard, • display • Wideenvironment: • Inductive (embroidery) • Antenna (printing)

  14. Data processing: Motherboard

  15. Fibre transistor Conductive core: gate Insulatingcoating Semiconductor coating Electrode: source Electrode: drain Semiconductor SourceInsulator Gate Drain OFET: organic field effect transistor

  16. Coating: from dip to padding

  17. OFET textileintegration • Weavingstructure • Right patterns • Right contacts • No falsocontacts • Stablecontacts 100µm Gatesourcedrain

  18. PEDOT basedbattery

  19. Printedbattery: results

  20. Energy from light: PV Solar bags www.dephotex.com

  21. Energy from motion: piezoelectrics • Deformationleads to E field • Needslargesurface, nothickness • PVDF • Challenges: • Materials • Concepts • Production (poling) Electrode Piezoelectriclayer Electrode

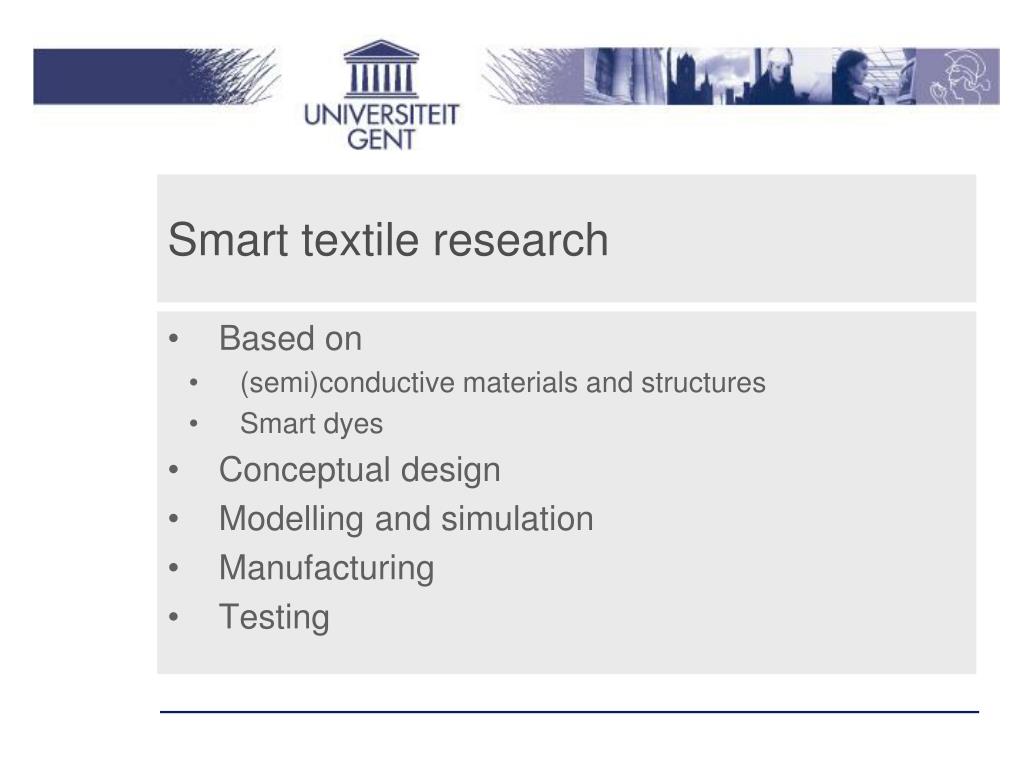

  22. Smart textile research • Based on • (semi)conductivematerialsandstructures • Smart dyes • Conceptual design • Modellingandsimulation • Manufacturing • Testing

  23. Inner garment

  24. Outergarment External Temperature GPS Antenna Alarm Accelerometers Data Recording Processing Transmission Flexible Battery Textile Antenna

  25. Victimpatch • Parameter • Heart beat rate • Respiratory rate • Body Temperature • Cfr. inner garment

  26. Key issues • Comfort • Working conditions – relevant parameters • Effective alarm generation • System maintenance • Ease of use • Weight • Cost • Robustness • Energy constraints • Long range transmission

  27. Monitoring Centre

  28. www.proetex.org 1500€ 25€ 150€ External Temperature GPS Antenna >600€ Alarm Accelerometers Data Recording Processing Transmission Flexible Battery Textile Antenna www.cutecircuit.com

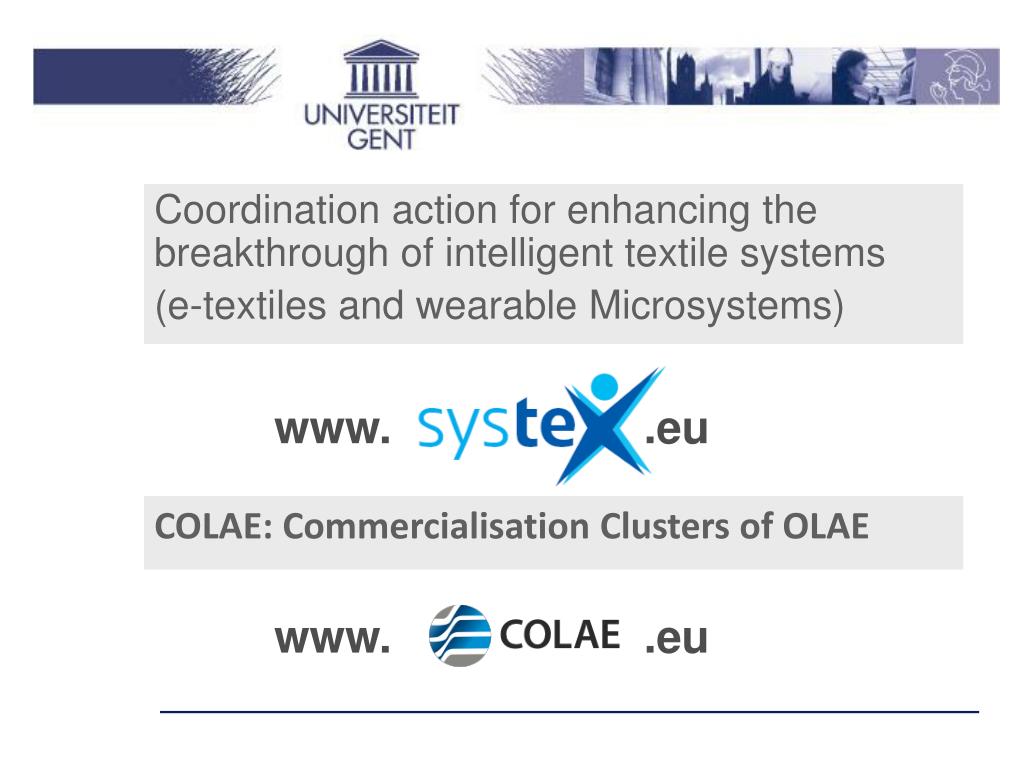

  29. Coordination action for enhancing the breakthrough of intelligent textile systems • (e-textiles and wearable Microsystems) www. .eu COLAE: Commercialisation Clusters of OLAE www. .eu
