3.5 Informed (Heuristic) Searches

3.5 Informed (Heuristic) Searches. This section show how an informed search strategy can find solution more efficiently than uninformed strategy. Best-first search, Hill climbing, Beam search, A*, IDA*, RBFS, SMA* New terms Heuristics Optimal solution Informedness Hill climbing problems

raven
Download Presentation

3.5 Informed (Heuristic) Searches

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

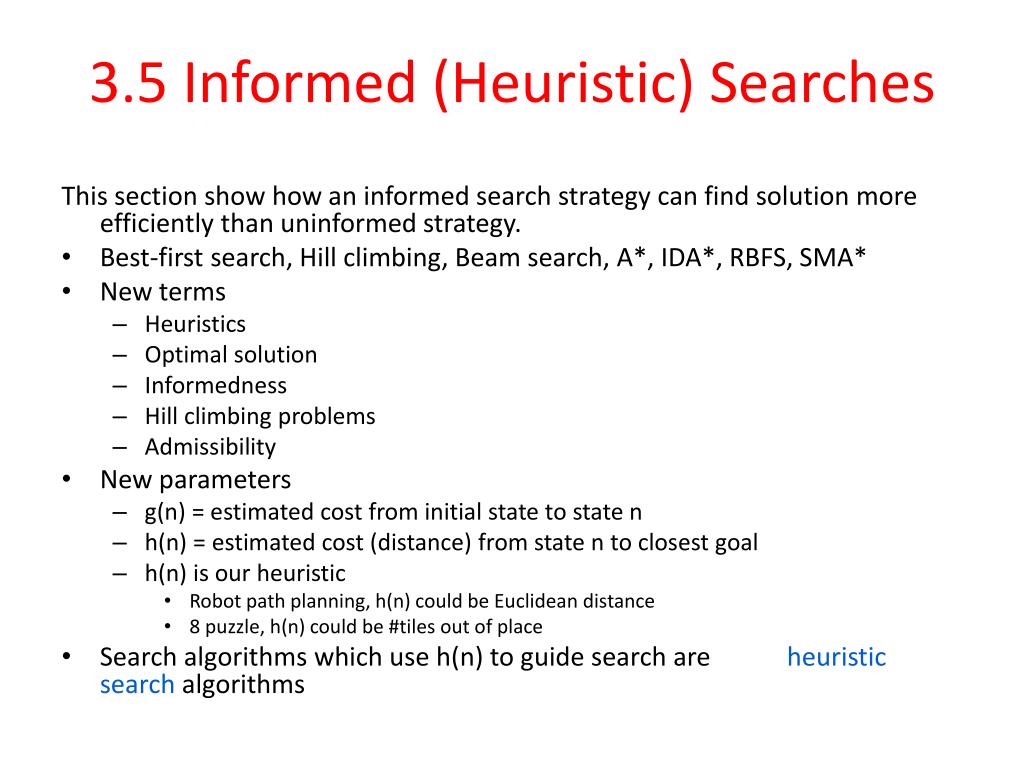

  1. 3.5 Informed (Heuristic) Searches This section show how an informed search strategy can find solution more efficiently than uninformed strategy. • Best-first search, Hill climbing, Beam search, A*, IDA*, RBFS, SMA* • New terms • Heuristics • Optimal solution • Informedness • Hill climbing problems • Admissibility • New parameters • g(n) = estimated cost from initial state to state n • h(n) = estimated cost (distance) from state n to closest goal • h(n) is our heuristic • Robot path planning, h(n) could be Euclidean distance • 8 puzzle, h(n) could be #tiles out of place • Search algorithms which use h(n) to guide search are heuristic search algorithms

  2. 3.5.1 Best-First Search(Greedy Best-First Search) • Best-first search is a search algorithm which explores a graph by expanding the most promising node chosen according to a specified rule. • A node is selected for expansion based on an evaluation function, f(n). • Most best-first algorithm include as a component of f a heuristic function, h(n). QueueingFn is sort-by-h Best-first search only as good as heuristic

  3. Example – map of RomaniaDriving from Arad to Bucharest

  4. Example – Driving from Arad to Bucharestheuristic function f(n)=h(n), straight line distance hueristics

  5. Example – Driving from Arad to Bucharest (cont’d)

  6. Example – Driving from Arad to Bucharest (cont’d)

  7. Comparison of Search Techniques C*: the cost of the optimal solution ε: every action cost at least ε m: maximum depth of search space

  8. 3.5.2 A* Search • QueueingFn is sort-by-f • f(n) = g(n) + h(n) g(n): path cost from the start node to node n h(n): estimated cost of the cheapest path from n to goal. • Note that UCS and Best-first both improve search • UCS keeps solution cost low • Best-first helps find solution quickly • A* combines these approaches

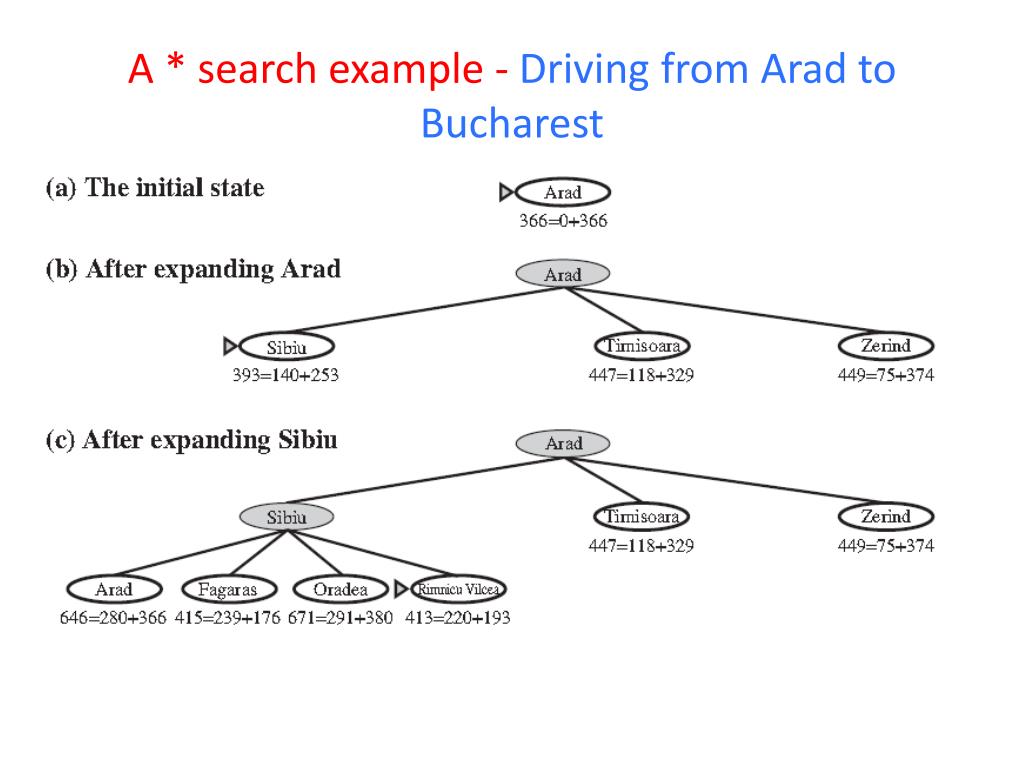

  9. A * search example - Driving from Arad to Bucharest

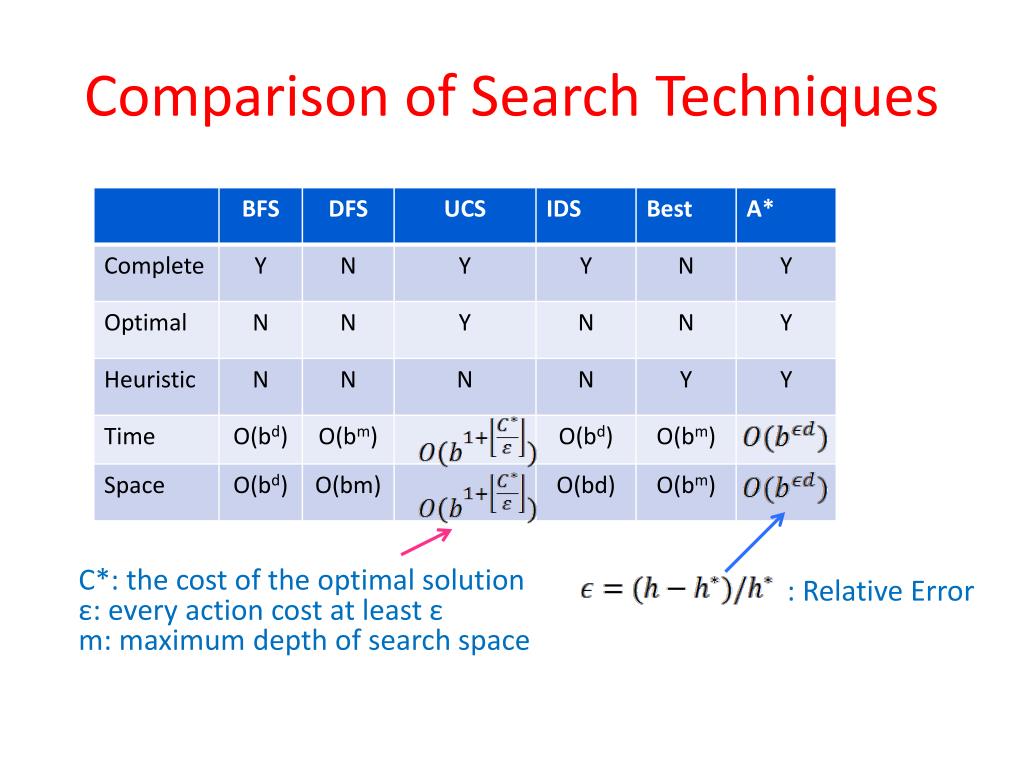

  10. Comparison of Search Techniques C*: the cost of the optimal solution ε: every action cost at least ε m: maximum depth of search space : Relative Error

  11. 3.5.3 Memory-bounded Heuristic Search For A* search, the computation time is not a main drawback. Because it keeps all generated nodes in memory, it run out of space long before it runs out of time. Method to reduce memory requirement: • Iterative-deepening A* (IDA*) • Recursive best-first search (RBFS) • Memory-bounded A* (MA*)

  12. RBFS • Recursive Best First Search • Linear space variant of A* • Perform A* search but discard subtrees when perform recursion • Keep track of alternative (next best) subtree • Expand subtree until f value greater than bound • Update f values before (from parent) and after (from descendant) recursive call

  13. RBFS Example - Driving from Arad to Bucharest

  14. Example

  15. 3.7 Summary • Studied search methods that an agent can use to select actions in environment that are deterministic, observable, static, and completely known. • Before an agent start searching for solutions, a goal must be identified, and a well-defined problem must be formulated. • A problem consists of 5 parts: • the initial state • a set of action • a transition model describing the results of those actions • a goal test function • a path cost function • A general Tree-Search algorithm considers all possible paths to find a solution, whereas a Graph-Search algorithm avoids consideration of redundant paths.

  16. Uninformed search methods have access only to the problem definition. • Breadth-first search • Uniform-cost search • Depth-first search • Iterative deepening search • Bidirectional search • Informed search methods may have access to a heuristic function h(n) that estimate the cost of a solution from n. • Greedy best-first search • A* search • Recursive best-first search (RBFS) search
