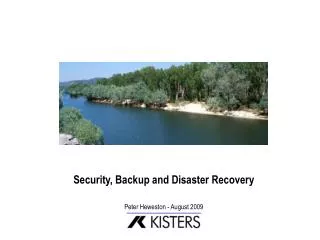

  1. Security, Backup and Disaster Recovery Peter Heweston - August 2009

  2. Backup and Recovery • Hydstra is becoming central to agency business • The investment in data amounts to millions of dollars • Data is arriving in near real time • Operational decisions are being made daily • Disaster planning needs to be reviewed regularly • Disaster plans need to be tested

  3. Disaster! • Hardware failure • Virus infestation • Accidental deletion • Malicious deletion • Theft • Vandalism • Fire, flood, earthquake • Terrorism

  4. Hardware Failure • Hot backup server • replicate system every 15 minutes to backup server • RAID disks • RAID = Redundant Array of Inexpensive Disks • hot-swappable RAID • Dual power supply • power supplies are a vulnerable component of modern PCs. • Server class machines often have dual power supplies • On-site spare parts • 160GB hard drives are hard to buy • 20GB tape drives are obsolete

  5. Viruses • Corporate antivirus • Ensure it is being updated regularly • Some viruses disable update • Spam filters • Ensure offline laptops are updated regularly • Internet Policies • Document policies • Limit personal access to internet • Scan incoming emails • Monitor usage and fee back to users • Training • Discourage silly emails and links • Inappropriate usage • No file-sharing and Warez sites allowed

  6. Accidental Deletion • Only trained users are allowed access to systems • Set user levels appropriately (not all TS=3) • Set file system security to prevent accidents • Restrict access to Explorer - drag'n'drop accidents are common • Restrict access to DOS boxes • Set up and run HYDIRCHK regularly for early detection • Run HYARCSIZ regularly • Use recycle bin and backup options for Hydstra TS files • Make regular backups

  7. Malicious Deletion • Withdraw access as soon as people leave • Big companies escort you to the door as soon as you are sacked or laid off • Windows operating system logs can log file deletions • You have to enable it • Enable DBFLOG in HYCONFIG • Logs HYMANAGE etc • Not external processes

  8. Equipment Loss • Most laptops are lost or stolen at work, next is car, third is airport • 90% of lost PCs contain confidential business information • 82% are never recovered • Most are unencrypted • Many don't even require a password to log in • 60% of data breaches are due to lost or stolen portable devices • 1 in 2 users have lost a portable drive • 76% respondents said that they never use any data security to protect information stored on USB devices.

  9. Data Loss • Time Warner Inc. reported that 40 tapes containing personal data on 600,000 current and former employees had been lost en route to a storage facility. • A laptop storing personal data on 11,000 children was stolen from a Nottinghamshire hospital • New Zealand Inland Revenue Department (IRD) has no clue as to the whereabouts of 106 of its computers or their contents.

  10. Tracking • A range of products is available to report back on stolen laptops and phones • Prey is public domain software that sends info to a web site of your choice, with pics if you have a webcam • http://preyproject.com/ • Apple MobileMe Find My iPhone • Locate iPhone on a map • Send an SMS message • Play a sound • Wipe all data • Many other similar apps

  11. Ironkey Secure USB Drive • 4GB AES Encrypted USB drive • Stealth browsing via secure Firefoxand Tor (The Onion Ring) • Permanently disabled after10 bad password attempts • Self destructs if physical tampering detected • Password management • Waterproof • $US179 for 4GB

  12. Lenovo ThinkPad USB Portable Secure Hard Drive • 128bit AES encryption • 320GB • Up to "Secret" security • $US 319, $AUS 459

  13. Freecom Hard Drive Secure • 2TB encrypted USB • RFID credit card to unlock • 349 euro

  14. Windows Encrypted Files • NTFS File System supports file encryption • Key is secured using your login • Must use complex login passwords • Don't change domains or you will lose access to your data • Be careful about moving data to non-encrypted USB devices • Right click Properties and select Advanced

  15. Windows Encrypted Files

  16. TrueCrypt • Best free encryption software • Encrypt a hard drive or USB drive • Created an encrypted container in a normal file • Installs a device driver • Many encryption choices, including 256bit AES (rated to Top Secret) • Requires driver to be installed to read the data

  17. Formatting USB Drives • Most USB drives come pre-formatted with FAT32 • You can convert to NTFS • CONVERT M: /FS:NTFS • Advantages • Smaller sectors • Compression, encryption • Files >4GB • Disadvantages • Only XP, Vista, Win 7 • Must ALWAYS remove safely • May have Access Denied problems • Bad choice for memory-based devices

  18. Data Theft • Firewalls • Manage internet security • Tokens for VPN • Password policies • Remove expired staff • Enforce regular password changes • Consider tokens, fingerprints, MIL cards etc • Phones, PDAs, MP3 players etc • Consider policies • Forbidden in Defence buildings • USB drives • Easy to steal everything, easy to lose • Publish policies on data use and abuse

  19. Waste Stream • Dumpster diving is a common source of data loss • Cleaners can't be trusted • Shred everything • I mean everything • no really, everything • don't just reformat, securely erase • Manage disposal processes • Many PCs bought at disposal auction have recoverable data on them

  20. Building Loss • Plan for complete loss of building • Fire, flood, earthquake, explosion • Water resources agencies are often near rivers! • Requires complete offsite backup • Duplicate site • Hot backup of systems • Communications lines for telemetry • Carriers - Telstra, Optus etc • Secure offsite physical backups

  21. Backup • Backups need to recover from different problems • Probably requires multiple backup strategies • Disaster • Oops • Delayed recovery • Strategies include • Tape • Hot copy • DVD • USB drive

  22. Tape • Best protection against major disaster • Tapes should be stored offsite • or at least in fireproof waterproof safe • Requires compatible hardware to recover • May be difficult to purchase a drive • Have one spare • Complex to manage • Needs to be done every day • Complex cycle of tapes to keep and recycle • Best done by corporate IT • Slow or expensive to recover a single file • Test it regularly!

  23. Hot Copy • Could be quite often - every 15 minutes • ROBOCOPY copies only changed files • RSYNC or SFFS can replicate over FTP • HYCLONE is a wrapper round ROBOCOPY • Copy the system from network to your PC daily • Locked files • Some files will be inaccessible • Some are nearly always inaccessible • SVRTASKS, PASSWD, etc • Issues around file consistency • During a live copy DBF can become different from CDX • A can be different to .AX

  24. DVD • Consumer technology has a long life • Cheap • Make DVD copy of the entire system at least once a week • Keep them for ever • Allows you to go back in time many years • When would you detect a lost TS file at a closed station? • The same day? • When you ran HYARCSIZ? • A year later? • A decade later? • Could you get it back? • From current backup tapes? • From 10 year old backup tapes?

  25. Huge USB Drives • Storage is cheap - $US 1700 for 8TB • A large Hydstra system is 2GB • 8TB drive holds 4000 copies • One a day for 11 years • One an hour for 5 months • Much more if you only save changed files • HYCLONE can write to dated folders • Retain evidence of system statefor court cases etc

  26. Scheduling Backups • To be really sure you have a clean backup or clone all users must be off the system • Use timeouts in HYCONFIG • MTIMEOUT • WTIMEOUT • UTIMEOUT • Shut down long running processes with /K • SVRIMP /K • SVRRUN /K • HYXPLORE /K • Prevent HYXPLORE start

  27. Scheduling Backups • If necessary, terminate remaining processes with prejudice • TASKLIST shows running tasks • Shut down programs with TASKKILL • TASKKILL /FI "IMAGENAME eq hy*" • Easy enough to forcibly script a shutdown of all Hydstra processes • Then run backups, clones etc • Restart systems with a Scheduled Task

  28. Rebuilding Hydstra Systems • Restore backup to new server, mount as same drive letter if possible • Re-apply permissions down the Hydstra tree • Register HYDLL on clients (including Citrix server) • Install Foxpro ADO drivers on clients (including Citrix server) • Ensure TEMPPATH tree has full permissions

  29. Testing • The best laid plans ... • Test your backups • Ask IT to recover a specified file from backup every month or so • Think!

  30. Security, Backup and Disaster Recovery Peter Heweston - August 2009
