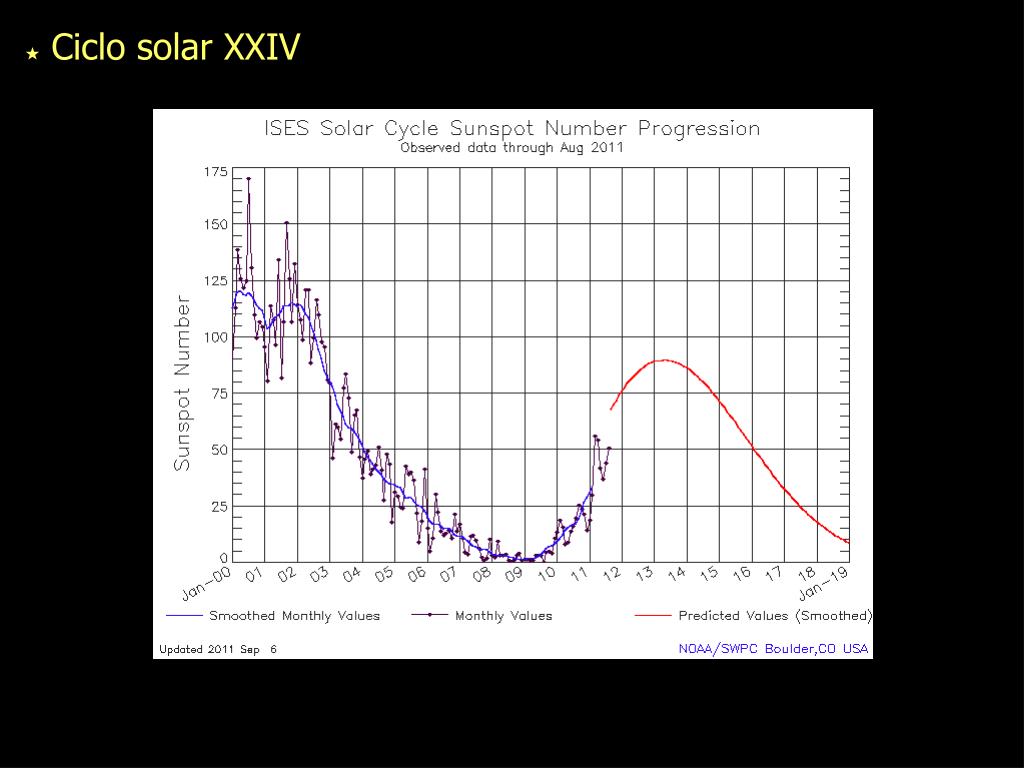

The use of 17 GHz radio emission to characterize the solar minimum. Selhorst, Caius L., Svalgaard, L., Giménez de Castro, C. G., Válio, A., Costa, J. E. R., Shibasaki, K. Ciclo solar XXIV. Alternative index.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about ' The use of 17 GHz radio emission to characterize the solar minimum' - raphael-bernard


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide1
The use of 17 GHz radio emission to

characterize the solar minimum

Selhorst, Caius L., Svalgaard, L.,

Giménez de Castro, C. G., Válio, A., Costa, J. E. R., Shibasaki, K.

slide3

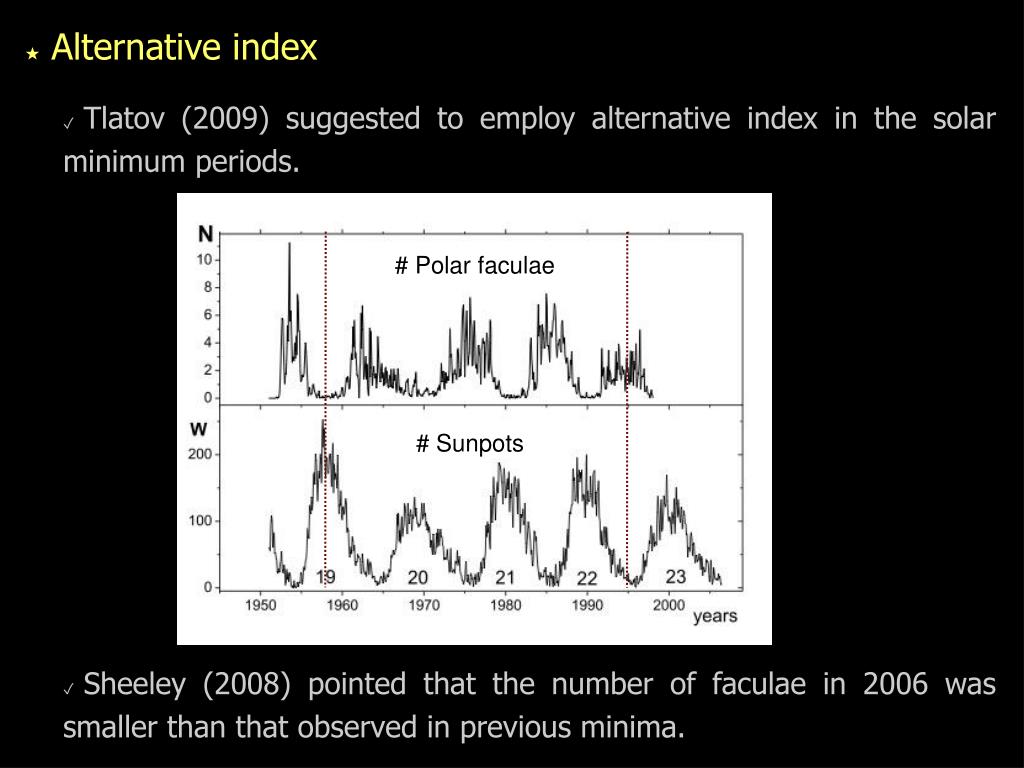

Alternative index
  • Tlatov (2009) suggested to employ alternative index in the solar minimum periods.

# Polar faculae

# Sunpots

  • Sheeley (2008) pointed that the number of faculae in 2006 was smaller than that observed in previous minima.
slide4

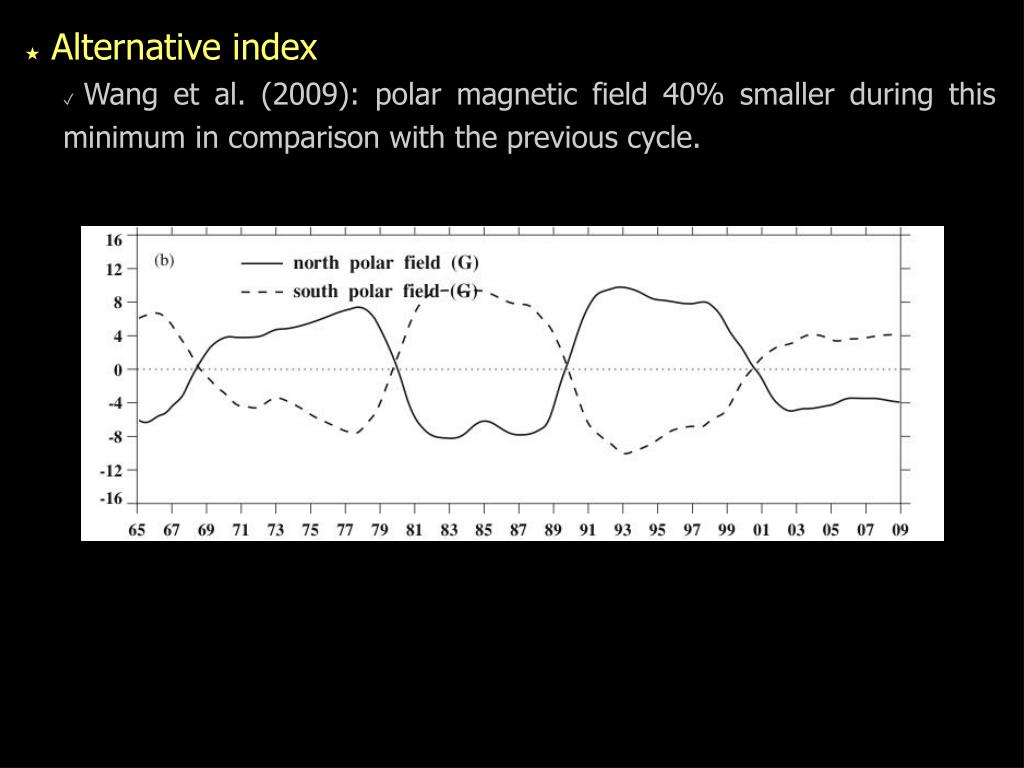

Alternative index
  • Wang et al. (2009): polar magnetic field 40% smaller during this minimum in comparison with the previous cycle.
slide5

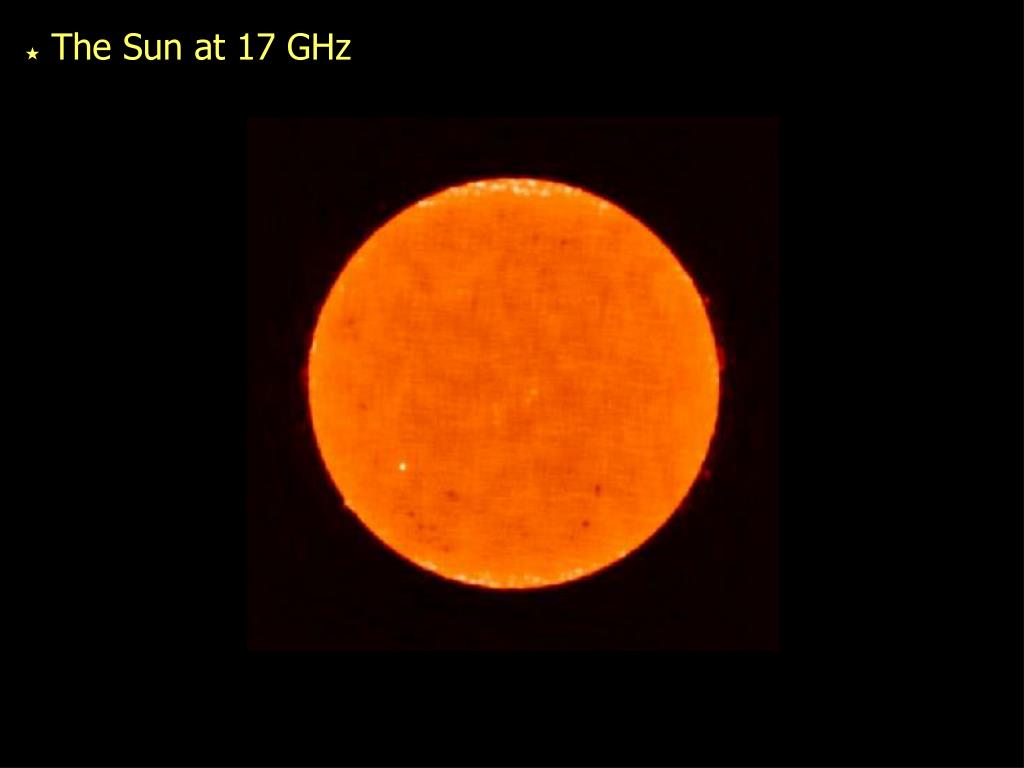

The Sun at 17 GHz

Nobeyama Radioheliograph

slide7

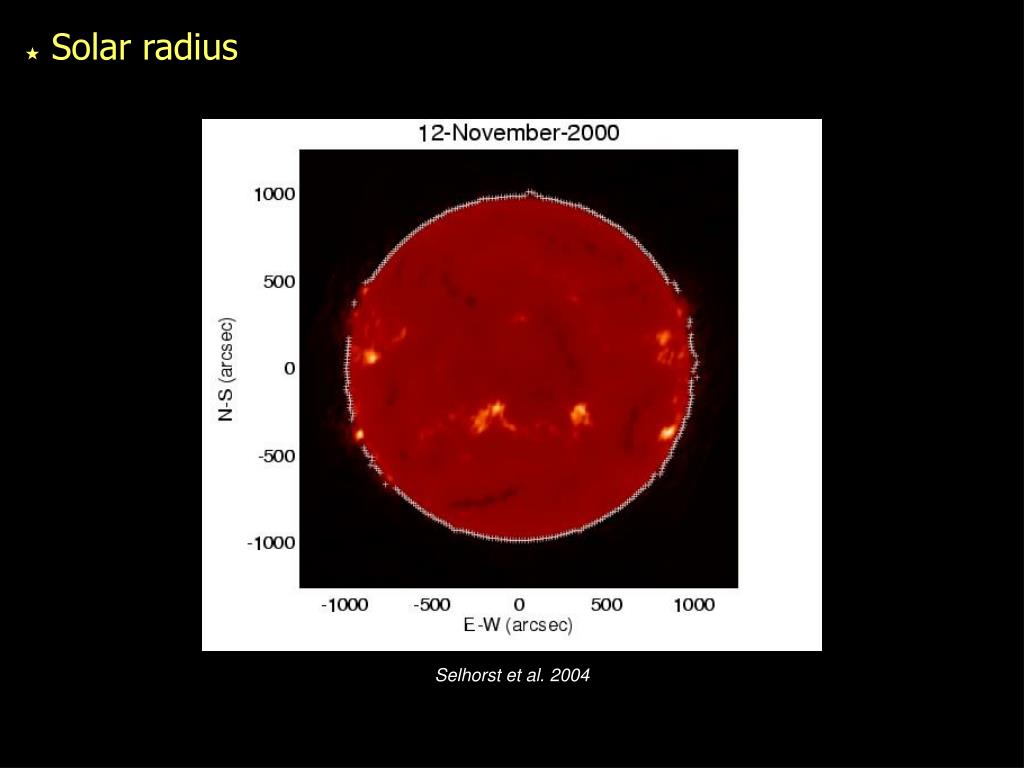

Solar radius

Selhorst et al. 2004

slide8

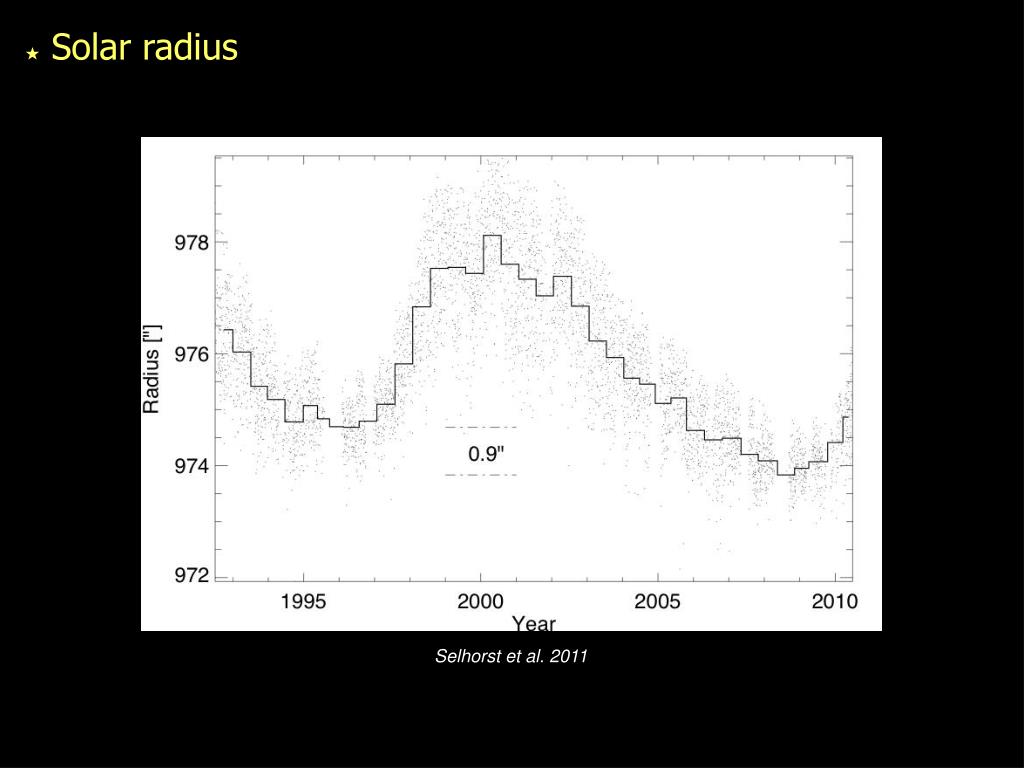

Solar radius

Selhorst et al. 2011

slide9
Polar limb brightening

Selhorst et al. 2010

slide10
The Sun at 17 GHz
  • Svalgaard & Cliver (2006): the bright patches are locations of strong magnetic fields.
slide11

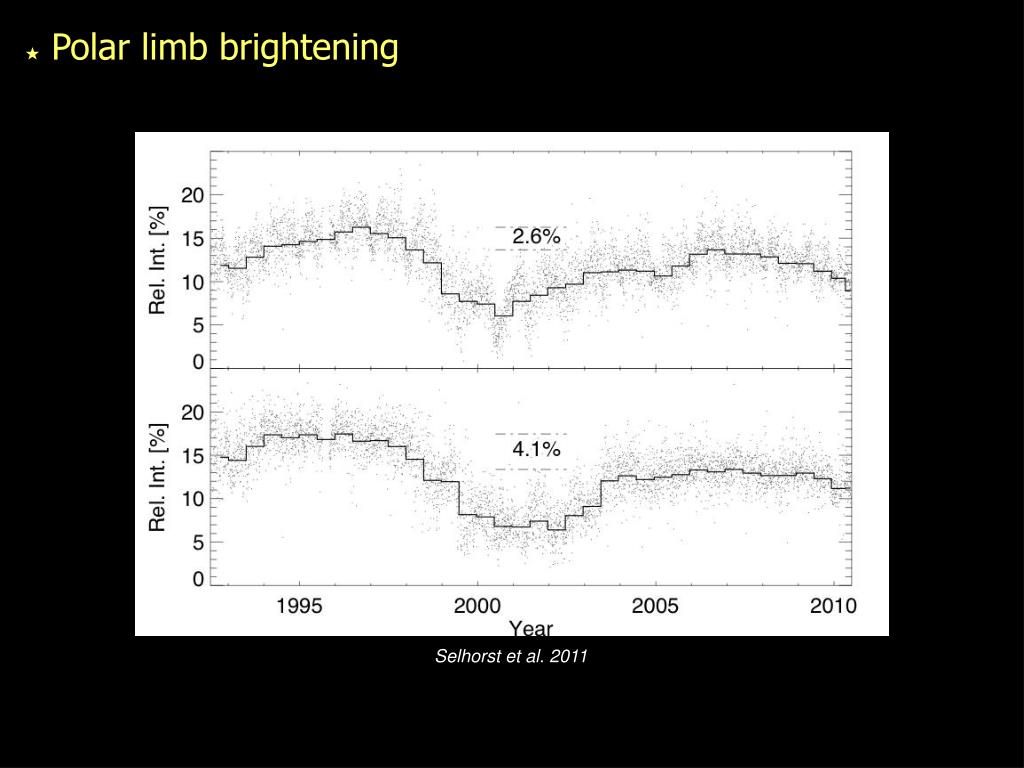

Polar limb brightening

Selhorst et al. 2011

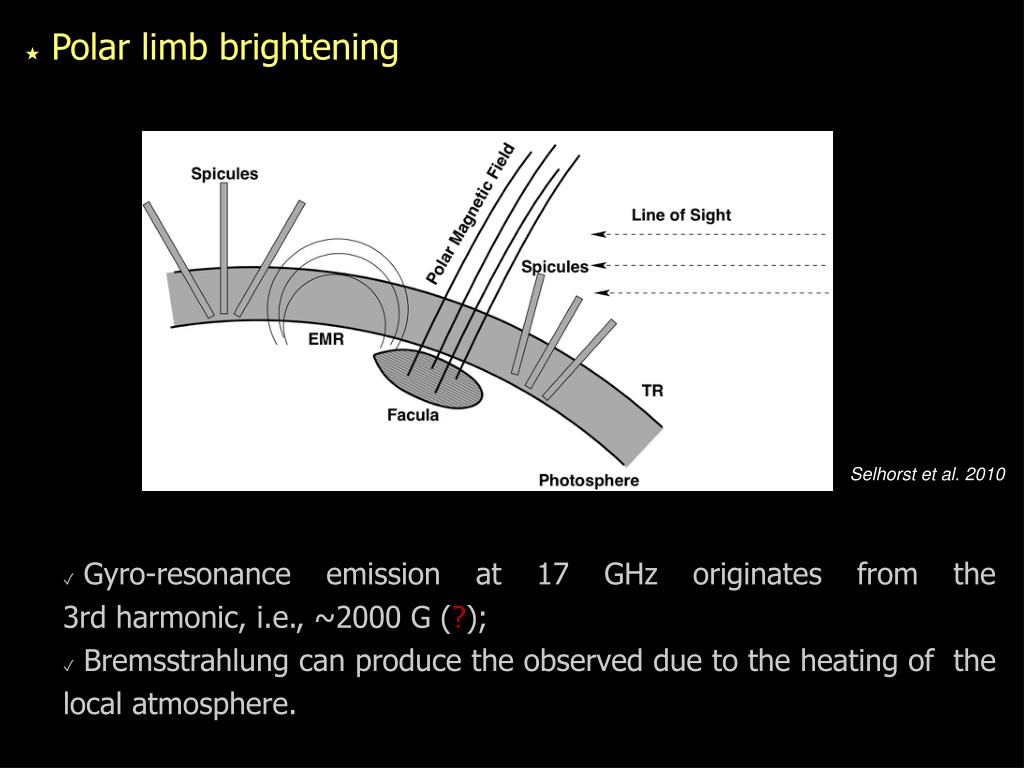

slide12
Polar limb brightening

Selhorst et al. 2010

  • Gyro-resonance emission at 17 GHz originates from the 3rd harmonic, i.e., ~2000 G (?);
  • Bremsstrahlung can produce the observed due to the heating of the local atmosphere.
slide13

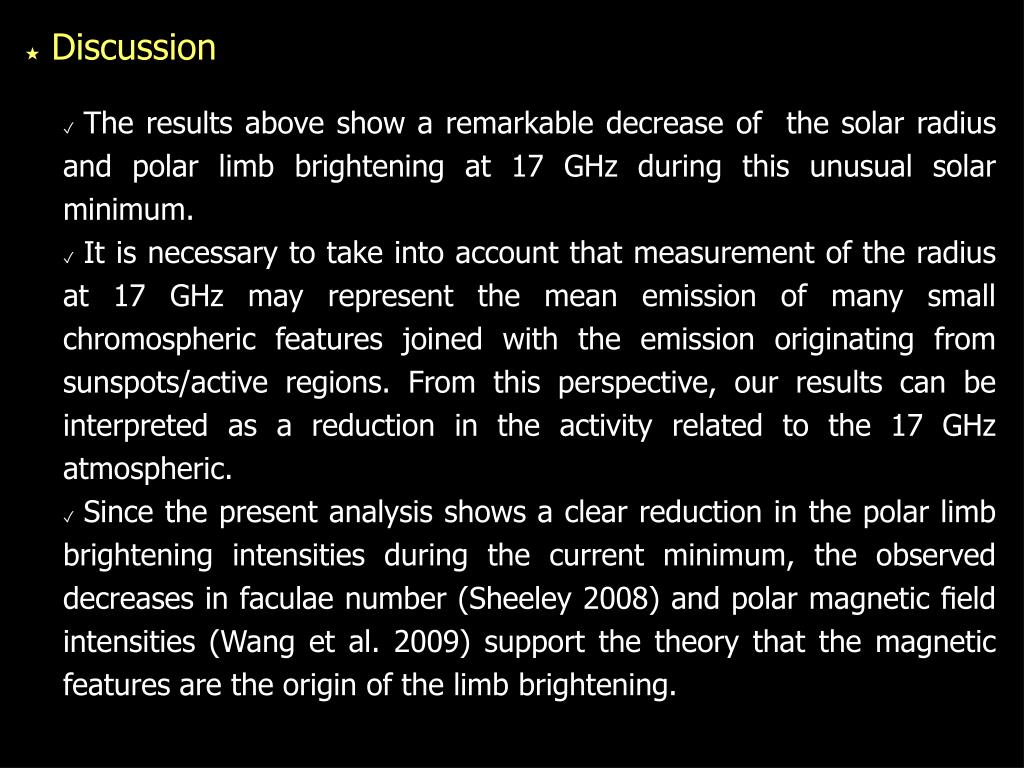

Discussion
  • The results above show a remarkable decrease of the solar radius and polar limb brightening at 17 GHz during this unusual solar minimum.
  • It is necessary to take into account that measurement of the radius at 17 GHz may represent the mean emission of many small chromospheric features joined with the emission originating from sunspots/active regions. From this perspective, our results can be interpreted as a reduction in the activity related to the 17 GHz atmospheric.
  • Since the present analysis shows a clear reduction in the polar limb brightening intensities during the current minimum, the observed decreases in faculae number (Sheeley 2008) and polar magnetic field intensities (Wang et al. 2009) support the theory that the magnetic features are the origin of the limb brightening.
