  1. 斯第西姆（SDCEM）隔离开关

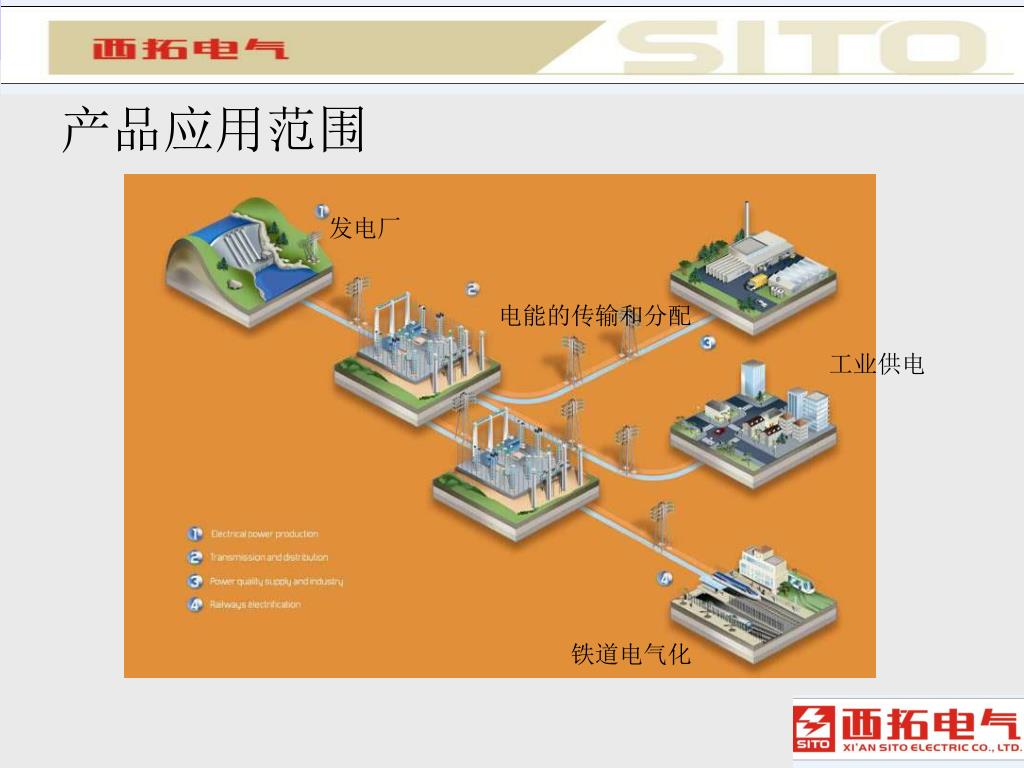

  2. 产品应用范围 发电厂 电能的传输和分配 工业供电 铁道电气化

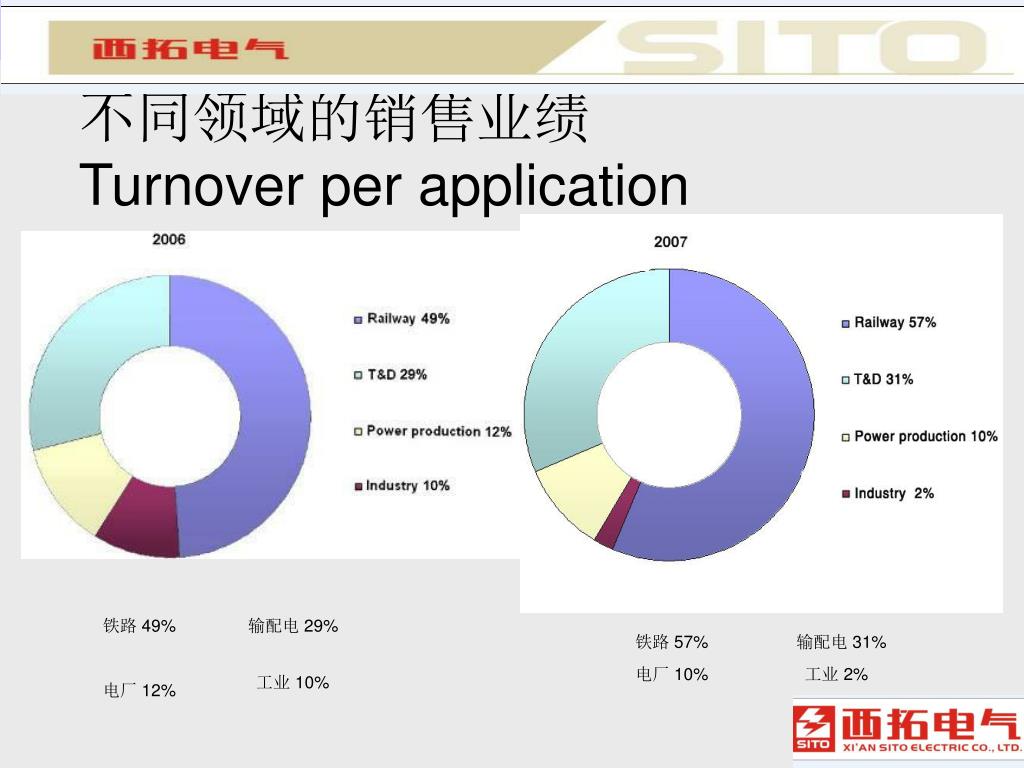

  3. 不同领域的销售业绩 Turnover per application 铁路 49% 输配电 29% 铁路 57% 输配电 31% 电厂 10% 工业 2% 工业 10% 电厂 12%

  4. 全球业绩 SDCEM worldwide references 开关安装数量 我们的产品覆盖120个国家,共有超过40000个隔离开关 More than 40 000 disconnectors over 120 countries

  5. 我们受益于全球合作客户的信任: We benefit of the trust of our customers all over the world :

  6. 中国区合作伙伴 黑龙江 HEILONGJIANG 山西长江源 SHANXI CHANGJIANGYUAN 西安西拓 XI’AN SITO 吉林 JIILIN 新疆 XINJIANG 内蒙古 INNER MONGOLIA 辽宁 LIAONING 北京 BEIJING 甘肃 GANSU 天津 TIANJIN 河北 HEBEI 宁夏 NINGXIA 山西 SHANXI 青海 QINGHAI 烟台东源 YANTAI DONGYUAN 烟台 YANTAI 西安 XI’AN 河南华瑞 HENAN HUARUI 郑州 ZHENGZHOU 江苏 JIANGSU 西藏 TIBET 成都 CHENGDU 武汉 WUHAN 安徽 ANHUI 重庆 CHONGQING 上海 SHANGHAI 江西 JIIANGXI 浙江 ZHEJIIANG 湖南 HUNAN 贵州 GUIZHOU 昆明 KUNMING 福建 FUJIIAN 南宁 NANNING 广州 GUANGZHOU 珠海广达 ZHUHAI GUANGDA 珠海 ZHUHAI 海南 HAINAN

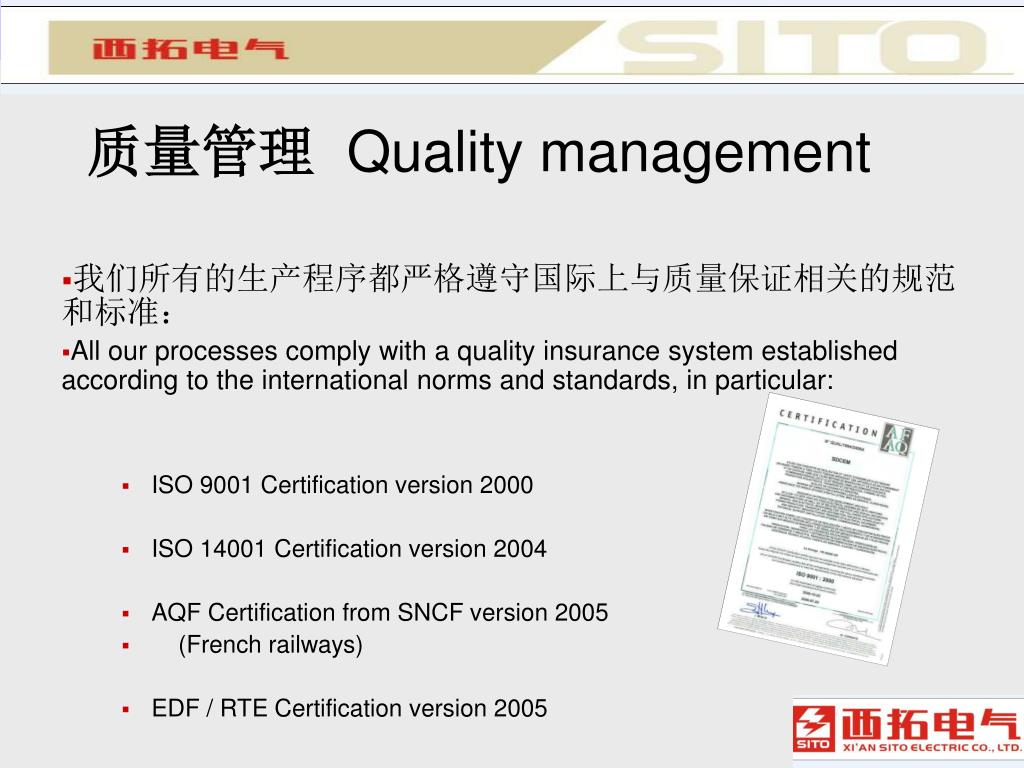

  7. 质量管理 Quality management • 我们所有的生产程序都严格遵守国际上与质量保证相关的规范和标准： • All our processes comply with a quality insurance system established according to the international norms and standards, in particular: • ISO 9001 Certification version 2000 • ISO 14001 Certification version 2004 • AQF Certification from SNCF version 2005 • (French railways) • EDF / RTE Certification version 2005

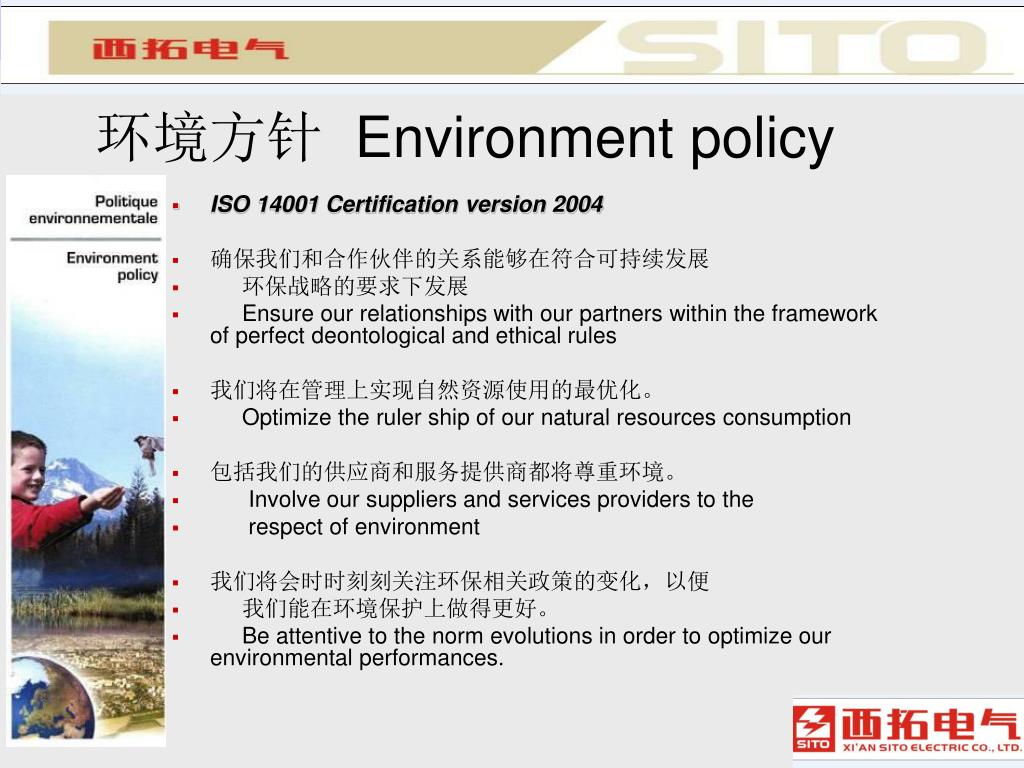

  8. 环境方针 Environment policy • ISO 14001 Certification version 2004 • 确保我们和合作伙伴的关系能够在符合可持续发展 • 环保战略的要求下发展 • Ensure our relationships with our partners within the framework of perfect deontological and ethical rules • 我们将在管理上实现自然资源使用的最优化。 • Optimize the ruler ship of our natural resources consumption • 包括我们的供应商和服务提供商都将尊重环境。 • Involve our suppliers and services providers to the • respect of environment • 我们将会时时刻刻关注环保相关政策的变化，以便 • 我们能在环境保护上做得更好。 • Be attentive to the norm evolutions in order to optimize our environmental performances.

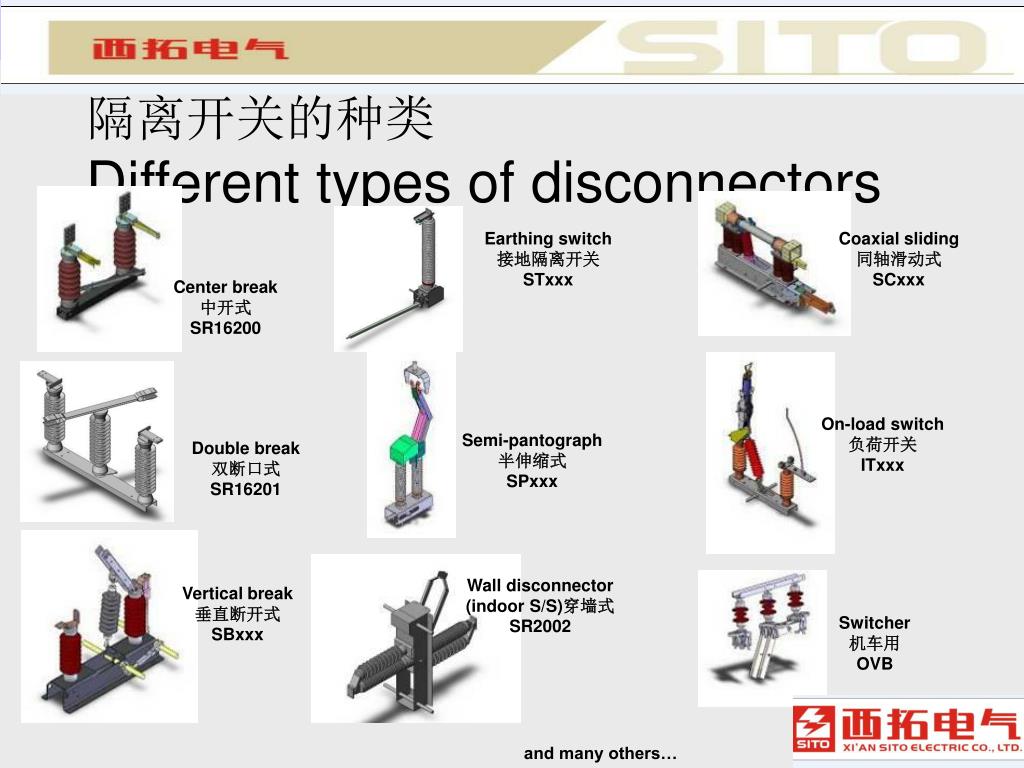

  9. 隔离开关的种类Different types of disconnectors Earthing switch 接地隔离开关 STxxx Coaxial sliding同轴滑动式 SCxxx Center break 中开式 SR16200 On-load switch负荷开关 ITxxx Semi-pantograph半伸缩式 SPxxx Double break 双断口式 SR16201 Wall disconnector (indoor S/S)穿墙式 SR2002 Vertical break 垂直断开式 SBxxx Switcher 机车用 OVB and many others…

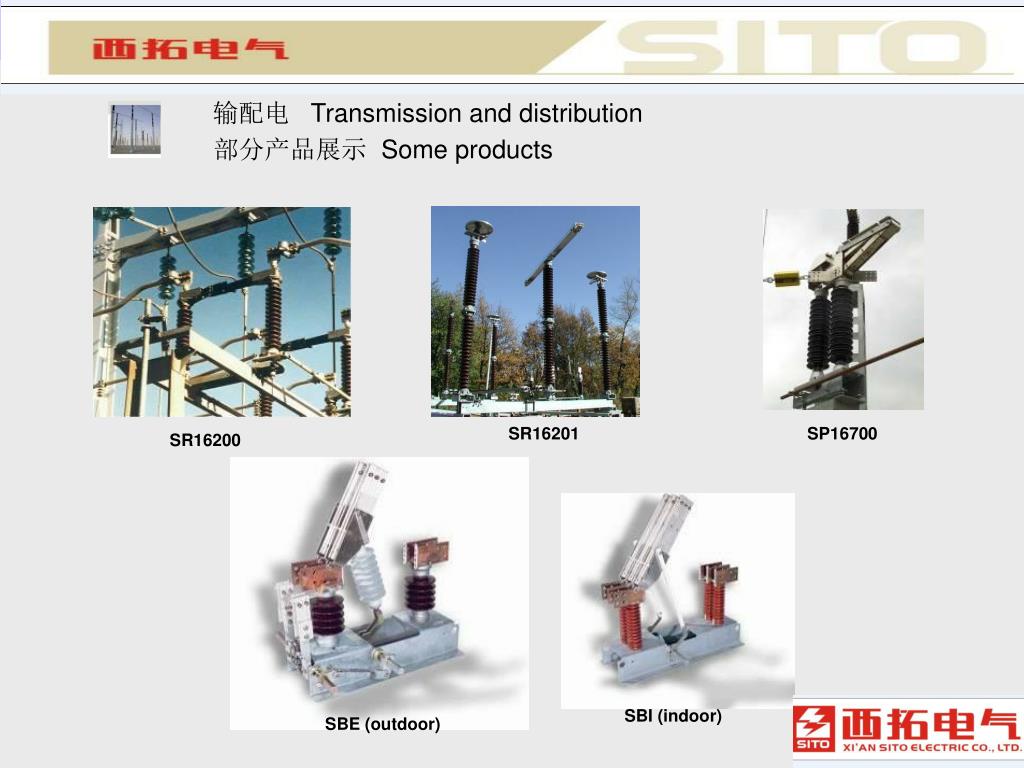

  10. 输配电 Transmission and distribution 部分产品展示 Some products SR16201 SP16700 SR16200 SBI (indoor) SBE (outdoor)

  11. 输配电 Transmission and distribution产品范围 Range of products

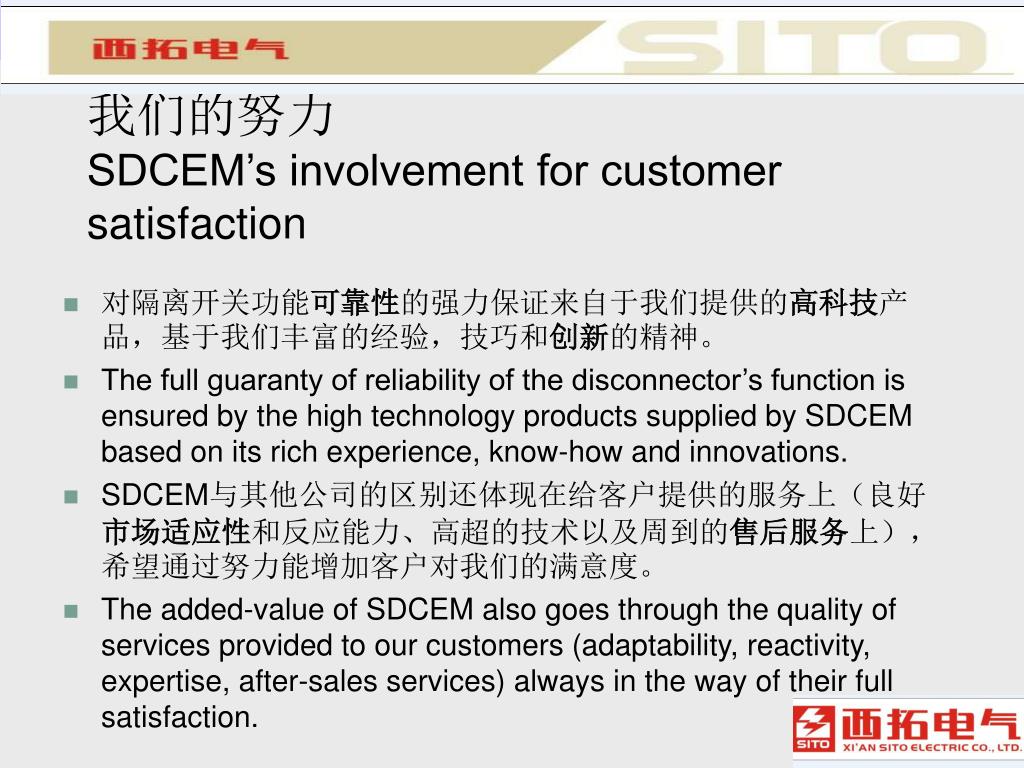

  12. 对隔离开关功能可靠性的强力保证来自于我们提供的高科技产品，基于我们丰富的经验，技巧和创新的精神。对隔离开关功能可靠性的强力保证来自于我们提供的高科技产品，基于我们丰富的经验，技巧和创新的精神。 The full guaranty of reliability of the disconnector’s function is ensured by the high technology products supplied by SDCEM based on its rich experience, know-how and innovations. SDCEM与其他公司的区别还体现在给客户提供的服务上（良好市场适应性和反应能力、高超的技术以及周到的售后服务上），希望通过努力能增加客户对我们的满意度。 The added-value of SDCEM also goes through the quality of services provided to our customers (adaptability, reactivity, expertise, after-sales services) always in the way of their full satisfaction. 我们的努力 SDCEM’s involvement for customer satisfaction

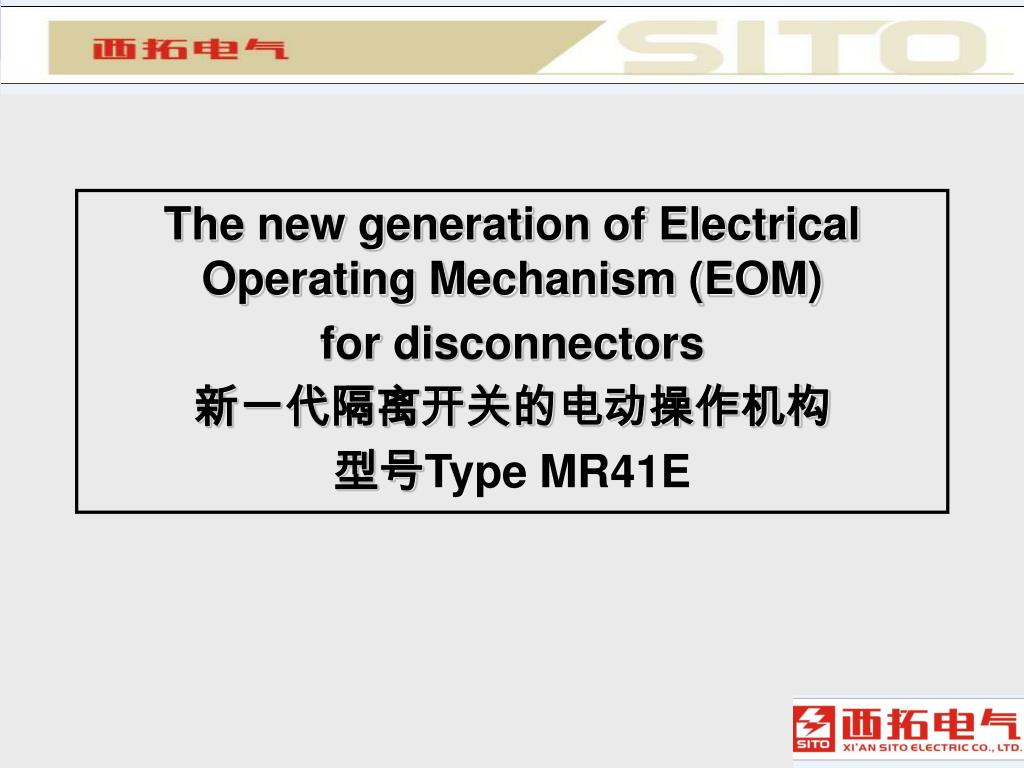

  13. The new generation of Electrical Operating Mechanism (EOM) for disconnectors 新一代隔离开关的电动操作机构 型号Type MR41E

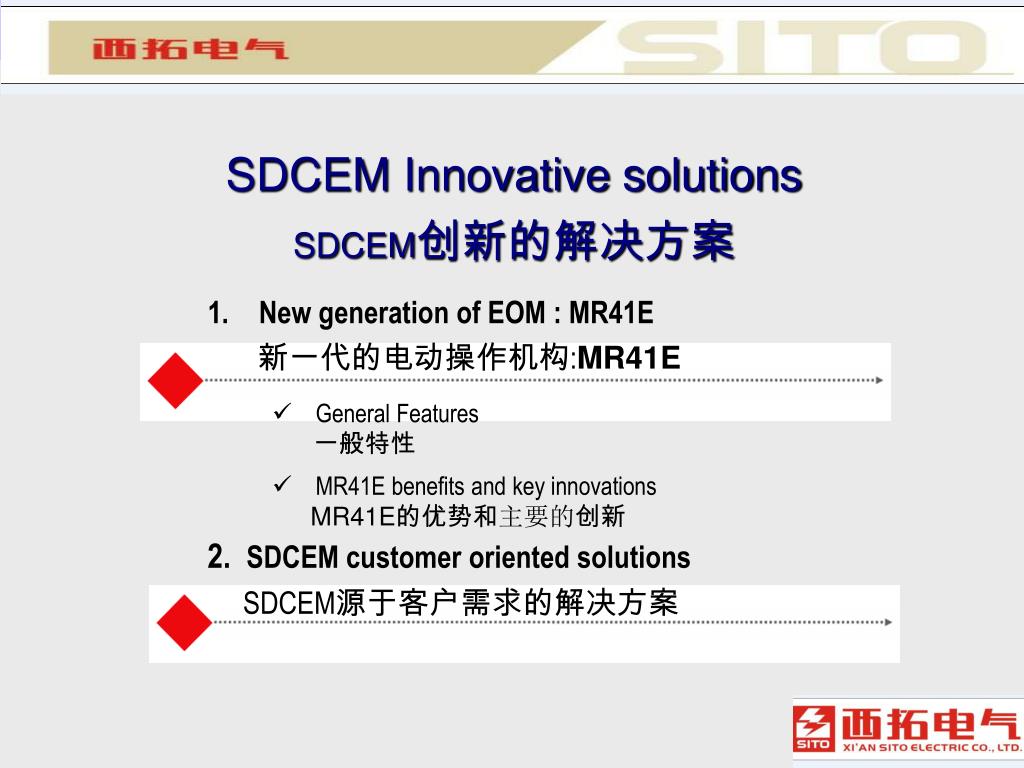

  14. SDCEM Innovative solutions SDCEM创新的解决方案 New generation of EOM : MR41E 新一代的电动操作机构:MR41E • General Features 一般特性 • MR41E benefits and key innovations MR41E的优势和主要的创新 2. SDCEM customer oriented solutions SDCEM源于客户需求的解决方案

  15. New generation of EOM : MR41E 新一代的电动操作机构MR41E

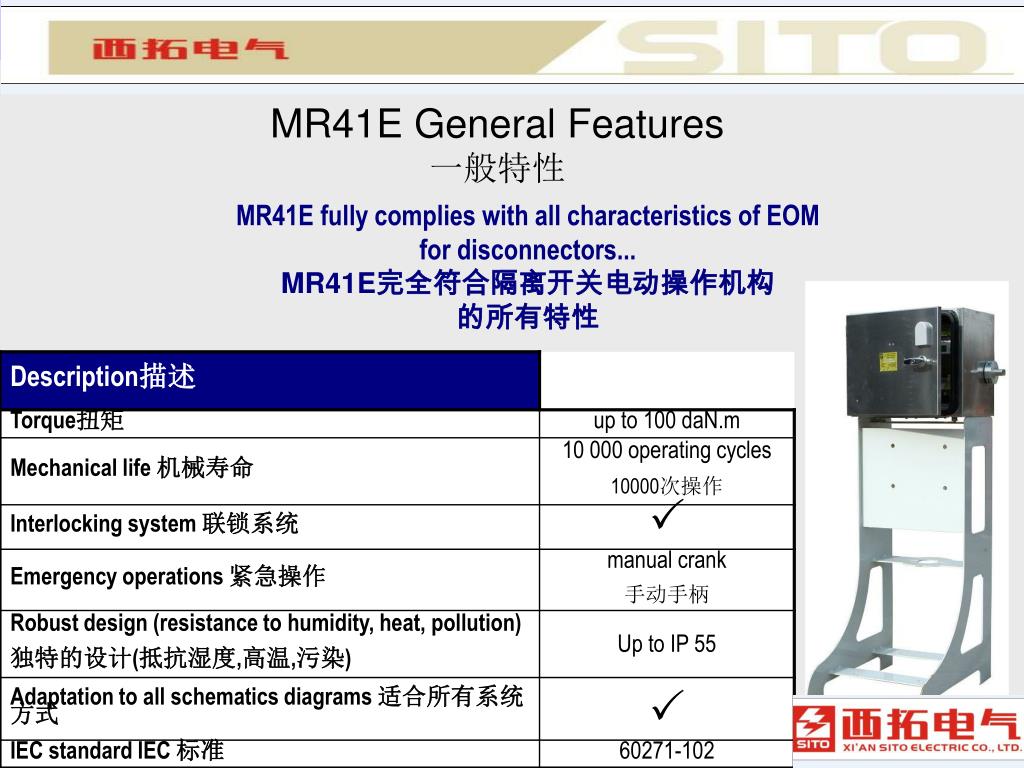

  16. MR41E General Features 一般特性 MR41E fully complies with all characteristics of EOM for disconnectors... MR41E完全符合隔离开关电动操作机构 的所有特性

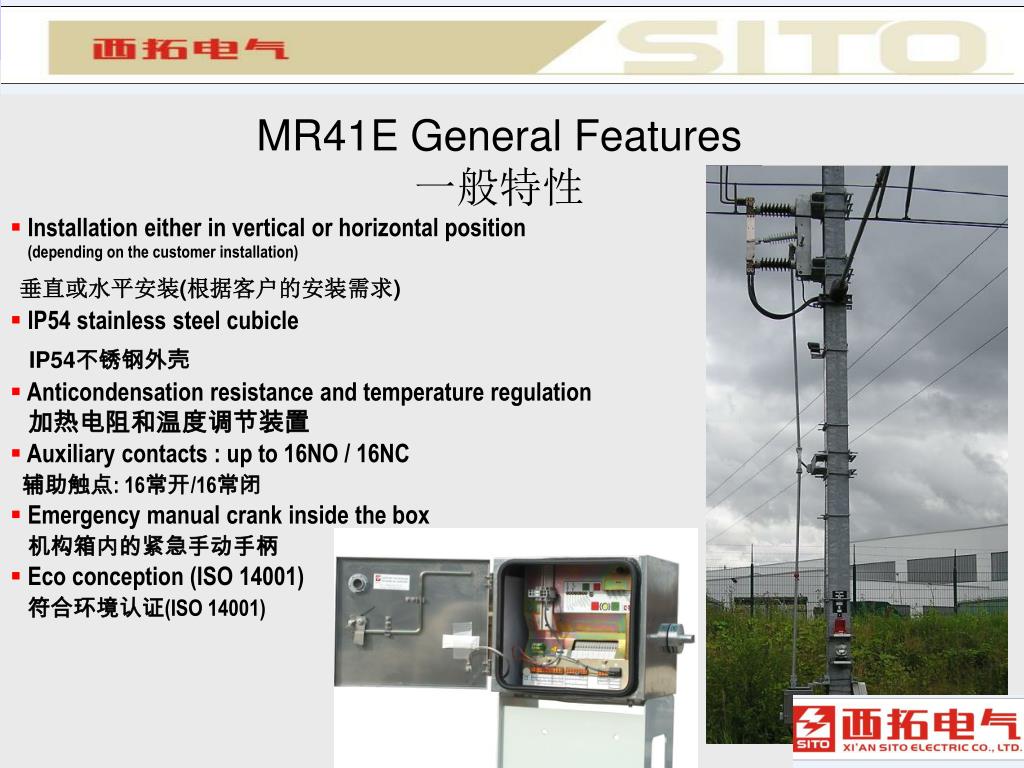

  17. MR41E General Features 一般特性 • Installation either in vertical or horizontal position (depending on the customer installation) 垂直或水平安装(根据客户的安装需求) • IP54 stainless steel cubicle IP54不锈钢外壳 • Anticondensation resistance and temperature regulation 加热电阻和温度调节装置 • Auxiliary contacts : up to 16NO / 16NC 辅助触点: 16常开/16常闭 • Emergency manual crank inside the box 机构箱内的紧急手动手柄 • Eco conception (ISO 14001) 符合环境认证(ISO 14001)

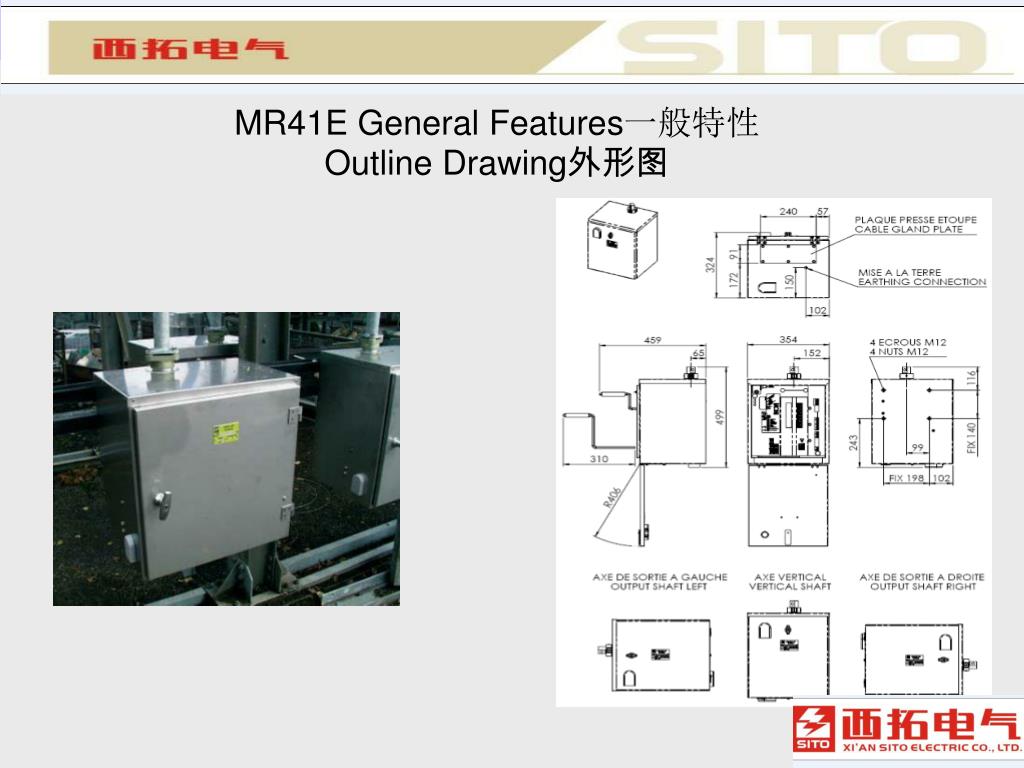

  18. SITO MR41E General Features一般特性 Outline Drawing外形图

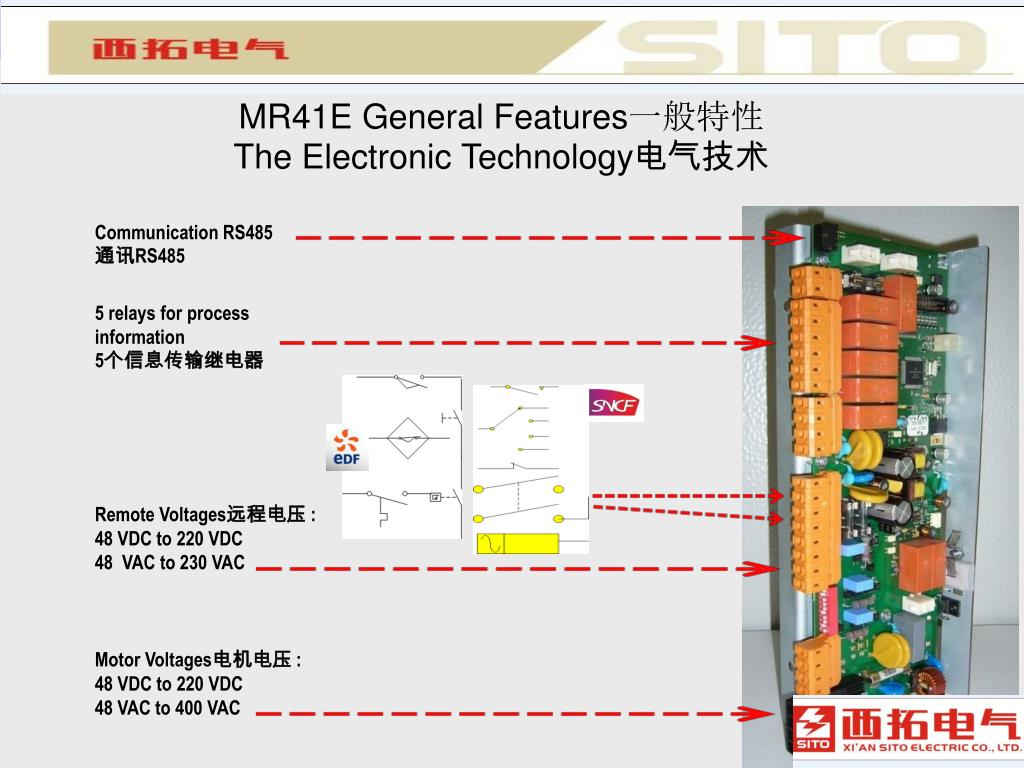

  19. MR41E General Features一般特性 The Electronic Technology电气技术 Communication RS485通讯RS485 5 relays for process information 5个信息传输继电器 Remote Voltages远程电压 : 48 VDC to 220 VDC 48 VAC to 230 VAC Motor Voltages电机电压 : 48 VDC to 220 VDC 48 VAC to 400 VAC

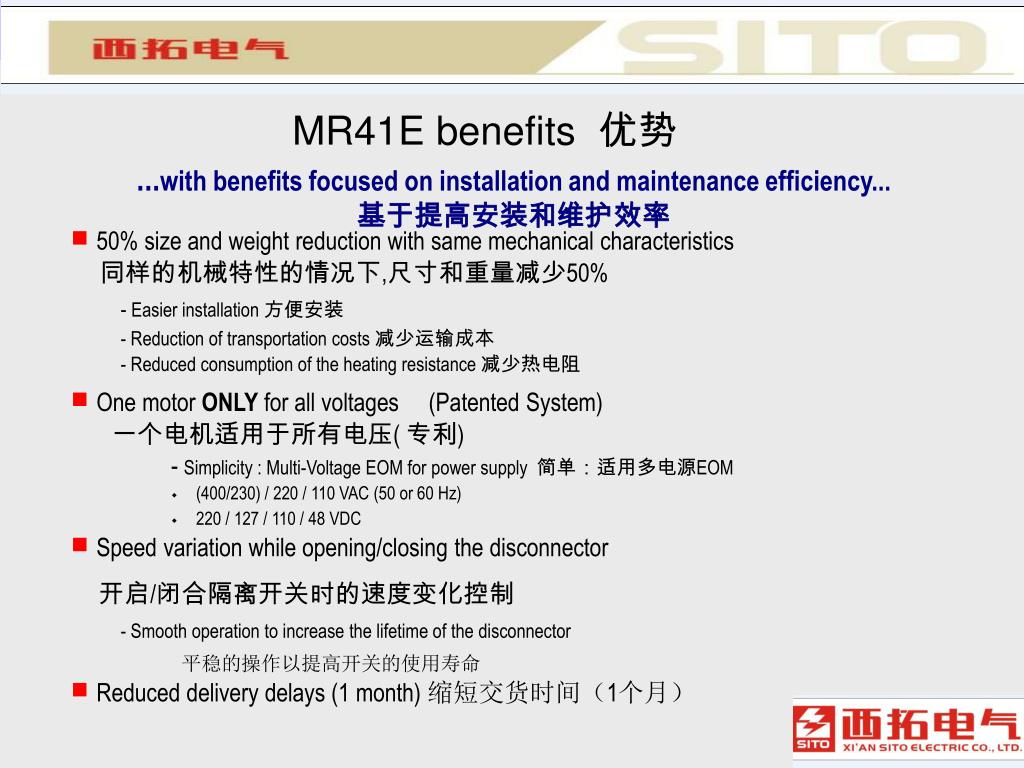

  20. SITO MR41E benefits 优势 ...with benefits focused on installation and maintenance efficiency... 基于提高安装和维护效率 ■ 50% size and weight reduction with same mechanical characteristics 同样的机械特性的情况下,尺寸和重量减少50% - Easier installation 方便安装 - Reduction of transportation costs 减少运输成本 - Reduced consumption of the heating resistance 减少热电阻 ■One motor ONLY for all voltages (Patented System) 一个电机适用于所有电压( 专利) - Simplicity : Multi-Voltage EOM for power supply 简单：适用多电源EOM (400/230) / 220 / 110 VAC (50 or 60 Hz) 220 / 127 / 110 / 48 VDC ■Speed variation while opening/closing the disconnector 开启/闭合隔离开关时的速度变化控制 - Smooth operation to increase the lifetime of the disconnector 平稳的操作以提高开关的使用寿命 ■Reduced delivery delays (1 month) 缩短交货时间（1个月）

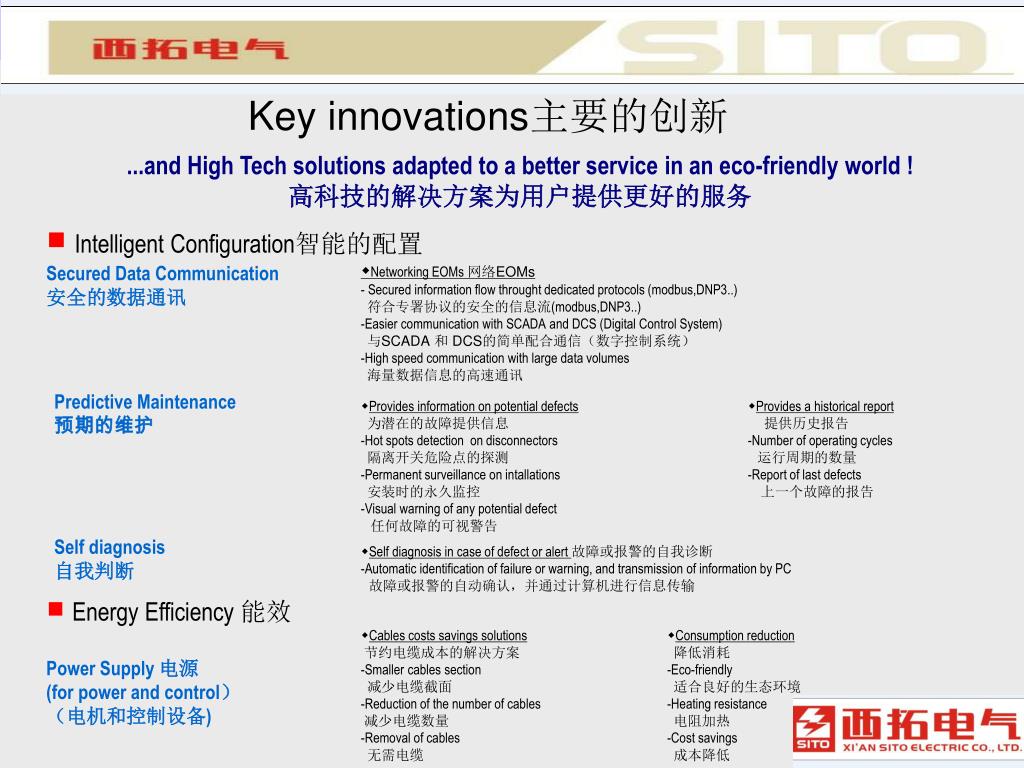

  21. SITO Key innovations主要的创新 ...and High Tech solutions adapted to a better service in an eco-friendly world ! 高科技的解决方案为用户提供更好的服务 ■ Intelligent Configuration智能的配置 Secured Data Communication 安全的数据通讯 Networking EOMs 网络EOMs - Secured information flow throught dedicated protocols (modbus,DNP3..) 符合专署协议的安全的信息流(modbus,DNP3..) • Easier communication with SCADA and DCS (Digital Control System) • 与SCADA 和DCS的简单配合通信（数字控制系统） • High speed communication with large data volumes • 海量数据信息的高速通讯 Predictive Maintenance 预期的维护 • Provides information on potential defects 为潜在的故障提供信息 • Hot spots detection on disconnectors • 隔离开关危险点的探测 • Permanent surveillance on intallations • 安装时的永久监控 • Visual warning of any potential defect • 任何故障的可视警告 • Provides a historical report 提供历史报告 • Number of operating cycles • 运行周期的数量 • Report of last defects • 上一个故障的报告 Self diagnosis 自我判断 • Self diagnosis in case of defect or alert 故障或报警的自我诊断 • Automatic identification of failure or warning, and transmission of information by PC • 故障或报警的自动确认，并通过计算机进行信息传输 ■ Energy Efficiency 能效 Power Supply 电源 (for power and control） （电机和控制设备) • Cables costs savings solutions 节约电缆成本的解决方案 • Smaller cables section • 减少电缆截面 • Reduction of the number of cables • 减少电缆数量 • Removal of cables • 无需电缆 • Consumption reduction 降低消耗 • Eco-friendly • 适合良好的生态环境 • Heating resistance • 电阻加热 • Cost savings • 成本降低

  22. SITO 2. SDCEM customer oriented solutionsSDCEM源于客户需求的解决方案

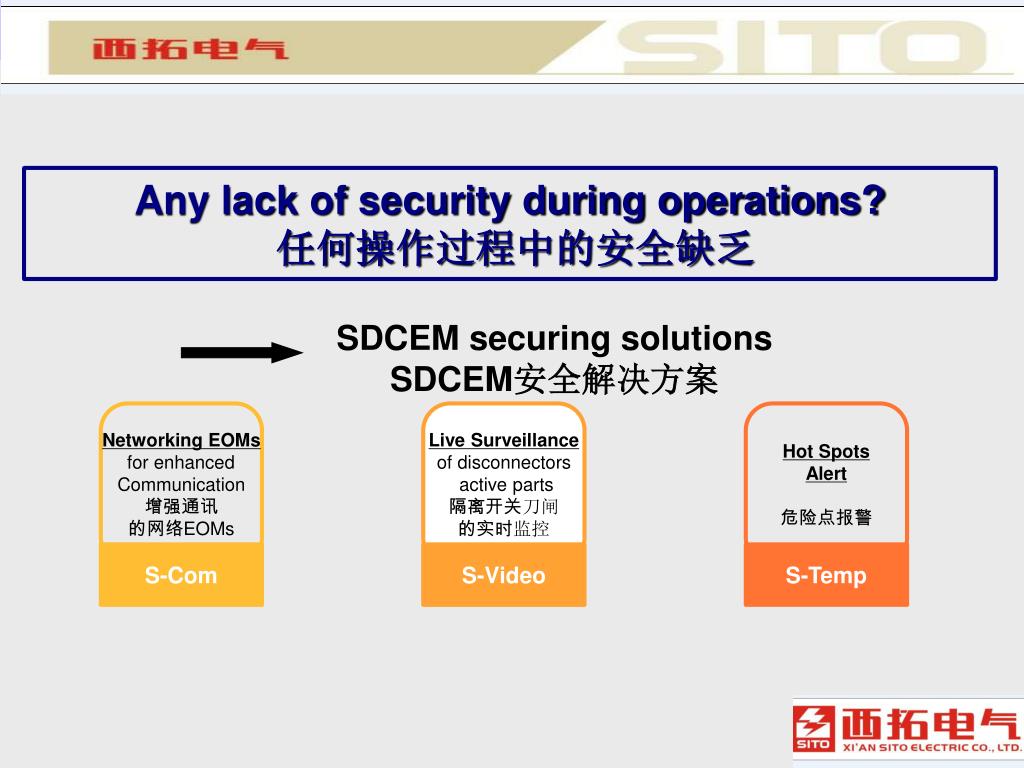

  23. SITO Any lack of security during operations? 任何操作过程中的安全缺乏 SDCEM securing solutions SDCEM安全解决方案 Networking EOMs for enhanced Communication 增强通讯 的网络EOMs Live Surveillance of disconnectors active parts 隔离开关刀闸 的实时监控 Hot Spots Alert 危险点报警 S-Com S-Video S-Temp

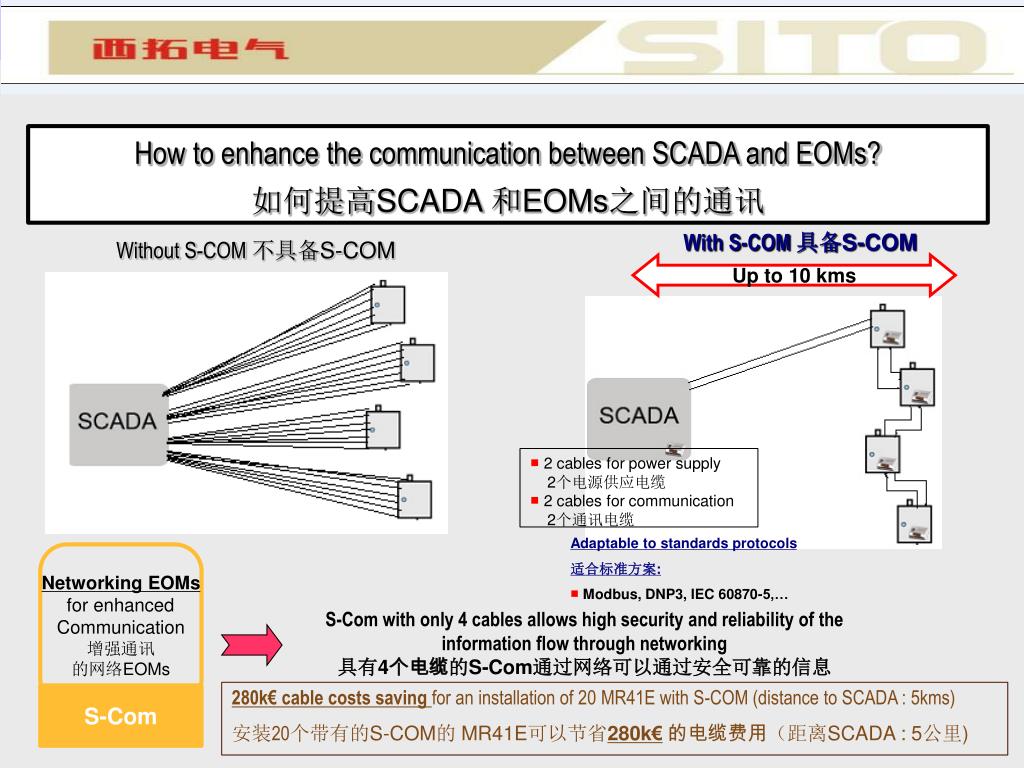

  24. SITO How to enhance the communication between SCADA and EOMs? 如何提高SCADA 和EOMs之间的通讯 With S-COM 具备S-COM Without S-COM 不具备S-COM Up to 10 kms ■2 cables for power supply 2个电源供应电缆 ■ 2 cables for communication 2个通讯电缆 Adaptable to standards protocols 适合标准方案: ■ Modbus, DNP3, IEC 60870-5,… Networking EOMs for enhanced Communication 增强通讯 的网络EOMs S-Com with only 4 cables allows high security and reliability of the information flow through networking 具有4个电缆的S-Com通过网络可以通过安全可靠的信息 280k€ cable costs saving for an installation of 20 MR41E with S-COM(distance to SCADA : 5kms) 安装20个带有的S-COM的MR41E可以节省280k€的电缆费用（距离SCADA : 5公里) S-Com

  25. SITO How to remotely ensure live surveillance of disconnectors ? 如何保证远程实时监控隔离开关 The prior installation of S-Com allows the video information flow 提前安装的S-Com可以允许视频信息传输 Live Surveillance of disconnectors active parts 隔离开关刀闸 的实时监控 S-Video optimizes operations security with permanent surveillance of disconnectors S-Video使安全监控隔离开关的操作最优化 S-Video

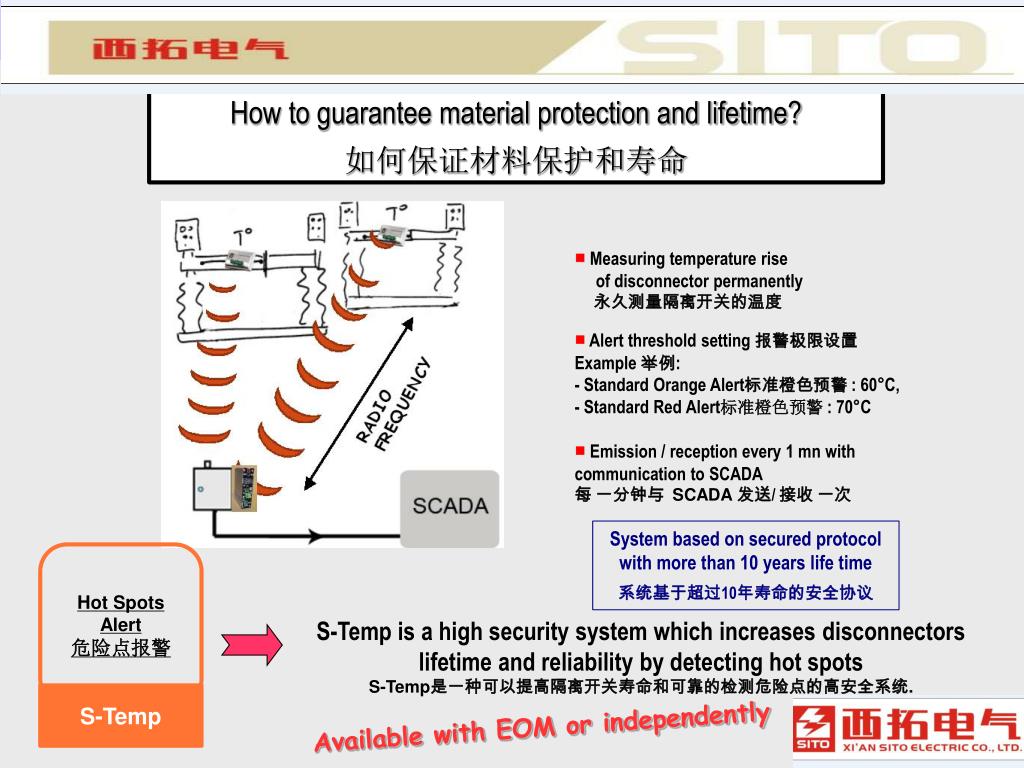

  26. SITO How to guarantee material protection and lifetime? 如何保证材料保护和寿命 ■Measuring temperature rise of disconnector permanently 永久测量隔离开关的温度 ■ Alert threshold setting 报警极限设置 Example 举例: - StandardOrange Alert标准橙色预警: 60°C, - Standard Red Alert标准橙色预警: 70°C ■ Emission / reception every 1 mn with communication to SCADA 每 一分钟与 SCADA 发送/ 接收 一次 System based on secured protocol with more than 10 years life time 系统基于超过10年寿命的安全协议 Hot Spots Alert 危险点报警 S-Temp is a high security system which increases disconnectors lifetime and reliability by detecting hot spots S-Temp是一种可以提高隔离开关寿命和可靠的检测危险点的高安全系统. S-Temp Available with EOM or independently

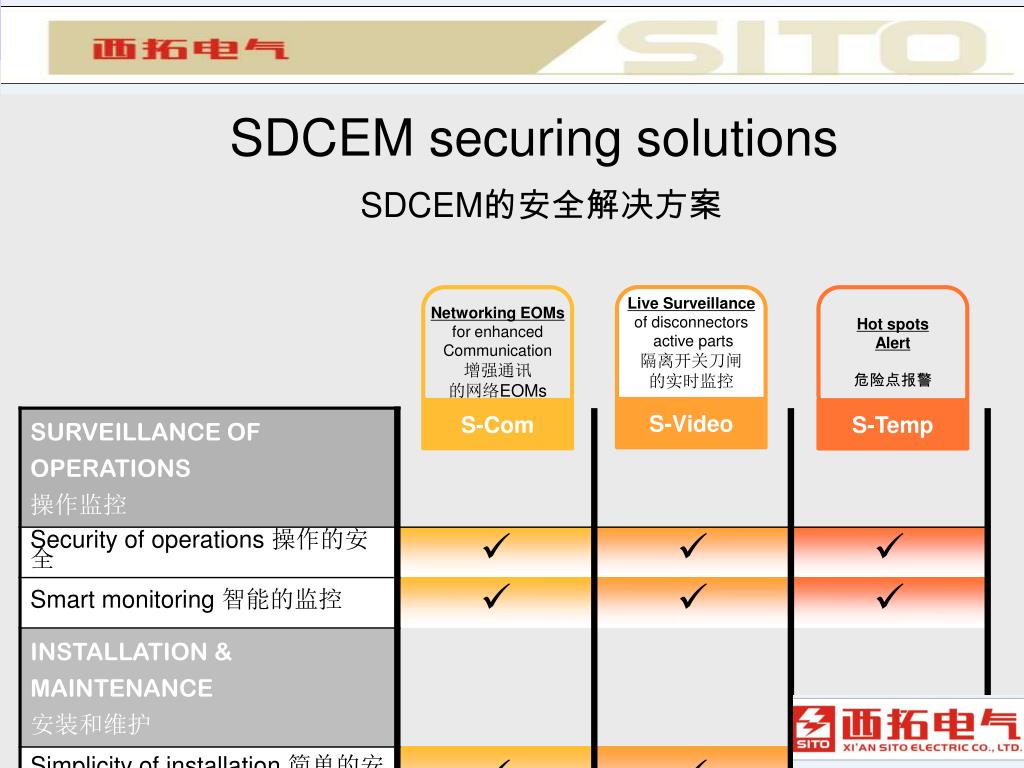

  27. SITO SDCEM securing solutions SDCEM的安全解决方案 Live Surveillance of disconnectors active parts 隔离开关刀闸 的实时监控 Networking EOMs for enhanced Communication 增强通讯 的网络EOMs Hot spots Alert 危险点报警 S-Video S-Com S-Temp

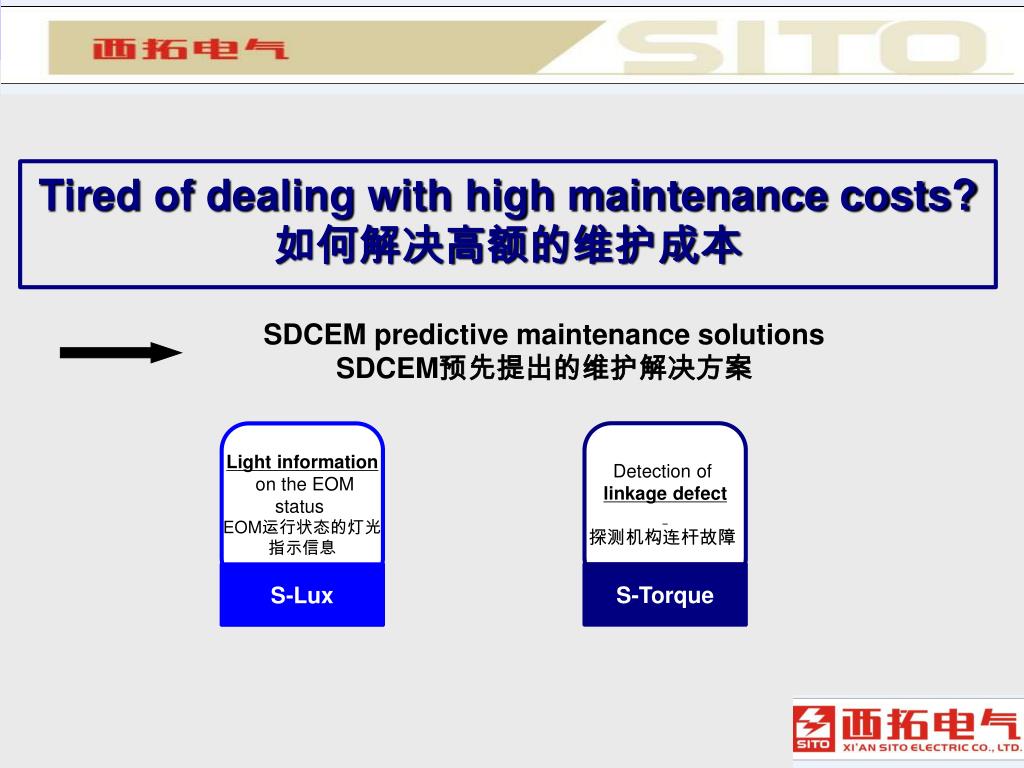

  28. SITO Tired of dealing with high maintenance costs?如何解决高额的维护成本 SDCEM predictive maintenance solutions SDCEM预先提出的维护解决方案 Detection of linkage defect 探测机构连杆故障 Light information on the EOM status EOM运行状态的灯光 指示信息 S-Torque S-Lux

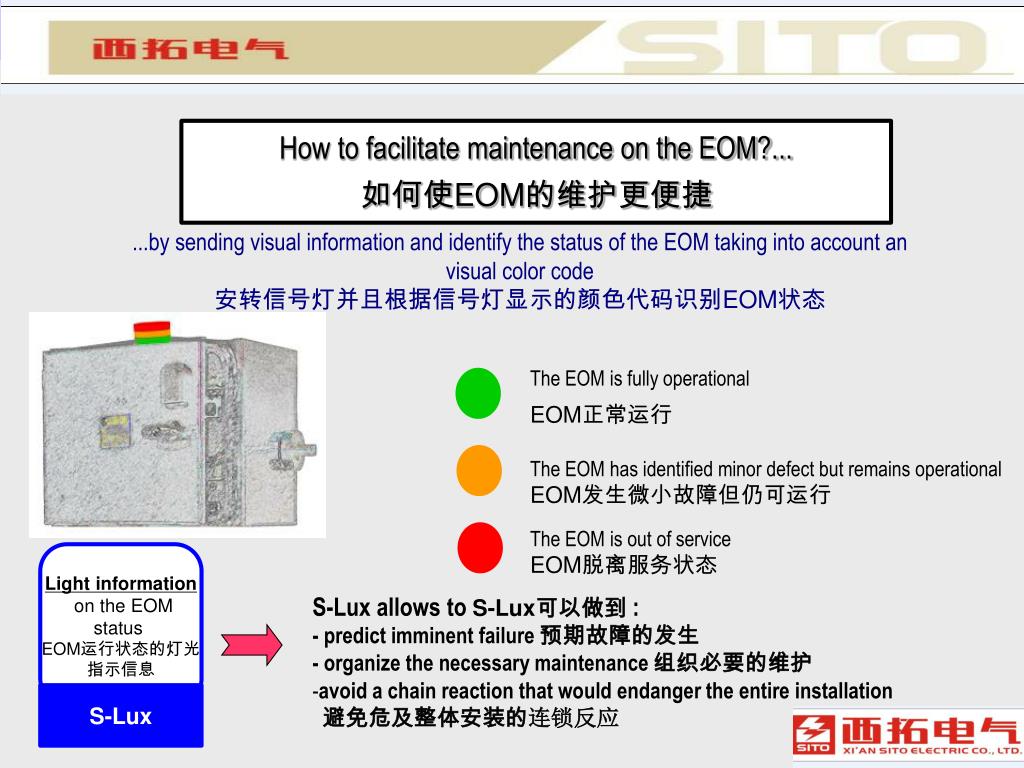

  29. SITO How to facilitate maintenance on the EOM?... 如何使EOM的维护更便捷 ...by sending visual information and identify the status of the EOM taking into account an visual color code 安转信号灯并且根据信号灯显示的颜色代码识别EOM状态 The EOM is fully operational EOM正常运行 The EOM has identified minor defect but remains operational EOM发生微小故障但仍可运行 The EOM is out of service EOM脱离服务状态 Light information on the EOM status EOM运行状态的灯光 指示信息 S-Lux allows to S-Lux可以做到: - predict imminent failure 预期故障的发生 - organize the necessary maintenance 组织必要的维护 • avoid a chain reaction that would endanger the entire installation • 避免危及整体安装的连锁反应 S-Lux

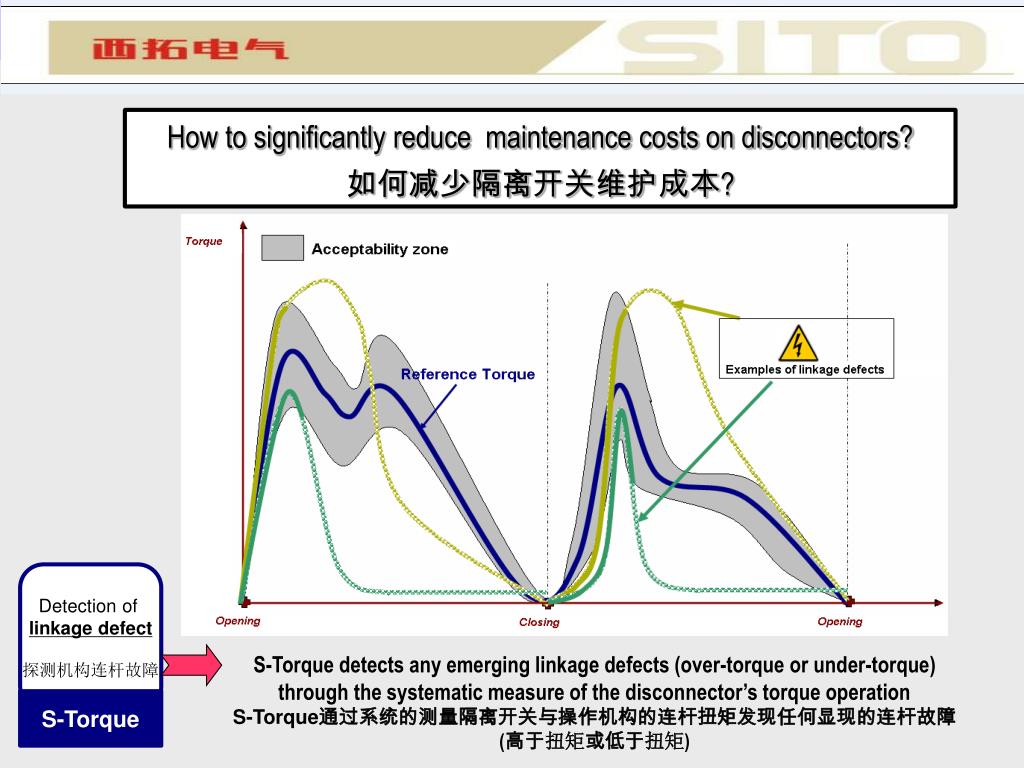

  30. SITO How to significantly reduce maintenance costs on disconnectors? 如何减少隔离开关维护成本? Detection of linkage defect 探测机构连杆故障 S-Torque detects any emerging linkage defects (over-torque or under-torque) through the systematic measure of the disconnector’s torque operation S-Torque通过系统的测量隔离开关与操作机构的连杆扭矩发现任何显现的连杆故障 (高于扭矩或低于扭矩) S-Torque

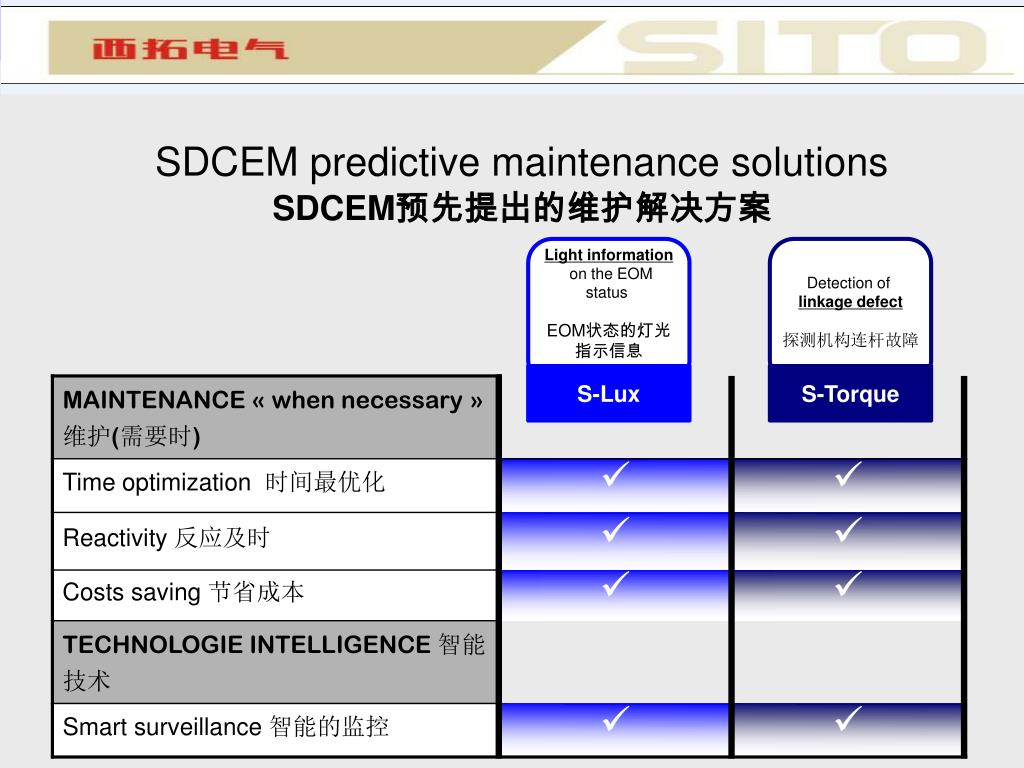

  31. SITO SDCEM predictive maintenance solutions SDCEM预先提出的维护解决方案 Light information on the EOM status EOM状态的灯光 指示信息 Detection of linkage defect 探测机构连杆故障 S-Lux S-Torque

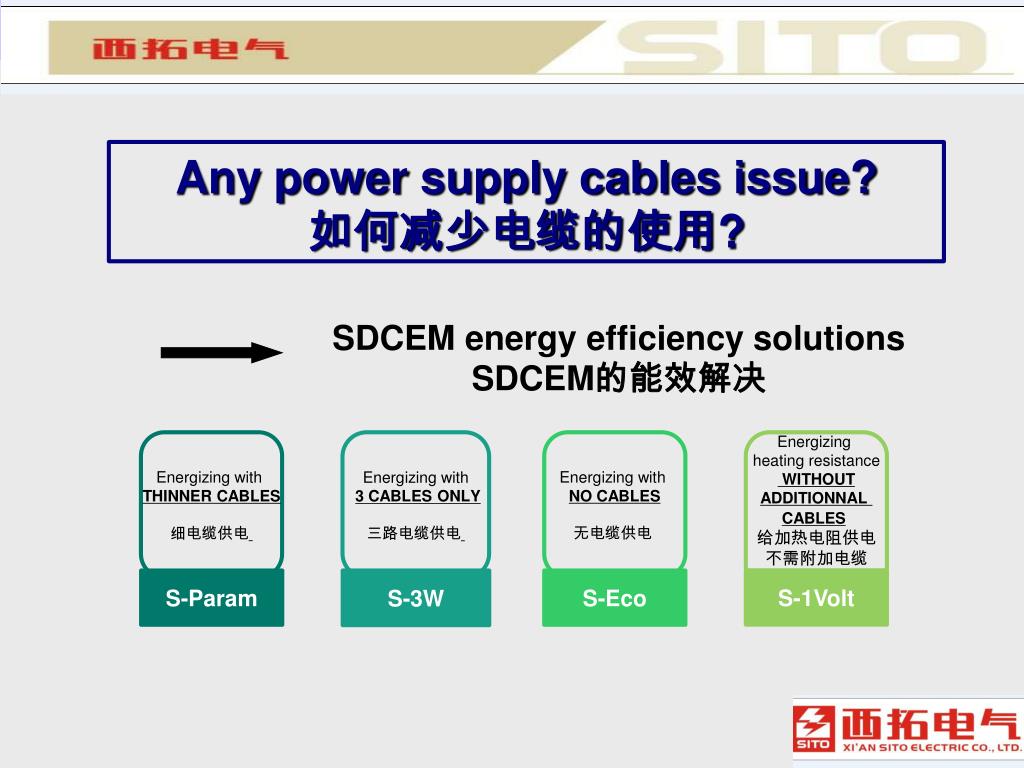

  32. SITO Any power supply cables issue? 如何减少电缆的使用? SDCEM energy efficiency solutions SDCEM的能效解决 Energizing with THINNER CABLES 细电缆供电 Energizing with 3 CABLES ONLY 三路电缆供电 Energizing with NO CABLES 无电缆供电 Energizing heating resistance WITHOUT ADDITIONNAL CABLES 给加热电阻供电 不需附加电缆 S-1Volt S-Param S-3W S-Eco

  33. SITO How to reduce cables section and keep the same performances? 如何减少电缆截面并使其保持原有性能? With S-Param 配置有S-Param Without S-Param 未配置S-Param Energizing with THINNER CABLE 细电缆供电 S-param straightens the appeal current of the motor avoiding to oversection power supply cables. S-param控制电机启动电流以减小电缆的截面 Starting up motor current 启动电机电流 S-Param

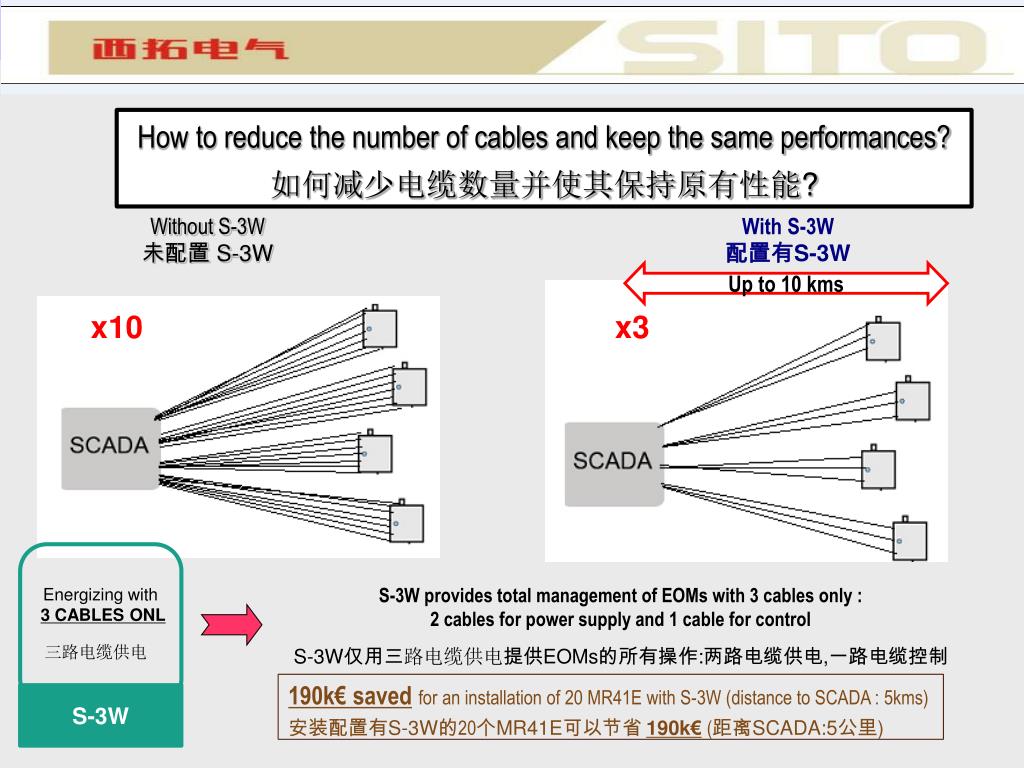

  34. SITO How to reduce the number of cables and keep the same performances? 如何减少电缆数量并使其保持原有性能? Without S-3W 未配置S-3W With S-3W 配置有S-3W Up to 10 kms x10 x3 Energizing with 3 CABLES ONL 三路电缆供电 S-3W provides total management of EOMs with 3 cables only : 2 cables for power supply and 1 cable for control S-3W仅用三路电缆供电提供EOMs的所有操作:两路电缆供电,一路电缆控制 190k€ savedfor an installation of 20 MR41E with S-3W (distance to SCADA : 5kms) 安装配置有S-3W的20个MR41E可以节省 190k€(距离SCADA:5公里) S-3W

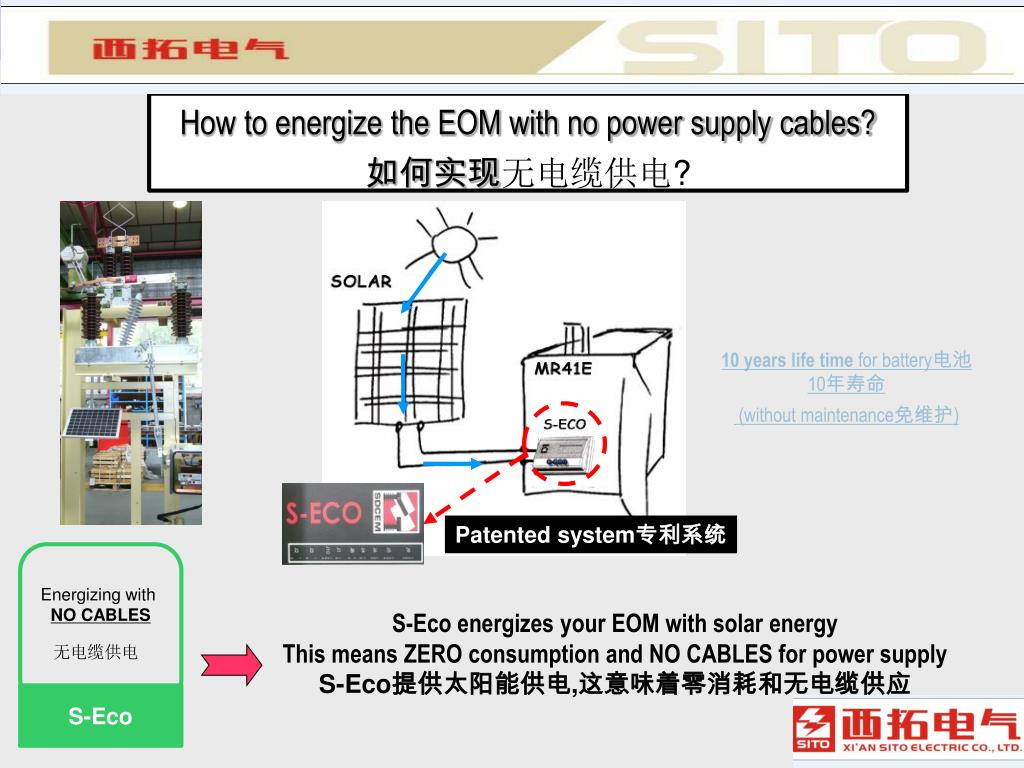

  35. SITO How to energize the EOM with no power supply cables? 如何实现无电缆供电? 10 years life time for battery电池10年寿命 (without maintenance免维护) Patented system专利系统 Energizing with NO CABLES 无电缆供电 S-Eco energizes your EOM with solar energy This means ZERO consumption and NO CABLES for power supply S-Eco提供太阳能供电,这意味着零消耗和无电缆供应 S-Eco

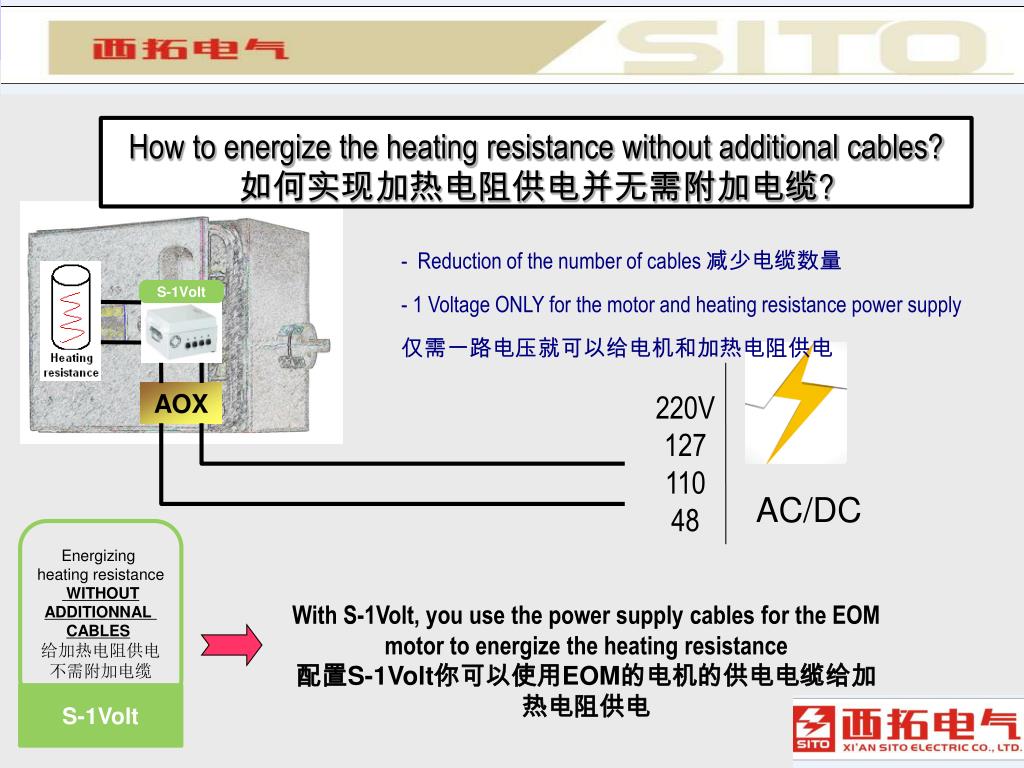

  36. SITO How to energize the heating resistance without additional cables? 如何实现加热电阻供电并无需附加电缆? - Reduction of the number of cables 减少电缆数量 - 1 Voltage ONLY for the motor and heating resistance power supply 仅需一路电压就可以给电机和加热电阻供电 S-1Volt AOX 220V 127 110 48 AC/DC Energizing heating resistance WITHOUT ADDITIONNAL CABLES 给加热电阻供电 不需附加电缆 With S-1Volt, you use the power supply cables for the EOM motor to energize the heating resistance 配置S-1Volt你可以使用EOM的电机的供电电缆给加热电阻供电 S-1Volt

  37. SITO SDCEM energy efficiency solutions SDCEM的能效解决方案 Energizing with THINNER CABLES 细电缆供电 Energizing with 3 CABLES ONLY 三路电缆供电 Energizing with NO CABLES 无电缆供电 Energizing heating resistance WITHOUT ADDITIONNAL CABLES 给加热电阻供电 不需附加电缆 S-Param S-3W S-Eco S-1Volt

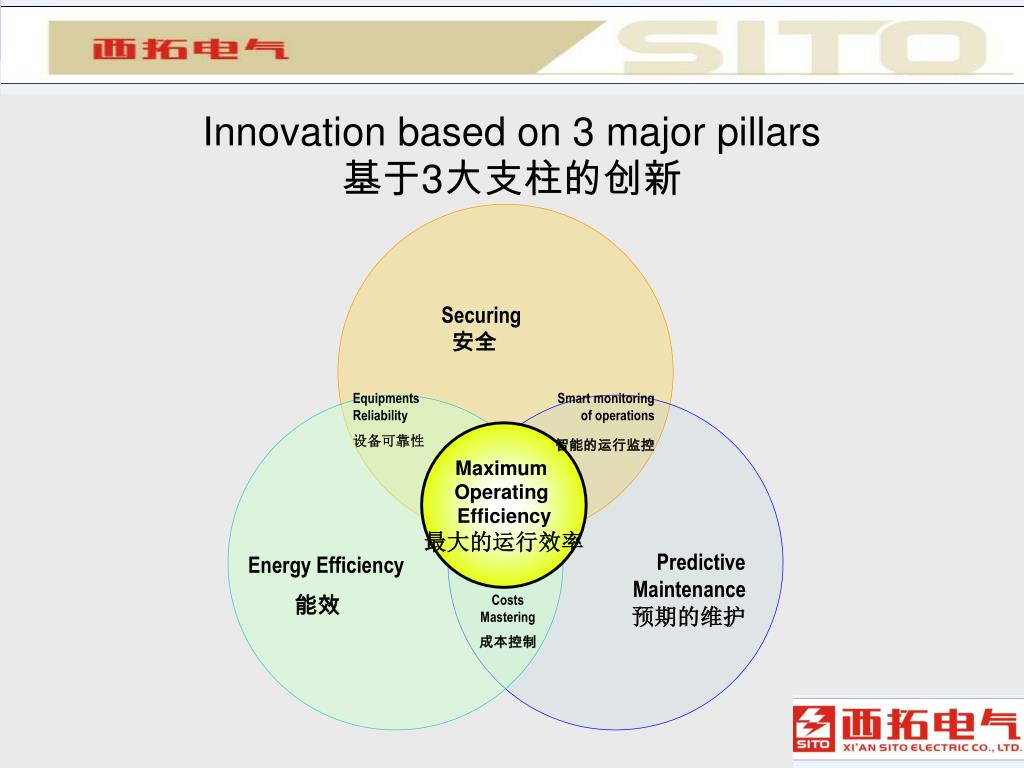

  38. SITO Innovation based on 3 major pillars 基于3大支柱的创新 Securing 安全 Smart monitoring of operations 智能的运行监控 Energy Efficiency 能效 Costs Mastering 成本控制

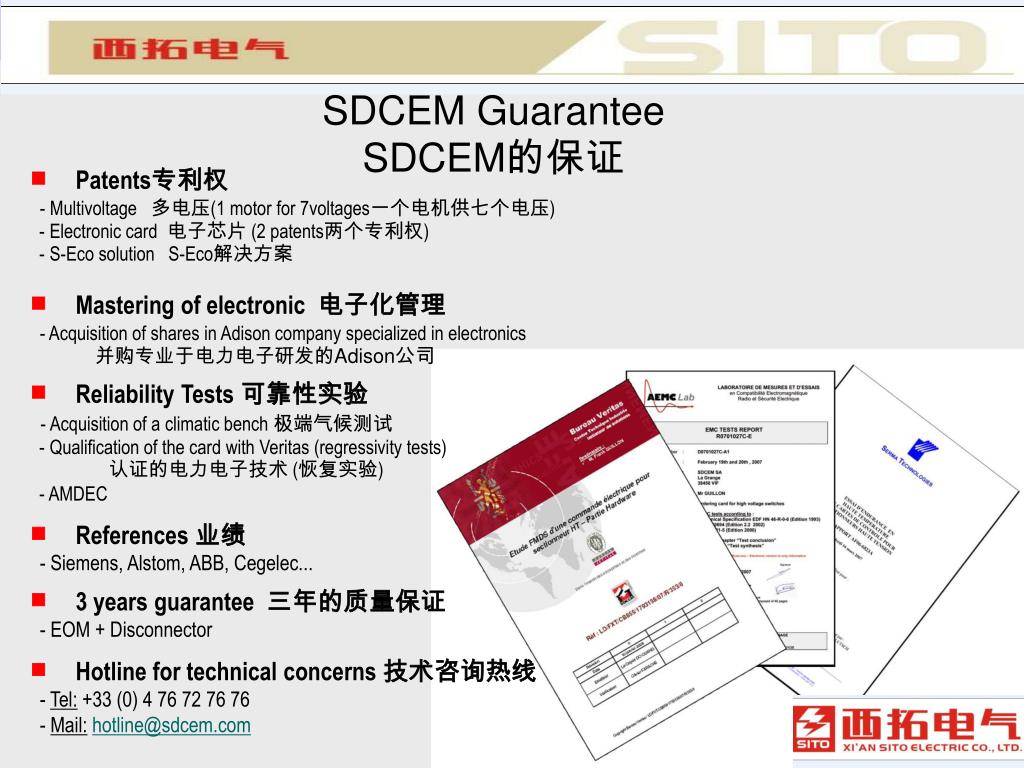

  39. SITO SDCEM Guarantee SDCEM的保证 ■Patents专利权 - Multivoltage 多电压(1 motor for 7voltages一个电机供七个电压) - Electronic card 电子芯片 (2 patents两个专利权) - S-Eco solution S-Eco解决方案 ■ Mastering of electronic 电子化管理 - Acquisition of shares in Adison company specialized in electronics 并购专业于电力电子研发的Adison公司 ■Reliability Tests 可靠性实验 - Acquisition of a climatic bench 极端气候测试 - Qualification of the card with Veritas (regressivity tests) 认证的电力电子技术 (恢复实验) - AMDEC ■References 业绩 - Siemens, Alstom, ABB, Cegelec... ■3 years guarantee 三年的质量保证 - EOM + Disconnector ■Hotline for technical concerns 技术咨询热线 - Tel: +33 (0) 4 76 72 76 76 - Mail:hotline@sdcem.com

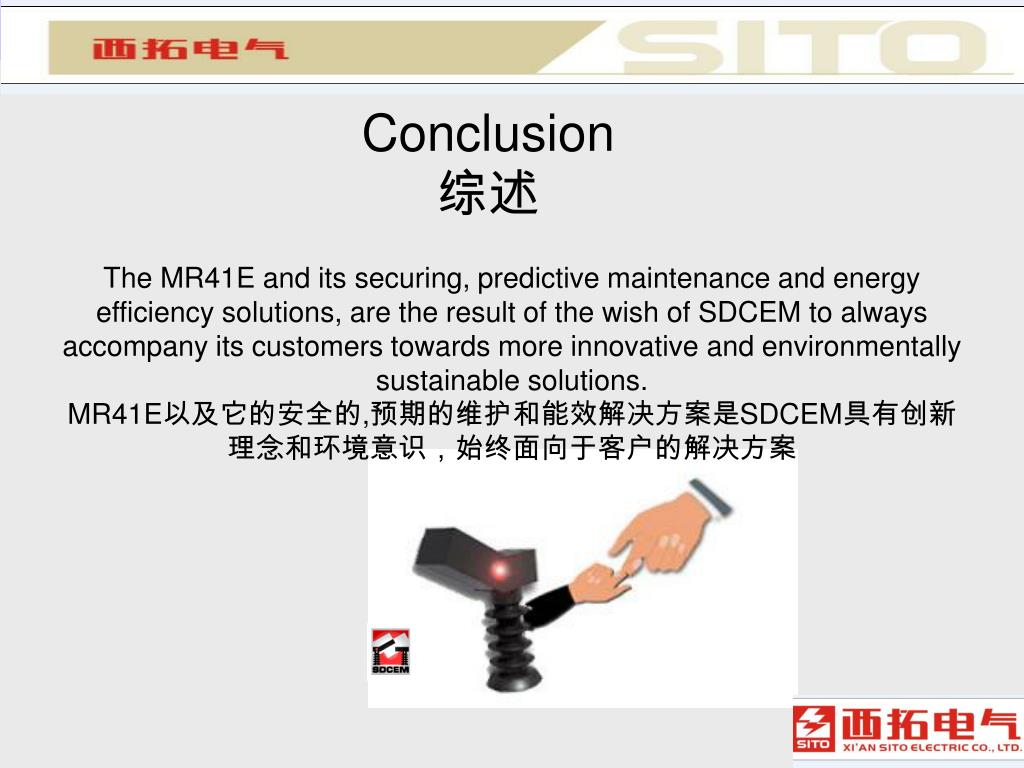

  40. SITO Conclusion 综述 The MR41E and its securing, predictive maintenance and energy efficiency solutions, are the result of the wish of SDCEM to always accompany its customers towards more innovative and environmentally sustainable solutions. MR41E以及它的安全的,预期的维护和能效解决方案是SDCEM具有创新理念和环境意识，始终面向于客户的解决方案

  41. Thanks for you attention 感谢您的关注 SITO
