Presentation Transcript
slide2
Beep pada bios memberikansinyalkepadakitatentangadanyakerusakanpadakomputerkita,seperti Ram, Vga , Keyboard dan lain lain yang tidakterpasangdenganbaikdanbenar. setiapkomputermemiliki Bios yang berbedabedasilahkanandalihat bios padakomputerandauntukmemastikan diagnosis denganbenar. Andatidakperlumembongkarcasingnyacukupperhatikanlayar monitor andaketikakomputerdinyalakanmakaandaakanmengetahuijenis bios anda.

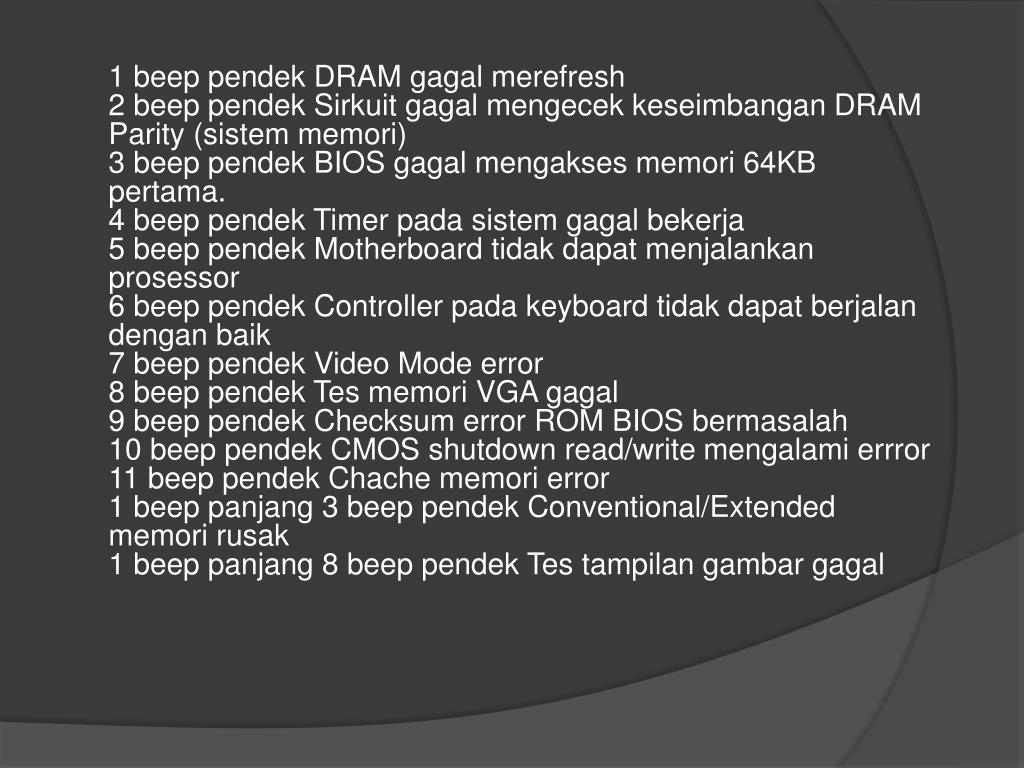

slide4
1 beep pendek DRAM gagalmerefresh2 beep pendekSirkuitgagalmengecekkeseimbangan DRAM Parity (sistemmemori)3 beep pendek BIOS gagalmengaksesmemori 64KB pertama.4 beep pendek Timer padasistemgagalbekerja5 beep pendek Motherboard tidakdapatmenjalankanprosessor6 beep pendek Controller pada keyboard tidakdapatberjalandenganbaik7 beep pendek Video Mode error8 beep pendekTesmemori VGA gagal9 beep pendek Checksum error ROM BIOS bermasalah10 beep pendek CMOS shutdown read/write mengalamierrror11 beep pendekChachememori error1 beep panjang 3 beep pendek Conventional/Extended memorirusak1 beep panjang 8 beep pendekTestampilangambargagal

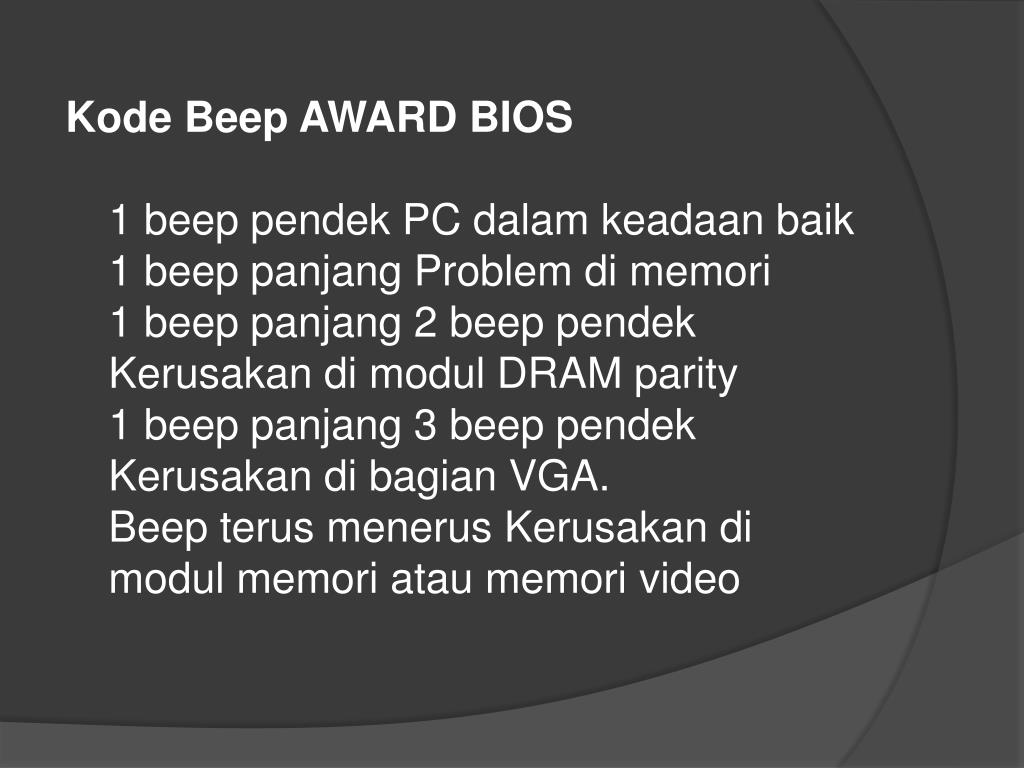

slide5
Kode Beep AWARD BIOS1 beep pendek PC dalamkeadaanbaik1 beep panjang Problem dimemori1 beep panjang 2 beep pendekKerusakandimodul DRAM parity1 beep panjang 3 beep pendekKerusakandibagian VGA.Beep terusmenerusKerusakandimodulmemoriataumemori video
slide7
1 - 1 - 2 CPU / motherboard kegagalanBuruk CPU / motherboard1 - 1 - 3 CMOS read / write motherboard kegagalanBuruk1 - 1 - 4 BIOS ROM Burukkegagalan chip BIOS1 - 2 - 1 TIMER kegagalan Bad motherboard1 - 2 - 2 DMA kegagalan Bad motherboard1 - 2 - 3 DMA kegagalan Bad motherboard1 - 3 - 1 memory menyegarkankegagalanmemoriBuruk1 - 3 - 2 64K memory kegagalanmemoriBuruk1 - 3 - 3 64K memory kegagalanmemoriBuruk1 - 3 - 4 64K memory kegagalanmemoriBuruk1 - 4 - 1 alamatgariskegagalanmemoriBuruk1 - 4 - 2 Parity error Bad memory1 - 4-3 Timer kegagalan Bad motherboard1 - 4-4 NMI port kegagalan Bad motherboard
slide8
2 - 1 - 1 64K memory Burukkegagalanmemori2 - 1 - 2 64K memory Burukkegagalanmemori2 - 1 - 3 64K memory Burukkegagalanmemori2 - 1 - 4 64K memory Burukkegagalanmemori2 - 2 - 1 64K memory Burukkegagalanmemori2 - 2 - 2 64K memory Burukkegagalanmemori2 - 2 - 3 64K memory Burukkegagalanmemori2 - 2 - 4 64K memory Burukkegagalanmemori2 - 3 - 1 64K memory Burukkegagalanmemori2 - 3 - 2 64K memory Burukkegagalanmemori2 - 3 - 3 64K memory Burukkegagalanmemori2 - 3 - 4 64K memory Burukkegagalanmemori2 - 4 - 1 64K memory Burukkegagalanmemori2 - 4 - 2 64K memory Burukkegagalanmemori2 - 4-4 64K memory Burukkegagalanmemori2 - 4-4 64K memory Burukkegagalanmemori

3 - 1 - 1 Slave DMA kegagalan Bad motherboard3 - 1 - 2 Master DMA kegagalan Bad motherboard3 - 1 - 3 Interrupt controller motherboard kegagalanBuruk

slide9
3 - 1 -4 Slave IC kegagalan Bad motherboard3 - 2 -2 Interrupt Controller kegagalan Bad motherboard3 - 2 - 33 - 2 - 4 Keyboard control kegagalan motherboard Buruk3 - 3 - 1 CMOS adonankegagalan Bad CMOS battery3 - 3 - 2 CMOS kesalahanpengaturankonfigurasiSalah3 - 3 - 33 - 3 - 4 Video memory video card Bad kegagalanataumemori3 - 4 - 1 Video init kegagalan Bad video card ataumemori4 - 2 - 1 Timer kegagalan Bad motherboard4 - 2 - 2 CMOS shutdown kegagalan Bad motherboard4 - 2 - 3 Gate A20 kegagalan Bad motherboard4 - 2 - 4 Unexpected interrupt Bad processor4 - 3 - 1 RAM test kegagalanmemoriBuruk4 - 3 - 3 Timer kegagalan Bad motherboard4 - 3 - 4 RTC kegagalan Bad motherboard4 - 4 - 1 port Serial Bad motherboard kegagalan4 - 4 - 2 port motherboard kegagalanParalelBuruk4 - 4-3 coprocessor kegagalanBuruk motherboard atau CPU.9 - 2 - 1 Video adapter ketidakcocokanGunakanmerek yang berbedadarikartu video

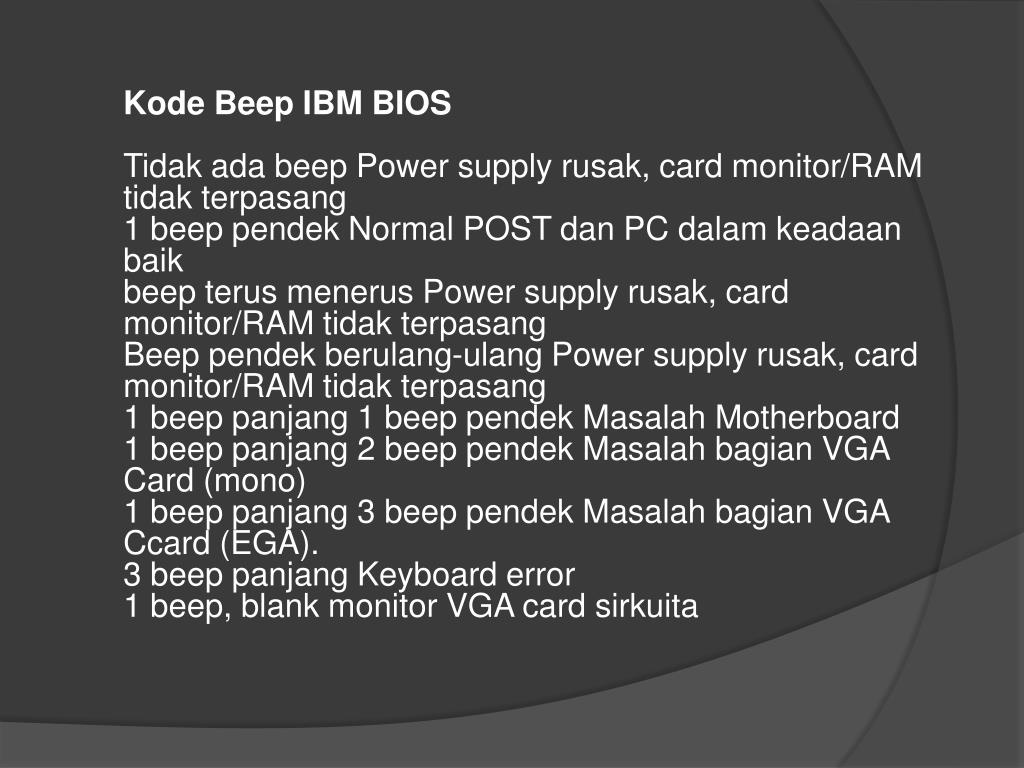

slide10
Kode Beep IBM BIOSTidakada beep Power supply rusak, card monitor/RAM tidakterpasang1 beep pendek Normal POST dan PC dalamkeadaanbaikbeep terusmenerus Power supply rusak, card monitor/RAM tidakterpasangBeep pendekberulang-ulang Power supply rusak, card monitor/RAM tidakterpasang1 beep panjang 1 beep pendekMasalah Motherboard1 beep panjang 2 beep pendekMasalahbagian VGA Card (mono)1 beep panjang 3 beep pendekMasalahbagian VGA Ccard (EGA).3 beep panjang Keyboard error1 beep, blank monitor VGA card sirkuita
