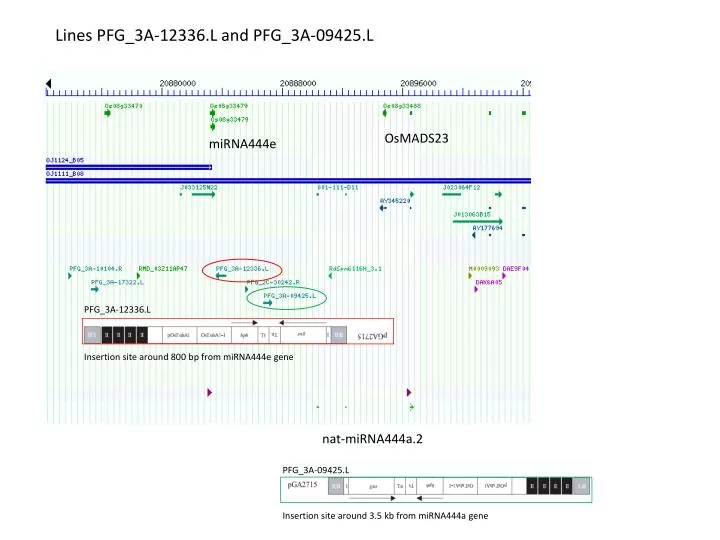

  1. Lines PFG_3A-12336.L and PFG_3A-09425.L OsMADS23 miRNA444e PFG_3A-12336.L Insertion sitearound 800 bpfrom miRNA444e gene nat-miRNA444a.2 PFG_3A-09425.L Insertion sitearound 3.5 kbfrom miRNA444a gene

  2. Line PFG_3A-12336.L hph probeT-DNA DraI: cuts at positions 4536 and 9144, Southern band should be around 4608 bp SpeI: cuts at positions 3284 and 9130, Southern band should be around 5846 bp HindIII: band must be bigger than 9900 bp Line PFG_3A-09425.L hph probe T-DNA DraI: cuts at positions 4627 and 9084, Southern band should be around 4457 bp SpeI: cuts at positions 4559 and 9070, Southern band should be around 4511 bp HindIII: cuts at positions 1550 and 9917, Southern band should be around 8367 bp

  3. Line PFG_3D-50030.R OsMADS27 OsMADS27 nat-miRNA444b PFG_3D-50030.R, insertionsitearound 930 bpaway pGA2772

  4. Line PFG_3D-50030.R hph probe T-DNA DraI: cuts at positions 11166 and 15505, Southern band should be around 4339 bp SpeI: cuts at positions 11176 and 15798, Southern band should be around 4622 bp HindIII: cuts at positions 10329 and 17833, Southern band should be around 7504 bp

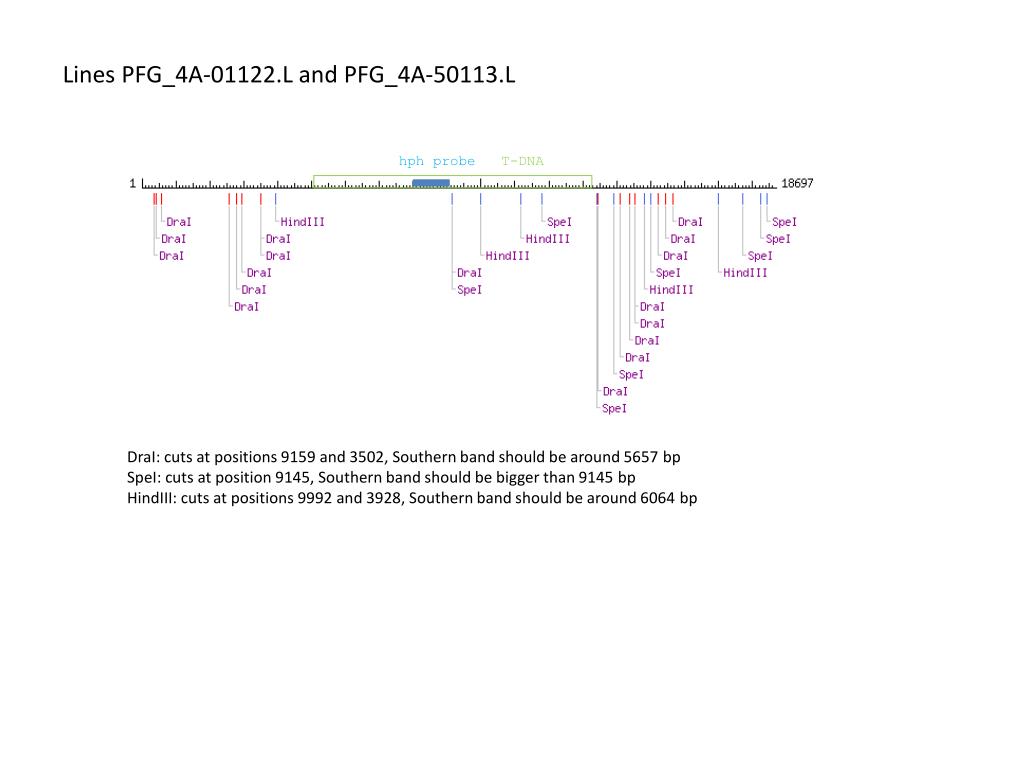

  5. Lines PFG_4A-01122.L and PFG_4A-50113.L OsMADS61 nat-miRNA444c PFG_4A-01122.L, PFG_4A-50113.R, insertionsitearound 3 kbaway

  6. Lines PFG_4A-01122.L and PFG_4A-50113.L hph probe T-DNA DraI: cuts at positions 9159 and 3502, Southern band should be around 5657 bp SpeI: cuts at position 9145, Southern band should be bigger than 9145 bp HindIII: cuts at positions 9992 and 3928, Southern band should be around 6064 bp

  7. Line PFG_3A-60459.L OsMADS57 nat-miRNA444d PFG_3A-60459.L, insertionsite 1.8 kbaway

  8. Line PFG_3A-60459.L hph probe T-DNA DraI: cuts at positions 9179 and 4511, Southern band should be around 4668 bp SpeI: cuts at positions 9165 and 4254, Southern band should be around 4911 bp HindIII: cuts at position 10012, Southern band should be bigger than 10012 bp

  9. Line PFG_3A-01899.R Part of nat-miRNA444f PFG_3A-01899.R, insertionsite 1.3 kbaway

  10. Line PFG_3A-01899.R hph probeT-DNA DraI: cuts at positions 9116 and 14581, band in Southern should be around 5465 bp SpeI: cuts at positions 9126 and 15261, band in Southern should be around 6135 bp HindIII: cuts at position 8279, Southern band should be bigger than 10545 bp

  11. Line PFG_1B-00203.R

  12. Line PFG_1B-00203.R hph probe T-DNA DraI: cuts at positions 9116 and 14297, band in Southern should be around 5181 bp SpeI: cuts at positions 9126 and 13660, band in Southern should be around 4534 bp HindIII: cuts at positions 8279 and 13879, Southern band should be around 5600 bp

  13. Line PFG_3A-07671.R potential overexpressionline 820 bpawayfromtranscript

  14. Line PFG_3A-07671.R hph probe T-DNA DraI: cuts at positions 9116 and 15619, band in Southern should be around 6503 bp SpeI: cuts at positions 9126 and 13654, band in Southern should be around 4528 bp HindIII: cuts at positions 8279 and 14193, Southern band should be around 5914 bp
