炬榮股份有限公司. JIUH RONG ELECTRONICS CO., LTD. 公司簡介 Company Profile(Ⅰ). 炬榮股份有限公司成立於 2005 年， 產品生產以 LED 產業所需之各式 LED 散熱基材及 金屬印刷電路板 (MCPCB) 、金屬基板壓合代工。

rance
Download Presentation

炬榮股份有限公司

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 炬榮股份有限公司 JIUH RONG ELECTRONICS CO., LTD

  2. 公司簡介 Company Profile(Ⅰ) • 炬榮股份有限公司成立於2005年， 產品生產以LED產業所需之各式LED散熱基材及 金屬印刷電路板(MCPCB)、金屬基板壓合代工。 • JIUH RONG ELECTRONICS CO., LTD. is established in Taoyuan Taiwan since 2005, we specialize in insulation aluminum board and aluminum print circuit board for LED industry, especially for those MFR who needs their LED products get heat dissipation issue solved • JIUH RONG have been certified by famous international organization such as ISO 9001, ISO14001,and UL(Files No. MCCCL-E337180, MCPCB-E350836) E337180 E350836

  3. 公司簡介 Company Profile(Ⅱ) • 針對MCPCB市場上基板分層或因散熱慢造成LED光衰…等問題，在2010年專業技術的服務團隊研發出”專利鋁基板”，改善並大幅提升MCPCB的製程良率及提升LED燈具散熱問題，期望能為客戶提供全方位的服務。 • JIUH RONG’S research team have developed a new insulation aluminum board on 2010 which not only can improved the LED’s quality of light and life by dissipated heat properly but also prevent the delamination issue of insulation aluminum board. • Our new insulation aluminum board’s patent No.M379168

  4. 產品介紹 金屬基材Insulation Aluminum Board

  5. 基材介紹-MCCCL 產品特性 Products Character 高導熱性 High Thermal Conductivity 高結合力 High Bond Strength 極佳耐高溫 High Temp Endurance 產品名稱Products Name • 高導熱鋁基板 High Thermal Conductivity AL. Board • 高輻射碳材鋁基板 High Radiation Thermal Dissipation Carbon Coating AL. Board

  6. 板材結構 Substrates of Insulation Aluminum Board 高輻射碳材鋁基板 High Radiation Thermal Dissipation Carbon Coating AL. Board 高導熱鋁基板 High Thermal Conductivity AL. Board 銅箔 Copper clad 電路、熱傳導 • 銅箔 Copper clad • 電路、熱傳導 導熱膠 Insulation layer 導熱、絕緣、接著 鋁板 Aluminum 散熱、支撐、補強 鋁板 Aluminum 散熱、支撐、補強 高輻射碳 High radiation thermal dissipation carbon coating 可耐酸鹼、高溫、沖擊、繞折 Anti-acid-alkaline, high temperature endurance ,impact , excellent bending character

  7. 產品規格 Product Specification

  8. 產品編碼定義 Product Code Insulation layer thickness 100um Copper clad thickness 1oz AL. thickness 1.5mm JR–XXX – Y – ZZ For example : JR –100 – 1 – 15

  9. 規格編碼定義 Specification Code Insulation layer’s thermal conductivity W High radiation thermal dissipation carbon coating T - ○W

  10. Example:Product Features

  11. 高輻射散熱鋁基板優勢(Ⅰ)The advantages of high radiation thermal dissipation carbon coating AL. board 對MCPCB的優點比較 Comparison table based on AL. prints circuit board

  12. 高輻射散熱鋁基板優勢(Ⅱ)The advantages of high radiation thermal dissipation carbon coating AL. board

  13. MCCL製造流程Process

  14. 產品介紹 MCPCB

  15. MCPCB製程能力 Process Capability

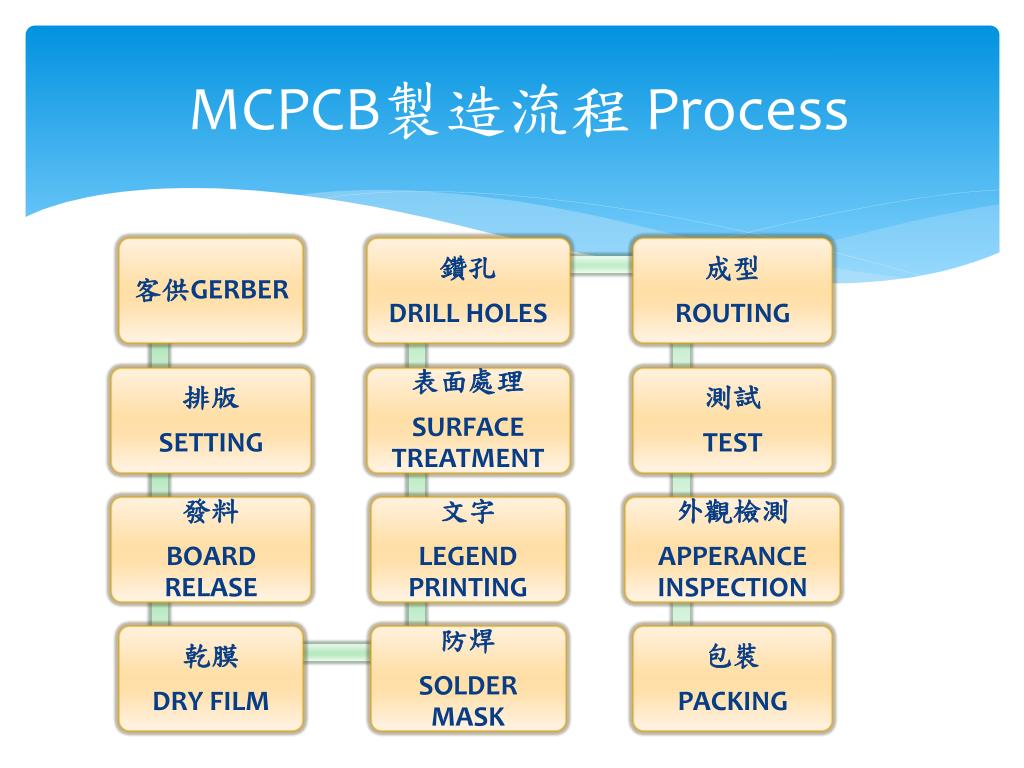

  16. MCPCB製造流程 Process

  17. MCPCBExample

  18. 產品介紹 壓合代工Hot Press

  19. 設備及製程 Equipment & Process 目前代工服務是以依照客戶指定之需求進行客製化之服務 We provided the services as a sub contractor for our customer demands 提供自動裁邊、磨邊、整平 Provided auto-cutting , trim and flatness 金屬基板壓合月產能：超過47000米平方 Monthly capacity - 47000㎡ MIN

  20. 聯絡方式 Contact Us Add: 33392桃園縣龜山鄉南上路526號 No.526,Nanshang Rd.,Guishan Township, Taoyuan County 33392,Taiwan Tel : +886-3-311-5300 Fax: +886-3-311-7891 http://www.jiuh-rong.com.tw E-mail: jr.pcb@jiuhrong.com.tw
