buffering in query evaluation over xml streams

Buffering in Query Evaluation over XML Streams

Ziv Bar-Yossef

Technion

Marcus Fontoura

Vanja Josifovski

IBM Almaden Research Center

xml document
XML Document

1: <department>

2: <name>

3: Software Testing

4: </name>

5: <employee id= 1>

6: <name>

7: Alice

8: </name>

9: <position>

10: engineer

11: </position >

12: </employee >

13: <employeeid = 2>

14: <name>

15: Bob

16: </name>

17: <position >

18: engineer

19: </position >

20: </ employee >

21: <employeeid = 3>

22: <name>

23: Carole

24: </name>

25: <position >

26: assistant

27: </position >

28: </employee >

29: <manager id = 4>

30: <name>

31: John

32: </name>

33: </manager>

34: </department>

xml document tree

root

department

manager

name

name

@id

employee

4

John

position

@id

name

employee

engineer

1

Alice

@id

employee

position

name

3

assistant

@id

position

name

Carole

2

engineer

Bob

XML Document Tree

Software Testing

xpath queries

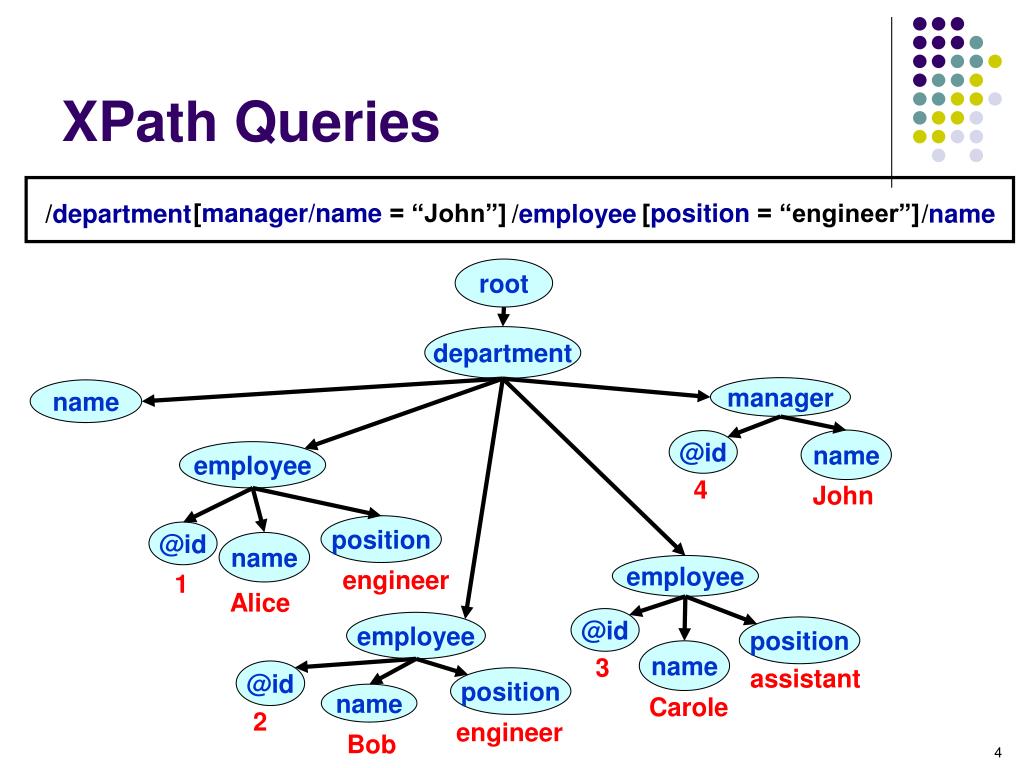

XPath Queries

[manager/name = “John”] [position = “engineer”]

/department /employee /name

root

department

manager

name

name

@id

employee

4

John

position

@id

name

employee

engineer

1

Alice

@id

employee

position

name

3

assistant

@id

position

name

Carole

2

engineer

Bob

xpath queries5
XPath Queries

[employee/name = manager/name]

/department /name

root

department

manager

name

name

@id

employee

4

John

position

@id

name

employee

engineer

1

Alice

@id

employee

position

name

3

assistant

@id

position

name

Carole

2

engineer

Bob

xpath
XPath
  • XPath 2.0
  • Forward axes only
  • Eval(Q,D): nodes in D that match Q
  • Two modes of XPath evaluation:
    • Full fledged evaluation: given Q,D, output Eval(Q,D)
    • Filtering: given Q,D, determine whether Eval(Q,D) is nonempty.

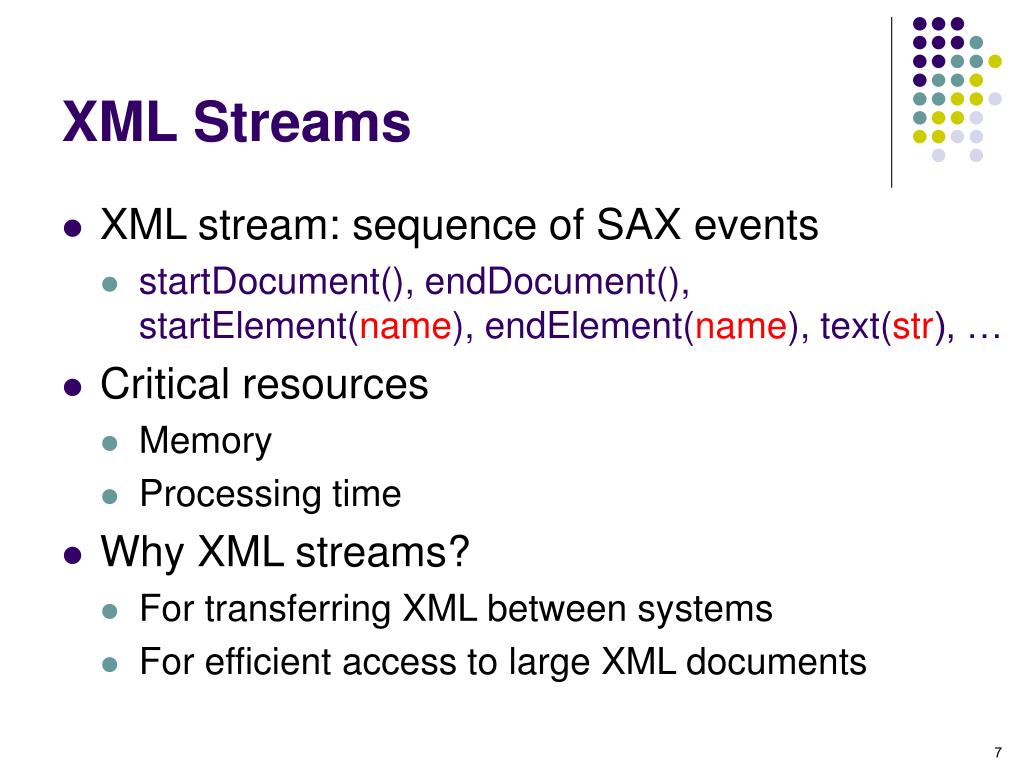

xml streams
XML Streams
  • XML stream: sequence of SAX events
    • startDocument(), endDocument(), startElement(name), endElement(name), text(str), …
  • Critical resources
    • Memory
    • Processing time
  • Why XML streams?
    • For transferring XML between systems
    • For efficient access to large XML documents
streaming xml algorithms

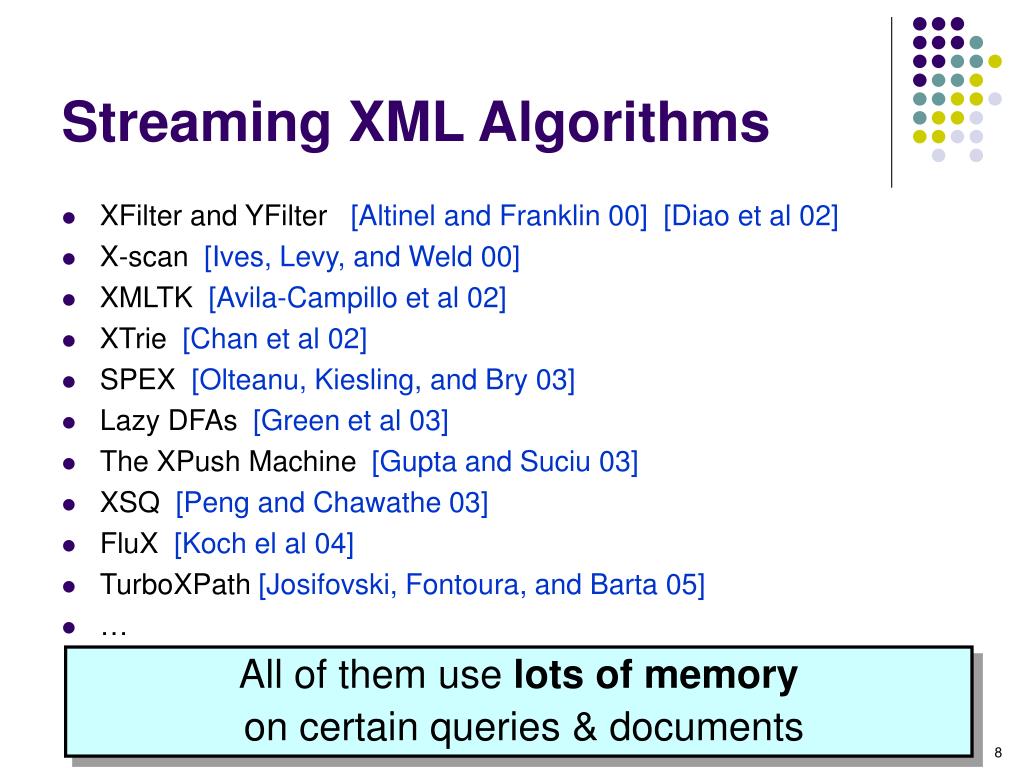

Streaming XML Algorithms
  • XFilter and YFilter [Altinel and Franklin 00] [Diao et al 02]
  • X-scan [Ives, Levy, and Weld 00]
  • XMLTK [Avila-Campillo et al 02]
  • XTrie [Chan et al 02]
  • SPEX [Olteanu, Kiesling, and Bry 03]
  • Lazy DFAs [Green et al 03]
  • The XPush Machine [Gupta and Suciu 03]
  • XSQ [Peng and Chawathe 03]
  • FluX [Koch el al 04]
  • TurboXPath [Josifovski, Fontoura, and Barta 05]

All of them use lots of memory

on certain queries & documents

memory bottleneck i storage of large transition tables
Memory Bottleneck I: Storage of Large Transition Tables
  • Framework of most algorithms:
    • Q  NFA
    • Simulate NFA by DFA
  • Caveat: exponential blowup
  • However: exponential blowup is not necessary[Bar-Yossef, Fontoura, Josifovski 04]
    • Algorithm for filtering XML streams whose space is linear in the query size
memory bottleneck ii buffering of document fragments
Memory Bottleneck II:Buffering of Document Fragments
  • Scenario 1: buffering nodes, which may or may not be part of the output.

/department[manager/name = “John”]/employee[position = “engineer”]/name

root

department

manager

name

name

@id

employee

4

John

position

@id

name

employee

engineer

1

Alice

@id

employee

position

name

3

assistant

@id

position

name

Carole

2

engineer

Bob

memory bottleneck ii buffering of document fragments11
Memory Bottleneck II:Buffering of Document Fragments
  • Scenario 2: buffering nodes needed for evaluating pending predicates.

/department[employee/name = manager/name ]/name

root

department

manager

name

name

@id

employee

4

John

position

@id

name

employee

engineer

1

Alice

@id

employee

position

name

3

assistant

@id

position

name

Carole

2

engineer

Bob

memory bottleneck ii buffering of document fragments12
Memory Bottleneck II:Buffering of Document Fragments
  • Scenario 3: buffering multiple candidate matches that are nested within each other.
  • Relevant only when document is “recursive”
  • Space required: (doc-recursion-depth) [Bar-Yossef, Fontoura, Josifovski 04]
our results

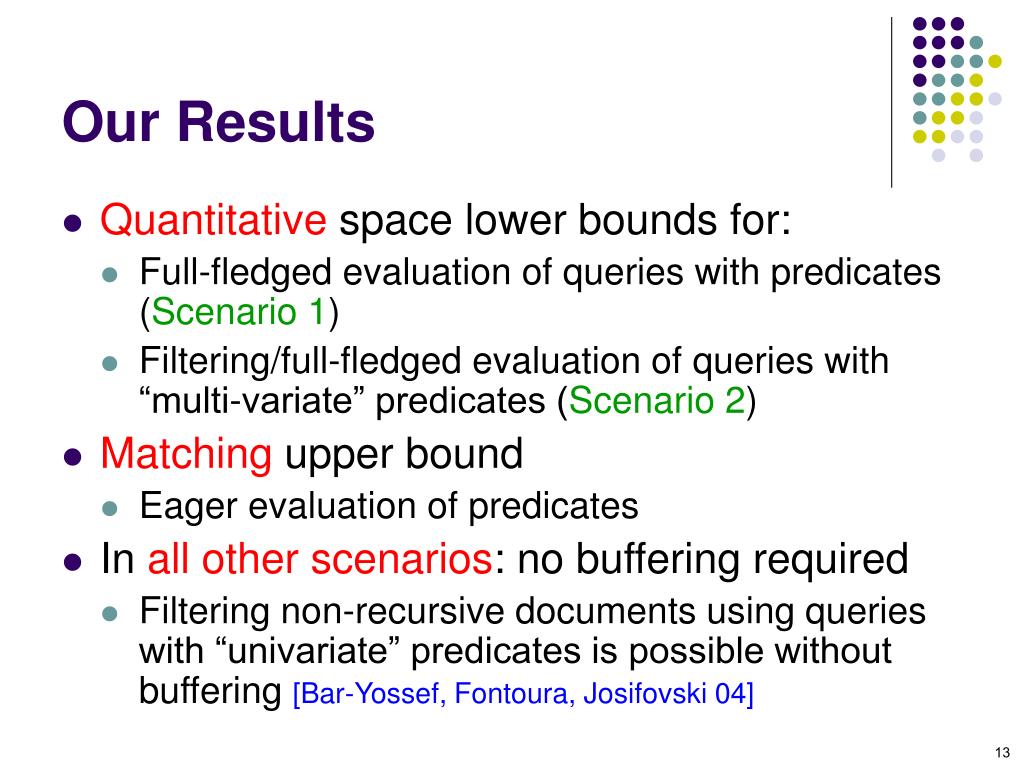

Our Results
  • Quantitative space lower bounds for:
    • Full-fledged evaluation of queries with predicates (Scenario 1)
    • Filtering/full-fledged evaluation of queries with “multi-variate” predicates (Scenario 2)
  • Matching upper bound
    • Eager evaluation of predicates
  • In all other scenarios: no buffering required
    • Filtering non-recursive documents using queries with “univariate” predicates is possible without buffering [Bar-Yossef, Fontoura, Josifovski 04]
related work

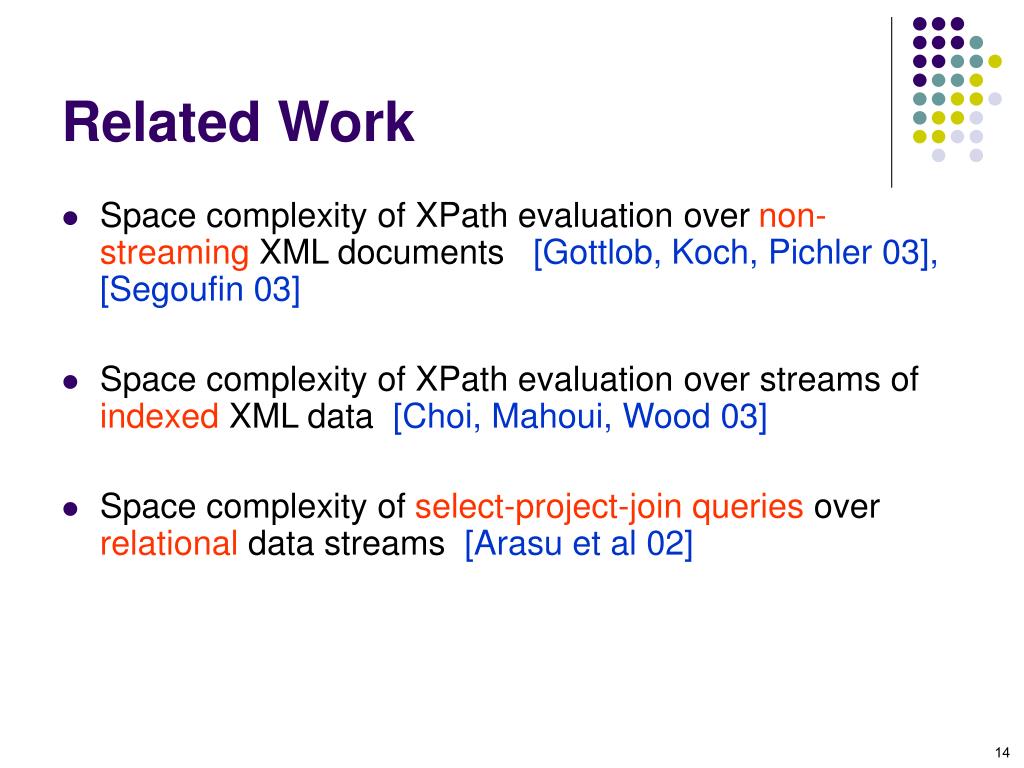

Related Work
  • Space complexity of XPath evaluation over non-streaming XML documents [Gottlob, Koch, Pichler 03], [Segoufin 03]
  • Space complexity of XPath evaluation over streams of indexed XML data [Choi, Mahoui, Wood 03]
  • Space complexity of select-project-join queries over relational data streams [Arasu et al 02]
document concurrency

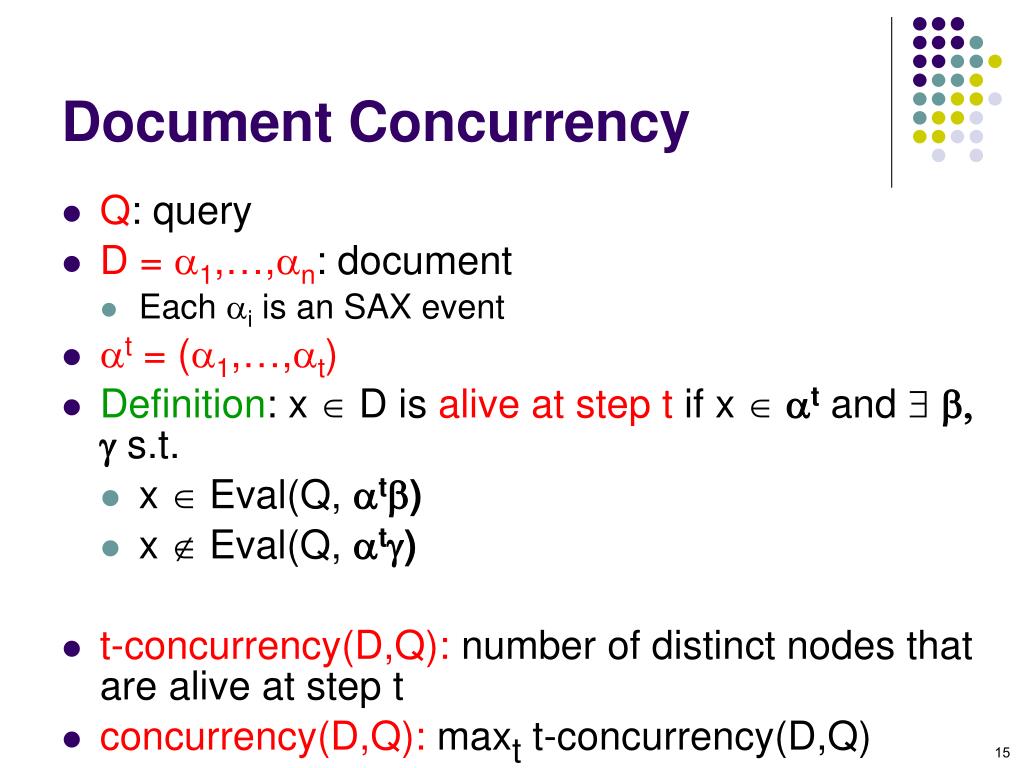

Document Concurrency
  • Q: query
  • D = 1,…,n: document
    • Each i is an SAX event
  • t = (1,…,t)
  • Definition: x  D is alive at step t if x  t and  , s.t.
    • x  Eval(Q,t)
    • x  Eval(Q,t)
  • t-concurrency(D,Q): number of distinct nodes that are alive at step t
  • concurrency(D,Q): maxt t-concurrency(D,Q)
lower bound notions
Lower Bound Notions
  • A “normal” lower bound:

For every algorithm A, there exist Q and D s.t. A uses on Q and D (concurrency(D,Q)) bits of space.

    • Q and D may be “pathological”
    • Doesn’t say much about real-world queries/documents
  • An “ideal” lower bound:

For every A, every Q, and every D, A uses on Q and D (concurrency(D,Q)) bits of space.

    • Too good to be true
      • A can have D and Q “hard-coded”, and then know the result a priori
      • Space of A on D and Q = minimum description length of Q and D
our lower bound

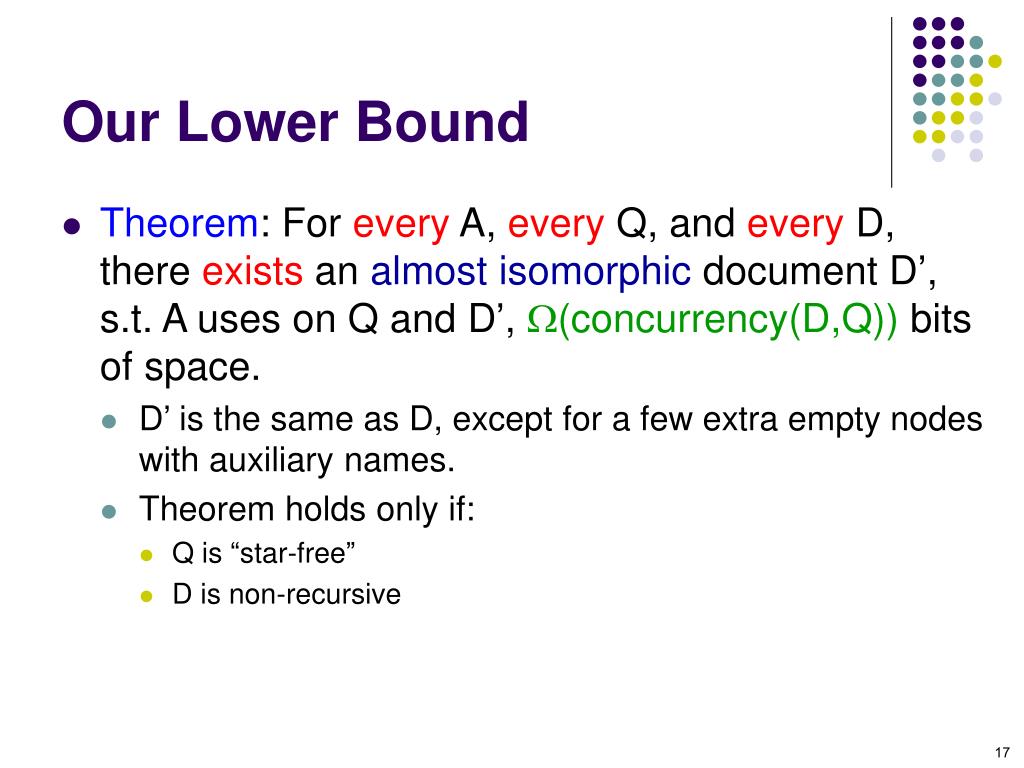

Our Lower Bound
  • Theorem: For every A, every Q, and every D, there exists an almost isomorphic document D’, s.t. A uses on Q and D’, (concurrency(D,Q)) bits of space.
    • D’ is the same as D, except for a few extra empty nodes with auxiliary names.
    • Theorem holds only if:
      • Q is “star-free”
      • D is non-recursive
why isn t this obvious

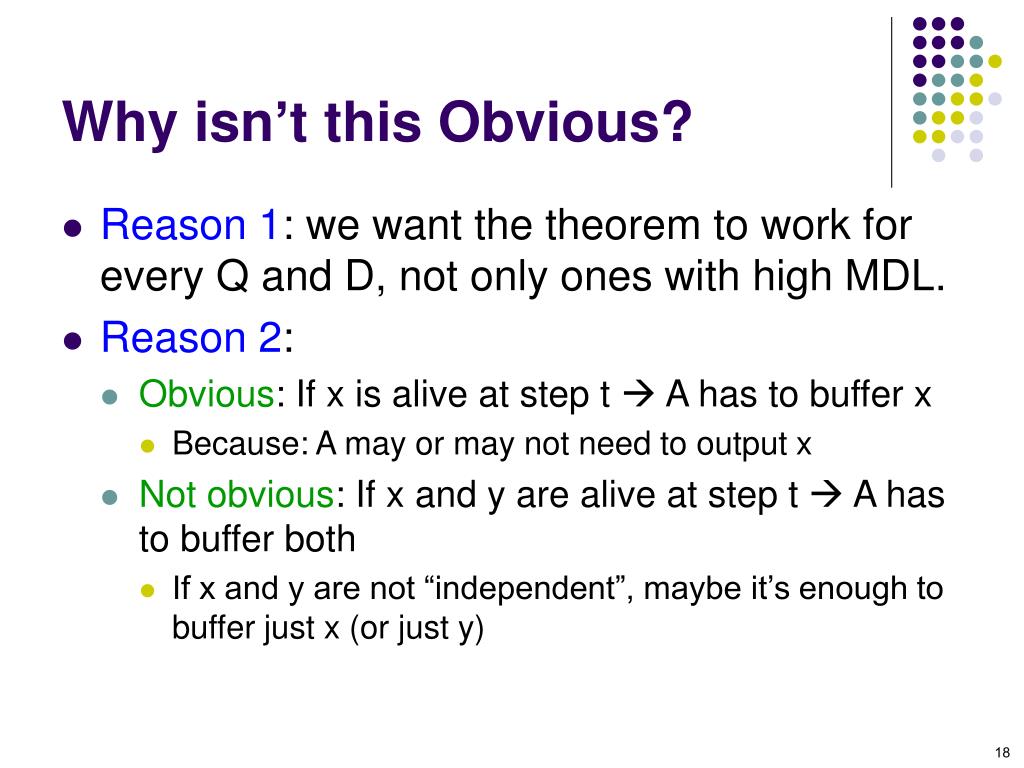

Why isn’t this Obvious?
  • Reason 1: we want the theorem to work for every Q and D, not only ones with high MDL.
  • Reason 2:
    • Obvious: If x is alive at step t  A has to buffer x
      • Because: A may or may not need to output x
    • Not obvious: If x and y are alive at step t  A has to buffer both
      • If x and y are not “independent”, maybe it’s enough to buffer just x (or just y)
proof of lower bound
Proof of Lower Bound
  • C = t-concurrency(D,Q)
  • x1,…,xC = distinct nodes alive at step t
  • Recall: for every xi there exist i and i s.t.
    • xi Eval(Q, ti)
    • xi  Eval(Q, ti)
  • Lemma: there exist a single and a single s.t. for all i,
    • xi Eval(Q, t)
    • xi  Eval(Q, t)
proof of lower bound cont

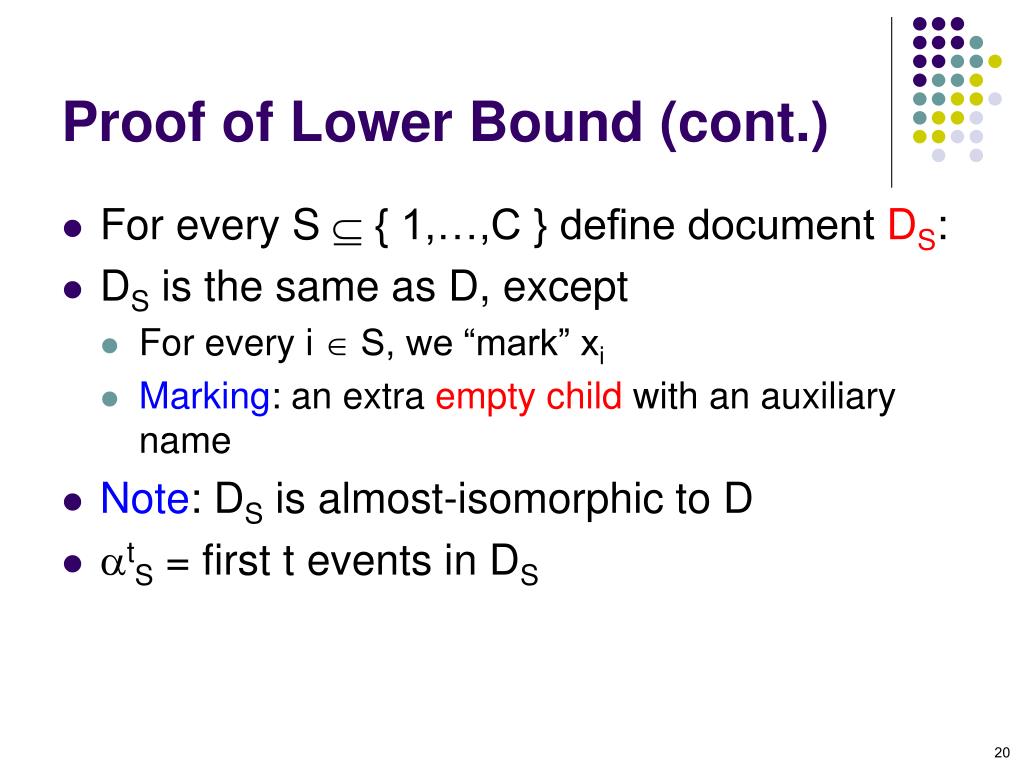

Proof of Lower Bound (cont.)
  • For every S  { 1,…,C } define document DS:
  • DS is the same as D, except
    • For every i  S, we “mark” xi
    • Marking: an extra empty child with an auxiliary name
  • Note: DS is almost-isomorphic to D
  • tS = first t events in DS
proof of lower bound cont21
Proof of Lower Bound (cont.)
  • A = any algorithm
  • Consider state of A after processing tS:
    • If suffix = , none of the xi’s should be output
      •  A could not have output any xi by step t
    • If suffix = , no information in suffix about S but S can be reconstructed from output
      •  state of A at step t must have all information about S
  • Conclusion: space ≥ (C)
    • Actual proof: by one-way communication complexity
conclusions
Conclusions
  • Our contributions:
    • Quantitative space lower bounds
      • Full-fledged evaluation of queries with predicates
      • Filtering/full-fledged evaluation of queries with “multi-variate” predicates
    • Matching upper bound
  • Open problems:
    • Quantitative lower bounds for XQuery evaluation over streams
    • Address larger fragments of XPath
memory bottleneck ii buffering of document fragments23
Memory Bottleneck II:Buffering of Document Fragments
  • Scenario 3: buffering multiple candidate matches that are nested within each other.

root

a

//a[b and c]

c

a

c

b

a

b

  • Relevant only when document is “recursive”
  • Space required: (doc-recursion-depth) [Bar-Yossef, Fontoura, Josifovski 04]
concurrency example
Concurrency: Example

/department[manager/name = “John”]/employee[position = “engineer”]/name

1: <department>

2: <name>

3: Software Testing

4: </name>

5: <employee id= 1>

6: <name>

7: Alice

8: </name>

9: <position>

10: engineer

11: </position >

12: </employee >

13: <employeeid = 2>

14: <name>

15: Bob

16: </name>

17: <position >

18: engineer

19: </position >

20: </ employee >

21: <employeeid = 3>

22: <name>

23: Carole

24: </name>

25: <position >

26: assistant

27: </position >

28: </employee >

29: <manager id = 4>

30: <name>

31: John

32: </name>

33: </manager>

34: </department>

dead

alive

alive
