MAD Deck Updates

Tor Raubenheimer

October 15, 2014

mad deck status
MAD Deck Status

March 2014 deck was costed in June meanwhile decks continued to evolve including updated diagnostics, interference fixed and correction of physics limitations

June costing led to significant component reduction. The August MAD decks were a starting point to reconcile differences.

Estimated that there is an 8M$ discrepancy between P6 and August MAD deck. Developing October MAD deck that will be roughly cost-neutral with P6.

LCLS-II MAD Decks, Sept. 26, 2014

modifications in august 2014 from march 2014
Modifications in August 2014 From March 2014

Added space for cryo-distribution, endcaps, differential pumping

Lengthened laser heater to deal with uBI

Shortened 3.9 GHz cryomodules

Removed matching for Post-BC1 Diagnostic line and diagnostic lines DIAG1, DIAG2, DIAGB, DIAGH and DIAGS

Removed collimators Post BC1

Reversed sign of BC2 bends into aisle

Removed 5 quads in EXT

Removed BC3

Updated collimation, stoppers & dumps in Bypass and LTU’s

Spreader as magnetic kicker and two 2-hole septa

Added missing diagnostics throughout

Fixed interferences throughout

LCLS-II MAD Decks, Sept. 26, 2014

modifications for october mad release
Modifications for October MAD Release

Aiming to develop cost-neutral deck to allow reconciliation with P6

Compactifying LH/BC1 cryo-distribution for savings

Removing correctors with less than 90 deg phase advance

Removing 4 collimators

Including critical magnets for matching and transport

Adding new BSY1 beamline from S-30  BSY for Cu-linac

Still missing critical components for CD4 Threshold: buncher, laser heater, some diagnostics as well as component for CD4 Objective Will include new deferment level @0 = required for CD4 threshold

options for robust lasing at 5 kev

Options for Robust Lasing at 5 keV

Tor Raubenheimer

October 15, 2014

outline
Outline
  • Concern was expressed at DOE Status review about LCLS-II performance at 5 keV as expressed in the recommendation:

“The project team should work with the program management to bring the 5-keV high repetition rate performance of the FEL in line with the BESAC recommendation. Due by March 2015.”

  • Outline:
    • Review 100 pC operation
    • Operation across parameter range (300 pC – 10 pC)
    • Performance with increased beam energy
    • Performance with reduce undulator period
  • Other options could be considered using new technology (SCU’s)

Options for 5 keV, October 15, 2014

lcls ii kpp from lcls ii gdr
LCLS-II KPP (from LCLS-II GDR)

1011 photons at 5 keV is ~80 uJ(or 40 uJ if looking at spectral flux - SASE BW is 0.5x10-3)

Options for 5 keV, October 15, 2014

fel x ray power at high rate slide 9 from my review talk
FEL X-ray Power at High rate (slide #9 from my review talk)

See LCLSII-1.1-PR-0133, LCLS-II Parameters

X-ray Power using 4 GeV SCRF Linac

̶ SXR SASE

̶ HXR SASE

̶ SXR Seeded

XTES limit

X-ray power goal

Power estimated for 100 pC and 300 kHz

  • SCRF linac can deliver ~1 MHz beam to either undulator
    • Goal is to provide >20 Watts over wavelength range
      • Easily met except at 5 keV where limited by energy and e
        • Simulated performance is betterthan analytic curve shown
    • XTES is designed to handle up to 200 Watts
      • Studying methodsof turning down FELpower other than rep.rate

Options for 5 keV, October 15, 2014

100 pc 1 ka hxr sase simulation results @ e 5 0 kev slide 6 from gabe marcus review talk
100 pC, 1 kA: HXR SASE simulation results @ Eγ = 5.0 keV (slide #6 from Gabe Marcus review talk)

E ~ 10.3 μJ

At 300 kHz (120 kW)  3 W x-ray power

ΔEFWHM~ 2.8 eV

ΔEFWHM/E0 ~ 5.6 x 10-4

Options for 5 keV, October 15, 2014

100 pc 1 ka hxr sase simulation results @ e 5 0 kev
100 pC, 1 kA: HXR SASE simulation results @ Eγ = 5.0 keV

E ~ 10.3 μJ

At 300 kHz (120 kW) 3 W x-ray power

ΔEFWHM~ 2.8 eV

ΔEFWHM/E0 ~ 5.6 x 10-4

Performance @ 100 pC can probably be improved factors of ~2 using chirps etc.

summary of 100 pc operation at 5 kev
Summary of 100 pC Operation at 5 keV
  • LCLS-II operation at 5 keV is limited by emittance leading to an increase in the gain length – saturation length is close to (or beyond) undulator len.
  • 100 pC operation at 5 keV is not robust
  • Solutions include decreasing the beam emittance, increasing the beam energy, or decreasing the undulator period.

Options for 5 keV, October 15, 2014

lcls ii scrf baseline parameters slide 13 of review talk

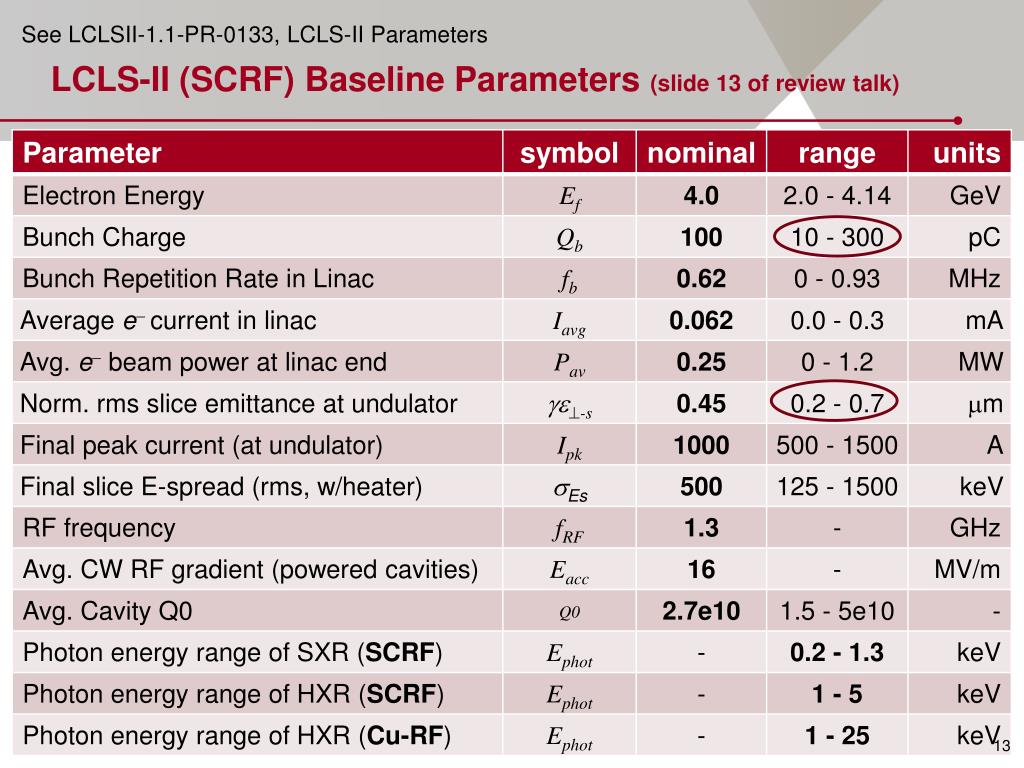

LCLS-II (SCRF) Baseline Parameters (slide 13 of review talk)

See LCLSII-1.1-PR-0133, LCLS-II Parameters

lcls ii parameter ranges
LCLS-II Parameter Ranges
  • LCLS-II is being designed to operate over a large range of bunch charges, peak currents, and beam emittances
    • Beam emittance decrease roughly as sqrt of bunch charge as supported by simulations of injector
    • More challenging to achieve high peak current with lower bunch charge – CSR and longitudinal space charge have greater impact
    • Current simulations generate ~600 A peak current at 20 pC and <500 A peak current at 10 pC but simulated emittance at 10 pC is almost 4x lower than at 100 pC

Options for 5 keV, October 15, 2014

injector performance
Injector Performance

Speced slice e in coreat injector & undulator

From the Injector PRD:

ASTRA simulations are significantly better (~30%) than PRD spec using thermal emittance of 1 um. APEX measurements of thermal emittance are 0.7~0.8 um. High charge emittance measurements will be made at APEX and Cornell in FY15.

Options for 5 keV, October 15, 2014

option 1 optimized performance using parameter range
Option 1: Optimized Performance using Parameter Range
  • Optimize bunch charge, repetition rate, and undulator focusing across parameter range limited by 4T quadrupoles, 300 – 10 pC, and 120 kW beam power
  • Use full undulator length with post-saturation taper
  • Consider 3 separate goals:
    • Peak pulse energy, Peak power, Average power
    • Peak power will optimize towards lower bunch charge, peak pulse energy will optimize towards higher bunch charge, and average power will maximize repetition rate

Options for 5 keV, October 15, 2014

optimized charge versus 100 pc fixed charge use full hxr undulator length of 32 segments
Optimized Charge versus 100 pC Fixed ChargeUse full HXR Undulator length of 32 segments

Compare 100 pC fixed chargeversus charge optimized forPeak pulse energy, Peak power, and Max. averagepower up to 5.5 keV.

5 keV operation reasonable

Options for 5 keV, October 15, 2014

option 2 impact of increased beam energy
Option 2: Impact of increased Beam Energy
  • At 4 GeV, 100pC, the beam emittance is >3x the 5 keV photon emittance. Increasing the beam energy decreases the 3D gain length rapidly:
    • 4.0  4.2 GeV yields a 20% reduction in gain length
    • 4.0  4.5 GeV yields a 30% reduction in gain length
    • Allows for higher saturation power and longer post-saturation taper
    • Performance similar at 4.0 GeV/4.5 keV as 4.2 GeV/5.0 keV as 4.5 GeV/5.5 keV
  • Increasing the energy can be done by adding CM. Roughly 130 MeV per CM but adds to heat load.
  • Constant heat load CM number scales as:  3 CM for 4.2 GeV or 8 CM for 4.5 GeV

Options for 5 keV, October 15, 2014

comparing different beam energies charge optimized use 80 of hxr undulator length 26 segments
Comparing different beam energies – charge optimizedUse 80% of HXR Undulator length (26 segments)

67 uJ@ 4.0 GeV180 uJ @ 4.2 GeV

150 uW

41 uW

All cases use optimized bunch charge and rep rate for 120 kWand 26 undulator segments.3~4x more power at 5.0 keVwith 4.2 GeV than 4.0 GeV

Options for 5 keV, October 15, 2014

option 3 effect of reduced undulator period
Option 3: Effect of reduced Undulator Period

Decreasing the undulator period will increase energy reach from SCRF and CuRF (performance similar to 4.2 GeV)

BUT it will also reduce overlap between HXR and SXR at nominal SCRF energy (4.0 GeV) and will reduce pulse energy at modest wavelengths from SCRF and CuRF

Options for 5 keV, October 15, 2014

comparing different undulator l charge optimized use 80 of hxr undulator length 26 segments
Comparing different undulator l – charge optimizedUse 80% of HXR Undulator length (26 segments)

All cases use optimized bunch charge and rep rate for 120 kWand 26 undulator segments.3~4x more power at 5.0 keVwith 24 mm than 26 mm

Options for 5 keV, October 15, 2014

tuning ranges from scrf for 26 and 24 mm period hxr
Tuning Ranges from SCRF for 26 and 24 mm period HXR

26 mm HXR period

24 mm HXR period

HD Nuhn

24 mm offers greater energy reach but reduces overlap at 4 GeV and requires reducing beam energy to <3 .0 GeV to access 1 GeV from HXR

Options for 5 keV, October 15, 2014

pulse energy from scrf for 26 and 24 mm period hxr
Pulse Energy from SCRF for 26 and 24 mm period HXR

26 mm HXR period

24 mm HXR period

With 26 undulators at 5 keVget roughly ½ pulse energy

With 100 pC get ~8uJ at 5 keV

24 mm offers greater energy reach with ~300 uJ at 100 pC versus few uJ but reduces reduces pulse energy in mid-energy range from 2.2 mJ to 2.0 mJ

HD Nuhn

Options for 5 keV, October 15, 2014

tuning ranges from curf for 26 and 24 mm period hxr
Tuning Ranges from CuRF for 26 and 24 mm period HXR

26 mm HXR period

24 mm HXR period

HD Nuhn

24 mm offers greater energy reach than 26 mm (38 versus 35 keV) but reduces pulse energy in mid-energy range

Options for 5 keV, October 15, 2014

pulse energy from curf for 26 and 24 mm period hxr
Pulse Energy from CuRF for 26 and 24 mm period HXR

26 mm HXR period

24 mm HXR period

HD Nuhn

24 mm offers greater energy reach than 26 mm (38 versus 35 keV) but reduces pulse energy in mid-energy range from 4.2 mJ to 3.5 mJ

Options for 5 keV, October 15, 2014

summary
Summary
  • Baseline design (when charge is optimized) provides >100 W (or >100 uJ) at 5 keV using full undulator
    • Clearly meets the Objective KPP requirements
    • Provides >60uJ when using only 80% of full undulator and meets spectral flux Objective KPP
  • Increasing beam energy to 4.2 GeV or shortening undulator period to 24 mm provides >100 W (or uJ) with 80% of planned undulator (doubles margin in design)
    • Decreasing undulator period degrades performance at longer wavelengths
  • Increasing beam energy to 4.5 GeV increases energy reach out to >5.5 keV (with >100 W in 80% of undulator)
    • Performance at 5.5 keV similar to 5.0 keV with 4.2 GeV

Options for 5 keV, October 15, 2014

recommendations from doe status review

Recommendations from DOE Status Review

Tor Raubenheimer

October 15, 2014
