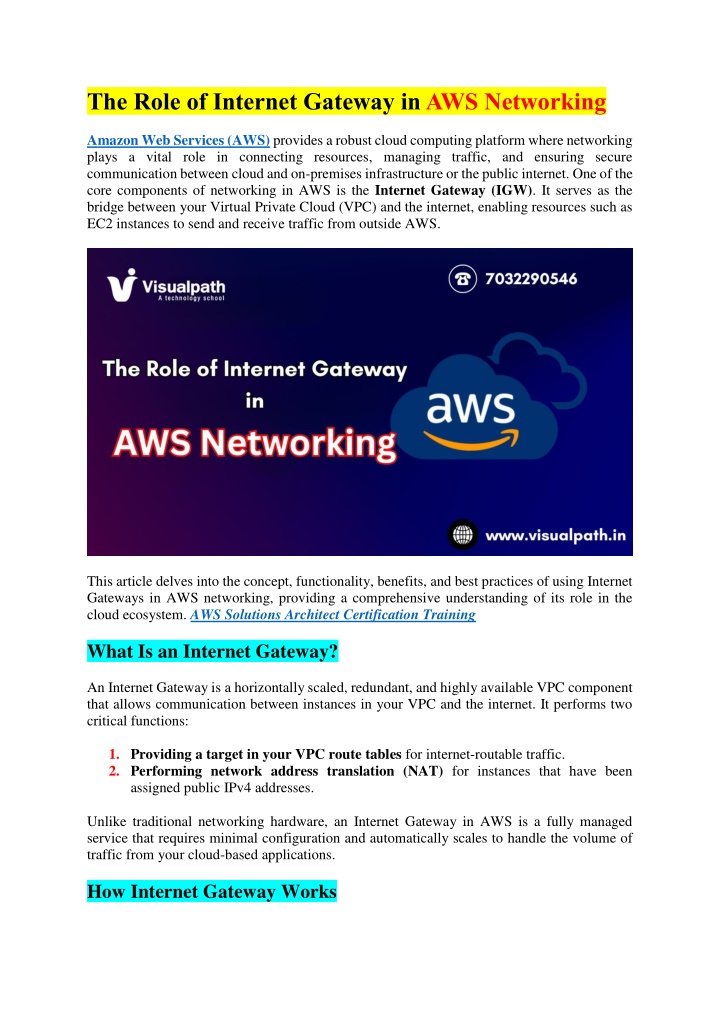

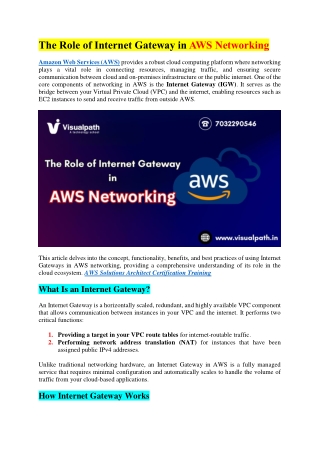

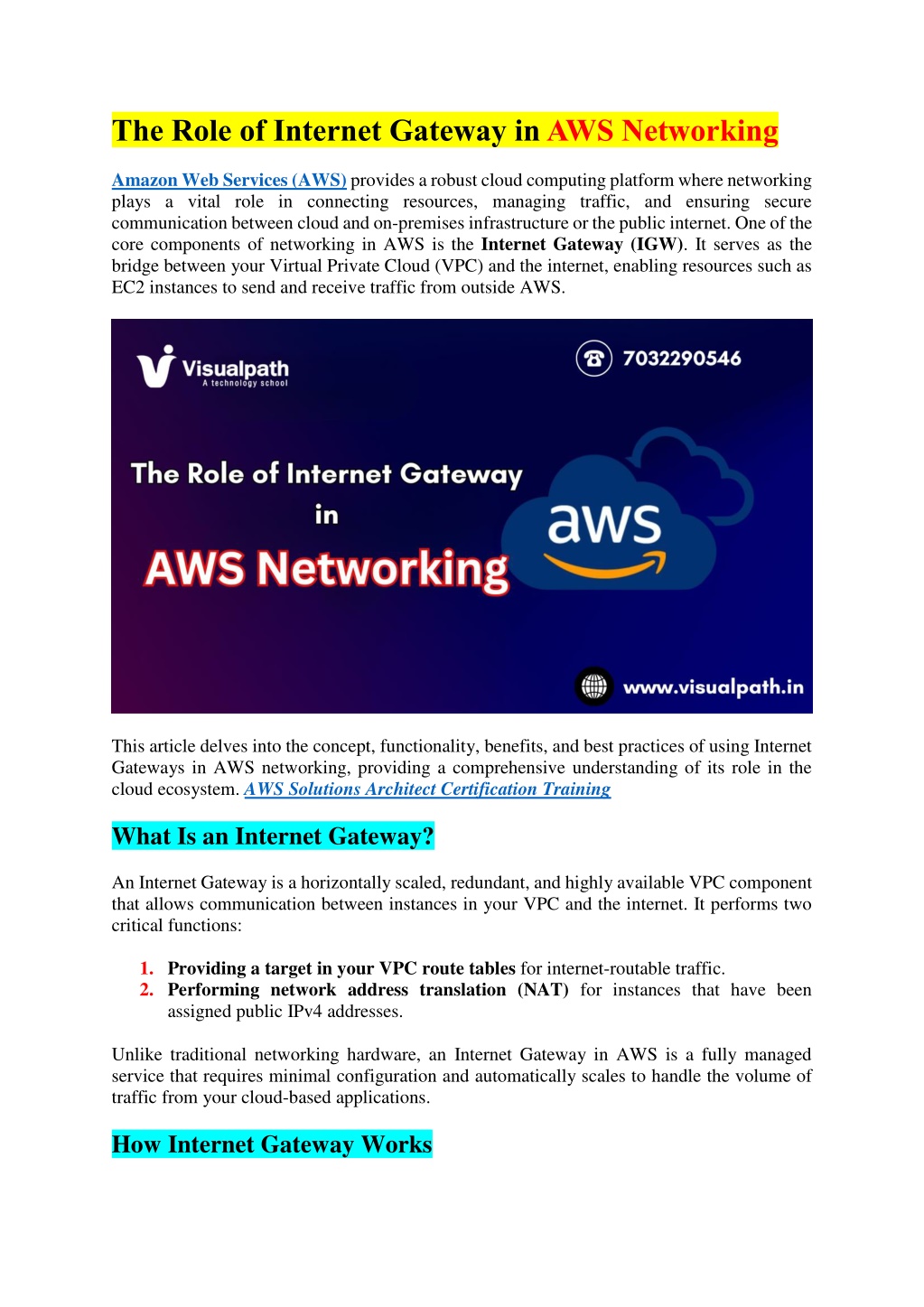

1. The Role of Internet Gateway in AWS Networking Amazon Web Services (AWS) provides a robust cloud computing platform where networking plays a vital role in connecting resources, managing traffic, and ensuring secure communication between cloud and on-premises infrastructure or the public internet. One of the core components of networking in AWS is the Internet Gateway (IGW). It serves as the bridge between your Virtual Private Cloud (VPC) and the internet, enabling resources such as EC2 instances to send and receive traffic from outside AWS. This article delves into the concept, functionality, benefits, and best practices of using Internet Gateways in AWS networking, providing a comprehensive understanding of its role in the cloud ecosystem. AWS Solutions Architect Certification Training What Is an Internet Gateway? An Internet Gateway is a horizontally scaled, redundant, and highly available VPC component that allows communication between instances in your VPC and the internet. It performs two critical functions: 1.Providing a target in your VPC route tables for internet-routable traffic. 2.Performing network address translation (NAT) for instances that have been assigned public IPv4 addresses. Unlike traditional networking hardware, an Internet Gateway in AWS is a fully managed service that requires minimal configuration and automatically scales to handle the volume of traffic from your cloud-based applications. How Internet Gateway Works

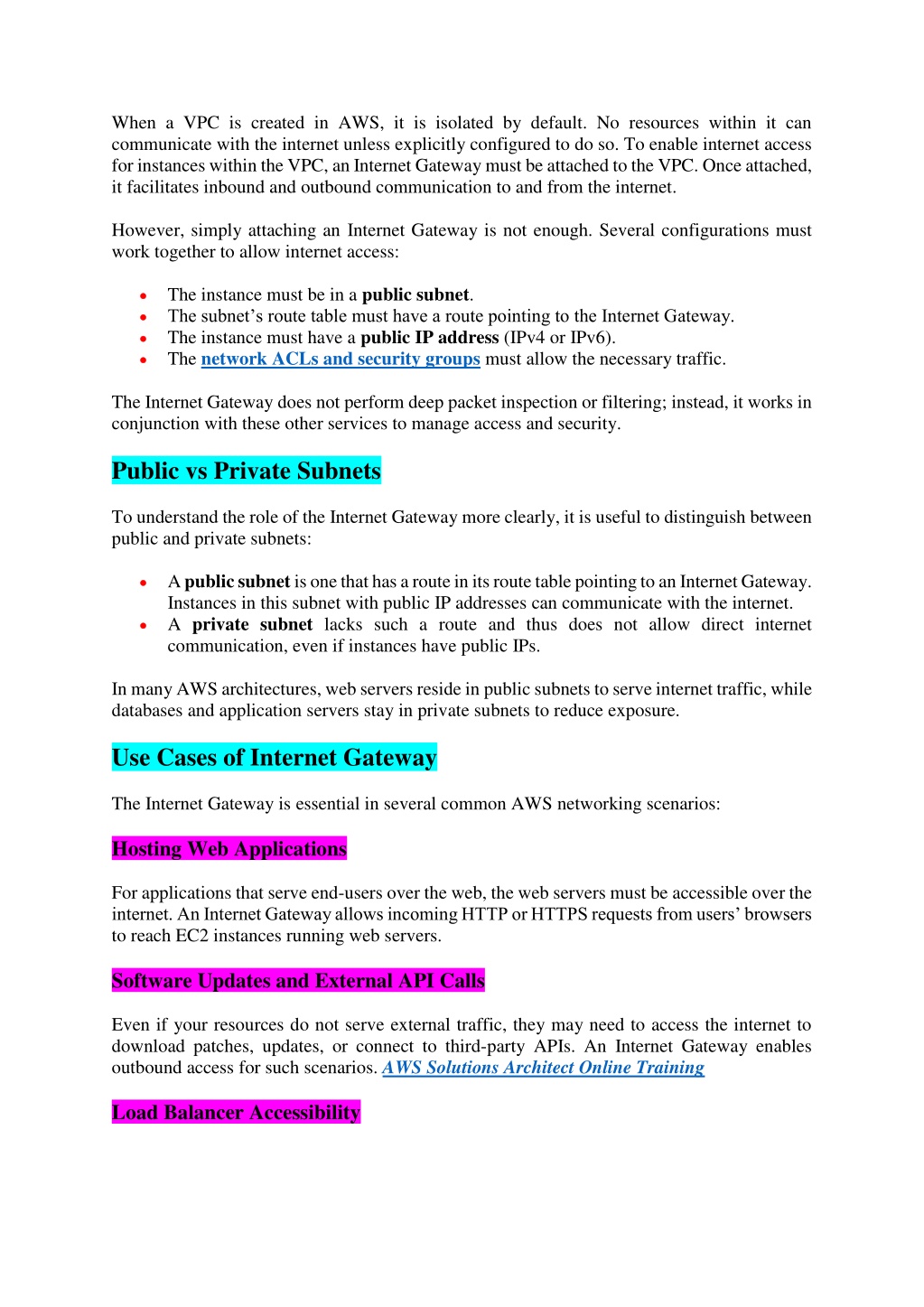

2. When a VPC is created in AWS, it is isolated by default. No resources within it can communicate with the internet unless explicitly configured to do so. To enable internet access for instances within the VPC, an Internet Gateway must be attached to the VPC. Once attached, it facilitates inbound and outbound communication to and from the internet. However, simply attaching an Internet Gateway is not enough. Several configurations must work together to allow internet access:  The instance must be in a public subnet.  The subnet’s route table must have a route pointing to the Internet Gateway.  The instance must have a public IP address (IPv4 or IPv6).  The network ACLs and security groups must allow the necessary traffic. The Internet Gateway does not perform deep packet inspection or filtering; instead, it works in conjunction with these other services to manage access and security. Public vs Private Subnets To understand the role of the Internet Gateway more clearly, it is useful to distinguish between public and private subnets:  A public subnet is one that has a route in its route table pointing to an Internet Gateway. Instances in this subnet with public IP addresses can communicate with the internet.  A private subnet lacks such a route and thus does not allow direct internet communication, even if instances have public IPs. In many AWS architectures, web servers reside in public subnets to serve internet traffic, while databases and application servers stay in private subnets to reduce exposure. Use Cases of Internet Gateway The Internet Gateway is essential in several common AWS networking scenarios: Hosting Web Applications For applications that serve end-users over the web, the web servers must be accessible over the internet. An Internet Gateway allows incoming HTTP or HTTPS requests from users’ browsers to reach EC2 instances running web servers. Software Updates and External API Calls Even if your resources do not serve external traffic, they may need to access the internet to download patches, updates, or connect to third-party APIs. An Internet Gateway enables outbound access for such scenarios. AWS Solutions Architect Online Training Load Balancer Accessibility

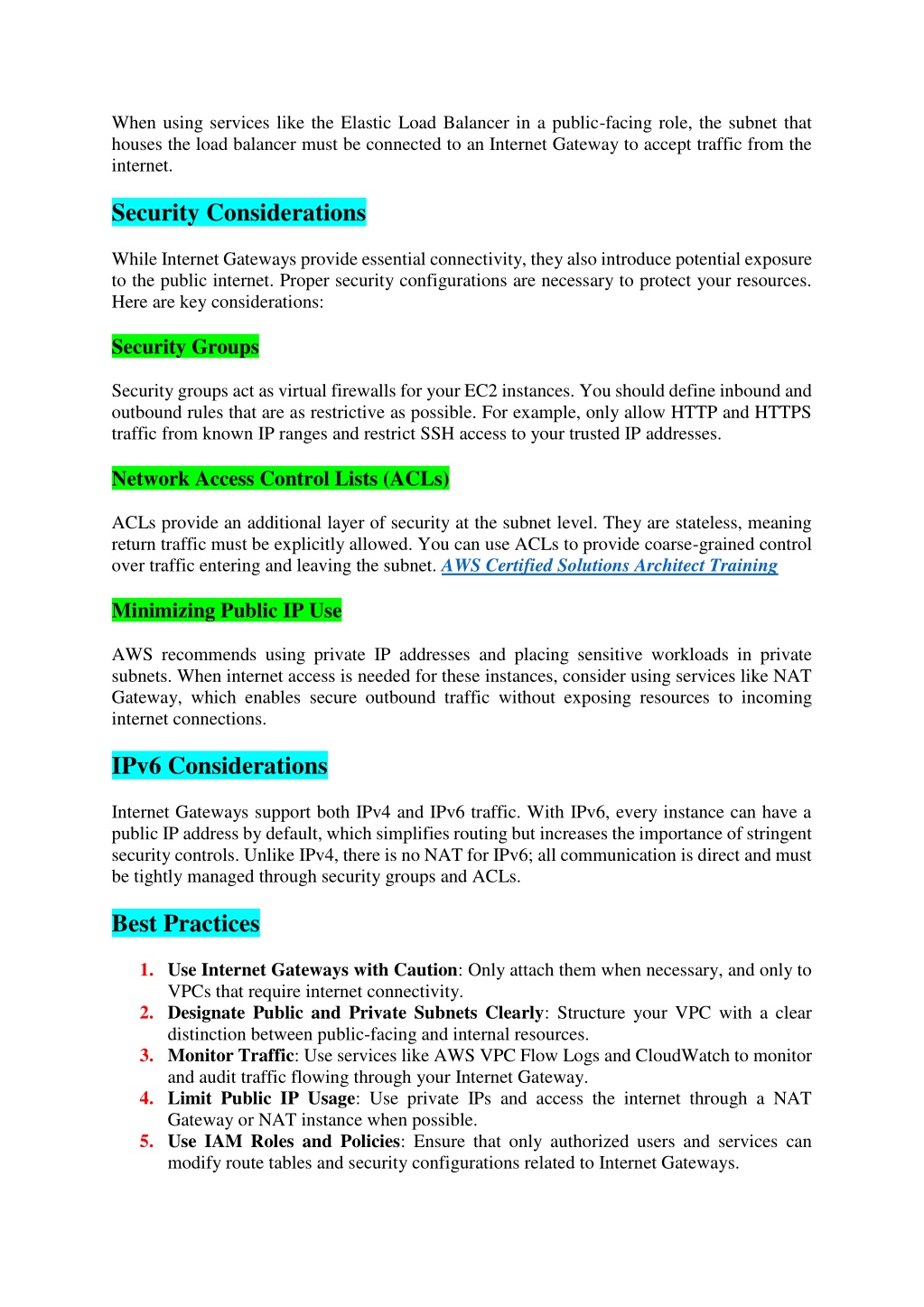

3. When using services like the Elastic Load Balancer in a public-facing role, the subnet that houses the load balancer must be connected to an Internet Gateway to accept traffic from the internet. Security Considerations While Internet Gateways provide essential connectivity, they also introduce potential exposure to the public internet. Proper security configurations are necessary to protect your resources. Here are key considerations: Security Groups Security groups act as virtual firewalls for your EC2 instances. You should define inbound and outbound rules that are as restrictive as possible. For example, only allow HTTP and HTTPS traffic from known IP ranges and restrict SSH access to your trusted IP addresses. Network Access Control Lists (ACLs) ACLs provide an additional layer of security at the subnet level. They are stateless, meaning return traffic must be explicitly allowed. You can use ACLs to provide coarse-grained control over traffic entering and leaving the subnet. AWS Certified Solutions Architect Training Minimizing Public IP Use AWS recommends using private IP addresses and placing sensitive workloads in private subnets. When internet access is needed for these instances, consider using services like NAT Gateway, which enables secure outbound traffic without exposing resources to incoming internet connections. IPv6 Considerations Internet Gateways support both IPv4 and IPv6 traffic. With IPv6, every instance can have a public IP address by default, which simplifies routing but increases the importance of stringent security controls. Unlike IPv4, there is no NAT for IPv6; all communication is direct and must be tightly managed through security groups and ACLs. Best Practices 1.Use Internet Gateways with Caution: Only attach them when necessary, and only to VPCs that require internet connectivity. 2.Designate Public and Private Subnets Clearly: Structure your VPC with a clear distinction between public-facing and internal resources. 3.Monitor Traffic: Use services like AWS VPC Flow Logs and CloudWatch to monitor and audit traffic flowing through your Internet Gateway. 4.Limit Public IP Usage: Use private IPs and access the internet through a NAT Gateway or NAT instance when possible. 5.Use IAM Roles and Policies: Ensure that only authorized users and services can modify route tables and security configurations related to Internet Gateways.

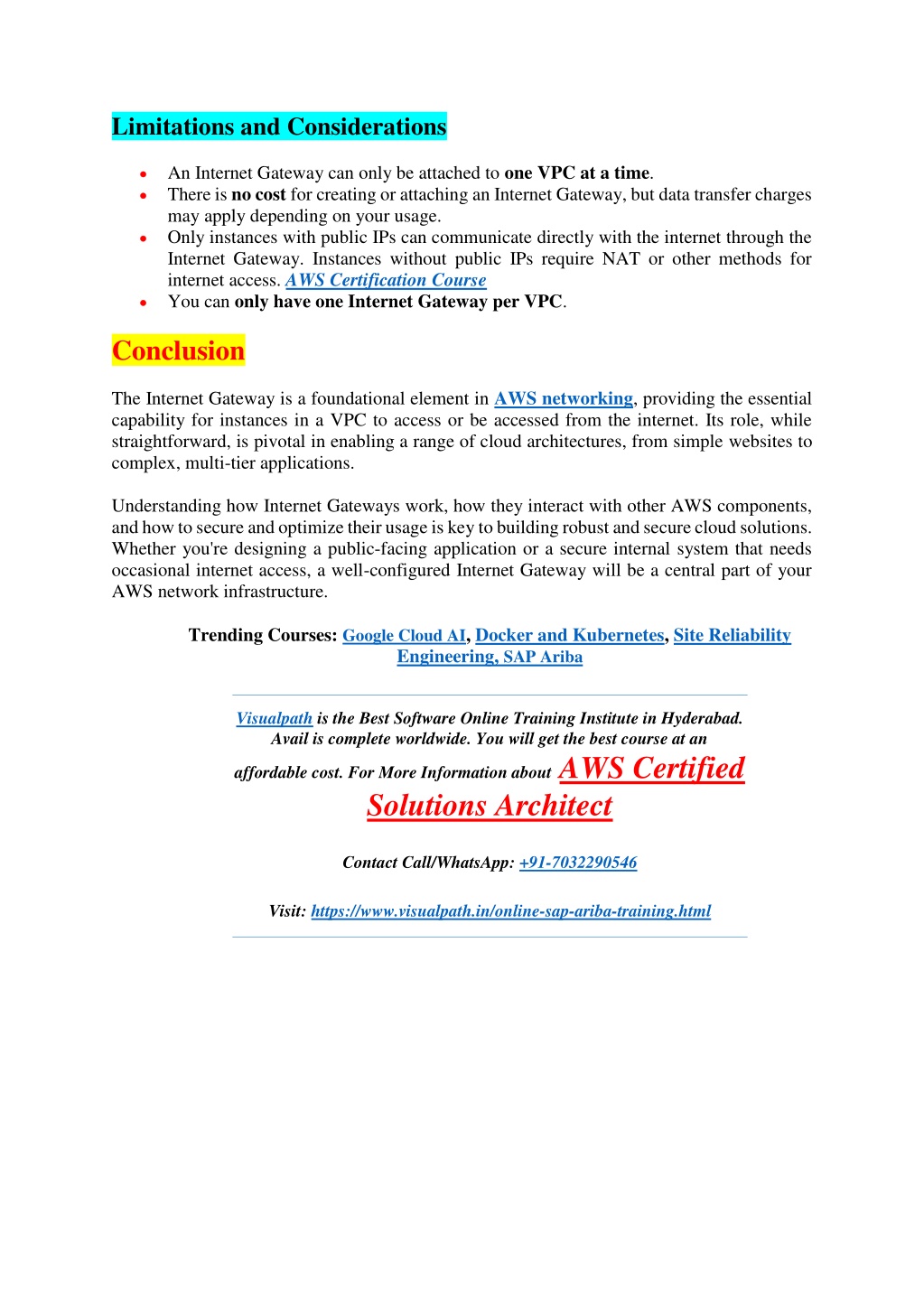

4. Limitations and Considerations  An Internet Gateway can only be attached to one VPC at a time.  There is no cost for creating or attaching an Internet Gateway, but data transfer charges may apply depending on your usage.  Only instances with public IPs can communicate directly with the internet through the Internet Gateway. Instances without public IPs require NAT or other methods for internet access. AWS Certification Course  You can only have one Internet Gateway per VPC. Conclusion The Internet Gateway is a foundational element in AWS networking, providing the essential capability for instances in a VPC to access or be accessed from the internet. Its role, while straightforward, is pivotal in enabling a range of cloud architectures, from simple websites to complex, multi-tier applications. Understanding how Internet Gateways work, how they interact with other AWS components, and how to secure and optimize their usage is key to building robust and secure cloud solutions. Whether you're designing a public-facing application or a secure internal system that needs occasional internet access, a well-configured Internet Gateway will be a central part of your AWS network infrastructure. Trending Courses: Google Cloud AI, Docker and Kubernetes, Site Reliability Engineering, SAP Ariba Visualpath is the Best Software Online Training Institute in Hyderabad. Avail is complete worldwide. You will get the best course at an affordable cost. For More Information about AWS Certified Solutions Architect Contact Call/WhatsApp: +91-7032290546 Visit: https://www.visualpath.in/online-sap-ariba-training.html
