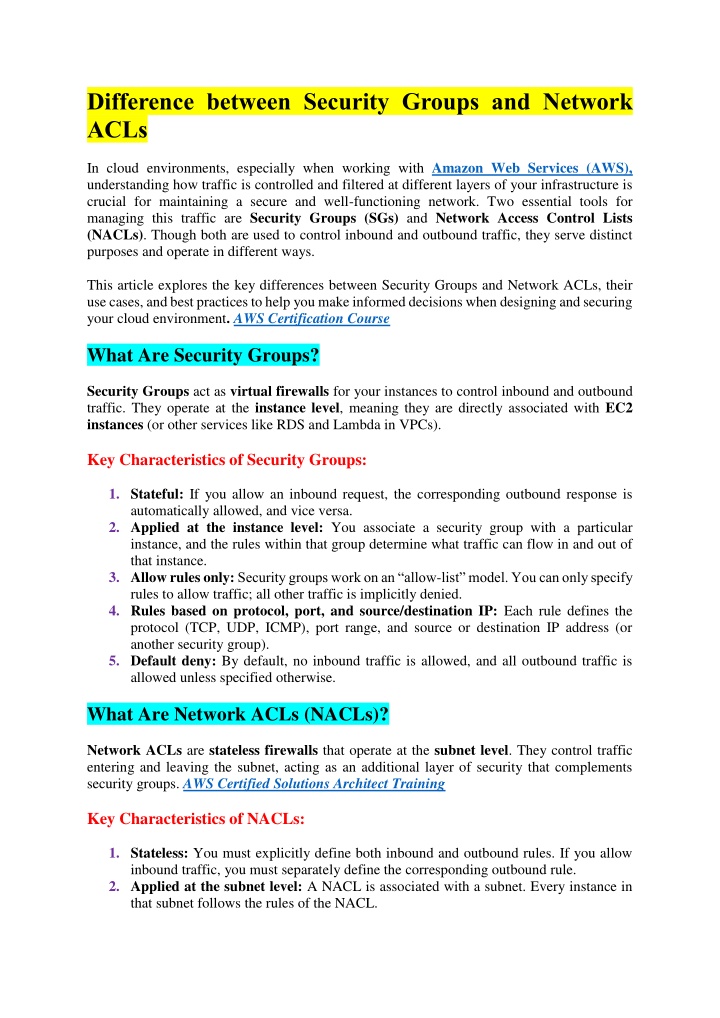

1. Difference between Security Groups and Network ACLs In cloud environments, especially when working with Amazon Web Services (AWS), understanding how traffic is controlled and filtered at different layers of your infrastructure is crucial for maintaining a secure and well-functioning network. Two essential tools for managing this traffic are Security Groups (SGs) and Network Access Control Lists (NACLs). Though both are used to control inbound and outbound traffic, they serve distinct purposes and operate in different ways. This article explores the key differences between Security Groups and Network ACLs, their use cases, and best practices to help you make informed decisions when designing and securing your cloud environment. AWS Certification Course What Are Security Groups? Security Groups act as virtual firewalls for your instances to control inbound and outbound traffic. They operate at the instance level, meaning they are directly associated with EC2 instances (or other services like RDS and Lambda in VPCs). Key Characteristics of Security Groups: 1.Stateful: If you allow an inbound request, the corresponding outbound response is automatically allowed, and vice versa. 2.Applied at the instance level: You associate a security group with a particular instance, and the rules within that group determine what traffic can flow in and out of that instance. 3.Allow rules only:Security groups work on an “allow-list” model. You can only specify rules to allow traffic; all other traffic is implicitly denied. 4.Rules based on protocol, port, and source/destination IP: Each rule defines the protocol (TCP, UDP, ICMP), port range, and source or destination IP address (or another security group). 5.Default deny: By default, no inbound traffic is allowed, and all outbound traffic is allowed unless specified otherwise. What Are Network ACLs (NACLs)? Network ACLs are stateless firewalls that operate at the subnet level. They control traffic entering and leaving the subnet, acting as an additional layer of security that complements security groups. AWS Certified Solutions Architect Training Key Characteristics of NACLs: 1.Stateless: You must explicitly define both inbound and outbound rules. If you allow inbound traffic, you must separately define the corresponding outbound rule. 2.Applied at the subnet level: A NACL is associated with a subnet. Every instance in that subnet follows the rules of the NACL.

2. 3.Allow and deny rules: Unlike security groups, NACLs can have rules to explicitly allow or deny traffic. 4.Numbered rules and rule evaluation: Each rule has a rule number, and the rules are evaluated in order from the lowest to the highest number. The first rule that matches the traffic is applied. 5.Default NACL: Every VPC comes with a default NACL that allows all inbound and outbound traffic. You can modify this or create custom NACLs. Comparing Security Groups and Network ACLs The following table summarizes the core differences between the two: Feature Security Groups Instance level Stateful Allow only Denies all inbound, allows all outbound Network ACLs Subnet level Stateless Allow and Deny Allows all inbound and outbound (default NACL) Rules are evaluated in order, from lowest number Associated with subnets Controlling subnet-level access and IP filtering Level of operation Statefulness Traffic control Default behavior Rule evaluation order Association All rules are evaluated Associated with instances Common use Controlling instance access Use Cases: When to Use Which Use Security Groups When:  You want fine-grained control over individual instances.  You prefer a simplified rule set where you don't need to manage deny rules.  You want AWS to automatically handle return traffic with stateful behavior.  You’re managing services like EC2, RDS, or Lambda in a VPC and want to restrict access to specific ports or IP addresses. AWS Solutions Architect Online Training Example: You have a web server on EC2 that needs to accept HTTP and HTTPS traffic from the internet and connect to a backend database on port 3306. You can set these rules in a security group without worrying about managing return traffic. Use Network ACLs When:  You need to control traffic at the subnet level, affecting multiple instances.  You want to explicitly deny certain IP addresses (e.g., for blacklisting).  You need a stateless firewall to meet compliance or regulatory requirements.  You want a secondary layer of security to complement your security groups.

3. Example: You need to deny access to your entire subnet from a known malicious IP range while allowing all other normal traffic. A NACL is the appropriate tool for this job. Best Practices for Security Groups and NACLs 1. Use Both for Defense in Depth Even though security groups are sufficient in many cases, using both SGs and NACLs together adds an extra layer of protection. For example, if an attacker bypasses a security group due to a misconfiguration, a well-configured NACL might still block the attack. 2. Keep Rules Specific and Minimal Only allow the traffic that is absolutely necessary. Avoid overly broad rules such as opening all ports or allowing access from 0.0.0.0/0 unless necessary. 3. Use Descriptive Naming and Comments Document your rules with comments and use naming conventions to quickly identify the purpose of each security group or NACL. This simplifies management and auditing. 4. Monitor and Audit Regularly Use AWS tools like VPC Flow Logs, AWS Config, and CloudTrail to monitor traffic patterns and changes to your network security configurations. Regular audits can help catch misconfigurations early. AWS Solutions Architect Certification Training 5. Implement Least Privilege Follow the principle of least privilege: start with no access and add rules only when a specific access need arises. Common Misconceptions “Security Groups and NACLs are interchangeable.” This is a common misconception. They operate at different levels and have distinct characteristics. Security groups are for instances; NACLs are for subnets. You often need both. “NACLs are better because they have deny rules.” While deny rules are useful, NACLs are stateless and more complex to manage. They are not necessarily better—just different, and suited for specific use cases. “Security Groups are not secure because they can’t deny traffic.” Security groups are still highly secure. Their implicit deny rule means any traffic not explicitly allowed is automatically blocked. AWS Solutions Architect Online

4. Conclusion Both Security Groups and Network ACLs are fundamental tools in AWS networking and cloud security. Understanding their differences is crucial to designing robust, secure architectures. While security groups offer simplicity and stateful control at the instance level, NACLs provide granular, stateless control at the subnet level with the added ability to explicitly deny traffic. For most day-to-day tasks, security groups are sufficient, but NACLs become important for scenarios requiring subnet-level filtering, IP blacklisting, or compliance with advanced security requirements. The best approach is to use them together, applying defense in depth, and tailoring rules based on your application’s specific security needs. Trending Courses: Google Cloud AI, Docker and Kubernetes, Site Reliability Engineering, SAP Ariba Visualpath is the Best Software Online Training Institute in Hyderabad. Avail is complete worldwide. You will get the best course at an affordable cost. For More Information about AWS Certified Solutions Architect Contact Call/WhatsApp: +91-7032290546 Visit: https://www.visualpath.in/online-aws-solution-architect- certification-training.html
