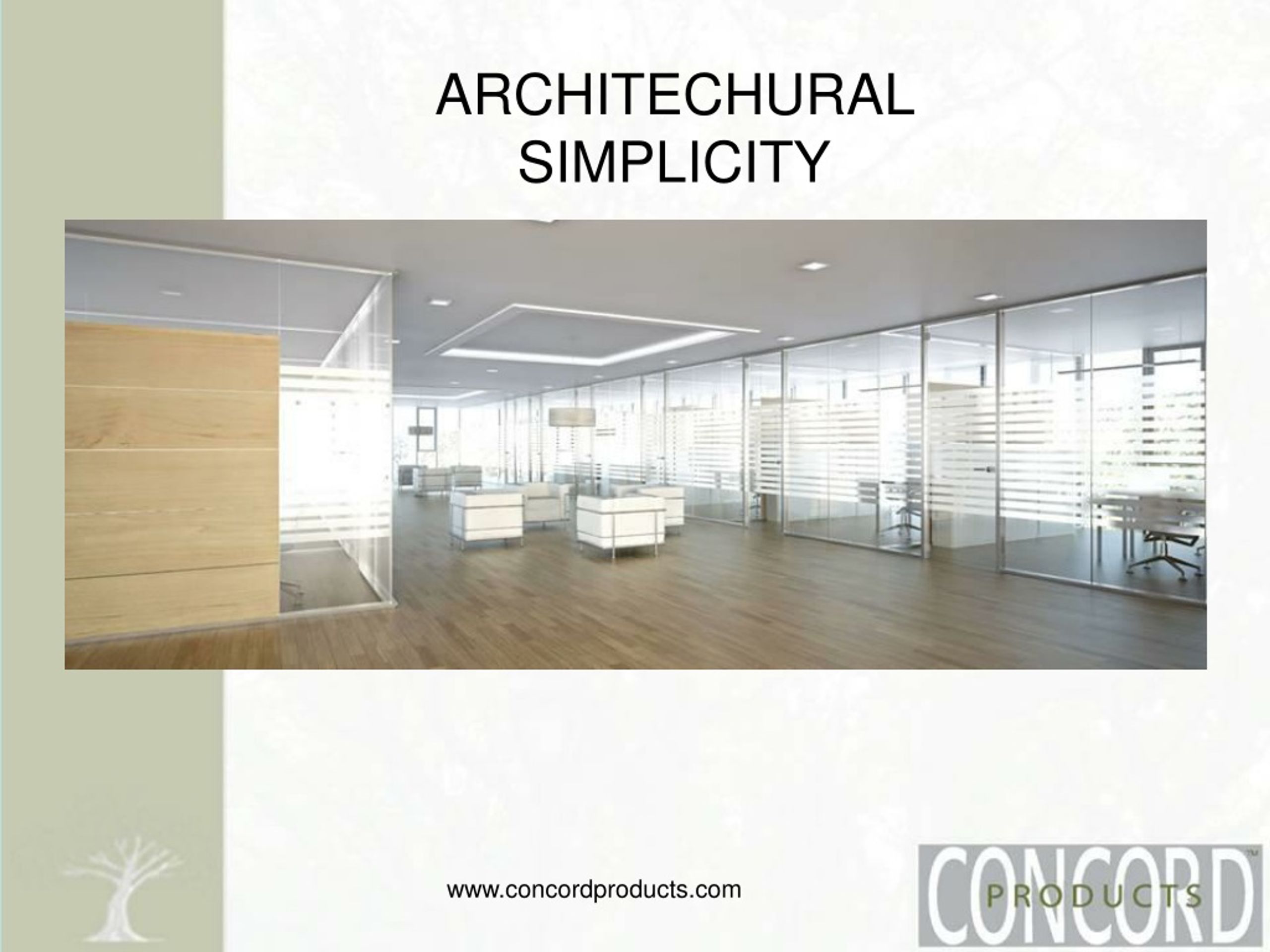

  1. ARCHITECHURAL SIMPLICITY www.concordproducts.com

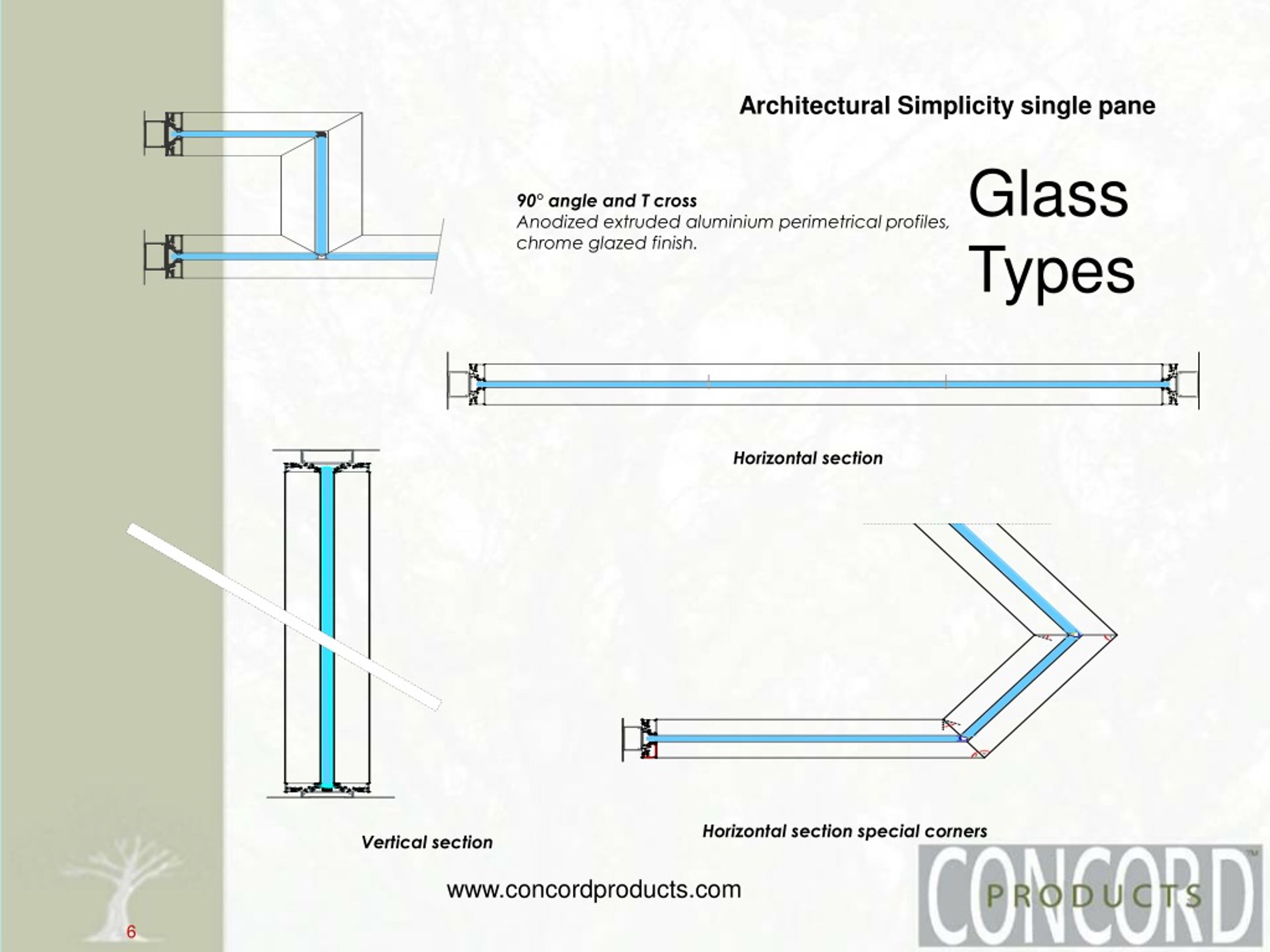

  2. Architectural Simplicity single pane Glass Types 90° angle and T cross Anodized extruded aluminium perimetrical profiles, chrome glazed finish. Horizontal section Horizontal section special corners Vertical section www.concordproducts.com 6

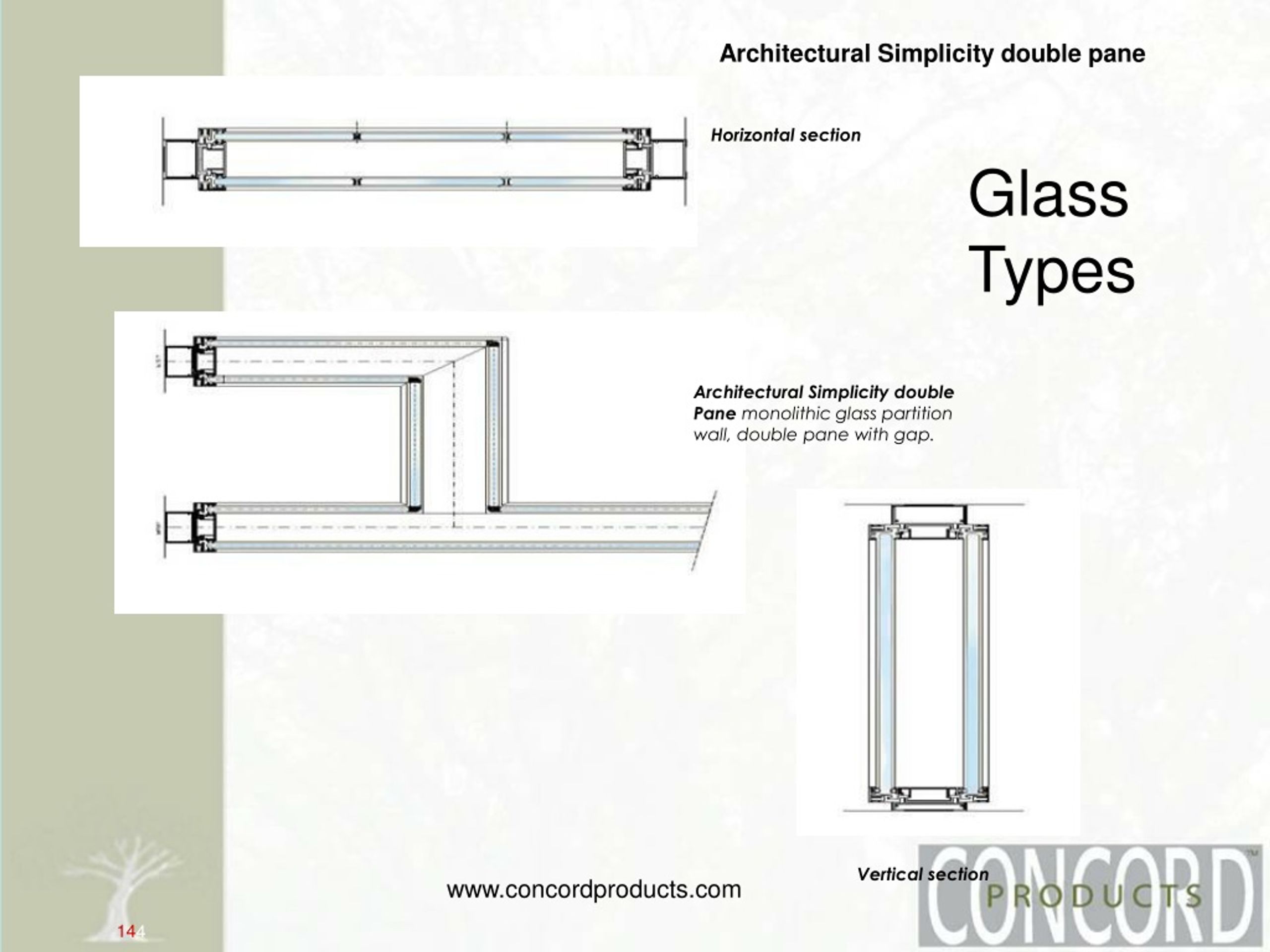

  3. Architectural Simplicity double pane Horizontal section Glass Types Architectural Simplicity double Pane monolithic glass partition wall, double pane with gap. Vertical section www.concordproducts.com 14 14

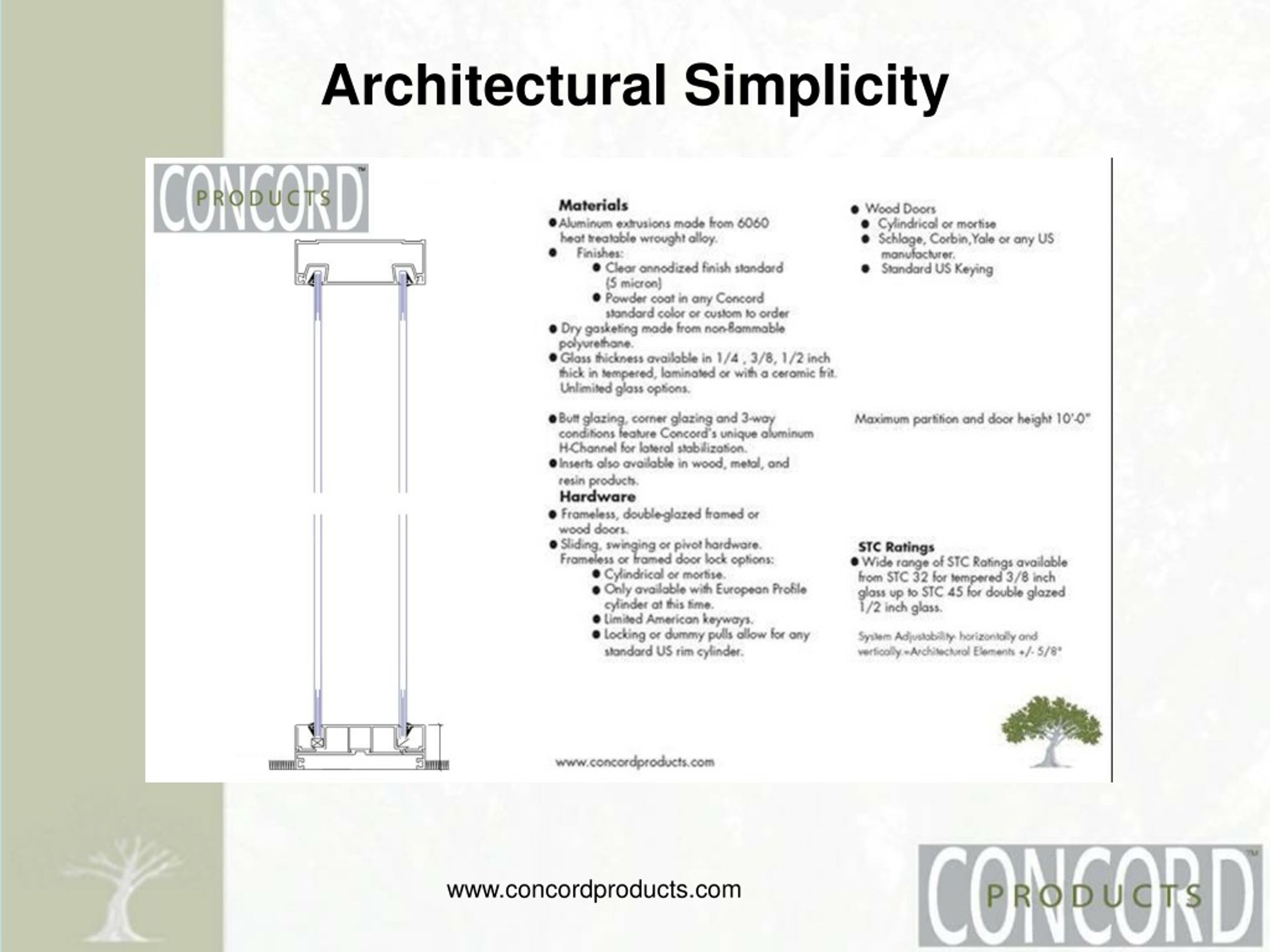

  4. Architectural Simplicity www.concordproducts.com

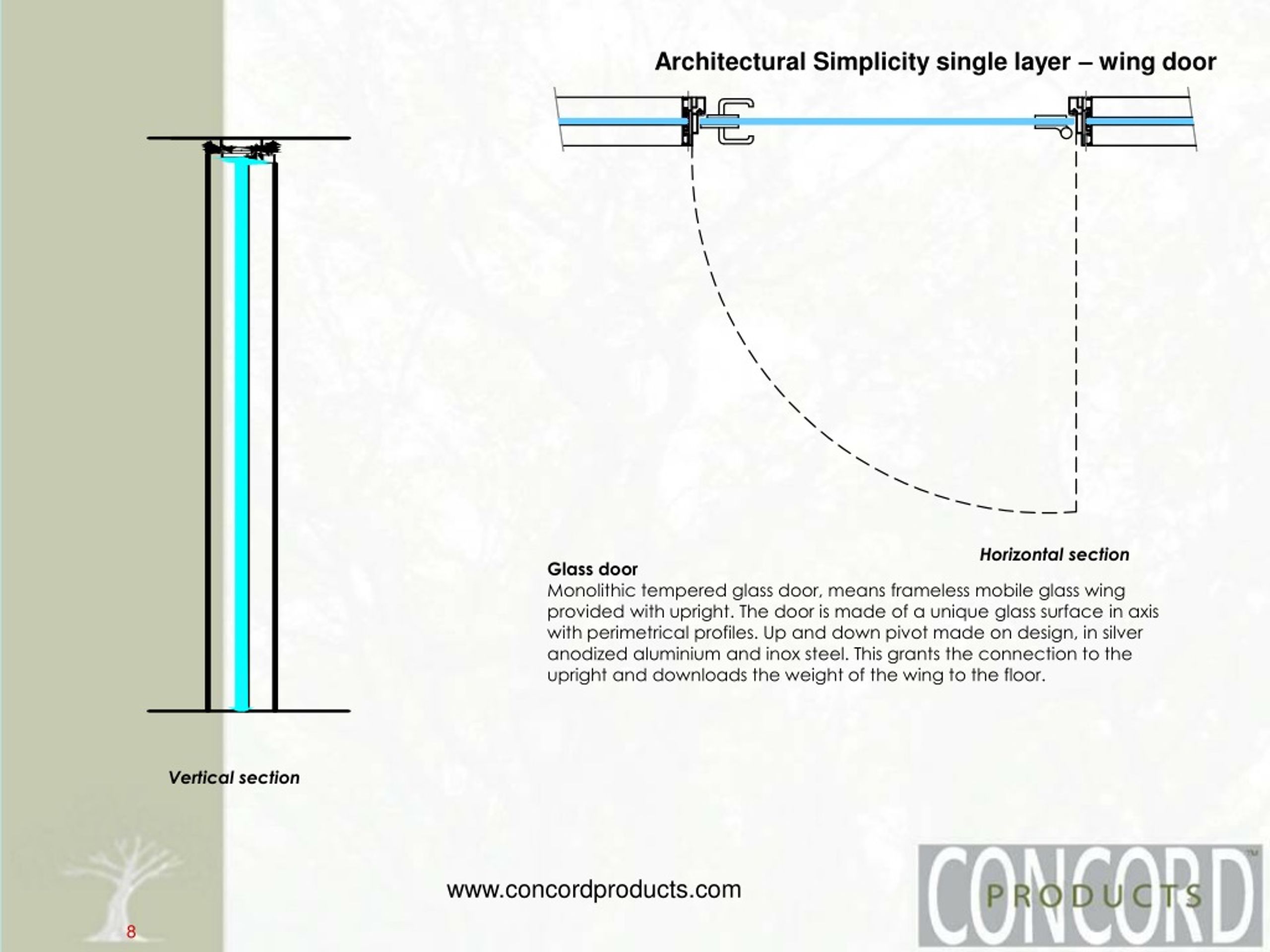

  5. Architectural Simplicity single layer – wing door Horizontal section Glass door Monolithic tempered glass door, means frameless mobile glass wing provided with upright. The door is made of a unique glass surface in axis with perimetrical profiles. Up and down pivot made on design, in silver anodized aluminium and inox steel. This grants the connection to the upright and downloads the weight of the wing to the floor. Vertical section www.concordproducts.com 8

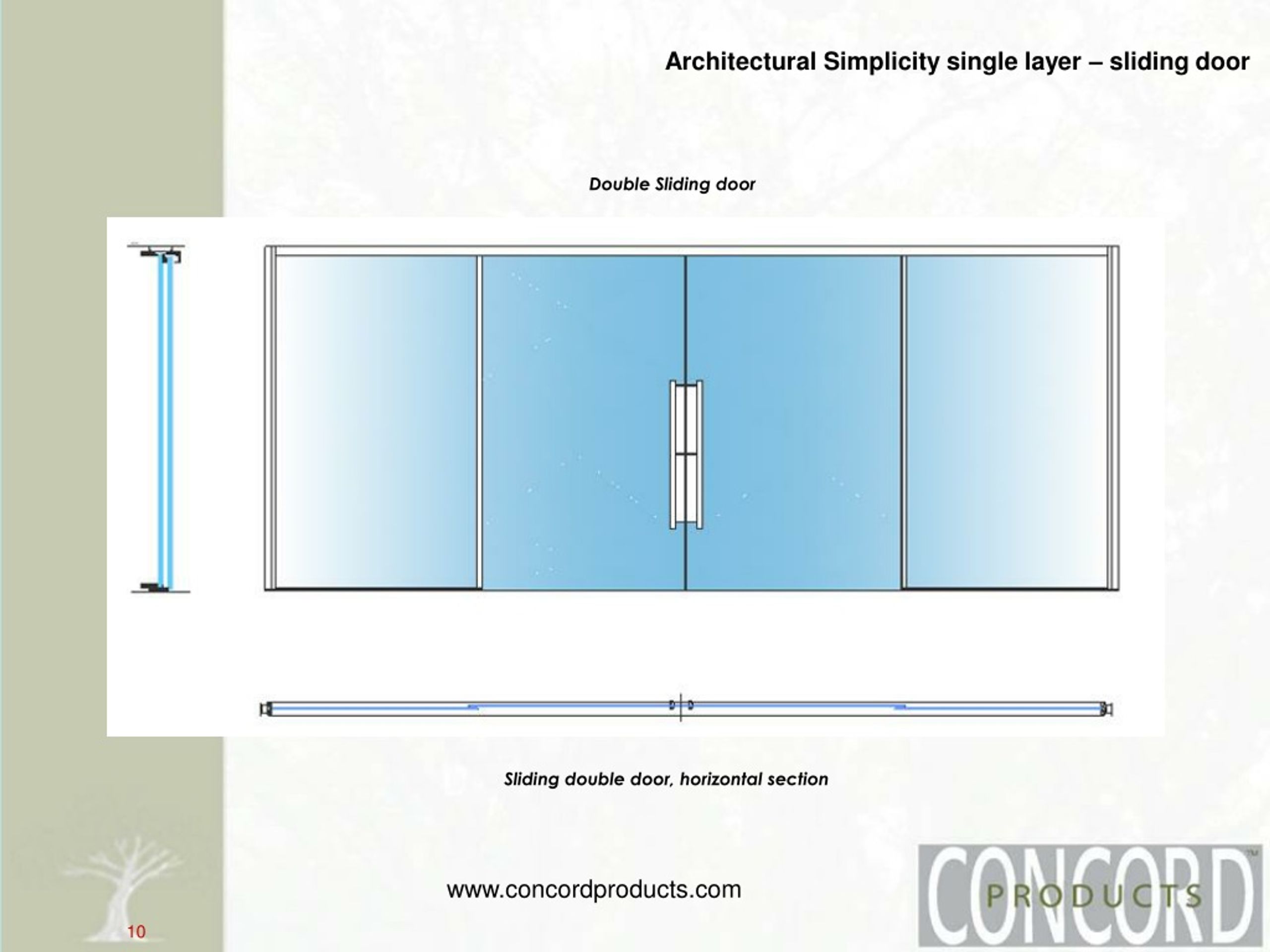

  6. Architectural Simplicity single layer – sliding door Double Sliding door Sliding double door, horizontal section www.concordproducts.com 10

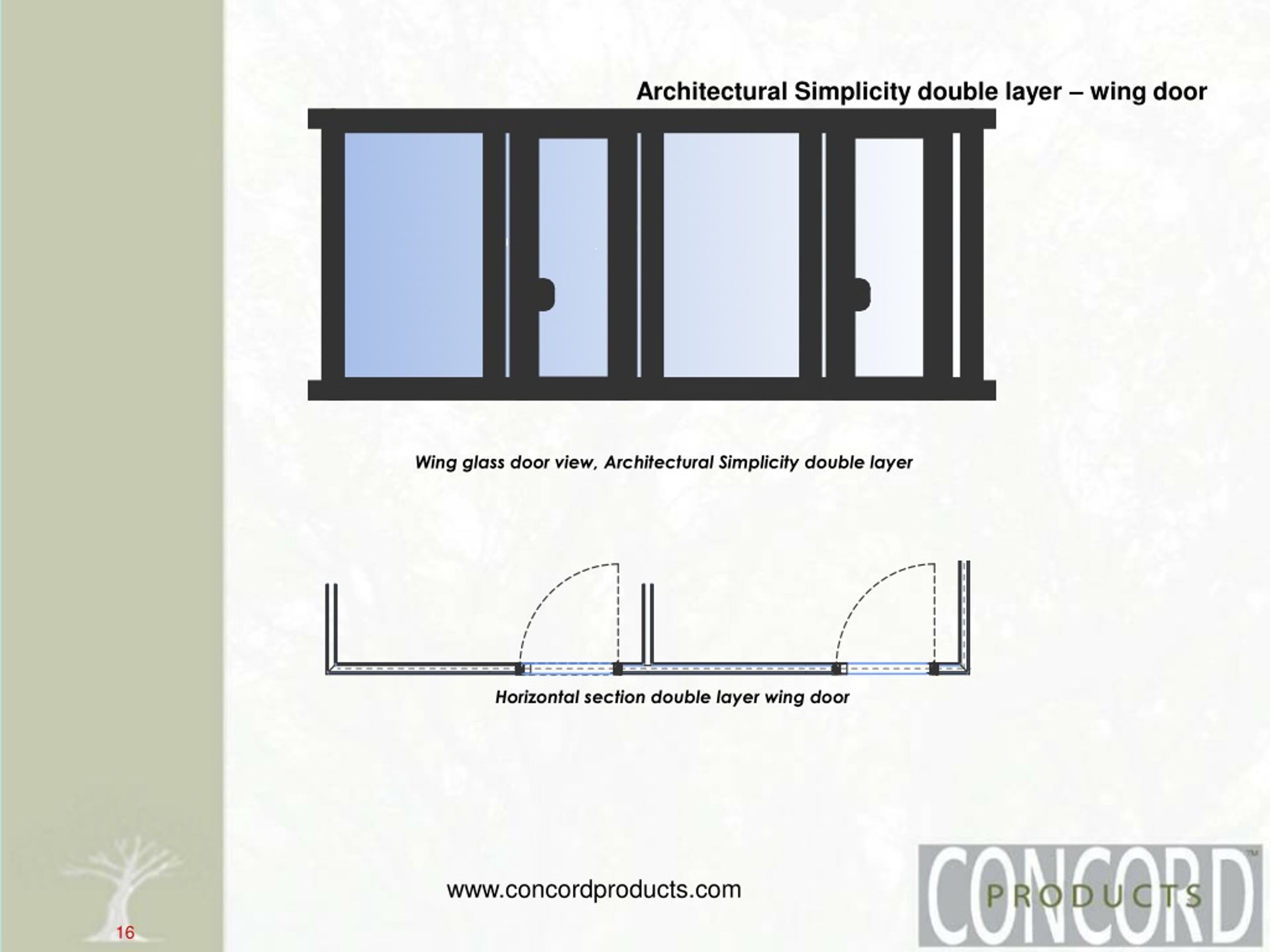

  7. Architectural Simplicity double layer – wing door Wing glass door view, Architectural Simplicity double layer Horizontal section double layer wing door www.concordproducts.com 16

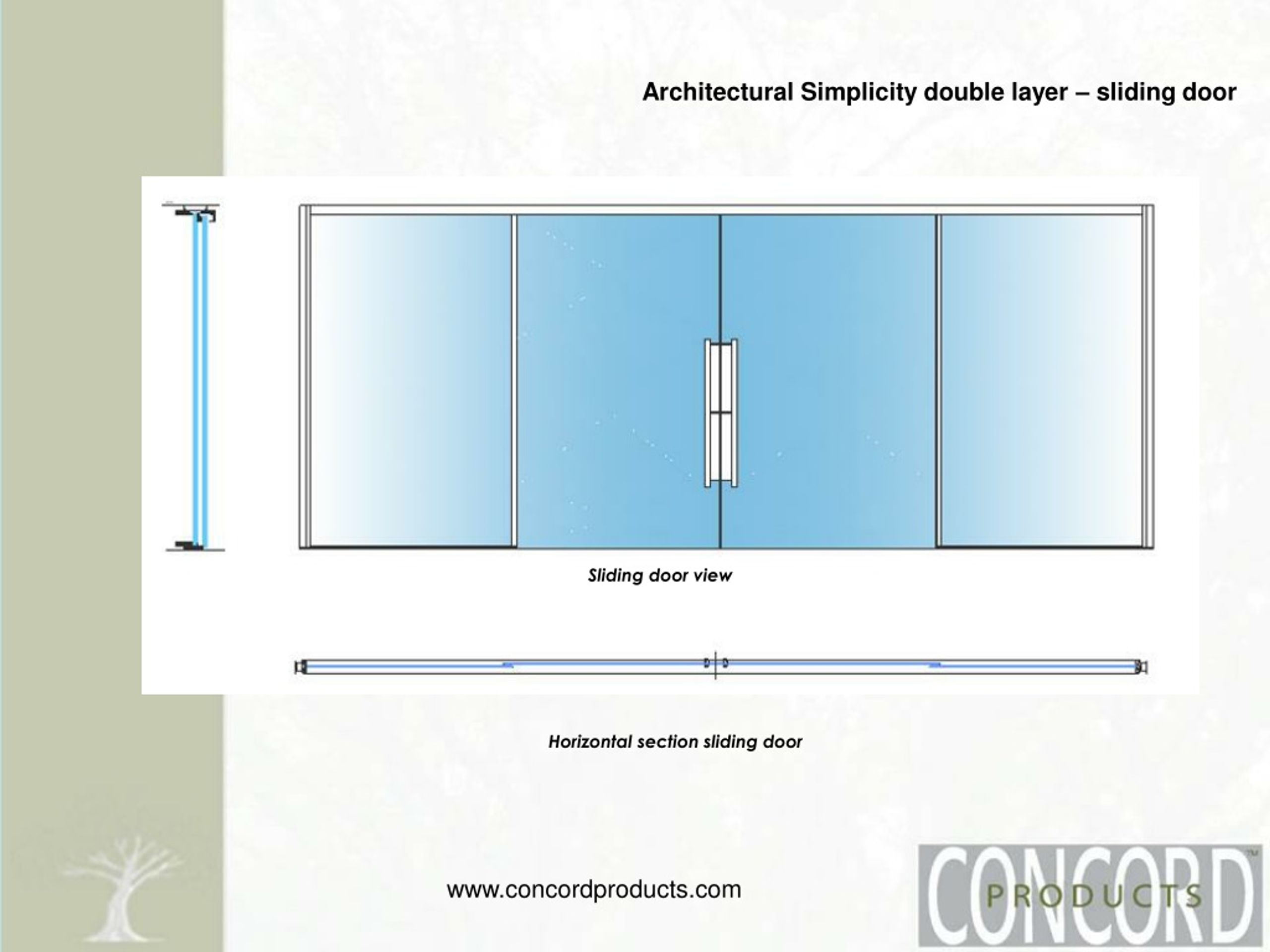

  8. Architectural Simplicity double layer – sliding door Sliding door view Horizontal section sliding door www.concordproducts.com

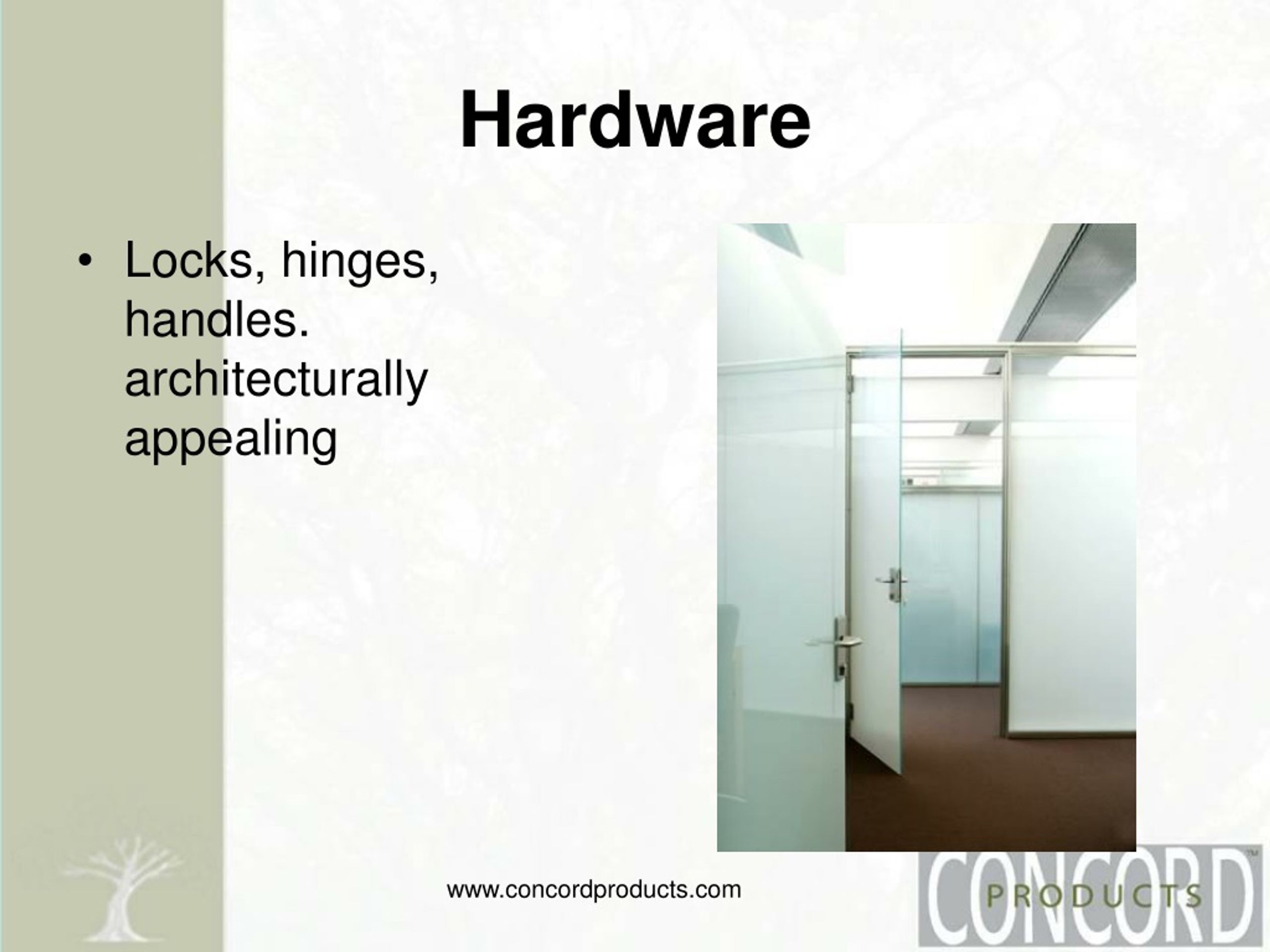

  9. Hardware • Locks, hinges, handles. architecturally appealing www.concordproducts.com

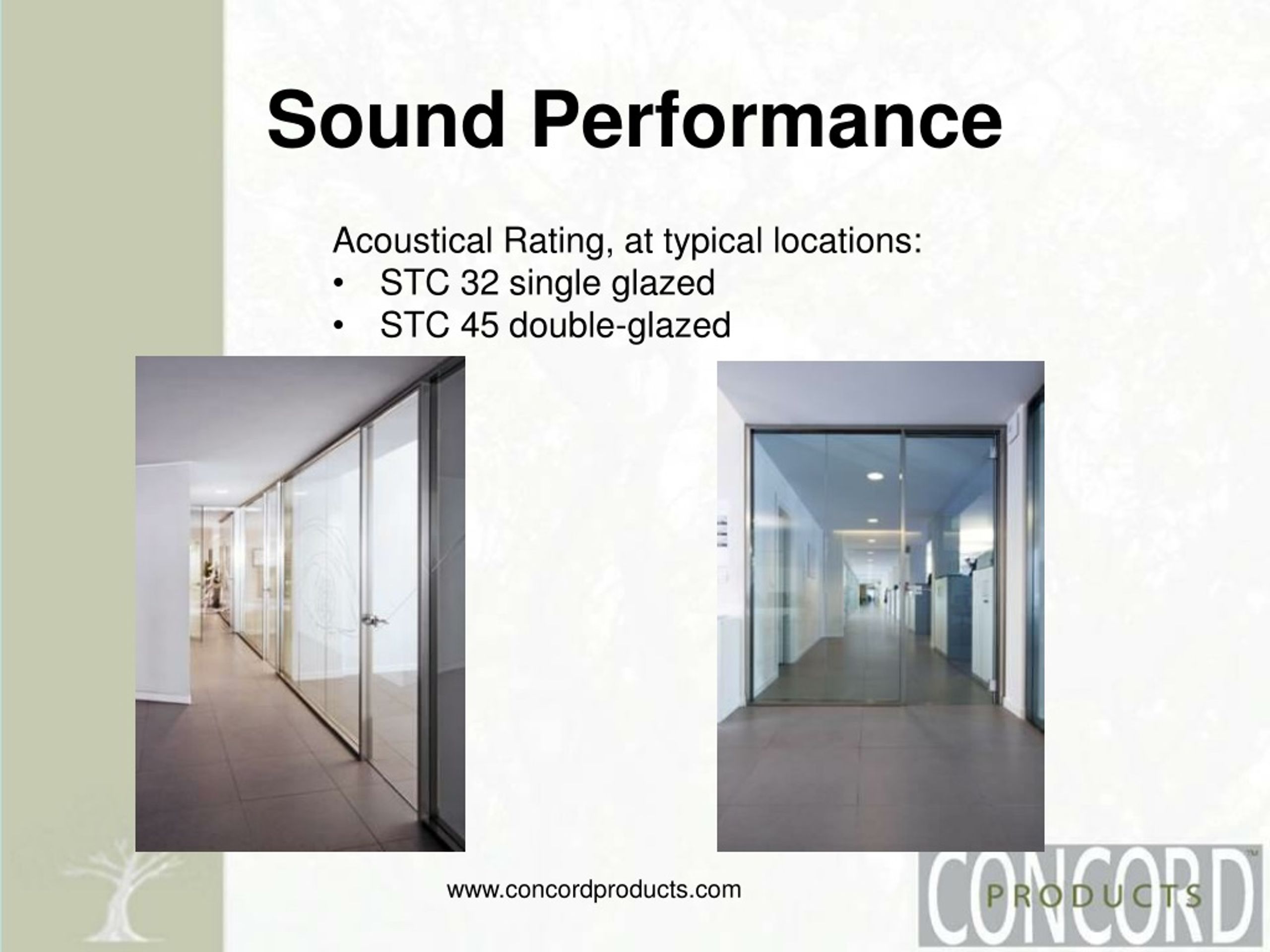

  10. Sound Performance • Acoustical Rating, at typical locations: • STC 32 single glazed • STC 45 double-glazed www.concordproducts.com

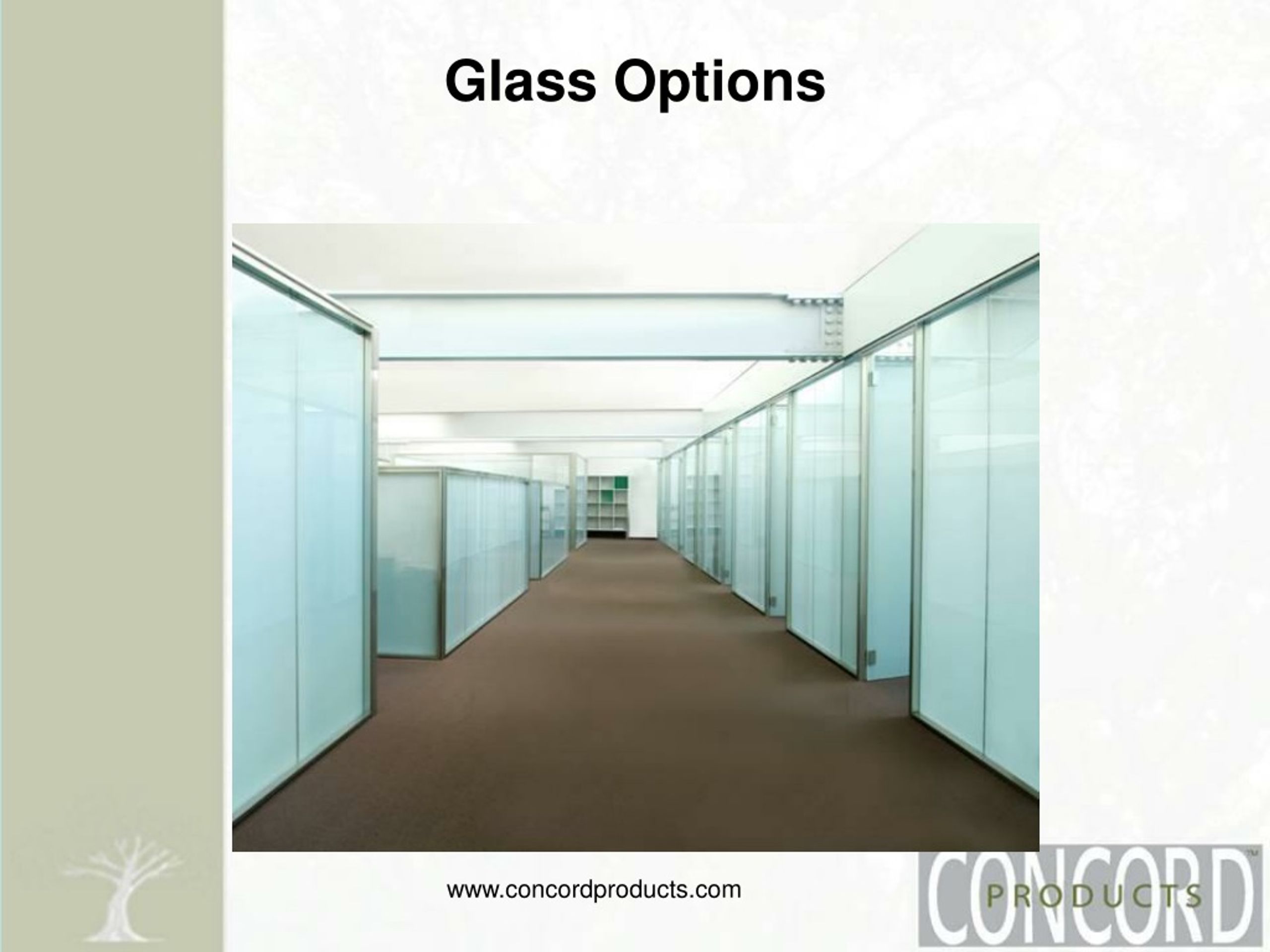

  11. Glass Options Glass- films www.concordproducts.com

  12. Glass Options Glass-textured & colors www.concordproducts.com

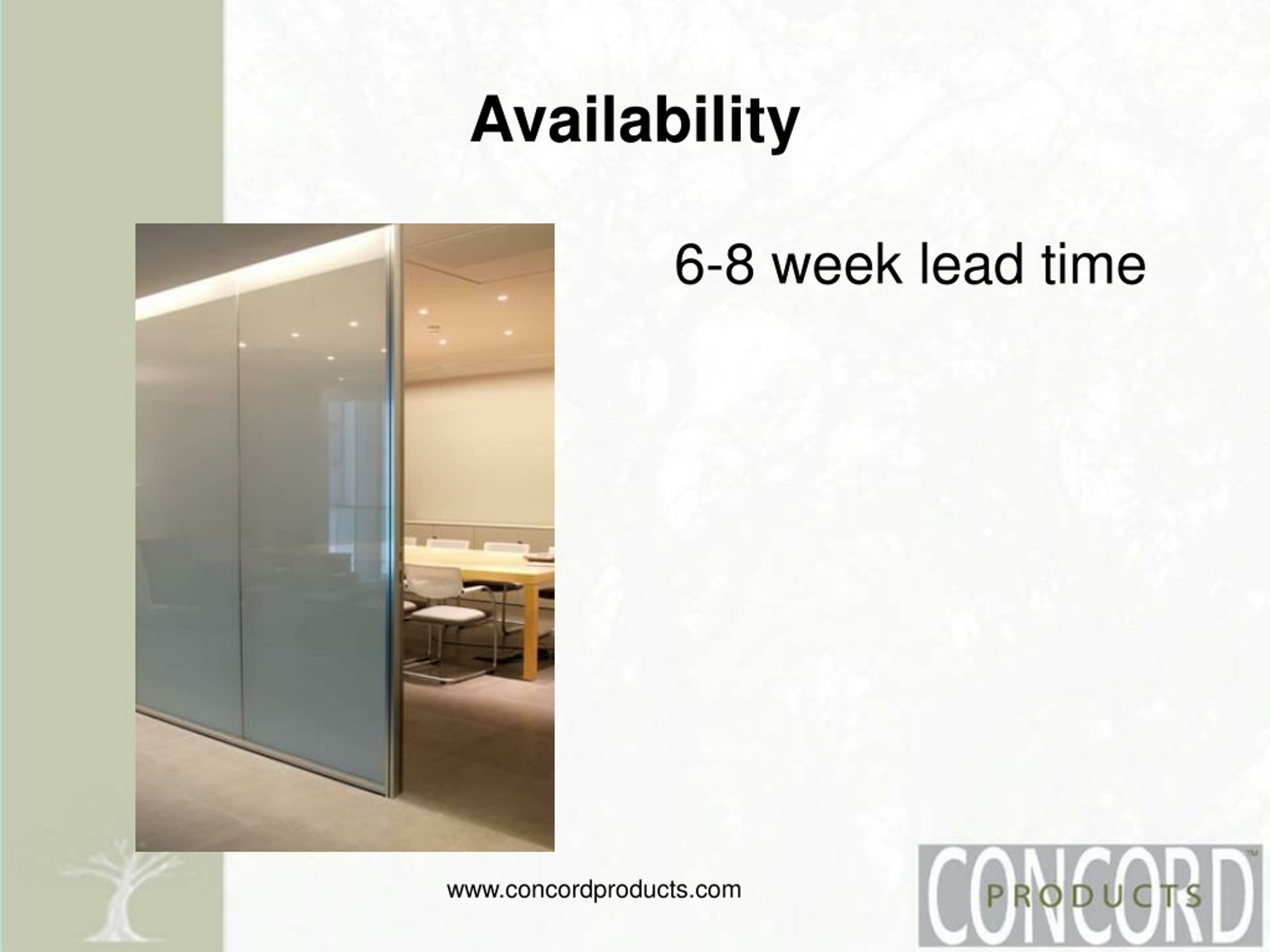

  13. Availability 6-8 week lead time www.concordproducts.com

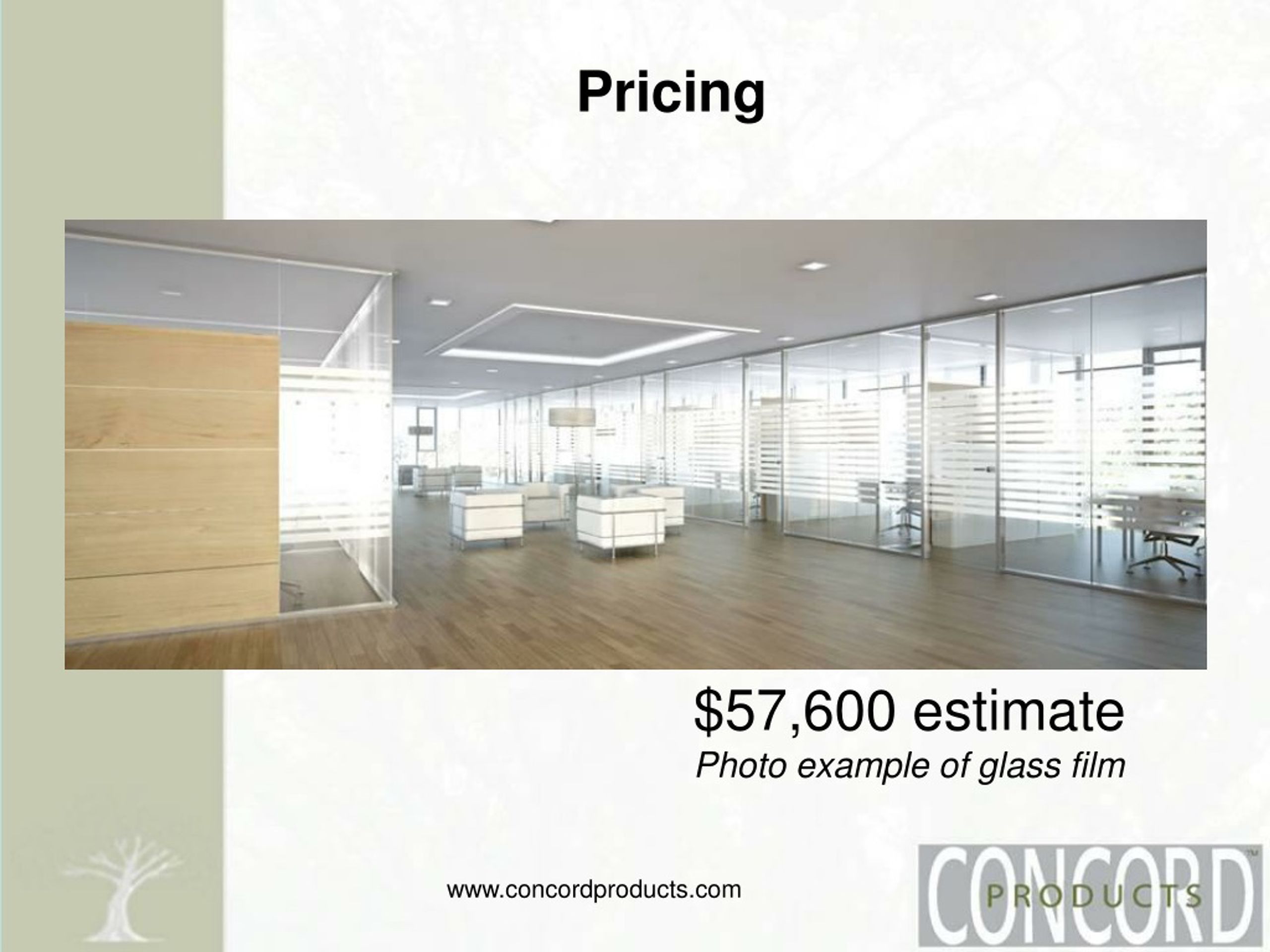

  14. Pricing $57,600 estimate Photo example of glass film www.concordproducts.com

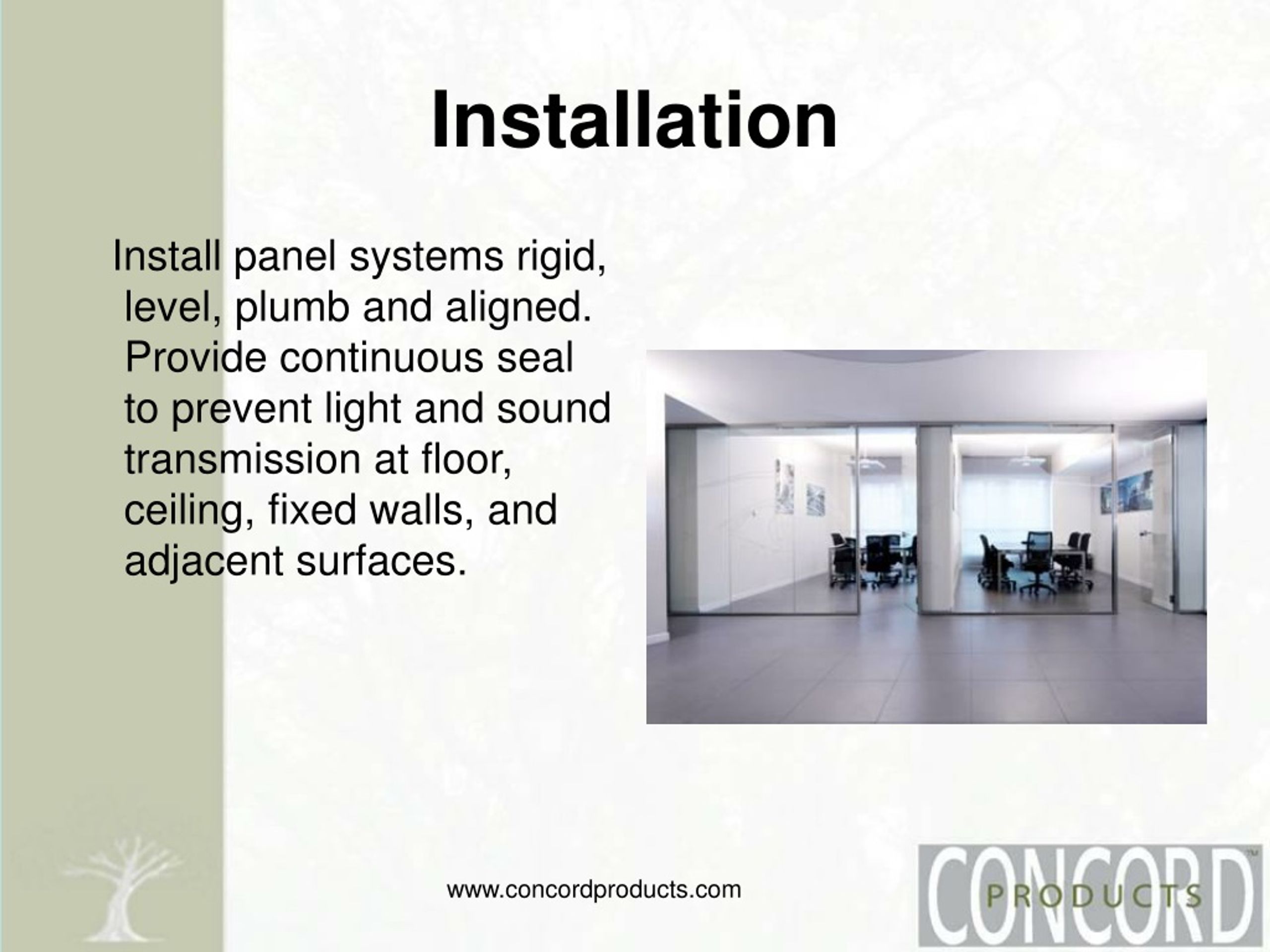

  15. Installation Install panel systems rigid, level, plumb and aligned. Provide continuous seal to prevent light and sound transmission at floor, ceiling, fixed walls, and adjacent surfaces. www.concordproducts.com

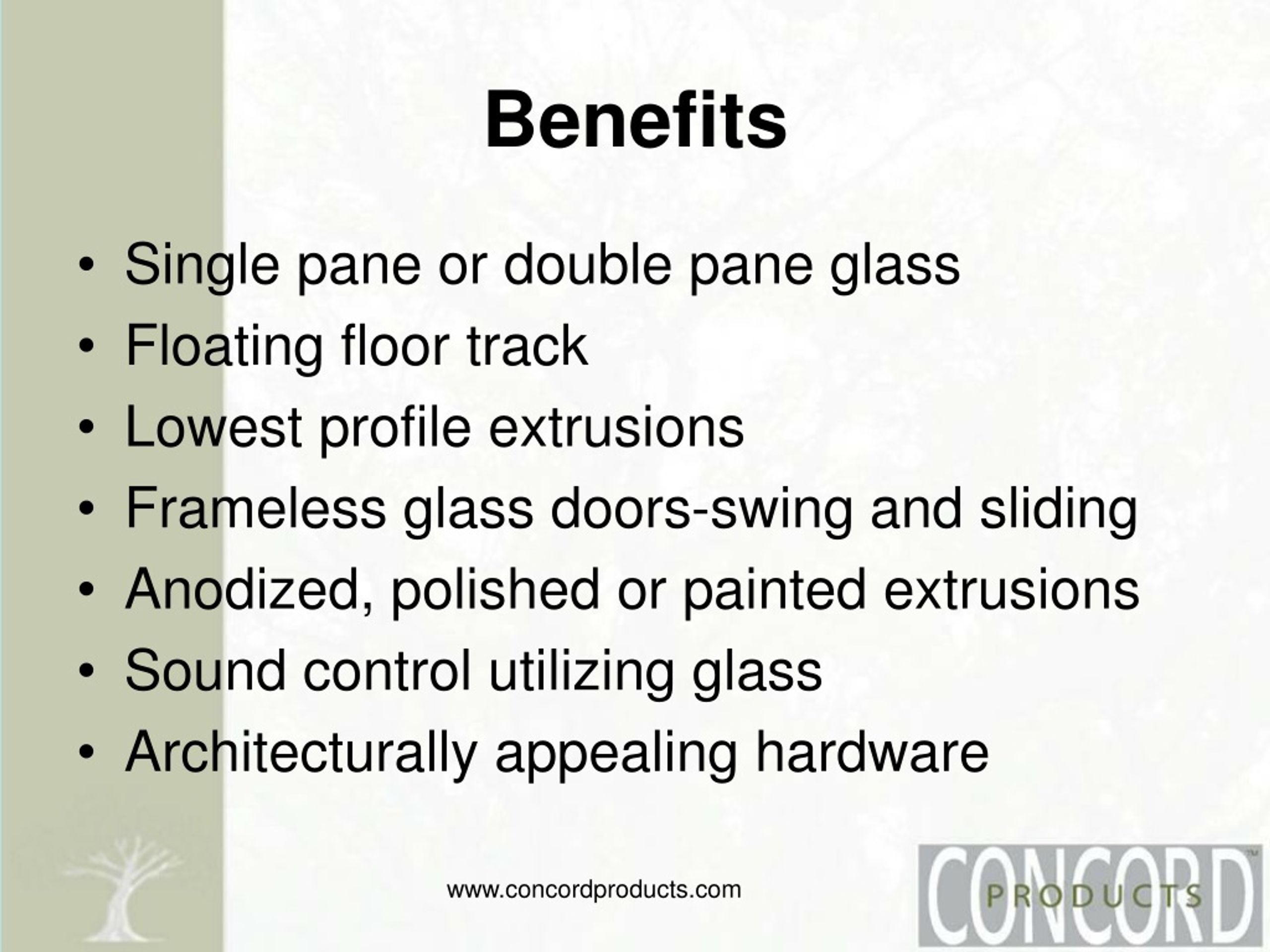

  16. Benefits • Single pane or double pane glass • Floating floor track • Lowest profile extrusions • Frameless glass doors-swing and sliding • Anodized, polished or painted extrusions • Sound control utilizing glass • Architecturally appealing hardware www.concordproducts.com
