High-Quality Speaker Cable for Fixed Installation

Ideal for permanent installations, this speaker cable features a low heat of combustion, reducing fire hazard risks. With a robust structure, PVC outer casing, and exceptional conduction, it ensures reliable performance. Specifications include 2 cores, 6.0mm² cross-section, and 1000m max length, making it suitable for various setups. Stay secure with the combustion resistance of 2.85Ω/km and heat of combustion at 312kWh/km. Upgrade your audio system with this durable and efficient cable.

rajah-decker
Download Presentation

High-Quality Speaker Cable for Fixed Installation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

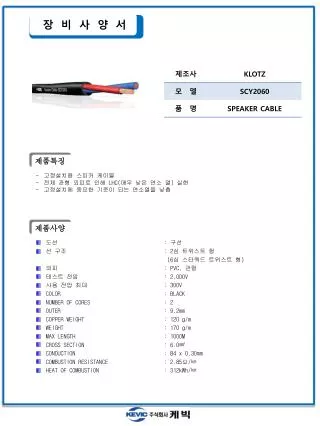

  1. 장 비 사 양 서 제품특징 • 고정설치용 스피커 케이블 • 전체 관형 외피로 인해 LHC(매우 낮은 연소 열) 실현 • 고정설치에 중요한 기준이 되는 연소열을 낮춤 제품사양 • 도선 : 구선 • 선 구조 : 2심 트위스트 형 • (6심 스타쿼드 트위스트 형) • 외피 : PVC, 관형 • 테스트 전압 : 2,000V • 사용 전압 최대 : 300V • COLOR : BLACK • NUMBER OF CORES : 2 • OUTER : 9.2mm • COPPER WEIGHT : 120 g/m • WEIGHT : 170 g/m • MAX LENGTH : 1000M • CROSS SECTION : 6.0㎣ • CONDUCTION : 84 x 0.30mm • COMBUSTION RESISTANCE : 2.85Ω/㎞ • HEAT OF COMBUSTION : 312kWh/㎞
