  1. Master in Engineering Design Air Conditioning Active Distribution System Cinema Case Study MCS - Vision Control José Gaspar 14 January 2005 ACADS - MCS

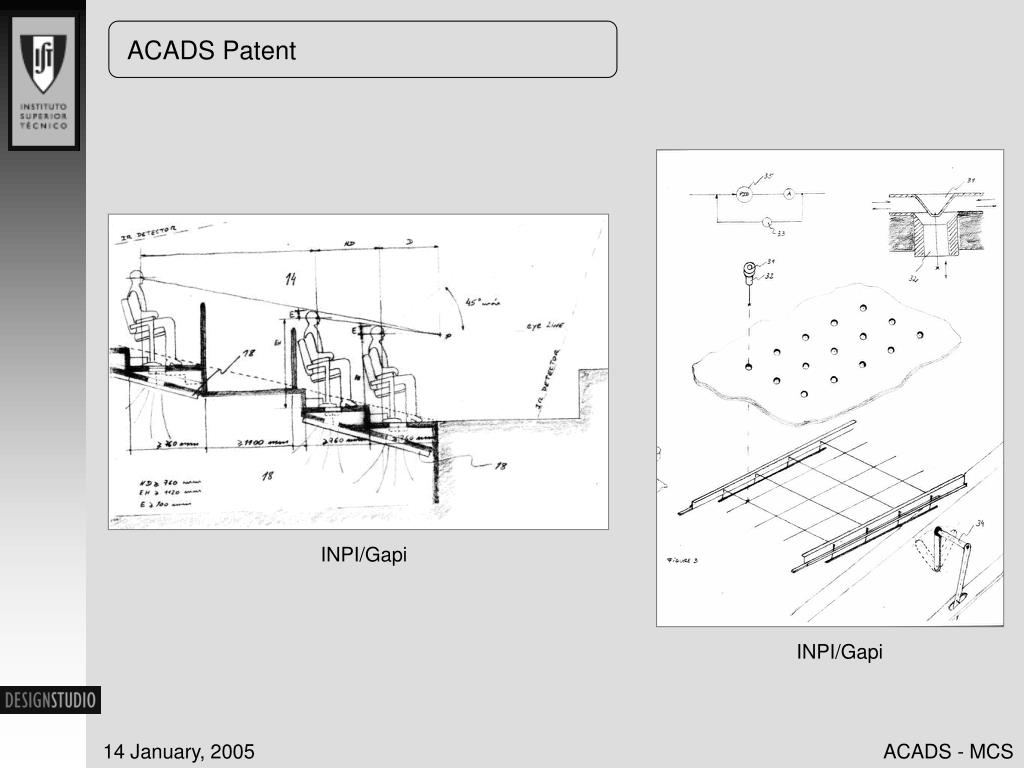

  2. ACADS Patent INPI/Gapi INPI/Gapi ACADS - MCS

  3. Detector Technologies for Machine Vision ACADS - MCS

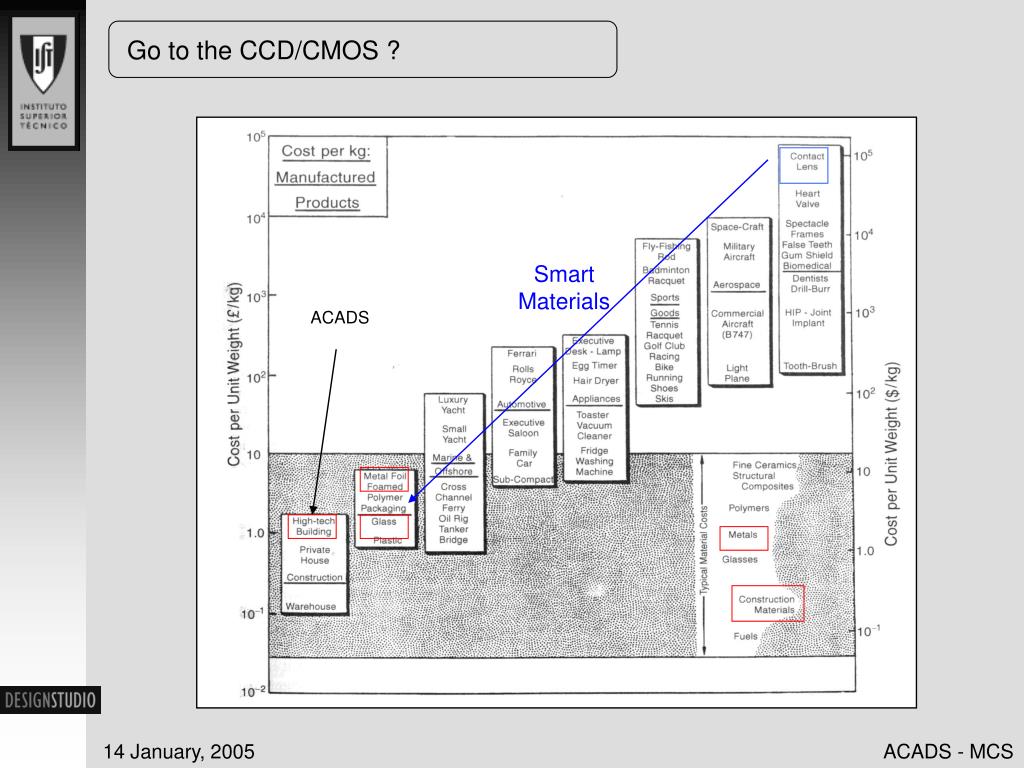

  4. Smart Materials ACADS Go to the CCD/CMOS ? ACADS - MCS

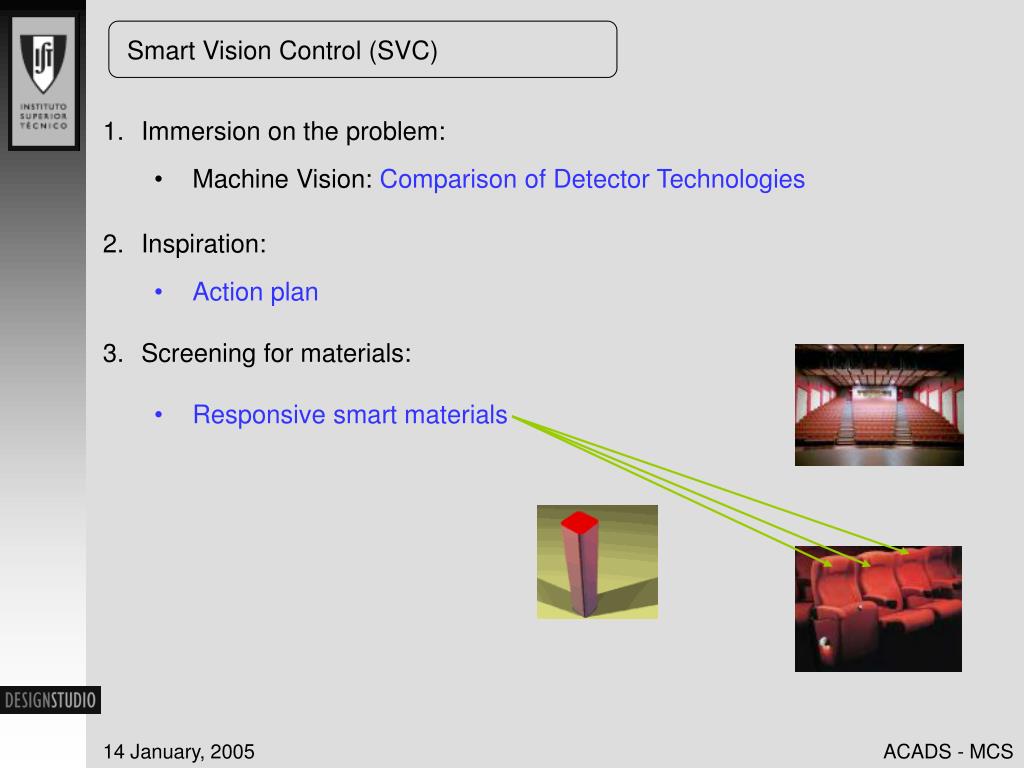

  5. Smart Vision Control (SVC) • Immersion on the problem: • Machine Vision: Comparison of Detector Technologies • Inspiration: • Action plan • Screening for materials: • Responsive smart materials ACADS - MCS

  6. SVC - Candidate materials Electroluminescent materials Photochromic T-shirt Photochromic materials Fluorescent materials Phosphorescent materials Thermochromic materials Nanocomposites photoluminiscent Thermochromic polymers ACADS - MCS

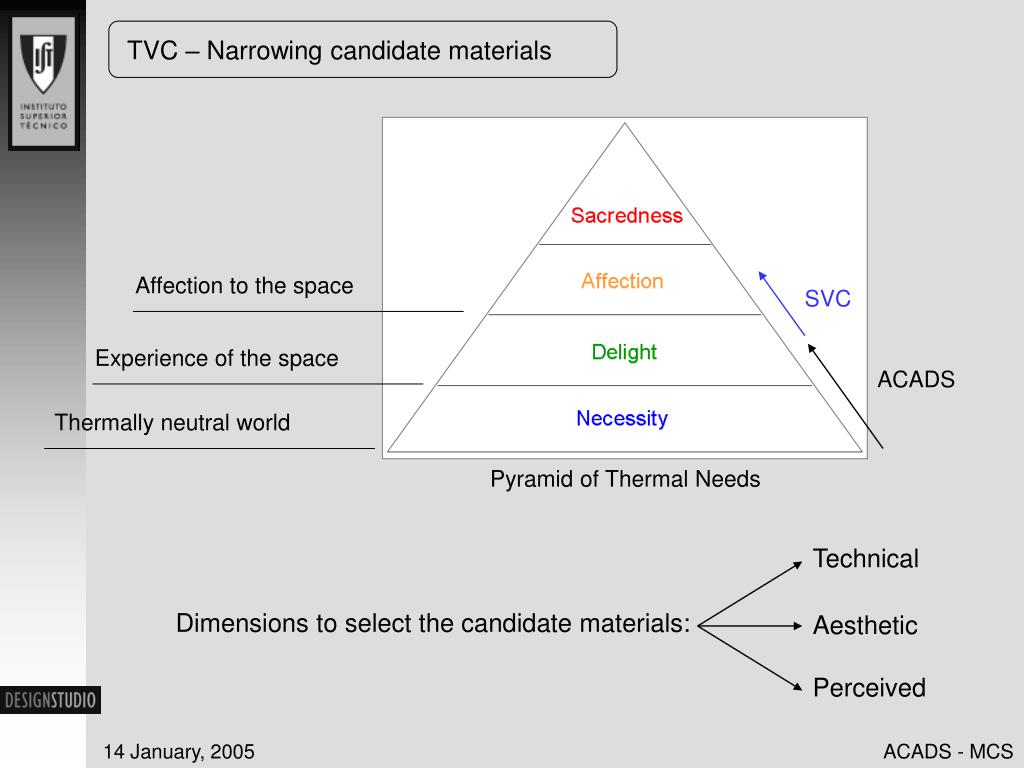

  7. TVC – Narrowing candidate materials Affection to the space SVC Experience of the space ACADS Thermally neutral world Pyramid of Thermal Needs Technical Dimensions to select the candidate materials: Aesthetic Perceived ACADS - MCS

  8. Image Analysis – Application Selection • Fundamental points of view: • Prototyping capability; • Benchmarking; • Available functions; • Processing capability; • Generating an automatic code; • Easy integration with industrial equipments. • Alternatives (LabView): • NI Vision Development Module (Vision Assistant, IMAQ); • NI Vision Builder for Automated Inspection; • SUI Image Analysis. ACADS - MCS

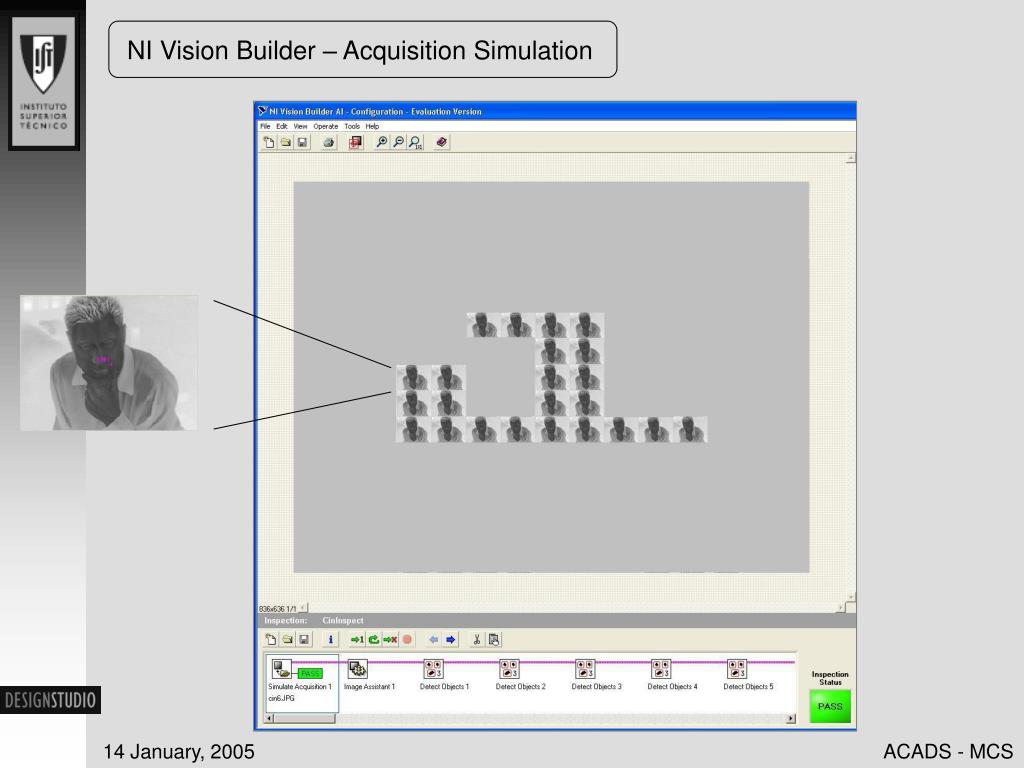

  9. NI Vision Builder – Acquisition Simulation ACADS - MCS

  10. NI Vision Builder – Detection Simulation ACADS - MCS

  11. Thank you ACADS - MCS
