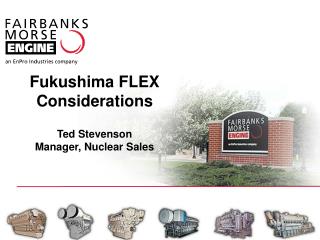

    1. Fukushima FLEX Considerations Ted Stevenson Manager, Nuclear Sales 1

    2. Fukushima FLEX Considerations • What is FLEX ? • In the wake of Fukushima, NRC established the need for DIVERSE AND FLEXIBLE COPING STATEGIES (FLEX) • NEI (Nuclear Energy Institute) created IMPLEMENTATION GUIDE 12-06

    3. Fukushima FLEX Considerations

    4. Fukushima FLEX Considerations

    5. Fukushima FLEX Considerations

    6. Fukushima FLEX Considerations

    7. Fukushima FLEX Considerations

    8. Fukushima FLEX Considerations • FLEX CONSIDERATIONS - need water - need electricity - need portability • FLEX SPECIFICATIONS - in process (not yet finalized)

    9. Fukushima FLEX Considerations EVOLUTION OF FLEX OFFERING BY FAIRBANKS MORSE

    10. Brasil-Angra 1&2

    11. Fukushima FLEX Considerations • ANGRA 2 has been operating since 2000 and has has (4) EDG’s + (4) 870KW engine+generator+speedincreaser+pump • ANGRA 3 is under construction and needs the same

    12. Fukushima FLEX Considerations

    13. Fukushima FLEX Considerations • Existing Angra Unit 2 equipment is obsolete • FM has been solicited to provide replacements for Angra Unit 3

    14. Fukushima FLEX Considerations • FM currently working on a government program that uses a 1MW genset that meets waterproof and high shock (70g) requirements

    15. OP – 6 CYL – 1MW

    16. Fukushima FLEX Considerations • FM also working on commercial pumping project in South America that pumps crude oil over a mountain range to a sea port

    17. Fukushima FLEX Considerations

    18. Fukushima FLEX Considerations

    19. Fukushima FLEX Considerations

    20. Fukushima FLEX Considerations • FM extended these basic arrangements to meet the Angra configuration requirements

    21. Fukushima FLEX Considerations ANGRA DESIGN CONSIDERATION • Building designed to withstand flooding and has limited waterproof access openings (12’ x 12’)

    22. Fukushima FLEX Considerations • EQUIPMENT NEEDS TO GET SMALLER • Answer - MODULARIZATION

    23. Fukushima FLEX Considerations • 6 cylinder OP (50 OP’s currently in nuclear service)

    24. Fukushima FLEX Considerations

    25. Fukushima FLEX Considerations • 6 cylinder ALCO (30 ALCO’s currently in nuclear service)

    26. Fukushima FLEX Considerations

    27. Fukushima FLEX Considerations 8 cylinder ALCO (30 in nuclear service)

    28. Fukushima FLEX Considerations

    29. Fukushima FLEX Considerations

    30. Fukushima FLEX Considerations

    31. Fukushima FLEX Considerations

    32. Fukushima FLEX Considerations • Modular configuration allows ability to MIX-AND-MATCH as desired for: - type engine - size engine - size generator - size pump - auxiliary configuration

    33. Fukushima FLEX Considerations • Modular arrangement allows multiple configurations to suit varying demands at each site - engine+generator - engine+ pump - engine+generator+pump - 1MW-3MW

    34. Fukushima FLEX Considerations

    35. Fukushima FLEX Considerations • In addition to modular capability, FM offering also provides the following: • QA (ISO or NQA-1) • Qualifications (seismic/shock) • Waterproof/Resistant

    36. Fukushima FLEX Considerations • FM will provide either an engineered package (to customer specs) or will provide a pre-engineered package (to FM specs)
