neutron stars 1 basics

Neutron Stars 1: Basics

Andreas Reisenegger

Depto. de Astronomía y Astrofísica

Pontificia Universidad Católica

de Chile

outline of the lecture series
Outline of the Lecture Series
  • Basics: Theory & history: prediction, discovery, etc.
  • Phenomenology: The many observational “incarnations” of NSs & what we can learn from them
  • Thermal evolution: Cooling & heating mechanisms, expected thermal history, obs. constraints & what they tell us about nuclear physics & gravity
  • Magnetism: Determination of NS magnetic fields, their origin, evolution, and related physical processes
outline of lecture 1
Outline of Lecture 1
  • Degenerate fermions, white dwarfs, & Chandrasekhar mass
  • Prediction of neutron stars, main predicted properties
  • Pulsar discovery & interpretation
bibliography 1
Bibliography - 1
  • Stuart L. Shapiro & Saul A. Teukolsky, Black Holes, White Dwarfs, and Neutron Stars, Wiley (1983): quite outdated on the phenomenology, but still the most comprehensive and pedagogical discussion
  • Richard R. Silbar & Sanjay Reddy, Neutron Stars for Undergraduates, Am. J. Phys. 72, 892-902 (2004; erratum 73, 286, 2005), nucl-th/0309041: how to build simple numerical models of neutron stars
  • James M. Lattimer & Madappa Prakash, The Physics of Neutron Stars, Science, 304, 536 (2004): review
  • Norman K. Glendenning, Compact Stars: Nuclear Physics, Particle Physics, and General Relativity, Springer (1997): quite theoretical
bibliography 2
Bibliography - 2
  • Kip S. Thorne, Black Holes & Time Warps: Einstein’s outrageous legacy, Norton (1993): entertaining popular history of the idea of compact stars & black holes
  • Bernard F. Schutz, A first course in general relativity, Cambridge (1985): rigorous, but elementary account of GR from the basics up to relativistic stars, black holes, & cosmology
  • Soon to appear: P. Haensel, A. Y. Potekhin, & D. G. Yakovlev, Neutron Stars 1: Equation of State and Structure(2006)
pauli principle
Pauli principle


  • particles of half-integer spin (½, 3/2, ...):
    • electrons, protons, neutrons...
  • obey Pauli exclusion principle (1925): No more than 1 fermion can occupy a given orbital (1-particle quantum state)

 “Fermi-Dirac statistics”

ground state of fermion system
Ground state of fermion system

Ground state (T=0) has all particles in the orbitals of the lowest possible energy

 Fermi sphere in momentum space:

Each orbital has a phase-space volume

Ground state of system of N fermions of spin ½ (sz =  ½) in a spatial volume V


white dwarfs
White dwarfs

Hydrostatic equilibrium

Non-relativistic electron

degeneracy pressure


  • white dwarfs get smaller (denser & more relativistic) as M increases

Relativistic electrons

Combining with hydrost. equil.  unique mass

(Chandrasekhar 1931)


1932: James Chadwick discovers the neutron.

neutrons decay or not decay
Neutrons: decay or not decay?
  • In vacuum (lab), neutrons decay with half-life ~ 15 min:
  • In very dense matter, neutrons are stable (don’t decay) because low-energy proton & electron orbitals are already occupied
  • “Chemical” (weak interaction) equilibrium
  • Around nuclear density, neutrons coexist stably with a much smaller number (~1%) of protons & electrons (fraction density-dependent & uncertain)
  • At higher densities, strong interactions among particles are difficult to model, making the state of matter (& eq. of state) more & more uncertain.

Baade & Zwicky (1934):

“With all reserve we advance the view that supernovae represent the transition from ordinary stars into neutron stars, which in their final stage consist of extremely closely packed neutrons.”

Supernova 1987A (23 Febr. 1987) in the Large Magellanic Cloud:

before & after



Collapse of stellar core

 huge density forces p + e n + 

Neutrinos ()escape: a few detected 2 hours before the light of SN 1987A.


BUT:No neutron star found!

neutron stars
Neutron stars
  • First approximation: Self-gravitating ball of non-interacting neutrons at T=0
  • Recall non-relativistic white dwarf:
  • Neutron star (by analogy / scaling):
derived quantities
Derived quantities


  • Surface gravity
  • Escape speed
  • “Breakup” rotation
  • Schwarzschild radius
  • “Relativity parameter”

 Mass reduction ~ 20% when NS forms (carried away by neutrinos, perhaps gravitational waves)

  • Gravitational redshift factor
relativistic stellar structure eqs

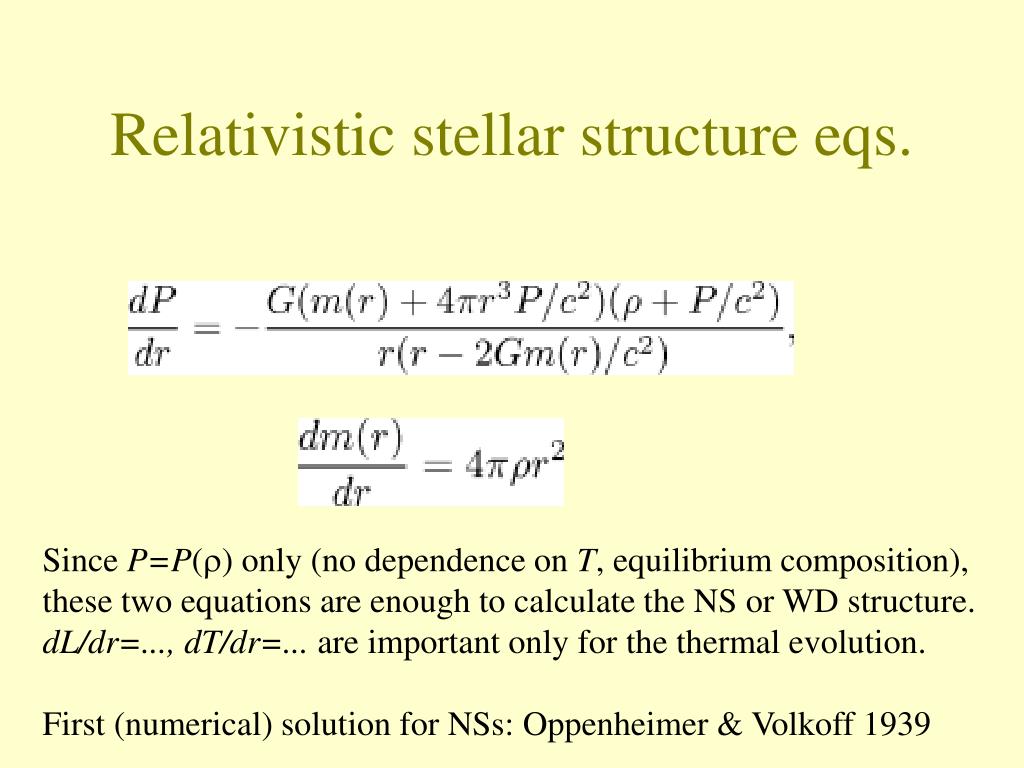

Relativistic stellar structure eqs.

Since P=P() only (no dependence on T, equilibriumcomposition),

these two equations are enough to calculate the NS or WD structure.

dL/dr=..., dT/dr=... are important only for the thermal evolution.

First (numerical) solution for NSs: Oppenheimer & Volkoff 1939

The state of matter changes with density (T  0):
  • “Ordinary” solid
  • Solid + neutrons
  • npe liquid
  • More exotic particles:
    • muons
    • mesons , 
    • hyperons , 
    • ???
  • Quark matter?
mass radius relation for nss
Mass-radius relation for NSs

Black (green) curves are for normal matter (SQM) equations of state.

Regions excluded by general relativity (GR), causality, and rotation constraints are indicated.

Contours of radiation radii R are given by the orange curves.

The dashed line labeled I/I = 0.014 is a radius limit estimated from Vela pulsar glitches.

from Lattimer & Prakash 2004

expected thermal radiation
Expected thermal radiation
  • Neutron stars are born in stellar core collapse: initially very hot, expected to radiate thermally (~ blackbody) (Chiu 1964, Chiu & Salpeter 1964)
  • Might be detectable in soft X-rays (difficult)
  • Start of X-ray astronomy (Giacconi et al. 1962):
    • several sources (quasars, etc.)
    • growing theoretical interest in NSs
    • at first no unambiguous detections of NSs (X-ray pulsars found by UHURU, 1971)
    • no detections of pure, thermal radiators until much later
pulsars discovery
Pulsars: discovery

1967: PhD student Jocelyn Bell & her supervisor Anthony Hewish detect a very regular Pulsating Source of Radio (PSR 1919+21)with P=1.377 s, initially “LGM 1”.


Pulsar in the Crab nebula

(remnant of SN 1054)

how we know pulsars are nss
How we know pulsars are NSs
  • Association with supernova remnants (SNRs)
  • Rotation of Crab pulsar
    • Much faster ones (“millisecond pulsars”) found later
  • Energy budget of SNR in rough agreement with energy lost from rotating NS.
  • Very high-energy (non-thermal) emission: likely relativistic system
  • Thermal emission (X-rays): emitting region  10 km
  • Binary systems: Precise masses 1.25-1.45 Msun ~ MChandra
masses of pulsars in binary systems
Masses of pulsars in binary systems

Fig. by I. Stairs,

reproduced in

Lorimer 2005


Franco Pacini

“Tommy” Gold
