Presentation Transcript

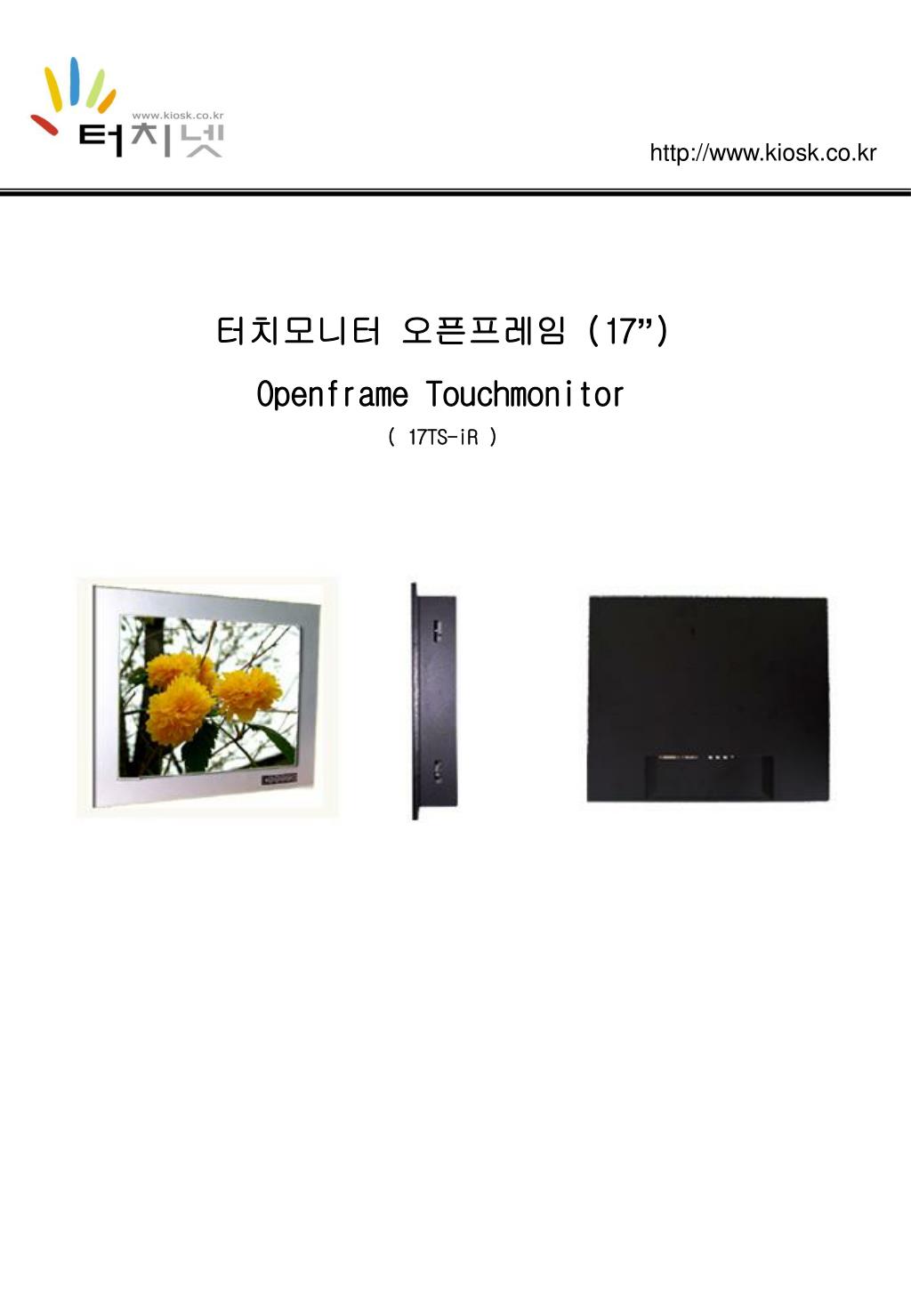

  1. http://www.kiosk.co.kr 터치모니터 오픈프레임 (17”) Openframe Touchmonitor ( 17TS-iR )

  2. Specification http://www.kiosk.co.kr SIZE 17.0” Display Type SXGA TFT PANEL Max. Resolution 1280 x 1024 Screen (Diagonal) Size 17 Inch Display Colors 16M Colors Pixel Pitch 0.264 x 0.264mm Brightness 450cd/㎡ Contrast Ratio 350 : 1(Typical) Viewing Angle (typical) 80º/80º(L/R)&70º/70º(U/D) Display Area 337.92 x 270.33mm Analogue RGB/DVI/Video( Composite & S-video)/Audio In/out PAL/Secam/NTSC Supported Video Signal IINPUT SIGNAL RESOLUTION SUPPORT Supported 640 x 350 @ 70 Hz 720 x 400 @ 70 HZ 640 X 480 @ 60Hz ~ 75Hz 832 x 624 @ 75Hz (MAC) 800 x 600 @ 56Hz ~ 75 Hz 1024 X 768 @ 60Hz ~ 75Hz 1280 x 1024@ 60Hz ~ 75Hz Recommended 1280 x 1024@60Hz On working Off <36 watt (Max.) <3 watt POWER CONSUMPTION Color( Contrast, Brightness, Gamma, Color Temp., Color Adjust), Picture( H.Posistion, V.Position, Phase, Clock, Sharpness), Function ( Auto Adjust, Auto Color), OSD Menu ( Language, OSD H.V. Position, OSD Timer, Translucent), MISC( Signal Source, Power Light, Reset), Sound ( Sound, Volume) Function OSD CONTROL Language Korean, English, French, German, Italian, Spanish Touchscreen 적외선 (강화유리, 3.2t), Infrared Beam POWER SAVING VESA DPMS AC 100V~240V, 50~60Hz POWER SUPPLY ADAPTER Input Output 12V DC 0-50 C OPERRATING Temperature 0-60 C STORAGE Temperature 10-95% (Non Condensing) OPERRATING Humidity DIMENSION 411 x 348 x 60mm WEIGHT (NET/GROSS) 5.5/7.2Kg Response Time 5ms

  3. Dimension (mm) 17TS-iR http://www.kiosk.co.kr 컷팅싸이즈(393*330)

  4. Dimension (mm) 17TS-iR http://www.kiosk.co.kr

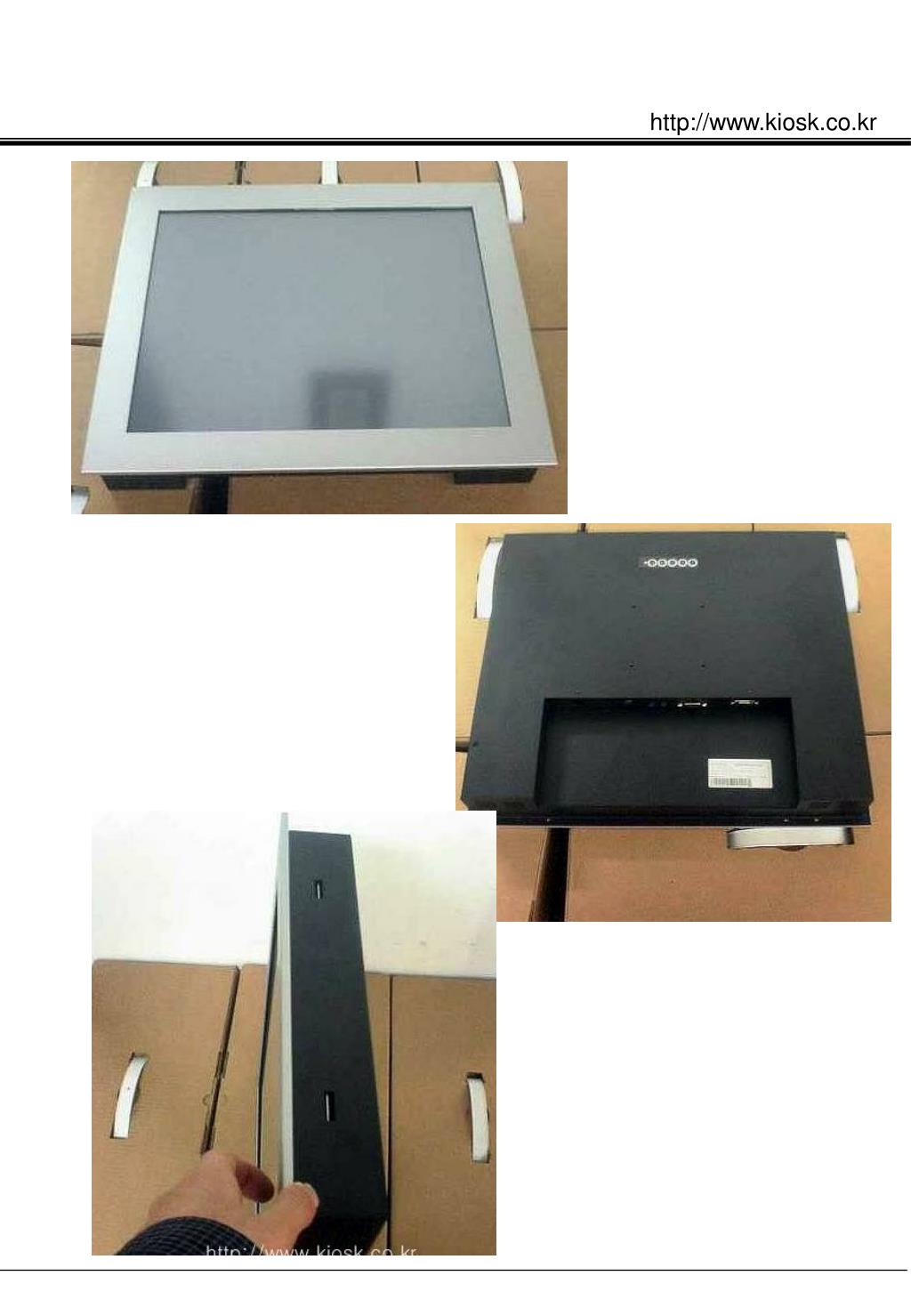

  5. http://www.kiosk.co.kr
