EXAMPLE 2

a. You can draw a diagram with complementary adjacent angles to illustrate the relationship. m 2 = 90° – m 1 = 90° – 68° = 22. EXAMPLE 2. Find measures of a complement and a supplement. Given that 1 is a complement of 2 and m 1 = 68° , find m 2. SOLUTION.

Download Presentation

EXAMPLE 2

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

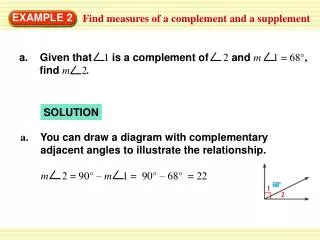

  1. a.You can draw a diagram with complementary adjacent angles to illustrate the relationship. m 2 = 90° – m 1 = 90° – 68° = 22 EXAMPLE 2 Find measures of a complement and a supplement • Given that 1 is a complement of 2 and m1 = 68°, • find m2. SOLUTION

  2. b. You can draw a diagram with supplementary adjacent angles to illustrate the relationship. m 3 = 180° – m 4 = 180° –56° = 124° b. Given that 3 is a supplement of 4and m 4=56°, find m3. EXAMPLE 2 Find measures of a complement and a supplement SOLUTION

  3. Sports When viewed from the side, the frame of a ball-return net forms a pair of supplementary angles with the ground. Find mBCEand mECD. EXAMPLE 3 Find angle measures

  4. Use the fact that the sum of the measures of supplementary angles is 180°. STEP1 mBCE+m∠ ECD=180° EXAMPLE 3 Find angle measures SOLUTION Write equation. (4x+ 8)°+ (x +2)°= 180° Substitute. 5x + 10 = 180 Combine like terms. 5x = 170 Subtract10 from each side. x = 34 Divide each side by 5.

  5. STEP2 Evaluate: the original expressions when x = 34. m BCE = (4x + 8)° = (4 34 + 8)° = 144° m ECD = (x + 2)° = ( 34 + 2)° = 36° ANSWER The angle measures are144°and36°. EXAMPLE 3 Find angle measures

  6. 3. Given that 1 is a complement of 2 and m2 = 8° , find m1. m 1 = 90° – m 2 = 90°– 8° = 82° 1 8° 2 for Examples 2 and 3 GUIDED PRACTICE SOLUTION You can draw a diagram with complementary adjacent angle to illustrate the relationship

  7. 4. Given that 3 is a supplement of 4 and m3 = 117°, find m4. m 4 = 180° – m 3 = 180°– 117° = 63° 117° 3 4 for Examples 2 and 3 GUIDED PRACTICE SOLUTION You can draw a diagram with supplementary adjacent angle to illustrate the relationship

  8. m LMN + m PQR = 90° for Examples 2 and 3 GUIDED PRACTICE 5.LMNand PQRare complementary angles. Find the measures of the angles if m LMN= (4x –2)° and m PQR = (9x + 1)°. SOLUTION Complementary angle (4x – 2 )° + ( 9x + 1 )° = 90° Substitute value 13x – 1 = 90 Combine like terms 13x = 91 Add 1 to each side x = 7 Divide 13 from each side

  9. m LMN = (4x – 2 )° = (4·7 – 2 )° = 26° m PQR = (9x – 1 )° = (9·7 + 1)° = 64° m PQR ANSWER m LMN = 64° = 26° for Examples 2 and 3 GUIDED PRACTICE Evaluate the original expression whenx = 7
