asbestos awareness

Asbestos Awareness

Presented by QBE

Loss Control Services

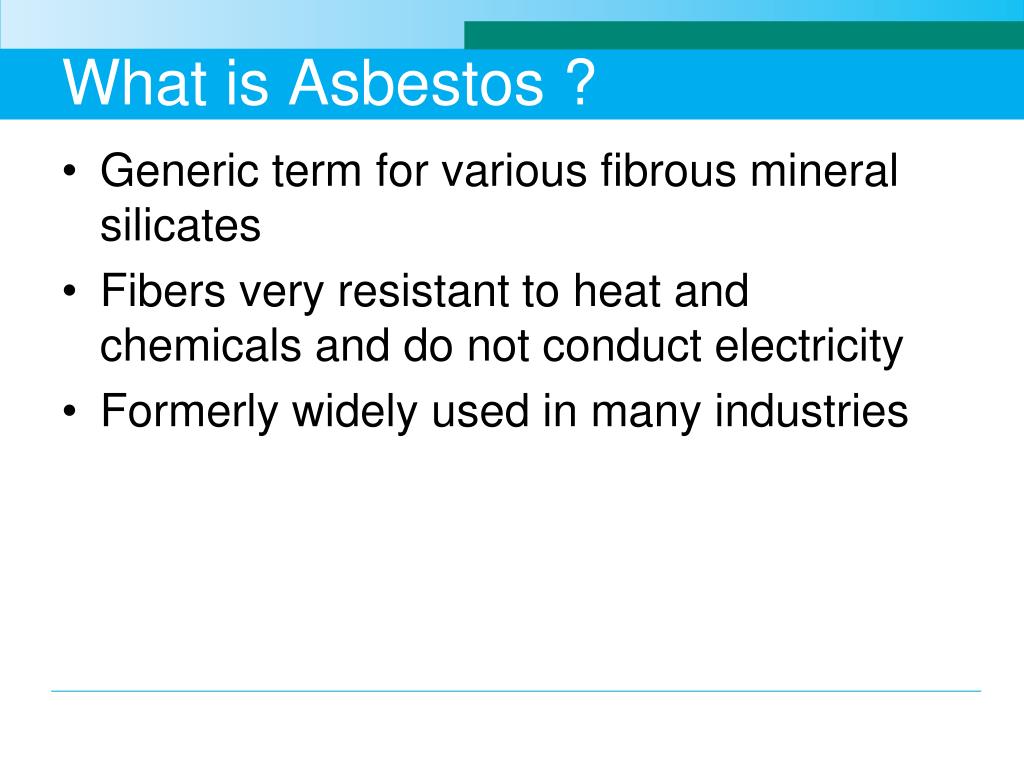

what is asbestos
What is Asbestos ?
  • Generic term for various fibrous mineral silicates
  • Fibers very resistant to heat and chemicals and do not conduct electricity
  • Formerly widely used in many industries
uses of asbestos
Uses of Asbestos
  • 3600 commercial products
  • Use began around 1900
  • Until 1940 use limited
  • From 1940 until 1970’s used extensively
  • After 1980 phase out began
  • 1989- EPA phase out rule
types of asbestos
Types of Asbestos
  • Chrysotile
  • Amosite
  • Crocidolite
  • Tremolite
  • Actinolite
  • Anthophylite
chrysotile
Chrysotile
  • Most common type of asbestos
  • Heat resistant

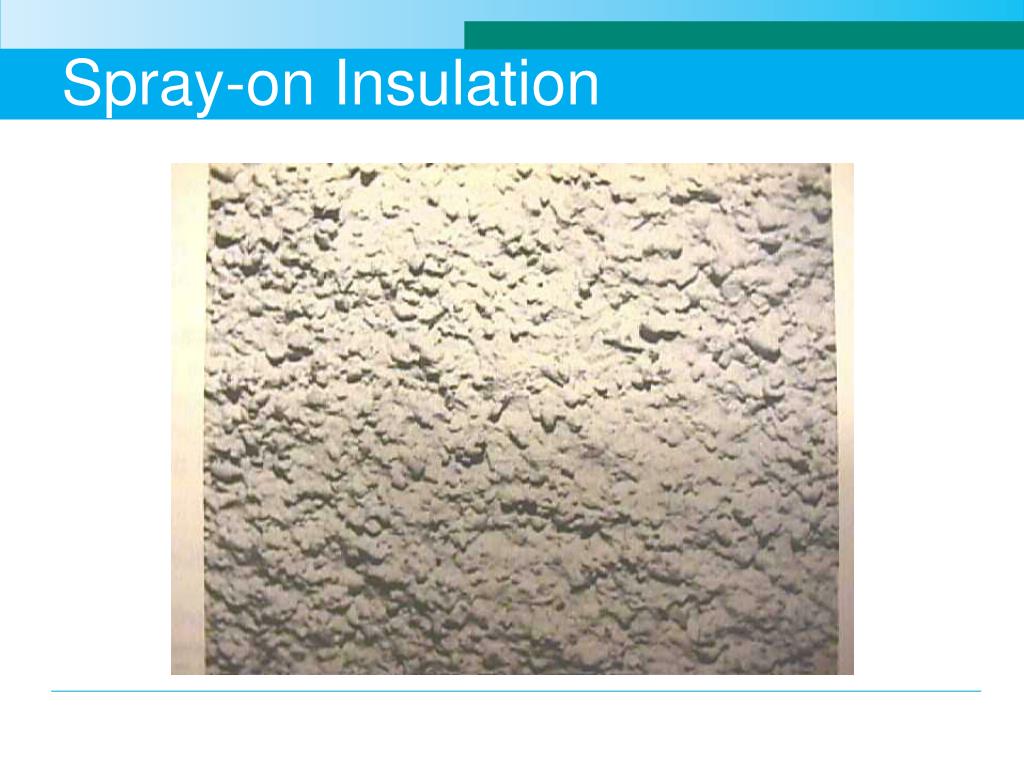

  • Sprayed on insulation
  • Fireproofing
  • Long flexible fibers easily spun into yarn

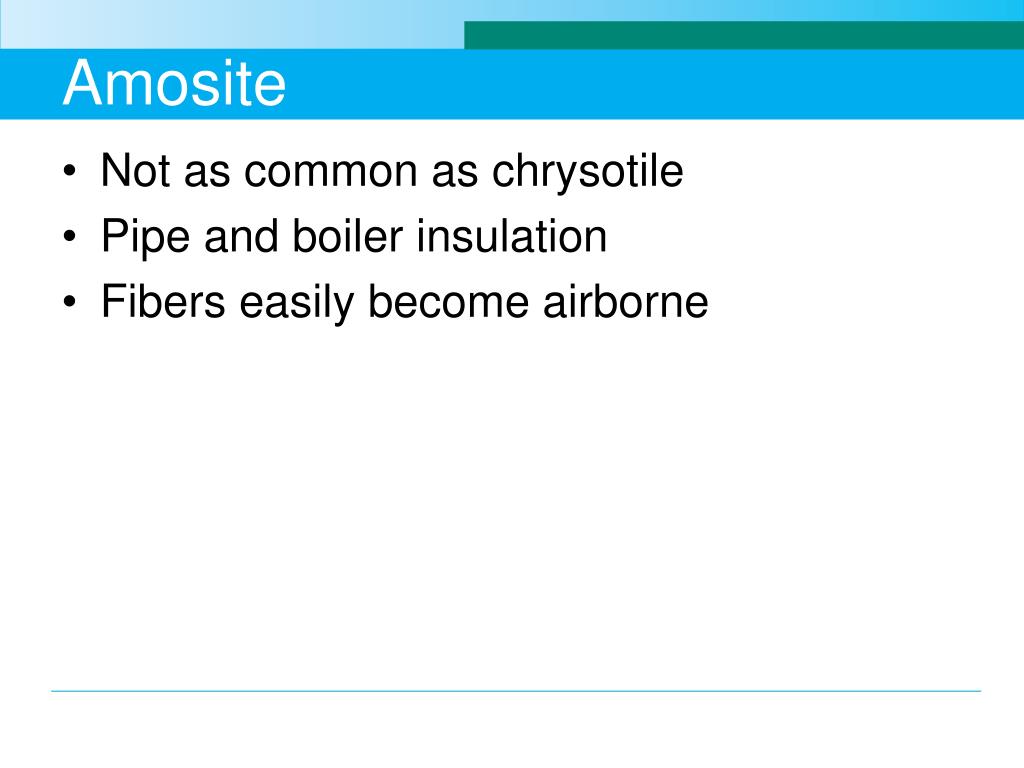

amosite
Amosite
  • Not as common as chrysotile
  • Pipe and boiler insulation
  • Fibers easily become airborne
crocidolite

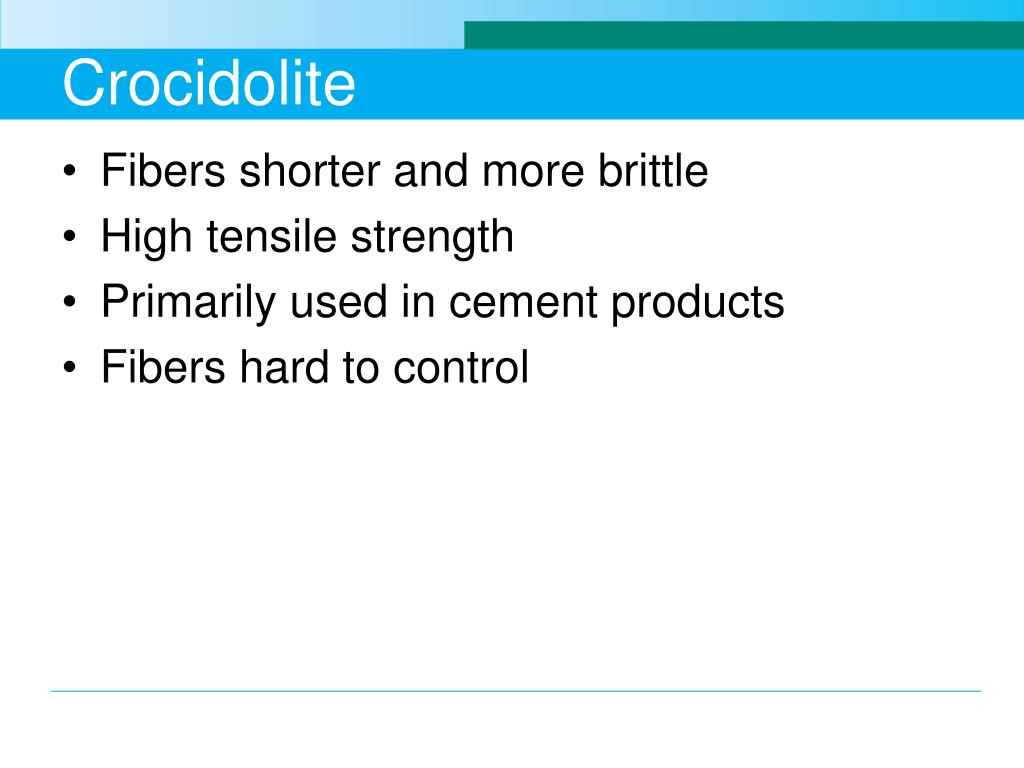

Crocidolite
  • Fibers shorter and more brittle
  • High tensile strength
  • Primarily used in cement products
  • Fibers hard to control
common uses
Common Uses
  • Insulating Products (1926-1971)
  • Surfacing Material (sprayed or troweled) (1935-1970)
  • Extrusion Panels (since 1930)
  • Transite Boards (unknown)
ceiling tiles
Ceiling Tiles
  • Armstrong “Sanserra”
  • Armstrong “Santaglio”
  • Armstrong “Embossed Design”
roofing materials
Roofing Materials
  • Shingles and clapboard (unknown)
  • Roofing felts (since 1910)
  • Roofing asphalt (unknown)
  • Roof putty (unknown)
  • Roof coatings (since 1900)
floor materials
Floor Materials
  • Mastics (1945-1980)
  • Asphalt tile cement (since 1959)
  • Vinyl asbestos tile (1950-1980)

(9” x 9” tiles more likely to contain asbestos than 12” x 12” tiles)

  • Asphalt asbestos tile (1920-1980)

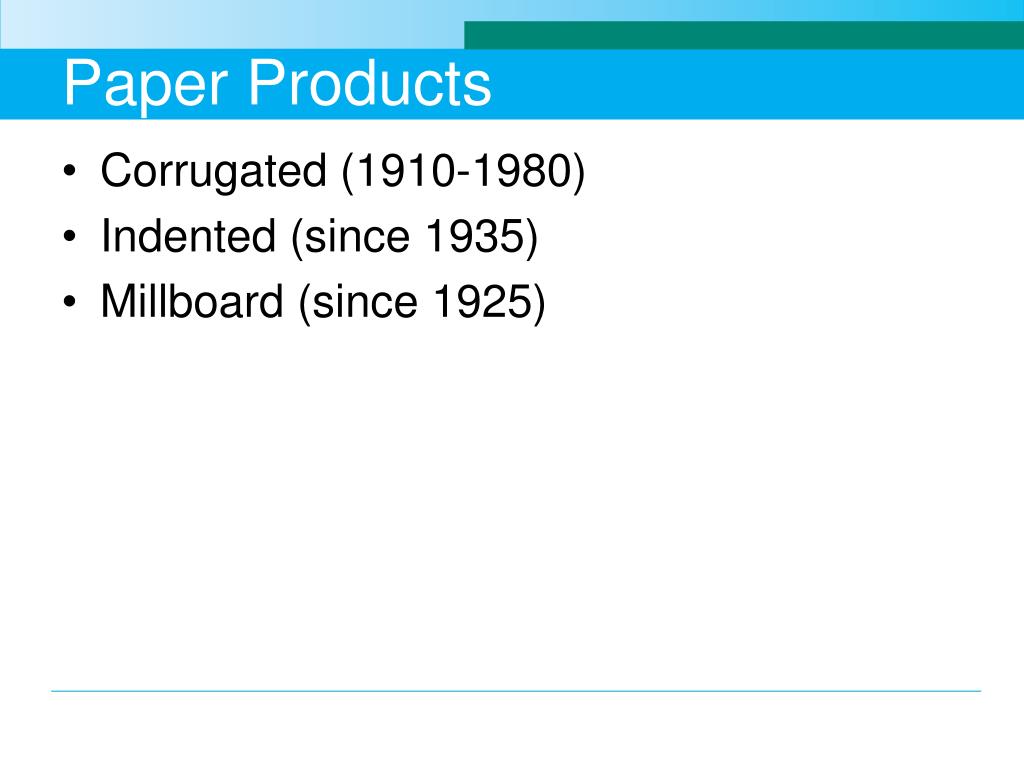

paper products
Paper Products
  • Corrugated (1910-1980)
  • Indented (since 1935)
  • Millboard (since 1925)
other products

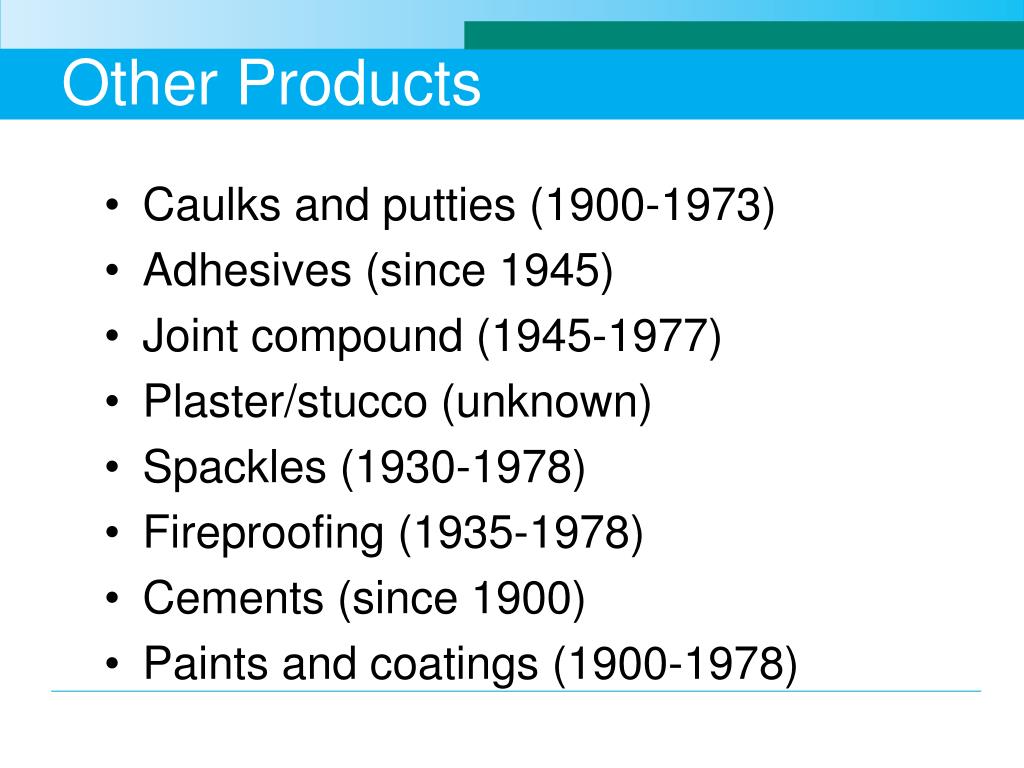

Other Products
  • Caulks and putties (1900-1973)
  • Adhesives (since 1945)
  • Joint compound (1945-1977)
  • Plaster/stucco (unknown)
  • Spackles (1930-1978)
  • Fireproofing (1935-1978)
  • Cements (since 1900)
  • Paints and coatings (1900-1978)
asbestos in buildings
Asbestos in Buildings
  • About 20% of all buildings
  • About 5% with sprayed or trowled on ACM (asbestos containing materials)
  • About 16% with ACM on pipes or boilers
  • Very few with ACM ceiling tiles
  • About 42% with ACM containing floor tiles
asbestos related diseases
Asbestos Related Diseases
  • Asbestosis
  • Lung cancer
  • Mesothelioma
  • Other Cancers
asbestosis
Asbestosis
  • Lung scarring of air sacs (alveoli)
  • Since asbestos fibers strong, they do not break down
  • Asbestos fibers act as “small needles”scarring lung tissue
  • Scarring reduces expansion or air sacs
asbestosis symptoms

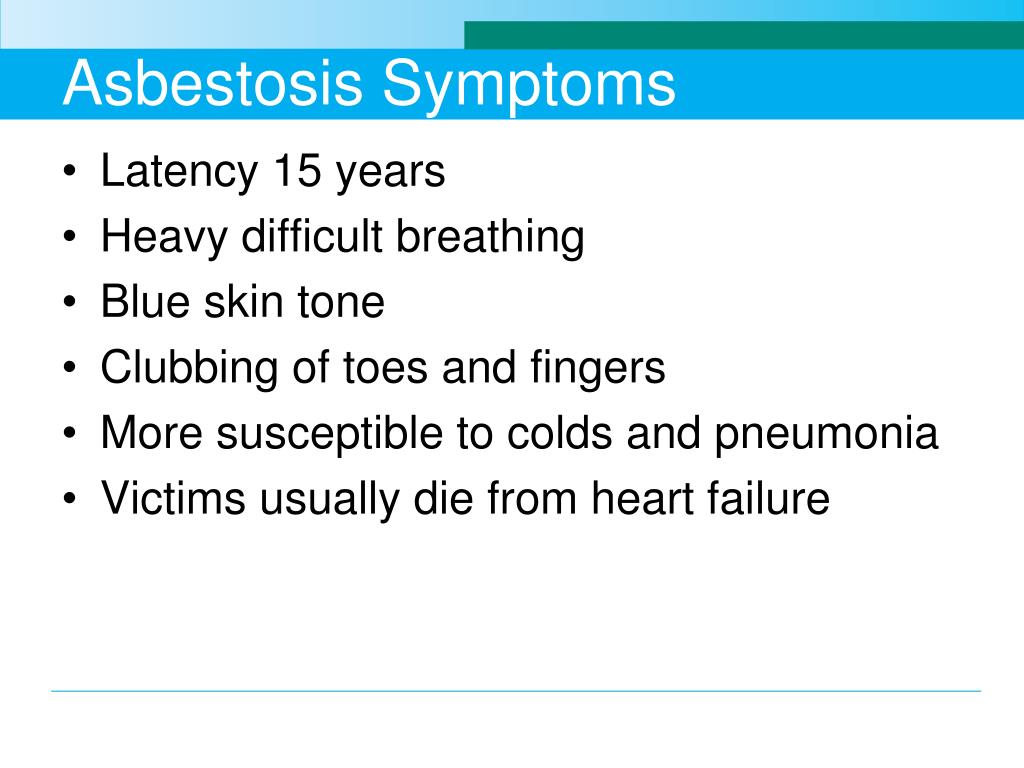

Asbestosis Symptoms
  • Latency 15 years
  • Heavy difficult breathing
  • Blue skin tone
  • Clubbing of toes and fingers
  • More susceptible to colds and pneumonia
  • Victims usually die from heart failure
mesothelioma
Mesothelioma
  • “Asbestos Cancer”
  • Rare- 2000 cases per year in U.S.
  • Cancer of the pleura (chest cavity lining) or peritoneum (abdomen wall lining)
  • Small fibers enter cells causing uncontrolled growth (cancer)
  • Increased pressure on lungs, heart and other internal organs
mesothelioma2

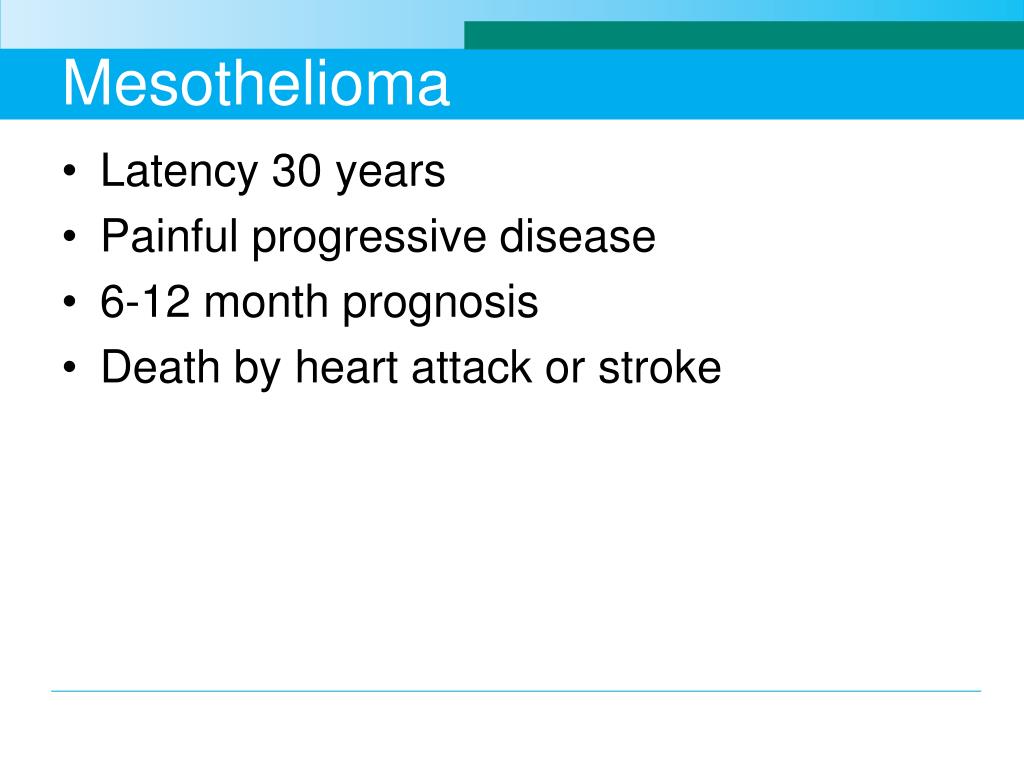

Mesothelioma
  • Latency 30 years
  • Painful progressive disease
  • 6-12 month prognosis
  • Death by heart attack or stroke
mesothelioma symptoms

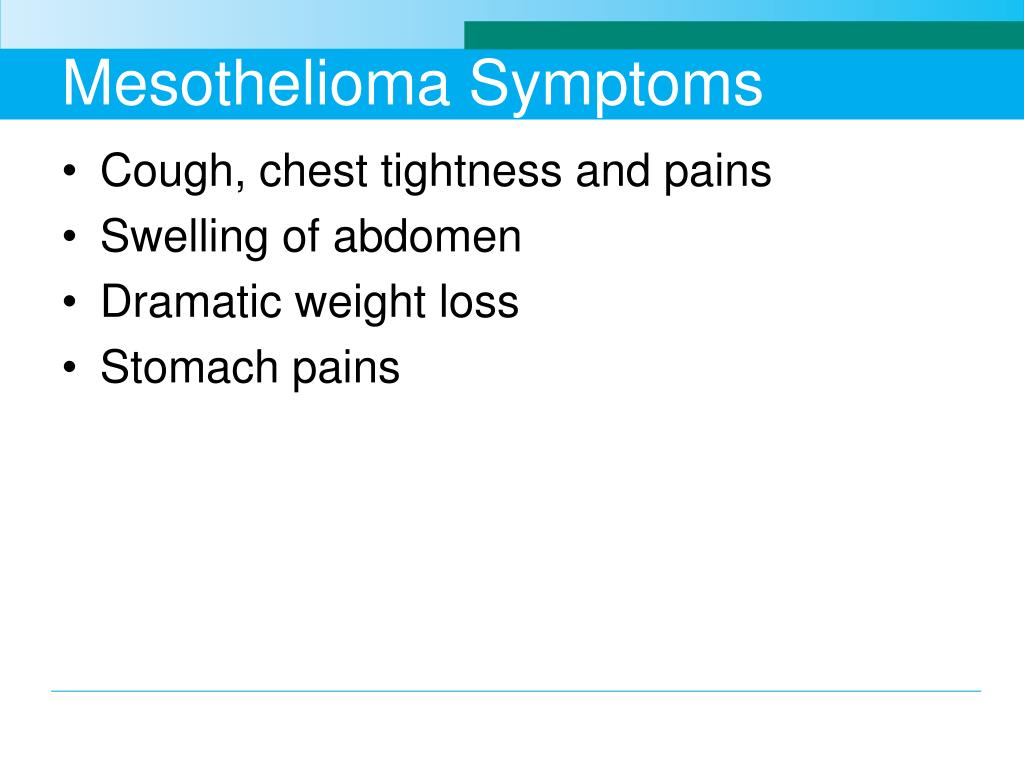

Mesothelioma Symptoms
  • Cough, chest tightness and pains
  • Swelling of abdomen
  • Dramatic weight loss
  • Stomach pains
lung cancer
Lung Cancer
  • Non-smokers with asbestos exposure- 5% chance
  • Smoker 1-pack/day and asbestos exposure- 50% chance
  • Smoker 2 pack/day and asbestos exposure- 95% chance
other disease
Other Disease
  • Cancers of colon, stomach, large intestine, esophagus
  • Pleural Plaques- Scars on lining of chest walls
  • Pleural Effusion- fluid buildup in lungs
who is at risk from asbestos
Who is at Risk from Asbestos?
  • Insulators
  • Boiler Makers & Repairers
  • Miners of Asbestos
  • Ship Yard Workers
  • Power-plant Workers
  • Brake Line Workers
  • Pipe Fitters
exposure limits
Exposure Limits
  • ACGIH-TLV as an 8 hr. time-weighted average- 0.1 f/cc (fiber per cubic centimeter of air)
  • OSHA PEL as an 8 hr. time-weighted average- 0.1 f/cc (1 f/cc for a 30 min. excursion period)
exposure factors

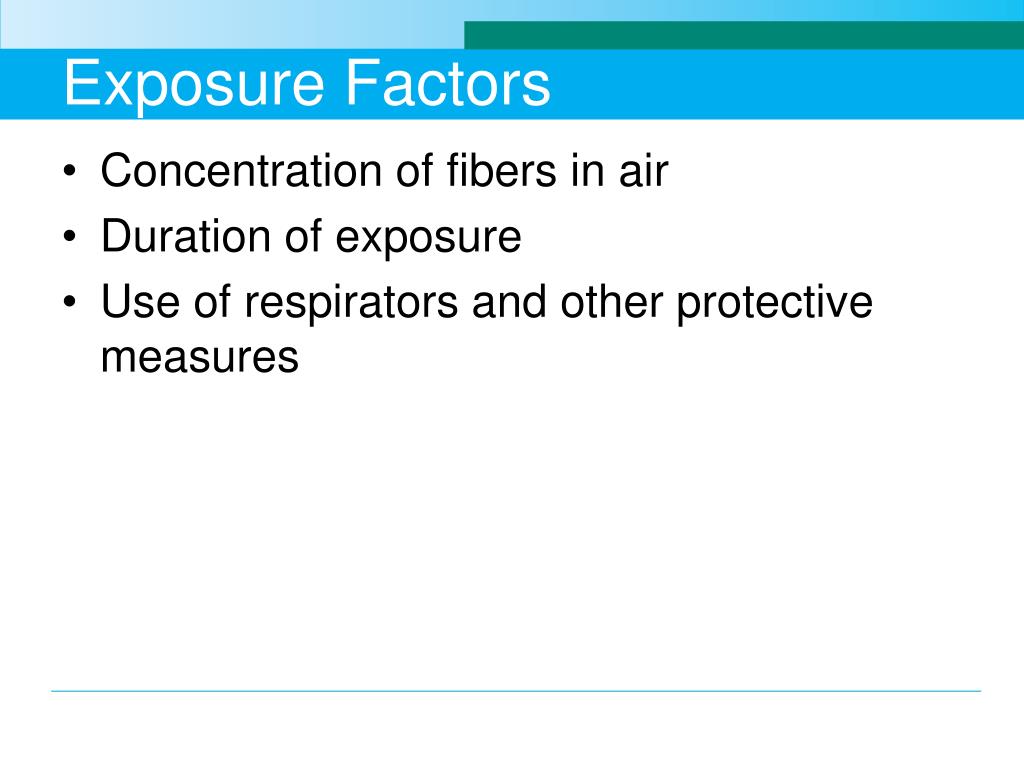

Exposure Factors
  • Concentration of fibers in air
  • Duration of exposure
  • Use of respirators and other protective measures
release of fibers
Release of Fibers
  • Friable- Loose, easily released into air. Example - spray applied materials
  • Non-friable- Fibers not easily released into air. Example - floor tiles
friable asbestos
Friable Asbestos
  • Damaged ACM.
  • Fluffy, spray-applied fireproofing
  • Non-friable ACM can pose a hazard when sawed, sanded or during demolition
friable asbestos1
Friable Asbestos
  • In most cases, intact, undisturbed ACM does not pose a health hazard. Only when disturbed does a health hazard exists.
  • Removal of ACM may cause a problem where none existed
  • In-place management may be the best control method
epa regulations

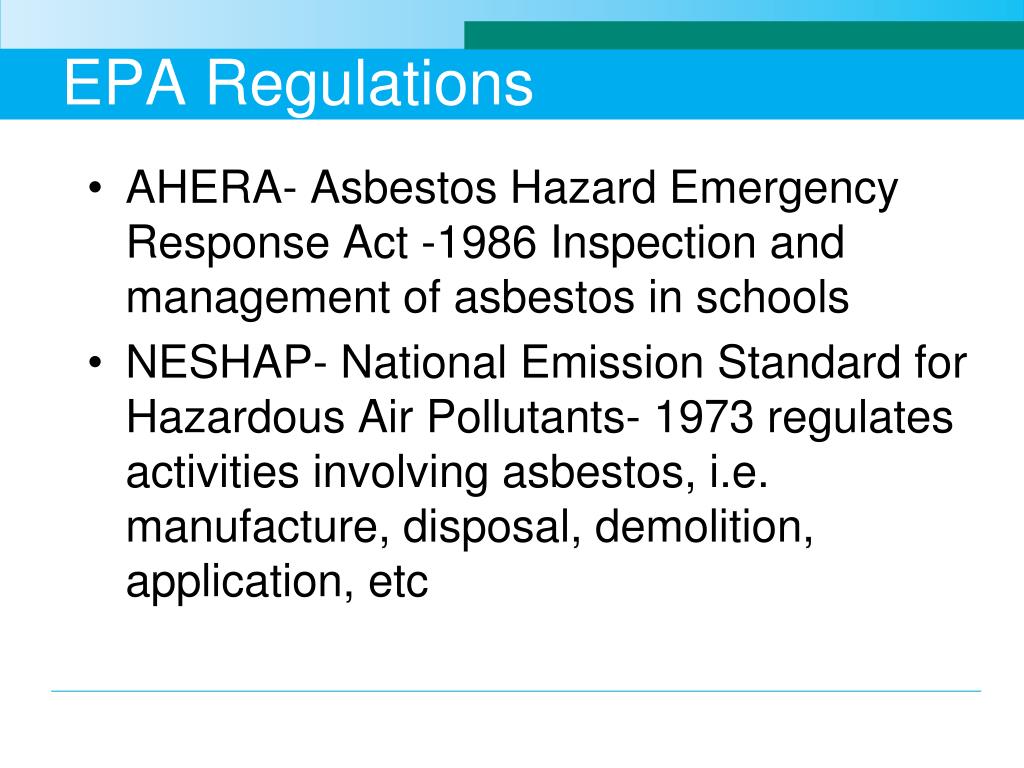

EPA Regulations
  • AHERA- Asbestos Hazard Emergency Response Act -1986 Inspection and management of asbestos in schools
  • NESHAP- National Emission Standard for Hazardous Air Pollutants- 1973 regulates activities involving asbestos, i.e. manufacture, disposal, demolition, application, etc
slide39
OSHA
  • 1926.1101- Construction
  • 1910.1001- General Industry
29 cfr 1926 1101
29 CFR 1926.1101
  • Demolition or salvage where asbestos present
  • Removal or encapsulation of ACM
  • Construction, alteration, repair and maintenance where asbestos is present
  • Installation of materials containing asbestos
  • Cleanup, transportation, disposal and storage of ACM
state local regulations
State/Local Regulations
  • May have separate rules
  • Enforcement delegated from federal government
  • Training and certification required in each state or local area

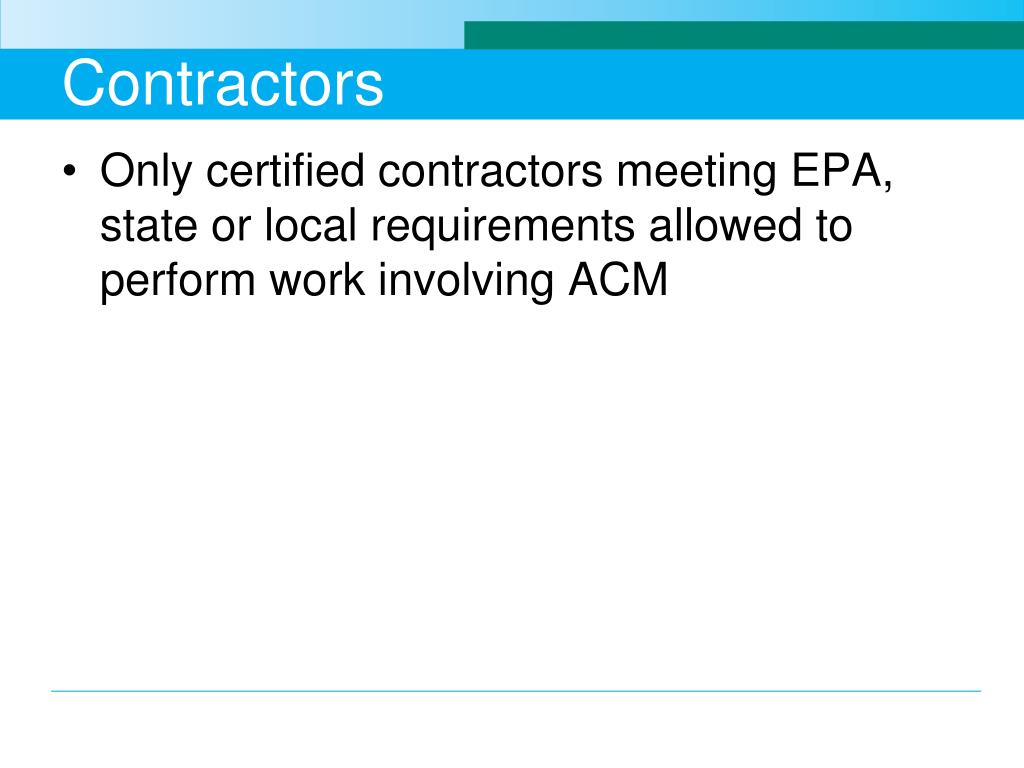

contractors
Contractors
  • Only certified contractors meeting EPA, state or local requirements allowed to perform work involving ACM
awareness

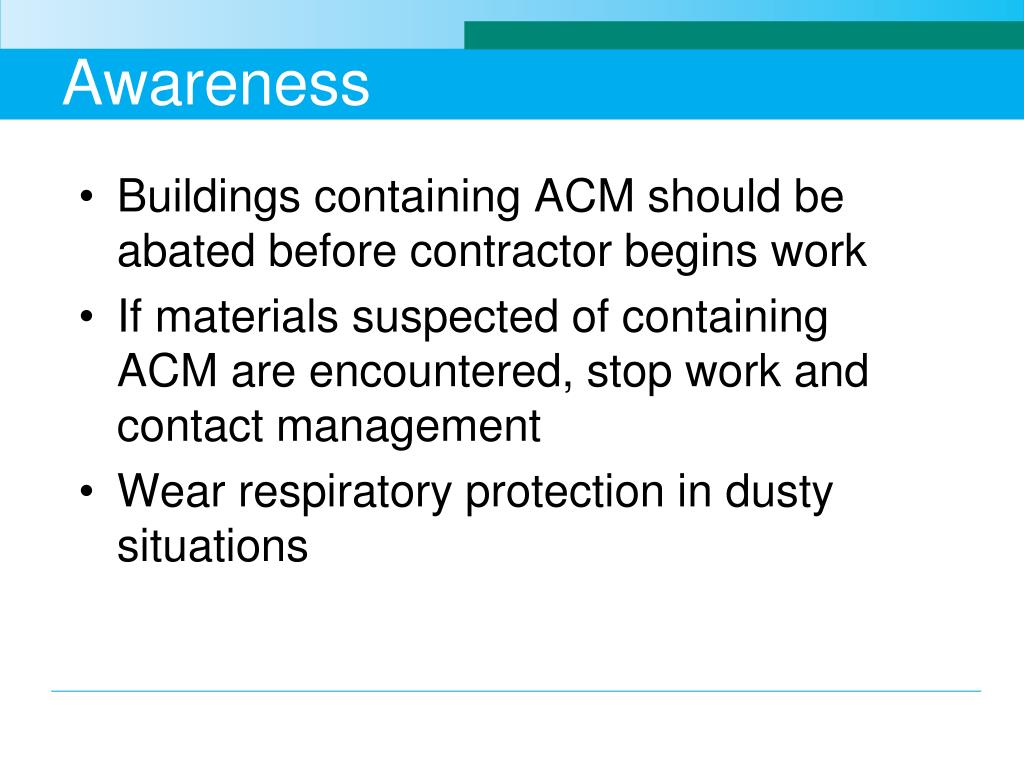

Awareness
  • Buildings containing ACM should be abated before contractor begins work
  • If materials suspected of containing ACM are encountered, stop work and contact management
  • Wear respiratory protection in dusty situations
