    Presentation Transcript
    1. SaaS Vulnerabilities Workshop : SaaS as the new attack vector

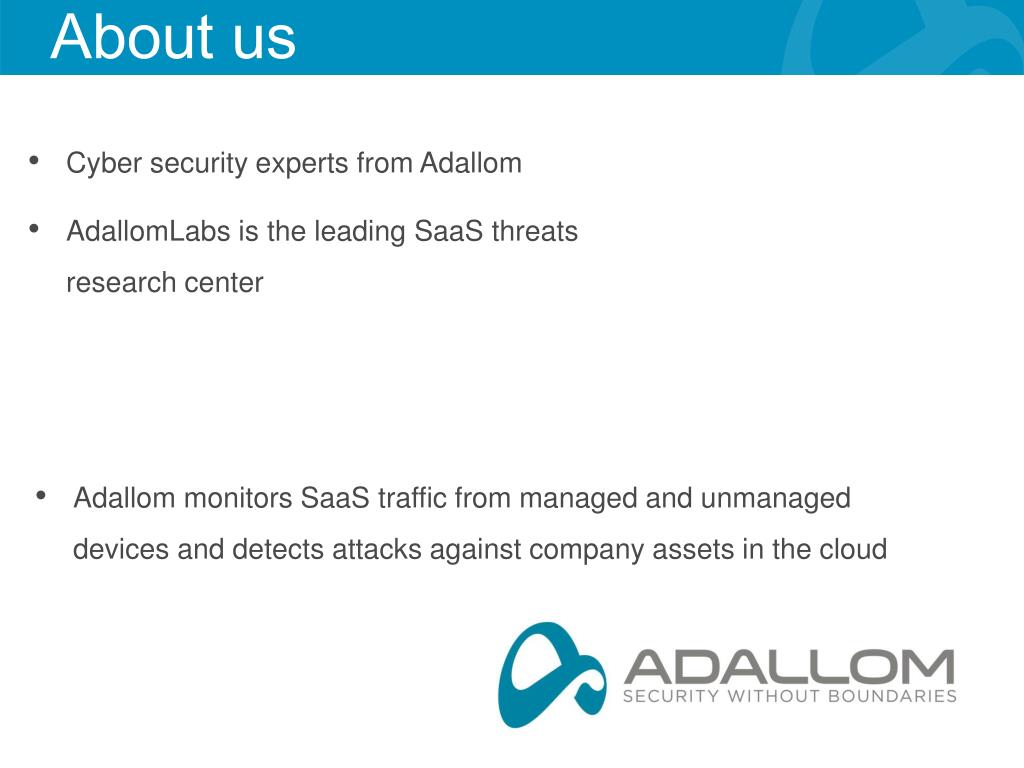

    2. About us • Cyber security experts from Adallom • AdallomLabs is the leading SaaS threats research center • Adallom monitors SaaS traffic from managed and unmanaged devices and detects attacks against company assets in the cloud

    3. Agenda • Intro to the world of SaaS attacks • Training • Background on SAML • Hands on Workshop!! • Summary

    4. SaaS allows access anywhere • Software-As-A-Service • Software and data hosted in the cloud • Allows “access anywhere” • Key stakeholders • SaaS provider • Company (Business unit and IT) • End Users

    5. SaaS is a new attack vector CONFIDENTIAL AND PROPRIETARY • The common link: • Attack occurs outside of company network • Bypasses company controls • Very hard to detect

    6. Anatomy of a SaaS attack • Objectives: • Persistent access to the CRM of the Acme organization • Initial research: • Use Salesforce.com for CRM

    7. If this was on premise .. • Requires sophisticated cyber attack campaign

    8. Anatomy of a SaaS attack • Requires a much simpler attack • Choose attack vector – Users. • Company network not relevant. SaaS provider too hard. • Open Source intelligence – Focus on targets. • Social Networks, Social Engineering,Support forums, etc. • Compromise the user – Phishing, social engineering • Or compromise the device – Exploit home PC, mobile • End Of Game – Stealth. Persistent. Simple. One employee. One mistake. The attacker will eventually win.

    9. Breakdown of SaaS attack vectors SaaS provider responsibility Enterprise responsibility

    10. Exercise

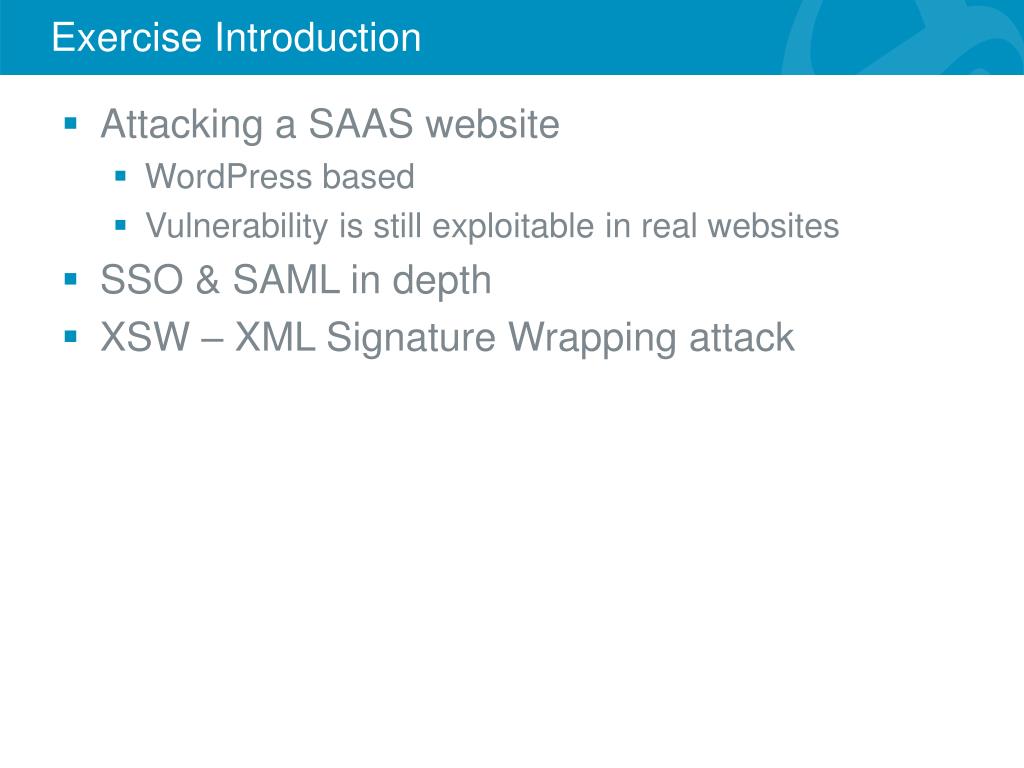

    11. Exercise Introduction • Attacking a SAAS website • WordPress based • Vulnerability is still exploitable in real websites • SSO & SAML in depth • XSW – XML Signature Wrapping attack

    12. SAML Single Sign On Sam ???

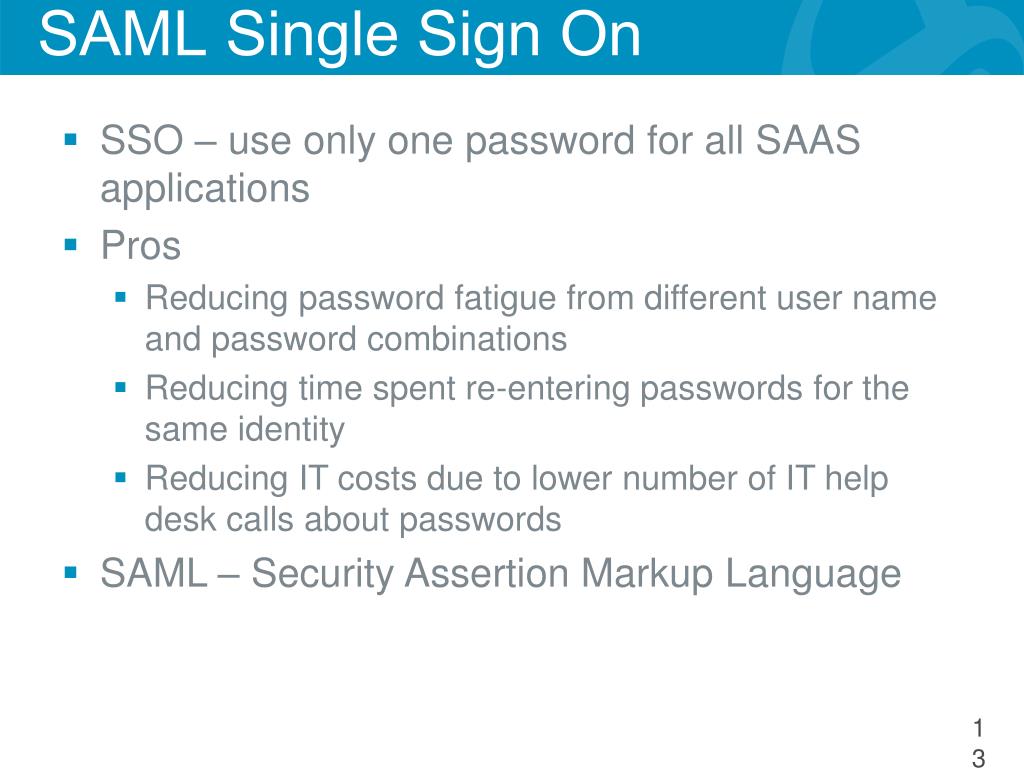

    13. SAML Single Sign On • SSO – use only one password for all SAAS applications • Pros • Reducing password fatigue from different user name and password combinations • Reducing time spent re-entering passwords for the same identity • Reducing IT costs due to lower number of IT help desk calls about passwords • SAML – Security Assertion Markup Language

    14. SAML Single Sign On User Service Provider (SP) Identity Provider (IDP) Sam Credentials User:sam@gmail.com Password: S4mP@$$ Token user = sam

    15. SAML Single Sign On User Service Provider (SP) Identity Provider (IDP) Sam Credentials User:sam@gmail.com Password: S4mP@$$ SSL SSL SSL Token user = sam

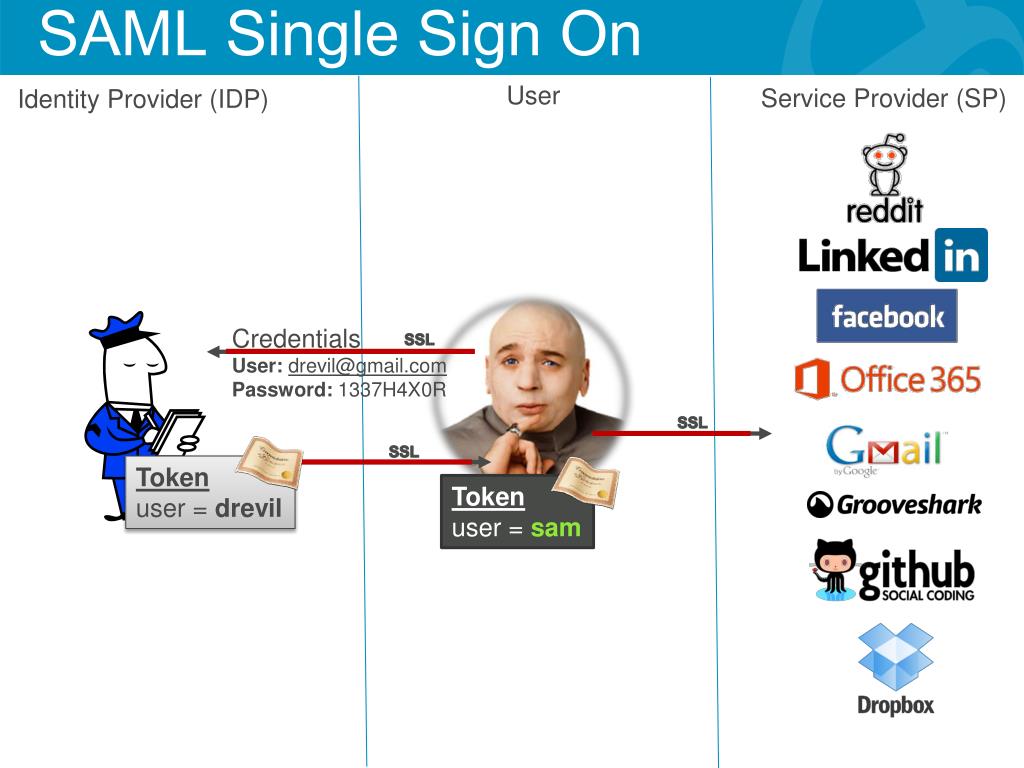

    16. SAML Single Sign On User Service Provider (SP) Identity Provider (IDP) Credentials User:drevil@gmail.com Password: 1337H4X0R SSL SSL SSL Token user = drevil Token user = sam

    17. SAML Single Sign On User Service Provider (SP) Identity Provider (IDP) Credentials User:drevil@gmail.com Password: 1337H4X0R SSL SSL SSL Token user = drevil Token user = drevil

    18. SAML Single Sign On SAML Sample

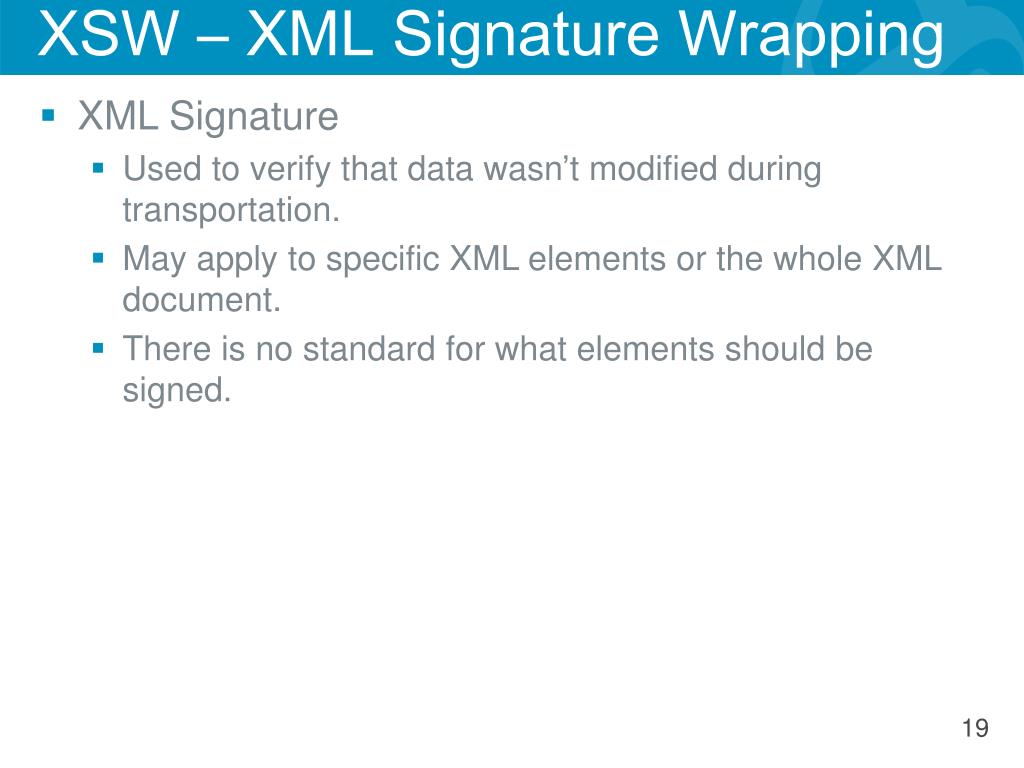

    19. XSW – XML Signature Wrapping • XML Signature • Used to verify that data wasn’t modified during transportation. • May apply to specific XML elements or the whole XML document. • There is no standard for what elements should be signed.

    20. XSW – XML Signature Wrapping • <Envelope> - Root element • <Header> (optional) - Contains information that will be processed by SOAP nodes during transmission. • <Body> - Contains call and response information SOAP – Simple Object Access Protocol Most of web services are using SOAP which is XML based SOAP basic structure:

    21. XSW – XML Signature Wrapping • Sample SOAP message • Receiver side’s logic if isValid(Signature) return fread([“Body”][“GetFileContent”] • Can it be used for malicious purpose?

    22. XSW – XML Signature Wrapping • if isValid(Signature) • return fread(env [“Body”][“GetFileContent”]) Original Message Malicious Message

    23. XSW – XML Signature Wrapping • Causes • No common library for xml signature validation • Using different logic to find signed element and read element’s data NOTE: XSW is generic attack and is NOT specific to SOAP!

    24. Any Questions?

    25. Hands-On Hacking challenge

    26. Exercise • Main Goal • Original wordpress code + onelogin original plugin • Training Process • Exercise composed of 6 phases • Hints and solutions will be available on wordpressfeed • Tools • Charles or any other web debugging proxy (Burp, Fiddler, mitmproxy, etc..)

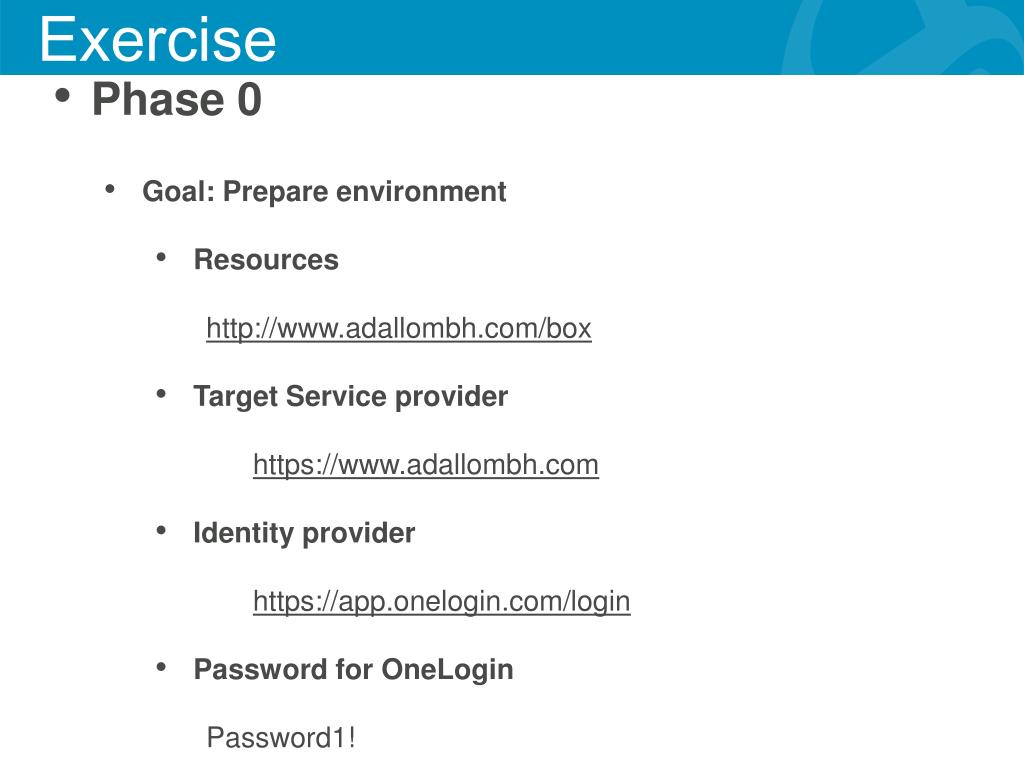

    27. Exercise • Phase 0 • Goal: Prepare environment • Resources • http://www.adallombh.com/box • Target Service provider • https://www.adallombh.com • Identity provider • https://app.onelogin.com/login • Password for OneLogin • Password1!

    28. Exercise • Phase 1 • Goal: Extract the SAML token • Hint #1: Use charles for capturing HTTP traffic • Hint #2: Recall the flow of SAML (in your HandOut) • Hint #3: SAML is encoded and thus, will not look like XML • Solution video is available on adallombh.com

    29. Exercise • Phase 2 • Goal: Decode the SAML token • Hint #1: Response is passed by HTTP and thus must be URL encoded • Hint #2: Response is also encoded in Base64 • Solution video is available on adallombh.com

    30. Exercise • Phase 3 (Optional) • Goal: Build and post custom SAML token • Hint #1: White spaces are not allowed in SAML • Hint #2: Use charles “edit” feature for manipulating original request • Solution video is available on adallombh.com Response is validEmail is custom@saml.org Note: This phase intends to verify that you are able to send your own SAML response. If you feel comfortable with that, you may continue to phase 4.

    31. Exercise • Phase 4 • Goal: Manipulate SAML token for gaining admin access • Targeted user name:admin@adallom.com • Hint #1: Source code may come in handy. It may be found at wordpress plugins site. • Hint #2: Draw diagrams for better understanding of SAML structure • Hint #3: Video is available adallombh.com • Solution video is available on adallombh.com

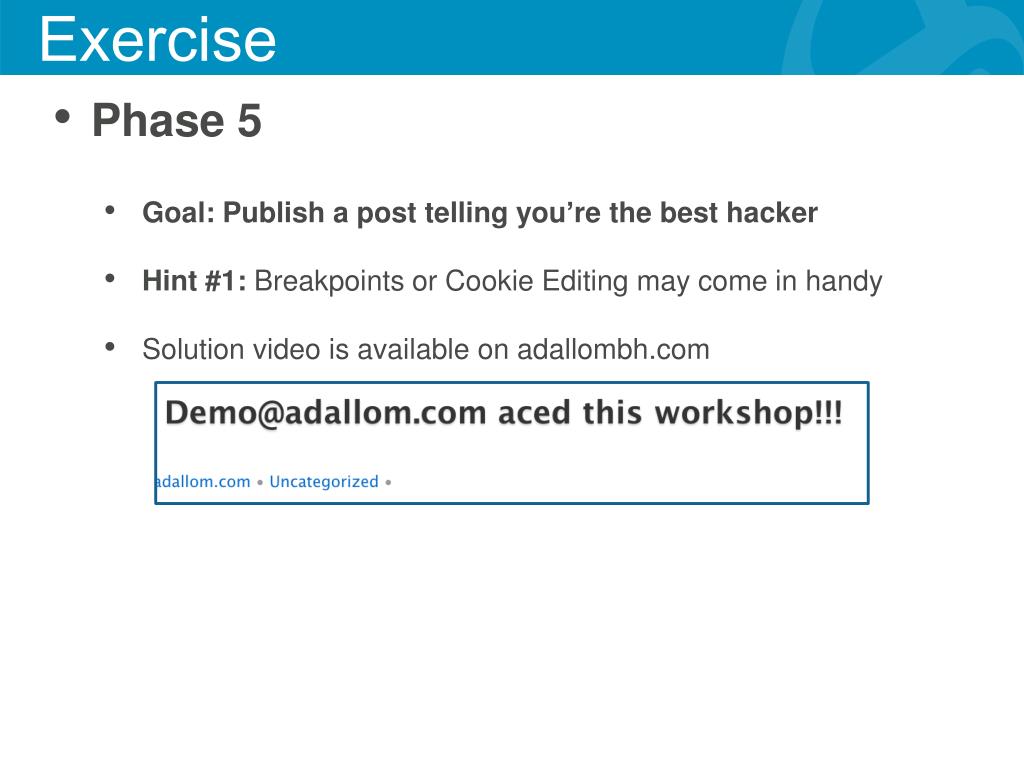

    32. Exercise • Phase 5 • Goal: Publish a post telling you’re the best hacker • Hint #1: Breakpoints or Cookie Editing may come in handy • Solution video is available on adallombh.com

    33. Solution & Summary

    34. The exploit php/lib/onelogin/saml/authenticate.php • Authentication process on SP • Validate SAML Signature • Check NameID against wordpress’s user list • Generate authenticated cookie

    35. The exploit php/lib/onelogin/saml/response.php • User name extraction • Find all matches for NameID element • Use the first match as the user name • User name manipulation – DONE!

    36. The exploit Original SAML Malicious SAML

    37. The exploit php/onelogin/saml/xmlsec.php • Steps • Locate signature • Validate reference • Locate key • Verify key How doesn’t it invalidate the signature?

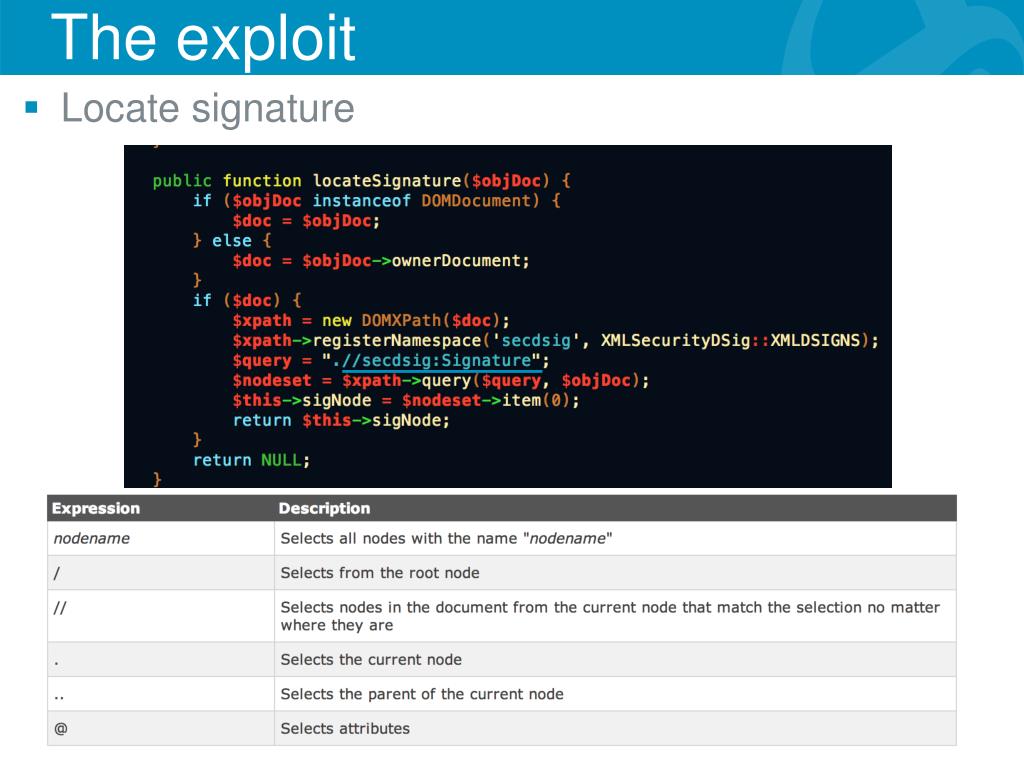

    38. The exploit Locate signature

    39. The exploit Validate Reference

    40. The exploit • There are many other possibilities for getting the same result Original SAML Malicious SAML Id = 1337

    41. Summary • Admin’s password was: • X7r3MelyH@rdP@$$0rd • This specific XSW exploit was first introduced at USENIX 2012 by Juraj Somorovsky • Whatcausedthisvulnerability? • SAML is a complicatedprotocol • No awareness for SAAS vulnerabilities
