Presentation Transcript
bnfo 240

BNFO 240

Usman Roshan

last time
Last time
  • Traceback for alignment
  • How to select the gap penalties?
  • Benchmark alignments
    • Structural superimposition
    • BAliBASE
database searching
Database searching
  • Suppose we have a set of 1,000,000 sequences
  • You have a query sequence q and want to find the m closest ones in the database---that means 1,000,000 pairwise alignments!
  • How to speed up pairwise alignments?
FASTA was the first software for quick searching of a database

Introduced the idea of searching for k-mers

Can be done quickly by preprocessing database


Key idea: search for k-mers (short matchig substrings)

quickly by preprocessing the database.


This key idea can also be used for speeding up pairwise

alignments when doing multiple sequence alignments

biologically realistic scoring matrices
Biologically realistic scoring matrices
  • PAM and BLOSUM are most popular
  • PAM was developed by Margaret Dayhoff and co-workers in 1978 by examining 1572 mutations between 71 families of closely related proteins
  • BLOSUM is more recent and computed from blocks of sequences with sufficient similarity
  • We need to compute the probability transition matrix M which defines the probability of amino acid i converting to j
  • Examine a set of closely related sequences which are easy to align---for PAM 1572 mutations between 71 families
  • Compute probabilities of change and background probabilities by simple counting
  • In this model the unit of evolution is the amount of evolution that will change 1 in 100 amino acids on the average

The scoring matrix Sab is the ratio of Mab to pb

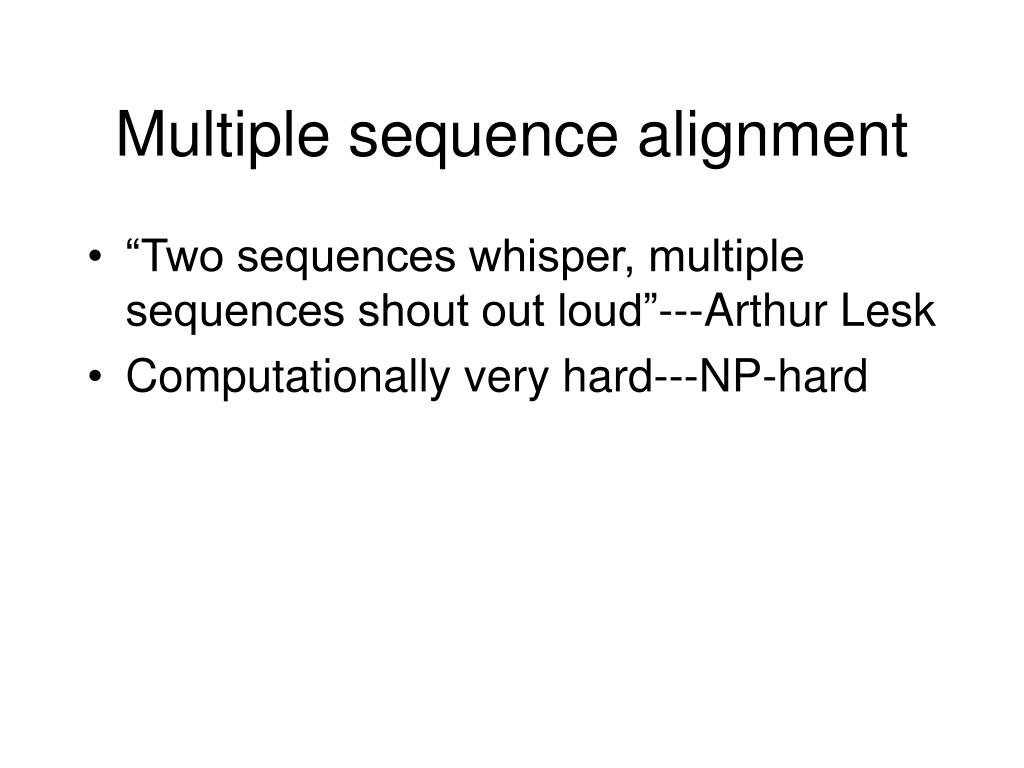

multiple sequence alignment
Multiple sequence alignment
  • “Two sequences whisper, multiple sequences shout out loud”---Arthur Lesk
  • Computationally very hard---NP-hard
multiple sequence alignment1
Unaligned sequences






Aligned sequences

_G_ _ GCTT_




A_ _C_ CTT_

Conserved regions help us

to identify functionality

Multiple sequence alignment
  • Before we see how to construct multiple alignments, how do we align two alignments?
  • Idea: summarize an alignment using its profile and align the two profiles
iterative alignment heuristic for sum of pairs
Iterative alignment(heuristic for sum-of-pairs)
  • Pick a random sequence from input set S
  • Do (n-1) pairwise alignments and align to closest one t in S
  • Remove t from S and compute profile of alignment
  • While sequences remaining in S
    • Do |S| pairwise alignments and align to closest one t
    • Remove t from S
iterative alignment
Iterative alignment
  • Once alignment is computed randomly divide it into two parts
  • Compute profile of each sub-alignment and realign the profiles
  • If sum-of-pairs of the new alignment is better than the previous then keep, otherwise continue with a different division until specified iteration limit
progressive alignment
Progressive alignment
  • Idea: perform profile alignments in the order dictated by a tree
  • Given a guide-tree do a post-order search and align sequences in that order
  • Widely used heuristic
