cwhsueh@csie ntu edu tw http www csie ntu edu tw cwhsueh 100 fall oct 28 fri 678 dth 104

前瞻資訊科技

-虛擬化 (1)

-Virtualization(V12N)

薛智文

cwhsueh@csie.ntu.edu.tw

http://www.csie.ntu.edu.tw/~cwhsueh/

100 Fall, Oct 28, Fri 678, DTH 104

preface
Preface
  • Steve Jobs (Apple, 1955-2011)
    • Stay hunger, stay foolish. (求知若渴,虛心若愚。)
  • Dennis Ritchie (Clanguage, 1941-2011)
  • Skype eBay (4.1B USD, 2005)  Microsoft (8.5B USD, 2011)
  • Linux (Linus Torvalds, 1991)
  • Android (Danger, 2003 Google, 2005)
  • Meego (Intel Samsung, Feb 2010 )
  • Tizen (Intel Samsung [Nokia], Sep 2011)
  • Windows 8 (Microsoft, nVidia 2011)
  • IOS 5 (Apple, 2011)
  • 廣達,台積電 (2011)

持飢保愚

/37

outline
Outline
  • Introduction
    • What is virtualization?
    • Why is virtualization difficult?
    • How to virtualize?
  • Case Study
    • Inline Emulation
    • Domain 1
  • Q&A

/37

what is virtualization
What is Virtualization ?
  • The creation of a virtual version of something.
  • Virtual class
  • Virtual circuit
  • Virtual community
  • Virtual device
  • Virtual disk
  • Virtual host
  • Virtual keyboard
  • Virtual machine
  • Virtual market
  • Virtual memory
  • Virtual money
  • Virtual Private Network
  • Virtual reality

Fully

Utilizing

Hardware

Virtualization

Etc.

Sharing

Hardware

Resource

Running

Applications

(x-platform)

Security

/37

types of virtualization
Types of Virtualization
  • Hardware/platform virtualization
  • Desktop virtualization
  • Software virtualization
    • OS-level, Workspace, Application
  • Storage virtualization
  • Data virtualization
  • Database virtualization
  • Network virtualization

/37

big questions for virtualization
Big Questions for Virtualization
  • How fast can virtualization achieve?
  • What kinds of applications can there be?
  • What problems it might incur?
    • Technical
    • Security
    • Business
    • Politics
  • Homework:
    • Send to TA a 3-5 page report answering any of the above or related questions.
      • 1-3 members per group, will be posted on course wiki.
    • A 5-minute talk/Q&A in the last hour of class.

/37

why virtualization is difficult
Why Virtualization is Difficult?

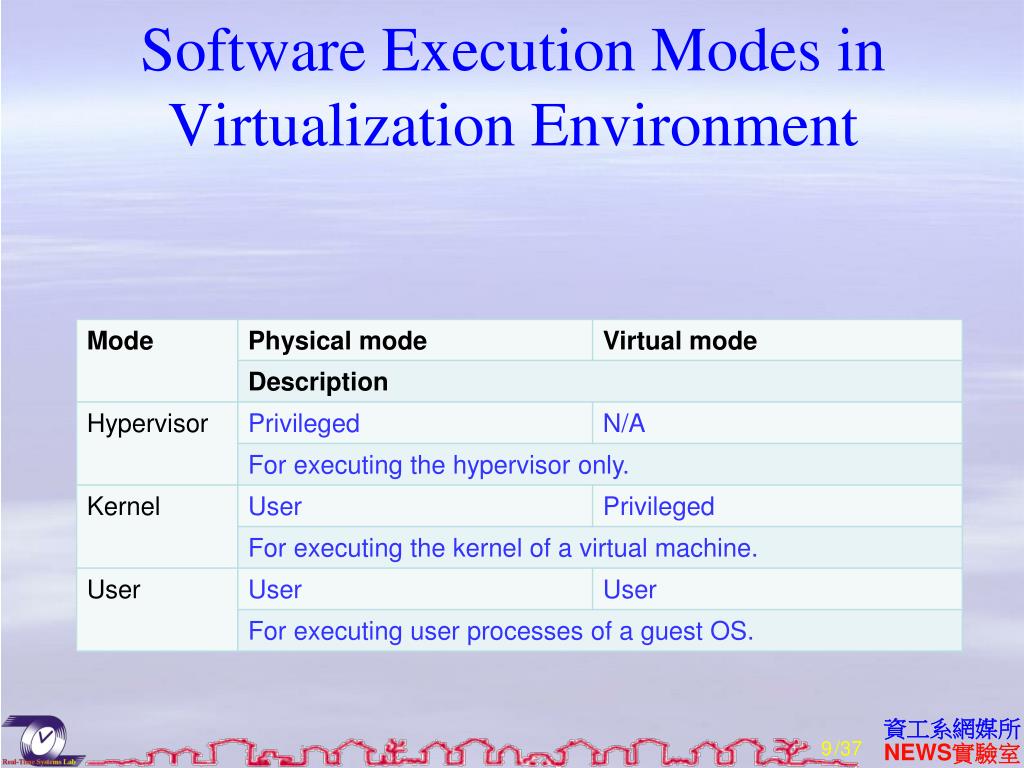

0/1/3 Ring, e.g. x86_32

  • OS is moved to ringr1/ring3
  • On x86
    • Some instructions
      • Sensitive Instructions
      • Cannot be trapped

OS

0/3/3 Ring, e.g. x86_64, ARM

OS

/37

virtual machine monitor vmm hypervisor
Virtual Machine Monitor (VMM)Hypervisor

VM : Virtual Machine,

Guest OS + Virtual Devices

VM0

VM1

VMN

Hosted VMM, e.g. VMware

VM0

VM1

VMN

Hypervisor, e.g. Xen

Host Operating System

Hardware

Hardware

Type I - Hypervisor

Type II – Hosted VMM

/37

the first challenge of virtualization virtualizable
The First Challenge of VirtualizationVirtualizable
  • According to Popek and Goldberg† in 1974,

Virtual machines can be constructed for a platform if

    • Sensitive Instructions
      • might change the state of system resources
    • Privileged Instructions
      • must be executed with sufficient privilege

† G. J. Popek and R. P. Goldberg, “Formal requirements for virtualizable third generation architectures,”

Commun. ACM, vol. 17, no. 7, pp. 412–421, Jul. 1974.

/37

how to virtualize
How to Virtualize ?
  • Binary translation
  • Hypercall

Trap and emulate

Full Virtualization

Para Virtualization

Hardware Assisted Virtualization

Intel VT-x & AMD SVM

/37

case study
Case Study
  • Inline Emulation†
  • Domain 1
    • with Insyde Inc.

† Yuan-Cheng Lee, Chih-Wen Hsueh, and Rong-Guey Chang, "Inline Emulation: An Optimization Technique for Virtualization on Embedded Systems," Proc. of the 17th International Conference on Real-Time and Embedded Computing Systems and Applications (RTCSA'11), Toyama, Japan, August 2011.

/37

inline emulation
Inline Emulation
  • Motivation
  • The First Challenge of Virtualization
  • Idea of Inline Emulation
  • Design of Inline Emulation
  • Evaluation and Analysis
  • Conclusions

/37

motivation
Motivation
  • Virtualization is fast enough on PC with 90+% performance compared to the same non-virtualized OS.
    • We can further utilize multi-core embedded processors
  • To run multiple operating systems on a mobile phone…

/37

related work
Related Work
  • Secure Xen on ARM (Samsung)
    • It proved virtualization is possible for ARM platform.
  • The PENAR project (University of Applied Sciences, Western Switzerland)
    • It integrated the source trees of Xen, RTLinux, and Linux for ARM.
  • OKL4 (Open Kernel Labs)
    • A hypervisor which adopts microkernel architecture for embedded systems

/37

issues on virtualization for arm
Issues on Virtualization for ARM
  • The most critical issue is:
    • Example
      • MOVS PC, LR // move the value in link register to PC
        • It will cause unpredictable behavior when executed in user mode.
        • SPSR: Saved Program Status Register
        • CPSR: Current Program Status Register

Sensitive instructions Privileged instructions

/37

the problematic instructions 1 3
The Problematic Instructions(1/3)
  • Type I
    • Instructions which executed in user mode will cause undefined instruction (UDI) exception
    • We call them Canonical Privileged Instructions.
    • Example
      • MCR p15, 0, r0, c2, c0, 0
        • Move r0 to c2 and c0 in coprocessor specified by p15 for operation according to option 0 and 0

Operand-dependent operation

/37

the problematic instructions 2 3
The Problematic Instructions(2/3)
  • Type II
    • Instructions which executed in user mode will have no effect
    • Example
      • MSR cpsr_c, #0xD3
        • Switch to privileged mode and disable interrupt

31

Program Status Register (PSR)

0

Execution

Flags

Exception

Mask

Execution

Mode

/37

the problematic instructions 3 3
The Problematic Instructions(3/3)
  • Type III
    • Instructions which executed in user mode will cause unpredictable behaviors
    • Example
      • MOVS PC, LR

/37

the first challenge of virtualization example

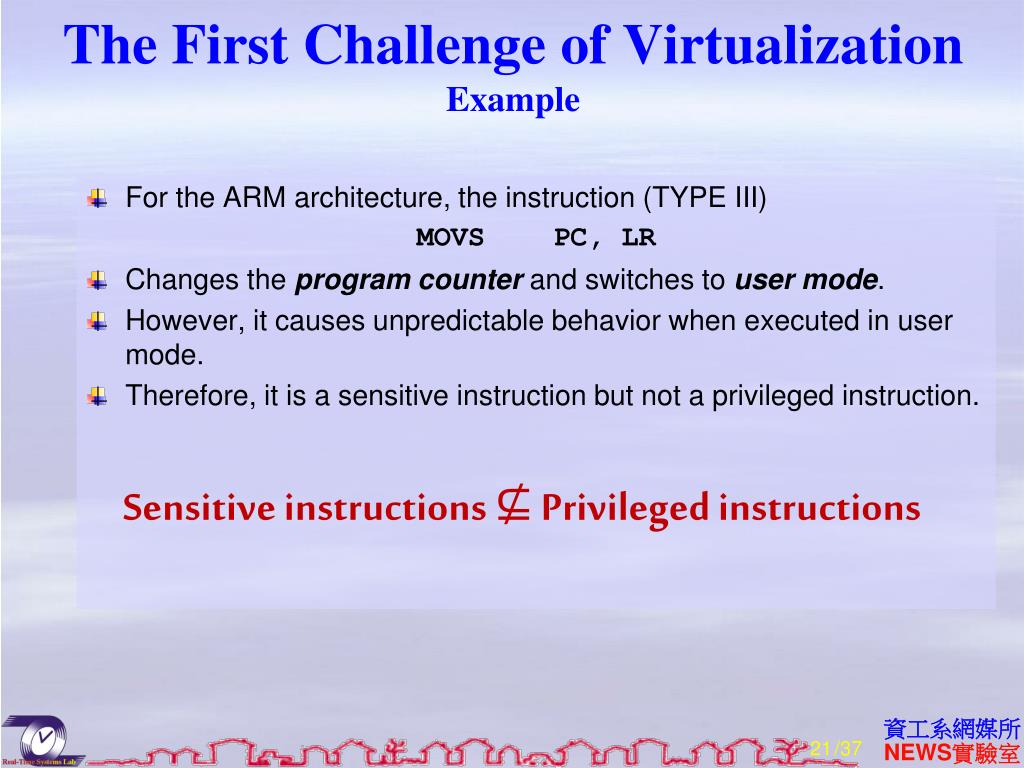

The First Challenge of VirtualizationExample
  • For the ARM architecture, the instruction (TYPE III)

MOVS PC, LR

  • Changes the program counter and switches to user mode.
  • However, it causes unpredictable behavior when executed in user mode.
  • Therefore, it is a sensitive instruction but not a privileged instruction.

Sensitive instructions Privileged instructions

/37

the first challenge of virtualization solutions 1 2
The First Challenge of VirtualizationSolutions (1/2)

Dynamic Binary Translation

Translation Basic Block

BL TLB_FLUSH_DENTRY_NEW

TLB_FLUSH_DENTRY:

MCR p15, 0, R0, C8, C6, 1

MOV PC, LR

TLB_FLUSH_DENTRY_NEW:

MOV R1, R0

MOV R0, #CMD_FLUSH_DENTRY

SWI #HYPER_CALL_TLB

BL TLB_FLUSH_DENTRY

TLB_FLUSH_DENTRY:

MCR p15, 0, R0, C8, C6, 1

MOV PC, LR

/37

the first challenge of virtualization solutions 2 2
The First Challenge of VirtualizationSolutions (2/2)
  • Virtualization APIs – hypercalls

/* In Hypervisor */

/* In Guest OS */

SWI Handler

BL TLB_FLUSH_DENTRY

TLB_FLUSH_DENTRY:

MOV R1, R0

MOV R0, #CMD_FLUSH_DENTRY

SWI #HYPER_CALL_TLB

Hypercall Handler

……

LDR R1, [SP, #4]

MCR p15, 0, R1, C8, C6, 1

Restore User Context & PC

/37

hypercall
Hypercall

Guest OS

Hypercalls

No

reschedule?

Yes

Software Interrupt

context switch

Hypervisor

Hyper Call Handler

SWI Handler

/37

idea of inline emulation
Idea of Inline Emulation

MOV R0, VIRT_ADDR

MCR p15, 0, R0, C8, C6, 1

The Original Instruction

Hypercall

Inline Emulation

Guest OS

Guest OS

MOV R0, VIRT_ADDR

MCR p15, 0, R0, C8, C6, 1

MOV R0, #CMD_FLUSH_DENTRY

MOV R1, VIRT_ADDR

SWI #HYPER_CALL_TLB

MCR p15, 0, R0, C8, C6, 1

Inline Emulation Handler

……

Hypercall Handler

……

/* restore user context */

LDMIA SP, [R0 – R14]

MCR p15, 0, R0, C8, C6, 1

LDR R1, [SP, #4]

MCR p15, 0, R1, C8, C6, 1

RestorePC

Restore User Context & PC

/37

inline emulation1
Inline Emulation

Guest OS

Hypercalls

Canonical

Privileged Instructions

(TYPE I)

No

reschedule?

Yes

Software Interrupt

return to guest

UDI Exception

context switch

Hypervisor

InlineEmulation

Hyper Call Handler

UDIHandler

SWI Handler

/37

design of inline emulation the main handler
Design of Inline EmulationThe Main Handler

A handler for the

instruction is found

No handler for the

instruction was found

/37

the issue of finding an inline emulation handler

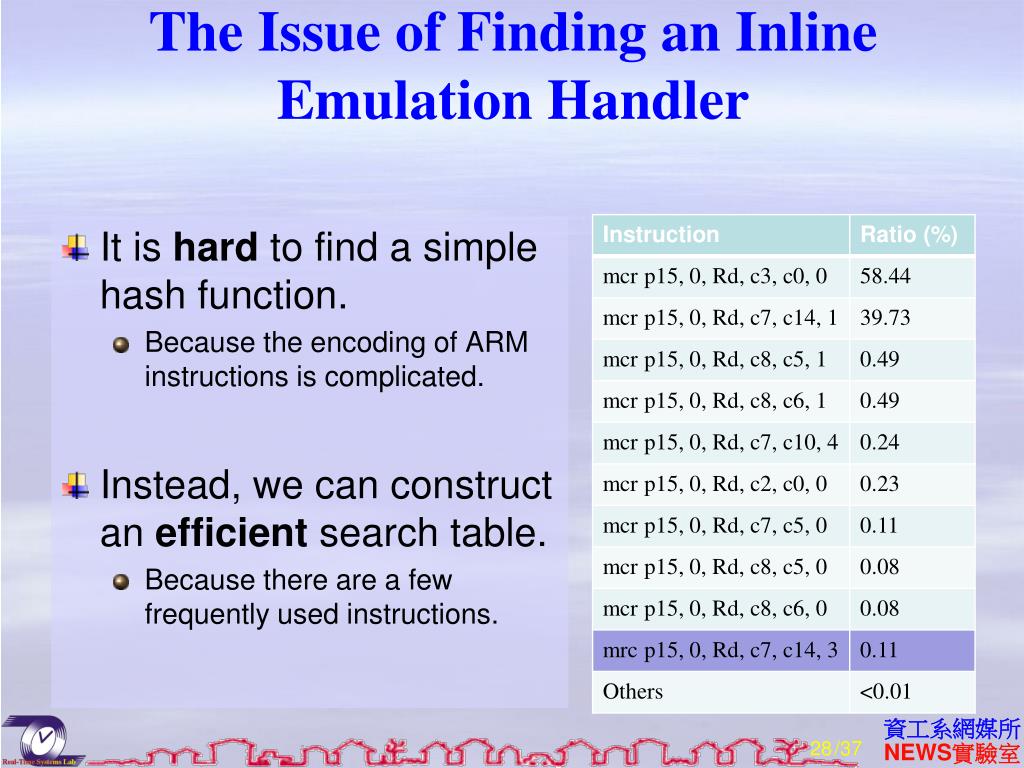

The Issue of Finding an Inline Emulation Handler
  • It is hard to find a simple hash function.
    • Because the encoding of ARM instructions is complicated.
  • Instead, we can construct an efficient search table.
    • Because there are a few frequently used instructions.

/37

example of mto1 search table
Example of Mto1 Search Table
  • Encoding of MCR instruction
    • Syntax: MCR{cond} cp, op1, Rd, CRn, CRm, op2

31

0

  • An entry E is matched if

/37

design of inline emulation dynamic inline emulation die handler
Design of Inline EmulationDynamic Inline Emulation (DIE) Handler

inlining the instruction

flushing caches

Self-modifying

/37

design of inline emulation static inline emulation sie handler

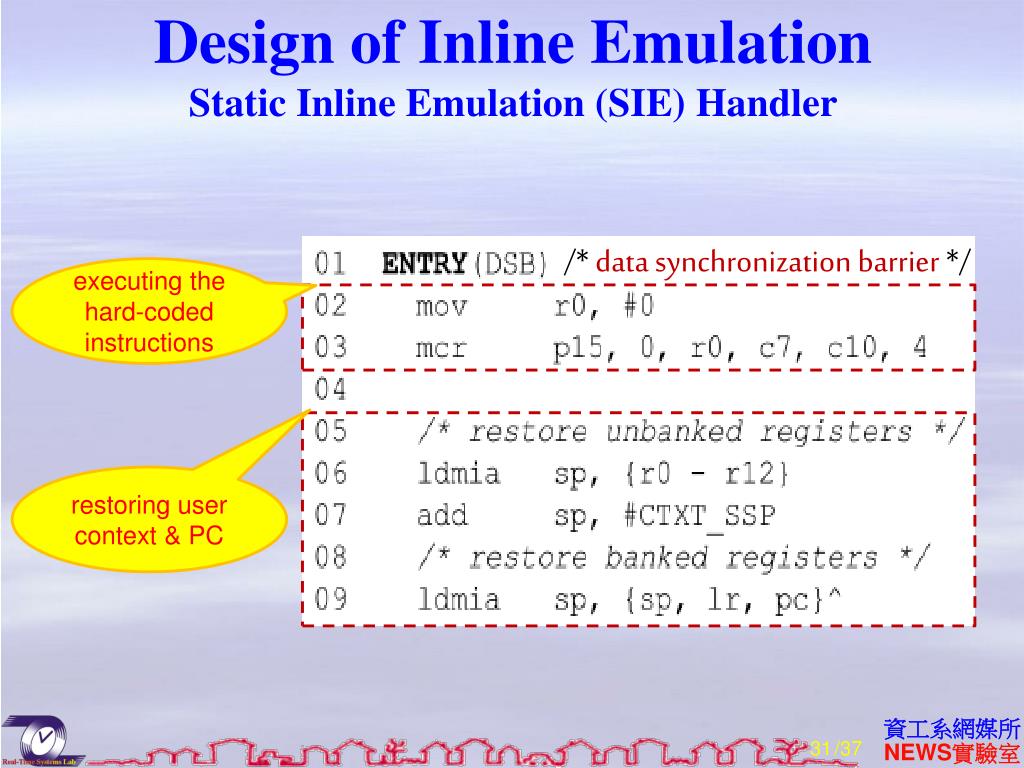

Design of Inline EmulationStatic Inline Emulation (SIE) Handler

executing the hard-coded instructions

/* data synchronization barrier */

restoring user context & PC

/37

evaluation and analysis the micro level analysis 2 2
Evaluation and AnalysisThe Micro-Level Analysis (2/2)

Inline emulation can achieve at least 4.24X performance of hypercalls in most cases (about 98%).

/37

conclusions
Conclusions
  • Inline emulation :
    • Reduces the efforts to port guest operating systems
    • Increases the handling of sensitive instructions(4-7x)
    • Increases the overall system performance (0.39%)
  • Future work
    • Optimization for memory virtualization
      • Much higher the overall speedup is possible.
