Regression

1. Regression Class 21

2. Schedule for Remainder of Term Nov. 21: Regression Part I Nov 26: Regression Part II Dec. 03: Moderated Multiple Regression (MMR), Quiz 3 Stats Take-Home Exercise assigned Dec. 05: Survey Questions I & II, but read only Schwartz and Schuman & Presser Dec. 10: Review Stats Take Home Exercise Due Dec. 19: Final Exam, Room 302, 11:30 to 2:30

3. Caveat on Regression Sequence Regression is complex, rich topic – simple and multiple regression can be a course in itself. We can cover only a useful introduction in 3 classes. Will cover: Simple Regression; basic concepts, elements, SPSS output Multiple Regression: basic concepts, selection of methods, elements, assumptions SPSS output Moderated Multiple Regression Will touch on: Diagnostic stats, outliers, influential cases, cross validation, regression plots, checking assumptions

4. ANOVA VS. REGRESSION ANOVA: Do the means of Group A, Group B and Group C differ? Regression: Does Variable X influence Outcome Y? Frustration

5. Regression vs. ANOVA as Vehicles for Analyzing Data ANOVA: Sturdy, straightforward, robust to violations, easy to understand inner workings, but limited range of tasks. Regression: Amazingly versatile, agile, super powerful, loaded with nuanced bells & whistles, but very sensitive to violations of assumptions. A bit more art.

6. Functions of Regression 1. Establishing relations between variables Do frustration and aggression co-occur? 2. Establishing causality between variables Does frustration (at Time 1) predict aggression (at Time 2)? 3. Testing how multiple predictor variables relate to, or predict, an outcome variable. Do frustration, and social class, and family stress predict aggression? [additive effects] 4. Test for moderating effects between predictors on outcomes. Does frustration predict aggression, but mainly for people with low income? [interactive effect] 5. Forecasting/trend analyses If incomes continue to decline in the future, aggression will increase by X amount.

7. The Palace Heist: A True-Regression Mystery Sterling silver from the royal palace is missing. Why? Facts gathered during investigation A. General public given daily tours of palace B. Reginald, the ADD butler, misplaces things C. Prince Guido, the playboy heir, has gambling debts Possible Explanations? A. Public is stealing the silver B. Reginald is misplacing the silver C. Guido is pawning the silver

8. The Palace Heist: A True-Regression Mystery Possible explanations: A. Public is stealing silver B. Reginald’s ADD leads to misplaced silver C. Guido is pawning silver Is it just one of these explanations, or a combination of them? E.g., Public theft, alone, OR public theft plus Guido’s gambling? If it is multiple causes, are they equally important or is one more important than another? E.g., Crowd size has a significant effect on lost silver, but is less important than Guido’s debts. Moderation: Do circumstances interact? E.g., Does more silver get lost when Reginald’s ADD is severe, but only when crowds are large?

9. Regression Can Test Each of These Possibilities, And Can Do So Simultaneously DATASET ACTIVATE DataSet1. REGRESSION /DESCRIPTIVES MEAN STDDEV CORR SIG N /MISSING LISTWISE /STATISTICS COEFF OUTS R ANOVA COLLIN TOL CHANGE /CRITERIA=PIN(.05) POUT(.10) /NOORIGIN /DEPENDENT missing.silver /METHOD=ENTER crowds.size /METHOD=ENTER reginald.ADD /METHOD=ENTER guido.debts /METHOD=ENTER crowds.reginald.

10. Why Do Bullies Harass Other Students? Investigation shows that bullies are often: A. Reprimanded by teachers for unruly behavior B. Have a lot of family stress Possible explanations for bullies’ behavior? A. Frustrated by teachers’ reprimands—take it out on others. B. Family stress leads to frustration—take it out on others. Questions based on these possible explanations are: Is it reprimands alone, or stress alone or reprimands + stress? Are reprimands important, after considering stress (or vice versa)? Do reprimands matter only if there is family stress?

11. Simple Regression Features: Outcome, Intercept, Predictor, Error Y = b0 + b1 + Error (residual) Do bullies aggress more after being reprimanded? Y = DV = Aggression bo = Intercept = average of DV before other variables are considered. b1 = slope of IV = influence of being reprimanded.

12. Elements of Regression Equation Y = DV (aggression) b0 = intercept; b0 = the average value of DV BEFORE accounting for IV b0 = mean DV WHEN IV = 0 B1 = slope B1= Effect of DV on IV (effect of reprimands on aggression) Coefficients = parameters; things that account for Y. b0 and b1 are coefficients. Ɛ = error; changes in DV that are not due to coefficients. Y = b0 + b1 + Ɛ 1 2 3 4 Aggression 1 2 3 4 5 6 7 8 Reprimands

13. Translating Regression Equation Into Expected Outcomes Y = 2 + 1.0b + Ɛ means that bullies will aggress 2 times a day plus (1 * number of reprimands). How many times will a bully aggress if he/she is reprimanded 3 times? 1 2 3 4 Aggression 1 2 3 4 5 6 7 8 Reprimands Y = 2 + 1.0 (3) = 5 Regression allow one to predict how an individual will behave (e.g., aggress) due to certain causes (e.g., reprimands).

14. Quick Review of New Terms Y = b0 + b1 + Ɛ Yis the: Outcome, aka DV Intercept; average score when IV = 0 B0 is the: B1 is the: Slope, aka predictor, aka IV Error, aka changes in DV not explained by IV Ɛ is the: Intercept and slope(s), B0 and B1 The coefficients include: Does B0 = mean of the sample? NO! B0 is expected score ONLY when slope = 0 If Y = 5.0 + 2.5b + Ɛ, what is Y when the slope = 2? 5.0 + (2.5 * 2) = 10

15. Regression In English* The effect that days-per-week meditating has on SAT scores Y = 1080 + 25b in English? Students’ SAT is 1080 without meditation, and increases by 25 points for each additional day of weekly meditation. The effect of Anxiety (in points) on threat detection Reaction Time (in ms) Y = 878 -15b in English? Reaction time is 878 ms when anxiety score = 0, and decreases by 15 ms for each 1 pt increase on anxiety measure. The effect of parents’ hours of out-loud reading on toddlers’ weekly word acquisition. Y =35 + 8b in English? Toddlers speak 35 words when parents never read out-loud, and acquires 8 words per week for every hour of out-loud reading. * Fabricated outcomes

16. Positive, Negative, and Null Regression Slopes 1 2 3 4 5 6 7 1 2 3 Y = 3 + 0

17. Regression Tests “Models” Model: A predicted TYPE of relationship between one or more IVs (predictors) and a DV (outcome). Relationships can take various shapes: Linear: Calories consumed and weight gained. Curvilinear: Stress and performance J-shaped: Insult and response intensity Catastrophic or exponential: Number words learned and language ability.

18. Regression Tests How Well the Model “Fits” (Explains) the Obtained Data Predicted Model: As reprimands increase, bullying will increase. This is what kind of model? Linear 1 2 3 4 Aggression 1 2 3 4 5 6 7 8 Reprimands Linear Regression asks: Do data describe a straight, sloped line? Do they confirm a linear model?

19. Locating a "Best Fitting" Regression Line * * * * * * * * * * * * * * * * * * * * * * * * * 1 2 3 4 5 6 7 8 9 Aggression 1 2 3 4 5 6 7 8 9 10 11 12 Line represents the "best fitting slope". Disparate points represent residuals = deviations from slope. "Model fit" is based on method of least squares. Reprimands

20. Error = Average Difference Between All Predicted Points (X88 - Ŷ88) and Actual Points (X88 - Y88) * * * X88 - Y88 * * * * * * * * * * * * * * * * * * * * * ε88 1 2 3 4 5 6 7 8 9 10 Aggression X88 - Ŷ88 Note "88" = Subject # 88 1 2 3 4 5 6 7 8 9 10 11 12 Reprimands

21. Regression Compares Slope to Mean * * * * * * * * * Aggression 1 2 3 4 5 6 7 8 9 10 * * Null Hyp: Mean score of aggression is best predictor, reprimands unimportant (b1 = 0) Alt. Hyp: Reprimands explain aggression above and beyond the mean, (b1 > 0) 1 2 3 4 5 6 7 8 9 10 11 12 Reprimands

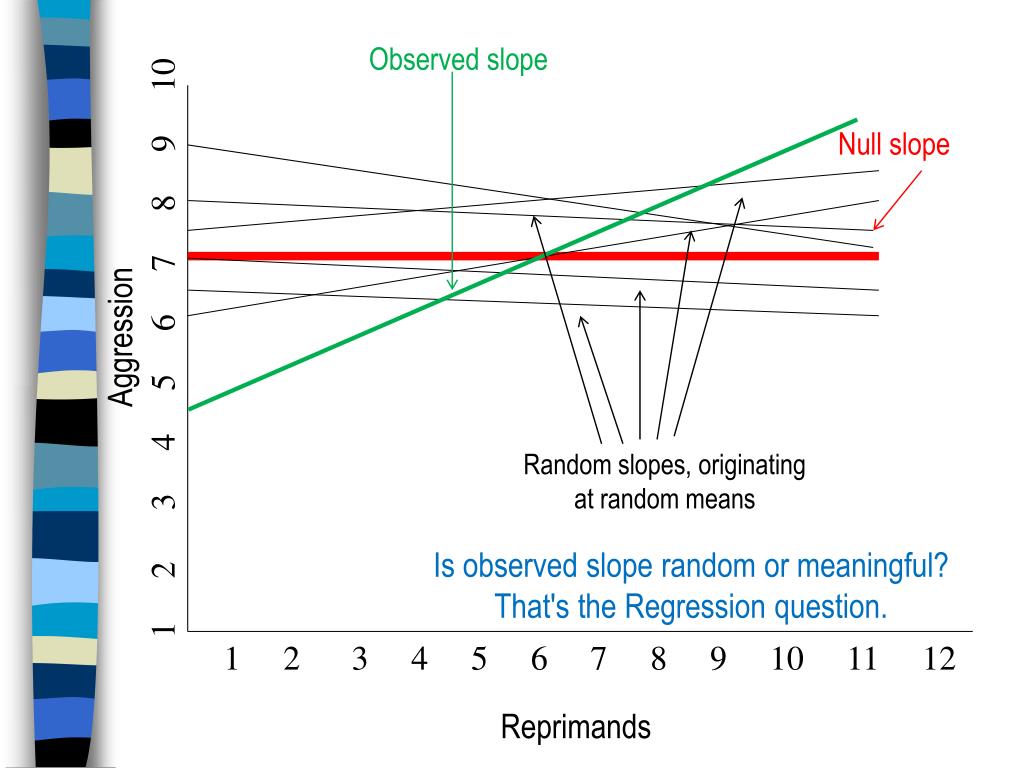

22. Observed slope Null slope Aggression 1 2 3 4 5 6 7 8 9 10 Random slopes, originating at random means Is observed slope random or meaningful? That's the Regression question. 1 2 3 4 5 6 7 8 9 10 11 12 Reprimands

23. Total Sum of Squares (SST) * * * * * * * * * Aggression 1 2 3 4 5 6 7 8 9 10 * * Total Sum of Squares (SST) = Deviation of each score from DV mean (assuming zero slope), square these deviations, then sum them. 1 2 3 4 5 6 7 8 9 10 11 12 Reprimands

24. Residual Sum of Squares (SSR) * * * * * * * * * Aggression 1 2 3 4 5 6 7 8 9 10 * * Residual Sum of Squares (SSR) = Each residual from regression line, square, then sum all these squared residuals. 1 2 3 4 5 6 7 8 9 10 11 12 Reprimands

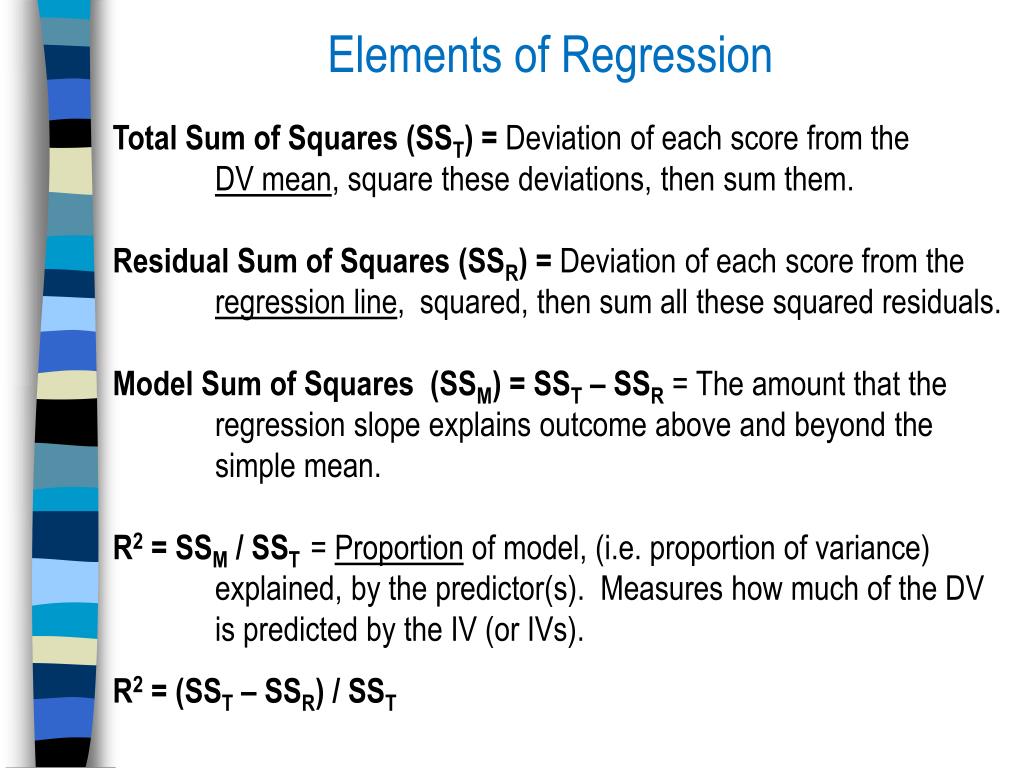

25. Elements of Regression Total Sum of Squares (SST) = Deviation of each score from the DV mean, square these deviations, then sum them. Residual Sum of Squares (SSR) = Deviation of each score from the regression line, squared, then sum all these squared residuals. Model Sum of Squares (SSM) = SST – SSR= The amount that the regression slope explains outcome above and beyond the simple mean. R2 = SSM / SST= Proportion of model, (i.e. proportion of variance) explained, by the predictor(s). Measures how much of the DV is predicted by the IV (or IVs). R2 = (SST – SSR) / SST

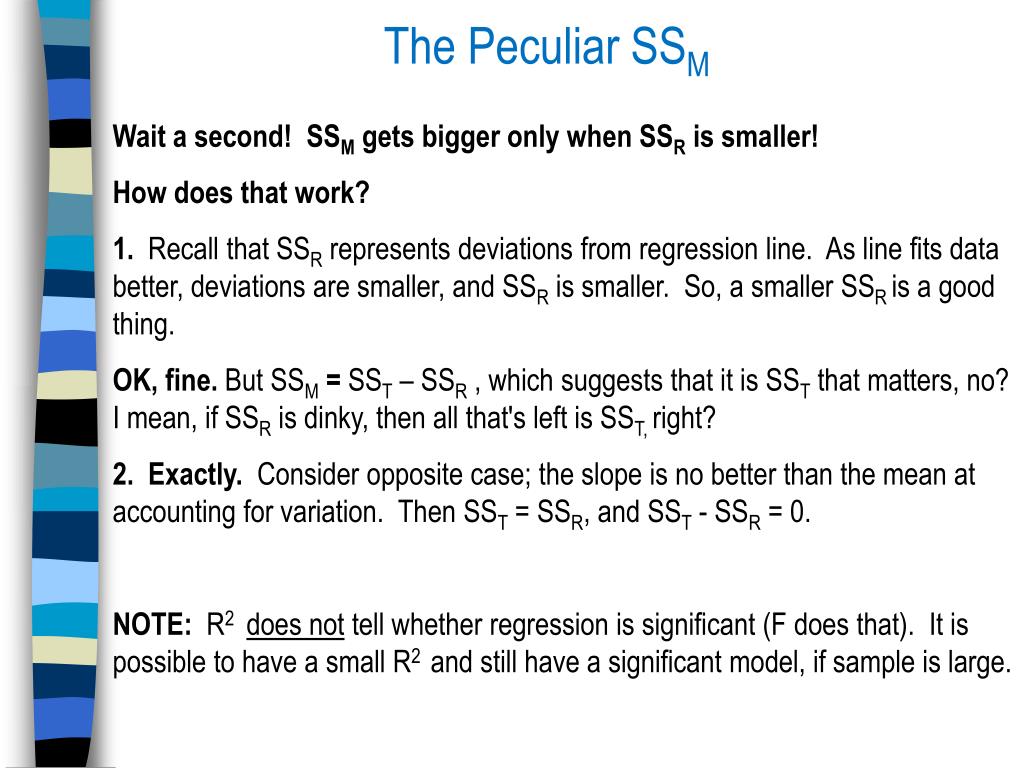

26. The Peculiar SSM Wait a second! SSM gets bigger only when SSR is smaller! How does that work? 1. Recall that SSR represents deviations from regression line. As line fits data better, deviations are smaller, and SSR is smaller. So, a smaller SSR is a good thing. OK, fine. But SSM= SST – SSR , which suggests that it is SST that matters, no? I mean, if SSR is dinky, then all that's left is SST, right? 2. Exactly. Consider opposite case; the slope is no better than the mean at accounting for variation. Then SST = SSR, and SST - SSR = 0. NOTE: R2 does not tell whether regression is significant (F does that). It is possible to have a small R2 and still have a significant model, if sample is large.

27. Assessing Overall Model: The Regression F Test In ANOVA F = Treatment / Error, = MSB / MSW In Regression F= Model / Residuals, = MSM / MSR AKA slope line / random error around slope line MSM= SSM / df (model) MSR= SSR / df (residual) df (model) = number of predictors (betas, not counting intercept) df (residual) = number of observations (i.e., subjects) – estimates (i.e. all betas and intercept). If N = 20, then df = 20 – 2 = 18 F in Regression measures whether overall model does better than chance at predicting outcome.

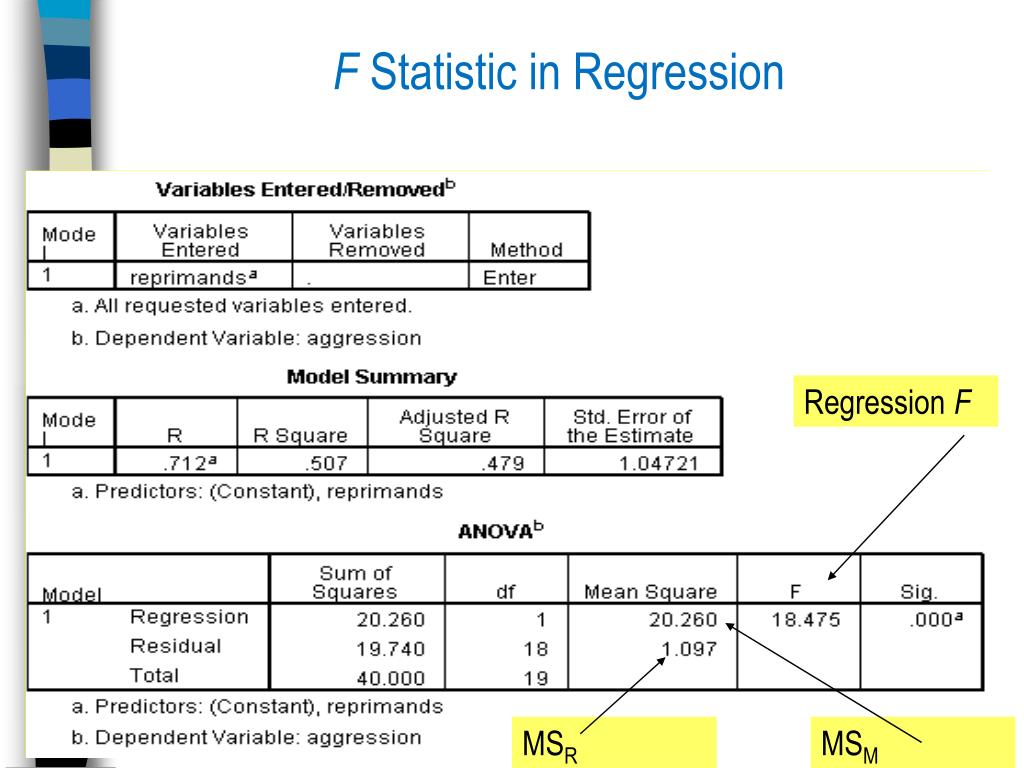

28. F Statistic in Regression Regression F MSR MSM

29. Assessing Individual Predictors Is the predictor slope significant, i.e. does IV predict outcome? b1 = slope of sole predictor in simple regression. If b1 = 0 then change in predictor has zero influence on outcome. If b1 > 0, then it has some influence. How much greater than 0 must b1 be in order to have significant influence? t stat tests significance of b1 slope. b observed – b expected (null effect b; i.e., b = 0) t = SEb b observed t df = n – predictors – 1 = n - 2 t = SEb Note: Predictors = betas

30. t Statistic in Regression predictor t sig. of t B = slope; Std. Error = Std. Error of slope t = B / Std. Error Beta = Standardized B. Shows how many SDs outcome changes per each SD change in predictor. Beta allows comparison between predictors, of predictor strength.

31. Interpreting Simple Regression Overall F Test: Our model of reprimand having an effect on aggression is confirmed. t Test: Reprimands lead to more aggression. In fact, for every 1 reprimand there is a .61 aggressive act, or roughly 1 aggressive act for every 2 reprimands.

32. Key Indices of Regression R = Degree to which entire model correlates with outcome R2 = Proportion of variance model explains F = How well model exceeds mean in predicting outcome b = The influence of an individual predictor, or set of predictors, at influencing outcome. beta = b transformed into standardized units t of b = Significance of b (b / std. error of b)

33. Multiple Regression (MR) Y = bo + b1 + b2 + b3 + ……bx + ε Multiple regression (MR) can incorporate any number of predictors in model. “Regression plane” with 2 predictors, after that it becomes increasingly difficult to visualize result. MR operates on same principles as simple regression. Multiple R = correlation between observed Y and Y as predicted by total model (i.e., all predictors at once).

34. Two Variables Produce "Regression Plane" Aggression Reprimands Family Stress

35. Multiple Regression Example Is aggression predicted by teacher reprimands and family stresses? Y = bo + b1 + b2 + ε Y = __ Aggression bo = __ Intercept (being a bully, by itself) reprimands b1 = __ family stress b2 = __ ε = __ error

36. Elements of Multiple Regression Total Sum of Squares (SST) = Deviation of each score from DV mean, square these deviations, then sum them. Residual Sum of Squares (SSR) = Each residual from total model (not simple line), squared, then sum all these squared residuals. Model Sum of Squares (SSM) = SST – SSR = The amount that the total model explains result above and beyond the simple mean. R2 = SSM / SST= Proportion of variance explained, by the total model. Adjusted R2 = R2, but adjusted to having multiple predictors NOTE: Main diff. between these values in mutli. regression and simple regression is use of total model rather than single slope. Math much more complicated, but conceptually the same.

37. Methods of Regression Hierarchical: 1. Predictors selected based on theory or past work 2. Predictors entered into analysis in order of importance, or by established influence. 3. New predictors are entered last, so that their unique contribution can be determined. Forced Entry: All predictors forced into model simultaneously. Stepwise: Program automatically searches for strongest predictor, then second strongest, etc. Predictor 1—is best at explaining entire model, accounts for say 40% . Predictor 2 is best at explaining remaining 60%, etc. Controversial method. In general, Hierarchical is most common and most accepted. Avoid “kitchen sink” Limit number of predictors to few as possible, and to those that make theoretical sense.

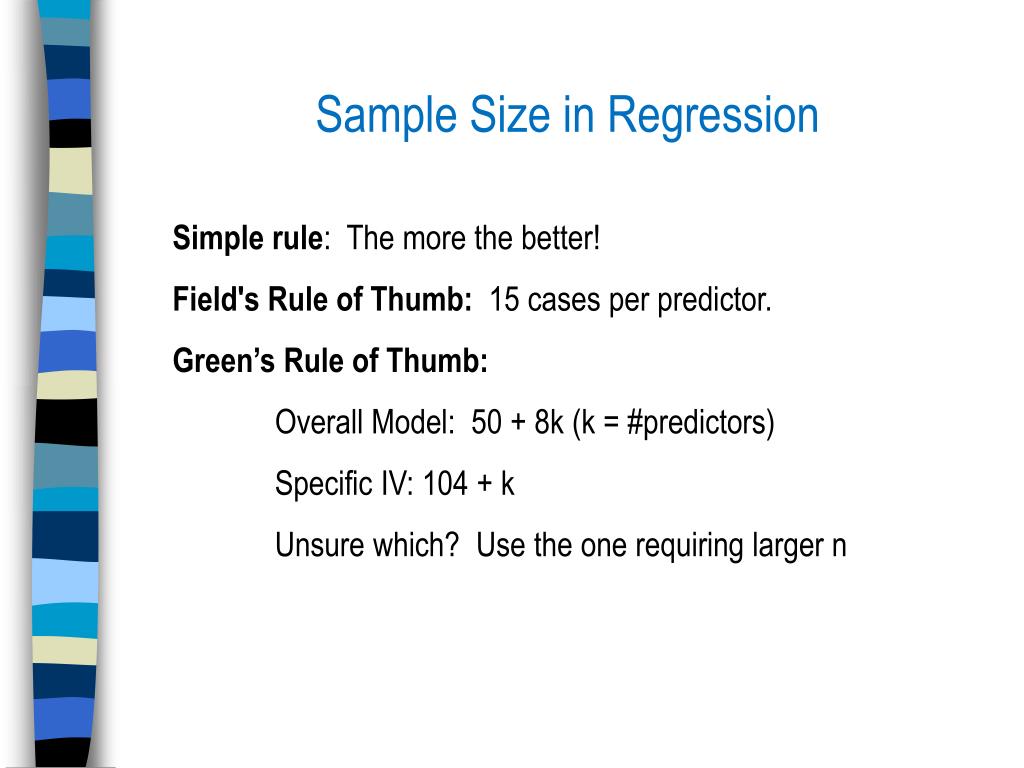

38. Sample Size in Regression Simple rule: The more the better! Field's Rule of Thumb: 15 cases per predictor. Green’s Rule of Thumb: Overall Model: 50 + 8k (k = #predictors) Specific IV: 104 + k Unsure which? Use the one requiring larger n

39. Multiple Regression in SPSS REGRESSION /DESCRIPTIVES MEAN STDDEV CORR SIG N /MISSING LISTWISE /STATISTICS COEFF OUTS R ANOVA CHANGE /CRITERIA=PIN(.05) POUT(.10) /NOORIGIN /DEPENDENT aggression /METHOD=ENTER family.stress /METHOD=ENTER reprimands. “OUTS” refers to variables excluded in, e.g. Model 1 “NOORIGIN” means “do show the constant in outcome report”. “CRITERIA” relates to Stepwise Regression only; refers to which IVs kept in at Step 1, Step 2, etc.

40. SPSS Regression Output: Descriptives

41. SPSS Regression Output: Model Effects Same as correlation R = Power of regression R2= Amount var. explained Adj. R2 = Corrects for multiple predictors R sq. change = Impact of each added model Sig. F Change = does new model explain signif. amount added variance

42. SPSS Regression Output: Predictor Effects

43. Requirements and Assumptions (these apply to Simple and Multiple Regression) Variable Types: Predictors must be quantitative or categorical (2 values only, i.e. dichotomous); Outcomes must be interval. Non-Zero Variance: Predictors have variation in value. No Perfect multicollinearity: No perfect 1:1 (linear) relationship between 2 or more predictors. Predictors uncorrelated to external variables: No hidden “third variable” confounds Homoscedasticity: Variance at each level of predictor is constant.

44. Requirements and Assumptions (continued) Independent Errors: Residuals for Sub. 1 ≠ residuals for Sub. 2 Normally Distributed Errors: Residuals are random, and sum to zero (or close to zero). Independence: All outcome values are independent from one another, i.e., each response comes from a subject who is uninfluenced by other subjects. Linearity: The changes in outcome due to each predictor are described best by a straight line.

45. Regression Assumes Errors are normally, independently, and identically Distributed at Every Level of the Predictor (X) X1 X2 X3

46. Homoscedasticity and Heteroscedasticity

47. Assessing Homoscedasticity Select: Plots Enter: ZRESID for Y and ZPRED for X Ideal Outcome: Equal distribution across chart

48. Extreme Cases * * Cases that deviate greatly from expected outcome > ± 2.5 can warp regression. First, identify outliers using Casewise Diagnostics option. Then, correct outliers per outlier-correction options, which are: * * * * * * * * * * 1. Check for data entry error 2. Transform data 3. Recode as next highest/lowest plus/minus 1 4. Delete

49. Casewise Diagnostics Print-out in SPSS Possible problem case

50. Casewise Diagnostics for Problem Cases Only In "Statistics" Option, select Casewise Diagnostics Select "outliers outside:" and type in how many Std. Dev. you regard as critical. Default = 3
