실습문제 1

실습문제 1. 구간 0 ≤ t≤3 에서 다음 미분방정식을 나타내는 함수를 작성하여 y(t) 에 대한 그래프생성. function dy =differentialequation1( t,y ) dy =-y-sin(3*t);. >>[t y]=ode45(@differentialequation1,[0 3],1). 실습문제 2. >> dy =@( time,y )-time*y+4*time/y; >>[t y]=ode45( dy ,[0,2],1). 위의 식에 대한 해를 구하여 그래프로 표현하시오. 실습문제 3.

quintessa-holden
Download Presentation

실습문제 1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

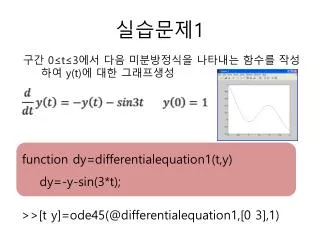

  1. 실습문제1 구간 0≤t≤3에서다음 미분방정식을 나타내는 함수를 작성하여 y(t)에 대한 그래프생성 function dy=differentialequation1(t,y) dy=-y-sin(3*t); >>[t y]=ode45(@differentialequation1,[0 3],1)

  2. 실습문제2 >>dy=@(time,y)-time*y+4*time/y; >>[t y]=ode45(dy,[0,2],1) 위의식에 대한 해를 구하여 그래프로 표현하시오.

  3. 실습문제3 구간 0≤t≤50,(y1,y3)에대한 상평면 그래프 생성 function dy=differentialequation2(t,y) dy=[10*(y(2)-y(1)) 28*y(1)-y(2)-y(1)*y(3) y(1)*y(2)-8/3*y(3)]

  4. 실습문제4 다음 Roberson 상미분방정식 시스템은 3가지 화학물들 간의 반응을 나타낸다. 이 함수를 작성하고 초기조건 y(1)=1,y(2)=0,y(3)=0일때 구간 0 ≤t≤0에서 미분방정식을 풀어보시오. function dy=reac(t,y) dy=[-0.04*y(1)+1e4*y(2)*y(3) 0.04*y(1)-1e4*y(2)*y(3)-3e7*y(2)^2 3e7*y(2)^2] >> [T,Y] = ode45(@reac,[0 3],[1 0 0]'); >> plot(T,Y(:,2))
