Hetnetip ethernet backhaul c onfiguration automation demo

HetnetIPEthernet BackHaulConfiguration Automation Demo

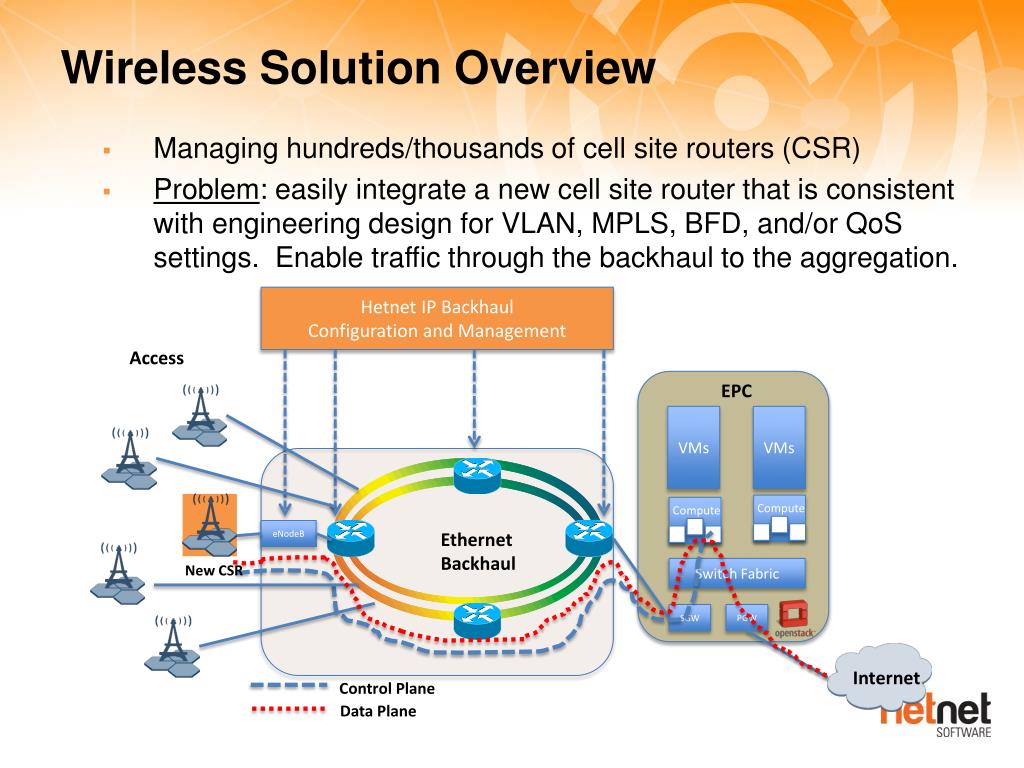

Wireless solution overview
Wireless Solution Overview

Hetnet IP Backhaul Configuration and Management

Access

Compute

Compute

EPC

VMs

VMs

eNodeB

Ethernet

Backhaul

New CSR

Switch Fabric

PGW

SGW

Internet

Control Plane

Data Plane

Managing hundreds/thousands of cell site routers (CSR)

Problem: easily integrate a new cell site router that is consistent with engineering design for VLAN, MPLS, BFD, and/or QoS settings. Enable traffic through the backhaul to the aggregation.

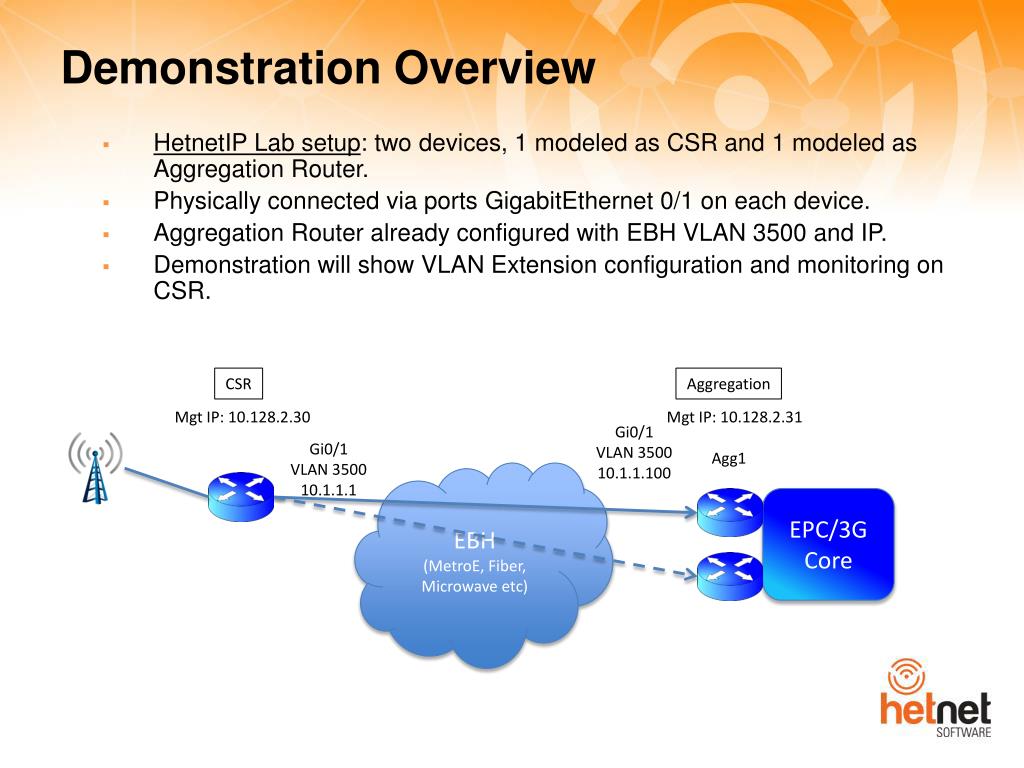

Demonstration overview
Demonstration Overview

CSR

Aggregation

Mgt IP: 10.128.2.30

Mgt IP: 10.128.2.31

Gi0/1

VLAN 3500

10.1.1.100

Gi0/1

VLAN 3500

10.1.1.1

Agg1

EBH

(MetroE, Fiber, Microwave etc)

EPC/3G Core

HetnetIPLab setup: two devices, 1 modeled as CSR and 1 modeled as Aggregation Router.

Physically connected via ports GigabitEthernet 0/1 on each device.

Aggregation Router already configured with EBH VLAN 3500 and IP.

Demonstration will show VLAN Extension configuration and monitoring on CSR.


Hetnetip demonstration
HetnetIPDemonstration

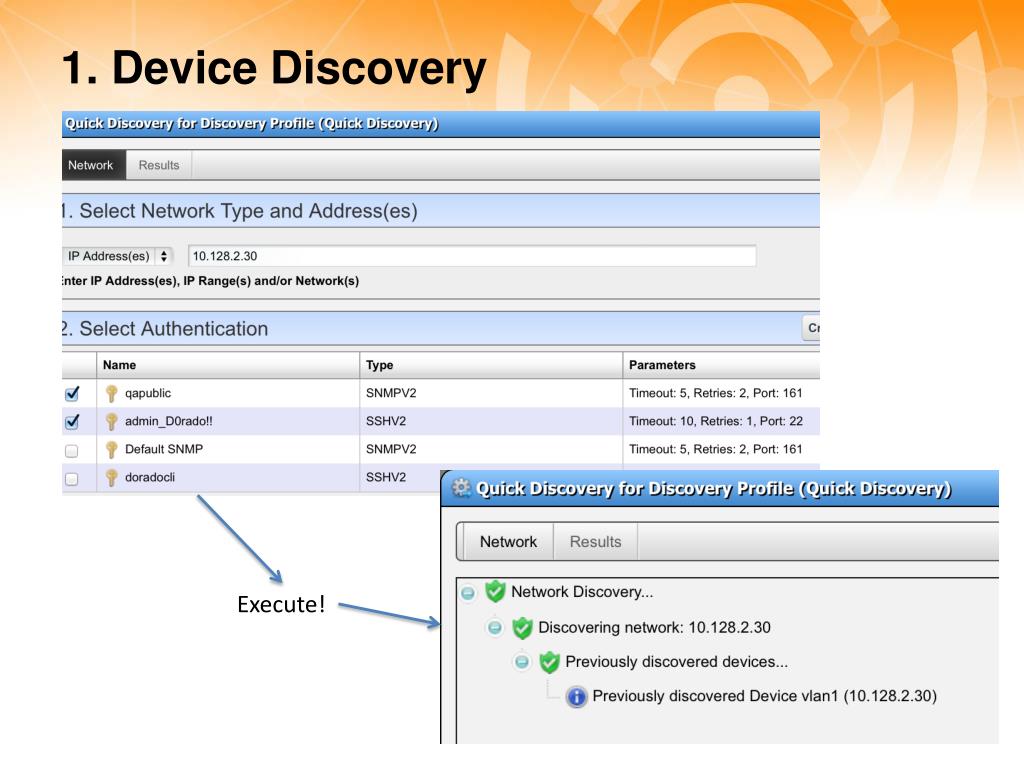

  • Device discovery – CSR

  • Assign to Group - CSRs

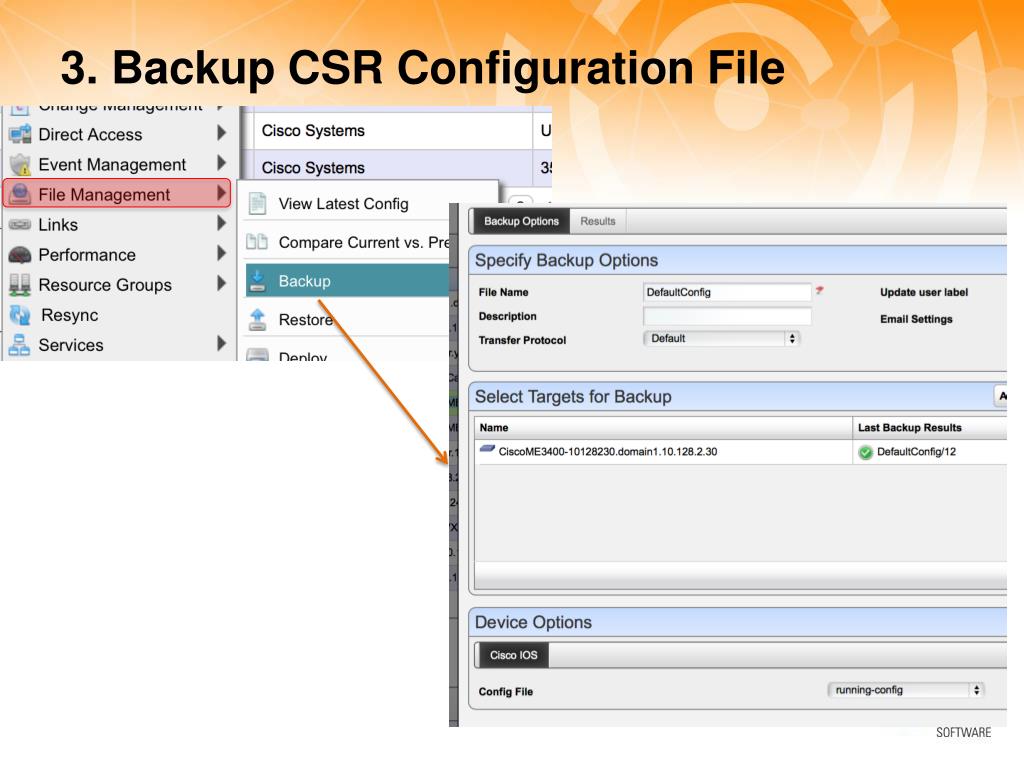

  • Backup CSR

  • Create VLAN and Bandwidth Monitor using a Work Order

  • Backup

  • Service Monitoring

    • Dashboard to display monitors

    • Manage Alarms

  • Create a Container to represent network topology for cell sites



2 assign to group
2. Assign to Group

Right-click device under ‘Managed Assets’



4 create vlan and bandwidth monitor using a work order

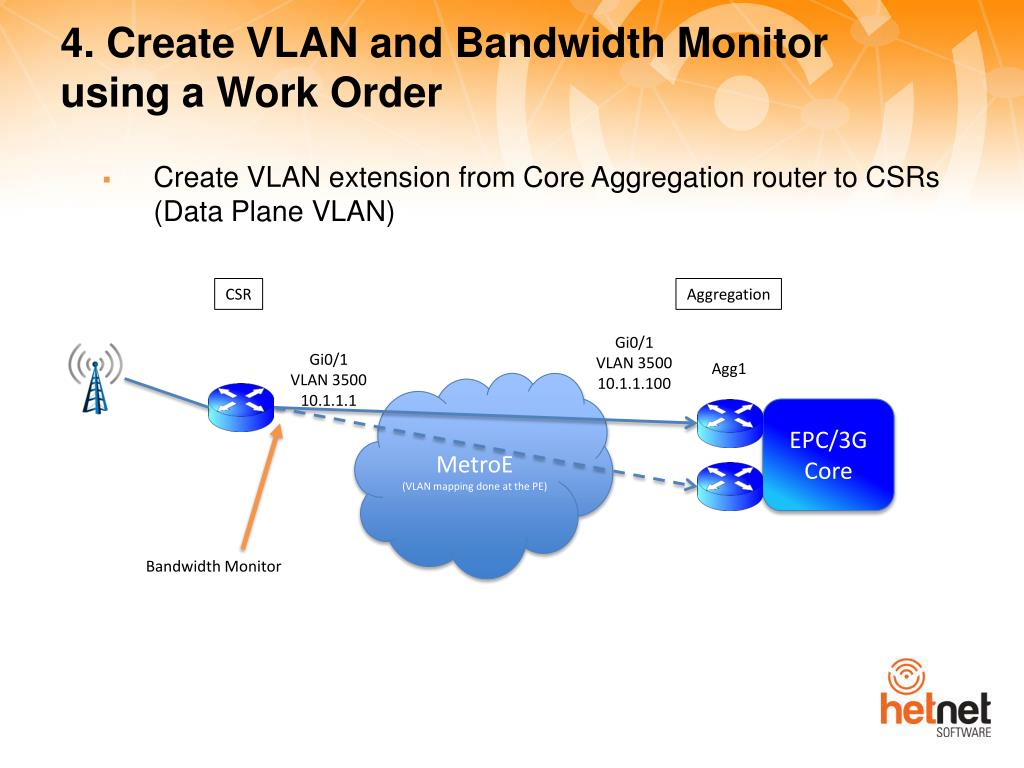

4. Create VLAN and Bandwidth Monitor using a Work Order

CSR

Aggregation

Gi0/1

VLAN 3500

10.1.1.100

Gi0/1

VLAN 3500

10.1.1.1

Agg1

MetroE

(VLAN mapping done at the PE)

EPC/3G Core

Bandwidth Monitor

Create VLAN extension from Core Aggregation router to CSRs(Data Plane VLAN)


5 backup restore
5. Backup/Restore

File management will compare versions of config files

Restore can be selected on any version for rollback or viewing

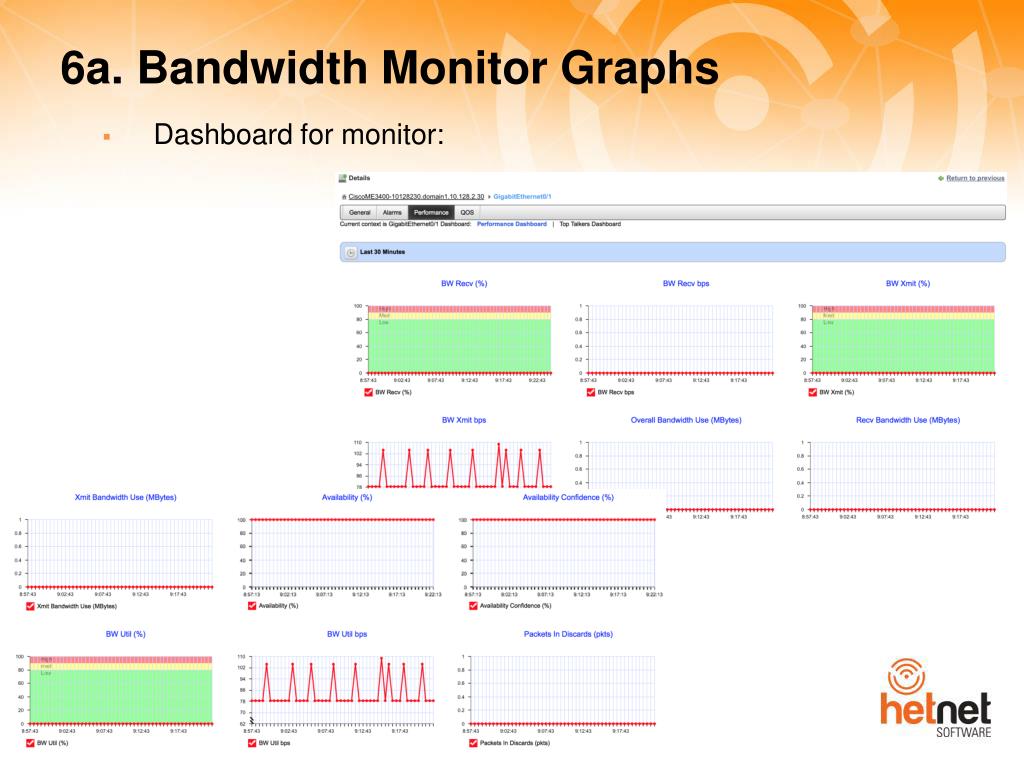

6a bandwidth monitor graphs
6a. Bandwidth Monitor Graphs

Dashboard for monitor:

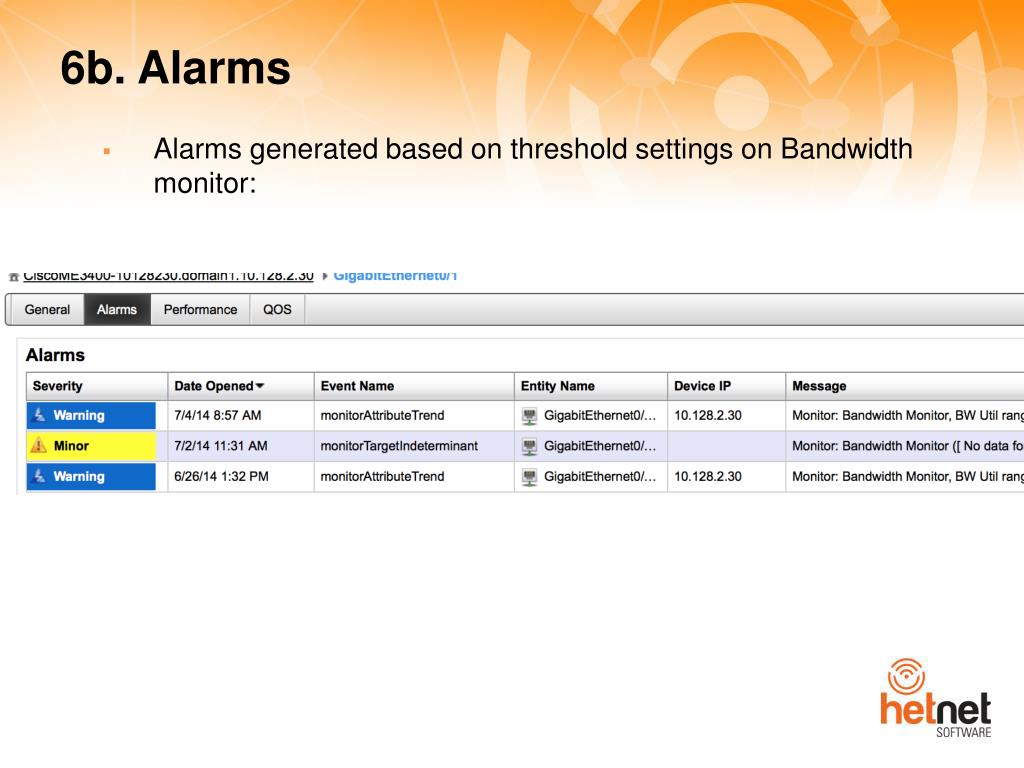

6b alarms
6b. Alarms

Alarms generated based on threshold settings on Bandwidth monitor:

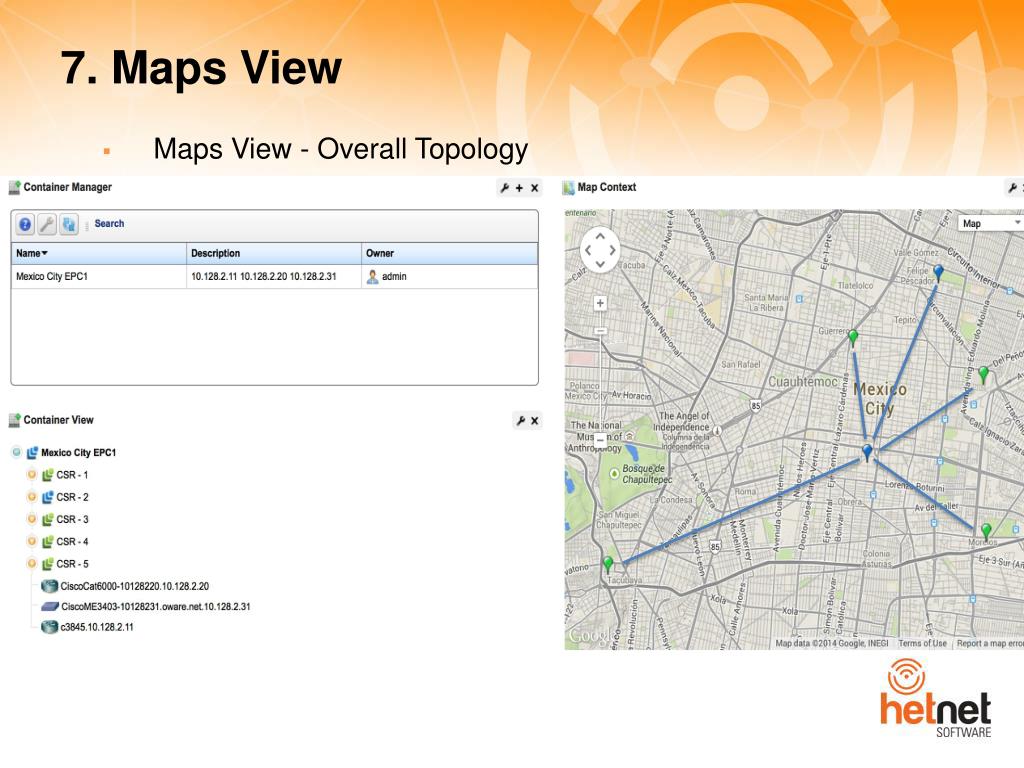

7 maps view
7. Maps View

Maps View - Overall Topology


H etnet core architecture
Hetnet Core Architecture

  • Network element Interface library

Multi-Tenant

User Portal

  • CustomizationPortal

  • User enabled configuration andintegration

  • System Admin tools

Automation Engine

Web Based

User Interface


Scalable deployment options

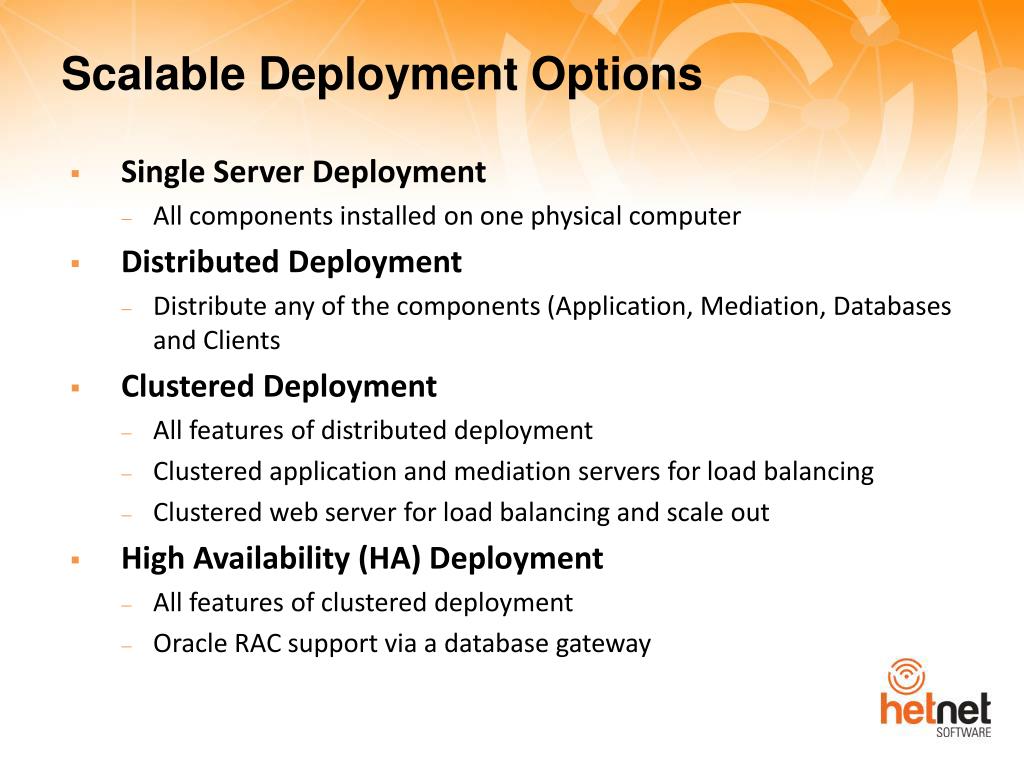

Scalable Deployment Options

Single Server Deployment

All components installed on one physical computer

Distributed Deployment

Distribute any of the components (Application, Mediation, Databases and Clients

Clustered Deployment

All features of distributed deployment

Clustered application and mediation servers for load balancing

Clustered web server for load balancing and scale out

High Availability (HA) Deployment

All features of clustered deployment

Oracle RAC support via a database gateway

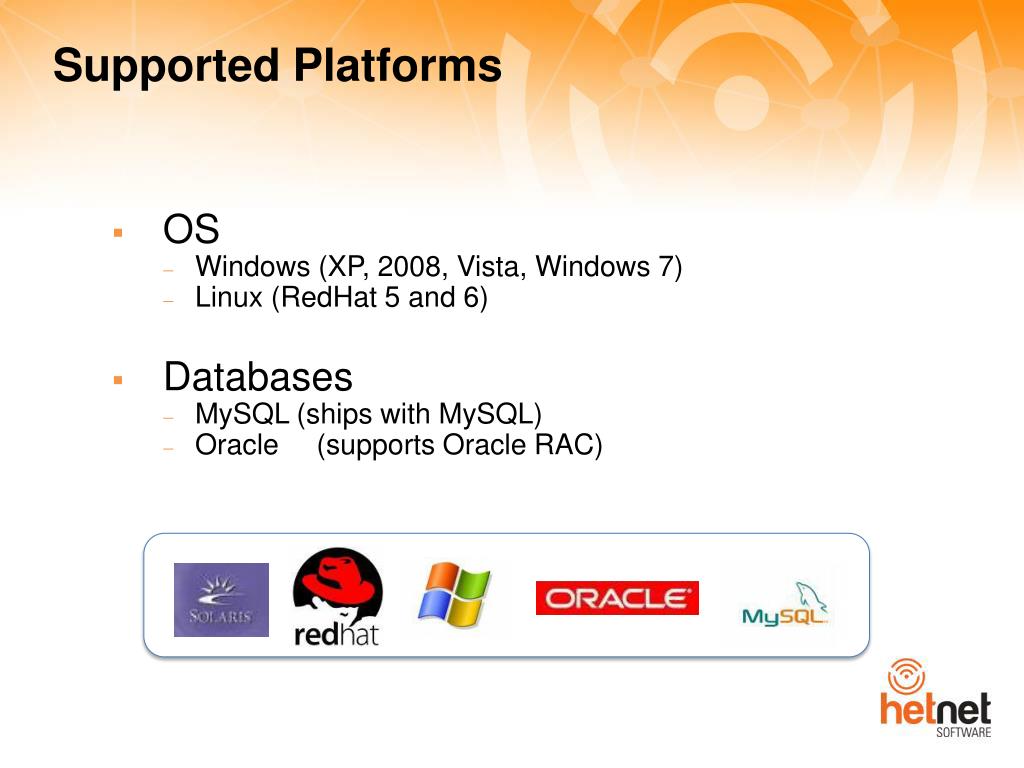

Supported platforms
Supported Platforms

  • OS

    • Windows (XP, 2008, Vista, Windows 7)

    • Linux (RedHat 5 and 6)

  • Databases

    • MySQL (ships with MySQL)

    • Oracle (supports Oracle RAC)
