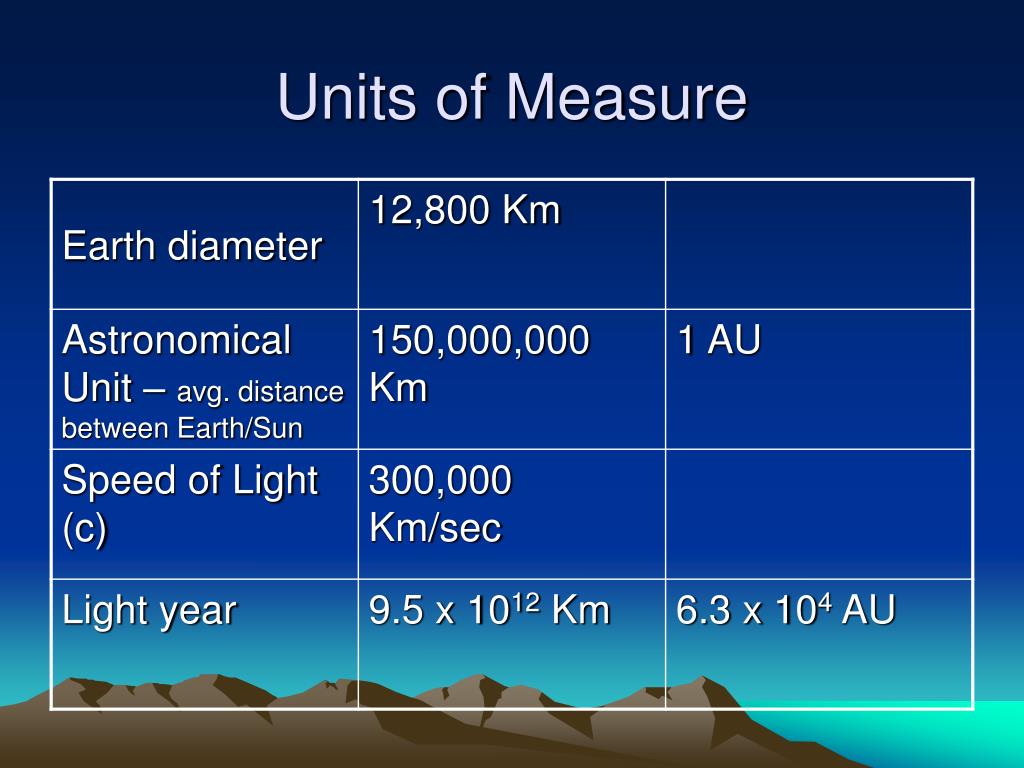

  1. Units of Measure

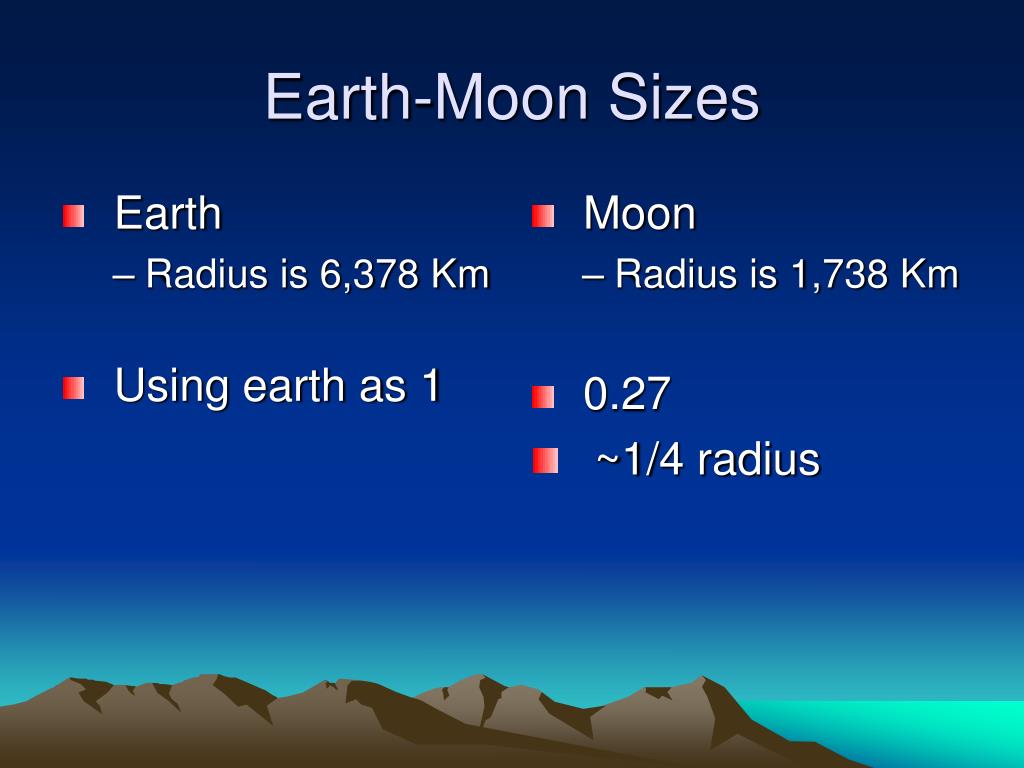

  2. Earth-Moon Sizes • Earth • Radius is 6,378 Km • Using earth as 1 • Moon • Radius is 1,738 Km • 0.27 • ~1/4 radius

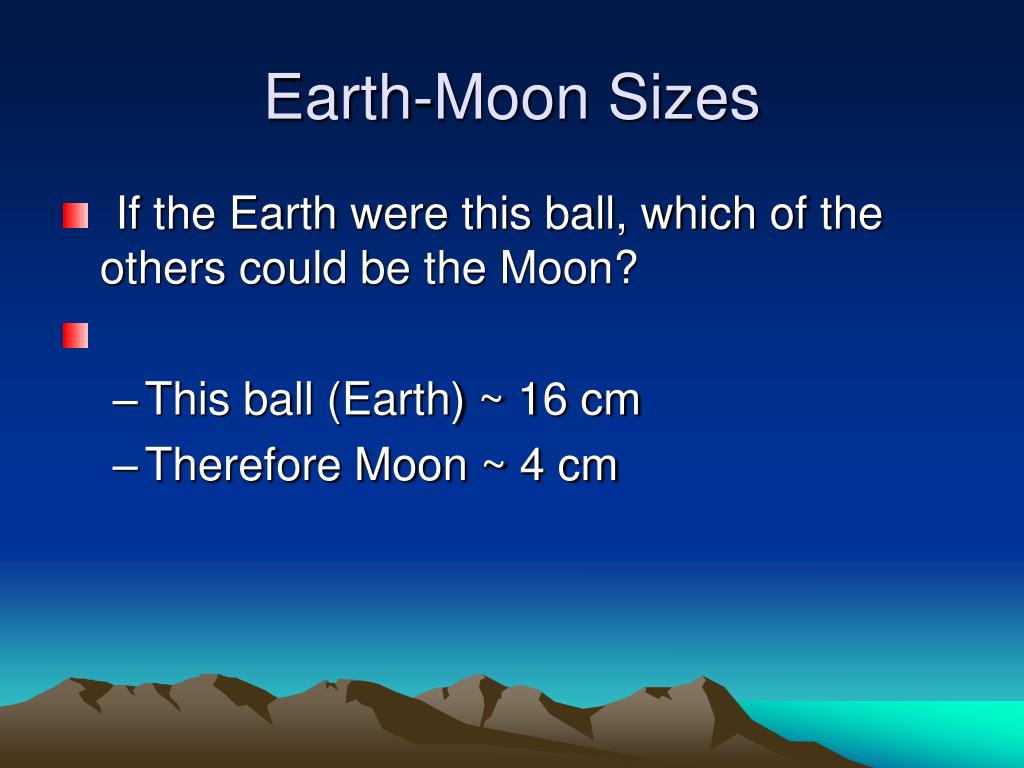

  3. Earth-Moon Sizes • If the Earth were this ball, which of the others could be the Moon? • This ball (Earth) ~ 16 cm • Therefore Moon ~ 4 cm

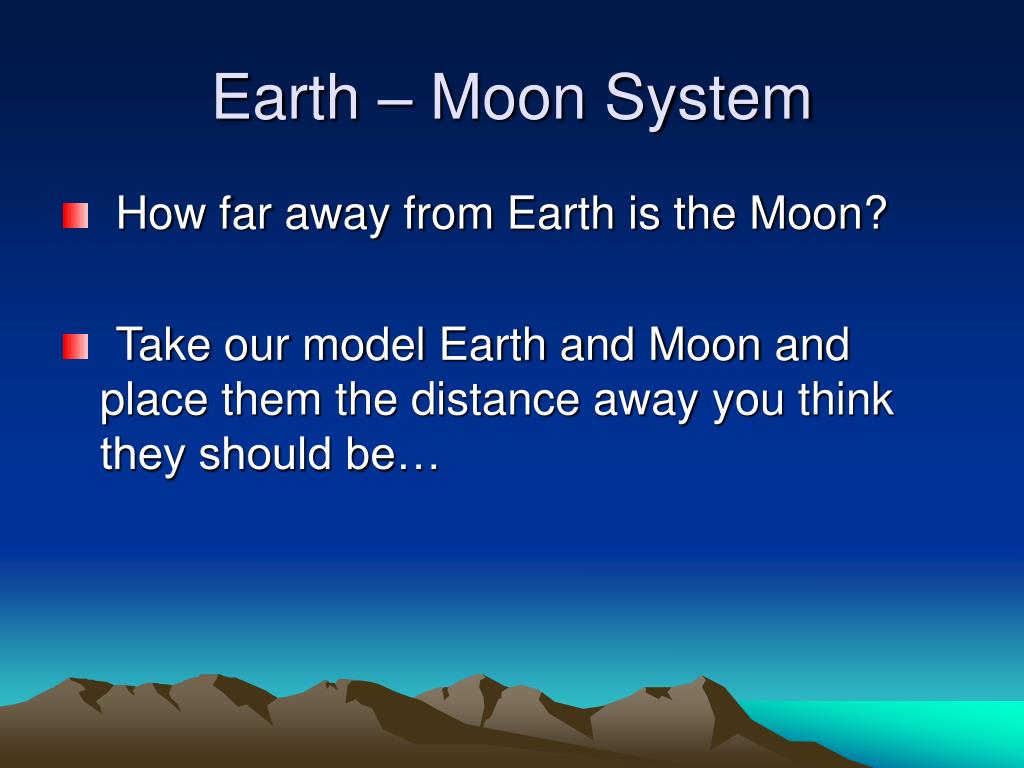

  4. Earth – Moon System How far away from Earth is the Moon? Take our model Earth and Moon and place them the distance away you think they should be…

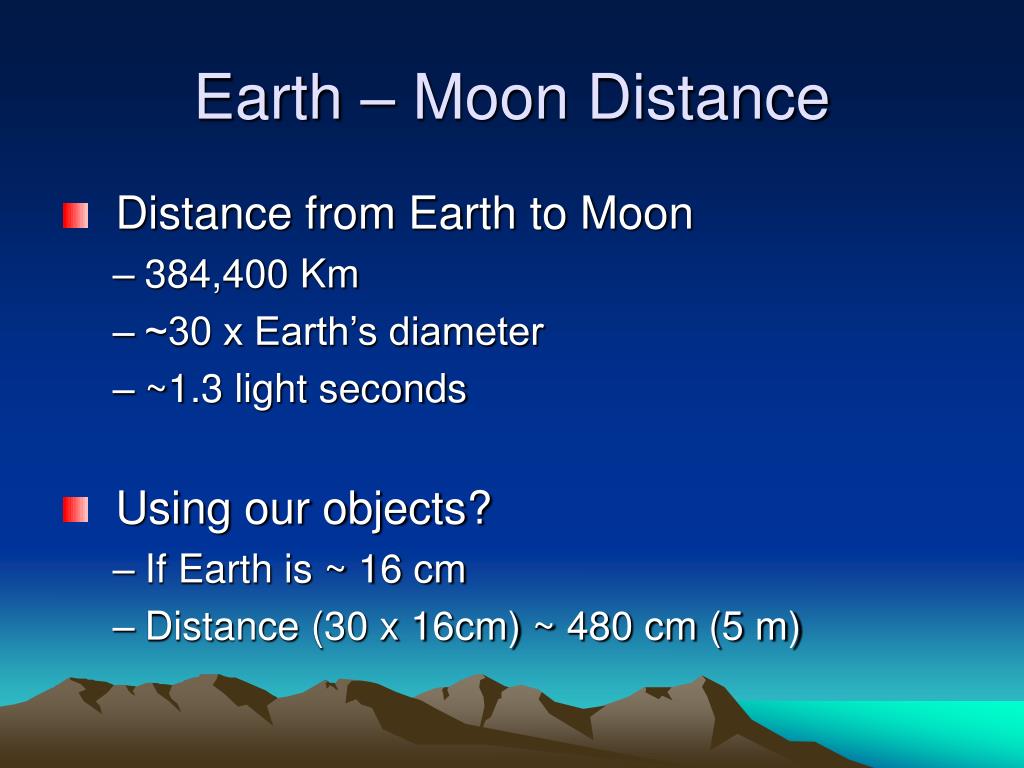

  5. Earth – Moon Distance • Distance from Earth to Moon • 384,400 Km • ~30 x Earth’s diameter • ~1.3 light seconds • Using our objects? • If Earth is ~ 16 cm • Distance (30 x 16cm) ~ 480 cm (5 m)

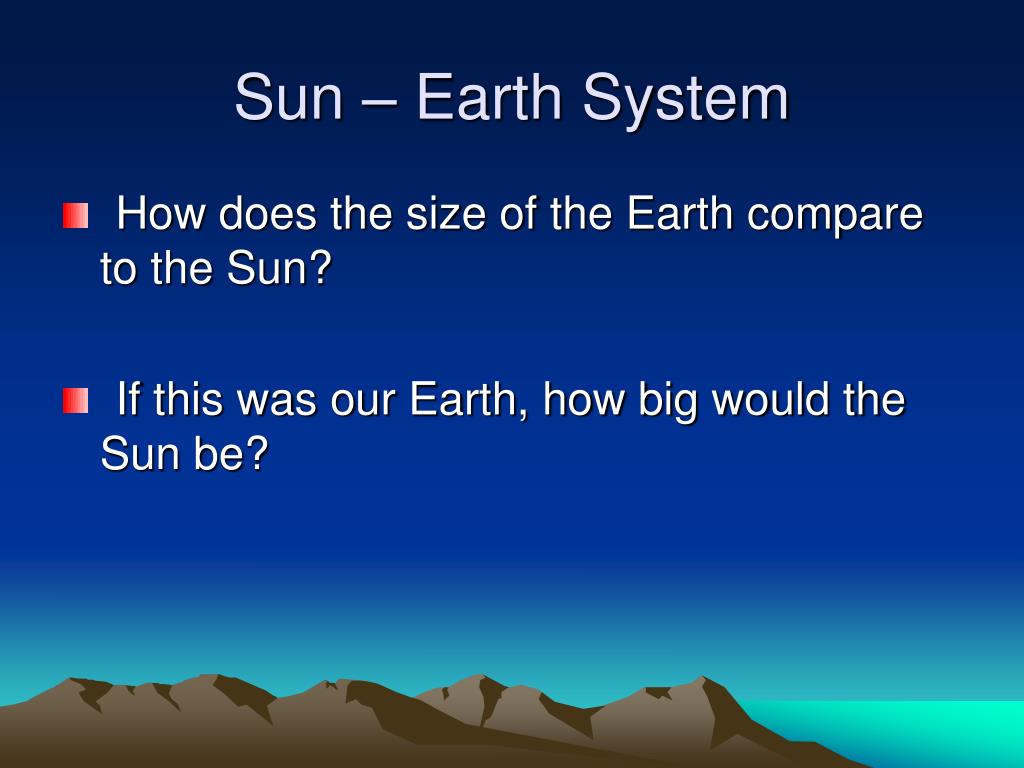

  6. Sun – Earth System How does the size of the Earth compare to the Sun? If this was our Earth, how big would the Sun be?

  7. Sun – Earth Sizes • Earth Radius • 6378 Km • Using Earth as 1 • If Earth is 16 cm • Sun Radius • 6.96 x 105 Km (696,000 Km) • ~109x Earth • ~ 2x Earth-Moon distance • The Sun 17 m diameter

  8. Sun – Earth Distance • Distance from Earth to Sun • 1.5 x 108 Km (150,000,000 Km) • ~ 12,000x Size of Earth • ~400 x Earth-Moon distance • 500 light seconds, or 8.33 light minutes

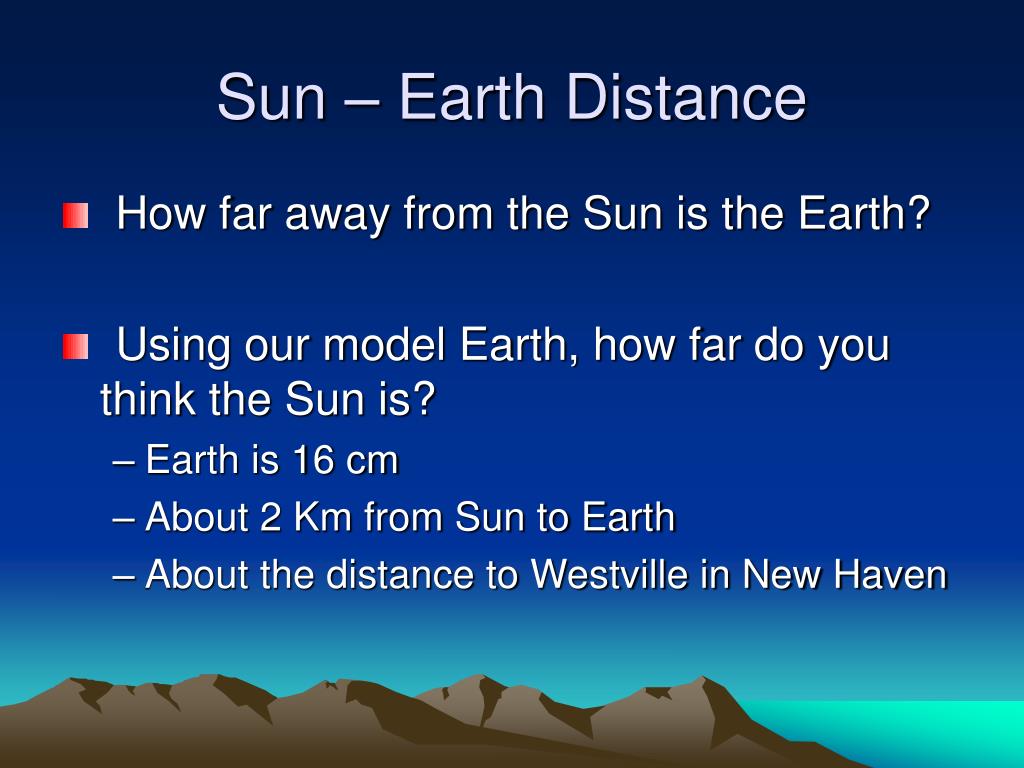

  9. Sun – Earth Distance • How far away from the Sun is the Earth? • Using our model Earth, how far do you think the Sun is? • Earth is 16 cm • About 2 Km from Sun to Earth • About the distance to Westville in New Haven

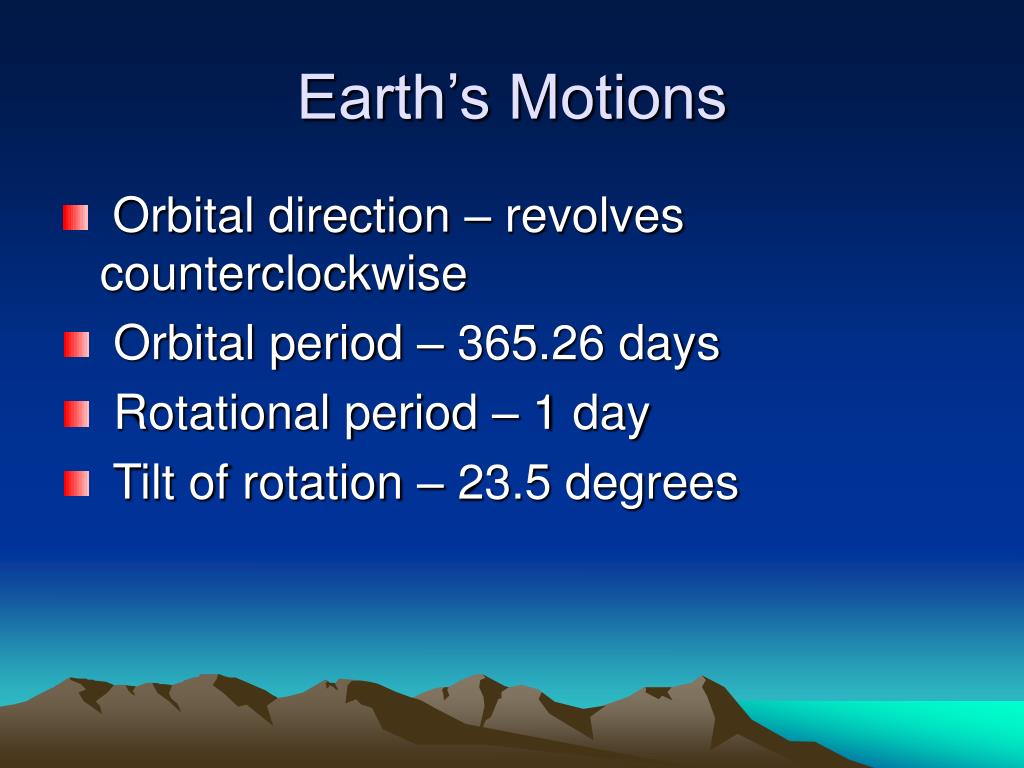

  10. Earth’s Motions Orbital direction – revolves counterclockwise Orbital period – 365.26 days Rotational period – 1 day Tilt of rotation – 23.5 degrees

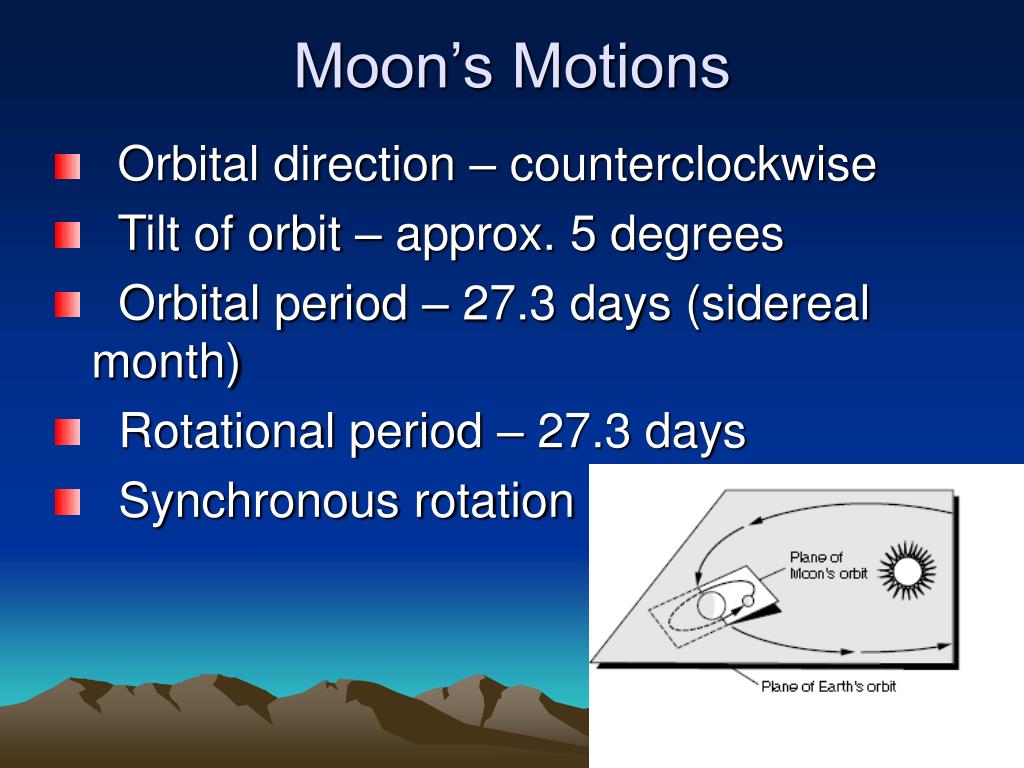

  11. Moon’s Motions Orbital direction – counterclockwise Tilt of orbit – approx. 5 degrees Orbital period – 27.3 days (sidereal month) Rotational period – 27.3 days Synchronous rotation

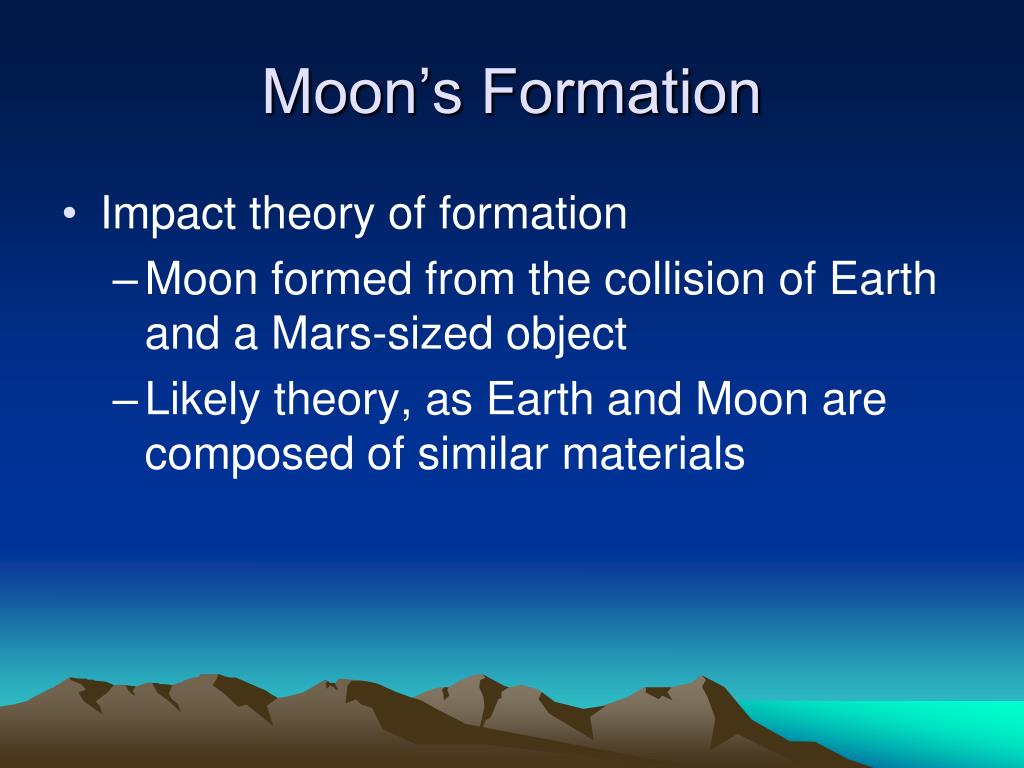

  12. Moon’s Formation • Impact theory of formation • Moon formed from the collision of Earth and a Mars-sized object • Likely theory, as Earth and Moon are composed of similar materials

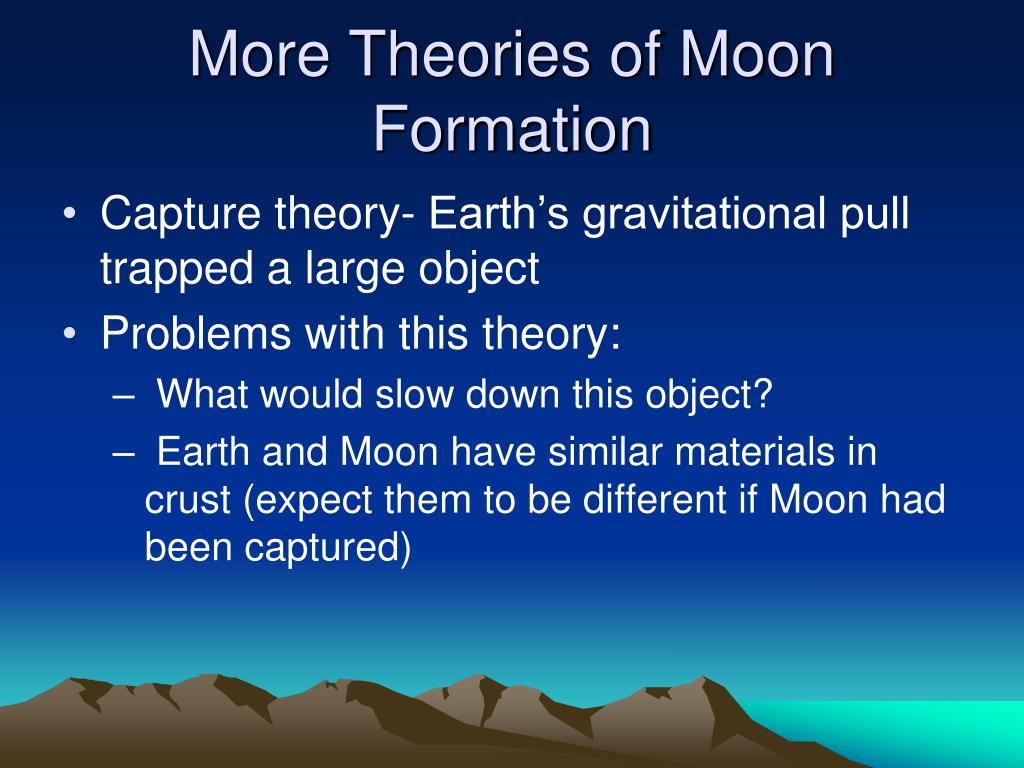

  13. More Theories of Moon Formation • Capture theory- Earth’s gravitational pull trapped a large object • Problems with this theory: • What would slow down this object? • Earth and Moon have similar materials in crust (expect them to be different if Moon had been captured)

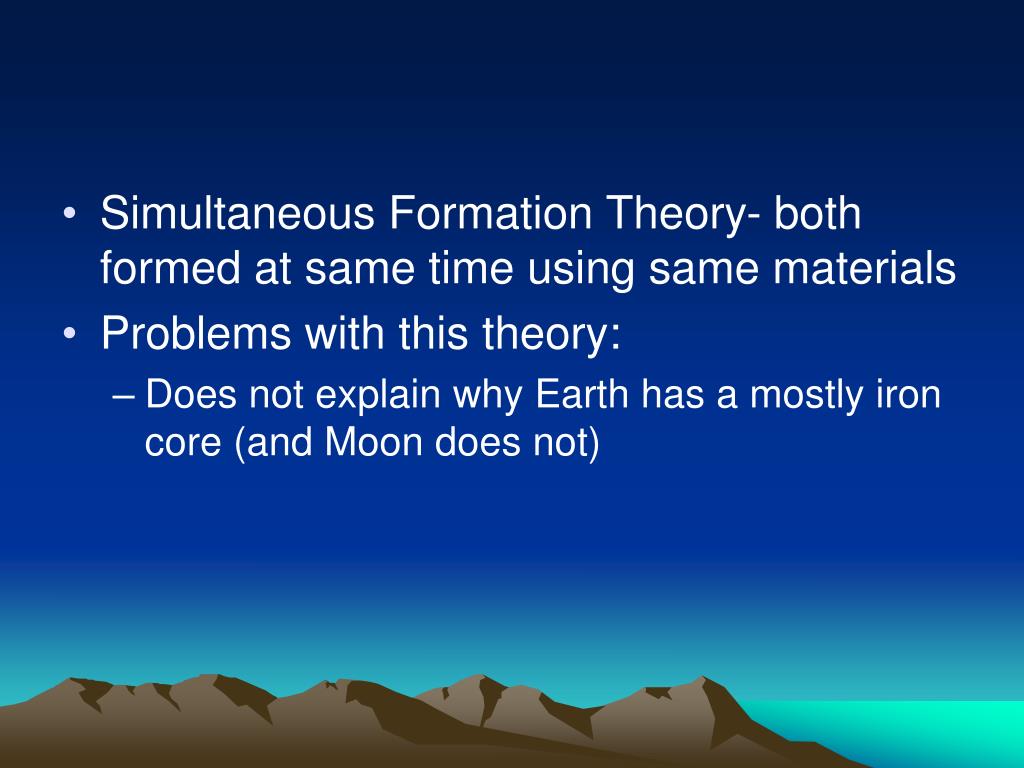

  14. Simultaneous Formation Theory- both formed at same time using same materials • Problems with this theory: • Does not explain why Earth has a mostly iron core (and Moon does not)
