Gate development hints
GATE development hints

  • Reporting bugs

  • Submitting a patch

  • The user guide

  • Continuous integration

Bugs feature requests
Bugs, feature requests

  • Use the tracker on SourceForge


  • Give as much detail as possible

    • GATE version, build number, platform, Java version (1.5.0_15, 1.6.0_03, etc.)

    • Steps to reproduce

    • Full stack trace of any exceptions, including "Caused by…"

  • Check whether the bug is already fixed in the latest nightly build


  • Use the patches tracker on SourceForge

  • Best format is an svn diff against the latest subversion

    • Save the diff as a file and attach it, don't paste the diff into the bug report.

  • We generally don't accept patches against earlier versions

Patches 2
Patches (2)

  • GATE must compile and run on Java 5

    • Not sufficient to set source="1.5" and target="1.5" but compile on Java 6

    • This doesn't prevent you calling classes/methods that don't exist in 5

  • Test your patch on Java 5 before submitting

The user guide
The User Guide

  • Everything in GATE is (theoretically) documented in the GATE User Guide


  • Every change to the core should be mentioned in the change log


  • User guide is written in LaTeX

Updating the user guide
Updating the user guide

  • Lives in subversion


  • Build requires pdflatex, htlatex (tex4ht package), sed, make, etc.

    • On Windows, use Cygwin

  • Download and put in directory above the .tex files

Updating the user guide 2
Updating the user guide (2)

  • Edit the .tex files

  • Graphics, screenshots, etc. should be .png

  • Check in changes to .tex files, the PDF and HTML are regenerated automatically by…

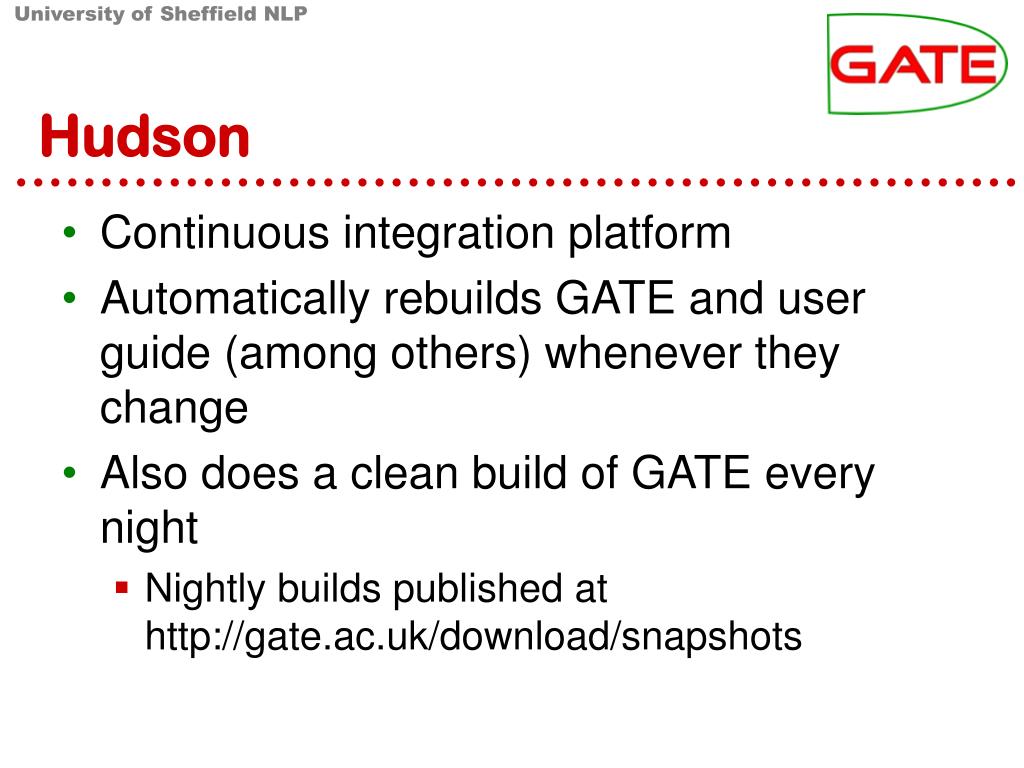

  • Continuous integration platform

  • Automatically rebuilds GATE and user guide (among others) whenever they change

  • Also does a clean build of GATE every night

    • Nightly builds published at

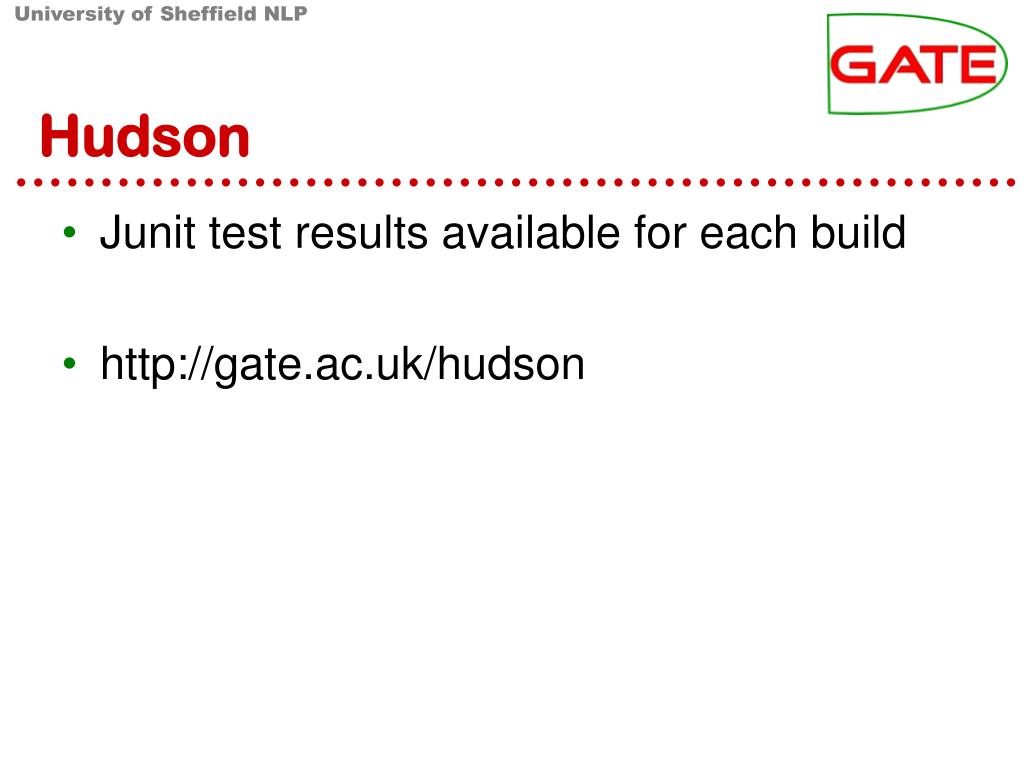

  • Junit test results available for each build


Introduction system)

  • Scenario:

    • Implementing a web service (or other web application) that uses GATE Embedded to process requests.

    • Want to support multiple concurrent requests

    • Long running process - need to be careful to avoid memory leaks, etc.

  • Example used is a plain HttpServlet

    • Principles apply to other frameworks (struts, Spring MVC, Metro/CXF, Grails…)

Setting up
Setting up system)

  • GATE libraries in WEB-INF/lib

    • gate.jar + JARs from lib

  • Usual GATE Embedded requirements:

    • A directory to be "gate.home"

    • Site and user config files

    • Plugins directory

    • Call Gate.init() once (and only once) before using any other GATE APIs

Initialisation using a servletcontextlistener
Initialisation using a ServletContextListener system)

  • ServletContextListener is registered in web.xml

  • Called when the application starts up




public void contextInitialized(ServletContextEvent e) {

ServletContext ctx = e.getServletContext();

File gateHome = new File(ctx.getRealPath("/WEB-INF"));


File userConfig = new File(ctx.getRealPath("/WEB-INF/user.xml"));


// site config is gateHome/gate.xml

// plugins dir is gateHome/plugins



Gate in a multithreaded environment
GATE in a multithreaded environment system)

  • GATE PRs are not thread-safe

    • Due to design of parameter-passing as JavaBean properties

  • Must ensure that a given PR/Controller instance is only used by one thread at a time

First attempt one instance per request
First attempt: one instance system)per request

  • Naïve approach - create new PRs for each request

public void doPost(request, response) {

ProcessingResource pr = Factory.createResource(...);

try {

Document doc = Factory.newDocument(getTextFromRequest(request));

try {

// do some stuff


finally {




finally {




Many levels of nested try/finally: ugly but necessary to make sure we clean up even when errors occur. You will get very used to these…

Problems with this approach
Problems with this approach system)

  • Guarantees no interference between threads

  • But inefficient, particularly with complex PRs (large gazetteers, etc.)

  • Hidden problem with JAPE:

    • Parsing a JAPE grammar creates and compiles Java classes

    • Once created, classes are never unloaded

    • Even with simple grammars, eventually OutOfMemoryError (PermGen space)

Second attempt using threadlocals

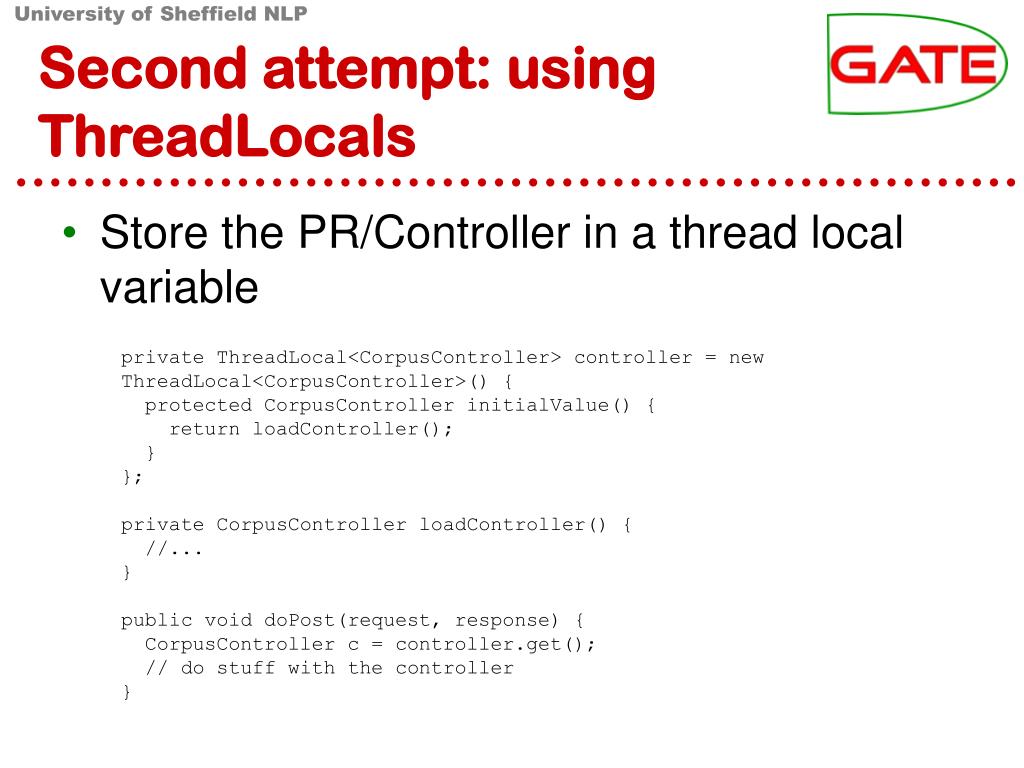

Second attempt: using ThreadLocals system)

  • Store the PR/Controller in a thread local variable

private ThreadLocal<CorpusController> controller = new ThreadLocal<CorpusController>() {

protected CorpusController initialValue() {

return loadController();



private CorpusController loadController() {



public void doPost(request, response) {

CorpusController c = controller.get();

// do stuff with the controller


Better than attempt 1
Better than attempt 1… system)

  • Only initialise resources once per thread

  • Interacts nicely with typical web server thread pooling

  • But if a thread dies, no way to clean up its controller

    • Possibility of memory leaks

A solution object pooling
A solution: object pooling system)

  • Manage your own pool of Controller instances

  • Take a controller from the pool at the start of a request, return it (in a finally!) at the end

  • Number of instances in the pool determines maximum concurrency level

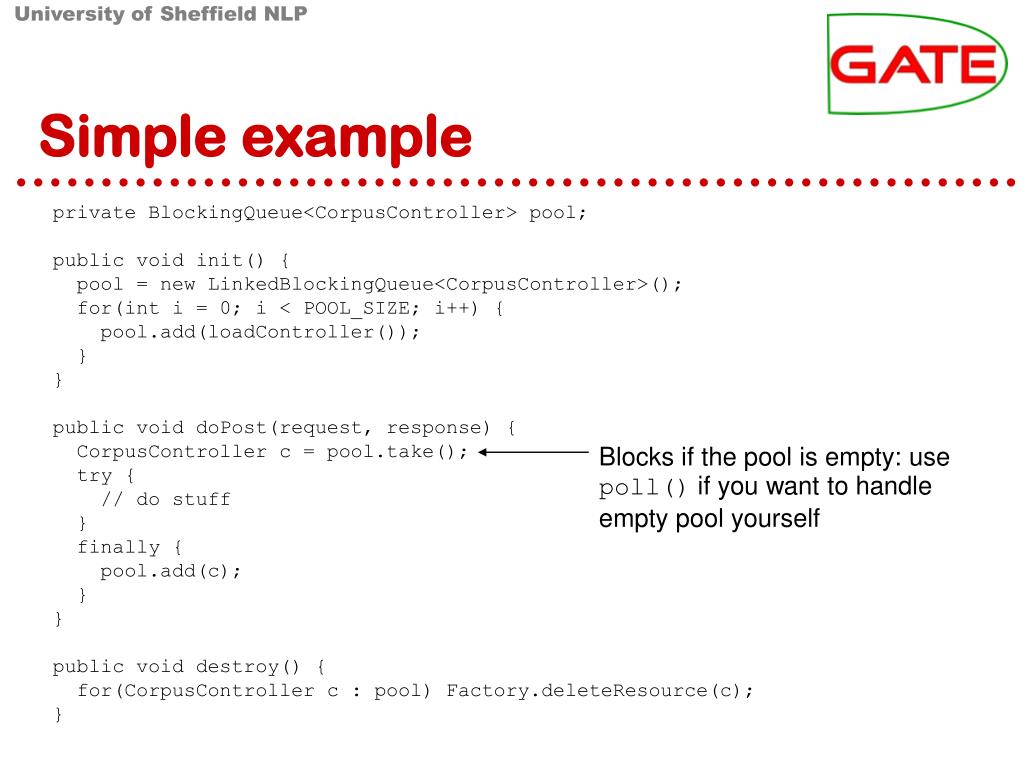

Simple example

Blocks if the pool is empty: use system)poll() if you want to handle empty pool yourself

Simple example

private BlockingQueue<CorpusController> pool;

public void init() {

pool = new LinkedBlockingQueue<CorpusController>();

for(int i = 0; i < POOL_SIZE; i++) {




public void doPost(request, response) {

CorpusController c = pool.take();

try {

// do stuff


finally {




public void destroy() {

for(CorpusController c : pool) Factory.deleteResource(c);


Exporting the grunt work the spring framework
Exporting the grunt work - system)the Spring Framework

  • Spring Framework


    • Handles application startup and shutdown

    • Configure your business objects and connections between them using XML

    • GATE provides helpers to initialise GATE, load saved applications, etc.

    • Built-in support for object pooling

    • Web application framework (Spring MVC)

    • Used by other frameworks (Grails, CXF, …)

Initialising gate with spring
Initialising GATE with Spring system)

<beans xmlns=""


<gate:init gate-home="/WEB-INF"









Loading a saved application
Loading a saved application system)

  • scope="prototype" means create a new instance each time we ask for it

    • Default is singleton - one and only one instance

<gate:saved-application id="myApp" location="/WEB-INF/application.xgapp"

scope="prototype" />

Spring servlet example
Spring servlet example system)

  • Spring provides HttpRequestHandler interface to manage servlet-type objects with Spring

  • Declare an HttpRequestHandlerServlet in web.xml with the same name as the Spring bean

Spring servlet example1
Spring servlet example system)

  • Write the handler assuming single-threaded access

    • Will use Spring to handle pooling for us

public class MyHandler implements HttpRequestHandler {

public void setApplication(CorpusController app) { ... }

public void handleRequest(request, response) {

Document doc = Factory.newDocument(getTextFromRequest(request));

try {

// do some stuff with the app


finally {





Tying it together
Tying it together system)

  • web.xml

<!-- set up Spring -->






<!-- servlet -->






Tying it together 2
Tying it together (2) system)

  • applicationContext.xml

<gate:init ... />

<gate:saved-application id="myApp" location="/WEB-INF/application.xgapp"

scope="prototype" />

<bean id="myHandlerTarget" class="my.pkg.MyHandler" scope="prototype">

<property name="application" ref="myApp" />


<bean id="handlerTargetSource"


<property name="targetBeanName" value="myHandlerTarget" />

<property name="minIdle" value="3" />

<property name="maxIdle" value="3" />

<property name="whenExhaustedActionName" value="WHEN_EXHAUSTED_BLOCK" />


<bean id="mainHandler"


<property name="targetSource" ref="handlerTargetSource" />
