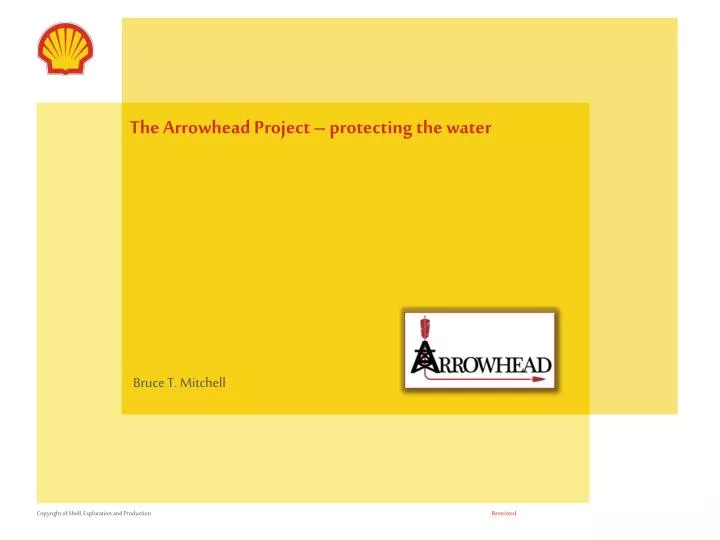

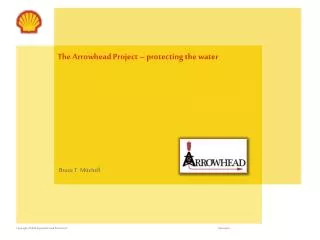

  1. The Arrowhead Project – protecting the water Bruce T. Mitchell

  2. Drilling and Development Plans, per site Tank Battery, separators Saltwater Disposal well, 2 laterals Mississippian Unconformity HC saturation interval is typically just below the unconformity, and is 100’-150’ thick Trap? Buried Hills Pennsylvanian shales and sandstones Pennsylvanian shales and limestones 4500’ – 5000’ Legend Cherty Dolomite Cherty Limestone Arbuckle Formation Spiculite Shale Shale SR Tripolitic Chert HC Saturation Mississippian Uncf

  3. Typical Well Design The Process

  4. Keeping away from the water Fresh water Top Hutchinson Salt 950’ Salt Base Salt 1500’ Shale Sandstone Shale Sandstone Limestone, Dolomite Limestone, shale Cherokee Shale 4550’ Shale Mississippi Lime Uncf 4700’ Oil and Gas Limestone, Chert Sandstone Shale 5450’ Dolomite Arbuckle Fm
