241-440Computer System DesignLecture 4

Wannarat Suntiamorntut

241-440 @ W.S.

outline

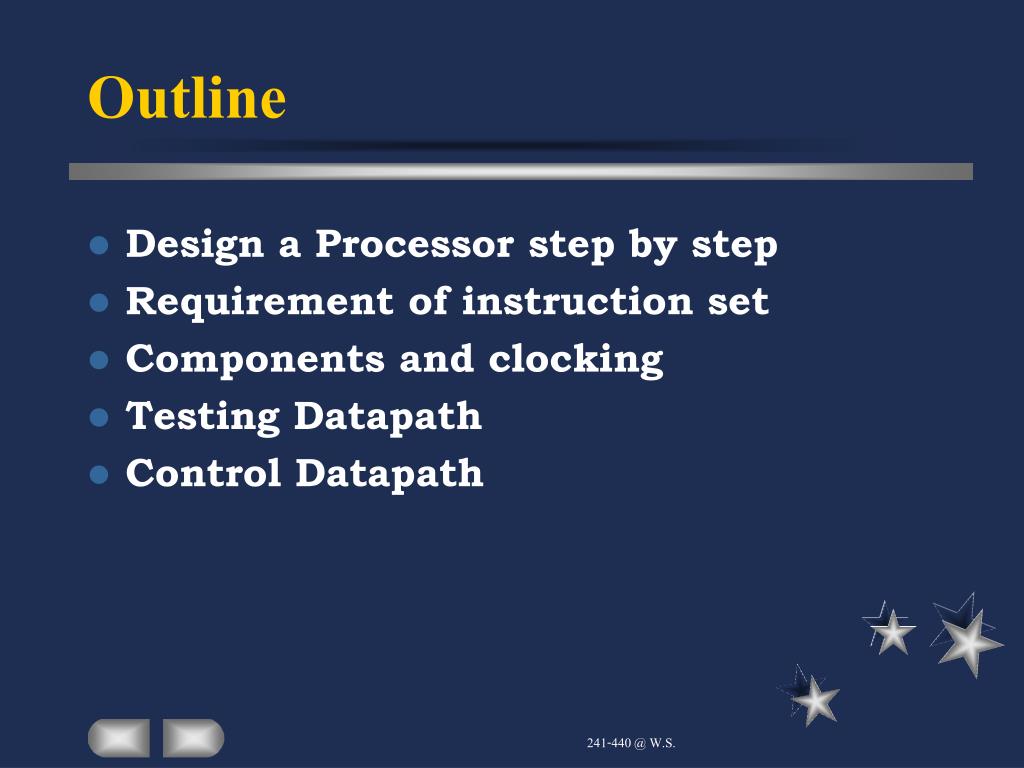

Outline
  • Design a Processor step by step
  • Requirement of instruction set
  • Components and clocking
  • Testing Datapath
  • Control Datapath

241-440 @ W.S.

five component of computer

Processor

Datapath

M

E

M

O

R

Y

Input

Control

Output

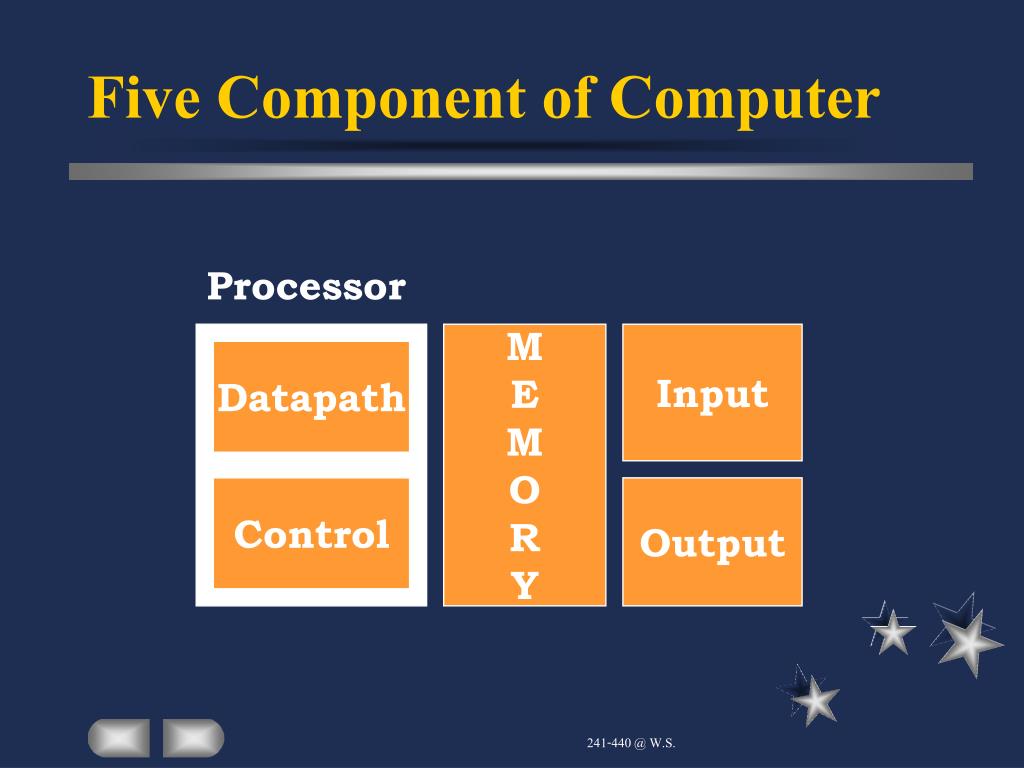

Five Component of Computer

241-440 @ W.S.

performance perspective

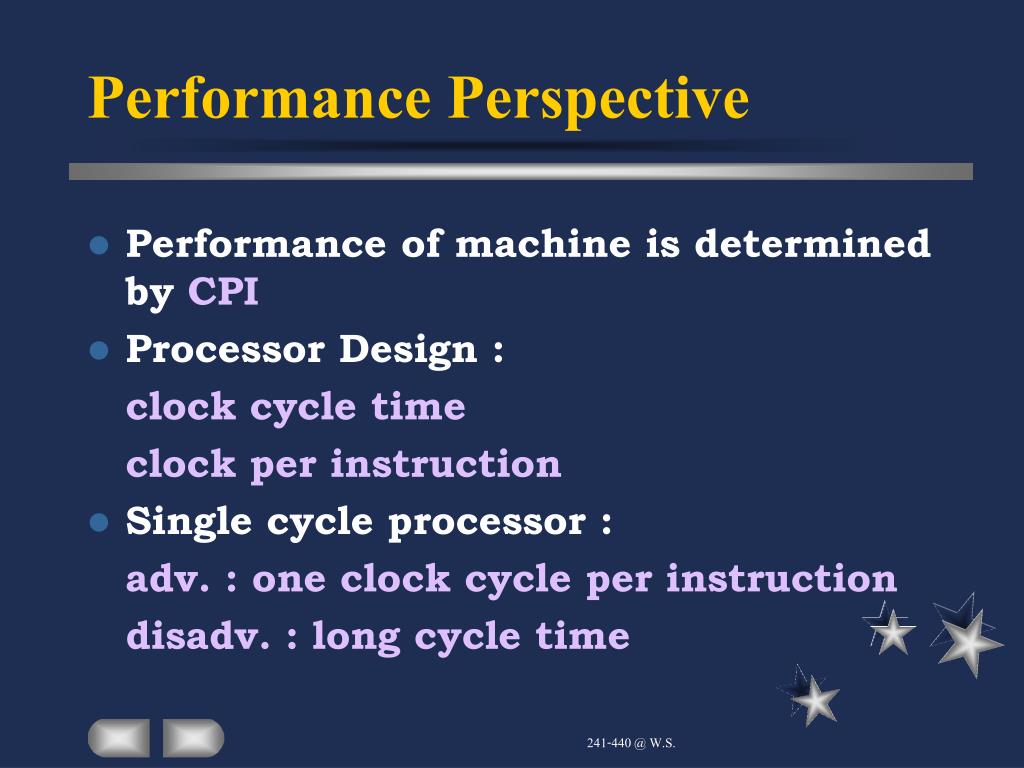

Performance Perspective
  • Performance of machine is determined by CPI
  • Processor Design :

clock cycle time

clock per instruction

  • Single cycle processor :

adv. : one clock cycle per instruction

disadv. : long cycle time

241-440 @ W.S.

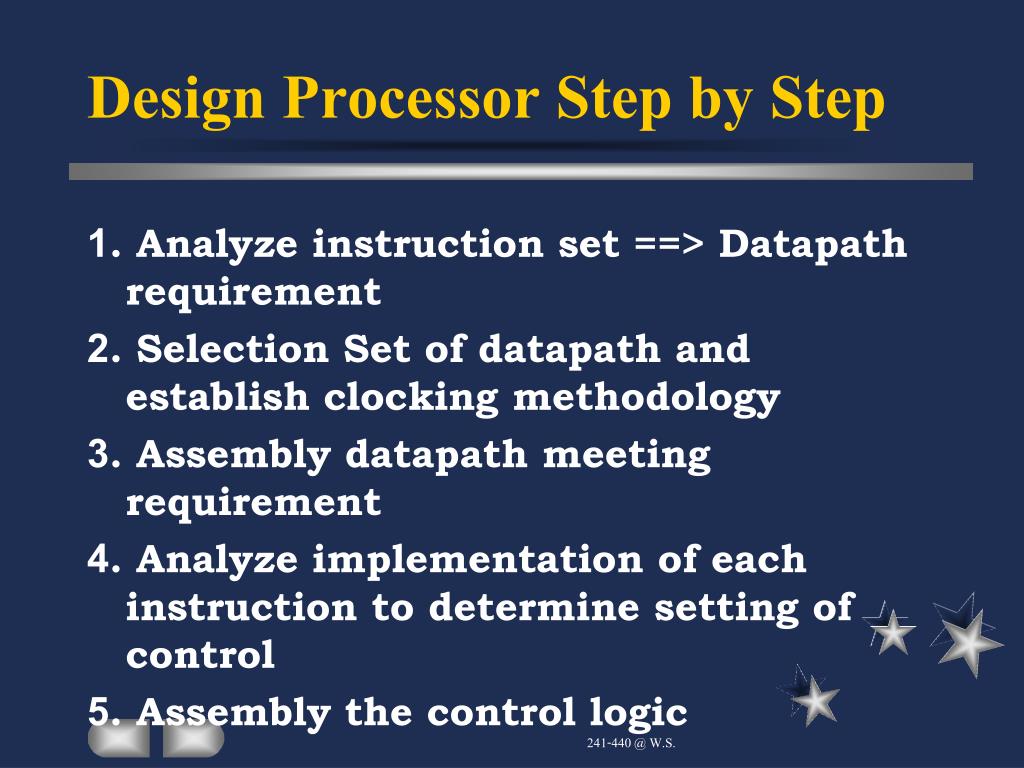

design processor step by step
Design Processor Step by Step

1. Analyze instruction set ==> Datapath requirement

2. Selection Set of datapath and establish clocking methodology

3. Assembly datapath meeting requirement

4. Analyze implementation of each instruction to determine setting of control

5. Assembly the control logic

241-440 @ W.S.

step 1

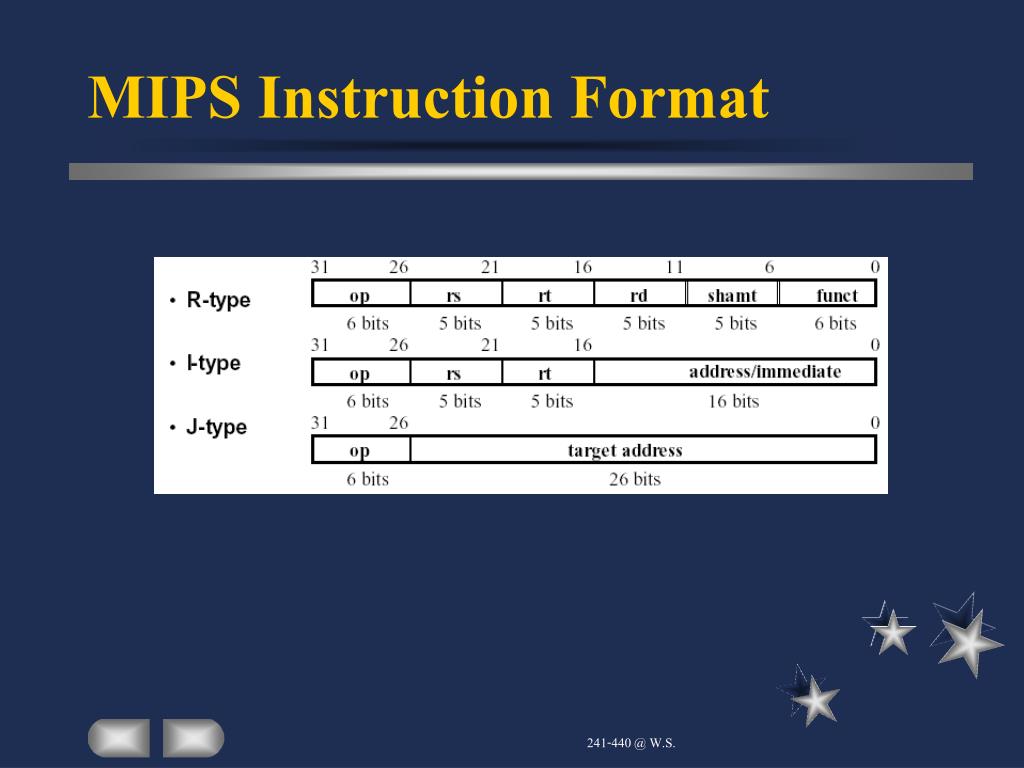

Step 1
  • ADDU rd, rs, rt SUBU rd, rs, rt
  • ORI rt, rs, imm16

241-440 @ W.S.

step 11

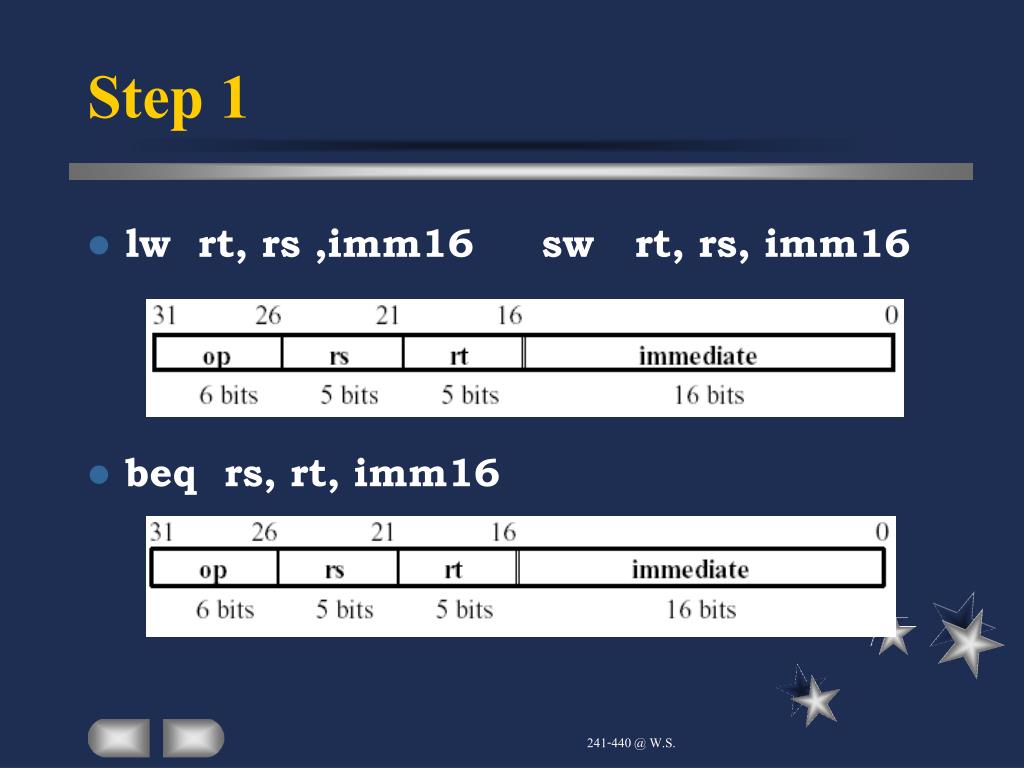

Step 1
  • lw rt, rs ,imm16 sw rt, rs, imm16
  • beq rs, rt, imm16

241-440 @ W.S.

slide10

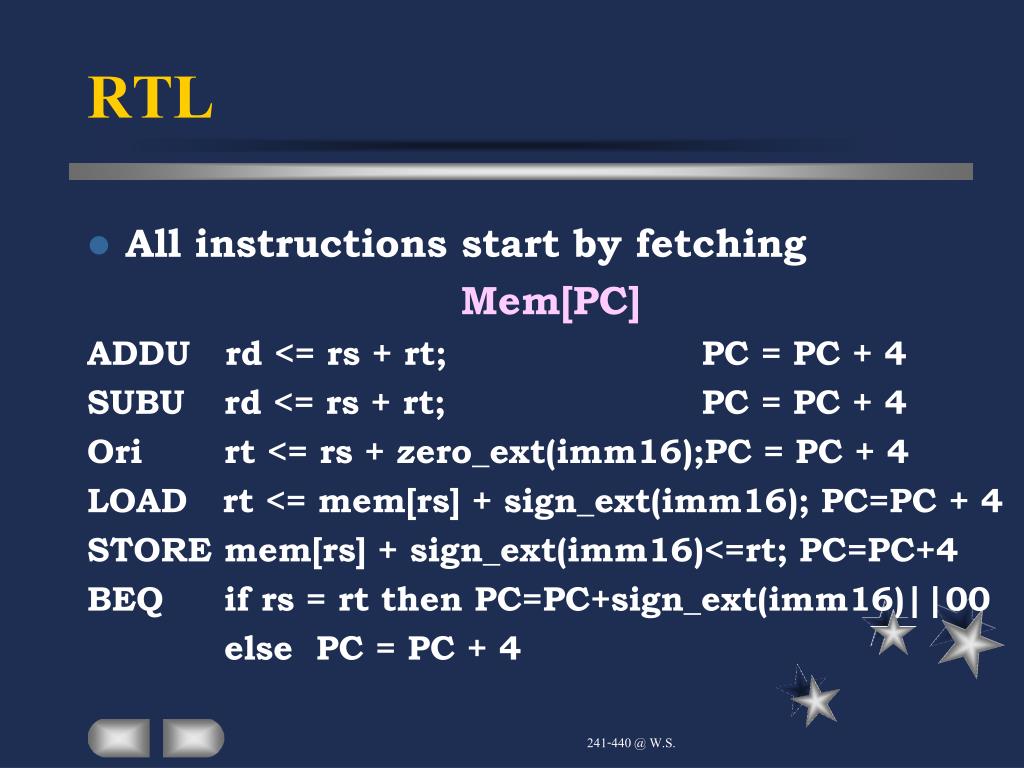

RTL
  • All instructions start by fetching

Mem[PC]

ADDU rd <= rs + rt; PC = PC + 4

SUBU rd <= rs + rt; PC = PC + 4

Ori rt <= rs + zero_ext(imm16);PC = PC + 4

LOAD rt <= mem[rs] + sign_ext(imm16); PC=PC + 4

STORE mem[rs] + sign_ext(imm16)<=rt; PC=PC+4

BEQ if rs = rt then PC=PC+sign_ext(imm16)||00

else PC = PC + 4

241-440 @ W.S.

step 1 the requirement from instruction

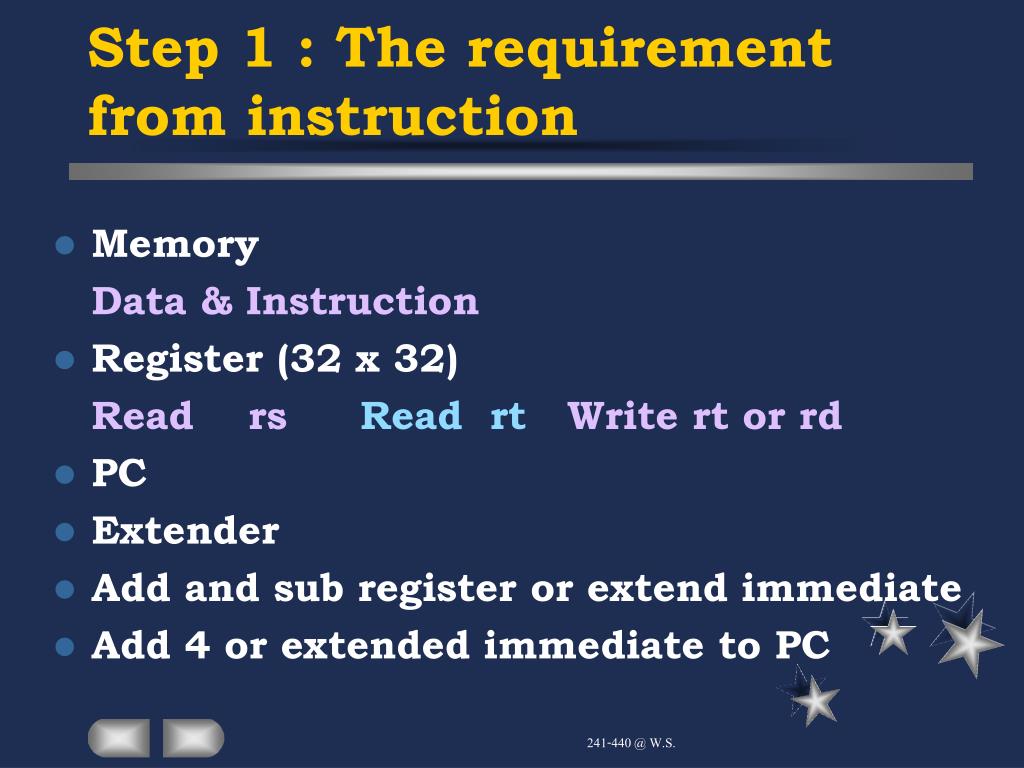

Step 1 : The requirement from instruction
  • Memory

Data & Instruction

  • Register (32 x 32)

Read rs Read rt Write rt or rd

  • PC
  • Extender
  • Add and sub register or extend immediate
  • Add 4 or extended immediate to PC

241-440 @ W.S.

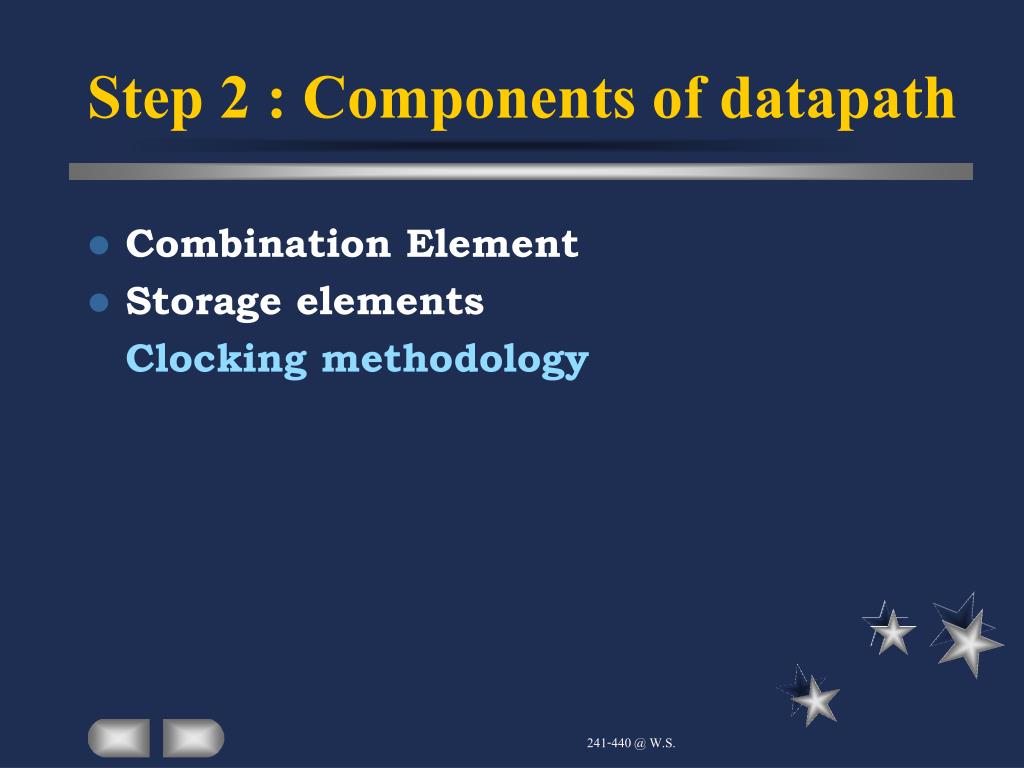

step 2 components of datapath
Step 2 : Components of datapath
  • Combination Element
  • Storage elements

Clocking methodology

241-440 @ W.S.

combination elements
Combination Elements

Adder MUX

241-440 @ W.S.

combination elements1
Combination Elements

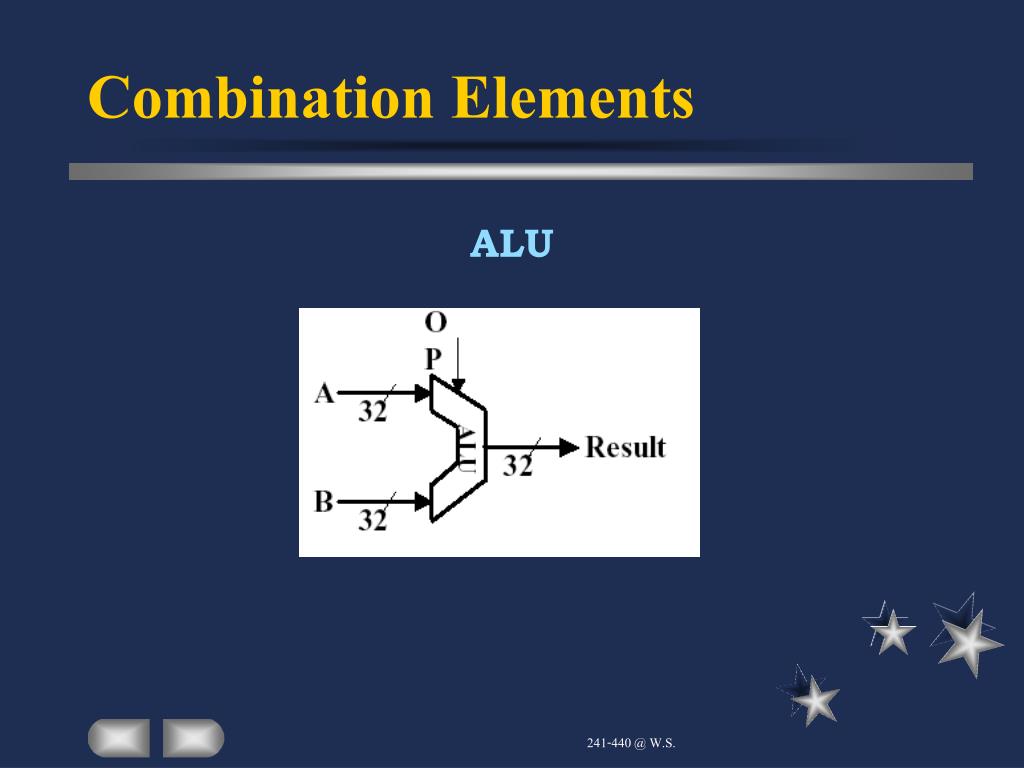

ALU

241-440 @ W.S.

storage element register
Storage Element : Register
  • Similar to D-flip/flop
  • Write enable

negated(0) : Data out

won’t change

asserted(1) : Data out

will be data in

241-440 @ W.S.

register file
Register file
  • Consist of 32 registers
  • Ra select register to bus A
  • Rb select register to bus B
  • Rw select register to be written via bus W

241-440 @ W.S.

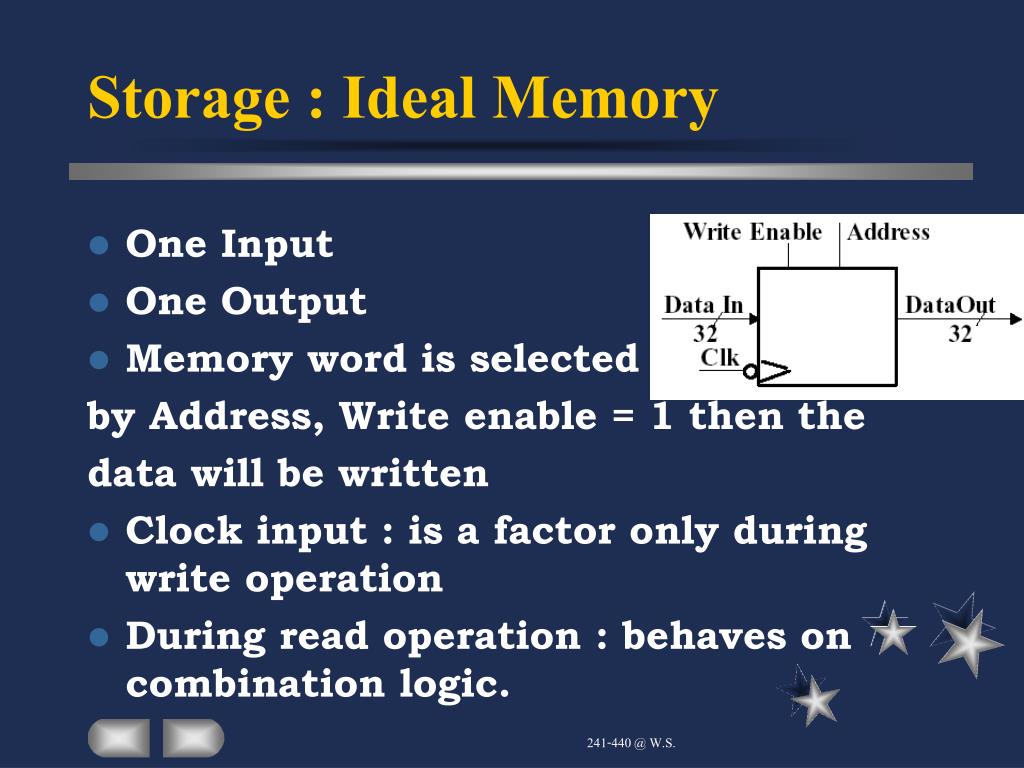

storage ideal memory
Storage : Ideal Memory
  • One Input
  • One Output
  • Memory word is selected

by Address, Write enable = 1 then the

data will be written

  • Clock input : is a factor only during write operation
  • During read operation : behaves on combination logic.

241-440 @ W.S.

clock methodology

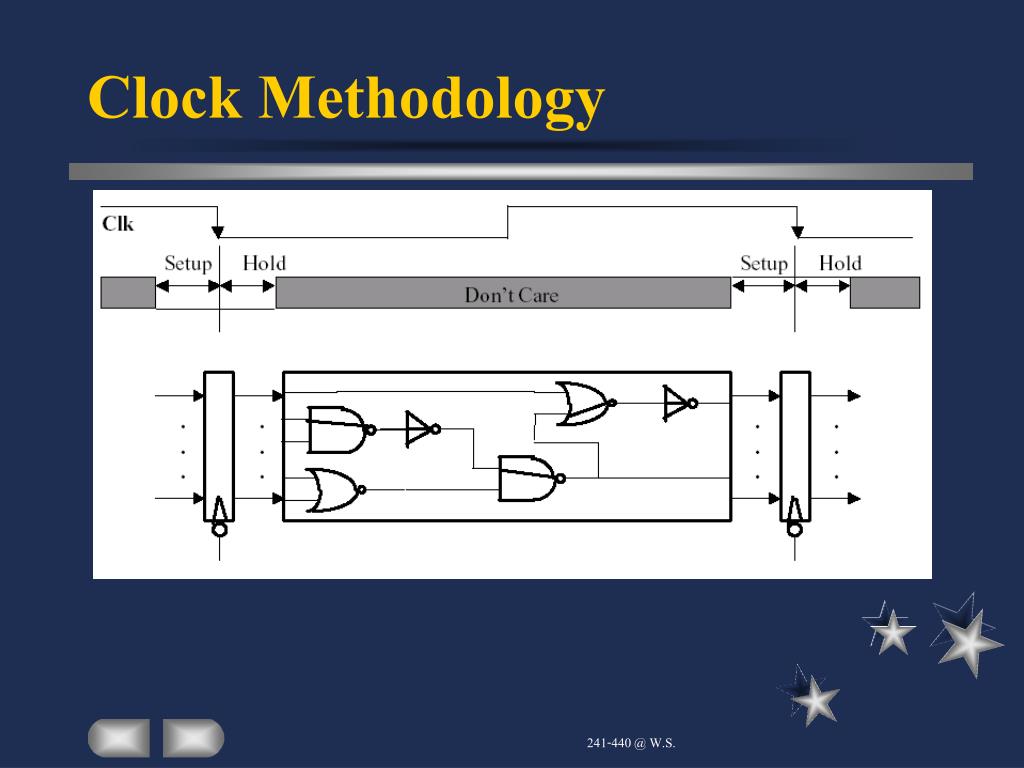

Clock Methodology

241-440 @ W.S.

step 3

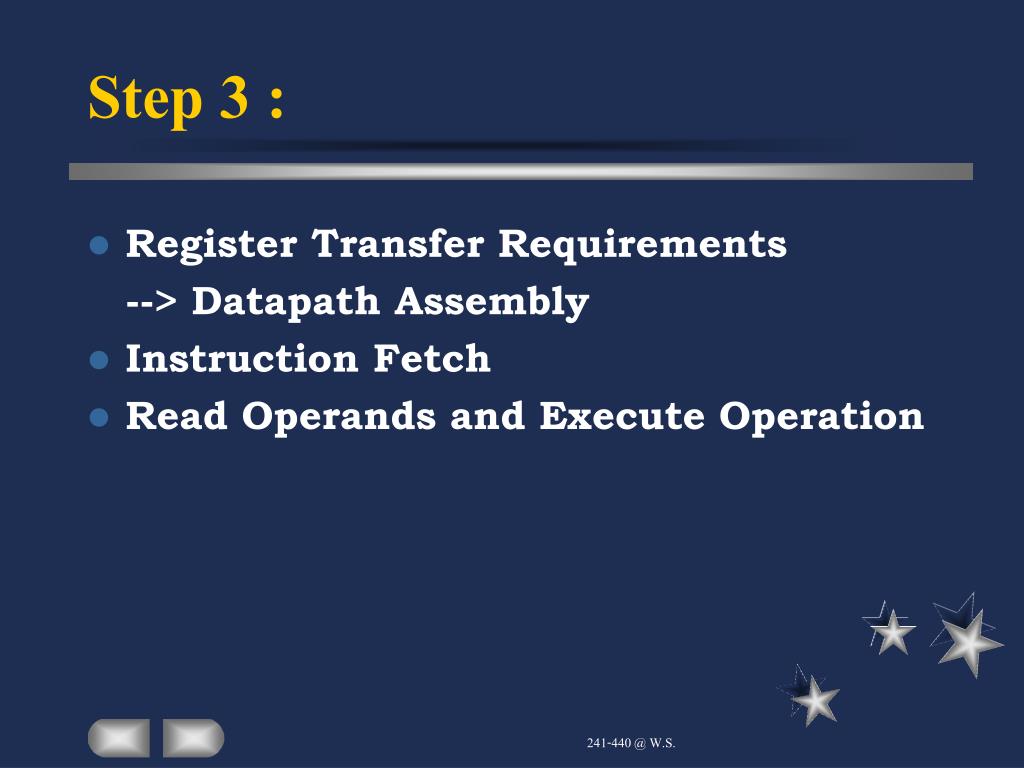

Step 3 :
  • Register Transfer Requirements

--> Datapath Assembly

  • Instruction Fetch
  • Read Operands and Execute Operation

241-440 @ W.S.

step 3 a instruction fetch unit

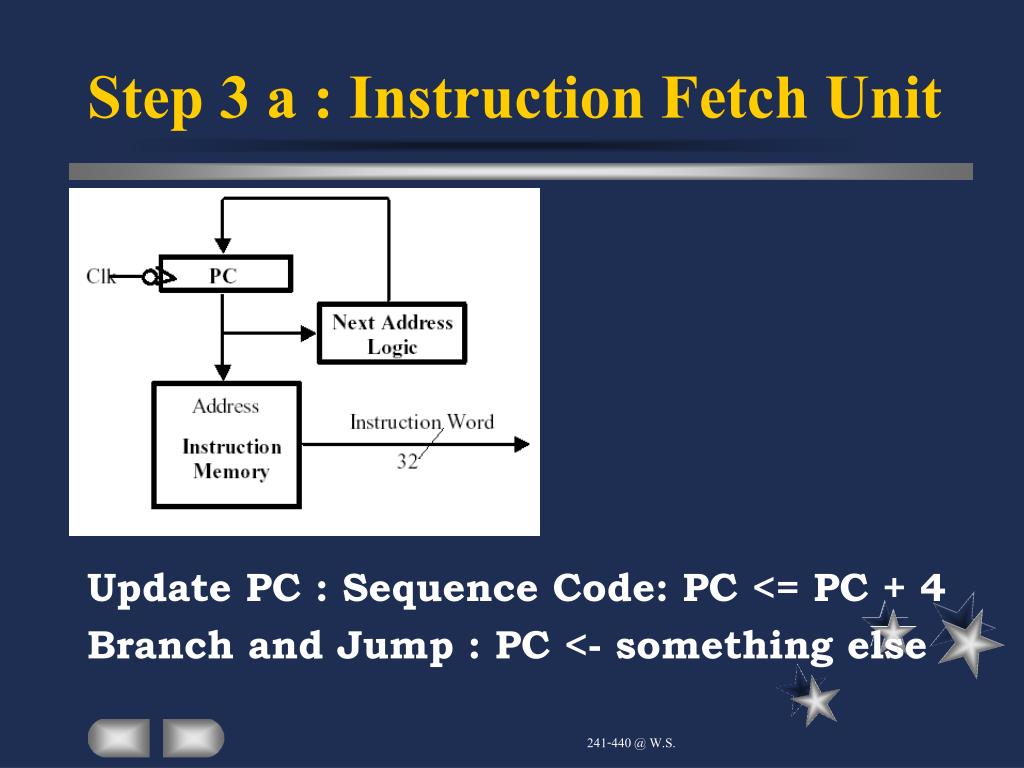

Step 3 a : Instruction Fetch Unit

Update PC : Sequence Code: PC <= PC + 4

Branch and Jump : PC <- something else

241-440 @ W.S.

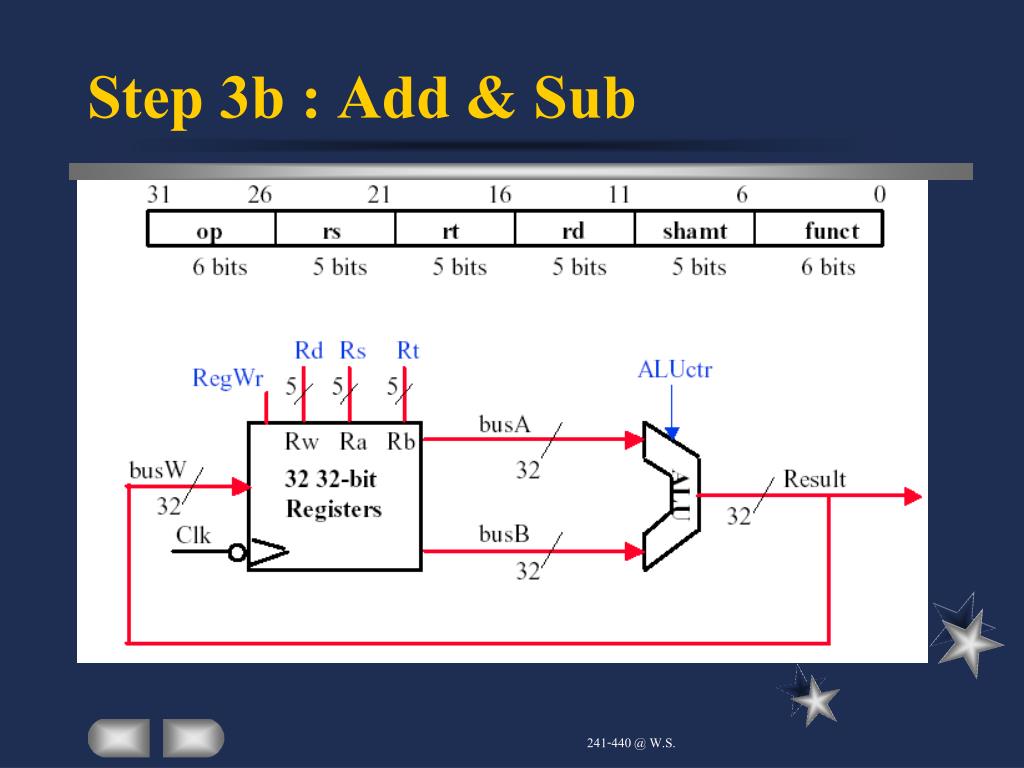

step 3b add sub
Step 3b : Add & Sub

241-440 @ W.S.

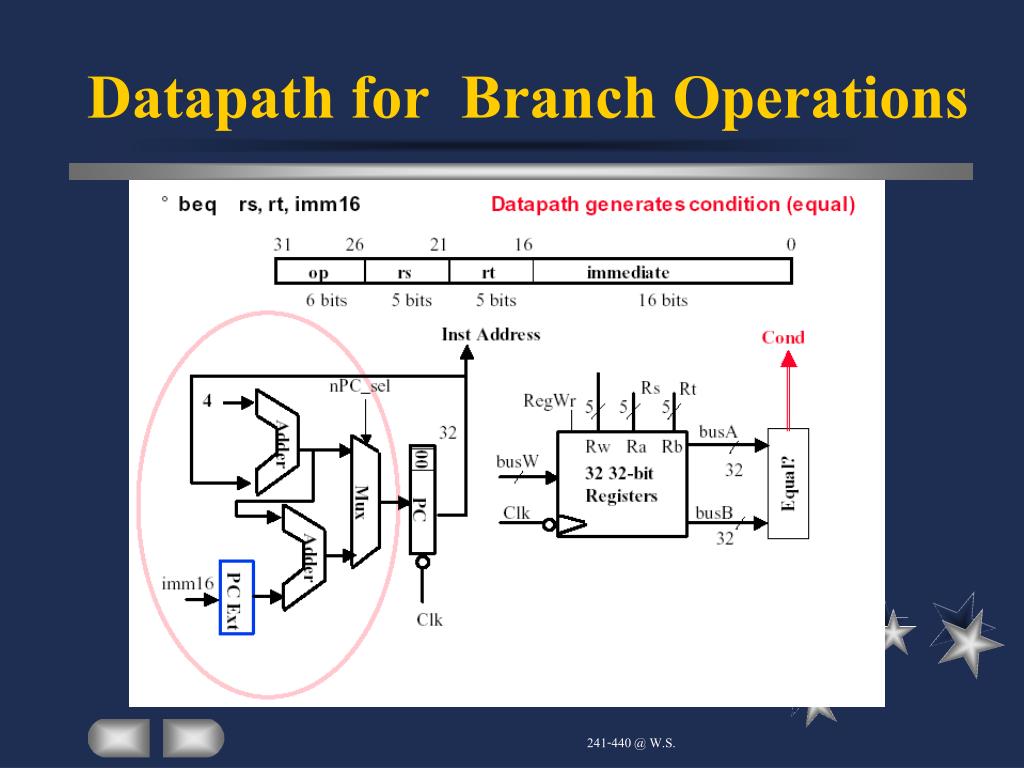

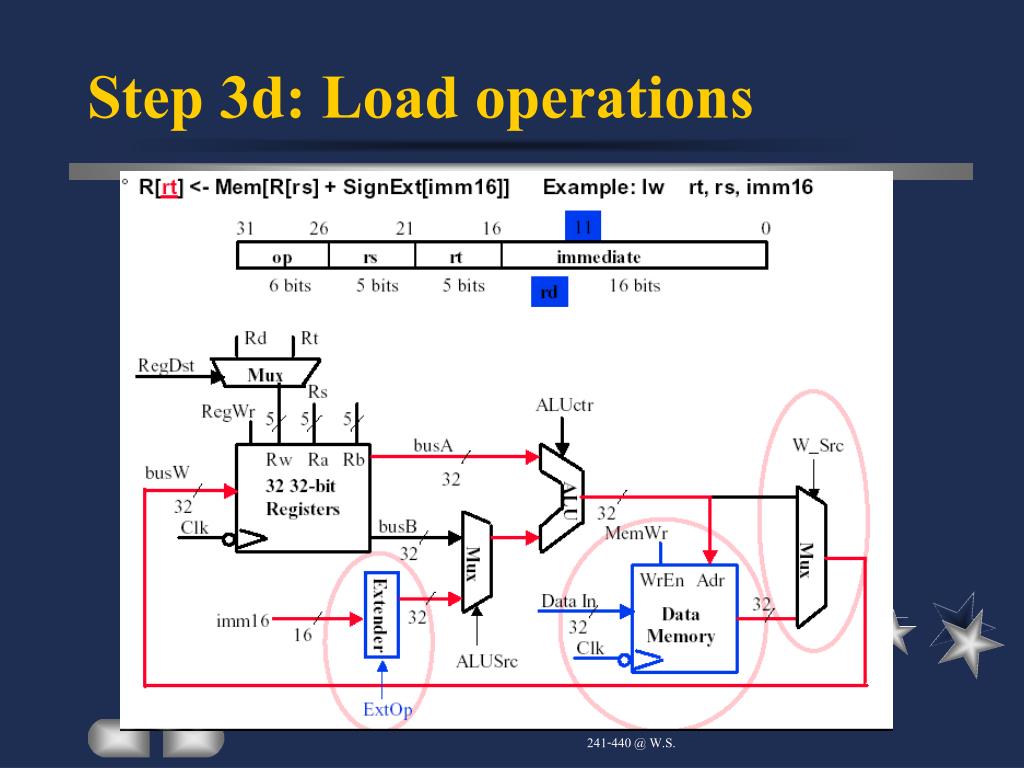

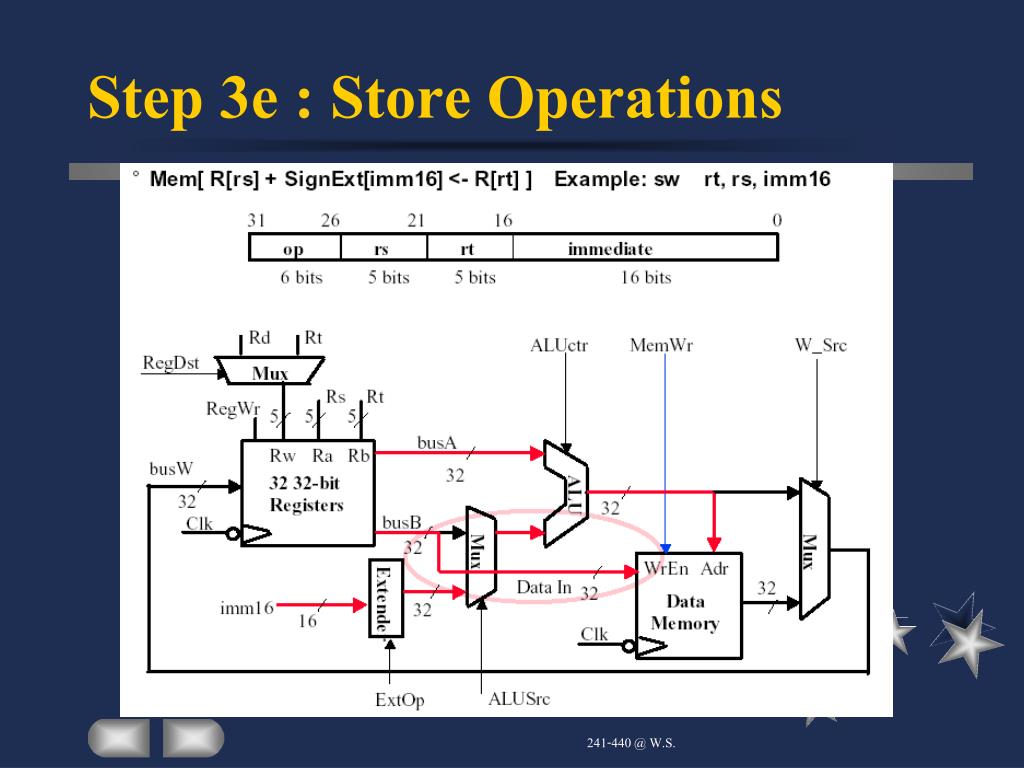

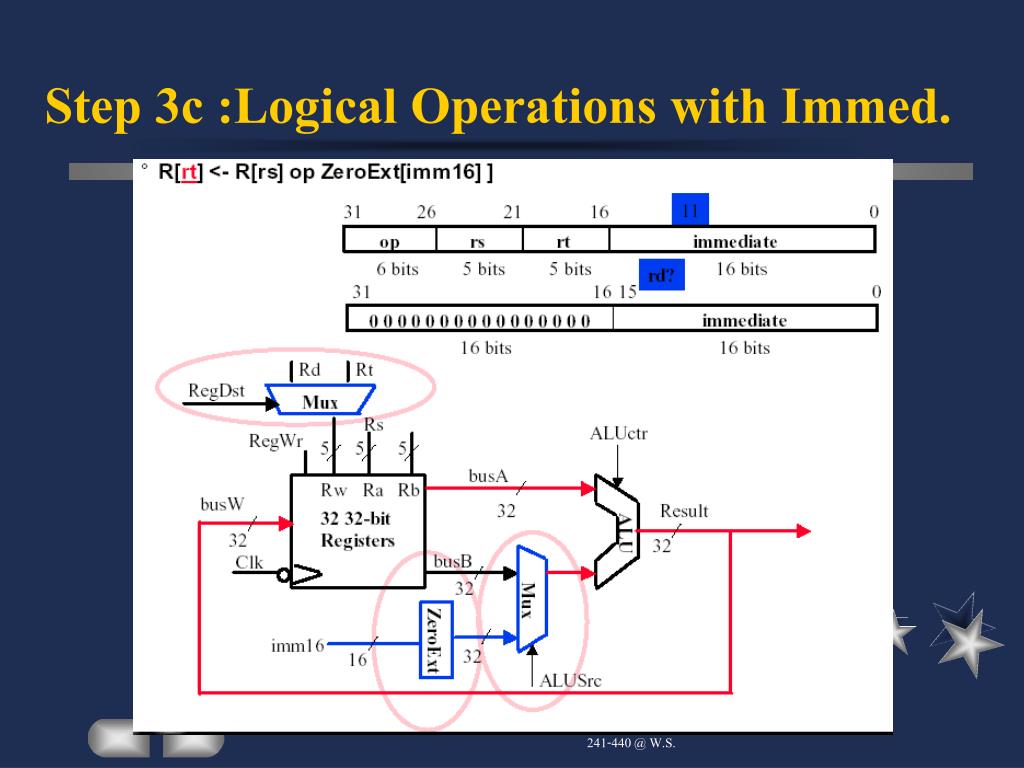

step 3f branch instruction
Step 3f: Branch instruction

beq rs, rt, imme16

  • mem[pc]
  • equal <= rs = rt
  • if (con eq 0) then PC<=PC+4+(signExt(imm16)x4);

else PC <= PC + 4;

241-440 @ W.S.

put it all together

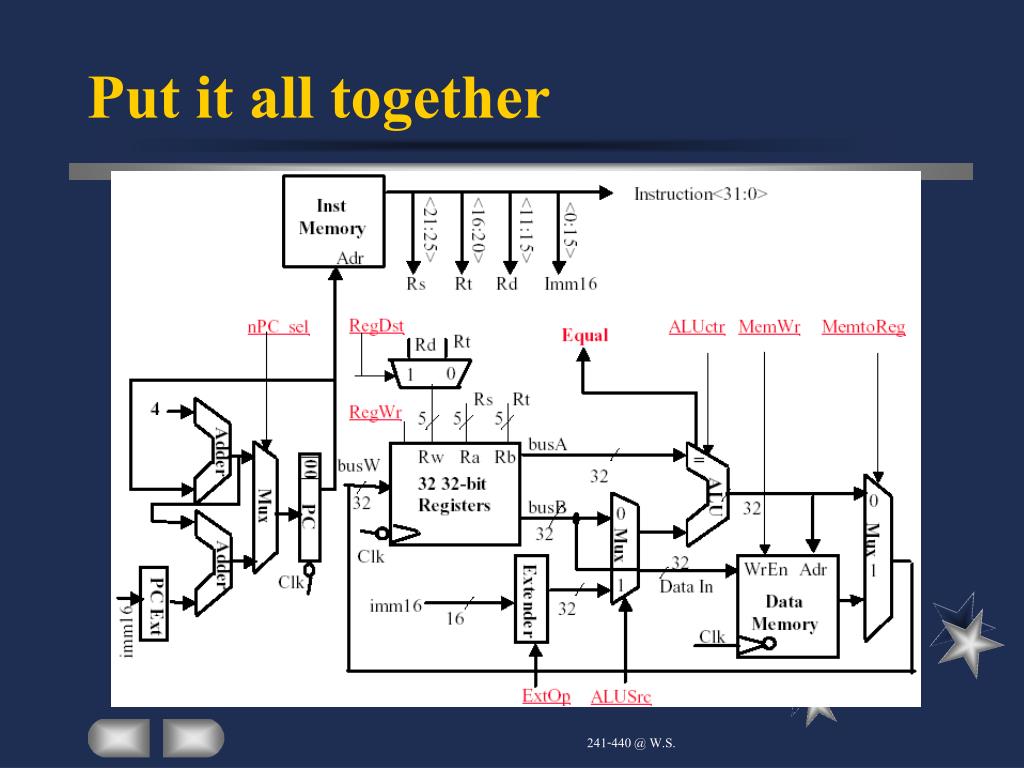

Put it all together

241-440 @ W.S.

step 4 control path
Step 4 : Control Path

241-440 @ W.S.

meaning of control signal

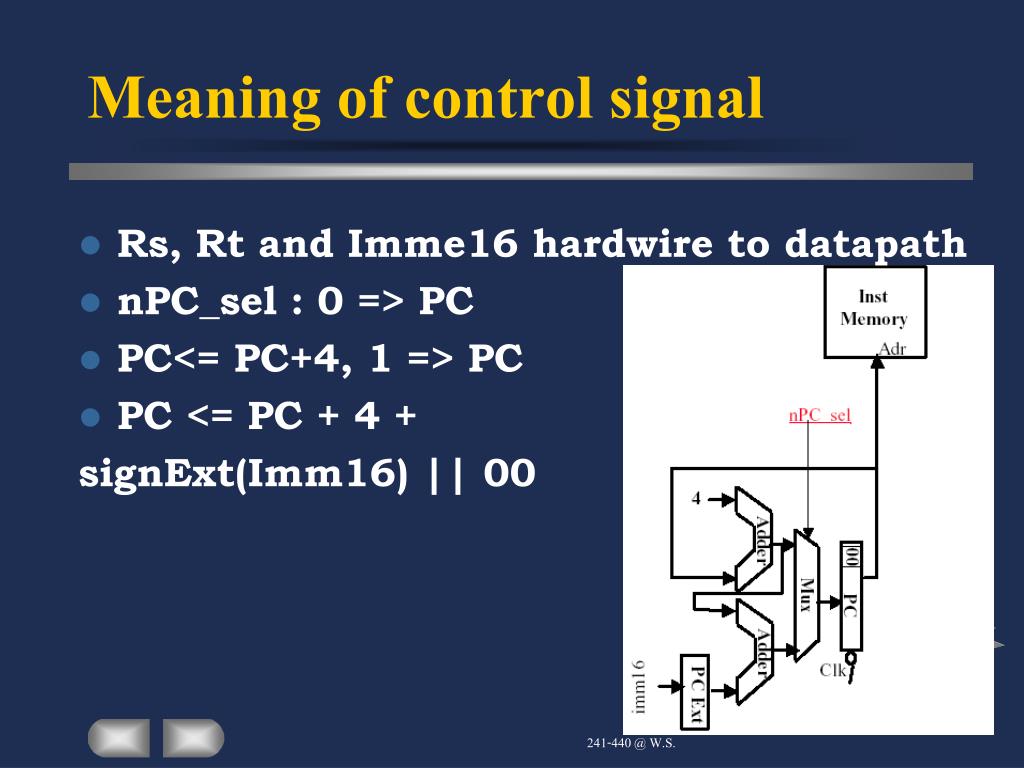

Meaning of control signal
  • Rs, Rt and Imme16 hardwire to datapath
  • nPC_sel : 0 => PC
  • PC<= PC+4, 1 => PC
  • PC <= PC + 4 +

signExt(Imm16) || 00

241-440 @ W.S.

meaning of control signals

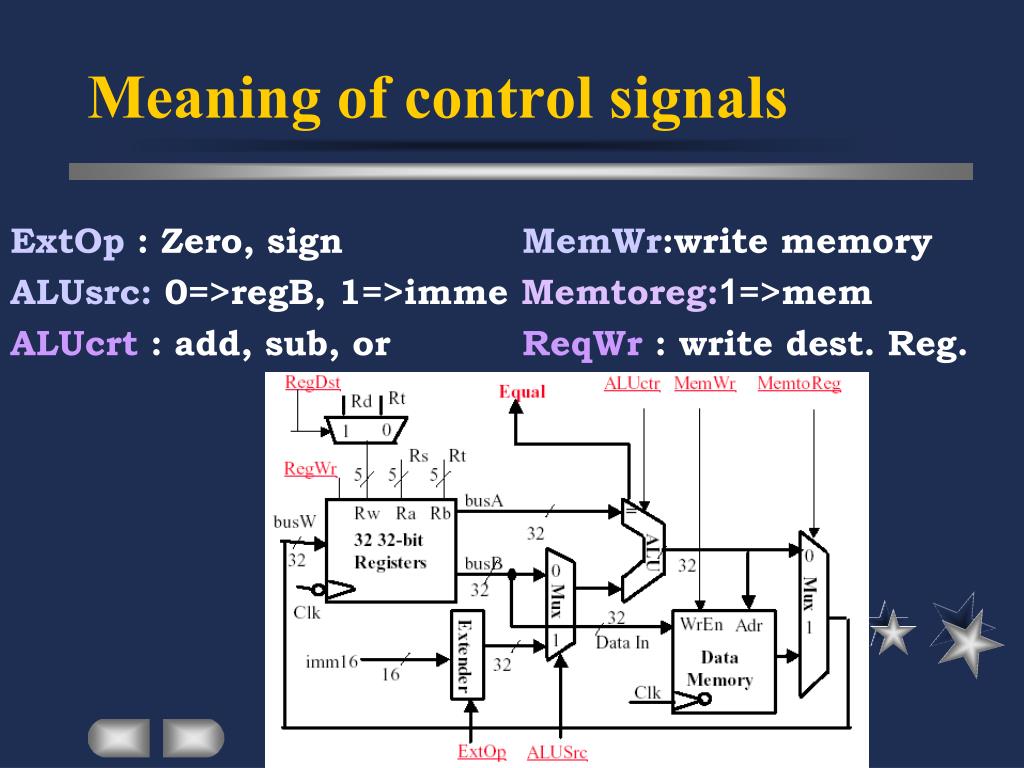

Meaning of control signals

ExtOp : Zero, sign MemWr:write memory

ALUsrc: 0=>regB, 1=>imme Memtoreg:1=>mem

ALUcrt : add, sub, or ReqWr : write dest. Reg.

241-440 @ W.S.

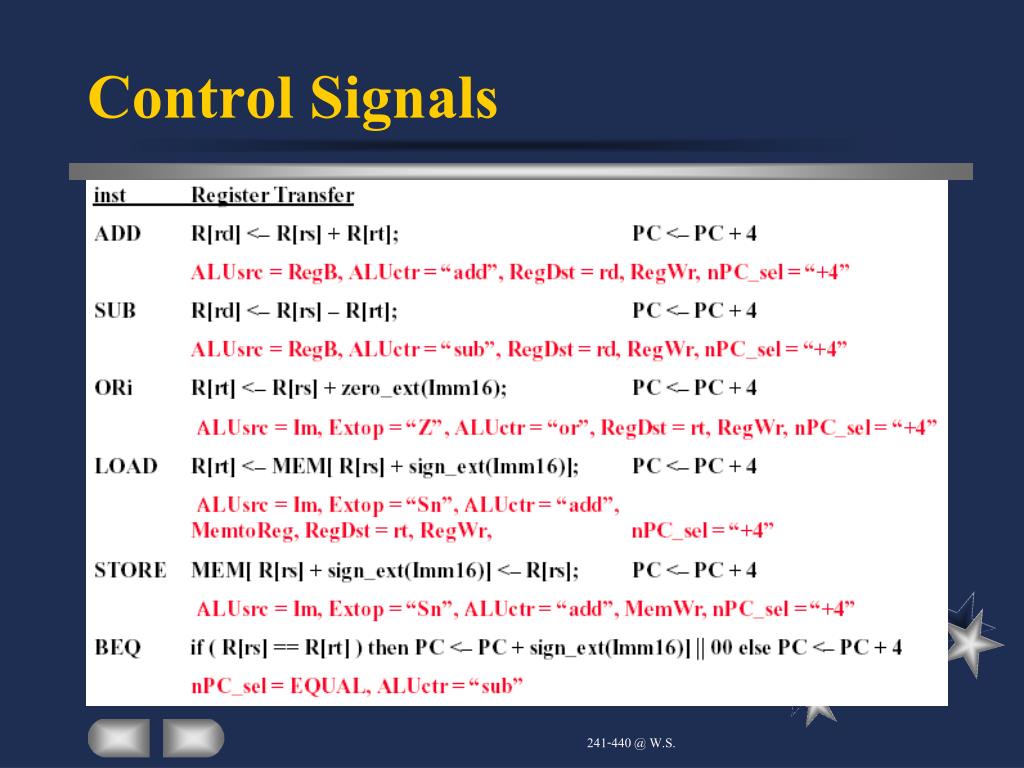

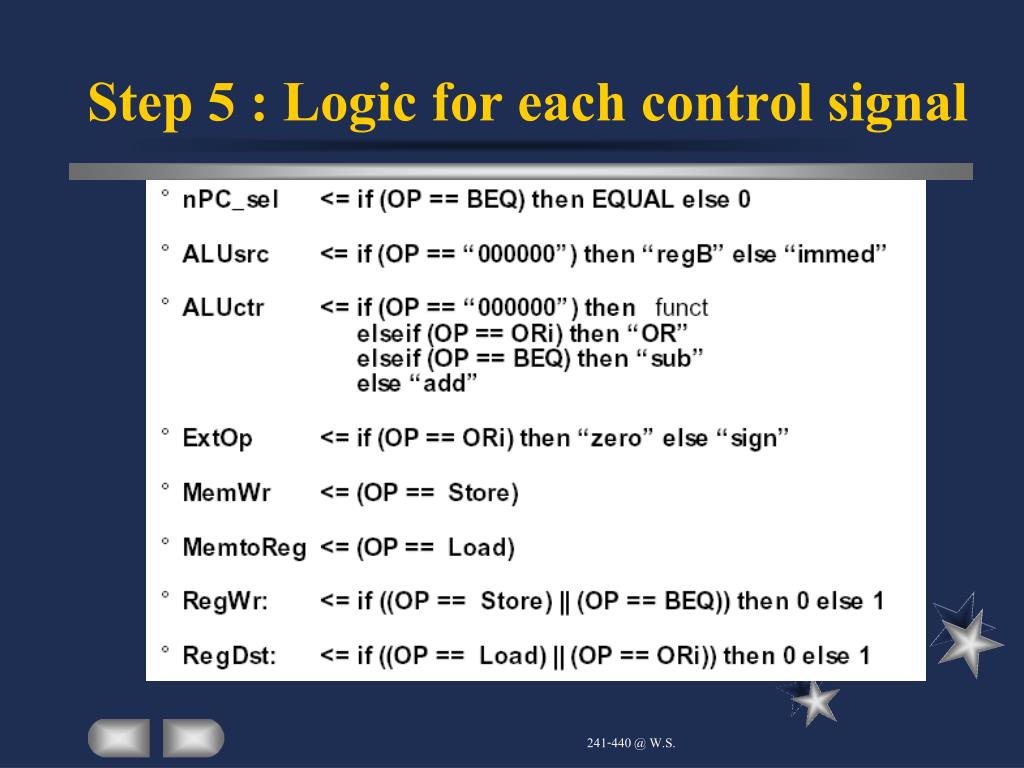

control signals
Control Signals

241-440 @ W.S.

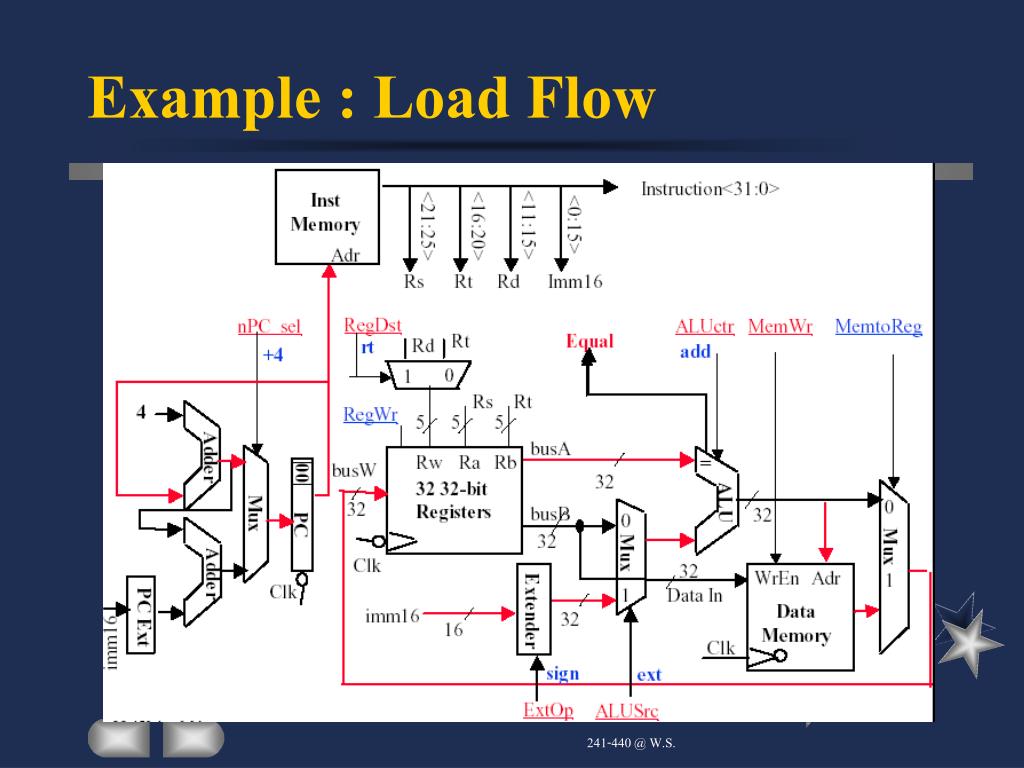

example load flow
Example : Load Flow

241-440 @ W.S.

next on lecture 5
Next on Lecture 5

241-440 @ W.S.
