  1. Shibboleth gJAF discussion Tele-meeting 22 Feb. 2007

  2. 4. SAML attributes 2.authN 3.handle 1. ‘access’ Shibboleth (short primer) Shibboleth gJAF tele-meeting

  3. 4. SAML attributes 2.authN 3.handle 1. ‘access’ Shibboleth Key Characteristics • concept of federation • large user base, few resources • single sign on Federation Shibboleth gJAF tele-meeting

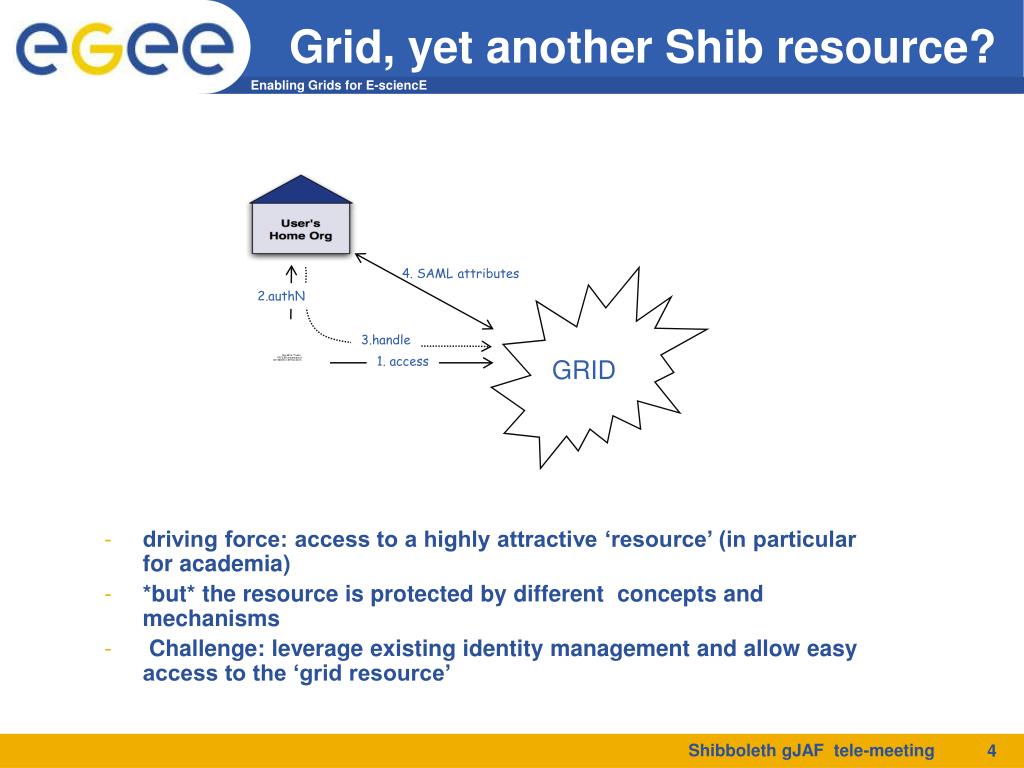

  4. 4. SAML attributes 2.authN 3.handle 1. access GRID Grid, yet another Shib resource? • driving force: access to a highly attractive ‘resource’ (in particular for academia) • *but* the resource is protected by different concepts and mechanisms • Challenge: leverage existing identity management and allow easy access to the ‘grid resource’ Shibboleth gJAF tele-meeting

  5. Does Grid Care? • authN/authZ paradigms in Grid: • VO and X509 based (VOMS), • existing granularity level ends at group & role level • facility for more granularity exists =>VOMS feature of storing key-value data on individual basis (version 1.7.10 on) • Problem/open issue: • who is going to provide the information for key-value user data? • if VOMS is to handle all the user management at such a level, we’re back to the pre-Shibboleth age Shibboleth gJAF tele-meeting

  6. Grid meets Shibboleth • attributes that Shibboleth may provide for more granular authZ in the Grid • motivation to use Shibboleth attributes: • common understanding what they mean (“a rose is a rose is a rose”) • efforts to standardize attribute names with OIDs 4. SAML attributes 2.authN 3.handle 1. access GRID Shibboleth gJAF tele-meeting

  7. Coping with the ‘Grid resource’ • Problem: - Shibboleth federation concept not applicable for grid! (each grid component would need to become a federation member) • 2 Complementary Approaches • SLCS & mediator service VASH • (Switch’s phase 3…) Shibboleth gJAF tele-meeting

  8. Big Picture GRID for each VO and federation a Vash service/server Shibboleth gJAF tele-meeting

  9. Vash Service Shibboleth gJAF tele-meeting

  10. Grid authZ with Shibboleth • LCAS plugin (work in progress) • ACL xml file (no GACL as too limited, no XACML as no c impl.) • Example: <AccessControlList> <!-- simple rule example --> <AccessControlRule> <Attribute name="Unique ID"> 112358@switch.ch</Attribute> </AccessControlRule> <!-- AND rule example --> <AccessControlRule> <Attribute name="Shib-SwissEP-HomeOrganization">switch.ch</Attribute> <Attribute name="Shib-EP-Affiliation"> staff </Attribute> </AccessControlRule> <AccessControlRule> <Attribute name="Shib-SwissEP-HomeOrganization"> vho switchaai.ch</Attribute> </AccessControlRule> <AccessControlRule> <Attribute name="Shib-SwissEP-HomeOrganization">unizh.ch</Attribute> <Attribute name="Shib-EP-Affiliation">staff</Attribute> </AccessControlRule> </AccessControlList> Shibboleth gJAF tele-meeting
