Cooperative Reasoning for Automatic Software Verification

1. Cooperative Reasoning for Automatic Software Verification Andrew Ireland School of Mathematical & Computer Sciences Heriot-Watt University Edinburgh

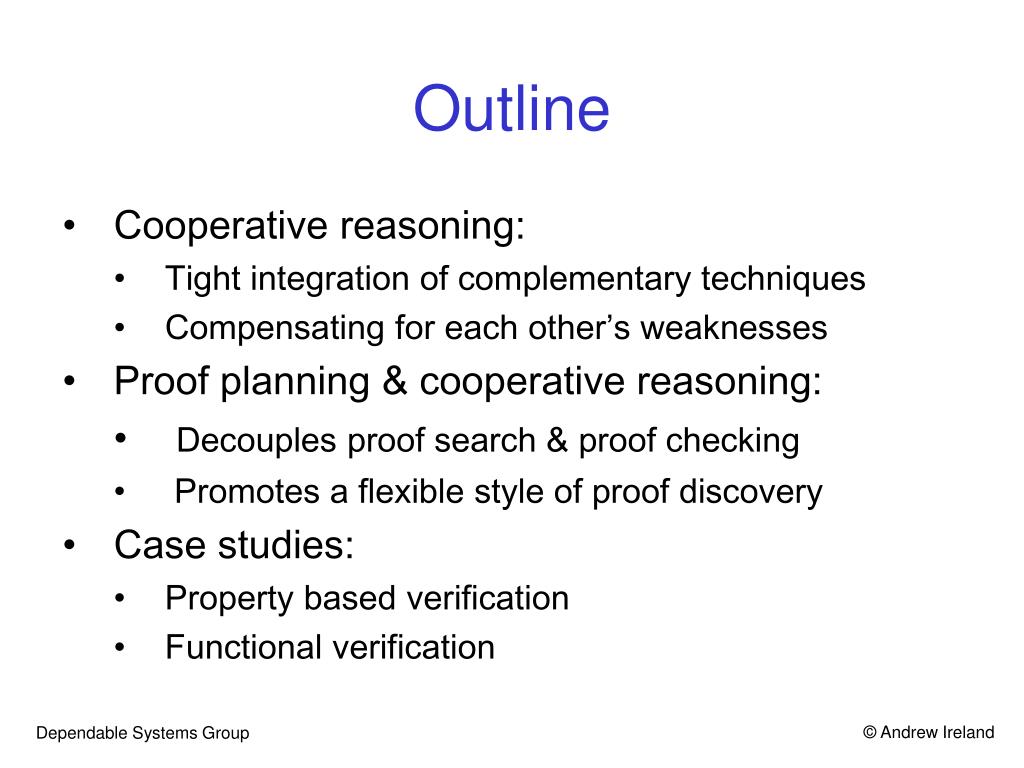

2. Outline • Cooperative reasoning: • Tight integration of complementary techniques • Compensating for each other’s weaknesses • Proof planning & cooperative reasoning: • Decouples proof search & proof checking • Promotes a flexible style of proof discovery • Case studies: • Property based verification • Functional verification

3. Proof Planning Theory Conjectures Proof planning Methods + Critics Proof checking Tactics Proof plans promote reuse, flexibilityand cooperation

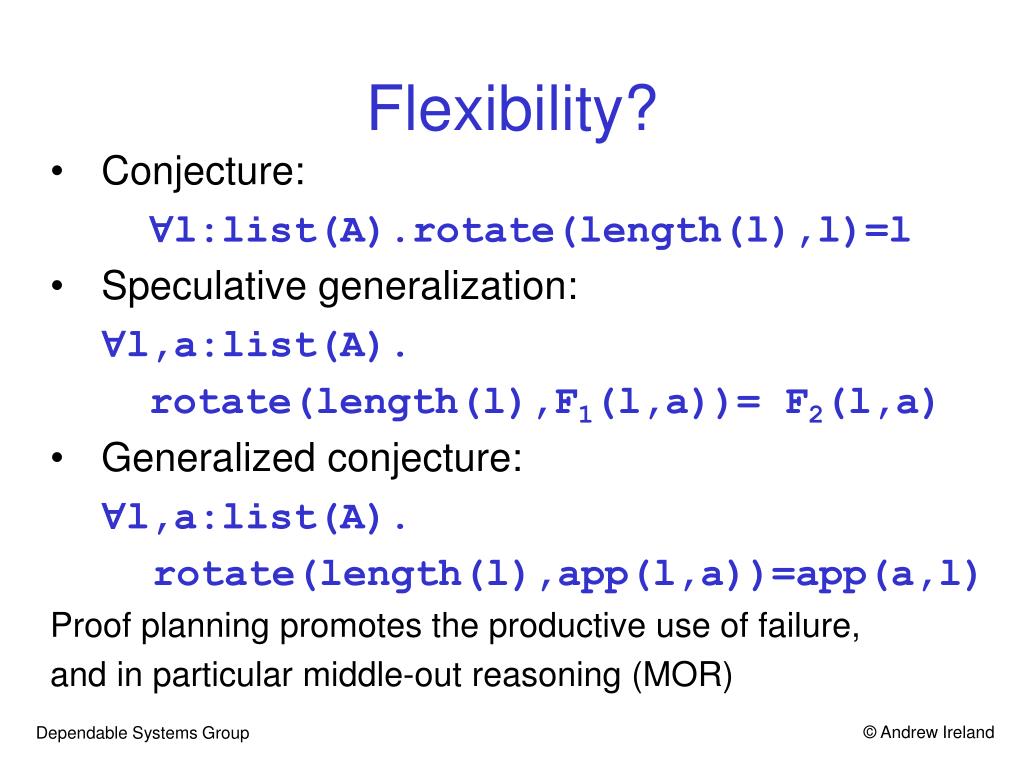

4. Flexibility? • Conjecture: • ∀l:list(A).rotate(length(l),l)=l • Speculative generalization: • ∀l,a:list(A). • rotate(length(l),F1(l,a))= F2(l,a) • Generalized conjecture: • ∀l,a:list(A). rotate(length(l),app(l,a))=app(a,l) • Proof planning promotes the productive use of failure, • and in particular middle-out reasoning (MOR)

5. The SPARK Approach • A subset of Ada that eliminates potential ambiguities and insecurities (PRAXIS) • Expressive enough for industrial applications, but restrictive enough to support rigorous analysis • SPARK toolset supports data & information flow analysis and formal verification • Partial correctness & exception freedom proof, e.g. proving code is free from buffer overflows, range violations, division by zero. • Avionics, transportation, air traffic control, security,…

6. The SPARK Approach SPARK code Proofs SPARK Examiner VCs SPADE Simplifier  UnprovenVCs Cmds SPADE Proof Checker

7. A Filter Example subtype AR_T is Integer range 0..9; type A_T is array (AR_T) of Integer; ... procedure Filter(A: in A_T; R: out Integer) is begin R:=0; for I in AR_T loop if A(I)>=0 and A(I)<=100 then R:=R+A(I); end if; end loop; end Filter; R:=R+A(I); If R <= Integer’Last then potential overflow exception

8. Loop Invariant subtype AR_T is Integer range 0..9; type A_T is array (AR_T) of Integer; ... procedure Filter(A: in A_T; R: out Integer) is begin R:=0; for I in AR_T loop --# assert R >= 0 and R <= I*100 if A(I)>=0 and A(I)<=100 then R:=R+A(I); end if; end loop; end Filter;

9. The SPARK Approach SPARK code Proofs SPARK Examiner VCs SPADE Simplifier  UnprovenVCs Cmds SPADE Proof Checker

10. NuSPADE Project SPARK code Proofs SPARK Examiner VCs SPADE Simplifier  UnprovenVCs Cmds SPADEase SPADE Proof Checker Refinement • Bill J. Ellis • EPSRC Critical Systems programme (GR/R24081) • EPSRC RAIS Scheme (GR/T11289) • http://www.macs.hw.ac.uk/nuspade

11. SPADEase Proof Planning Program Analysis • Proof planning: • automates invariant & exception freedom proofs • supports equational reasoning • generates program property schemas (invariants) • Program analysis: • instantiates program property schemas (invariants) • generates equational reasoning goals

12. Loop Invariant VC H1: r >= 0 . H2: r <= loop__1__i * 100 . ... H6: element(a, [loop__1__i]) >= 0 . H7: element(a, [loop__1__i]) <= 100 . … -> C1: r + element(a,[loop__1__i]) >= 0 . C2: r + element(a,[loop__1__i]) <= (loop__1__i + 1) * 100 . …

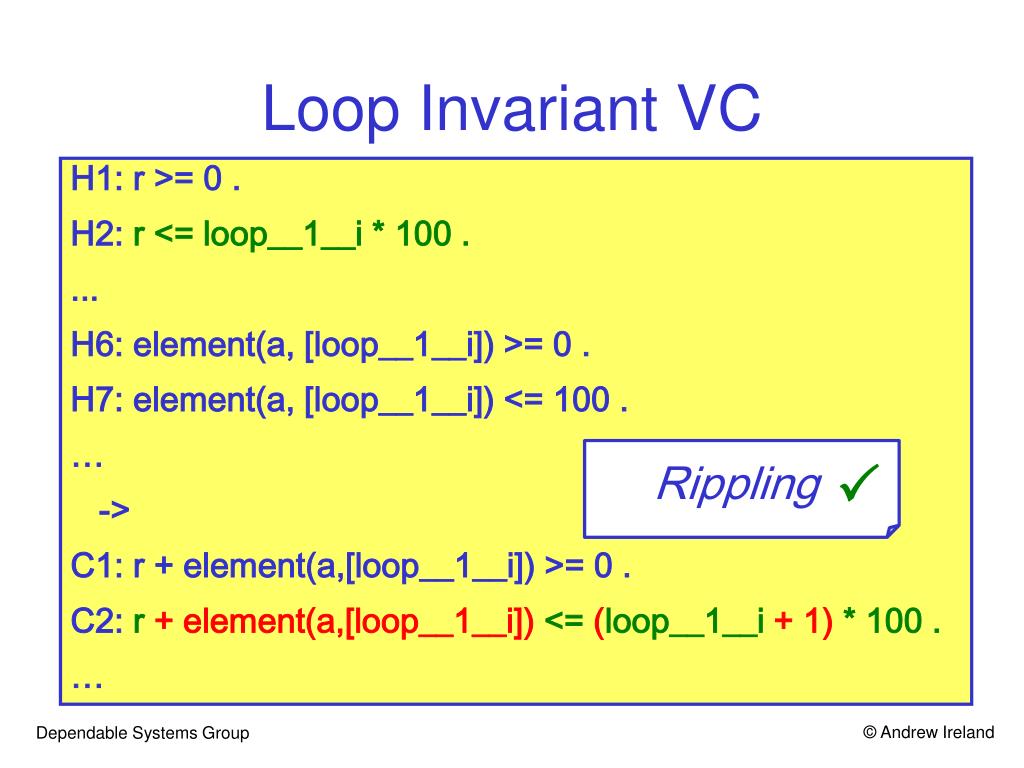

13. Loop Invariant VC H1: r >= 0 . H2: r <= loop__1__i * 100 . ... H6: element(a, [loop__1__i]) >= 0 . H7: element(a, [loop__1__i]) <= 100 . … -> C1: r + element(a,[loop__1__i]) >= 0 . C2: r + element(a,[loop__1__i])<=(loop__1__i+ 1)* 100 . … Rippling 

14. Rippling Proof Pattern Given: ∀u’. f(g(v), h(u’)) f(g(c1(v)), h(u)) Goal:

15. Rippling Proof Pattern Given: ∀u’. f(g(v), h(u’)) f(g(c1(v)), h(u)) Goal: c2(f(g(v),h(c3(u)))) Rippling = difference identification + reduction

16. Separation Logic • John Reynolds (CMU) and Peter O’Hearn (QMU) • Simplifies pointer program proofs by enriching Hoare logic with spatial operators • Builds upon the logic of bunched implications (O’Hearn & Pym), and early work by Burstall • Focuses the reasoning effort on only those parts of the heap that are relevant to a program unit, i.e. local reasoning

17. Modelling the Heap • Empty heap: the assertion emp holds for a heap that contains no cells • Singleton heap:the assertion X ↦ Eholds for a heap that contains a single cell (maps-to relation), e.g. i 5 (i ↦ 5)

18. Separating Conjunction P*Q holds for a heap if the heap can be divided into two disjoint heaplets H1 and H2, such that P holds for H1 holds forQ holds for H2, e.g. i 5 i 5 7 7 (i↦5)*(i+1↦7) (i↦5)*(i+1↦7) *true (i↦5,7) (i↪5,7)

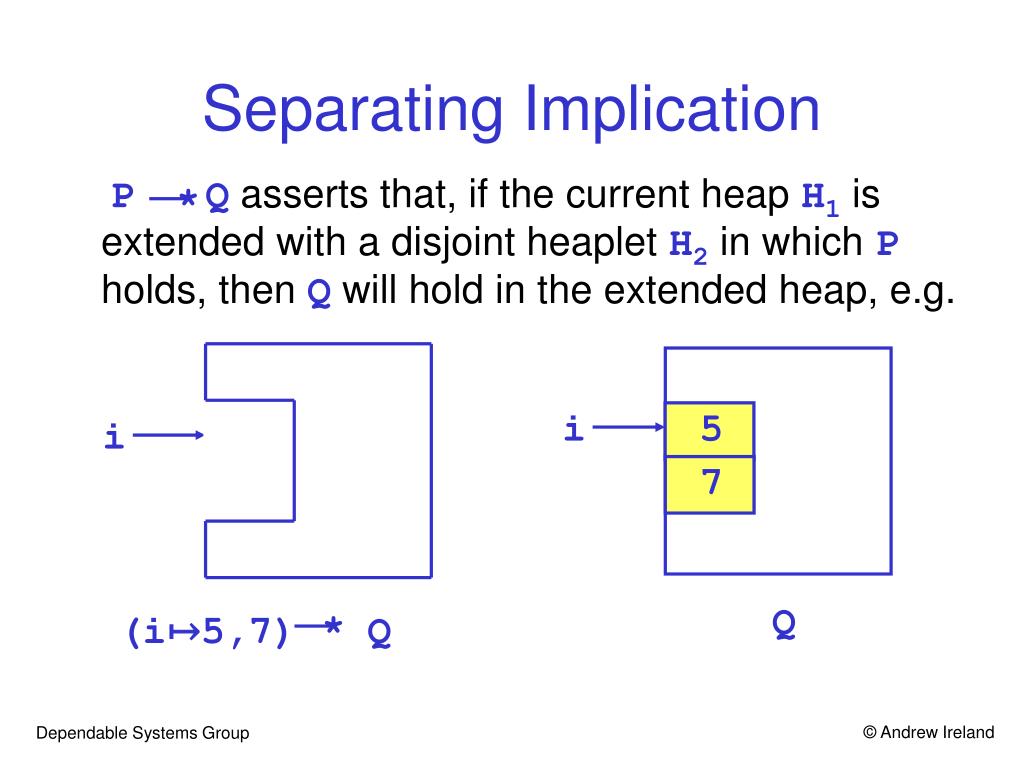

19. Separating Implication * P Q asserts that, if the current heap H1 is extended with a disjoint heaplet H2 in which P holds, then Q will hold in the extended heap, e.g. i 5 i 7 * Q (i↦5,7) Q

20. Singly-linked Lists list([],Y,Z)↔ emp  Y=Z list([W|X],Y,Z)↔(∃p.(Y ↦W,p)*list(X,p,Z)) i a2 a1 an … j list([a1, a2, …, an],i,j)

21. Loop Invariant Discovery R:{∃A,B.list(A,i,nil)*list(B,j,nil)∧ A0 = app(rev(B),A)} {∃A. list(A,i,nil)∧ A0 = A} j := nil; {R} while not(i = nil) loop k := [i+1]; [i+1] := j; j := i; i := k end loop {∃B.list(B,j,nil) ∧ A0 = rev(B)}

22. Loop Invariant Discovery R:{∃A,B.list(A,i,nil)*list(B,j,nil)∧A0 = app(rev(B),A)} {∃A. list(A,i,nil)∧ A0 = A} j := nil; {R} while not(i = nil) loop k := [i+1]; [i+1] := j; j := i; i := k end loop {∃B.list(B,j,nil) ∧ A0 = rev(B)} shape

23. Loop Invariant Discovery R:{∃A,B.list(A,i,nil)*list(B,j,nil)∧A0 = app(rev(B),A)} {∃A. list(A,i,nil)∧ A0 = A} j := nil; {R} while not(i = nil) loop k := [i+1]; [i+1] := j; j := i; i := k end loop {∃B.list(B,j,nil) ∧ A0 = rev(B)} structural

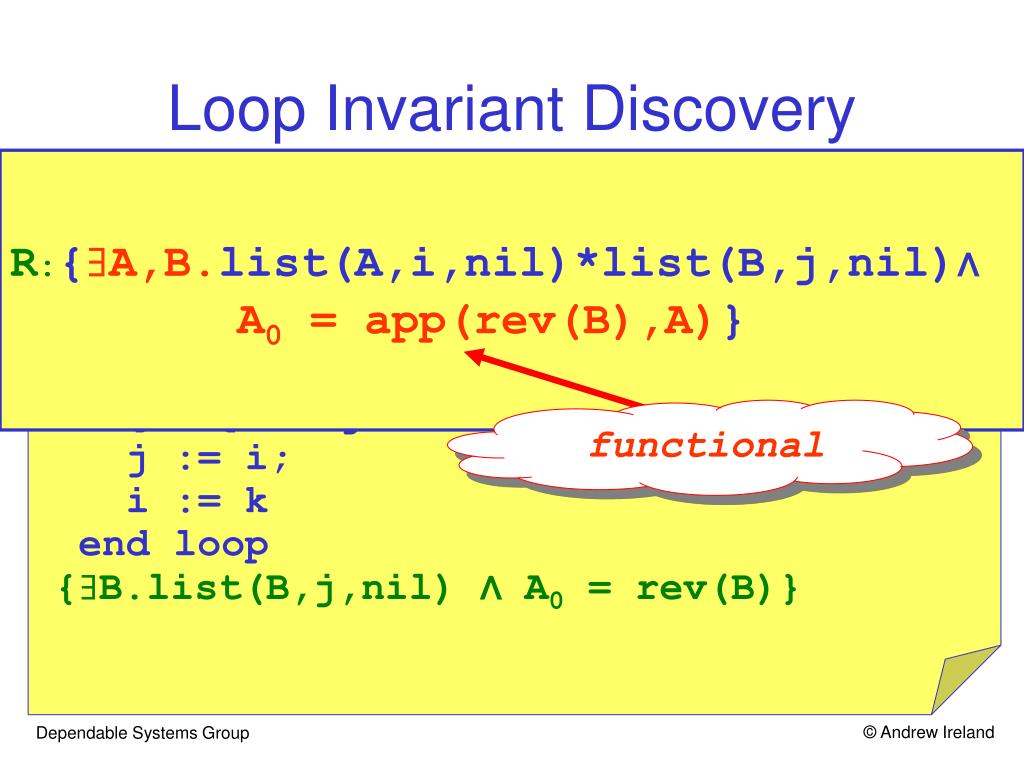

24. Loop Invariant Discovery R:{∃A,B.list(A,i,nil)*list(B,j,nil)∧A0 = app(rev(B),A)} {∃A. list(A,i,nil)∧ A0 = A} j := nil; {R} while not(i = nil) loop k := [i+1]; [i+1] := j; j := i; i := k end loop {∃B.list(B,j,nil) ∧ A0 = rev(B)} functional

25. Verification Condition (∃A’,B’.list(A’,i,nil)*list(B’,j,nil) ∧ A0 = app(rev(B’),A’)) ∧(i≠nil) ├ (∃X2.(∃X,Y.(i ↦ X,Y)*((i ↦ X,j) (∃A,B.list(A,X2,nil)*list(B,i,nil) ∧ A0 = app(rev(B),A)))) ∧(∃X1.(i ↪ X1,X2))) Case-splitting Mutating Rippling  *

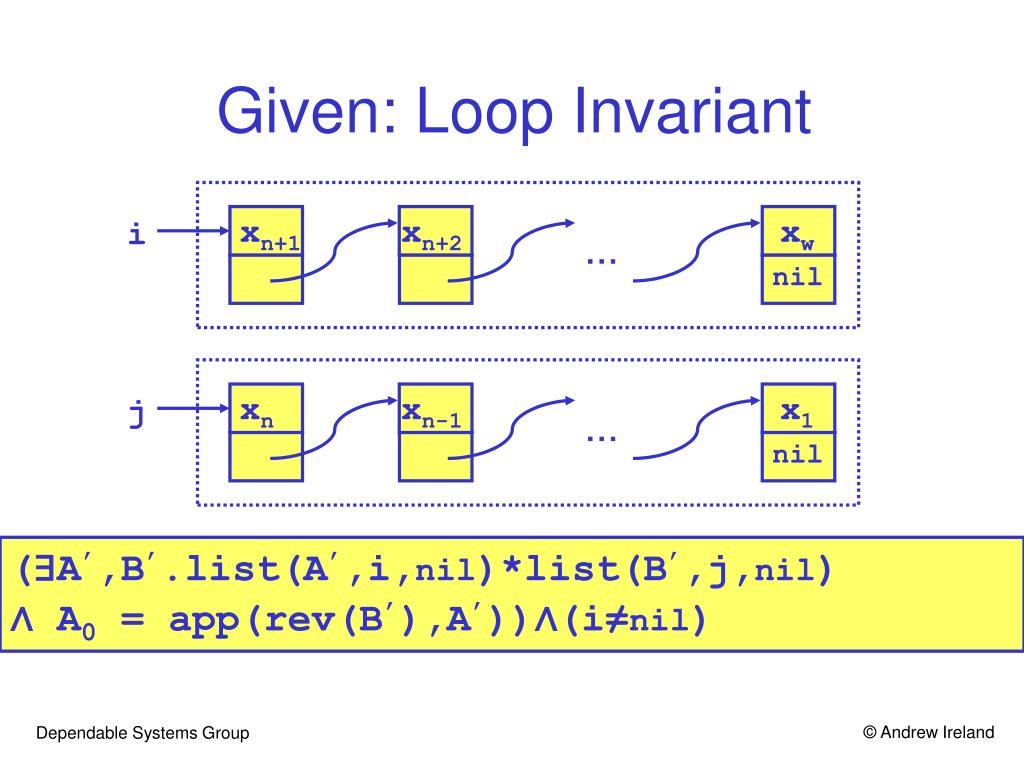

26. Given: Loop Invariant xn+1 xn+2 xw i … nil xn xn-1 x1 j … nil (∃A’,B’.list(A’,i,nil)*list(B’,j,nil) ∧ A0 = app(rev(B’),A’))∧(i≠nil)

27. Goal: Weakest Precondition x2 xn+1 xn+2 xw i … nil xn xn-1 x1 j … nil (∃X2.(∃X,Y.(i ↦ X,Y)*((i ↦ X,j) (∃A,B.list(A,X2,nil)*list(B,i,nil) ∧ A0 = app(rev(B),A))∧(∃X1.(i ↪ X1,X2))) *

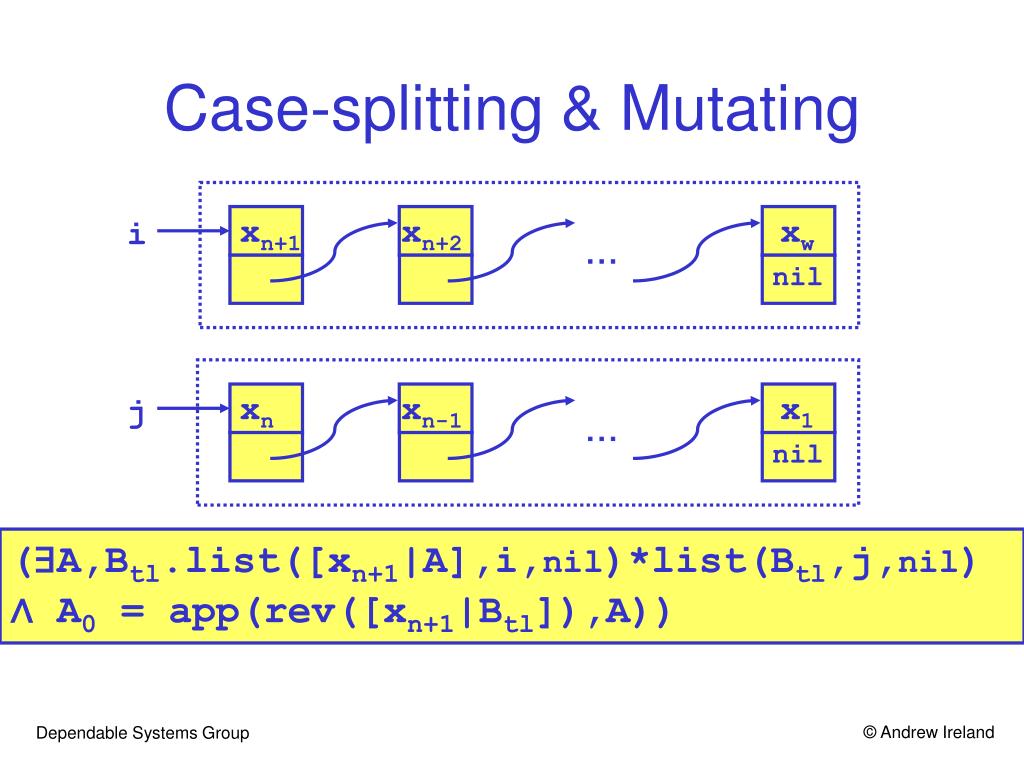

28. Case-splitting & Mutating xn+1 xn+2 xw i … nil xn xn-1 x1 j … nil (∃A,Btl.list([xn+1|A],i,nil)*list(Btl,j,nil) ∧ A0 = app(rev([xn+1|Btl]),A))

29. Mutating Proof Pattern Goal: … (U ↦ V,W) (( … ) (U’ ↦ V’,W’) ( … )) * * *

30. Mutating Proof Pattern Goal: …(U ↦ V,W)(( … )(U’ ↦ V’,W’) ( … )) * * * …(U ↦ V,W)((U’ ↦ V’,W’) (( … ) (…))) * * * X (X Y) Y * * (rewrite rule) ((…) ( …)) * Mutating = reconcile complementary heaplets

31. Rippling (∃A’,B’.list(A’,i,nil)*list(B’,j,nil) ∧ A0 = app(rev(B’),A’)) ∧(i≠nil) ├ (∃A,Btl.list([xn+1|A],i,nil)*list(Btl,j,nil) ∧ A0 = app(rev([xn+1|Btl]),A))

32. Rippling (∃A’,B’.list(A’,i,nil)*list(B’,j,nil) ∧ A0 = app(rev(B’),A’)) ∧(i≠nil) ├ (∃A,Btl.list([xn+1|A],i,nil)*list(Btl,j,nil) ∧ A0 = app(rev([xn+1|Btl]),A))

33. Rippling (∃A’,B’.list(A’,i,nil)*list(B’,j,nil) ∧ A0 = app(rev(B’),A’)) ∧(i≠nil) ├ (∃A,Btl.list([xn+1|A],i,nil)*list(Btl,j,nil) ∧ A0 = app(rev([xn+1|Btl]),A)) (∃A,Btl.list([xn+1|A],i,nil)*list(Btl,j,nil) ∧ A0 = app(app(rev(Btl),[xn+1]),A))

34. Rippling (∃A’,B’.list(A’,i,nil)*list(B’,j,nil) ∧ A0 = app(rev(B’),A’)) ∧(i≠nil) ├ (∃A,Btl.list([xn+1|A],i,nil)*list(Btl,j,nil) ∧ A0 = app(rev([xn+1|Btl]),A)) (∃A,Btl.list([xn+1|A],i,nil)*list(Btl,j,nil) ∧ A0 = app(app(rev(Btl),[xn+1]),A)) (∃A,Btl.list([xn+1|A],i,nil)*list(Btl,j,nil) ∧ A0 = app(rev(Btl),app([xn+1],A)))

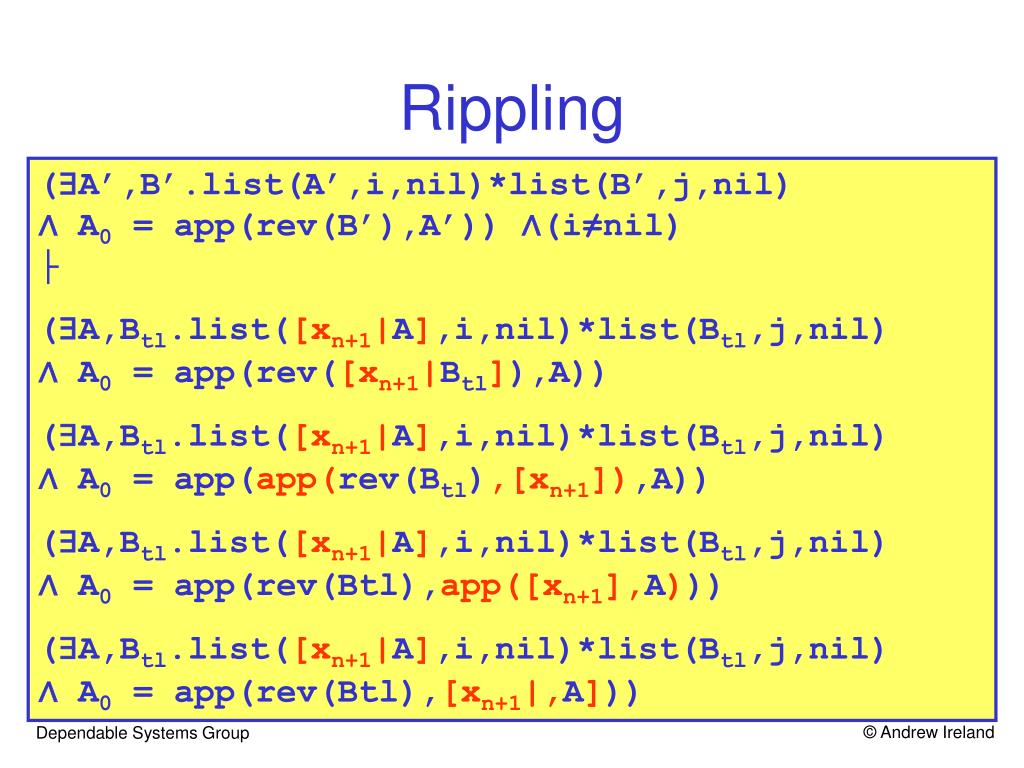

35. Rippling (∃A’,B’.list(A’,i,nil)*list(B’,j,nil) ∧ A0 = app(rev(B’),A’)) ∧(i≠nil) ├ (∃A,Btl.list([xn+1|A],i,nil)*list(Btl,j,nil) ∧ A0 = app(rev([xn+1|Btl]),A)) (∃A,Btl.list([xn+1|A],i,nil)*list(Btl,j,nil) ∧ A0 = app(app(rev(Btl),[xn+1]),A)) (∃A,Btl.list([xn+1|A],i,nil)*list(Btl,j,nil) ∧ A0 = app(rev(Btl),app([xn+1],A))) (∃A,Btl.list([xn+1|A],i,nil)*list(Btl,j,nil) ∧ A0 = app(rev(Btl),[xn+1|,A]))

36. CORE Project Spec & code CORE system animation Smallfoot (family) IsaPlanner Proofs  Isabelle • Ewen Maclean, Gudmund Grov, Richard Addison • EPSRC (EP/F037597)http://www.macs.hw.ac.uk/core • Smallfoot (O’Hearn’s Theory Group) • IsaPlanner (Bundy’s Mathematical Reasoning Group)

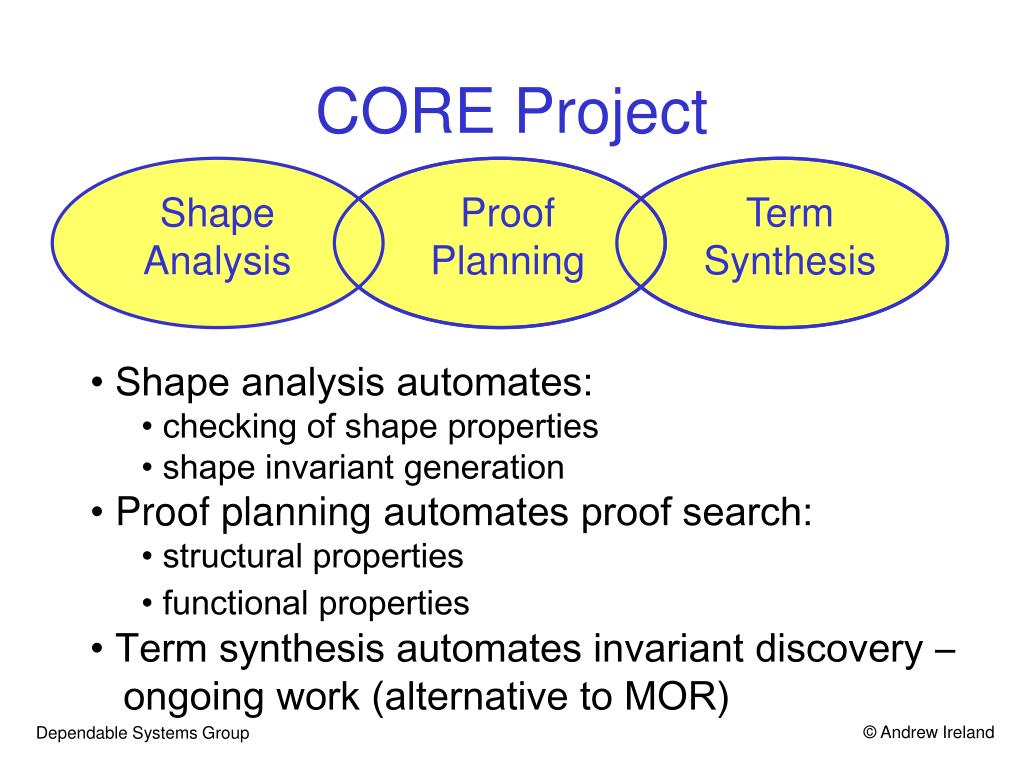

37. CORE Project Shape Analysis Proof Planning Term Synthesis • Shape analysis automates: • checking of shape properties • shape invariant generation • Proof planning automates proof search: • structural properties • functional properties • Term synthesis automates invariant discovery – • ongoing work (alternative to MOR)

38. Invariant Discovery (Ongoing) ∃A,B. list(V1,i,nil)* list(V2,j,nil)∧A0 =F1(rev(B),A,B)

39. Invariant Discovery (Ongoing) ∃A,B. list(V1,i,nil)*list(V2,j,nil)∧A0 =F1(rev(B),A,B) Shape Shape invariants currently hand-crafted, but aiming for automation via Smallfoot family.

40. Invariant Discovery (Ongoing) ∃A,B. list(V1,i,nil)*list(V2,j,nil)∧A0 =F1(rev(B),A,B) Structural Structural invariants generated via MOR (proof planning within CORE System)

41. Invariant Discovery (Ongoing) ∃A,B. list(V1,i,nil)* list(V2,j,nil)∧A0 =F1(rev(B),A,B) Functional Functional invariants generated via term synthesis (CORE System) and proved via proof planning (IsaPlanner)

42. Conclusion • Successful software verification approaches are typically an integration of techniques • Argued for cooperative reasoning, i.e. a tight integration of complementary techniques • Focused on proof planning as a flexible approach to proof automation that promotes cooperative reasoning
