information technology management session 6
INFORMATION TECHNOLOGY MANAGEMENT資訊技術應用 Session 6

OUTLINE

  • Logistics
    • Review revised schedule
  • Concept review
  • (O) Ch2 & (L)Ch5: computer H/W terminology review. (Focus on terminology)
    • Computer categories & their generations/appl
    • Computer system config.
        • Centralized vs de-centralized / Client-server config / NC
    • Computer systems & components
    • Trends in H/W.

Sheu

computer categories their generations
Computer categories & their generations
  • by computing power/size: (micro - mid range - mainframe) (fg 2.1)

supercomputer/mainframe/mini(work station)/micro/portable/NB/palm-top

  • by usage: generic vs specific (embedded system) (eg: inventory counting/car rental)
  • by comp relationship: network server vs client; workstation; host vs device;
  • by generations: 1st - 5th gen (fg 2.2)

Sheu

categories of computers some examples by history
CATEGORIES OF COMPUTERSSome examples (by history)
  • SUPERCOMPUTER
  • MAINFRAME
  • MINICOMPUTER
  • WORKSTATION
  • PERSONAL COMPUTER (PC)

Sheu

mainframe
MAINFRAME
  • LARGEST COMPUTER; several cabinets
  • 5O MEGABYTES TO OVER ONE GIGABYTE RAM
  • Typical applications:
    • COMMERCIAL, SCIENTIFIC, MILITARY APPLICATIONS
    • COMPLICATED COMPUTATIONS ; computation intensive
    • transaction-based, heavy-duty data processing,
    • large # of users; large amount of data

Sheu

minicomputer
MINICOMPUTER
  • MIDDLE-RANGE; single cabinet
  • 10 MEGABYTES TO OVER ONE GIGABYTE RAM
  • Typical applications:
    • UNIVERSITIES, FACTORIES, LABS
    • USED AS FRONT-END PROCESSOR FOR MAINFRAME
    • Engineering applications, ..

Sheu

microcomputer laptops
MICROCOMPUTER & Laptops
  • DESKTOP OR PORTABLE
  • 64 KILOBYTES TO OVER 128 MEGABYTES RAM
  • AFFORDABLE
  • Typical appl:
    • PERSONAL OR BUSINESS COMPUTERSMANY AVAILABLE COMPONENTS
    • CAN BE NETWORKED
    • office appl., personal use, ..
    • Desk-top/Lap-top/Portable

*

5.26

Sheu

workstation
WORKSTATION
  • DESKTOP COMPUTER
  • POWERFUL GRAPHICS
  • EXTENSIVE MATH CAPABILITIES
  • MULTI-TASKING
  • USUALLY CONFIGURED TO SPECIAL FUNCTION (e.g.; CAD, ENGINEERING, GRAPHICS)
  • Typical appl:
    • Engineering / technical computation

*

Sheu

supercomputer
SUPERCOMPUTER
  • HIGHLY SOPHISTICATED
  • COMPLEX COMPUTATIONS
  • FASTEST & multiple CPUs
  • STATE-OF-THE-ART COMPONENTS
  • EXPENSIVE
  • Parallel computation (H/W & S/W)
  • Typical appl:
    • LARGE SIMULATIONS (eg.: Nuclear explosion)
    • Extremely computation intensive
    • (Weather / image processing, etc.)

Sheu

computer generations
COMPUTER GENERATIONS

1. VACUUM TUBES: 1946-1956

2. TRANSISTORS: 1957-1963

3. INTEGRATED CIRCUITS: 1964-1979

4. VERY LARGE-SCALE INTEGRATEDCIRCUITS (VLSI):1980- PRESENT

ULSI (Ultra Large-scale)

5. ???

Sheu

commonsense measures
Commonsense Measures
  • BIT /BYTE/WORD
    • EBCDIC- Extended Binary Coded Decimal Interchange Code (8 bits per byte)
    • ASCII- American Standard Code for Information Exchange (7 or 8 bits per byte)

MEMORY SIZE

  • KILOBYTE (KT): 210 bytes... 1024 bytes
  • MEGABYTE (MB): 210 KB... “million” bytes
  • GIGABYTE (GB): 210 MB... “billion” bytes
  • TERABYTES (TB): 210 GB... “trillion” bytes

COMPUTER TIME

Millisecond10-3 second

Microsecond10-6 second

Nanosecond 10-9 second

Picosecond10-12 second

Sheu

client server

CLIENT SERVER

REQUESTS

DATA,

SERVICE

USER INTERFACE

APPLICATION FUNCTION

DATA

APPLICATION FUNCTION

NETWORK RESOURCES

CLIENT / SERVER
  • NETWORKED COMPUTERS
  • CLIENT:user (PC, workstation, laptop) requires data, application,

communications it does not have

  • SERVER:component (computer) having desired data, application,

communications

Sheu

centralized decentralized
CENTRALIZED / DECENTRALIZED
  • CENTRALIZED:PROCESSING BY CENTRAL COMPUTER SITE
    • ONE STANDARD
    • GREATER CONTROL
  • DECENTRALIZED:PROCESSING BY SEVERAL COMPUTER SITES LINKED BY NETWORKS
    • MORE FLEXIBILITY
    • FASTER RESPONSE

NETWORK COMPUTERS

  • NETWORK COMPUTER:simplified desktop computer stores minimum data to function (uses server)

Sheu

computer systems components
Computer systems & components
  • The system relationship:
      • Input / processing / Output / storage / control (fg 2.9)
      • CPU & peripheral
  • Components
    • CPU:
    • Primary Storage
      • Where your program & data must reside before program is run.
      • RAM / ROM / EPROM /EEPROM
    • Peripherals
      • all I/O devices and secondary storage devices. Online devices under CPU control.

Sheu

slide14

PRIMARY

STORAGE

CPU

INPUT

DEVICES

COMPUTER COMPONENTS

DATA BUS

ADDRESS BUS

CONTROL BUS

OUTPUT

DEVICES

SECONDARY

STORAGE

Sheu

microprocessor
MICROPROCESSOR

VLSI CIRCUIT WITH CPU

  • WORD LENGTH:bits processed at one time
  • MEGAHERTZ:one million cycles per second
  • DATA BUS WIDTH:bits moved between CPU & other devices
  • Bandwidth: Speed of data transmission.
  • REDUCED INSTRUCTION SET COMPUTING(RISC):embeds most used instructions on chip to enhance speed
  • MultiMedia eXtension (MMX):enhanced Intel chip improves multimedia applications
  • MIPS: Million Instruction Per Second

Sheu

examples of microprocessors
EXAMPLES OF MICROPROCESSORS

=> Clock-less computer (asynchronous vs synchronous)

Sheu

types of memory
TYPES OF MEMORY
  • RAM :Random Access Memory
    • Dynamic: Changes thru processing
    • Static: Remains constant (power on)
  • ROM :Read Only Memory (preprogrammed)
    • PROM: Program can be changed once
    • EPROM: Erasable thru ultraviolet light
    • EEPROM: Electrically erasable
  • Mask ROM
  • Volatile vs Non-volatile
  • Flash memory

Sheu

sequential parallel processing

Program

Program

TASK 1

RESULT

CPU

CPU

CPU

CPU

TASK 1

TASK 2

TASK 3

RESULT

Program

TASK 2

RESULT

CPU

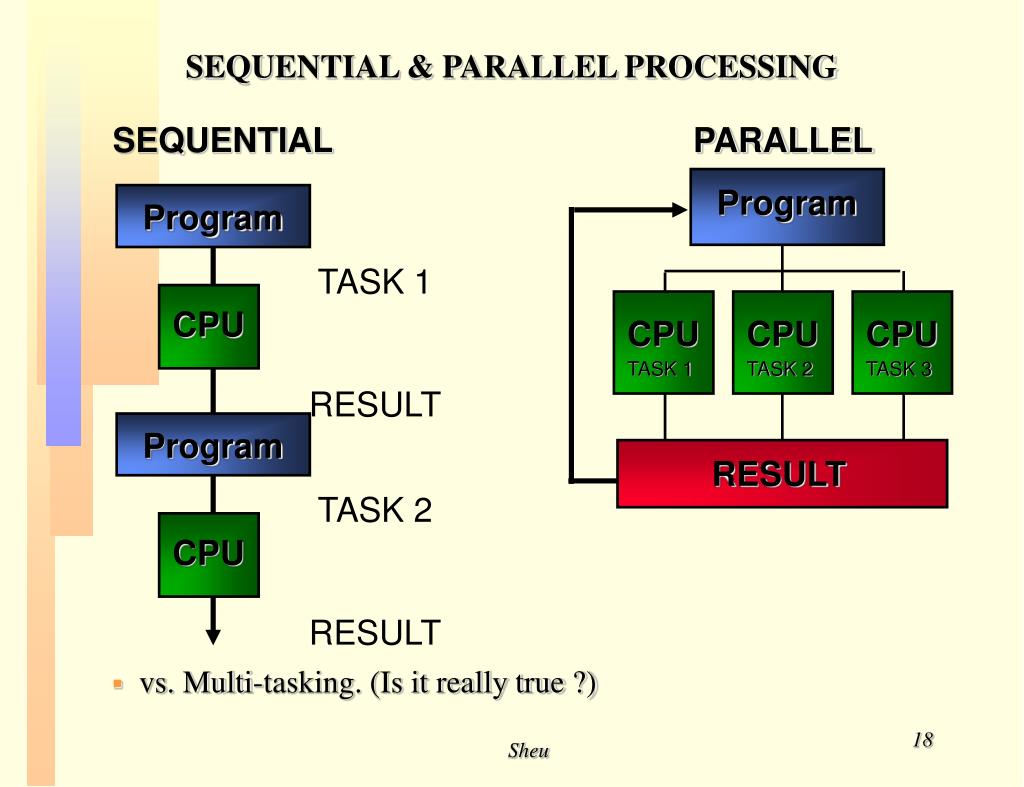

SEQUENTIAL & PARALLEL PROCESSING

SEQUENTIAL PARALLEL

  • vs. Multi-tasking. (Is it really true ?)

Sheu

slide19

SECONDARY STORAGE

  • DISK
  • TAPE
  • OPTICAL STORAGE

Sheu

disk pack storage

DISK 1

DISK 2

DISK 3

DISK 4

DISK 5

DISK PACK STORAGE
  • LARGE SYSTEMS
  • RELIABLE STORAGE
  • LARGE AMOUNTS OF DATA
  • QUICK ACCESS & RETRIEVABLE
  • TYPICAL: 11 2-SIDED DISKS
  • CYLINDER: SAME TRACK ALL SURFACES

READ/WRITE

HEADS

CYLINDER 10: TRACK 10 (TOP AND BOTTOM OF EACH DISK)

Sheu

slide21

TRACKS AND SECTORS

EACH TRACK HOLDS

SAME AMOUNT OF DATA

TRACKS

START

OF

TRACKS

SECTOR

DIRECTORY ON TRACK 0

Sheu

slide22

OPTICAL STORAGE

  • CD-ROM:500-660 MEGABYTES
    • LAND: flat parts of disk surface reflects light
    • PITS: small scratch on surface scatters light
  • WRITE ONCE / READ MANY (WORM):
    • CD-R: Compact Disk - Recordable
    • CD-RW: CD - Rewritable
  • DIGITAL VIDEO DISK (DVD):CD size, up to 10 gigabytes of data

Sheu

slide23

MAGNETIC TAPE or CARTRIDGE

  • STANDARD FOR SEQUENTIAL FILES
  • SPOOL OF PLASTIC TAPE COVERED WITH FERROUS OXIDE (2400 feet per spool)
  • RECORD GROUPS: BLOCKING FACTOR (e.g., 10 records per block)
  • GROUPS SEPARATED BY INTER-BLOCK GAP
  • RECORDS READ BLOCK AT A TIME
  • USED PERIODICALLY TO BACK UP RECORDS
  • INEXPENSIVE

HEADER IBG BLOCK 1 BLOCK 2 BLOCK 3

Sheu

peripheral devices
PERIPHERAL DEVICES
  • POINTING DEVICES
  • SOURCE DATA AUTOMATION
  • OUTPUT DEVICES
  • POINTING DEVICES
    • KEYBOARD
    • MOUSE
      • WIRED
      • INFRA-RED
      • TRACKBALL
      • TOUCH PAD
    • JOYSTICK
    • TOUCH SCREEN

Sheu

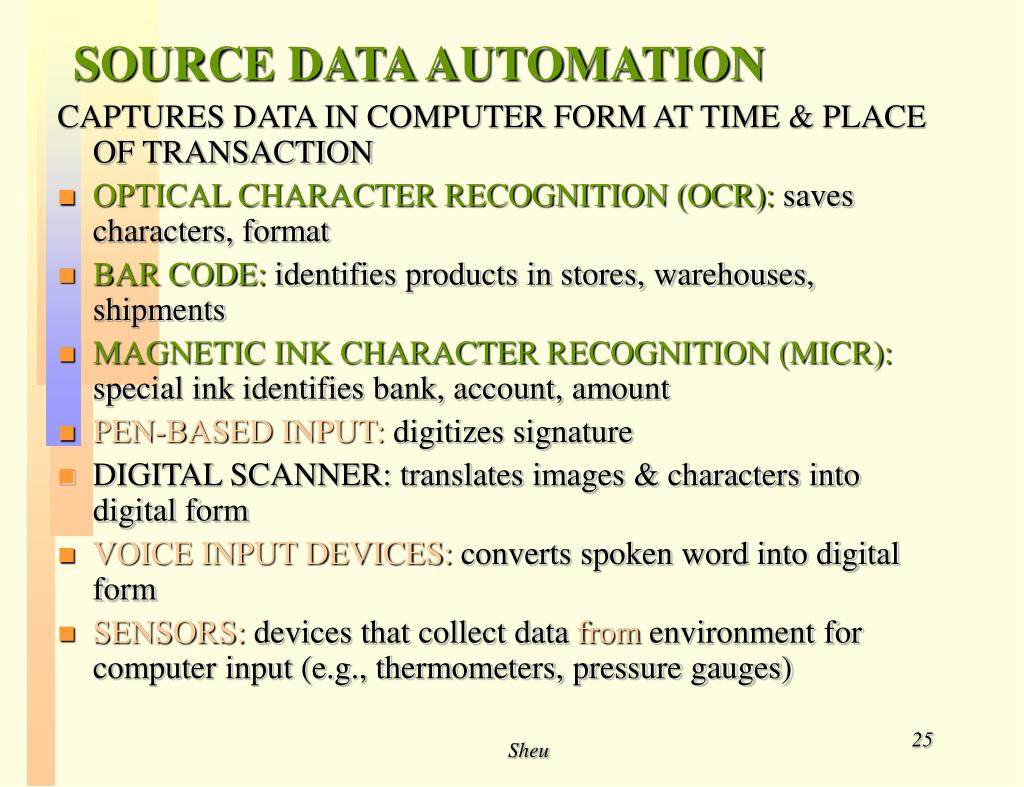

source data automation
SOURCE DATA AUTOMATION

CAPTURES DATA IN COMPUTER FORM AT TIME & PLACE OF TRANSACTION

  • OPTICAL CHARACTER RECOGNITION (OCR):saves characters, format
  • BAR CODE: identifies products in stores, warehouses, shipments
  • MAGNETIC INK CHARACTERRECOGNITION (MICR):special ink identifies bank, account, amount
  • PEN-BASED INPUT:digitizes signature
  • DIGITAL SCANNER: translates images & characters into digital form
  • VOICE INPUT DEVICES:converts spoken word into digital form
  • SENSORS: devices that collect data from environment for computer input (e.g., thermometers, pressure gauges)

Sheu

output devices data processing
OUTPUT DEVICES & DATA PROCESSING

OUTPUT DEVICES

  • CATHODE RAY TUBE (CRT)
  • PRINTER
      • Impact: dot matrix, line printer
      • Non-impact: laser, inkjet
  • PLOTTER
  • VOICE OUTPUT DEVICE
  • MULTIMEDIA

DATA PROCESSING

    • BATCH PROCESSING:transaction data stored until convenient to process as a group. Useful for less time-sensitive actions.
    • ON-LINE PROCESSING:transaction data entered directly into system, constantly updating files. Requires direct-access devices.

Sheu

additional basic terms
Additional Basic Terms
  • FLOPS/MIPS
  • CD/HD/FD
  • dump terminal vs intelligent terminal
  • Fault tolerant capability
  • Disk shadowing
  • Disk array

Sheu

trends
Trends
  • faster / cheaper / smaller (MICROMINIATURIZATION) / more reliable / easier UI
  • INTERACTIVE MULTIMEDIA
  • VIRTUAL REALITY
  • ENHANCED WORLD WIDE WEB
  • SUPERCHIPS
  • FIFTH GENERATION COMPUTERS
  • MASSIVELY PARALLEL COMPUTERS
  • SMART CARDS
  • Fig. 2.15; Fig. 2.24.

Sheu
