Contents
Contents

  • ECRIM Brief Introduction

1

  • DC/DC Converter

2

  • Synchro/Resolver-digital Converters

3

  • Capabilities & Quality

4


About us
About Us

1

2

3

4

5

ECRIM

Employees:

1300+

1/3 engineering staff

Certifications:

ISO9001

ISO14001

Total Assets:$160M

Products:

Microelectronics

& Packages

Founded in:

March 1968


Two districts
Two Districts

About Us

West District: Headquarters

800,040 square ft

Business sector:

Thick/Thin film

Packages

Furnaces

Power modules

East District:

400,020 square ft

Business sector:

HTCC

LTCC

AlN

Plating System

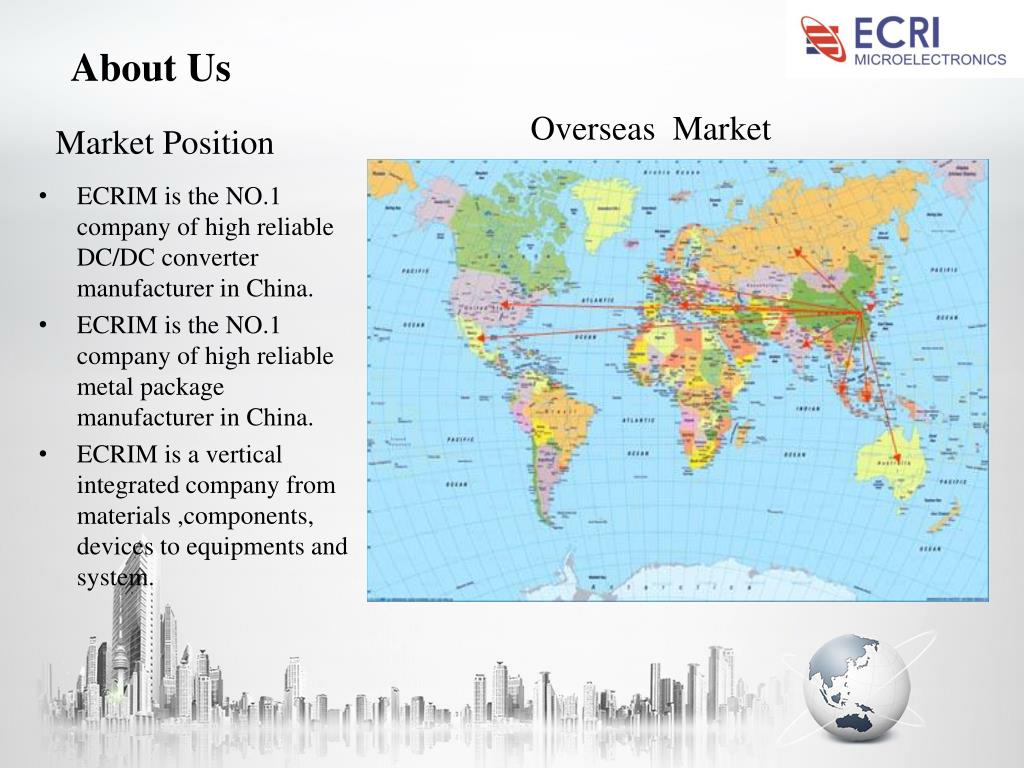

Market position
Market Position

About Us

Overseas Market

  • ECRIM is the NO.1 company of high reliable DC/DC converter manufacturer in China.

  • ECRIM is the NO.1 company of high reliable metal package manufacturer in China.

  • ECRIM is a vertical integrated company from materials ,components, devices to equipments and system.


Total micro solution

ECRIM

Products

Package

ECRIM Key Products

HIC

Thick/

Thin-Film

LTCC/HTCC

Furnaces


Capabilities quality

Thick-Film

LTCC

ALN

Thin-Film

Capabilities & Quality

Advanced Technologies

Substrates


Total micro solution

Fiber Optic

Infrared Detectors

Packages

Hybrid

Sensors

Microwave

Power Devices

High-Reliability

Metal Packages


Metal packages products
Metal packages products

Uni-body Plug-In Packages

Flat Packages

Fiber Optic Packages

Power Packages

Infrared detector packages

Microwave circuit packages



Total micro solution

Thin film products

Resistor network

Multi layer metallization

Attenuator

Filter


Total micro solution
LTCC

  • Embedded component:R,C,L

  • NO. of layers:30(Max)

  • Tape :951/943 A6S/M, Heraeus

  • Via Size(Min)100 um

  • Conductor MaterialAg, Au, Hybrid

  • CavityOpen / Embedded

  • Via Materail Ag, Au,Transitional

  • Thermal ViaOptional

  • Size of substrates150x150mm (Max)

  • Inspection of I/OAutomatic

  • Standard: MIL-PRF-38534

  • Turnover : 5,000,000cm2



Contents1
Contents

  • ECRIM Brief Introduction

1

  • DC/DC Converter

2

  • Synchro/Resolver-digital Converters

3

  • Capabilities & Quality

4


Dc dc contents
DC/DC contents

  • Radiation Hardened DC/DC converters

  • General DC/DC Converters

  • Other DC/DC Converters

  • EMI Filters

  • Compliable with other company

  • Our advantages


1 radiation hardened dc dc converters

28VDC Input,compliable with interpoint

100VDC Input,compliable with IR

1. Radiation Hardened DC/DC converters


Total micro solution

28VDC Input radiation hardened DC/DC converters

  • Models:SHHF28S5F、 SHHF28D15F、 HTR28S5FS、

  • HFL28S5/H-B。

  • 28VDC Input,

  • Output :5V/2.4A、±15V/0.5A、 5V/6A、 5V/10A。

  • Total Dose: ≥100krad(si)

  • Single Event Effects: ≥37MeV.cm2/mg

  • compliable with interpoint


Total micro solution

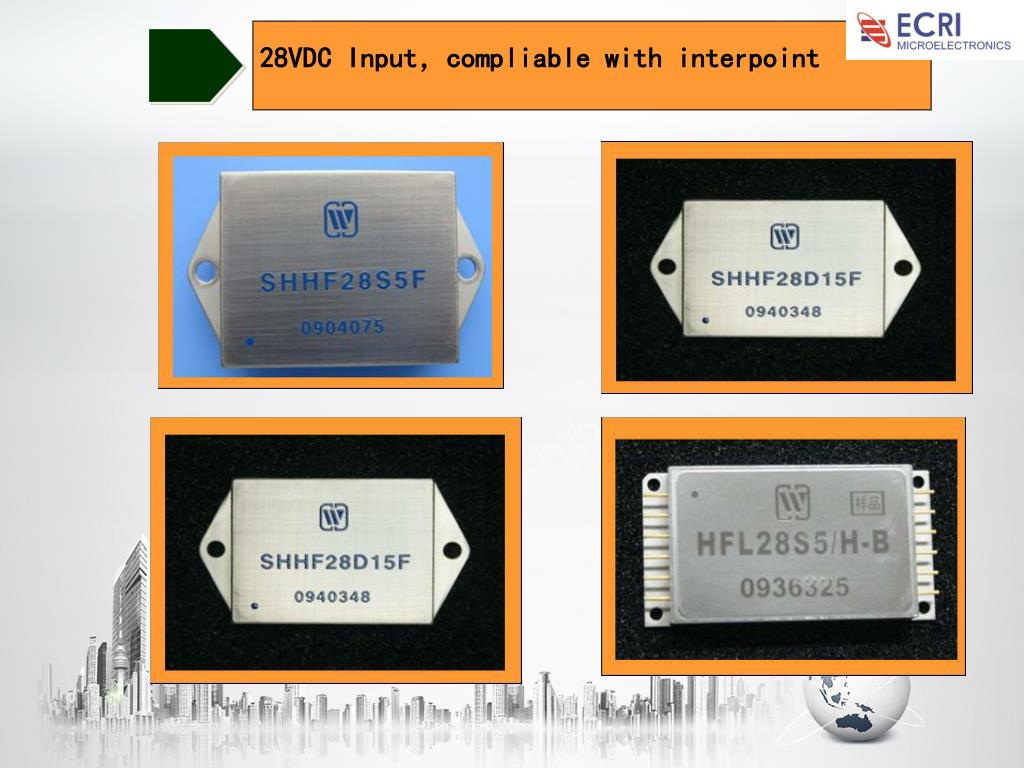

28VDC Input,compliable with interpoint


Total micro solution

100VDC Input radiation hardened DC/DC converters

  • 5 series ,22 models are available

  • Total Dose: ≥100krad(si)

  • Single Event Effects: ≥65 MeV.cm2/mg

  • Compliable with International Rectifier


Total micro solution

100VDC Input radiation hardened DC/DC converters

5 W output series

Input Range:80V~120V

Output power:5W

Output voltage:3.3V,5V,15V, ±5V,

±12V

Efficiency:70%(typical)

Operating temperature range:

-55℃~ 125℃:

TID≥100Krad(si)

SEE:≥65Mev.cm2/mg

Dimension:37.33×28.94×8.9(mm)


Total micro solution

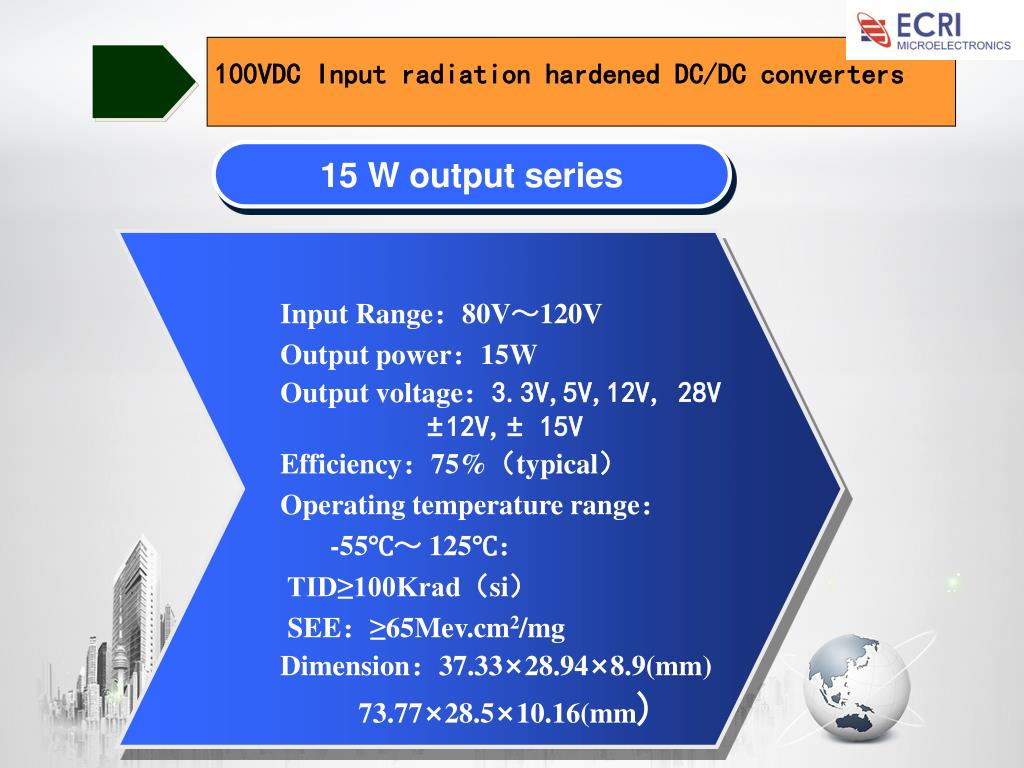

100VDC Input radiation hardened DC/DC converters

15 W output series

Input Range:80V~120V

Output power:15W

Output voltage:3.3V,5V,12V, 28V

±12V,±15V

Efficiency:75%(typical)

Operating temperature range:

-55℃~ 125℃:

TID≥100Krad(si)

SEE:≥65Mev.cm2/mg

Dimension:37.33×28.94×8.9(mm)

73.77×28.5×10.16(mm)


Total micro solution

100VDC Input radiation hardened DC/DC converters

20 W output series

Input Range:80V~120V

Output power:20W

Output voltage: 5V, 12V, 15V, ±5V,

±12V,±15V

Efficiency:80%(typical)

Operating temperature range:

-55℃~ 125℃:

TID≥100Krad(si)

SEE:≥65Mev.cm2/mg

Dimension:73.77×28.5×10.16(mm)


Total micro solution

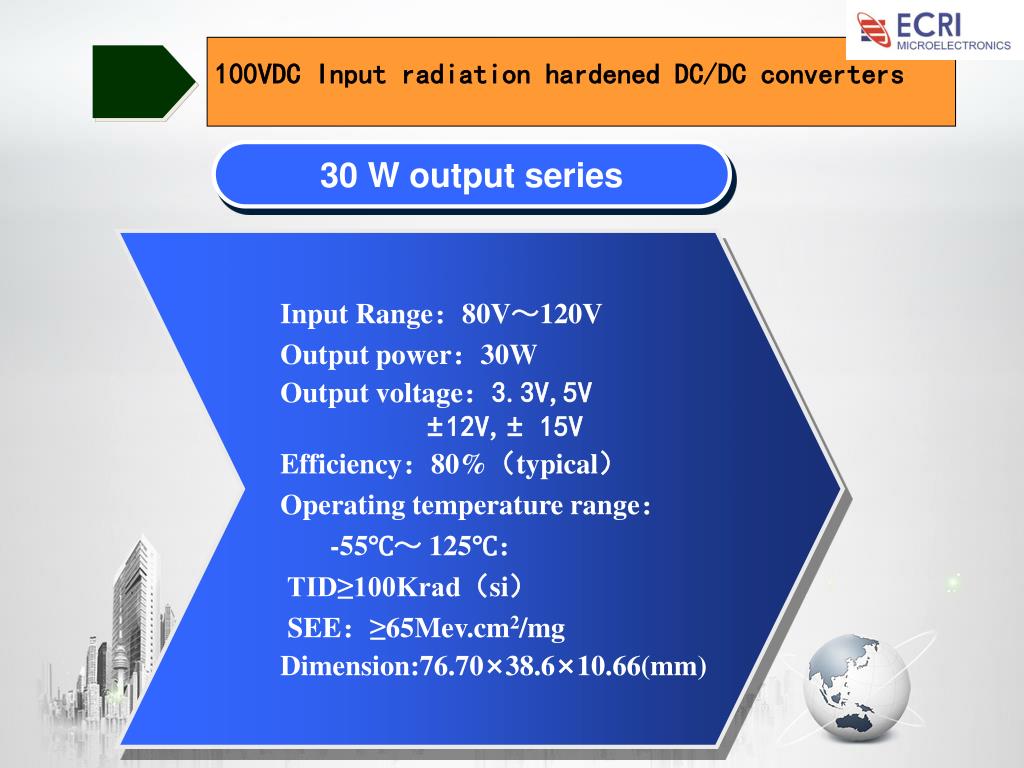

100VDC Input radiation hardened DC/DC converters

30 W output series

Input Range:80V~120V

Output power:30W

Output voltage:3.3V,5V

±12V,±15V

Efficiency:80%(typical)

Operating temperature range:

-55℃~ 125℃:

TID≥100Krad(si)

SEE:≥65Mev.cm2/mg

Dimension:76.70×38.6×10.66(mm)


Total micro solution

100VDC Input radiation hardened DC/DC converters

65 W output series

Input Range:80V~120V

Output power:65W

Output voltage:28V

Efficiency:85%(typical)

Operating temperature range:

-55℃~ 125℃:

TID≥100Krad(si)

SEE:≥65Mev.cm2/mg

Dimension:76.70×38.6×10.66(mm)


Total micro solution

100VDC Input radiation hardened EMI Filter

H-461 series

Input Range:80V~120V

Output Current:0.5A,0.8A

Operating temperature range:

-55℃~ 125℃:

TID≥100Krad(si)

SEE:≥65Mev.cm2/mg


Total micro solution

100VDC Input radiation hardened EMI Filter

E-461 series

Input Range:80V~120V

Output Current:1A,3A

Operating temperature range:

-55℃~ 125℃:

TID:≥100Krad(si)

SEE:≥65Mev.cm2/mg


Total micro solution

28Vin、“Gen 1” DC/DC converters

Other DC/DC Converters

low voltage output、high voltage output、surge protection

28Vin、“Gen 2” DC/DC Converters

2. General DC/DC Converters


Total micro solution

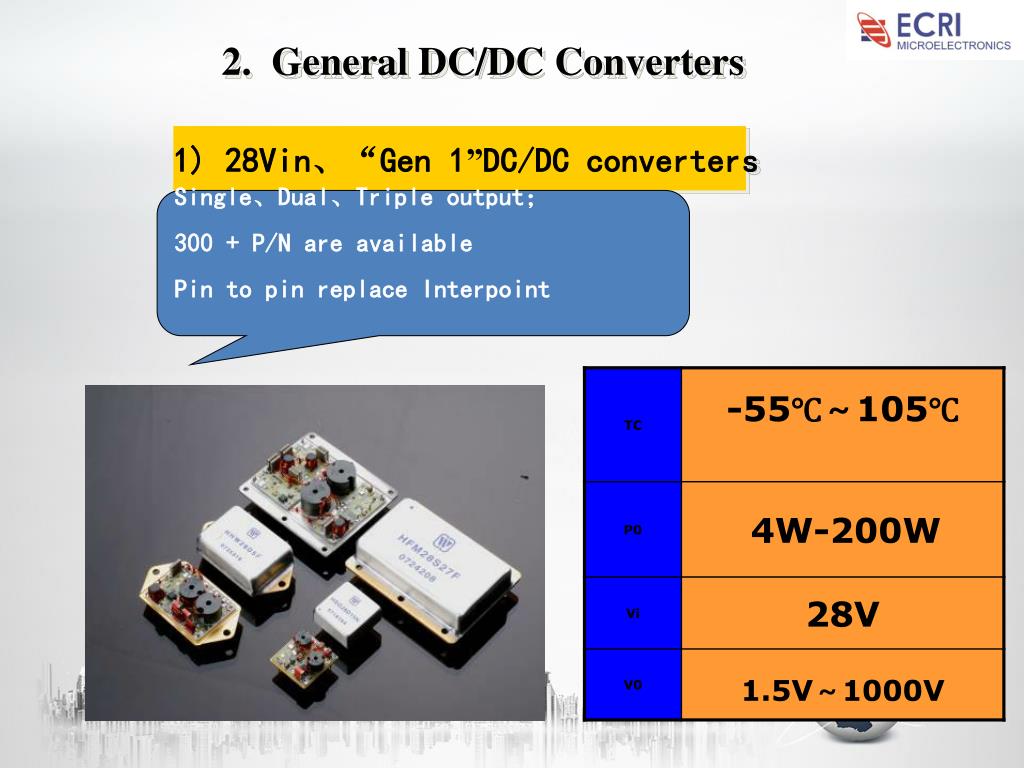

2. General DC/DC Converters

1) 28Vin、“Gen 1”DC/DC converters

Single、Dual、Triple output;

300 + P/N are available

Pin to pin replace Interpoint


Total micro solution

2. General DC/DC Converters

1)28Vin、“Gen 1”DC/DC converters

Features:

  • Pulse width Modulation

  • Push forward topology

  • Operating frequency:200kHz~300kHz

  • Operating temperature range:-55℃~105℃

  • Power density:25W/in3


Total micro solution

2. General DC/DC Converters

1) 28Vin、“Gen 1”DC/DC converters

Productsseries

HSG28 4W

HHW28 15W

HTW28 30W

HFS28 50W

HFM28 70W

H0M28 100W

HQX28 200W

Output voltage:5V、12V、15V、18V、24V、27V、28V、36V etc.


Total micro solution

2. General DC/DC Converters

2) 28Vin、“Gen 2”DC/DC converters

Single、Dual、Triple output;

100 + P/N are available

Pin to pin replace Interpoint


Total micro solution

2. General DC/DC Converters

2)28Vin、“Gen 2”DC/DC converters

Features:

  • Pulse width Modulation

  • Single ended flyback topology

  • Operating frequency:400kHz~600kHz

  • Hermetically seam sealed metal packages

  • Operating temperature range:-55℃~125℃

  • Power density:43W/in3


Total micro solution

2. General DC/DC Converters

2) 28Vin、“Gen 2”DC/DC converters

Productsseries

HSA28Series、Output power 5W

HHF28 Series、Output power 15W

HHD28 Series、Output power 20W

HTR28 Series、Output power 30W

HFL28 Series、Output power 65W

Output voltageinclude 5V、12V、15V、18V、

24V、27V、28V.


Total micro solution

2. General DC/DC Converters

2) 28Vin、“Gen 2”DC/DC converters

  • Pin to Pin replace Interpoint Products

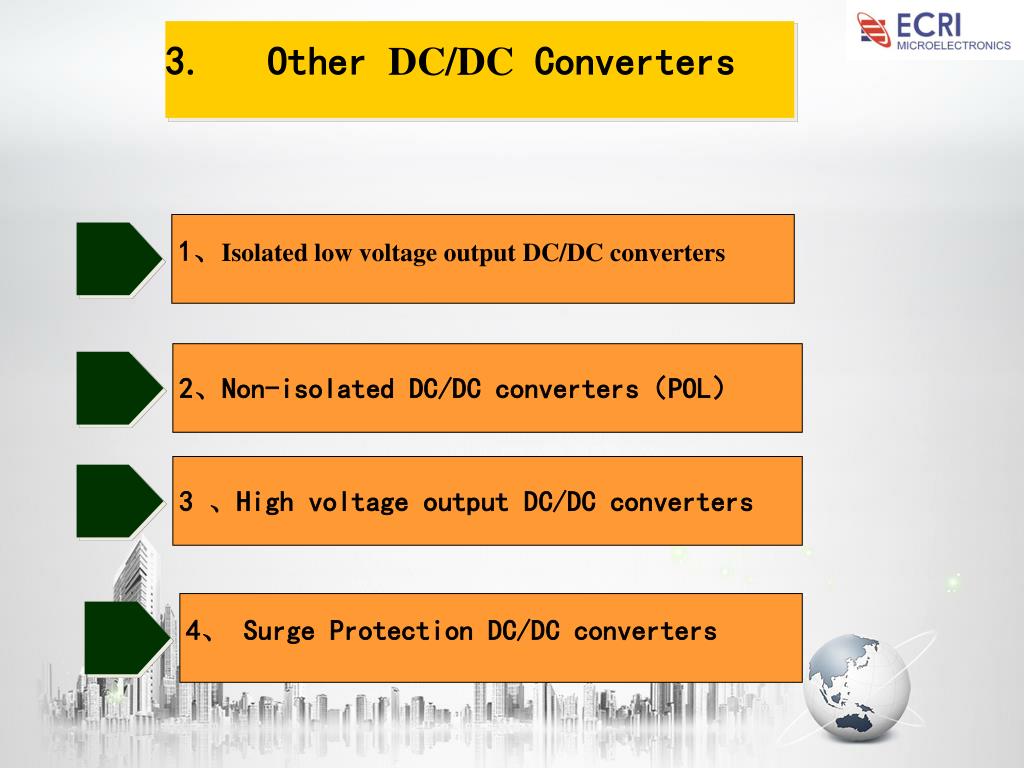

Total micro solution

1、Isolated low voltage output DC/DC converters

4、 Surge Protection DC/DC converters

2、Non-isolated DC/DC converters(POL)

3 、High voltage output DC/DC converters

3.Other DC/DC Converters


Total micro solution

3. Other DC/DC Converters

1)Isolated low voltage output DC/DC converters

Products Output(voltage/current):

1.2V/4A 1.5V/3.5A 1.5V/10A

1.8V/2.8A 2V/2.5A 2V/15A

2.5V/2A 3.3V/1.5A 3.3V/2.4A

3.3V/10A

Customized design is acceptable


Total micro solution

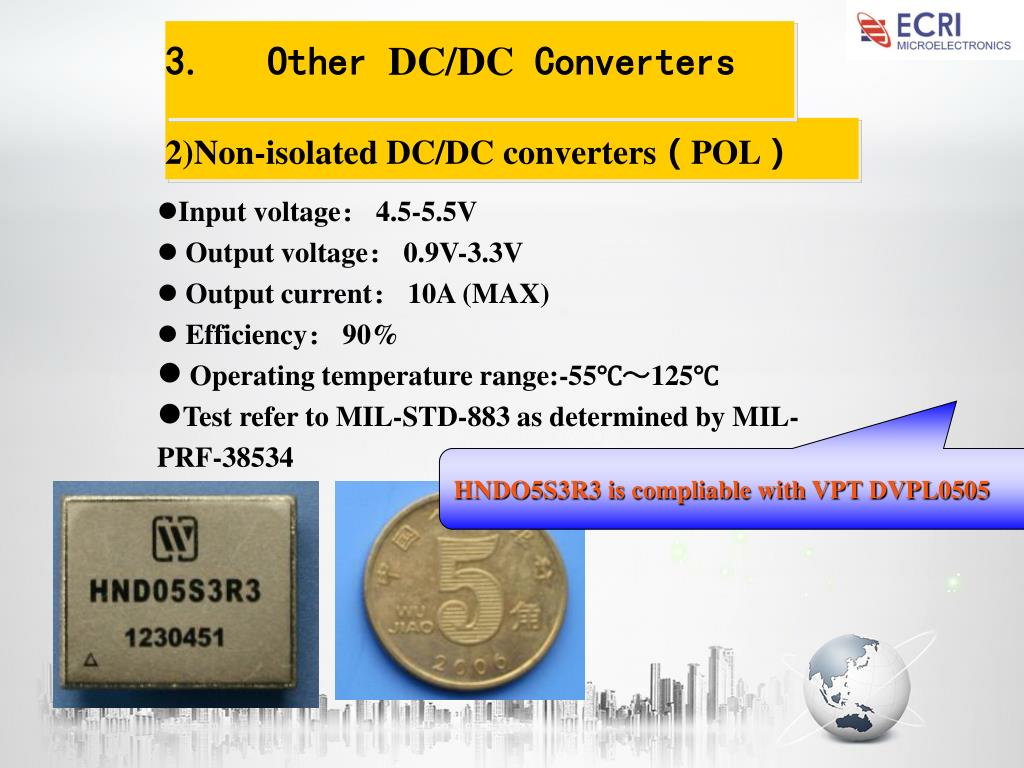

3. Other DC/DC Converters

2)Non-isolated DC/DC converters(POL)

  • Input voltage: 4.5-5.5V

  • Output voltage: 0.9V-3.3V

  • Output current: 10A (MAX)

  • Efficiency: 90%

  • Operating temperature range:-55℃~125℃

  • Test refer to MIL-STD-883 as determined by MIL-

    PRF-38534

HNDO5S3R3 is compliable with VPT DVPL0505


Total micro solution

3. Other DC/DC Converters

3) High voltage output DC/DC converters

Output voltage:100V、 160V、 200V、300V、

500V、900V、950V、1000V、2000V、

3000V、5000

Output power:15W

Operating temperature range:

-55℃~125℃

HHW27S900


Total micro solution

3. Other DC/DC Converters

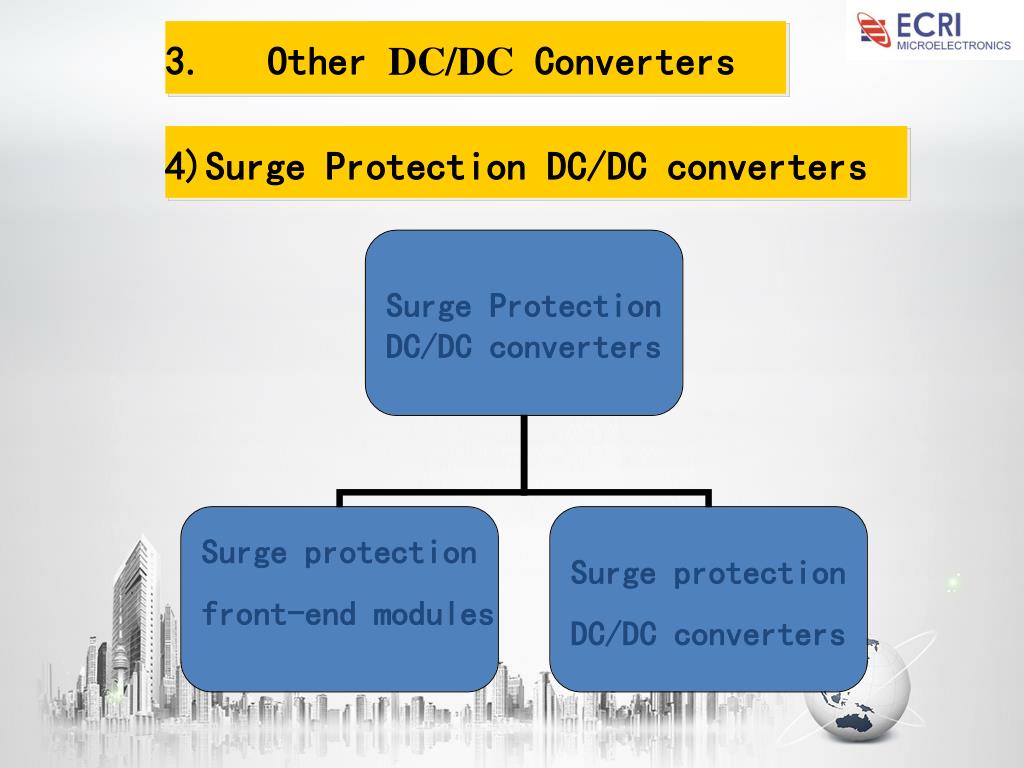

4)Surge Protection DC/DC converters


Total micro solution

3. Other DC/DC Converters

4)Surge Protection DC/DC converters

  • 4 series ,24 models:

  • HSSA28 6W 、 HSDF28 20W、

  • HSTR28 40W、 HSFL28 65W

  • Input voltage range:15~50V;

  • Input transient:80V 1S;

  • Output voltage: 5V、12V、15V, single、dual

  • Output power:6W-65W;

  • Operating temperature range:-55℃~125℃


Total micro solution

3. Other DC/DC Converters

4)Surge Protection DC/DC converters

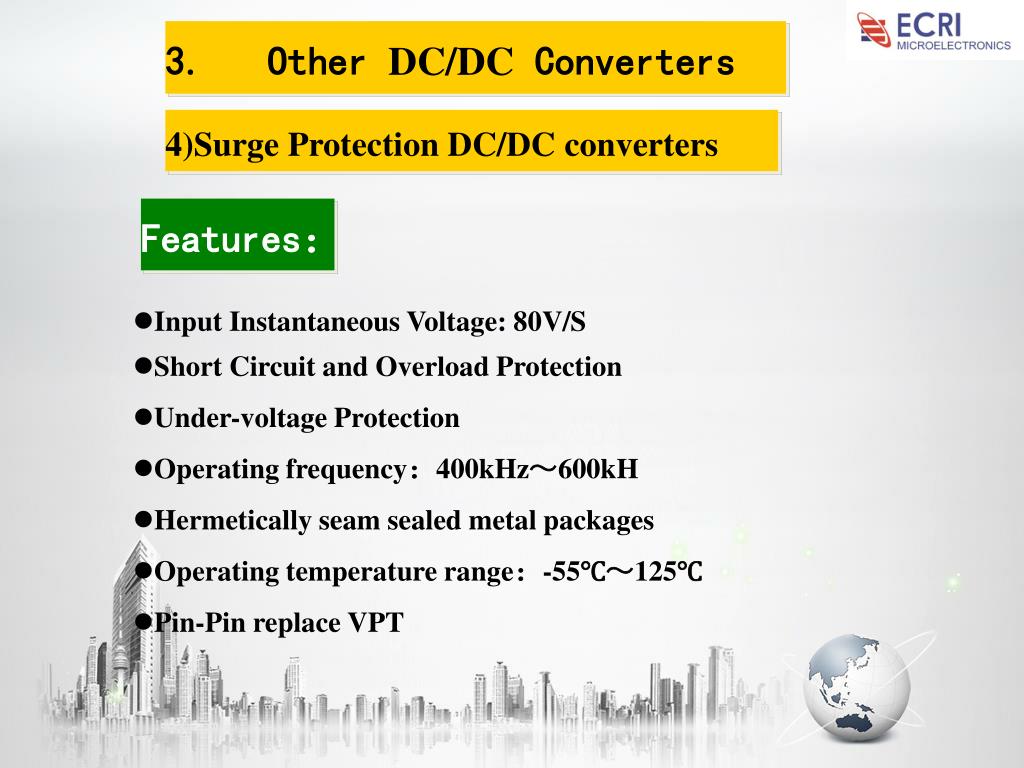

Features:

  • Input Instantaneous Voltage: 80V/S

  • Short Circuit and Overload Protection

  • Under-voltage Protection

  • Operating frequency:400kHz~600kH

  • Hermetically seam sealed metal packages

  • Operating temperature range:-55℃~125℃

  • Pin-Pin replace VPT


Total micro solution

3. Other DC/DC Converters

4)Surge Protection DC/DC converters

  • Pin to Pin replacement with VPT Products


Total micro solution

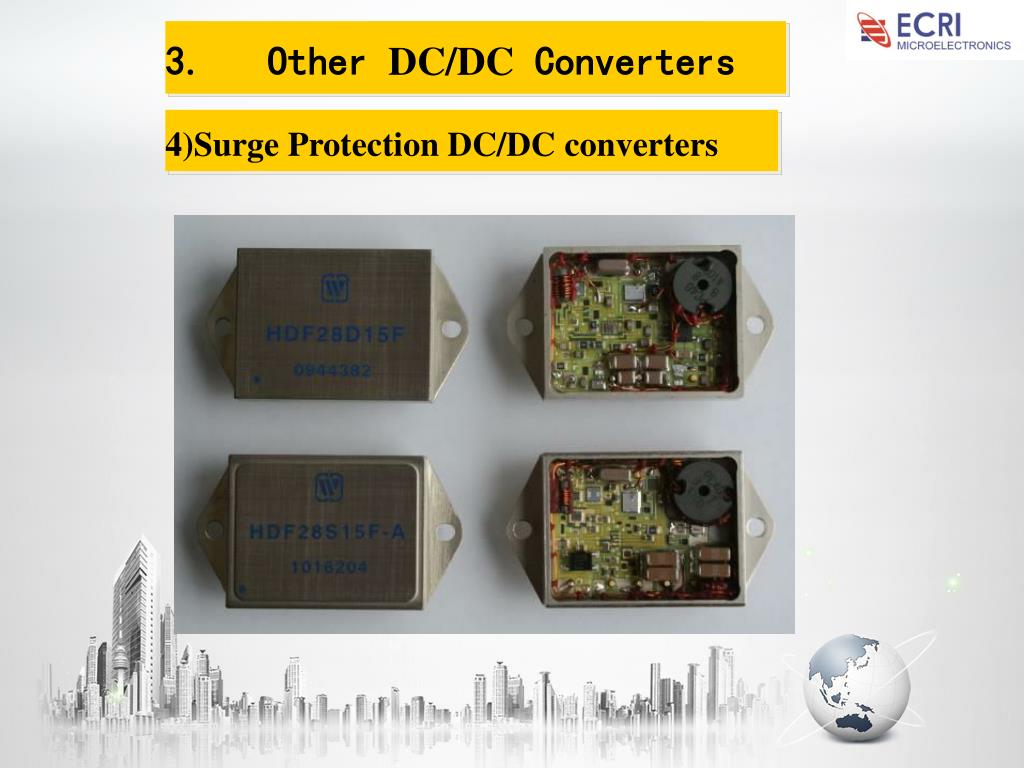

3. Other DC/DC Converters

4)Surge Protection DC/DC converters


Customized dc dc converters

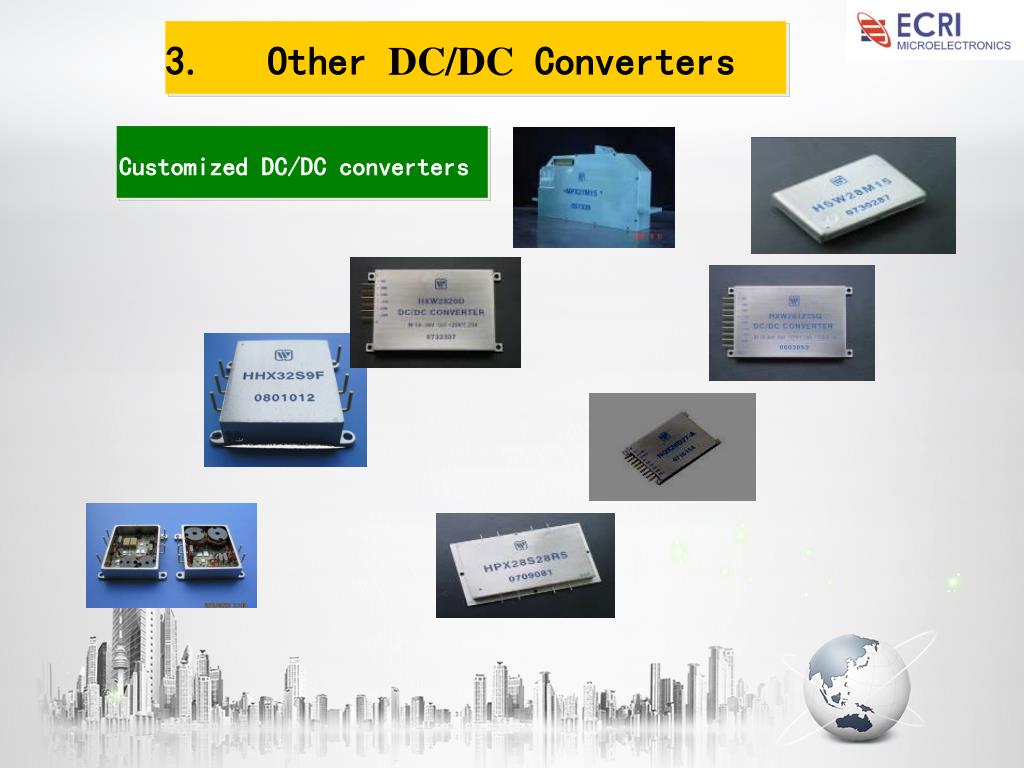

3. Other DC/DC Converters

Customized DC/DC converters


Total micro solution

4.EMI Filter

ECRIM EMI Filters match with DC/DC converters to meet the requirement of EMC with output current:0.6A、 0.8A、 1A、1.5A、1.75A、 2A、 2.5A、 3.8A、7A、10A。


Total micro solution

4.EMI Filter

Match with DC/DC

Converter


Total micro solution

5.Compliable with other company

DVSA28、DVHF+28、DVTR28

VPT

MSA28/MHF+28/MHD28/MTR28/MFL28

EMI Filter xxx461 series

Interpoint


Total micro solution

6、Our advantages

Professional team with 30+ years

design experience.

Research

Design

Advanced equipment

Mature technology

Mass production

Manufacturing

Internal inspection centers with

200+ testing devices

Quality Assurance



Total micro solution

Printing

Firing

Laser Trimming

Assembly

Automatic Bonding

Sealing


Contents2
Contents

  • ECRIM Brief Introduction

1

  • DC/DC Converter

2

  • Synchro/Resolver-digital Converters

3

  • Capabilities & Quality

4


Application
Application

Navigation

Marine

Cannon control system

Radar

Oil exploration

SDC/RDC Converters


Sdc rdc converter

Single

channel

  • HSDC/HRDC174、1459Series

  • HSDC/HRDC27 、37 、211Series

  • H2S80

Dual

channel

  • H2S44RDC/SDCSeries

  • M2S44RDC/SDCSeries

Products

Dual

Speed

  • HTS20Series

  • HTS Series

  • MTS 、 MTS(C3) 、MRDCSeries

Other

  • MLRDC47

SDC/RDC converter


Dsc drc converter

1.5W

  • MDSC/MDRC28Series

  • MDSC/MDRC28Series

2W

  • HDRC14 Series

  • HDRC16Series

Products

5W

  • MDSC/MDRC29Series

Other

  • MTSDSC/MTSDRC Series

DSC/DRC converter



Features
Features

Hybrid thick film

Bare chips, Gold ball bonding

Metal Package, Parallel seam welding

Tri-state latching output


Contents3
Contents

  • ECRIM Brief Introduction

1

  • DC/DC Converter

2

  • Synchro/Resolver-digital Converters

3

  • Capabilities & Quality

4


Quality certificates
Quality Certificates

ISO14001

ISO9001:2000


Quality assurance
Quality Assurance

● More than 200 sets of equipments and instruments.

● More than 60 kinds of testing are available.
