slide1

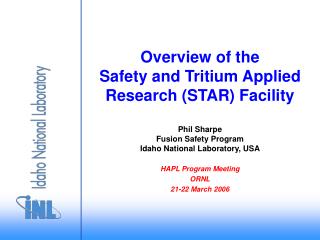

Overview of theSafety and Tritium Applied Research (STAR) Facility

Phil Sharpe

Fusion Safety Program

Idaho National Laboratory, USA

HAPL Program Meeting

ORNL

21-22 March 2006

star mission and research
Provide laboratory infrastructure to study tritium science and technology issues associated with the development of safe and environmentally friendly fusion energy

Designated a National User Facility

Research thrust areas

Plasma-material interactions of PFC materials with energetic tritium and deuterium ions

Fusion safety: chemical reactivity, activation product mobilization and dust/debris characterization for PFC materials; tritium behavior in fusion systems (in-vessel source term)

Molten salts and fusion liquids for tritium breeder and coolant applications

Fission reactor tritium production permeation issues; AGR fuel tritium retention and release studies

Tritium plant and fuel cycle issues for MFE and IFE

STAR Mission and Research
slide3

STAR Floor-plan Layout

Glovebox

TCS

Chemical reactivity

experiment

Tritium

SAS

Tritium

Stack monitor

D ion implantation

experiment

Glovebox exhaust

manifold

Tritium Plasma Exp

Flibe preparation

purification & testing

Flibe-tritium

experiment

Flibe Salt

2Lif-BeF2

Flibe-corrosion

experiment

15,000 Ci tritium limit

Segregation of operations/ventilation

Once-through room ventilation

Gloveboxes and hoods

Tritium cleanup system (TCS)

Tritium storage and assay system (SAS)

15,000 Ci tritium limit

Segregation of operations

Gloveboxes and hoods

Tritium cleanup system

Once-through room ventilation

key systems in star
Key systems in STAR

Molten Salt Tritium Behavior Experiment

Tritium Storage and Assay System

Tritium Plasma Experiment and Enclosure

Steam and air chemical reactivity test apparatus

Molten Salt Preparation, Purification, and REDOX Experiments

Tritium Cleanup System

star tritium storage and assay system
Star Tritium Storage and Assay System
  • Handles reception, distribution, and accountability of tritium inventory

SAS manifold and vacuum pumps

SAS glovebox Setup

star tritium cleanup system tcs

Inlet

Outlet IC

Inlet sample loop

Condenser

Control

Heat exchanger

MS water

Mole sieve bed

Blower

Catalyst beds

STAR Tritium Cleanup System (TCS)

Removes tritium in process gases from glovebox atmospheres and experiment systems.

slide7

Highlights of Recent Accomplishments

  • Useable tritium inventory now 1300 Ci
  • 300 Ci in equimolar H2:D2:T2 calibration standard
  • 1000 Ci T2 available for experiments
  • shipments from SRS limited to 1000 Ci with standard TYPE-A shipping container

Shipping Vessel (1 available)

slide8

Highlights of Recent Accomplishments, cont.

  • TPE Operations Initiated
  • plasma characteristics testing and diagnostics installation are present focus

low intensity plasma (<0.05 A/cm2)

moderate intensity plasma (~ 0.2 A/cm2)

chamber gas species during first plasma

  • materials testing with D2 to start early April (W and Mo)
  • T2 components upgrade and tests to be completed in June, including plasma operation
  • materials testing with D2/T2 to start mid-July (W and Mo, Be testing will start in September)
slide9

STAR is Ready for Operation of Tritium Experiments

Plans for the CY 2006:

  • Molten Salt Tritium Permeation Experiment:
  • 100 to 300 Ci transferred as D2/T2 in vessel loaded with SAS
  • experiment will be setup in glovebox used for previous permeation studies
  • diagnostics to include QMS, gas chromatograph, on-line ion chamber, and catalytic recovery
  • effluent will exhaust via facility stack
  • TPE Tritium Experiments:
  • 700 to 900 Ci transferred as T2 in vessel loaded with SAS
  • further blending in TPE for desired T ion flux
  • TDS measurements following plasma exposure will indicate retained D and T
  • local U-Bed capture in TPE; effluent routed to TCS for complete cleanup
