Presentation Transcript

Things to consider while choosing digital oscilloscope2 l.jpg

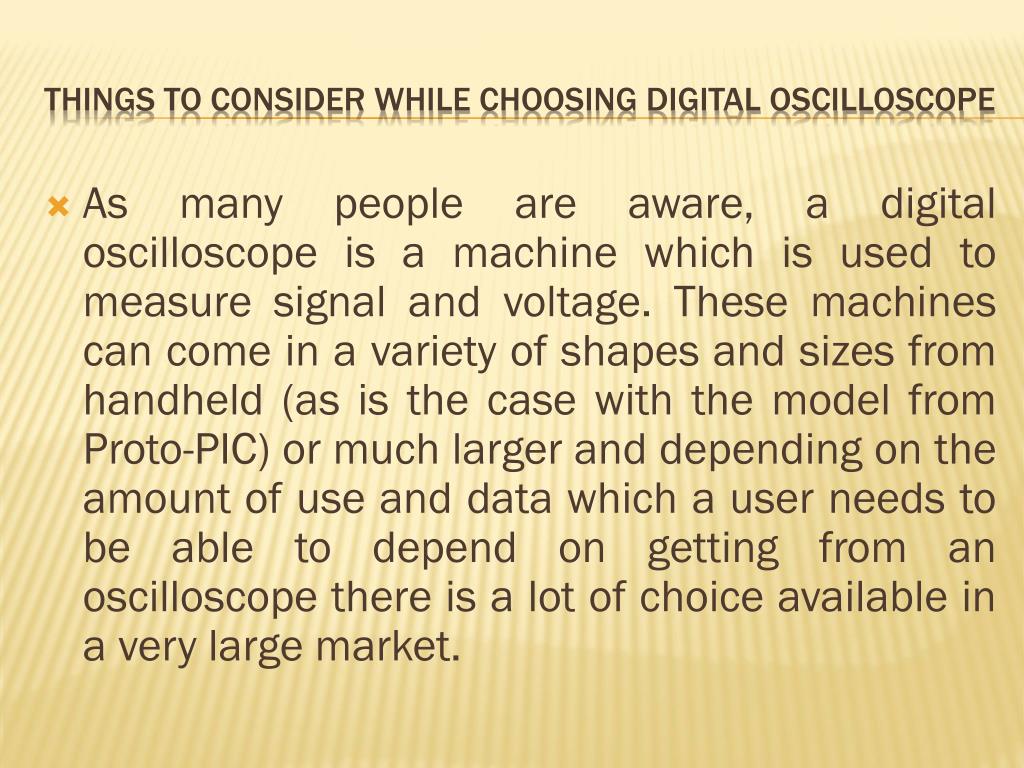

As many people are aware, a digital oscilloscope is a machine which is used to measure signal and voltage. These machines can come in a variety of shapes and sizes from handheld (as is the case with the model from Proto-PIC) or much larger and depending on the amount of use and data which a user needs to be able to depend on getting from an oscilloscope there is a lot of choice available in a very large market.

Things to consider while choosing Digital Oscilloscope


Things to consider while choosing digital oscilloscope3 l.jpg

Whether you’re buying your first digital oscilloscope, it’s essential to ensure that the model you buy is the right one for you and your requirements.

Things to consider while choosing Digital Oscilloscope


Things to consider while choosing digital oscilloscope4 l.jpg

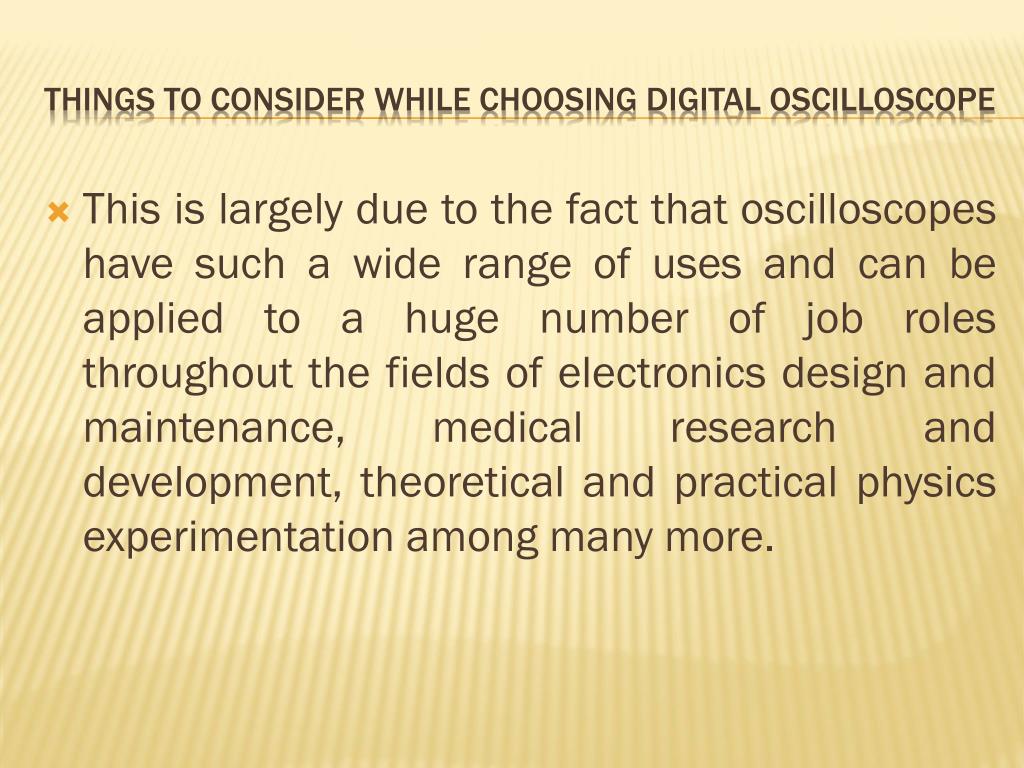

This is largely due to the fact that oscilloscopes have such a wide range of uses and can be applied to a huge number of job roles throughout the fields of electronics design and maintenance, medical research and development, theoretical and practical physics experimentation among many more.

Things to consider while choosing Digital Oscilloscope


Things to consider while choosing digital oscilloscope5 l.jpg

Many people wonder how a small device can be utilised by so many different professions and for so many different uses and the simple fact is that with the right equipment, such as sensors, microphones and other devices, a digital oscilloscope can perform any number of measuring tasks including recording sound, mechanical stress, pressure, light and heat. These measurements can then be converted into readable data and applied to the results which the user requires.

Things to consider while choosing Digital Oscilloscope


Things to consider while choosing digital oscilloscope6 l.jpg

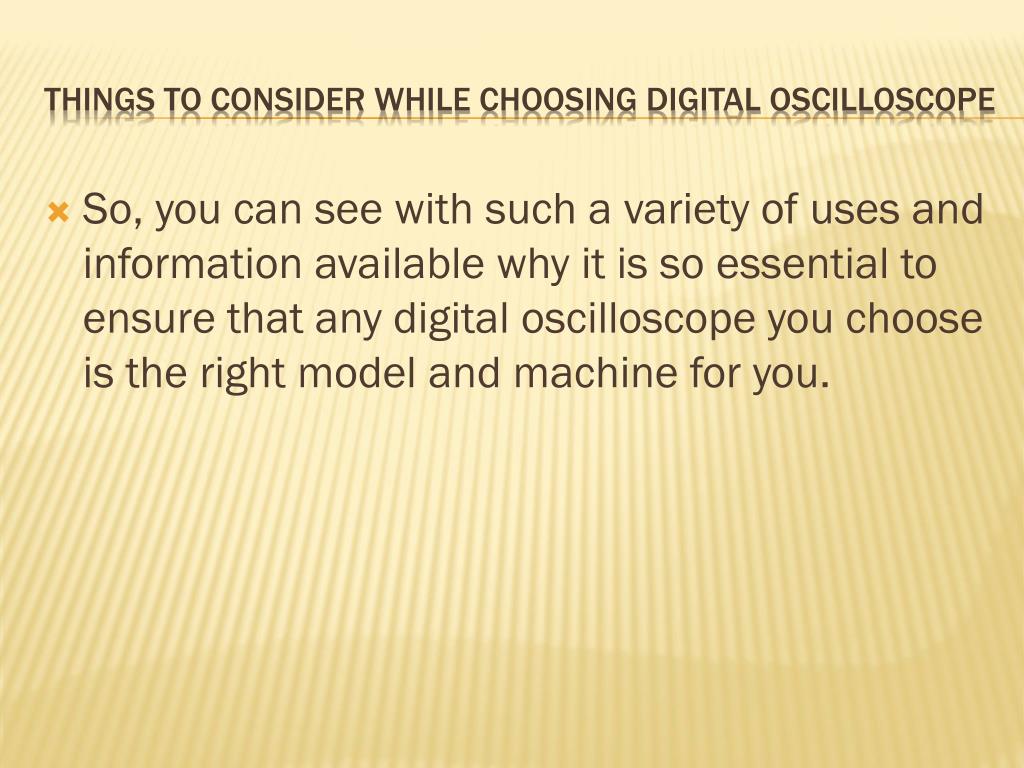

So, you can see with such a variety of uses and information available why it is so essential to ensure that any digital oscilloscope you choose is the right model and machine for you.

Things to consider while choosing Digital Oscilloscope


Slide7 l.jpg

Consider a number of factors when choosing a digital oscilloscope, such as the use you will be putting the device to and how long you will need to use it for at any given time. You should also think of any practical considerations such as carrying the device or needing somewhere to store it. For users who have to be out in the field for considerable periods of time but still need to be able to rely on their results then a hand-held digital oscilloscope is the ideal and practical solution.
