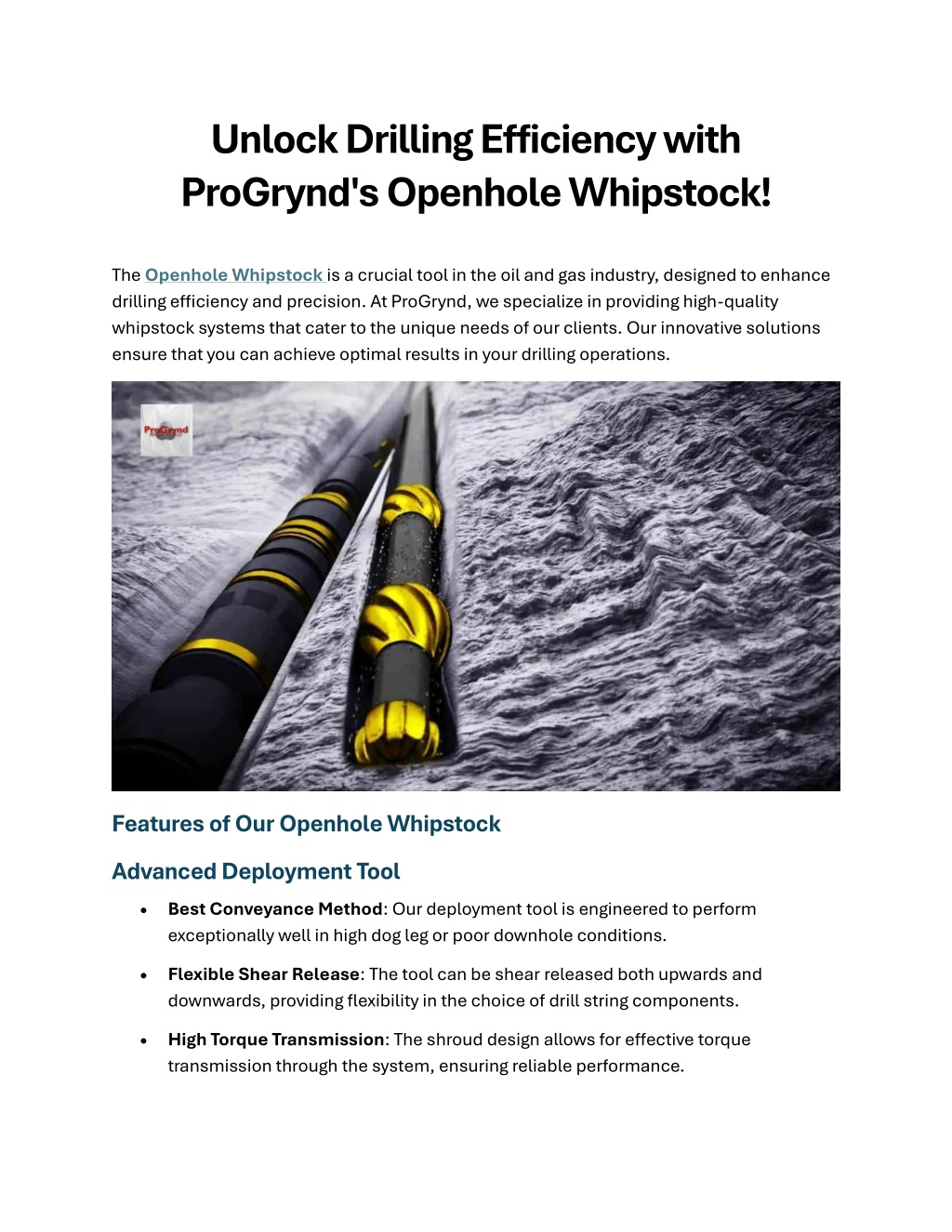

  1. Unlock Drilling Efficiency with ProGrynd's Openhole Whipstock! TheOpenhole Whipstockis a crucial tool in the oil and gas industry, designed to enhance drilling efficiency and precision. At ProGrynd, we specialize in providing high-quality whipstock systems that cater to the unique needs of our clients. Our innovative solutions ensure that you can achieve optimal results in your drilling operations. Features of Our Openhole Whipstock Advanced Deployment Tool •Best Conveyance Method: Our deployment tool is engineered to perform exceptionally well in high dog leg or poor downhole conditions. •Flexible Shear Release: The tool can be shear released both upwards and downwards, providing flexibility in the choice of drill string components. •High Torque Transmission: The shroud design allows for effective torque transmission through the system, ensuring reliable performance.

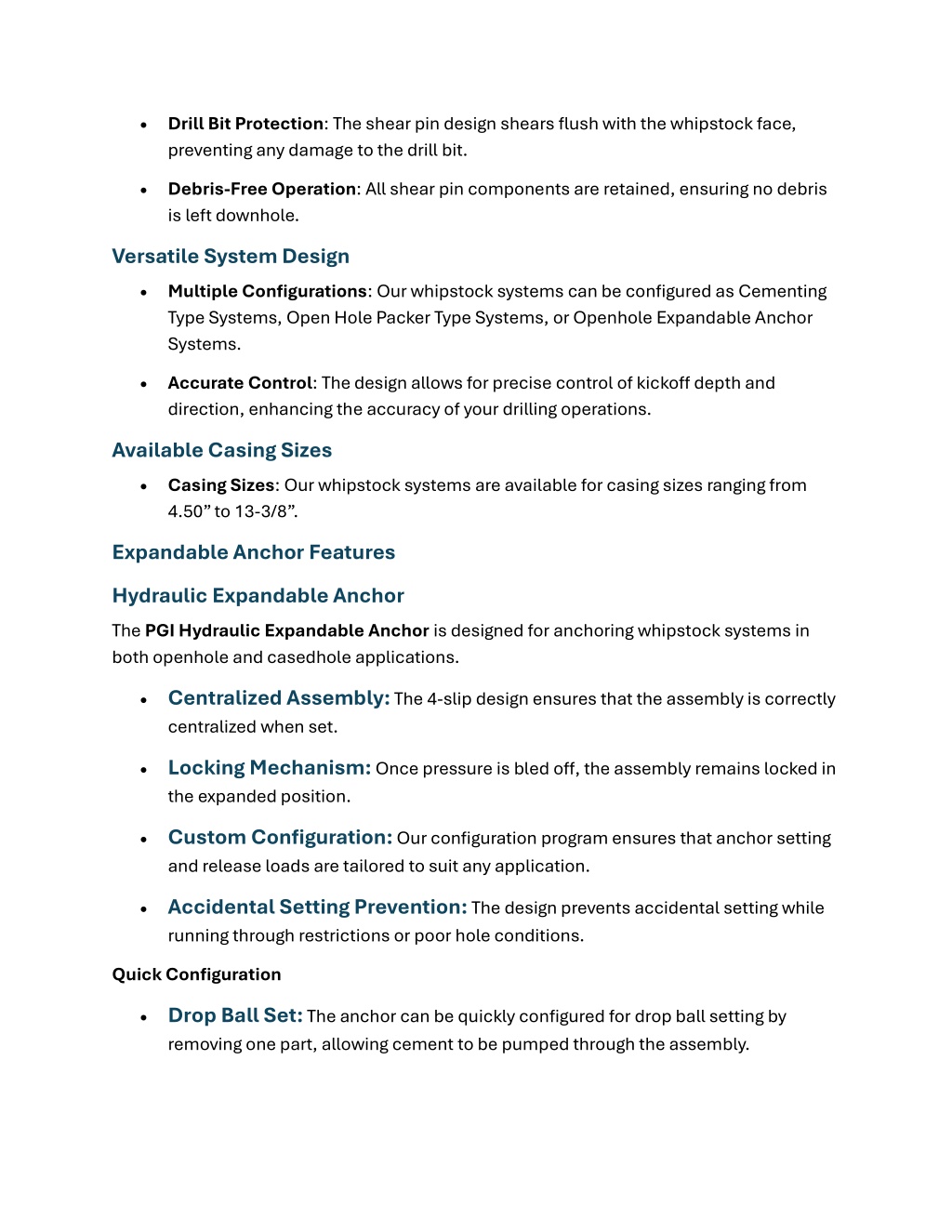

  2. •Drill Bit Protection: The shear pin design shears flush with the whipstock face, preventing any damage to the drill bit. •Debris-Free Operation: All shear pin components are retained, ensuring no debris is left downhole. Versatile System Design •Multiple Configurations: Our whipstock systems can be configured as Cementing Type Systems, Open Hole Packer Type Systems, or Openhole Expandable Anchor Systems. •Accurate Control: The design allows for precise control of kickoff depth and direction, enhancing the accuracy of your drilling operations. Available Casing Sizes •Casing Sizes: Our whipstock systems are available for casing sizes ranging from 4.50” to 13-3/8”. Expandable Anchor Features Hydraulic Expandable Anchor ThePGI Hydraulic Expandable Anchoris designed for anchoring whipstock systems in both openhole and casedhole applications. •Centralized Assembly: The 4-slip design ensures that the assembly is correctly centralized when set. •Locking Mechanism: Once pressure is bled off, the assembly remains locked in the expanded position. •Custom Configuration: Our configuration program ensures that anchor setting and release loads are tailored to suit any application. •Accidental Setting Prevention: The design prevents accidental setting while running through restrictions or poor hole conditions. Quick Configuration •Drop Ball Set: The anchor can be quickly configured for drop ball setting by removing one part, allowing cement to be pumped through the assembly.

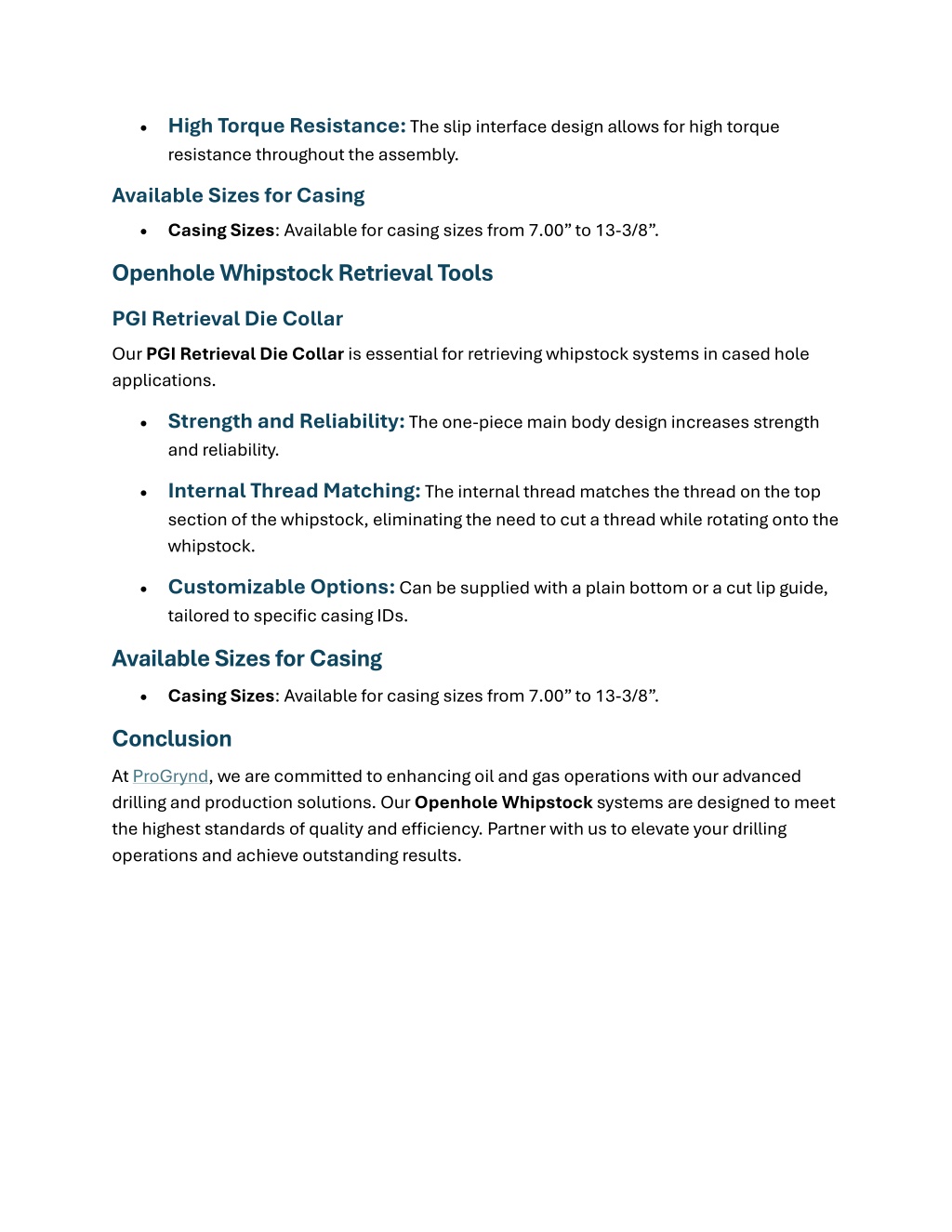

  3. •High Torque Resistance: The slip interface design allows for high torque resistance throughout the assembly. Available Sizes for Casing •Casing Sizes: Available for casing sizes from 7.00” to 13-3/8”. Openhole Whipstock Retrieval Tools PGI Retrieval Die Collar OurPGI Retrieval Die Collaris essential for retrieving whipstock systems in cased hole applications. •Strength and Reliability: The one-piece main body design increases strength and reliability. •Internal Thread Matching: The internal thread matches the thread on the top section of the whipstock, eliminating the need to cut a thread while rotating onto the whipstock. •Customizable Options: Can be supplied with a plain bottom or a cut lip guide, tailored to specific casing IDs. Available Sizes for Casing •Casing Sizes: Available for casing sizes from 7.00” to 13-3/8”. Conclusion At ProGrynd, we are committed to enhancing oil and gas operations with our advanced drilling and production solutions. OurOpenhole Whipstocksystems are designed to meet the highest standards of quality and efficiency. Partner with us to elevate your drilling operations and achieve outstanding results.
