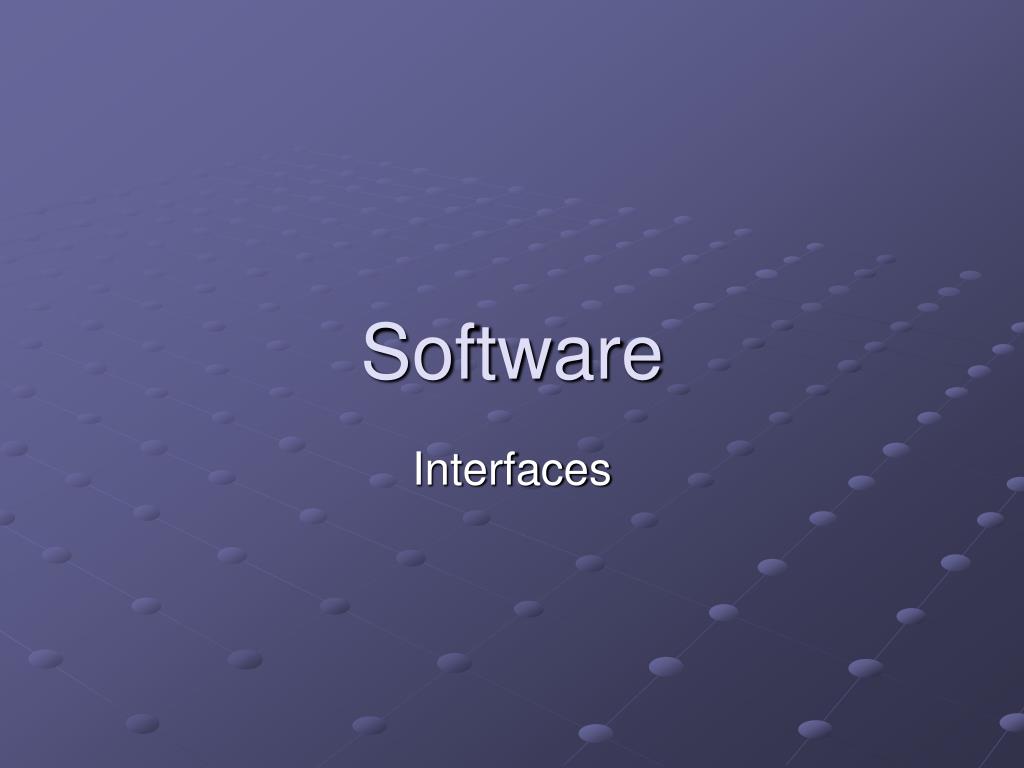

  1. Software Interfaces

  2. Learning Objectives • Describe the characteristics of different types of user interfaces. • Discuss the types of user interfaces which make them appropriate for use by different types of users.

  3. Human Computer Interface (HCI) / User Interface (UI) • The means by which the human and the computer communicate.

  4. Human Computer / User Interfaces Menu-Based Form -Based Graphical User Interface (GUI) Windows Icons Mouse Pointer (WIMP) Natural Language Command Line Interface (CLI) Windows, Apple Mac, Linux DOS Key: e.g. Click each box for information about each UI. http://www.teach-ict.com/as_a2/topics/user_interfaces/as_userinterface/index.htm

  5. Graphical User Interface (GUI) http://www.teach-ict.com/as_a2/topics/user_interfaces/as_userinterface/gui.htm • Most popular today is WIMP (windows, icons, menus, pointer). • View different applications or files in windows. • Use some sort of pointing device to select options in menus and small pictures (icons).

  6. Uses of GUI • Non-experienced user Justifications Largely intuitive and only requires a little knowledge of how a computer actually works. It is possible to restrict access to certain parts of the system. Back

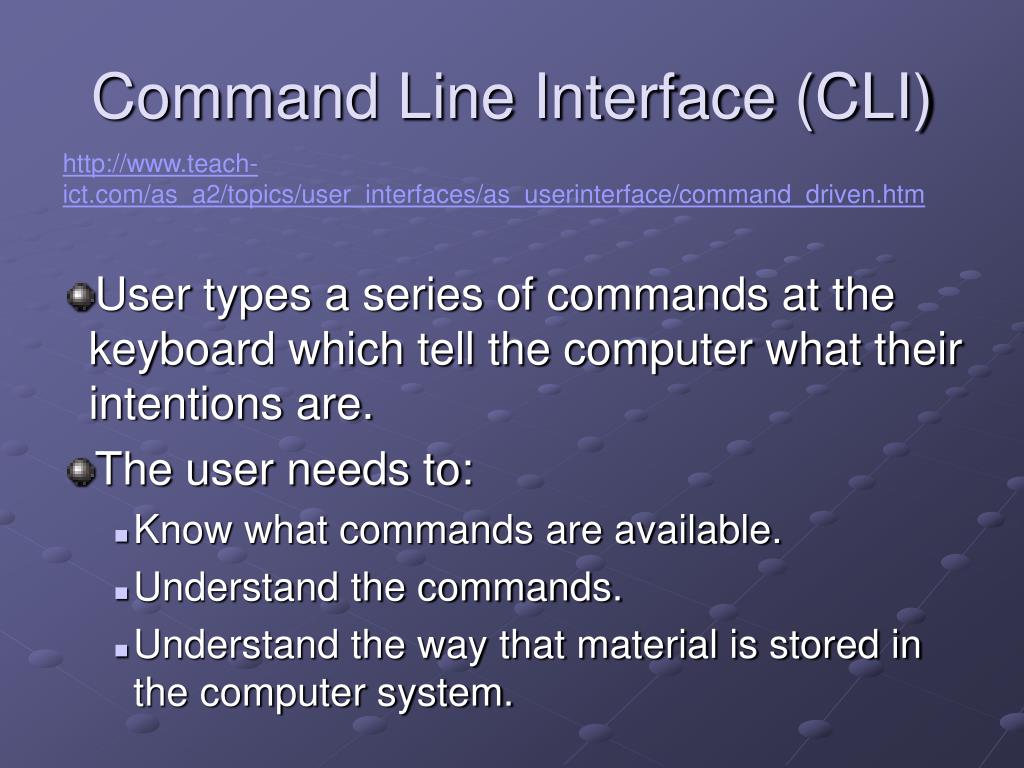

  7. Command Line Interface (CLI) http://www.teach-ict.com/as_a2/topics/user_interfaces/as_userinterface/command_driven.htm • User types a series of commands at the keyboard which tell the computer what their intentions are. • The user needs to: • Know what commands are available. • Understand the commands. • Understand the way that material is stored in the computer system.

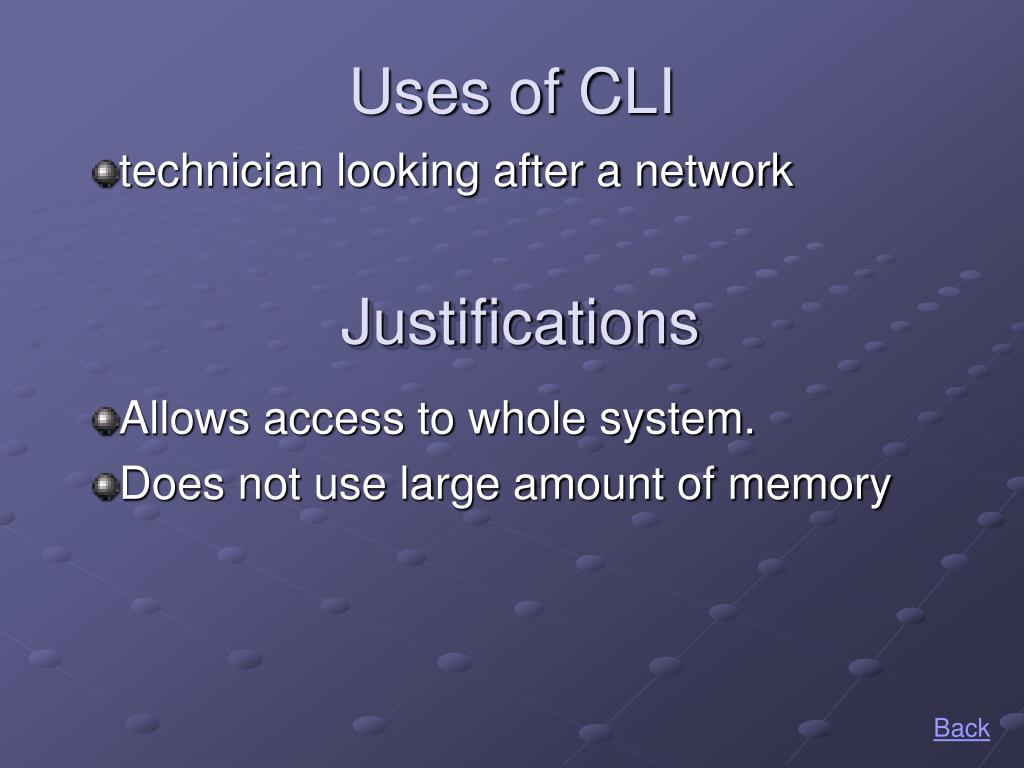

  8. Uses of CLI • technician looking after a network Justifications Allows access to whole system. Does not use large amount of memory Back

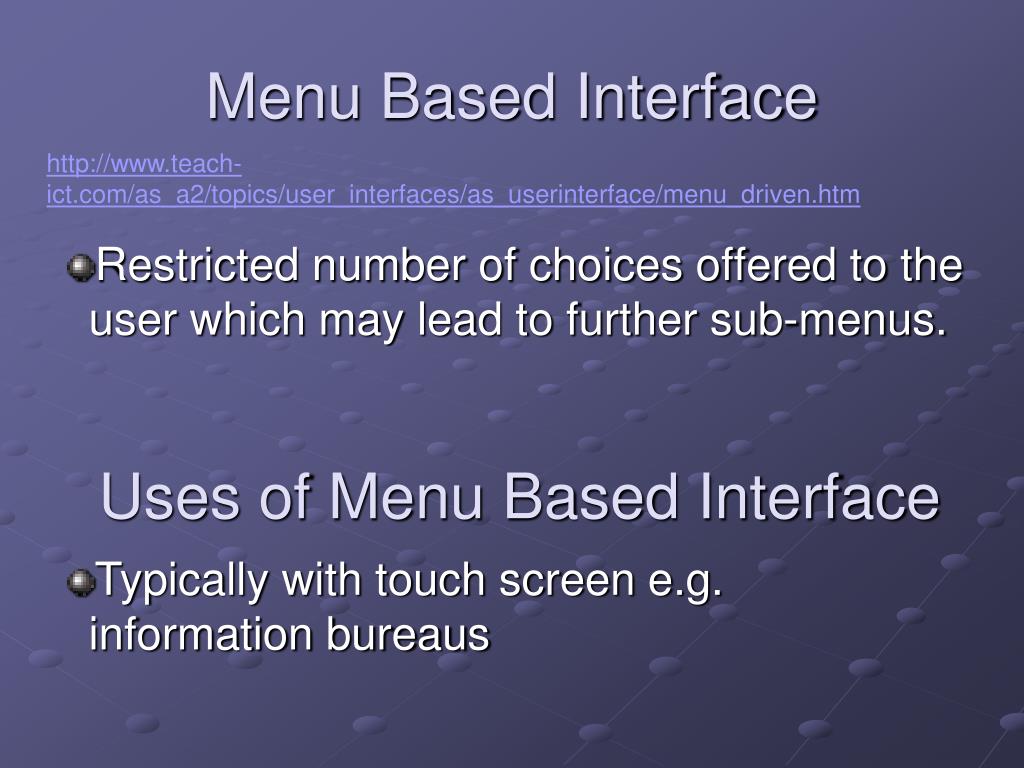

  9. Menu Based Interface http://www.teach-ict.com/as_a2/topics/user_interfaces/as_userinterface/menu_driven.htm • Restricted number of choices offered to the user which may lead to further sub-menus. Uses of Menu Based Interface Typically with touch screen e.g. information bureaus

  10. Justifications • Easy to use and very intuitive (even for non-computer users), requires almost no knowledge of how a computer actually works. • Limits user to choices required by the data structure • Easy to test, administer and change • Restricts access to computer system • Helps customers to determine what they want because choices are given at each stage. Back

  11. Natural Language • http://www.teach-ict.com/as_a2/topics/user_interfaces/as_userinterface/language.htm • A translator works out the general meaning of the sentence by first understanding the keywords and then, from their positions in a sentence, works out the syntax. • It then searches for the keywords and syntax in a database to provide appropriate responses or outputs . • Use: Search engine or expert system. Back

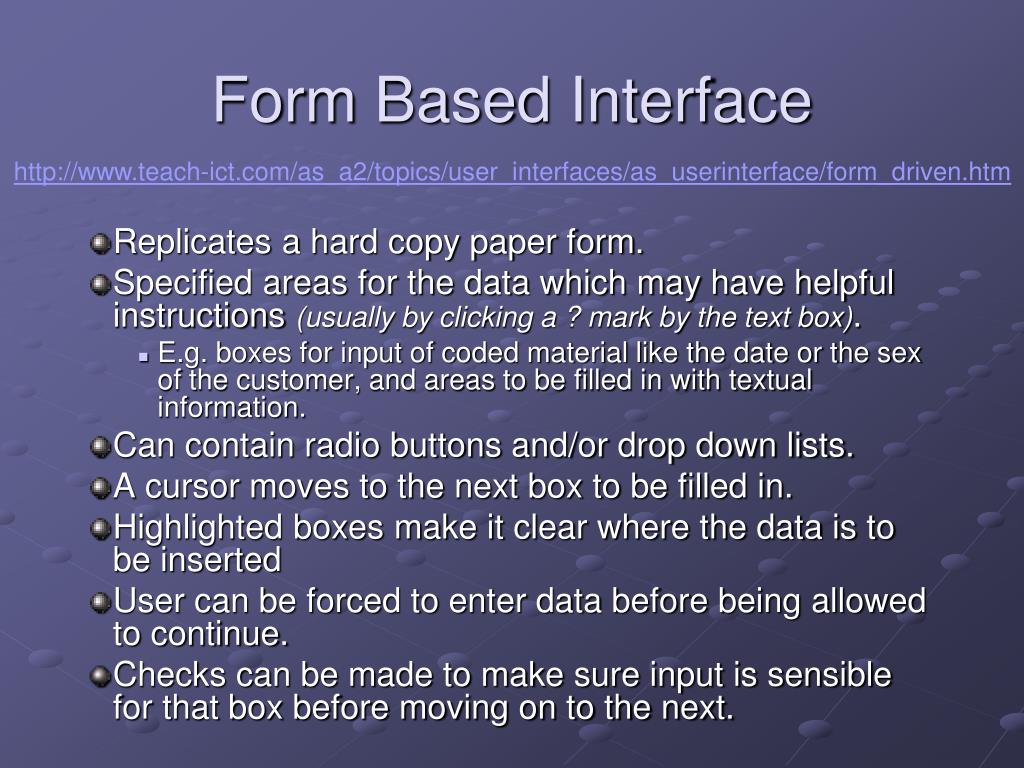

  12. Form Based Interface http://www.teach-ict.com/as_a2/topics/user_interfaces/as_userinterface/form_driven.htm • Replicates a hard copy paper form. • Specified areas for the data which may have helpful instructions (usually by clicking a ? mark by the text box). • E.g. boxes for input of coded material like the date or the sex of the customer, and areas to be filled in with textual information. • Can contain radio buttons and/or drop down lists. • A cursor moves to the next box to be filled in. • Highlighted boxes make it clear where the data is to be inserted • User can be forced to enter data before being allowed to continue. • Checks can be made to make sure input is sensible for that box before moving on to the next.

  13. Uses of Form Based Interface • telephone sales, order forms Justifications User can be forced to enter data in a predetermined order Does not allow information to be missed out Simple to use and easy to validate data Back

  14. Plenary • What is a or human computer interface or user interface? • The means by which the human and the computer communicate.

  15. Plenary • Describe the following types of user interface. For each type of interface give a suitable use, justifying your answer in each case.

  16. Plenary • Form-based • Prompts operator for inputs / Specified areas for the data / Data entered in order / in format • Operator taking information over phone • Does not allow information to be missed out / simple to use • Graphical User Interface (GUI) • Icons used to stand for options/when selected, command code is run/normally accessed by use of mouse or other pointing device / WIMP • Non-experienced user / child in school • Restricts access to certain parts of the system

  17. Plenary • Command line • Set of commands recognised by the OS / typed in at prompt/need to be learned by user • Technician • Allows access to whole system / does not use large amount of memory • Menu based • Restricted number of choices offered to the user which may lead to further sub-menus. • Typically with touch screen e.g. information bureaus • Helps customers to determine what they want because choices are given at each stage.
