the need of architecture analogy 1 the winchester mystery house

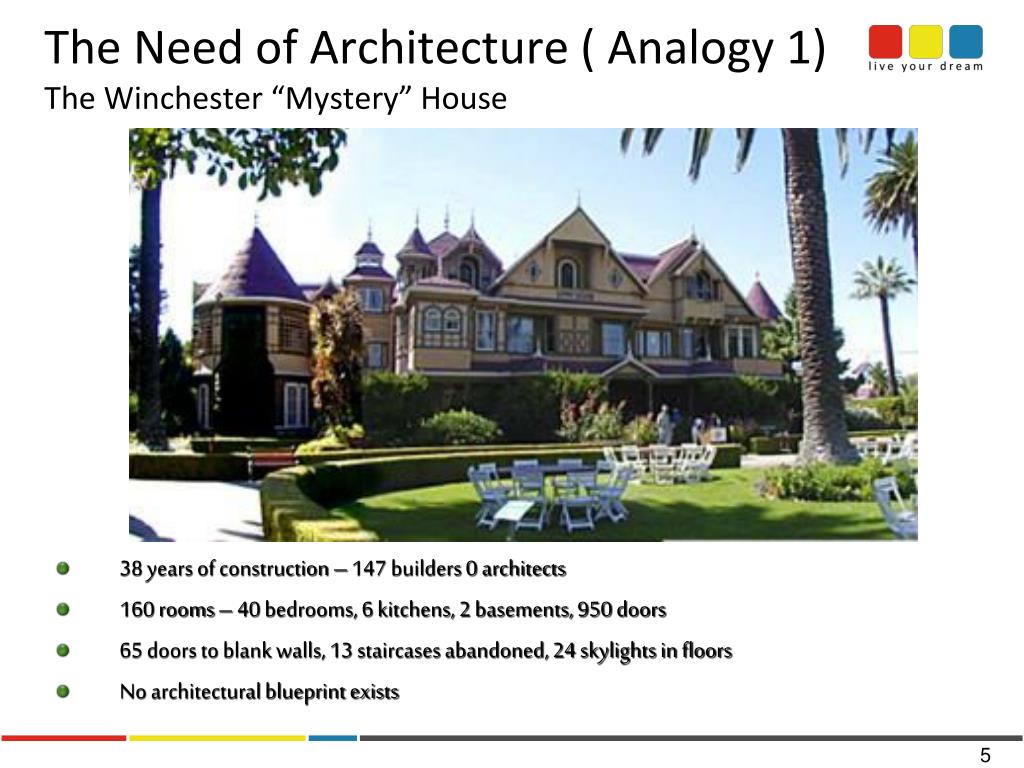

The Need of Architecture ( Analogy 1)The Winchester “Mystery” House

38 years of construction – 147 builders 0 architects

160 rooms – 40 bedrooms, 6 kitchens, 2 basements, 950 doors

65 doors to blank walls, 13 staircases abandoned, 24 skylights in floors

No architectural blueprint exists

construction analogy 2
Construction Analogy 2

Architecting a house

Built most efficiently and timely by a team

Requires

Architecture

Well-defined process

Power tools

Can be built by one person

Requires

Minimal Architecture

Simple process

Simple tools

Can be built by multiple teams/partners

Heavy duty Architecture

Complex process

Sophisticated costly tools

Architecting a high rise

d ifferences
Differences
  • Scale
  • Process
  • Cost
  • Schedule
  • Skills and development teams
  • Materials and technologies
  • Stakeholders
  • Risks
architecture definition
Architecture definition

Design definition

Design is structure/behavior of a module.

Process structure

UI structure

Logic structure

Data access structure

Data structure

car analogy

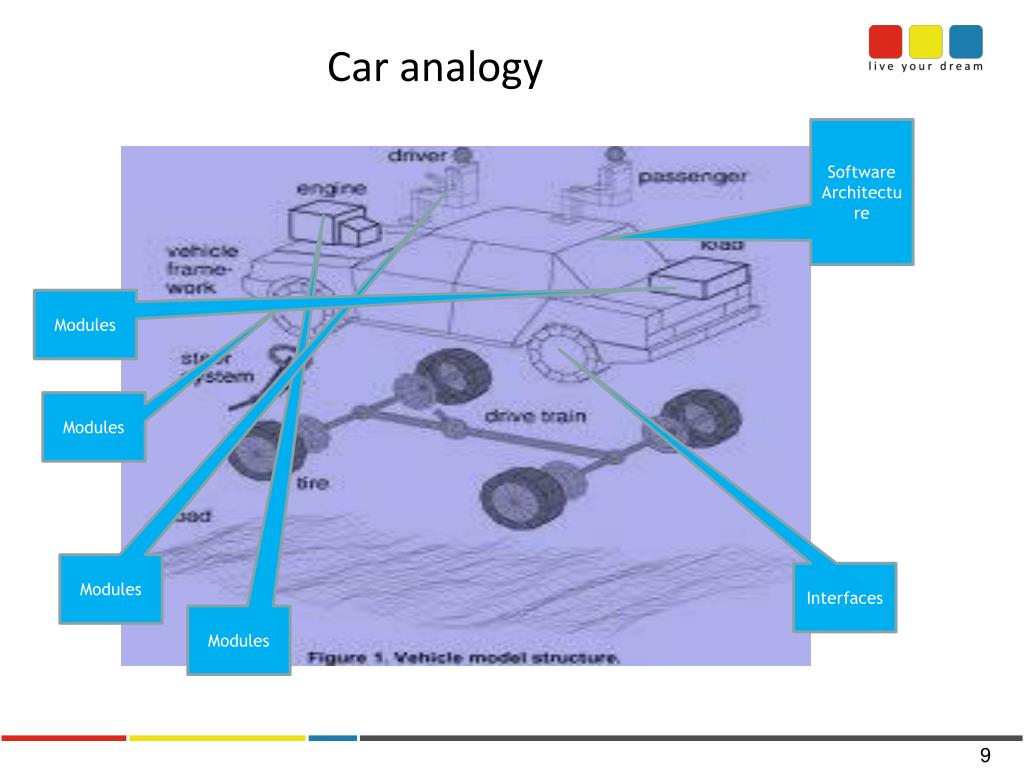

Car analogy

Software

Architecture

Modules

Modules

Modules

Interfaces

Modules

architecture scope
Architecture scope
  • Navigation structure
  • Page structure
    • Maintenance
    • Transactions
    • Report
  • Validation structure – consolidation of client side validations across the system
  • Logging structure – What information need to be logged at a process level, layer level, module level
  • Exception handling structure – System /process/layer level exceptions
  • Use case/processs flow structure ( Presentation to business logic to data access layer)
  • Identification of unique use case flows.
  • Design patterns that we need to use?
  • Deployment decisions
  • Architectural style ( client/server, web , soa etc., )
  • Layering decision ( How many layers, responsibility of each layer, Layer interfaces etc., )
  • Business objects representation ( EJB, Pojo, etc., )
  • Database usage ( data repository only or data repository + business logic)
  • Database access layer structure
  • Security structure ( authentication, authorization, audit etc., )

Template

Pages

design scope
Design Scope
  • Internal structure/behavior of each module
  • Concrete UI pages design
  • Algorithms design
  • Class design based on SRP ( Single responsibility principle)
here s the point

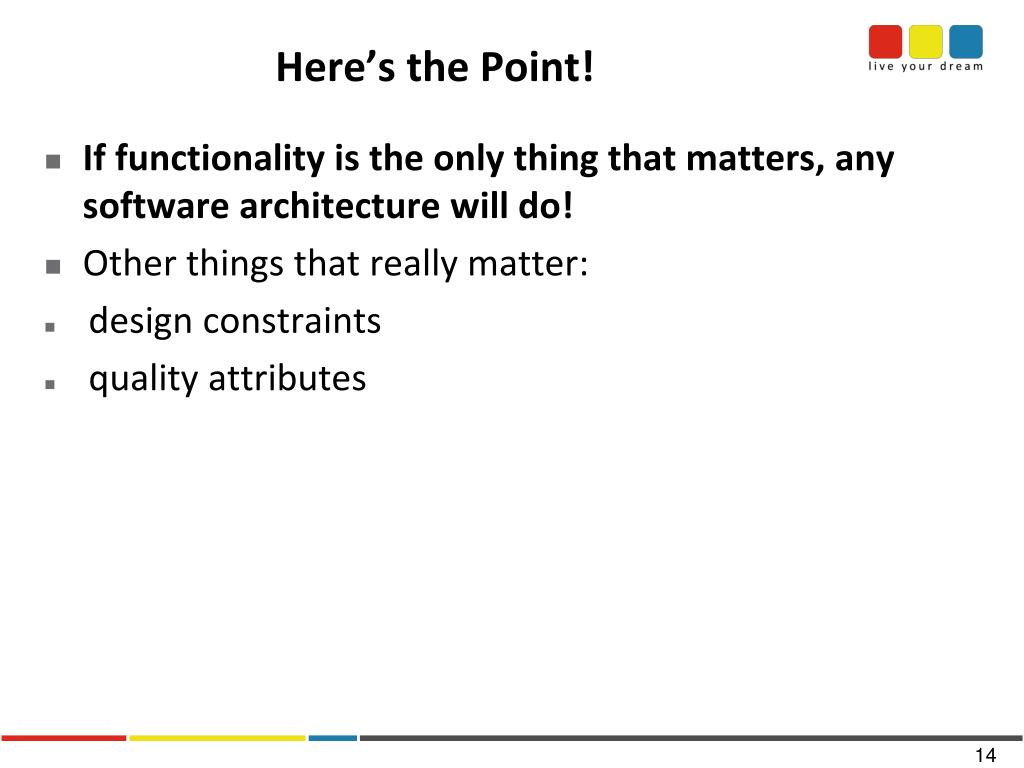

Here’s the Point!
  • If functionality is the only thing that matters, any software architecture will do!
  • Other things that really matter:
  • design constraints
  • quality attributes
